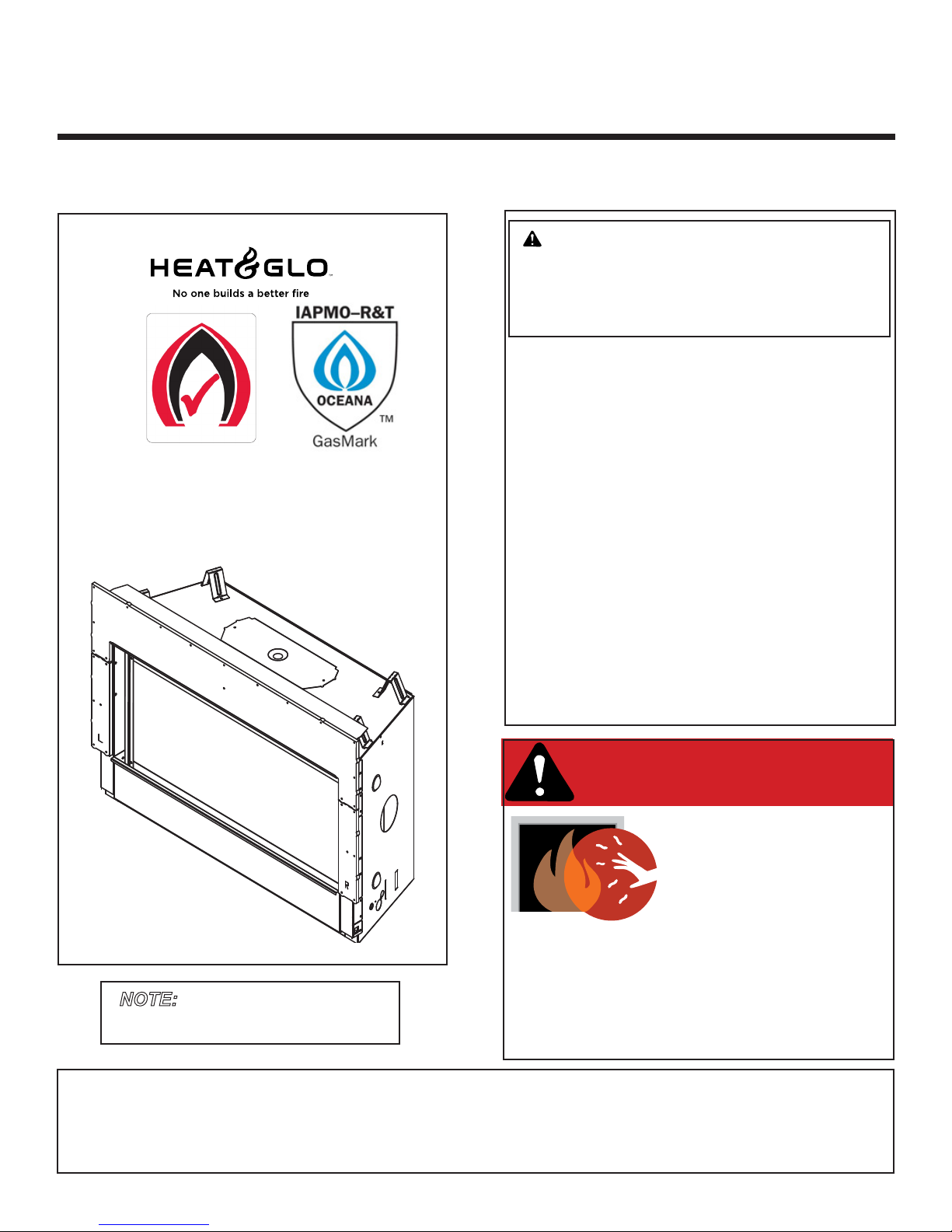

Heat & Glo SLR-X-AU User manual

1
Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev B • 12/17
Models:
Installation Manual
Installation and Appliance Setup
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT discard this manual!
• DO NOT store or use gasoline or other am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
- If you cannot reach your gas supplier, call
the re department.
• Installation and service must be performed
by a qualied installer, service agency, or the
gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
SLR-X-AU
NOTE: NOT INTENDED FOR
FIREPLACE INSERT.
Ref No: GMK10477
AS/NZS 5263.1.3.2016
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
DO NOT MODIFY THIS APPLIANCE.

2Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev. B • 12/17
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Table of Contents
Installation Standard Work Checklist ....................3
1 Product Specic and Important Safety Information
A. Appliance Certication ............................4
B. Glass Specications ..............................4
C. Gas Pressure Requirements .......................4
D. High Altitude Installations ..........................5
E. Non-Combustible Materials Specication. . . . . . . . . . . . . . 5
F. Combustible Materials Specication ................. 5
G. Electrical Codes .................................5
2 Getting Started
A. Design and Installation Considerations ............... 6
B. Good Faith Wall Surface/TV Guidelines ..............6
C. Tools and Supplies Needed ........................6
D. Inspect Appliance and Components ..................7
3 Framing and Clearances
A. Appliance/Decorative Front Dimension Diagrams .......8
B. Clearances to Combustibles ......................10
C. Constructing the Appliance Chase ..................12
4 Termination Location and Vent Information
A. Vent Termination Minimum Clearances .............. 13
B. Chimney Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
C. Approved Pipe .................................15
D. Use of Elbows ................................. 15
E. Measuring Standards ............................16
F. Vent Diagrams ................................. 17
5 Vent Clearances and Framing
A. Pipe Clearances to Combustibles ..................27
B. Wall Penetration Framing/Firestops .................27
C. Ceiling Firestop/Floor Penetration Framing ...........28
D. Install Attic Insulation Shield .......................28
6 Appliance Preparation
A. Vent Collar Preparation .......................... 29
B. Installing the Optional Heat-Zone®-240V Kit .......... 29
C. Securing and Leveling the Appliance ................30
D. Non-Combustible Material Installation ...............31
7 Venting and Chimneys
A . Assemble Vent Sections .........................32
B. Assemble Slip Sections ..........................33
C. Secure the Vent Sections .........................33
D. Disassemble Vent Sections .......................34
E. Vertical Termination Requirements ..................35
F. Horizontal Termination Requirements ............... 36
8 Electrical Information
A. General Information .............................38
B. Wiring Requirements ............................39
9 Gas Information
A. Fuel Conversion ................................40
B. Gas Pressure ..................................40
C. Gas Service Access .............................40
D. Gas Connection ................................42
E. High Altitude Installations ......................... 42
F. Air Shutter Setting ..............................42
10 Finishing
A. Facing Materials ................................43
B. Non-Combustible Board and Drywall Installation ....... 44
C. Mantel and Wall Projections .......................46
D. Decorative Front Finishing ........................48
11 Appliance Setup
A. Remove Fixed Glass Assembly ....................50
B. Remove the Shipping Materials ...................50
C. Clean the Appliance .............................50
D. Install the Refractory (Optional) ...................50
E. Install Media Option .............................51
F. Install Fixed Glass Assembly ...................... 51
G. Install Fan Brackets .............................52
H. Install Decorative Front ..........................52
12 Reference Materials
A. Vent Components Diagrams ......................53
B. Accessories ...................................57
 = Contains updated information.

3
Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev B • 12/17
Installation Standard Work Checklist
Customer:
Lot/Address:
Model (circle one): SLR-X-AU
Date Installed:
Location of Fireplace:
Installer:
Dealer/Distributor Phone #
Serial #:
Comments: Further description of the issues, who is responsible (Installer/ Builder/ Other Trades, etc) and corrective
action needed _____________________________________________________________________________________
_________________________________________________________________________________________________
_________________________________________________________________________________________________
Comments Communicated to party responsible ____________________ by ______________________on ___________
(Builder / Gen. Contractor/) (Installer) (Date)
Appliance Install YES IF NO, WHY?
Verifi ed that the chase is insulated and sealed. (Pg. 12) ___________________________
Required non-combustible board is installed. (Pg. 30) ___________________________
Verifi ed clearances to combustibles. (Pg. 10) ___________________________
Fireplace is leveled and secured. (Pg. 30) ___________________________
Venting/Chimney Section 7 (Pg 32-37)
Venting confi guration complies to vent diagrams. ___________________________
Venting installed, locked and secured in place with proper clearance. ___________________________
Firestops installed. ___________________________
Attic insulation shield installed. ___________________________
Exterior wall/Roof fl ashing installed and sealed. ___________________________
Terminations installed and sealed. ___________________________
Electrical Section 8 (Pg 38-39)
Unswitched power (220-240 VAC) provided to the appliance. ___________________________
Switch wires properly installed. ___________________________
Gas Section 9 (Pg 40-42)
Proper appliance for fuel type. ___________________________
Was a conversion performed? ___________________________
Leak check performed and inlet pressure verifi ed. ___________________________
Verifi ed proper air shutter setting for installation type. ___________________________
Finishing Section 10 (Pg 43-49)
Combustible materials not installed in non-combustible areas. ___________________________
Verifi ed all clearances meet installation manual requirements. ___________________________
Mantels and wall projections comply with installation manual requirements. ___________________________
Appliance Setup Section 11 (Pg 50-51)
All packaging and protective materials removed (inside & outside of appliance). ___________________________
Media and optional logs, and glass refractory installed correctly. ___________________________
Fan defl ector brackets installed and Glass assembly installed and secured. ___________________________
Accessories installed properly. ___________________________
Mesh, doors, or decorative front properly installed. ___________________________
Manual bag and all of its contents are removed from inside/under
the appliance and given to party responsible for use and operation. ___________________________
Started appliance and verifi ed no gas leaks exist. ___________________________
2493-982B 12/17
= Contains updated information.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your fi le.
• That this checklist remain visible at all times on the appliance until the installation is complete.
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this
installation manual.
WARNING! Risk of Fire or Explosion! Failure to install appliance according to these instructions could
lead to a fi re or explosion.
ATTENTION INSTALLER:
Follow this Standard Work Checklist

4Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev. B • 12/17
B. Glass Specications
This appliance is equipped with 5 mm ceramic glass. Re-
place glass only with 5 mm ceramic glass. Please contact
your dealer for replacement glass.
A. Appliance Certication
NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemen-
tal room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
1 Product Specic and Important Safety Information
C. Gas Pressure Requirements
Pressure requirements for SLR-X-AU replaces are
shown in table below.
Two taps are provided on the right hand side of the gas
control for a test gauge connection to measure the inlet
and outlet pressures.
The replace and its individual shut-off valve must be dis-
connected from the gas supply piping system during any
pressure testing of the system at test pressures in excess
of 3.4 kPa.
If the replace must be isolated from the gas supply pip-
ing system by closing an individual shut-off valve, it must
be of the handle-less type.
* The allowable Outlet (Manifold) Gas Pressure ranges are: Natural Gas .80 - .95 kPa and ULPG 2.37 - 2.61 kPa.
MODEL: SLR-X-AU
LABORATORY: IAMPO OCEANA
TYPE: Direct Vent Heater
STANDARD: AS/NZS 5263.1.3:2016
Natural Gas Propane Butane
Inlet Gas Pressure 1.13 - 3.40 kPa 2.75 - 3.40 kPa 2.75 - 3.40 kPa
* Outlet (Manifold) Gas Pressure .87 kPa 2.40 kPa 2.40 kPa
Gas Rate .405 m3/h.134 m3/h.111 m3/h
Maximum Gas Consumption 31.65 MJ/h 27.43 MJ/h 25.30 MJ/h
Burner Injector #37 DMS (2.64 mm) #53 DMS (1.51 mm) .057 DMS (1.45 mm)
Pilot Injector Ø .023 (.584 mm) Ø .014 (.356 mm) Ø .010 (.254 mm)
The Heat & Glo gas appliances discussed in this Installer’s
Guide have been tested to certication standards and listed
by the applicable laboratories.
This appliance must be installed in accordance with the
rules in force.
Gas types only through eld conversions.

5
Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev B • 12/17
D. High Altitude Installations
NOTICE: If the heating value of the gas has been reduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 ft. (610 m) elevation:
Reduce input rate 4% for each 1000 ft. (305 m) above
2000 ft. (610 m).
E. Non-Combustible Materials Specication
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 ºC (1382 °F) shall be con-
sidered non-combustible materials.
F. Combustible Materials Specication
Materials made of or surfaced with wood, compressed pa-
per, plant bers, plastics, or other material that can ignite
and burn, whether ame proofed or not, or plastered or
unplastered shall be considered combustible materials.
G. Electrical Codes
All electrical safety testing has been done following the EN
60335-2-102 standard. Local codes apply.

6Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev. B • 12/17
2 Getting Started
A. Design and Installation Considerations
Heat & Glo direct vent gas appliances are designed to
operate with all combustion air siphoned from outside of
the building and all exhaust gases expelled to the outside.
No additional outside air source is required.
Installation MUST comply with local, regional, state and
national codes and regulations. Consult insurance carrier,
local building inspector, re ofcials or authorities having
jurisdiction over restrictions, installation inspection and
permits.
Before installing, determine the following:
• Where the appliance is to be installed.
• The vent system conguration to be used.
• Gas supply piping.
• Electrical wiring requirements.
• Framing and nishing details.
• Whether optional accessories—devices such as a wall
switch or remote control—are desired.
C. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure Framing material
Pliers Non-corrosive leak check solution
Hammer Phillips screwdriver
Gloves Framing square
Voltmeter Electric drill and bits (1/4 in. (6 mm)
Plumb line Safety glasses
Level Reciprocating saw
Manometer Flat blade screwdriver
1/2 - 3/4 in.(13-19 mm) length, #6 or #8 Self-drilling
screws
Caulking material (300 ºF (149 ºC) minimum continuous
exposure rating)
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualied
service technician, service agency or your dealer.
B. Good Faith Wall Surface/TV Guidelines
Installation and service of this appliance should be performed by
qualied personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certied professionals.

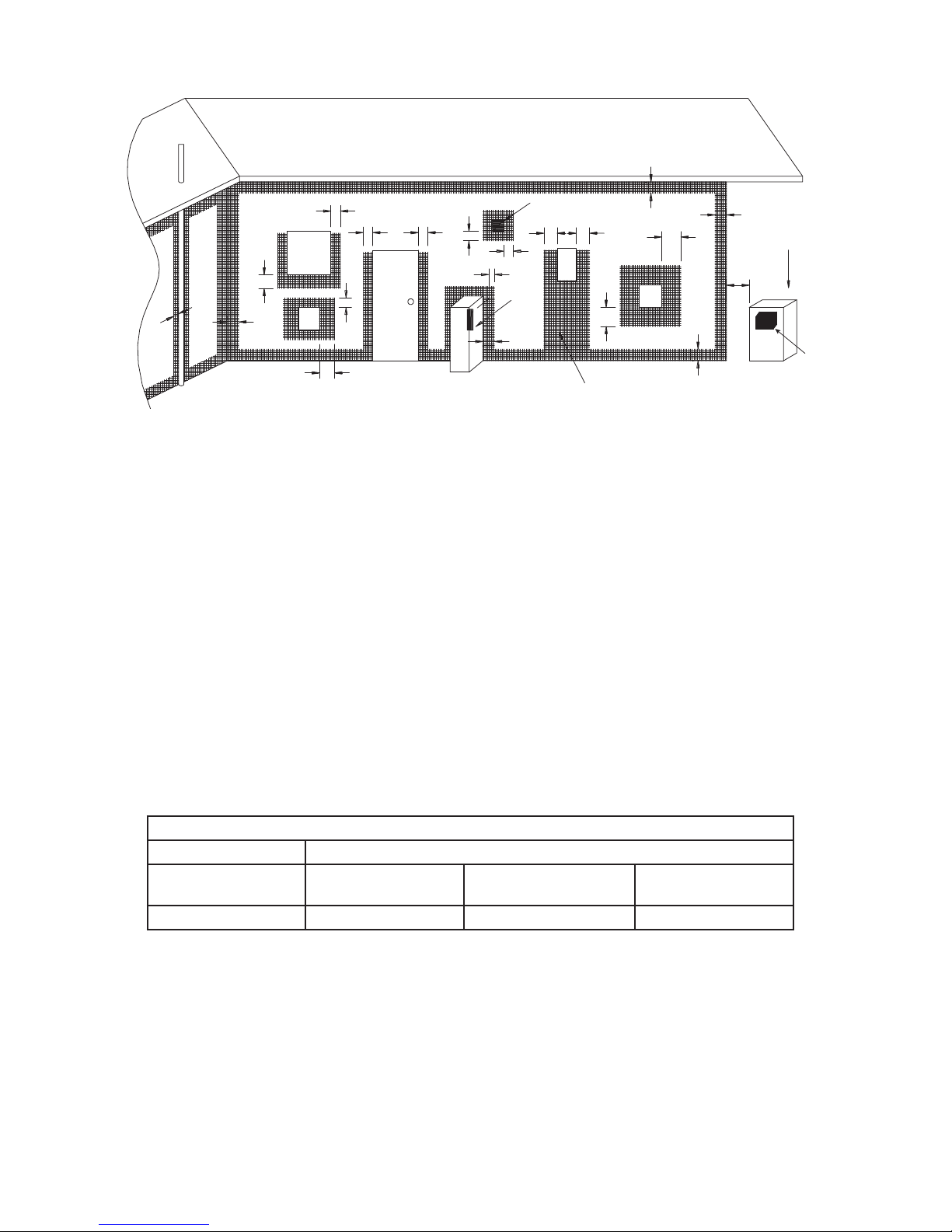

Figure 2.1 Good Faith Wall Surface Temperatures Above Appliance
MEASUREMENTS FROM
TOP EDGE OF THE OPENING
6 in.
18 in.
24 in.
30 in.
36 in.
48 in.
TO CEILING
42 in.
12 in.
194 °F
APPLIANCE FRONT
FIREPLACE
OPENING
142°F
119°F
110°F
105°F
101°F
98°F
95°F
(90 °C)
(61 °C)
(48 °C)
(43 °C)
(41 °C)
(38 °C)
(37 °C)
(35 °C)
(152 mm)
(305 mm)
(457 mm)
(610 mm)
(762 mm)
(914 mm)
(1067 mm)
(1219 mm)
NOTICE: Temperatures listed above are taken with a
temperature measuring probe as prescribed by the test
standard used for appliance certication. Temperatures
on walls or mantels taken with an infrared thermometer
may yield increased temperatures of up to 30 ºF (17 ºC) or
more depending on the thermometer settings and material
characteristics being measured. Use appropriate nishing
materials that are able to withstand these conditions. For
additional nishing guidelines, see Section 10.
If installing a television (TV) above the appliance, see
Section 3 of the appliance Owner’s Manual.

7
Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev B • 12/17
D. Inspect Appliance and Components
• Carefully remove the appliance and components from
the packaging.
• The vent system components and decorative doors and
fronts may be shipped in separate packages.
• If packaged separately, the media, refractory, and/or
optional log kits must be installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
•Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benet.
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged, in-
complete or substitute components. Keep appliance dry.
Hearth & Home Technologies disclaims any responsibility
for, and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modication of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
Any such action may cause a re hazard.
WARNING! Risk of Fire, Explosion or Electric Shock!
DO NOT use this appliance if any part has been under
water. Call a qualied service technician to inspect the
appliance and to replace any part of the control system
and/or gas control which has been under water.

8Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev. B • 12/17
3 Framing and Clearances
A. Appliance/Decorative Front Dimension Diagrams
Dimensions are actual appliance dimensions. Use for reference only.
For framing dimensions and clearances refer to Section 5.

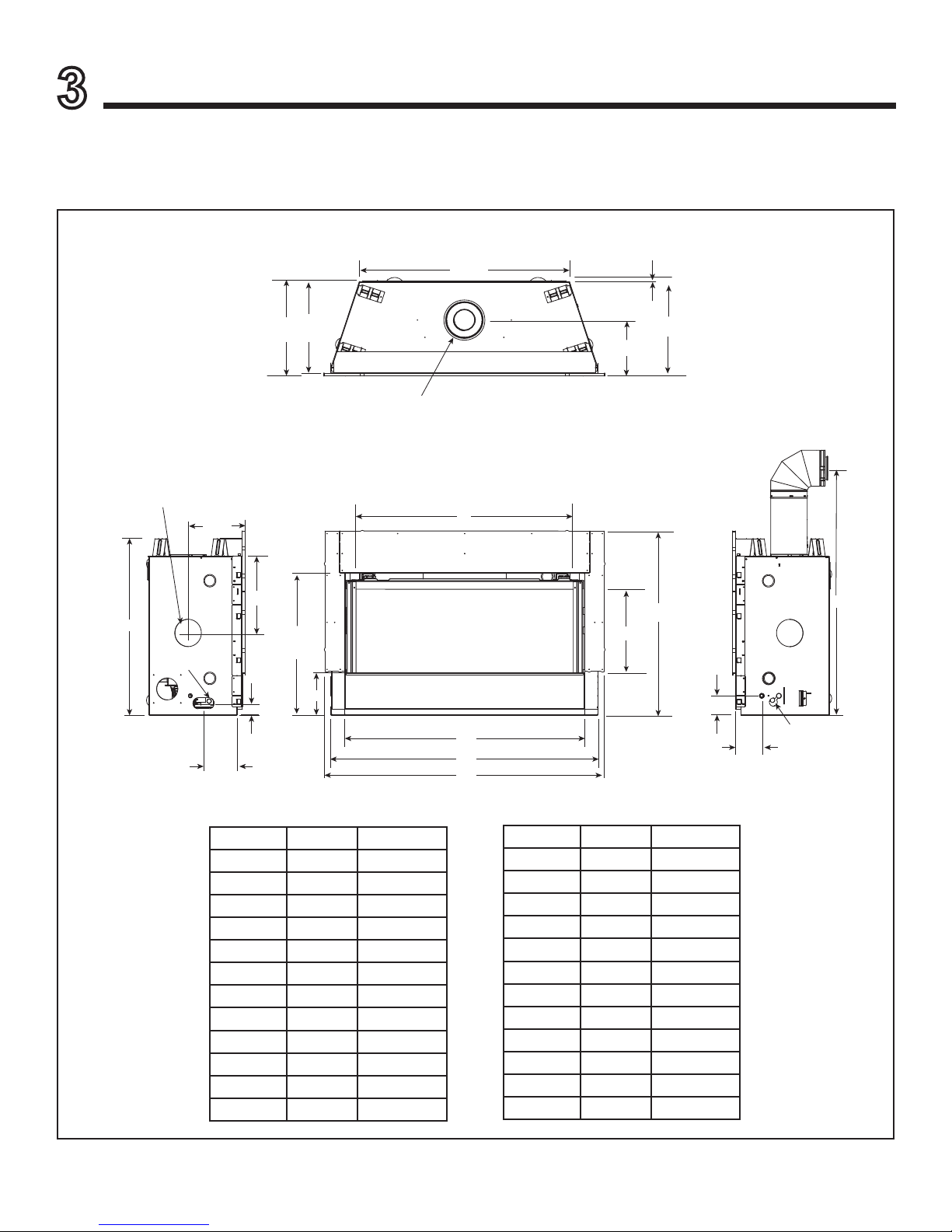

Figure 3.1 Appliance Dimensions
Appliance Dimensions Table
O
GAS LINE
ACCESS
ELECTRICAL
ACCESS
Q
LEFT VIEW
P
C
S
FRONT VIEW
A
B
T
D
E
G
RIGHT VIEW
F
H
I
J
K
N
Ø
M
R
L
U
Ø
HEAT-ZONE®-240V ACCESS
V
W
TOP VIEW
X
Location Inches Millimeters
M 16-3/4 425
N6-5/8 168
O32-3/8 822
P 2-3/16 56
Q 6 152
R17-1/4 438
S25-7/8 657
T50-1/2 1283
U 5 127
V14 356
W10-5/8 270
X 7-3/4 197
Location Inches Millimeters
A 48 1219
B 43 1092
C39-1/16 992
D15-1/4 387
E33-11/16 856
F 3-1/2 89
G 7 178
H47-1/16 1195
I9-13/16 249
J 17-3/4 451
K 1/2 13
L37-3/4 959

9
Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev B • 12/17
CFT DECORATIVE FRONTS
A B C D E FG
SLR-X-AU CFT-42 in. 40-3/16 14-1/8 45-1/8 6-7/8 9-13/16 20 26-7/8
mm 1021 359 1146 175 249 508 683
D
G
E
C
B
A
F
Dimensions are actual decorative front dimensions. Use for reference only.
Figure 3.2 Decorative Front Dimensions - CFT

10 Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev. B • 12/17

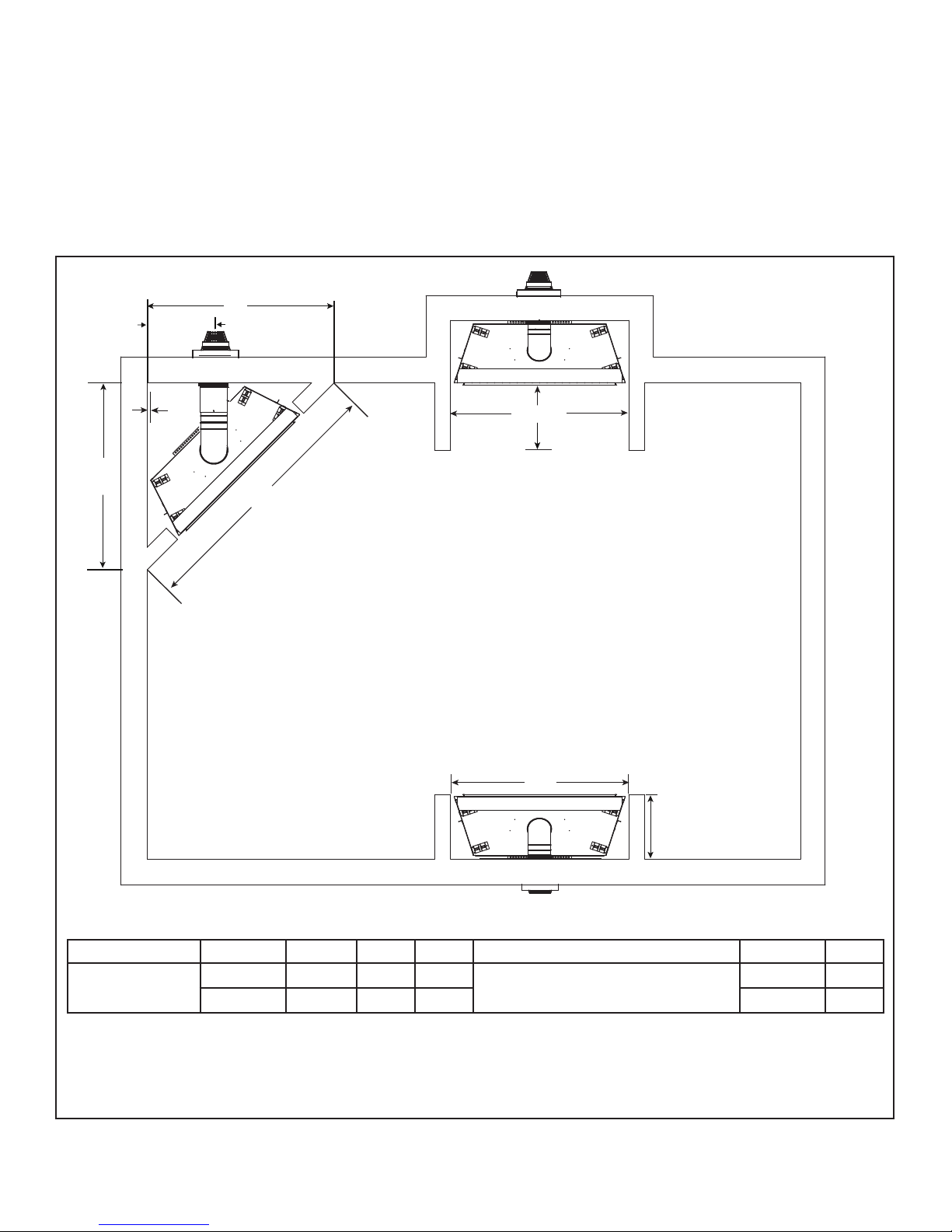

B. Clearances to Combustibles
When selecting a location for the appliance it is important
to consider the required clearances to walls. See Figure
3.4.
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be lo-
cated out of trafc and away from furniture and draperies.
NOTICE: Illustrations reect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale. Actual installation could vary due
to individual design preference.
It is important to follow the framing and nishing instruc-
tions step by step to ensure proper placement of replace
in the surrounding framing/nishing materials.
1/2 IN.
A
E
A
CTOP VENT
ONE 900ELBOW
ALCOVE
INSTALLATION
D*
TOP VENT
ONE 90° ELBOW
B
F
Refer to Section 10.C for mantel and wall
projection information.
Consider the mantel or cabinet system to be
installed and comply with the necessary
requirements for elevated hearth. Refer to
instructions included with cabinet system.
(13 mm)
A B C D E F
SLR-X-AU Inches 50-1/2 49 71-1/2 See Section 10.B for Alcove Installation. 19-1/2 17-1/4
Millimeters 1283 1245 1816 495 438
Figure 3.3 Appliance Locations

11
Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev B • 12/17
* Adjust framing dimensions for interior sheathing (such as sheetrock)
A
B
C
D
KING STUD
JACK (TRIMMER) STUD
HEADER: TWO 2 X 4’S OR 2 X 6’S
(610 x 1219 mm or 610 x 1829 mm)
INSTALLED ON END
*MINIMUM FRAMING DIMENSIONS
Models
A B C D E F G H I J
Rough
Opening
(Vent Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Clearance
to Ceiling
Combustible
Floor
Combustible
Flooring
Behind
Appliance
Sides of
Appliance
Front of
Appliance
SLR-X-AU in. 8-5/8 33-1/8 17-3/4 49 31 0 0 1/2 1/2 36
mm 219 841 451 1245 787 0 0 13 13 914
Figure 3.4 Clearances to Combustibles
F
J
G
I
H
E
MEASURE FROM TOP
OF APPLIANCE OPENING
Framing
This appliance is designed to be recessed into combus-
tible framing with non-combustible material pre-installed
on top and side. Drywall or combustible materials (mini-
mum 1/2 in. (13 mm) thick) are designed to contact the
non-combustible material/appliance as called out in Sec-
tion 10 Finishing.
This appliance has been thoroughly tested to minimize
drywall cracking and/or the protrusion of screws “screw
pops" when framed as shown above.
Framing should be done in a manner similar to framing
a window or door: double - 2 x 4 / 2 x 6 (610 x 1219
mm / 610 x 1829 mm) as a Header for horizontal strength
and untilizing Jack or Trimmer Stud fastened to the King
Studs for vertical strength.
If elevating the appliance, the base of the unit should also
be constructed in a similar manner to prevent settling.
Note: Refer to Section 10 for important information
related to facing, drywall specications and decorative
front information.

12 Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev. B • 12/17
C. Constructing the Appliance Chase
A chase is a vertical box-like structure built to enclose the
gas appliance and/or its vent system. In cooler climates
the vent should be enclosed inside the chase.
NOTICE: Treatment of ceiling restops and wall shield
restops and construction of the chase may vary with the
type of building. These instructions are not substitutes
for the requirements of local building codes. Therefore,
you MUST check local building codes to determine the
requirements to these steps.
Chases should be constructed and insulated in the same
manner as the thermal envelope of the home based on
the code requirements for that climate zone to prevent air
leakage and draft problems. The chase is an extension of
the building thermal envelope.
To further prevent drafts and air leakage, the wall shield
and ceiling restops should be caulked with caulk with a
minimum of 300 ºF (149 ºC) continuous exposure rating
to seal gaps. Gas line holes and other openings should
be caulked with caulk with a minimum of 300 ºF (149 ºC)
continuous exposure rating or stuffed with unfaced insula-
tion. If the appliance is being installed on a cement surface, a
layer of plywood may be placed underneath to prevent con-
ducting cold up into the room.
NOTICE: Install appliance on hard metal or wood surfaces
extending full width and depth. DO NOT install directly
on carpeting, vinyl, tile or any combustible material other
than wood.
WARNING! Risk of Fire! Maintain specied air space
clearances to appliance and vent pipe:
• Insulation and other materials must be secured to prevent
accidental contact.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with replace or chimney.
• Failure to maintain airspace may cause overheating and
a re.

13
Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev B • 12/17
A. Vent Termination Minimum Clearances
Figure 4.1 Minimum Height From Roof To Lowest Discharge
Opening
4 Termination Location and Vent Information
Fire Risk.
Maintain vent clearance to combustibles as
specied.
• DO NOT pack air space with insulation or other
materials.
Failure to keep insulation or other materials away
from vent pipe could cause overheating and re.
WARNING
Figure 4.2 Staggered Termination Caps
Gas, Wood or Fuel Oil
Termination Cap
B
Gas
Termination
Cap **
A *
*
If using decorative cap cover(s), this distance may need to be
increased. Refer to the installation instructions supplied with the
decorative cap cover.
**
A B
6 in.(152 mm) (minimum)
up to 20 in. (508 mm) 18 in. (457 mm)minimum
20 in. (508 mm) and over
0 in. minimum
In a staggered installation with both gas and wood or fuel oil
terminations, the wood or fuel oil termination cap must be
higher than the gas termination cap.
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
VERTICAL
WALL
TERMINATION
CAP
HORIZONTAL
OVERHANG
305 mm
X
ROOF PITCH
IS X/ 305 mm
LOWEST
DISCHARGE
OPENING
510 mm MIN.
610 mm MIN.
Angle H (Min.) mm
0°-26.6° ..........................................................500*
26.6°-30.3° ..........................................................500*
30.3°-33.7° ..........................................................500*
33.7°-36.9° ..........................................................610*
36.9°-39.8° ..........................................................760*
39.8°-42.5° ..........................................................990
42.5°-45.0° ........................................................1220
45.0°-49.4° ........................................................1520
49.4°-53.1° ........................................................1830
53.1°-56.3° ........................................................2130
56.3°-59.0° ........................................................2290
59.0°-60.3° ........................................................2440
*910 mm minimum in snow regions

14 Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev. B • 12/17
B. Chimney Diagram
Figure 4.3 Minimum Clearances for Termination
NOTES: 1. All distances are measured vertically or horizontally along the wall to a point
in line with the nearest part of the terminal.
2. Prohibited area below electricity meter or fuse box extends to ground level.
3. Flue terminal under covered area:
a) The covered area or recess shall be open on at least two sides.
   b)Fanassistedueapplianceshallhaveatleastonesideopenandtheterminalshallbe
within 500 mm of the opening and discharging in the direction of the opening.
  4. ClearancefromaueterminaltoaLPcylindershallbeaminimumof1meter.
MINIMUM CLEARANCES REQUIRED FOR BALANCED FLUE TERMINALS
OR THE FLUE TERMINALS OF OUTDOOR APPLIANCES
T= Flue terminal M= Gas meter Shading indicates prohibited
I= Mechanical air inlet P=Electricitymeterorfusebox areasforueterminals
f
c
n
I
openable
window
j
jj
door
h
h
h
T
e e
P
T
g
k
k
db
d
M
a
c
g
See note 2
See note 3
T
a - Below eaves, balconies or other projections: MIN. CLEARANCE - in. (mm)
Appliances up to 50 MJ/h input .................................................................................... 12 (300)
Appliances over 50 MJ/h input ............................................................................... 20-1/2 (500)
b - From the ground or above a balcony............................................................................... 12 (300)
c - From a return wall or external corner......................................................................... 20-1/2 (500)
d - From a gas meter (M) ...................................................................................................... 39 (1000)
e - From an electricity meter or fuse box (P)................................................................... 20-1/2 (500)
f - From a drain or soil pipe .................................................................................................... 6 (150)
g - Horizontally from any building structure (unless appliance approved
for closer installation) or obstruction facing a terminal............................................... 20-1/2 (500)
h - Fromanyotherueterminal,cowl,orcombustionairintake .................................... 20-1/2 (500)
j - Horizontally from an openable window, door, non-mechanical air
inlet, or any other opening into a building, with the exception of
  sub-oorventilation:
Appliances up to 150 MJ/h input ............................................................................ 20-1/2 (500)
Appliances over 150 MJ/h input ................................................................................... 60 (1500)
k - Fromamechanicalairinlet,includingaspafan............................................................. 60 (1500)
n - Vertically below an openable window, non-mechanical air
inlet or any other opening into a building, with the exception of ...................................... See table
  sub-oorventilation................................................................................................................ below
CLEARANCE
Space Heaters All other appliances
Up to 50 MJ/h input Up to 50 MJ/h input Over 50 MJ/h input and
Up to 150 MJ/h input Over 50 MJ/h input
6 in. (150 mm) 20 in. (500 mm) 39 in. (1000 mm) 59 in. (1500 mm)

15
Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev B • 12/17
D. Use of Elbows
Diagonal runs have both vertical and horizontal vent as-
pects when calculating the effects. Use the rise for the
vertical aspect and the run for the horizontal aspect. See
Figure 4.4.
Two 45º elbows may be used in place of one 90º elbow.
On 45º runs, one foot of diagonal is equal to 8-1/2 in. (216
mm) horizontal run and 8-1/2 in. (216 mm) vertical run. A
length of straight pipe is allowed between two 45º elbows.
See Figure 4.4.
Figure 4.5 shows the vertical and horizontal offsets for
SLP elbows.
Figure 4.4
Horizontal
Vertical
8-1/2 in.
(216 mm)
8-1/2 in. (216 mm)
12 in.
(305 mm)
Y
X
X
X
Vent Type X
Inches Millimeters
SLP 11-1/4 286
Figure 4.5 Vertical and Horizontal Offset for SLP Elbows
Vent
Type
X Y
Inches Millimeters Inches Millimeters
SLP 5 127 11-3/4 298
SLP
Pipe
Effective Length Rise/Run
Inches Millimeters Inches Millimeters
SLP4 4 102 2-3/4 70
SLP6 6 152 4-1/4 108
SLP12 12 305 8-1/2 216
SLP24 24 610 17 432
SLP36 36 914 25-1/2 648
SLP48 48 1219 34 864
SLP6A 3 to 6 76 to 152 2-1/8-4-1/4 54-108
SLP12A 3 to 12 76 to 305 2-1/8-8-1/2 54-216
C. Approved Pipe
Approved Pipe - Rigid
This appliance is approved for use with Hearth & Home
Technologies SLP venting systems. Refer to Section
12.A for vent component information and dimensions.
DO NOT mix pipe, ttings or joining methods from differ-
ent manufacturers.
The pipe is tested to be run inside an enclosed wall.
There is no requirement for inspection openings at each
joint within the wall.
WARNING! Risk of Fire or Asphyxiation. This appli-
ance requires a separate vent. DO NOT vent to a pipe
serving a separate solid fuel burning appliance.

16 Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev. B • 12/17
E. Measuring Standards
Vertical and horizontal measurements listed in the vent
diagrams were made using the following standards:
• Pipe measurements are shown using the effective length
of pipe. See Section 12.A (Figure 12.1) for information
on effective length of pipe components.
• Horizontal terminations are measured to the outside
mounting surface (ange of termination cap) (see Figure
4.6).
• Vertical terminations are measured to top of last section
of pipe. See Figure 4.7.
• Horizontal pipe installed level with no rise.
MEASURE TO SHADED SURFACE
(OUTSIDE MOUNTING SURFACE)
Figure 4.6 Measure to Outside Mounting Surface
Figure 4.7 Measure to Top of Last Section of Pipe

17
Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev B • 12/17
F. Vent Diagrams
Figure 4.8 Vent Cap
1/4 in. max.
(6 mm)
General Rules:
• Elbows may be placed back to back anywhere in the
system.
• Any 90º elbow may be replaced with two back to back
45º elbows.
• When penetrating a combustible wall, a wall shield
restop must be installed.
• When penetrating a combustible ceiling, a ceiling restop
must be installed.
• Horizontal runs of vent do not require vertical rise;
horizontal runs may be level.

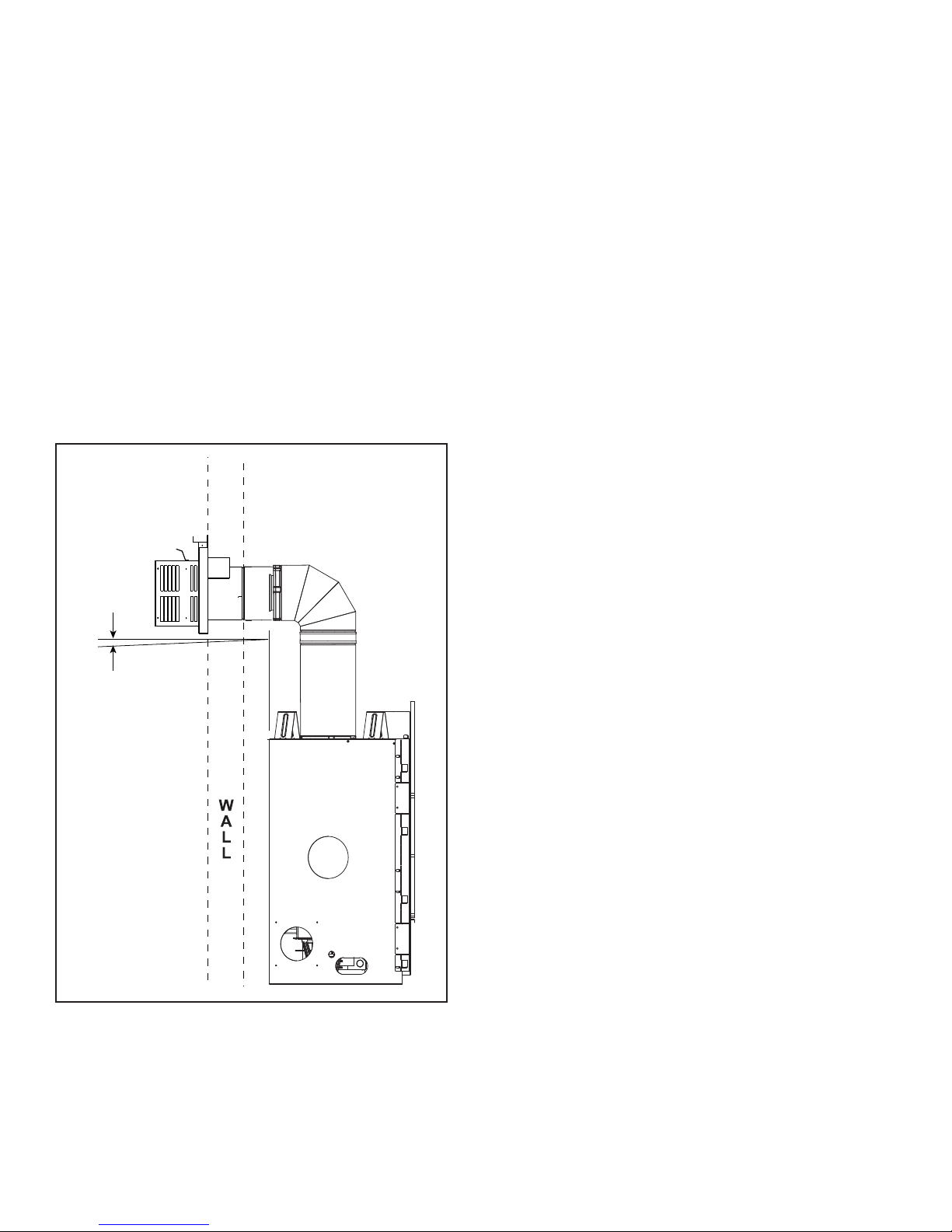

• Horizontal termination cap should have a 1/4 in. (6
mm) downward slant to allow any moisture in cap to be
released. See Figure 4.8.

18 Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev. B • 12/17
Top Vent - Horizontal Termination
Figure 4.9
Note: Use SLP Series
components only.
One 90º Elbow
H1
V1
V Minimum H
1
Maximum
SLR-X-AU
90° Elbow Not Allowed
1 ft. 305 mm 1-1/2 ft. 457 mm
2 ft. 610 mm 3 ft. 914 mm
3 ft. 914 mm 5 ft. 1.5 m
4 ft. 1.2 m 7 ft. 2.1 m
5 ft. 1.5 14 ft. 4.3 m
H MAX. =14 ft. (4.3 m)
V + H MAX. = 40 ft. (12.2 m)

19
Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev B • 12/17
Top Vent - Horizontal Termination - (continued)

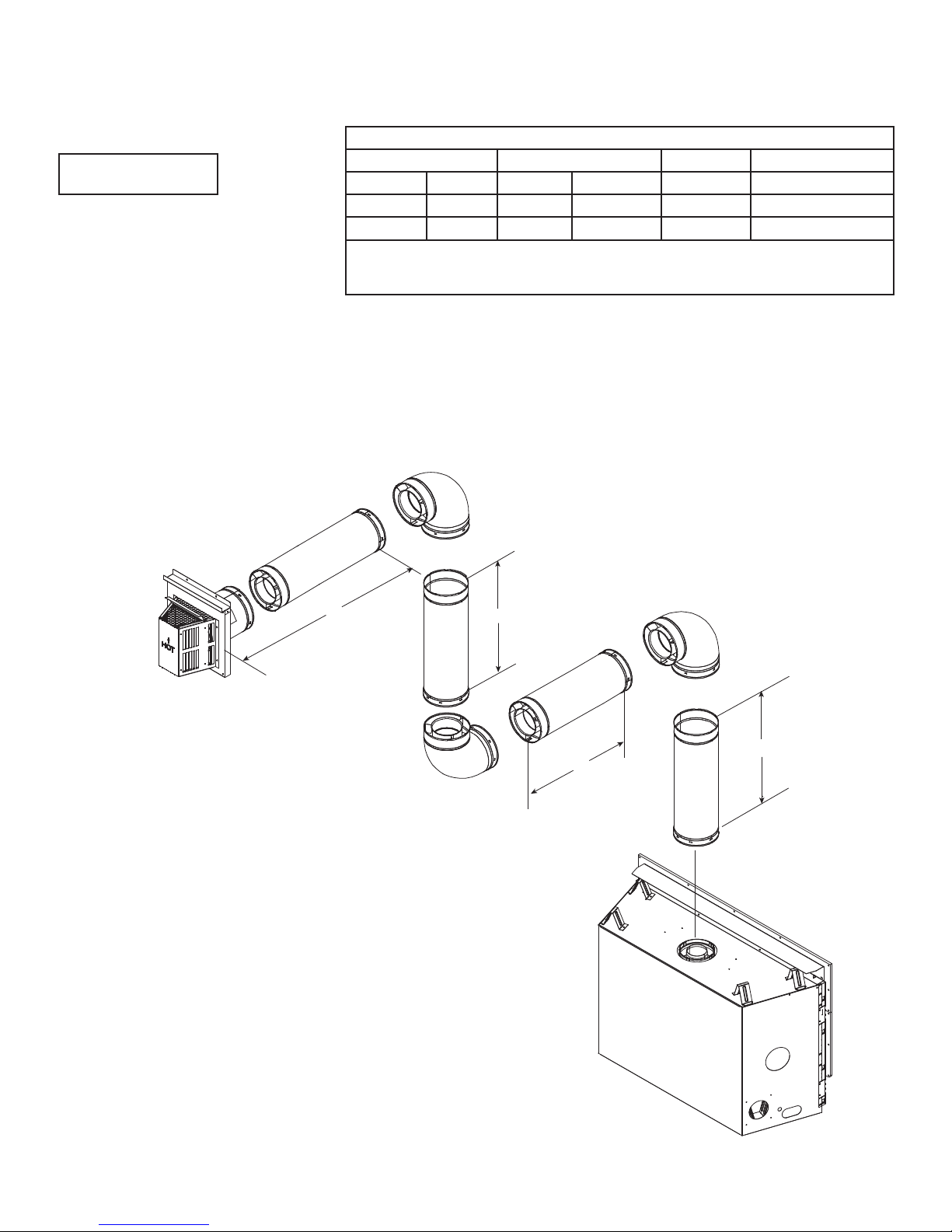

Two Elbows
Figure 4.10
Note: Use SLP Series
components only.
INSTALLED
HORIZONTALLY
H1
H2
V1
V Minimum H
1
Maximum
SLR-X-AU
90° Elbow Not Allowed
1 ft. 305 mm 1 ft. 305 mm
2 ft. 610 mm 2 ft. 610 mm
3 ft. 914 mm 4 ft. 1.2 m
4 ft. 1.2 m 6 ft. 1.8 m
5 ft. 1.5 15 ft. 4.6 m
H1 + H2 MAX. =15 ft. (4.6 m)
V
1
+ H
1
+ H
2
MAX. = 40 ft. (12.2 m)

20 Heat & Glo • SLR-X-AU Installation Manual • 2493-980 Rev. B • 12/17
H2
H1
V2
V1
Figure 4.11
Top Vent - Horizontal Termination - (continued)
Three Elbows
Note: Use SLP Series
components only.
SLR-X-AU
V1Minimum H1+ H2Maximum V2V1+ V2Minimum
1 ft. 305 mm 10 ft. 3.0 m * *
2 ft. 610 mm 12 ft. 3.7 m * *
3 ft. 914 mm 14 ft. 4.3 m * *
H1 + H2 MAX. =14 ft. (4.3 m)
V1 + V2 + H1 + H2 MAX. = 40 ft. (12.2 m)
*No specic restrictions on this value EXCEPT V1 + V2 + H1 + H2 cannot exceed 40 ft. (12.2 m)
