Heat & Glo Townsend I Assembly instructions

- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
-What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call
the fire department.
- Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
Heat-N-Glo Fireplace
Models:
Townsend I and II
Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURY OR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE OR ADDITIONAL INFOR-
MATION CONSULT A QUALIFIED
INSTALLER, SERVICE AGENCY, OR
THE GAS SUPPLIER.
402-982-A 11/98
READ THIS MANUAL BEFORE INSTALLING
OR OPERATING THIS APPLIANCE. THIS
INSTALLERS GUIDE MUST BE LEFT WITH
THE APPLIANCE FOR FUTURE REFERENCE.
1. This appliance may be installed in an
aftermarket, permanently located,
manufactured (mobile) home, where
not prohibited by local codes.
2.This appliance is only for use with the
type of gas indicated on the rating
plate. This appliance is not convertible
for use with other gases, unless a
certified kit is used.
Please contact your Heat-N-Glo dealer for any
questionsorconcerns.Forthenumberofyour
nearest
Heat-N-Glo dealer, please call 612-890-8367.
Printed in U.S.A. Copyright 1998,
Heat-N-Glo, a division of Hearth Technologies Inc.
6665 West Highway 13, Savage, MN 55378
WARNING:IFTHEINFORMATIONIN
THESEINSTRUCTIONSIS NOT
FOLLOWEDEXACTLY,AFIRE OR
EXPLOSIONMAYRESULTCAUSING
PROPERTYDAMAGE,PERSONAL
INJURY,ORDEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia) 543790; 586383;
(Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.
Underwriters
Laboratories Listed

!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
i
SAFETY AND WARNING INFORMATION
READ and UNDERSTAND all instructions carefully before starting the installation.
FAILURE TO FOLLOW these installation instructions may result in a possible fire
hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the Using Your Fireplace section of the
Owners Guide .
DO NOT USE this appliance if any part has been under water. Immediately CALL a
qualified service technician to inspect the unit and to replace any part of the control
system and any gas control which has been underwater.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a qualified service person. The
appliance and venting system should be
INSPECTED before initial use and at least
annually by a professional service person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding material, etc. It is IMPERATIVE that the
unit’s control compartment, burners, and circulating air passageways
BE KEPT
CLEAN
to provide for adequate combustion and ventilation air.
Always
KEEP the appliance clear and free from combustible materials, gasoline, and
other flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and ventilation air. Keep the front of the
appliance
CLEAR of all obstacles and materials for sevicing and proper operations.
Due to the high temperature, the appliance should be
LOCATED out of traffic areas
and away from furniture and draperies. Clothing or flammable material
SHOULD NOT
BE PLACED
on or near the appliance.
Children and adults should be ALERTED to the hazards of high surface temperature
and should STAY AWAY to avoid burns or clothing ignition. Young children should be
CAREFULLY SUPERVISED when they are in the same room as the appliance.
These units MUST use one of the vent systems described in the Installing the Fireplace
section of the
Installers Guide . NO OTHER vent systems or components MAY BE USED .
This gas fireplace and vent assembly
MUST be vented directly to the outside and
MUST NEVER be attached to a chimney serving a separate solid fuel burning
appliance. Each gas appliance
MUST USE a separate vent system. Common vent
systems are
PROHIBITED .
INSPECT the external vent cap on a regular basis to make sure that no debris is
interfering with the air flow.
The glass door assembly MUST be in place and sealed, and the trim door assembly
MUST be in place on the fireplace before the unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass door removed, cracked, or broken.
Replacement of the glass door should be performed by a licensed or qualified service
person. DO NOT strike or slam the glass door.
The glass door assembly
SHALL ONLY be replaced as a complete unit, as supplied
by the gas fireplace manufacturer.
NO SUBSTITUTE material may be used.
DO NOT USE abrasive cleaners on the glass door assembly. DO NOT ATTEMPT to
clean the glass door when it is hot.
Turn off the gas before servicing this appliance. It is recommended that a
qualified service technician perform an appliance check-up at the beginning
of each heating season.
Any safety screen or guard removed for servicing must be replaced before operating
this appliance.

Table of
Contents
i i
Safety and Warning Information ........................... i
Section 1: Approvals and Codes........................ .1
Approval Listings and Codes ..................................... 1
Appliance Certification ............................................... 1
Installation Codes ...................................................... 1
High Altitude Installations........................................... 1
Section 2: Getting Started .................................... 2
Introducing the Heat-N-Glo Direct Vent Gas Stoves..... 2
Pre-installation Preparation........................................ 2
Section 3: Installing the Stove ............................. 5
Step 1 Locating the Stove ...................................... 5
Step 2 Setting Up the Stove ................................... 6
Step 3 Installing the Vent System ........................... 7
A. Vent System Approvals........................... 7
B.InstallingVentComponents................... 14
C.VentTermination .................................... 19
Step 4 The Gas Control System .......................... 24
Step 5 The Gas Supply Line................................. 24
Step 6 Gas Pressure Requirements .................... 25
Step 7 Wiring the Stove........................................ 26
Step 8 Finishing .................................................... 27
Step 9 Installing Logs and Ember Material ........... 27
Positioning the Logs .................................. 27
Placing the Ember Material ....................... 27
Step 10 Before Lighting the Stove .......................... 28
Step 11 Lighting the Stove...................................... 28
After the Installation................................... 28
Section 4: Maintenance and Servicing.............. 29
Section 5: Replacement Parts
and Accessories ............................... 31
Replacement Parts .................................................. 31
Accessories .......................................................... 35

1
Approval Listings
and Codes Appliance Certification
The Heat-N-Glo gas stove models discussed in this
Installers Guide have been tested to certification
standards and listed by the applicable laboratories.
CERTIFICATION
MODEL LABORATORY TYPE STANDARD
Townsend I & II Underwriters Vented Gas ANSI Z21.88• CSA2.33
Laboratories Fireplace Heater
Installation Codes
Installationmustconformtolocal codes. In the absence of local codes installation
mustconformwiththecurrent National Fuel Gas CodeANSIZ223.1 (in the United
States) or with the current installation code CAN/CGA - B149 (in Canada).
The appliance when installed must be electrically grounded in accordance with
local codes; in absence of local codes, with the current National Electric Code
ANSI/ NFPA NO. 70 (in the United States) or with the current CSA C22.1 Cana-
dian Electric Code (in Canada).
High Altitude Installations
Theseunits are testedandapproved for elevations from0-2000feet. (In theUnited
States) and 0-4500 feet (in Canada).
When installing this unit at an elevation above 2000 feet, (in United States) it may
be necessary to decrease the input rating by changing the existing burner orifice
toasmallersize. Inputshouldbereduced4percentforeach1000 feet above sea
level. Check with your local gas company for help in determining the proper ori-
fice size.
When installing this unit at an elevation above 4500 feet (in Canada), check with
local authorities.
Consult your local gas company for assistance in determining the proper orifice
for location.
1
Approvals and
Regulations

2
Heat-N-Glo direct vent gas stoves are designed to
operate with all combustion air siphoned from outside
of the building and all exhaust gases expelled to the
outside.
The information contained in this
Installers Guide ,
unless noted otherwise, applies to all models and gas
control systems.
Gas stove diagrams, including the dimensions, are
shown in this section.
Pre-installation
Preparation This gas stove and its components are tested and
safe when installed in accordance with this
Installers
Guide
. Report to your dealer any parts damaged in
shipment, particularly the condition of the glass. Do
not install any unit with damaged, incomplete, or
substitute parts.
The vent system components and trim doors are
shipped in separate packages. The gas logs are
packaged separately and must be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benefit. Failure to follow these instructions
will void the owner’s warranty and may present a
fire hazard.
The Heat-N-Glo Warranty will be voided by, and Heat-
N-Glo disclaims any responsibility for, the following
actions:
• Installation of any damaged stove or vent system
component.
• Modification of the stove or vent system.
• Installation other than as instructed by Heat-N-Glo.
• Improper positioning of the gas logs or the glass
door.
• Installation and/or use of any component part not
manufactured and approved by Heat-N-Glo, not
withstanding any independent testing laboratory or
other party approval of such component part or
accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A
FIRE HAZARD.
2
Getting
Started
Introducing the
Heat-N-Glo
Direct Vent
Gas Stoves

3
Figure 1. Diagram of the TOWNSEND-I
When planning a stove installation, it’s necessary to determine:
•Where the unit is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framing and finishing details.
•Whether optional accessories—devices such as a fan, wall switch, or remote
control—are desired.
If the stove is to be installed on carpeting or tile, or on any combustible material
other than wood flooring, the stove should be installed on a metal or wood panel
that extends the full width and depth of the stove.

4
Figure 2. Diagram of the TOWNSEND-II

5
3
Installing
the Stove
Figure 3. Stove Dimensions, Locations, and Space Requirements
TOWNSEND I
TOWNSEND II
The diagram below shows space and clearance
requirements for locating the stove within a room.
Step 1
Locating the
Stove

6
Step 2
Setting up the
Stove
Removal of the cast front surround:
1. Remove the two small bolts from underneath the
front of the cast bottom. These bolts can be
discarded.
2. Remove the screw from underneath the front of
the grille.
3. The cast front surround can now be removed by
tilting its top towards the front and lifting it out of
the stove.
4. When the cast front surround is replaced, it can
be held in place with just the one screw in the
top, underneath the grille.
Removal of glass:
1. Remove the Cast Front Surround.
2. For TOWNSEND-I: Remove the six screws
securing the glass and remove the glass.
3. For TOWNSEND-II: Remove the four screws
located at the top, tilt the glass slightly toward
you and pull up and away from the unit.
To replace the glass reverse these steps.
Minimum Clearances from the Vent Pipe to Combustible Materials
For Vertical
For Horizontal Sections Sections At Wall Firestops
Top Bottom Sides Top Bottom Sides
3 inches 1 inch 1 inch 1 inch 2 1/2 inches 1/2 inch 1 inch
(75mm) (25mm) (25mm) (25mm) (63.7mm) (13mm) (25mm)
Minimum Clearances from the Fireplace to Combustible Materials
Glass Sides of Top of
Front Floor Rear Fireplace Fireplace
36 inches 0 4 inches 6 inches 55 inches
(914mm) (100mm) (150mm) (134cm)
The minimum clearance to a perpendicular wall
extending past the face of the fireplace is 6 inches
(150mm).
The back of the fireplace may NOT be recessed
into combustible construction.
Clearance Requirements
For minimum clearances, see the direct vent
termination clearance diagrams on pages 21 and 23
in this manual.

7
Step 3
Installing the
Vent System
A. Vent System Approvals
This model is approved for 4”/6 5/8” SL D-Series
vent pipe components and terminations. Approved
vent systems components are are labeled for
identification. NO OTHER VENT SYSTEMS OR
COMPONENTS MAY BE USED. Detailed installation
instructions are inclued with each vent termination
kit and should be used in conjuction with this manual.
WARNING:
A minimum 3 foot length of straight vent
pipe MUST be attached to the unit’s
starting collars for all vent systems.
Identifying Vent Components
The vent systems installed on this gas stove may
include one, two, or three 90°elbow assemblies.
The relationships of vertical rise to horizontal run in
vent configurations using 90° elbows MUST BE
strictly adhered to. The rise to run relationships are
shown in the vent drawings and tables. Refer to the
diagrams on the next several pages.

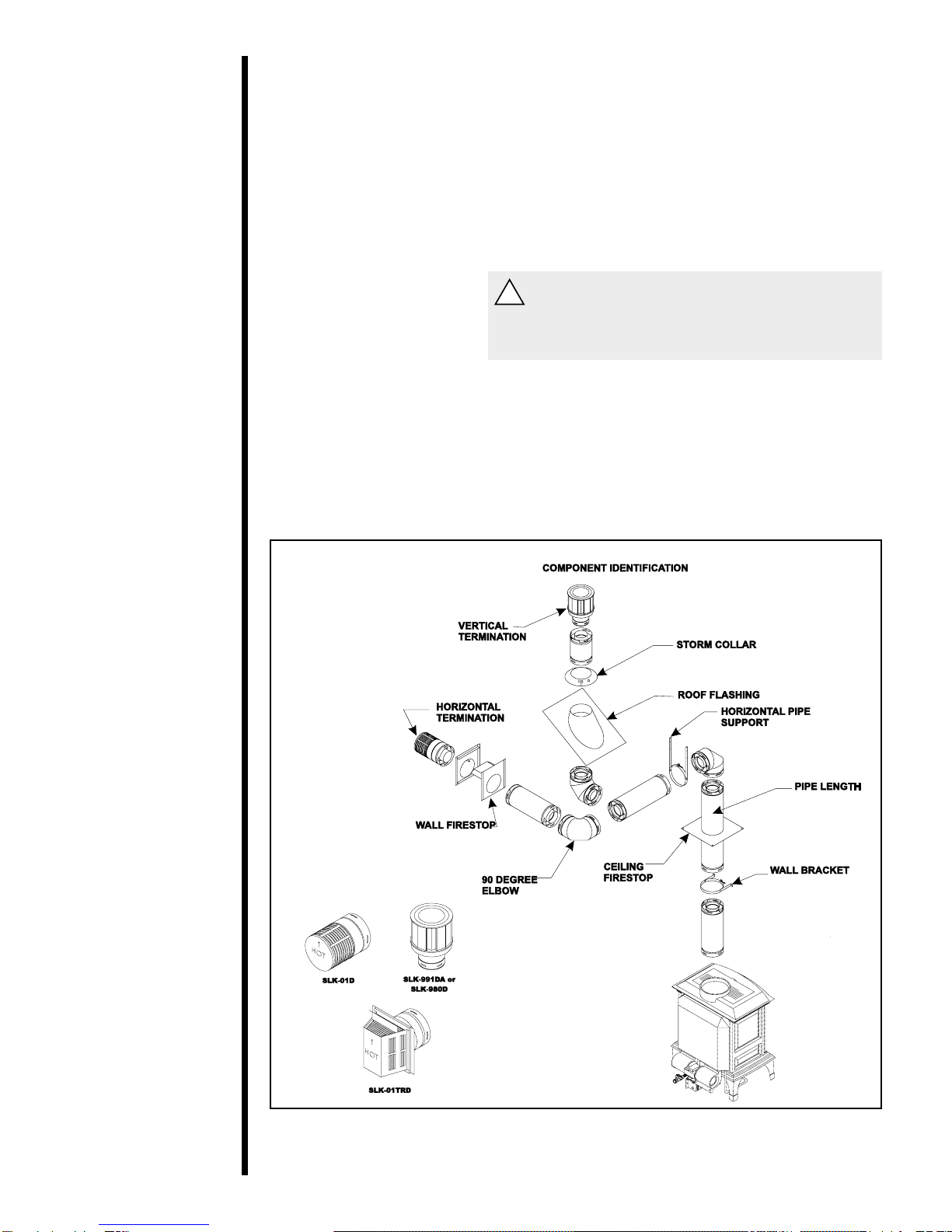

Figure 4. Vent Components and Terminations
Vent System Termination Kits
!

8

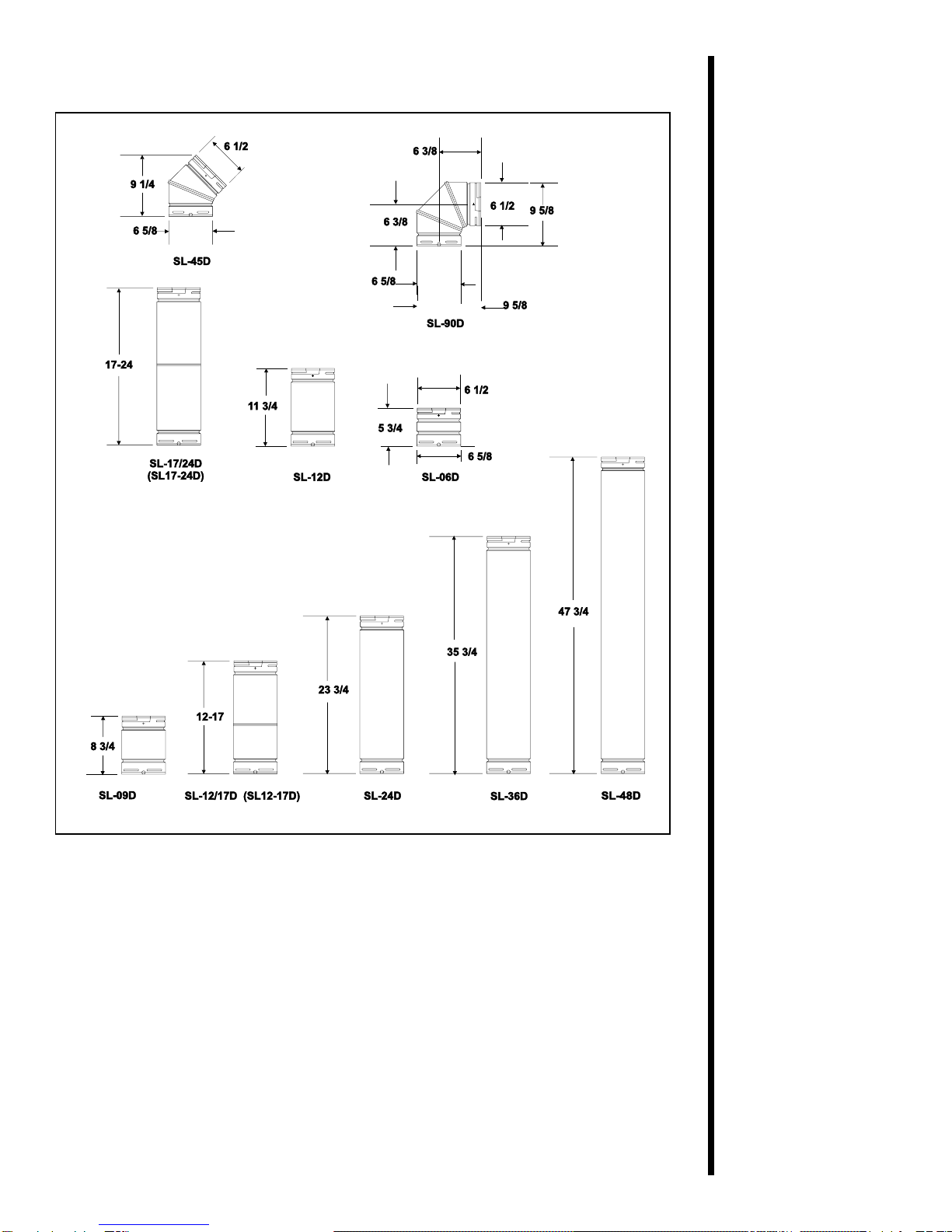

Figure 5. SL D-Series Direct Vent Component Specifications
(4-inch inner pipe/6 5/8-inch outer pipe)

9
Straight Vertical Vent System
When a vertical run of 12 feet and higher is attached
directly to the top of the stoves, further baffling is
necessary to maintain high efficiency. A round baffle
with two tabs on each side is included in the manual bag
assembly. To install the round baffle follow these steps:
1. Remove the front of the casting. Refer to cast front re-
moval on page 6.
2. Remove the glass assembly. Refer to glass removal
on page 6.
3. Remove logs and set aside.
4. Disassemble the square baffle by unfastening four
screws located inside top of the firebox. See Figure 6.
5. Unfasten the two screws on the existing round baffle,
andreplaceitwiththenewroundbaffle.Note: The new
round baffle is bigger than the existing round baffle al-
ready on the unit.
6. Re-install the square baffle removed in Step 4.
Figure 6
!

10
VERTICAL VENT
V (FT)
3 (915mm) MIN.
40 (12.19m) MAX.
Figure 7. Straight Vertical Vent System

11
Figure 8. Vent System with One 90° Elbow
NOTE: Optional Kit #970D
can be used for this type
of installation on model
Townsend I.
V + H =40’ MAX.(12.19m)
H = 12’ MAX.(3.66m)
V (FT) H (FT)
3’MIN.(610mm) 2’MAX.(610mm)
4’MIN.(1.2m) 2.5’MAX.(1762mm)
18’ MIN.(5.4m) 12’ MAX.(3.66m)
TOWNSEND II
VENTING WITH ONE (1) 90
o
ELBOW
V + H =40’ MAX.(12.19m)
H = 18’ MAX.(5.4m)
V (FT) H (FT)
2’MIN.(610mm) 2’MAX.(610mm)
3’MIN.(914mm) 3’MAX.(914mm)
4’MIN.(1.2m) 4’MAX.(1.2m)
18’ MIN.(5.4m) 18’ MAX.(5.4m)
TOWNSEND I
VENTING WITH ONE (1) 90
o
ELBOW

12
TOWNSEND I and TOWNSEND II
VENTING WITH TWO (2) 90
o
ELBOWS
V (FT) H (FT) V1(FT)
.5’ MIN. (152mm) 4’ MAX. (1.2m) 8’ MIN. (2.4m)
V+V
1
= 36’ MAX. (10.97m)
V + V1+ H =40’ MAX.(12.19m)
H = 12’ MAX.(3.66m)
V (FT) H (FT)
3’MIN.(610mm) 2’ MAX.(610mm)
4’MIN.(1.2m) 2.5’MAX.(1762mm)
18’ MIN.(5.4m) 12’ MAX.(3.66m)
TOWNSEND II
VENTING WITH TWO (2) 90
o
ELBOWS
V + V1+ H =40’ MAX.(12.19m)
H = 18’ MAX.(5.4m)
V (FT) H (FT)
3’ MIN.(914mm) 3’ MAX.(914mm)
4’ MIN.(1.2m) 4’ MAX.(1.2m)
18’ MIN.(5.4m) 18’ MAX.(5.4m)
TOWNSEND I
VENTING WITH TWO (2) 90
o
ELBOWS
Figure 9. Vent System with Two 90° Elbows

13
V (FT) H (FT)
3’ MIN.(914mm) 3’ MAX.(914mm)
4’ MIN.(1.2m) 4’ MAX.(1.2m)
18’ MIN.(5.4m) 18’ MAX.(5.4m)
V+V1+H+H1=40’ MAX.(12.19m)
H+H1 = 12’ MAX.(3.66m)
V (FT) H (FT)
3’MIN.(610mm) 2’ MAX.(610mm)
4’MIN.(1.2m) 2.5’MAX.(1762mm)
18’ MIN.(5.4m) 12’ MAX.(3.66m)
TOWNSEND II
VENTING WITH THREE (3) 90
o
ELBOWS
V+V1+H+H1=40’ MAX.(12.19m)
H+H1 = 18’ MAX.(5.4m)
TOWNSEND I
VENTING WITH THREE (3) 90
o
ELBOWS
Figure 10. Vent System with three 90° elbows

14
!
B. Installing Vent Components
Before starting installation of vent kits, the installer
should read the Gas Stove Instructions and the Vent
Kit Instructions to ensure that the proper system has
been selected for the installation.
Determine the exact position of the stove so the vent
pipe is centered (if possible) between two building
framing members. This will avoid any extra framing.
Using a level, make sure the stove is properly
positioned and squared. Minimum clearances to walls
and ceilings must be maintained.
Vent terminals should not be recessed into a wall.
Consult your local Building Code Regulations before
beginning the installation.
WARNING
THIS GAS STOVEAND VENT ASSEMBLY
MUST BE VENTED DIRECTLY TO THE
OUTSIDE AND MUST NEVER BE
ATTACHED TO A CHIMNEY SERVING A
SEPARATE SOLID FUEL BURNING
APPLIANCE. EACH GAS APPLIANCE
MUST USE A SEPARATE VENT SYSTEM-
COMMON VENT SYSTEMS ARE
PROHIBITED.
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting
collars of the fireplace:
• Apply a 3/8 inch (9.5mm) bead of stove cement
around the 4 inch (100mm) fireplace starting collar.
• Make sure that the fireplace rope gasket supplied
with the fireplace seals between the first vent
component and the outer fireplace wrap.
• Lock the vent components into place by sliding the
concentric pipe sections with four (4) equally
spaced interior beads into the fireplace collar or
previously installed component end with four (4)
equally spaced indented sections.
• When the internal beads of each outer pipe line up,
rotate the pipe section clockwise about one-quarter
(1/4) turn. The vent pipe is now locked together.

15
1.Apply the stove
cement.
2. Line up the internal
beads and rotate the
pipe sections clock-
wise until locked.
3. Lock the vent compo-
nents into place.

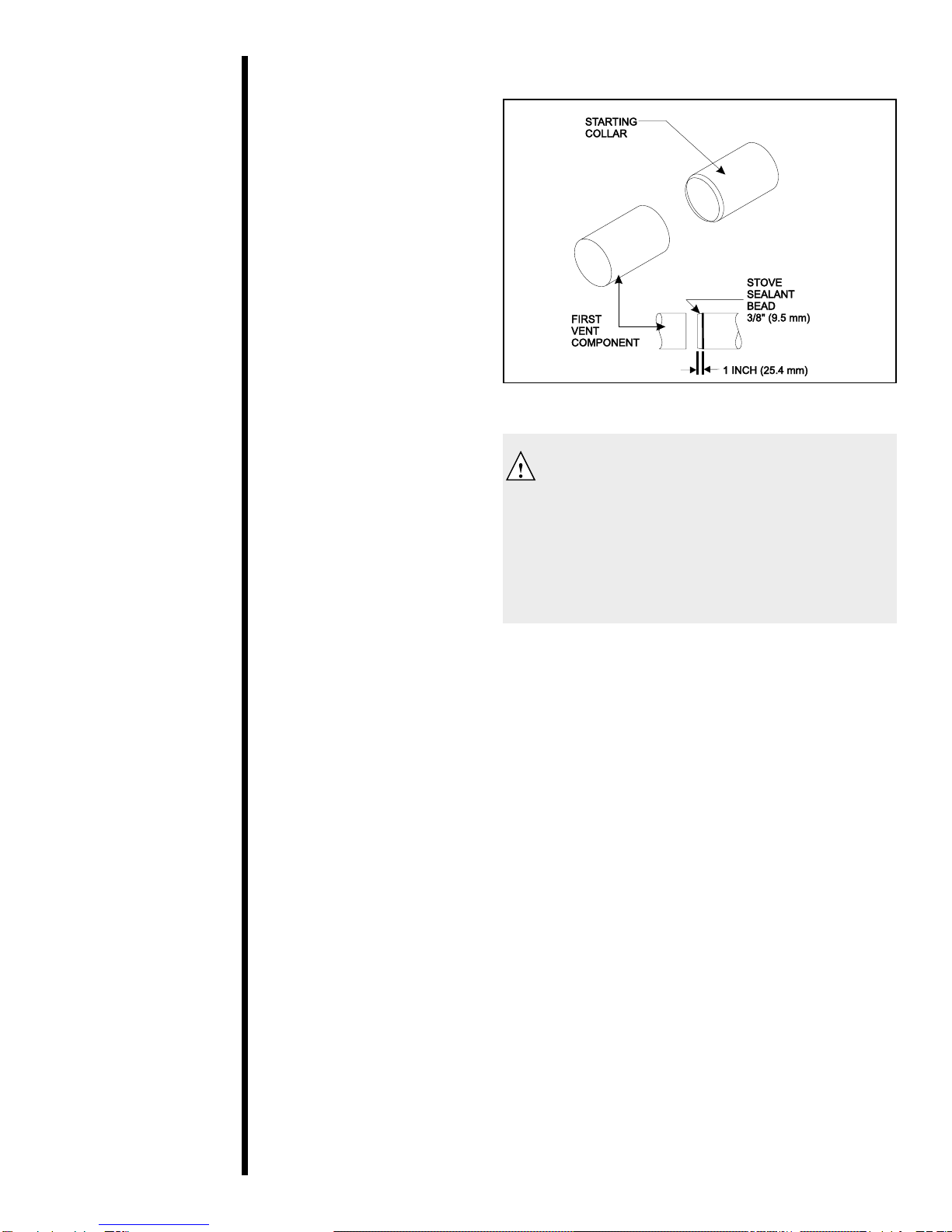

Figure 11. Attaching the First Vent Component to
the Starting Collars
WARNING
A 3/8 INCH (9.5 mm) BEAD OF STOVE
CEMENT MUST BE PLACED AROUND
THE STOVE STARTING COLLAR
BEFORE ATTACHING THE FIRST VENT
COMPONENT. FAILURE TO SEAL THIS
JOINT MAY CAUSE THE STOVE TO
OPERATE IMPROPERLY. SEE THE
DIAGRAM .
2. Continue Adding Vent Components
To continue adding vent components in accordance
with the pre-planned vent system configuration:
• Ensure that each succeeding vent component is
securely fitted and locked into the preceding
component in the vent system.
90° elbows may be installed and rotated to any point
around the preceding component’s vertical axis. If an
elbow does not end up in a locked position with the
preceding component, attach with a minimum of three
(3) sheet metal screws.

16
Continue adding vent
components, locking
each succeeding
component into place.
Figure 12. Adding Venting Components
3. Install Support Brackets
For Horizontal Runs - The vent system must be
supported every 5 feet (1.5m) of horizontal run by a
horizontal pipe support.
To install support brackets for horizontal runs:
• Place the pipe supports around the vent pipe.
• Nail the pipe supports to the framing members.
For Vertical Runs - The vent system must be
supported every 8 feet (2.4m) above the stove vent
outlet by wall brackets.
To install support brackets for vertical runs:
• Attachwallbracketstotheventpipeandsecurethewall
bracket to the framing members with nails or screws.
Use wall brackets to
support vertical runs
every 8 feet (2.4m)
above the stove vent
outlet.
Figure 13. Installing Support Brackets

17

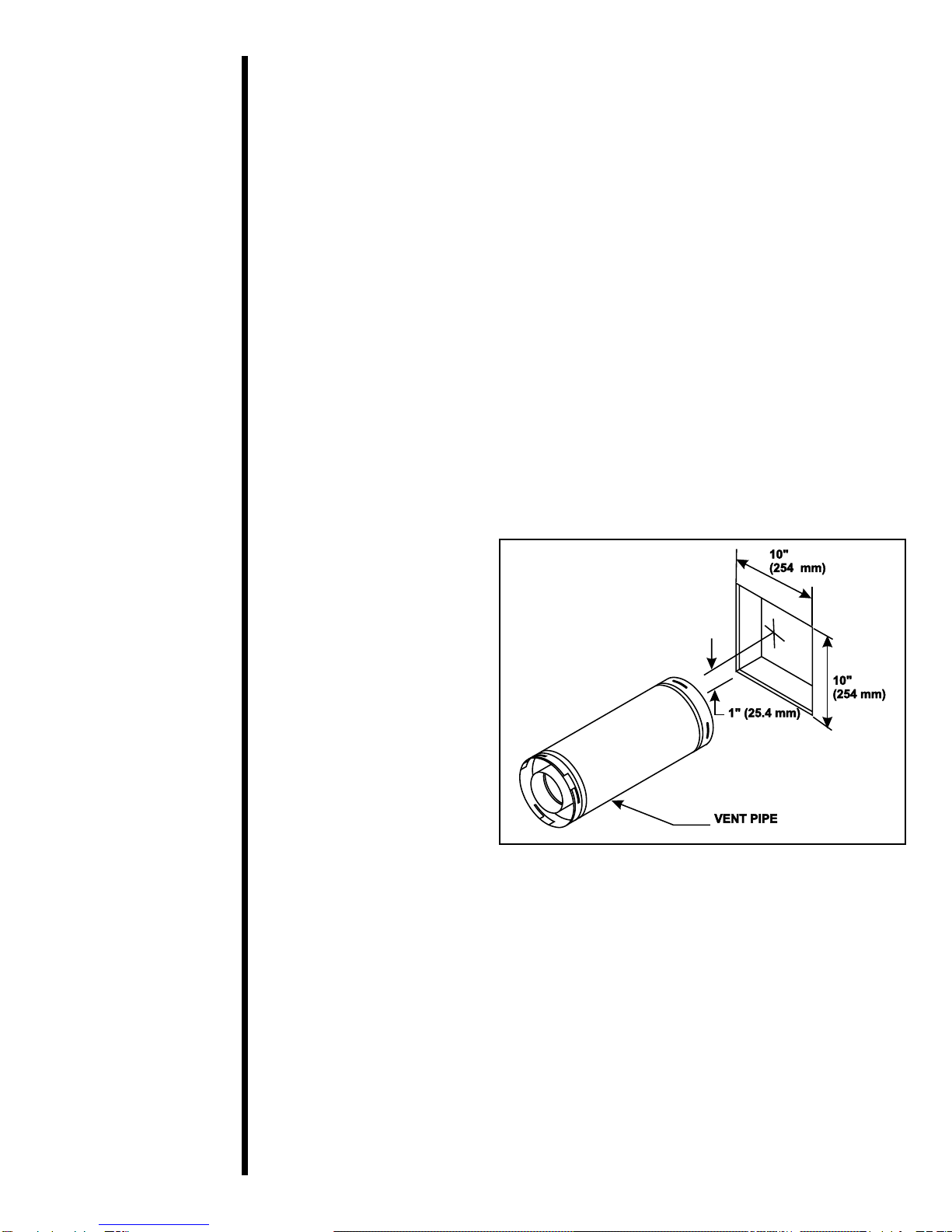

Figure 14. 10 in. X 10 in. Hole and Vent Pipe
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on
both sides of a combustible wall through which the
vent passes.
NOTE
Model SLK-01TRD does not need an exterior
firestop on an exterior combustible wall.
To install firestops for horizontal runs that pass
through either interior or exterior walls:
• Cut a 10 in. x 10.in (254mm X 254mm) hole
through the wall. The center of the hole is 1-inch
(25.4mm) above the center of the horizontal vent
pipe.
• Position the firestops on both sides of the hole
previously cut and secure the firestops with nails or
screws.
• The heat shields of the firestops MUST BE placed
towards the top of the hole.
• Continue the vent run through the firestops.
1. Cut the 10 in. x 10 in.
(254 x 254mm) hole.
