Heat & Glo Soho-CE Assembly instructions

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10 1
Model:
Soho-CE
Installer’s Guide
Installation and Operation
0063-06
This is a room sealed appliance and no other ventilation is
required than what is provided.
Theseinstructionsareonlyvalidifthefollowingcountrysymbolis
on the appliance. If this symbol is not present on the appliance,
it is necessary to refer to the technical instructions which will
provide the necessary information concerning the modification
of the appliance to the conditions of use for the country.
These instructions are valid for the following countries: GB, IE
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
HOT SURFACES!
Glassandothersurfacesarehotduring
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas
- Do not try to light any appliance
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
bya qualifiedinstaller,serviceagency,orthe
gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10
2
Congratulations
Model Name:___________________________________________ Date purchased/installed:__________________
Serial Number:__________________________________________ Location on appliance: ____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
_____________________________________________________________________________________________
Congratulations on selecting a Heat & Glo gas appliance
The Heat & Glo gas appliance you have selected is
designed to provide the utmost in safety, reliability, and
efficiency.
As the owner of a new appliance, you’ll want to read and
carefully follow all of the instructions contained in this
Installer’s Guide. Pay special attention to all Cautions and
Warnings.
This Installer’s Guide should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this Installer’s Guide, unless
noted otherwise, applies to all models and gas control
systems.
Your new Heat & Glo gas appliance will give you years of
durable use and trouble-free enjoyment. Welcome to the
Heat & Glo family of appliance products!
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.
We recommend that you record the following
pertinent information about your appliance.
Homeowner Reference Information

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10 3
= Contains updated information.
Table of Contents
1 Listing and Code Approvals
A. Appliance Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
B. Non-Combustible Materials Specification. . . . . . . . . . . . . . 4
C. Combustible Materials Specification . . . . . . . . . . . . . . . . . 4
2 Getting Started
A. Design and Installation Considerations . . . . . . . . . . . . . . . 5
B. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . . 5
C. Inspect Appliance and Components. . . . . . . . . . . . . . . . . . 5
3 Framing and Clearances
A. Selecting Appliance Location . . . . . . . . . . . . . . . . . . . . . . . 6
B. Constructing the Appliance Chase. . . . . . . . . . . . . . . . . . . 7
C. Clearances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Termination Locations
A. Flue Termination Minimum Clearances . . . . . . . . . . . . . . . 8
5 Flue Information and Diagrams
A. Flue Table Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
B. Use of Elbows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
C. Measuring Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
D. Flue Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
6 Flue Clearances and Framing
A. Pipe Clearances to Combustibles . . . . . . . . . . . . . . . . . . 15
B. Wall Penetration Framing. . . . . . . . . . . . . . . . . . . . . . . . . 15
C. Vertical Penetration Framing . . . . . . . . . . . . . . . . . . . . . . 16
7 Appliance Preparation
A. Securing and Leveling the Appliance. . . . . . . . . . . . . . . . 17
8 Installing Flue Pipe
A. Assembly of Flue Sections. . . . . . . . . . . . . . . . . . . . . . . . 18
B. Heat Shield Requirements for Horizontal Termination . . . 19
C. Install Horizontal Termination Cap . . . . . . . . . . . . . . . . . . 19
D. Installing Vertical Termination Cap. . . . . . . . . . . . . . . . . . 20
E. Assemble and Install Storm Collar. . . . . . . . . . . . . . . . . . 20
9 Gas Information
A. Gas Pressure Requirements . . . . . . . . . . . . . . . . . . . . . . 21
B. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
10 Electrical Information
A. Electronic Ignition System Wiring. . . . . . . . . . . . . . . . . . . 22
11 Finishing
A. Facing Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
B. Mantel Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
12 Appliance Setup
A. Remove Shipping Materials . . . . . . . . . . . . . . . . . . . . . . . 24
B. Clean the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
C. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
D. Ember Placement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
E. Positioning the Logs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
F. Install Media Rock Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
G. Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
13 Operating Instructions
A. Before Lighting Appliance. . . . . . . . . . . . . . . . . . . . . . . . . 28
B. Lighting the Fireplace. . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
C. After Appliance is Lit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
D. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . 30
14 Troubleshooting
A. Electronic Ignition System . . . . . . . . . . . . . . . . . . . . . . . . 31
15 Maintaining and Servicing Appliance
A. Maintenance Tasks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
16 Reference Materials
A. Appliance Dimension Diagram. . . . . . . . . . . . . . . . . . . . . 34
B. Service Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
C. Limited Lifetime Warranty. . . . . . . . . . . . . . . . . . . . . . . . . 38
D. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10
4
MODELS: Soho-CE
LABORATORY: Gastech Certification B.V
TYPE: Gas Fireplace
STANDARD: BS EN 613: 2001
DIRECTIVE: CAD90/396/EEC
1
1 Listing and Code Approvals
B. Non-Combustible Materials Specification
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passingASTM E 136, Stan-
dard Test Method for Behavior of Materials in a Vertical
Tube Furnace at 750º C, shall be considered non-com-
bustible materials.
C. Combustible Materials Specification
Materials made of or surfaced with wood, compressed
paper, plant fibers, plastics, or other material that can ig-
nite and burn, whether flame proofed or not, or whether
plastered or unplastered shall be considered combustible
materials.
A. Appliance Certification
The Heat & Glo gas appliances discussed in this Installer’s
Guide have been tested to certification standards and listed
by the applicable laboratories.
This appliance must be installed in accordance with the
rules in force.
NOX Class 5 for G20, NOX Class 5 for G31

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10 5
A. Design and Installation Considerations
Heat & Glo balanced flue gas appliances are designed
to operate with all combustion air siphoned from outside
of the building and all exhaust gases expelled to the out-
side. No additional outside air source is required.
2
2 Getting Started
C. Inspect Appliance and Components
When planning an appliance installation, it’s necessary to
determine the following information before installing:
• Where the appliance is to be installed.
• The flue system configuration to be used.
• Gas supply piping.
• Framing and finishing details.
B. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Reciprocating saw Framing material
Pliers Hi temp caulking material
Hammer Gloves
Phillips screwdriver Framing square
Flat blade screwdriver Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level Manometer
Tape measure Voltmeter
Non-corrosive leak check solution
20 mm x 4 mm Self-drilling screws
• Carefully remove the appliance and components from
the packaging.
• Thefluesystem componentsand trim doorsare shipped
in separate packages.
• The logs are packaged separately inside the fireplace
and must be field installed.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
• Read all of the instructions before starting the insta-
llation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consultlocalbuilding,fireofficialsorauthoritieshavingjurisdic-
tion about restrictions, installation inspection, and permits.
CAUTION
Inspectapplianceandcomponents for damage.
Damaged parts may impair safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
Hearth & Home Technologies disclaims any
responsibilityfor, and thewarranty will bevoided
by, the following actions:
• Installation and use of any damaged appliance or flue
system component.
• Modification of the appliance or flue system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installationand/oruseofanycomponentpartnotapproved
by Hearth & Home Technologies.
Any such action may cause a fire hazard.
WARNING
WARNING

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10
6
BC
A
A
1.3 cm
ALCOVE
INSTALLATION
TOP VENT,
ONE 90º ELBOW
B
D
MINIMUM

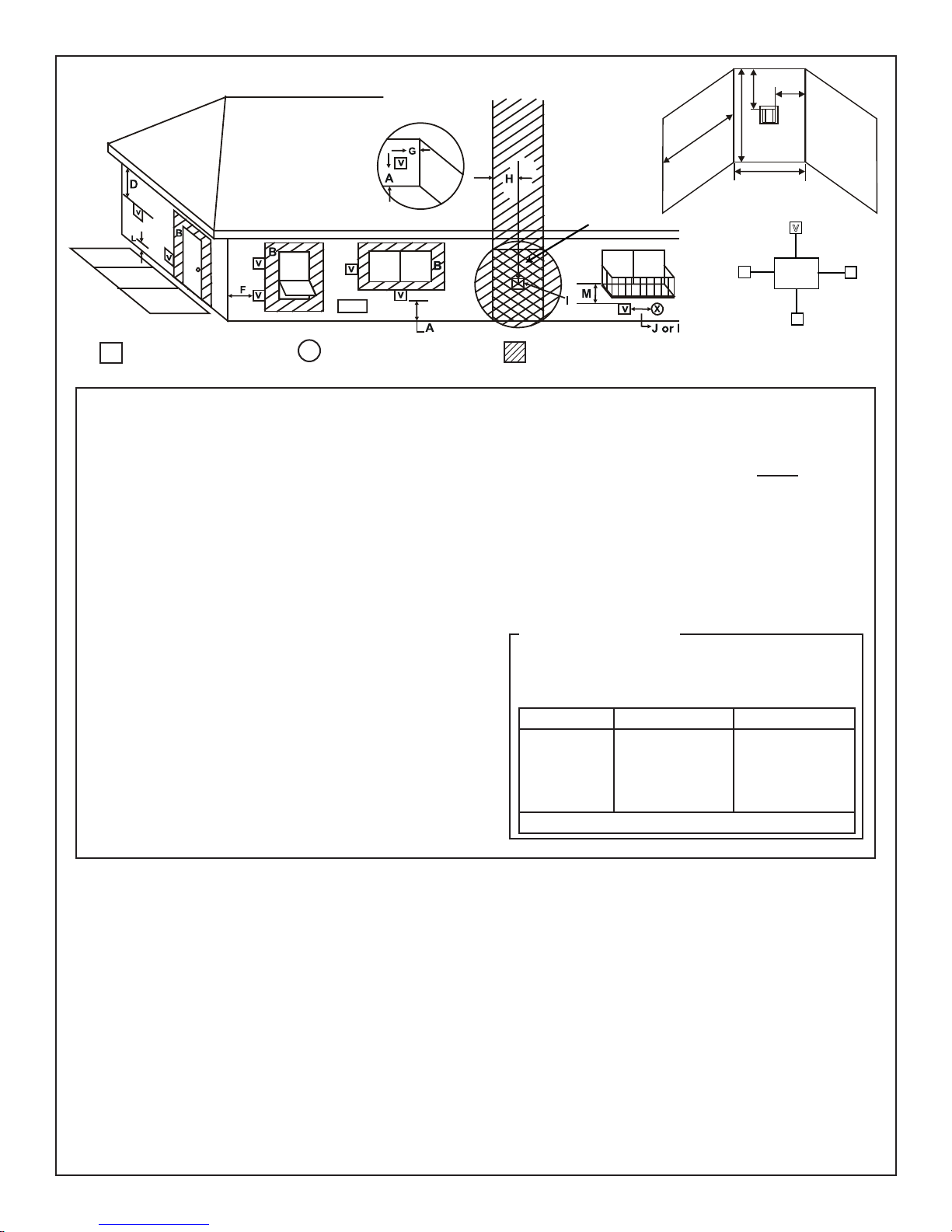

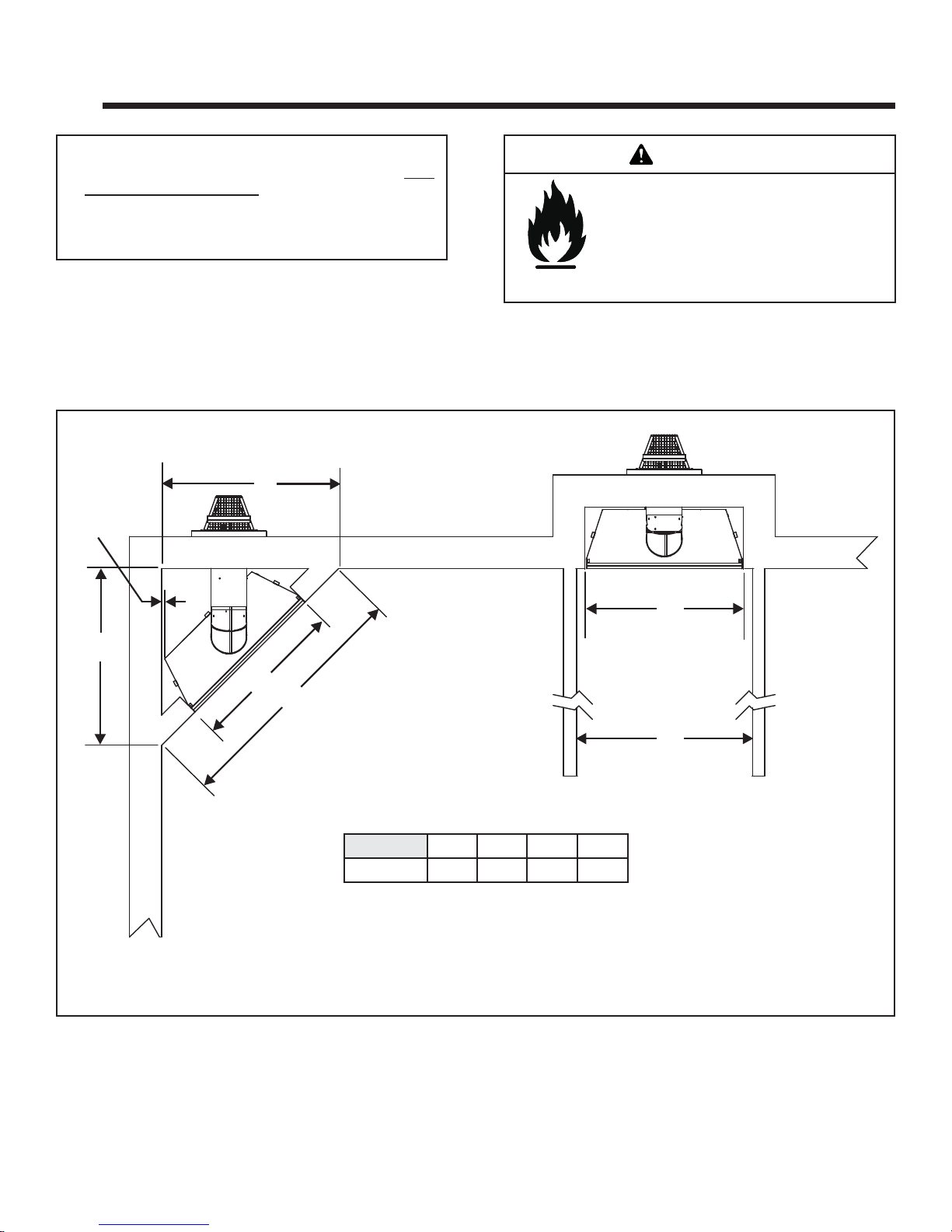

Figure 3.1 Appliance Locations
ABCD
Centimeters 84.1 74.0 118.7 89.2
In addition to these framing dimensions, also reference the following sections:
• Clearances and Mantel Projections (Sections 3.C and 11.B).
• Flue Clearances and Framing (Section 6).
3
3 Framing and Clearances
Note:
•Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
•Illustrations/diagrams are not drawn to scale.
•Actual installation may vary due to individual design
preference.
Fire Risk
Provide adequate clearance:
• Around air openings
• To combustibles
• For service access
Locate appliance away from traffic areas.
A. Selecting Appliance Location
Whenselectinga locationforyour applianceitis important
to consider the required clearances to walls (see Figure
3.1). NOTE: For actual appliance dimensions refer to Sec-
tion 16.
WARNING

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10 7
Figure 3.2 Clearances to Combustibles
CLEARANCES TO COMBUSTIBLES:
ABCDE F G H I JK
Rough
Opening
(Flue Pipe)
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Minimum
Platform
Height
Clearance
to Ceiling Non-Combustible Floor Combustible Flooring Behind Appliance Sides of Appliance Front of Appliance
cm 21.9 111.8 29.2 75.2 7.6 71.1 0 0 1.3 133 91.4
B
C
D
A
E
CAUTION
The SOHO-CE requires an elevated platform construction
to accommodate the Studio CE Front which is larger than
the appliance.
H
J
I
F
G
K
B. Constructing the Appliance Chase
A chase is a vertical boxlike structure built to enclose the
gas appliance and/or its flue system. Vertical flues that
run on the outside of a building may be, but are not re-
quired to be, installed inside a chase.
Construction of the chase may vary with the type of build-
ing. These instructions are not substitutes for the require-
ments of local building codes. Local building codes MUST
be checked.
Chases should be constructed in the manner of all out-
side walls of the home to prevent cold air drafting prob-
lems. The chase should not break the outside building
envelope in any manner.
Walls, ceiling, base plate and cantilever floor of the chase
should be insulated. Vapor and air infiltration barriers
should be installed in the chase as per regional codes for
the rest of the home. Additionally, in regions where cold
air infiltration may be an issue, the inside surfaces may be
sheetrocked and taped for maximum air tightness.
To further prevent drafts, the wall shield and ceiling fire-
stops should be caulked with high temperature caulk to
seal gaps. Gas line holes and other openings should be
caulked with high temp caulk or stuffed with unfaced in-
C. Clearances
Fire Risk.
Odor Risk.
•Installappliance on hard metal or woodsurfaces
extending full width and depth of appliance.
•Do NOT install appliance directly on carpeting,
vinyl,tileor any combustible material otherthan
wood.
sulation. If the appliance is being installed on a cement
slab, a layer of plywood may be placed underneath to pre-
vent conducting cold up into the room.
WARNING

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10
8
A. Flue Termination Minimum Clearances
Fire Risk.
Explosion Risk.
Maintain flue clearance to combustibles as
specified.
• Donot pack airspace with insulationor other
materials.
Failure to keep insulation or other materials
away from flue pipe may cause fire.

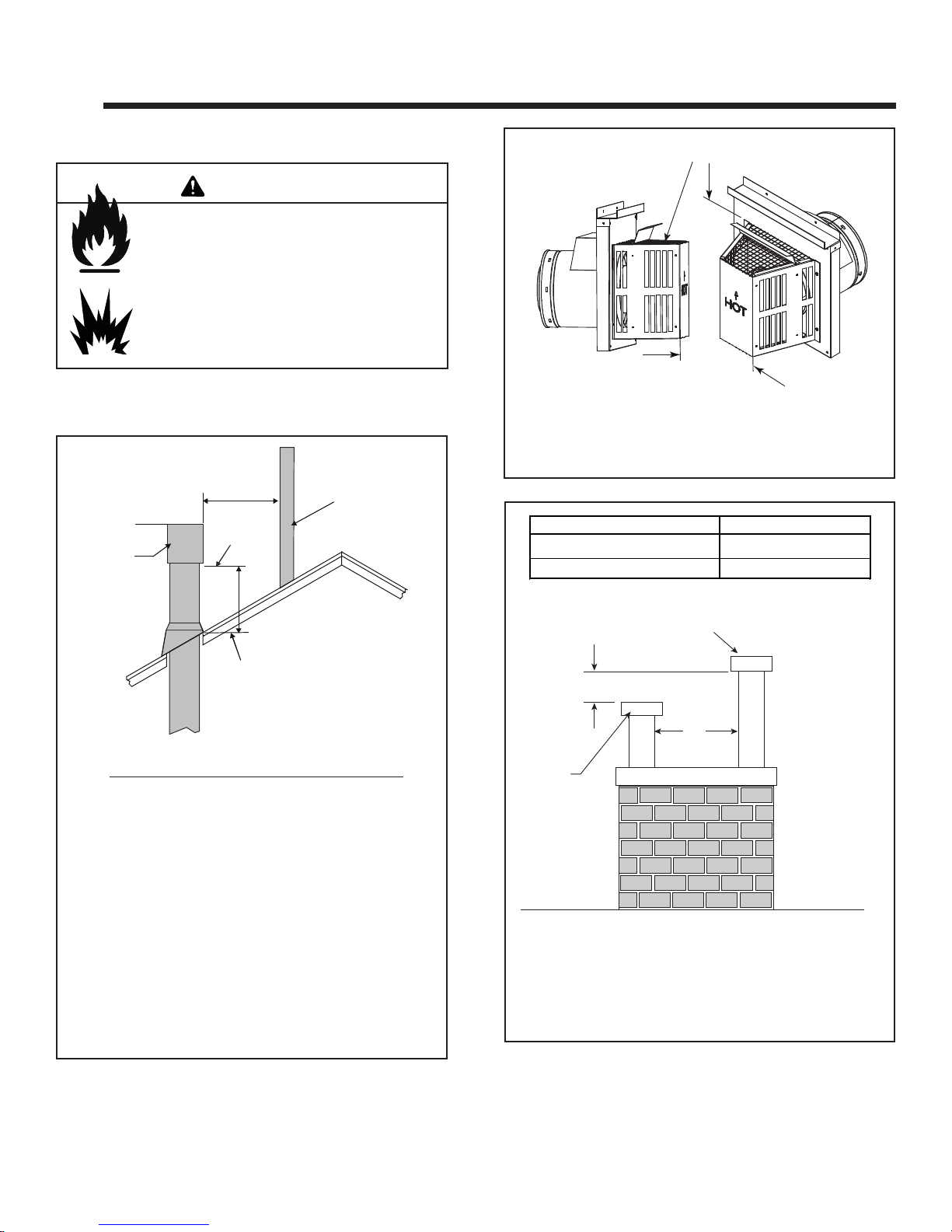

Figure 4.2
4
4 Termination Locations
Measure horizontal clearances from this surface.
Measure vertical clearances from this surface.
Figure 4.1 specifies minimum flue heights for various
pitched roofs. (See Figure 4.4 for specific clearances)
WARNING
61 cm VERTICAL
WALL
TERMINATION
CAP
LOWEST
DISCHARGE
OPENING
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
Angle H (Min.) M
0°-26.6° ........................................................0.30*
26.6°-30.3° ........................................................0.38*
30.3°-33.7° ........................................................0.46*
33.7°-36.9° ........................................................0.61*
36.9°-39.8° ........................................................0.76
39.8°-42.5° ........................................................0.99
42.5°-45.0° ........................................................1.22
45.0°-49.4° ........................................................1.52
49.4°-53.1° ........................................................1.83
53.1°-56.3° ........................................................2.13
56.3°-59.0° ........................................................2.29
59.0°-60.3° ........................................................2.44
*.91 M minimum in snow regions
Figure 4.1 Minimum height from roof to lowest discharge
opening Figure 4.3 Staggered Termination Caps
Gas, Wood or Fuel Oil
Termination Cap
B
Gas
Termination
Cap **
A*
*If using decorative cap cover(s), this distance may need to be
increased. Refer to the installation instructions supplied with the
decorative cap cover.
** In a staggered installation with both gas and wood terminations, the
wood termination cap must be higher than the gas termination cap.
AB
15,2 cm (minimum) up to 50,8 cm 45,7 cm minimum
50,8 cm and over 0 cm minimum

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10 9
Electrical
Service
V
S
VS
V
T
D*
V
MN
P
R
Q
V= VENT TERMINAL X= AIR SUPPLY INLET = AREA WHERE TERMINAL IS NOT PERMITTED
Figure 4.4 Minimum Clearances for Termination
A = 31 cm ....................clearancesabovegrade, veranda,
porch, deck or balcony
B = 31 cm ....................clearances to window or door
thatmay be opened,or toperma-
nently closed window. (Glass)
D* = 31 cm ....................vertical clearance to unventilated
soffitorto ventilated soffitlocated
above the terminal
76 cm.....................for vinyl clad soffits and below
electrical service
F = 23 cm ...................clearance to outside corner
G = 15 cm ....................clearance to inside corner
H = 91 cm ....................not to be installed above a gas
meter/regulatorassemblywithin90
cmhorizontallyfromthecenter-line
of the regulator
I = 1.8 m.....................clearanceto gas service regulator
flue outlet
J = 31 cm......................clearance to non-mechanical
air supply inlet to building or the
combustion air inlet to any other
appliance
K = 1.8 m.......................clearance to a mechanical
(powered) air supply inlet
L** = 2.1 m.......................clearance above paved
sidewalk or a paved driveway
located on public property
M*** = 46 cm......................clearance under veranda, porch,
deck, balcony or overhang
1.1 m ......................vinyl
** aflueshall notterminate directlyabove a sidewalk or paveddriveway
whichis locatedbetween twosingle familydwellings andserves both
dwellings.
*** only permitted if veranda, porch, deck or balcony is fully open on a
minimum of 2 sides beneath the floor, or meets Note 2.
NOTE 1: On private property where termination is less than 7 feet above
a sidewalk, driveway, deck, porch, veranda or balcony, use of a listed cap
shield is suggested. (See flue components page)
NOTE 2: Termination in an alcove space (spaces open only on one side
andwith an overhang)are permittedwith the dimensionsspecified forvinyl
or non-vinyl siding and soffits. 1. There must be 2.7 m minimum between
termination caps. 2. All mechanical air intakes within 3M of a termination
cap must be a minimum of 2.7 m below the termination cap. 3. All gravity
air intakes within 2.7 m of a termination cap must be a minimum of .31M
foot below the termination cap.
(See Note 1)
(See Note 1)
(See Note 2)
NOTE 3: Local codes or regulations may require different
clearances.
NOTE 4: Termination caps may be hot. Consider their proximity to
doors or other traffic areas.
NOTE 5: Location of the flue termination must not interfere with
access to the electrical service.
Heat& Glo assumes no responsibility for theimproper performance
of the appliance when the flueing system does not meet these
requirements.
QMIN = # termination caps x 3 RMAX = (2 / # termination caps) x QACTUAL
Alcove Applications
S = 15 cm.......................clearance from sides ofelec-
trical service
T = 31 cm........................clearance above electrical
service
(See Note 5)
(See Note 5)
See Notes 3 & 4
QMIN RMAX
1 cap .91 m 2 x Q ACTUAL
2 caps 1.8 m 1 x Q ACTUAL
3 caps 2.7 m 2/3 x Q ACTUAL
4 caps 3.7 m 1/2 x Q ACTUAL
N = 15 cm .....................non-vinyl sidewalls
31 cm .....................vinyl sidewalls
P = 2.4 m

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10
10
5
5 Flue Information and Diagrams
Fire Hazard.
Explosion Risk.
Asphyxiation Risk.
DoNOTconnect this gas appliance to a chimney
flue serving a separate solid-fuel or gas burning
appliance.
• Vent this appliance directly outside.
• Use separate flue system for this appliance.
May impair safe operation of this appliance or
other appliances connected to the flue.
CAUTION
ALL flue configuration specifications MUST be followed.
• This product is tested and listed to these specifications.
• Applianceperformance will sufferifspecifications are not
followed.

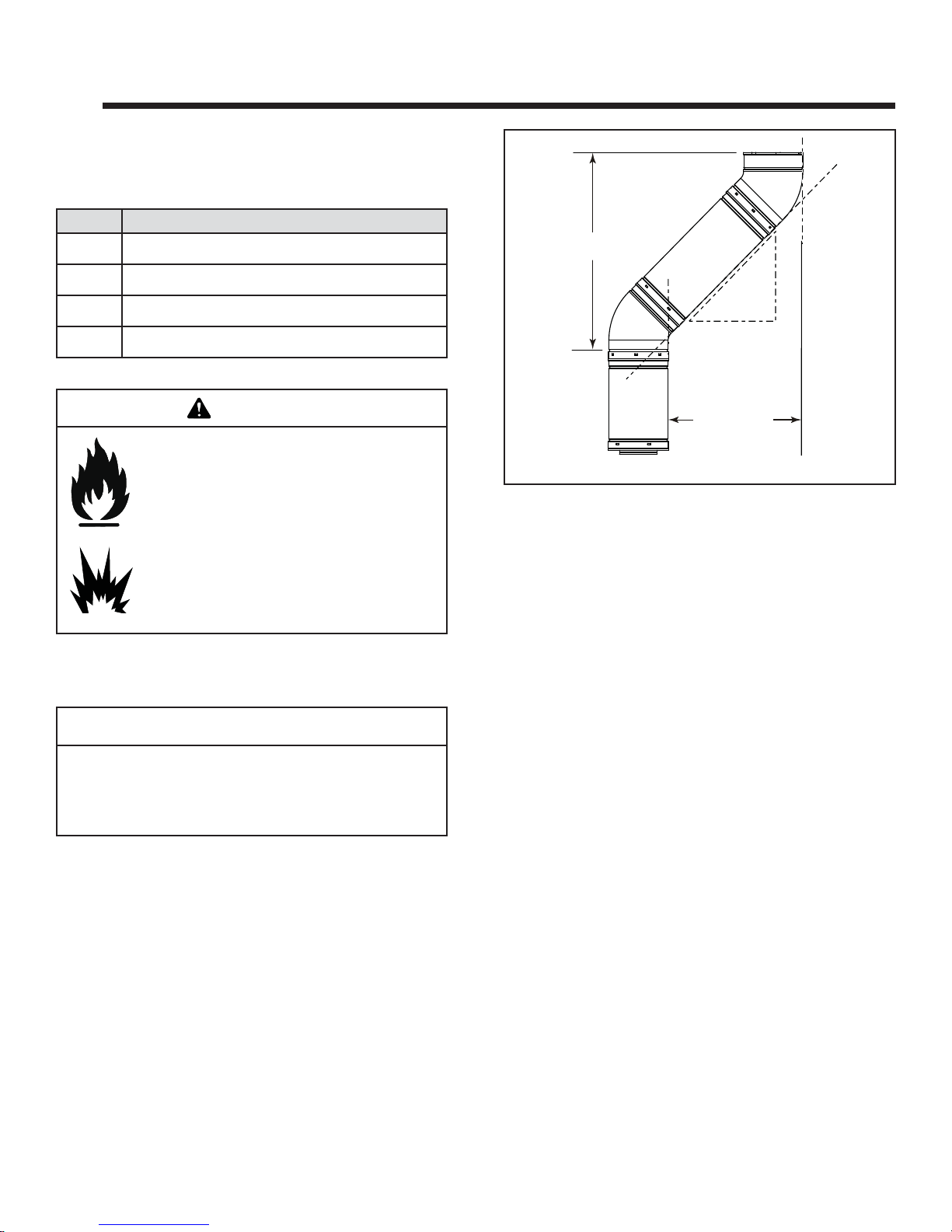

B. Use of Elbows
Diagonal runs have both vertical and horizontal flue as-
pects when calculating the effects. Use the rise for the
vertical aspect and the run for the horizontal aspect (see
Figure 5.1).
Two45ºelbows maybe usedinplace ofone 90ºelbow. On
45º runs, 30.5 cm of diagonal is equal to 21.6 centimeters
horizontal run and 21.6 centimeters vertical run. A length
of straight pipe is allowed between two 45º elbows (see
Flue diagrams).
Figure 5.1
A. Flue Table Key
The abbreviations listed in this flue table key are used in
the flue diagrams.
C. Measuring Standards
Vertical and horizontal measurements listed in the flue
diagrams were made using the following standards.
1. Pipe measurements are from center line to center line.
2. Measurementsaremadefrom theappliance outerwrap,
not from the standoffs.
3. Horizontal terminations are measured to the end of
termination cap.
4. Vertical terminations are measured to bottom of termi-
nation cap.
5. Horizontal pipe installed level with no slope up or
down.
Symbol Description
V1First section (closest to appliance) of vertical length
V2Second section of vertical length
H1First section (closest to appliance) of horizontal length
H2Second section of horizontal length
Horizontal
Vertical
21.6 cm
21.6 cm
30.5 cm
WARNING

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10 11

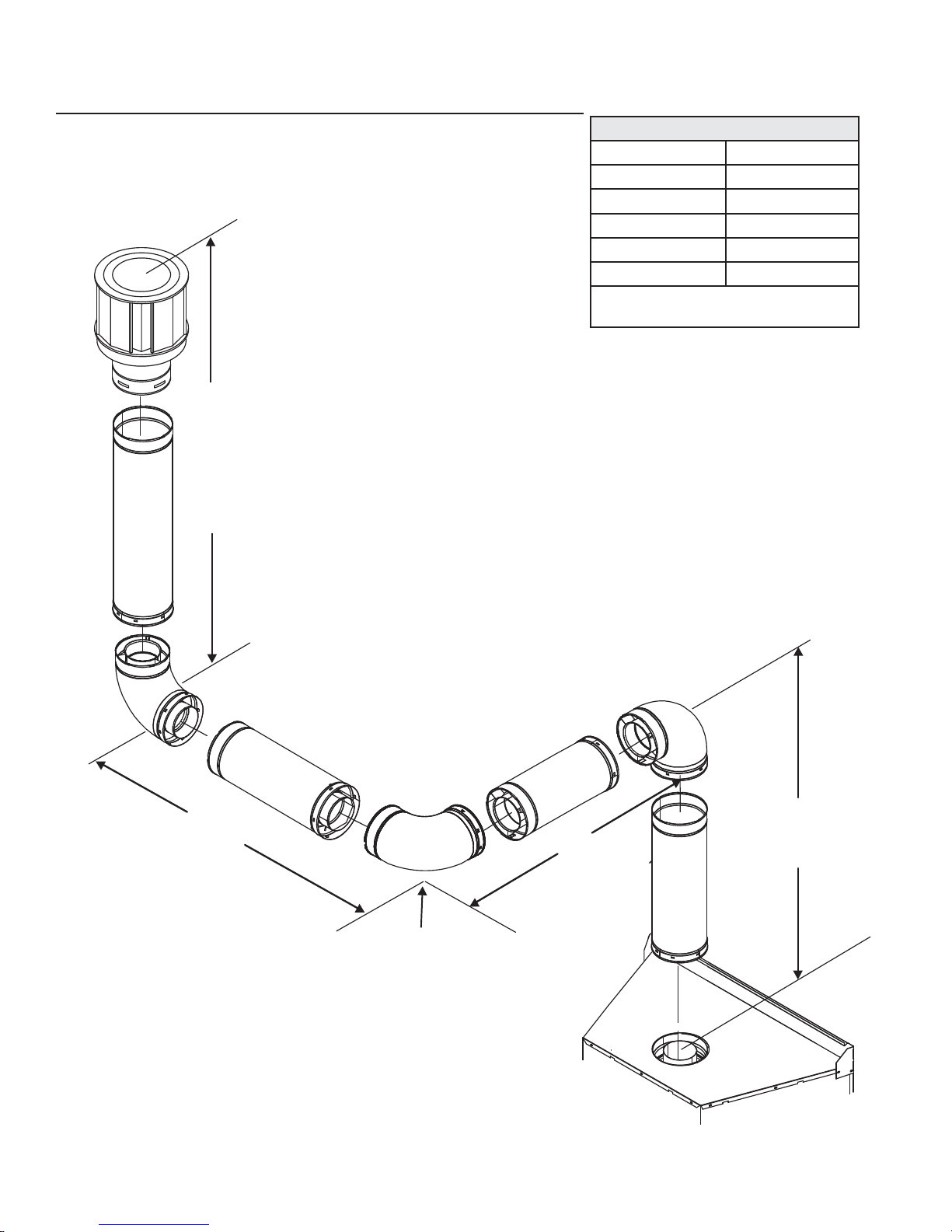

Figure 5.3
Figure 5.4

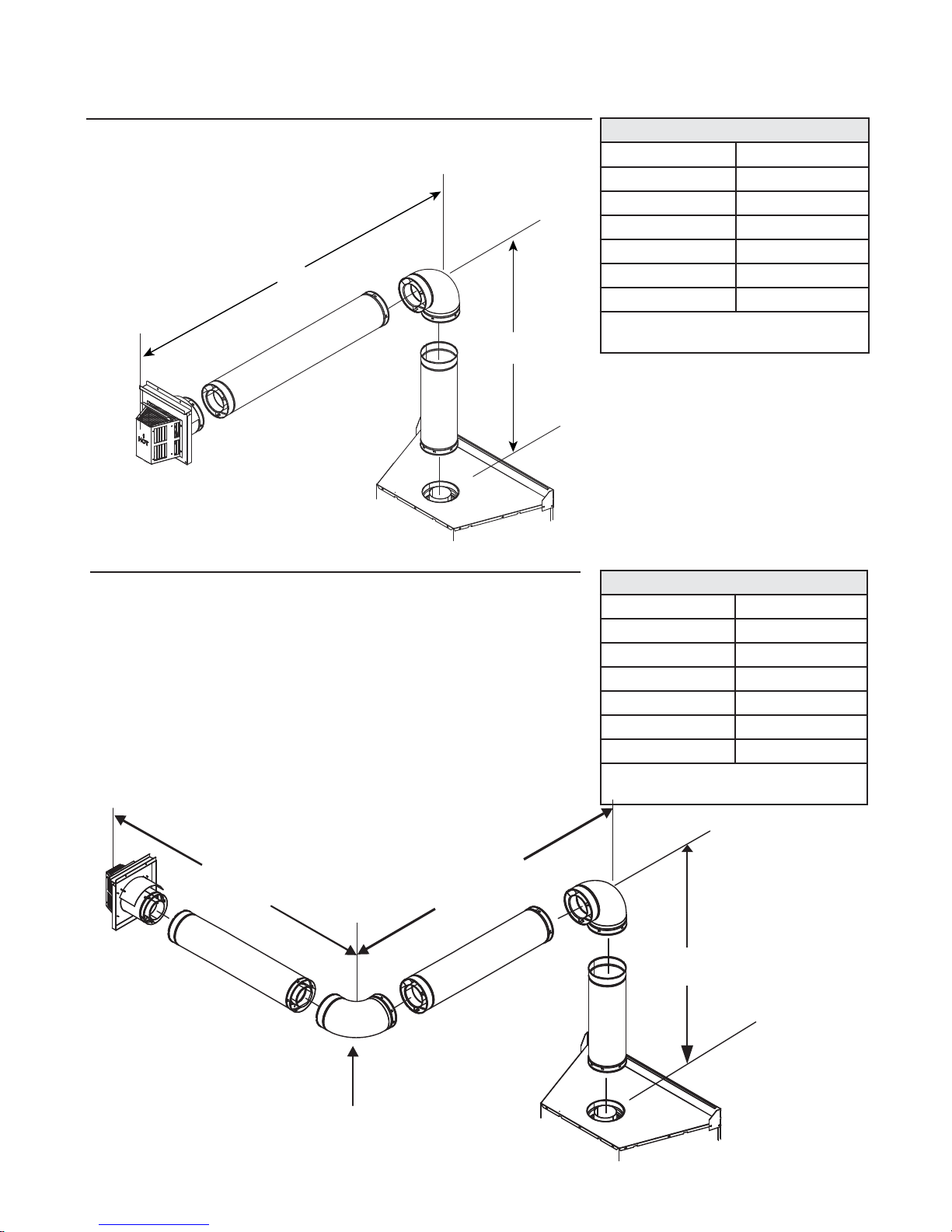

1. Horizontal Termination
One Elbow
Two Elbows Two Elbows
V Minimum H1+ H2Maximum
Elbow only Not Allowed
30 cm 91 cm
61 cm 1.8 m
91 cm 2.7 m
1.2 m 3.7 m
1.5 m 4.6 m
V + H1+ H2Maximum = 11.9 m
H1 + H2Maximum = 4.6 m
D. Flue Diagrams
One Elbow
V Minimum H Maximum
Elbow only 76 cm
30 cm 91 cm
61 cm 1.8 m
91 cm 2.7 m
1.2 m 3.7 m
1.5 m 4.6 m
V + H Maximum = 11.9 m
H Maximum = 4.6 m
H
2
H
1
V
1
INSTALLED
HORIZONTALLY
V
1
H
1

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10
12

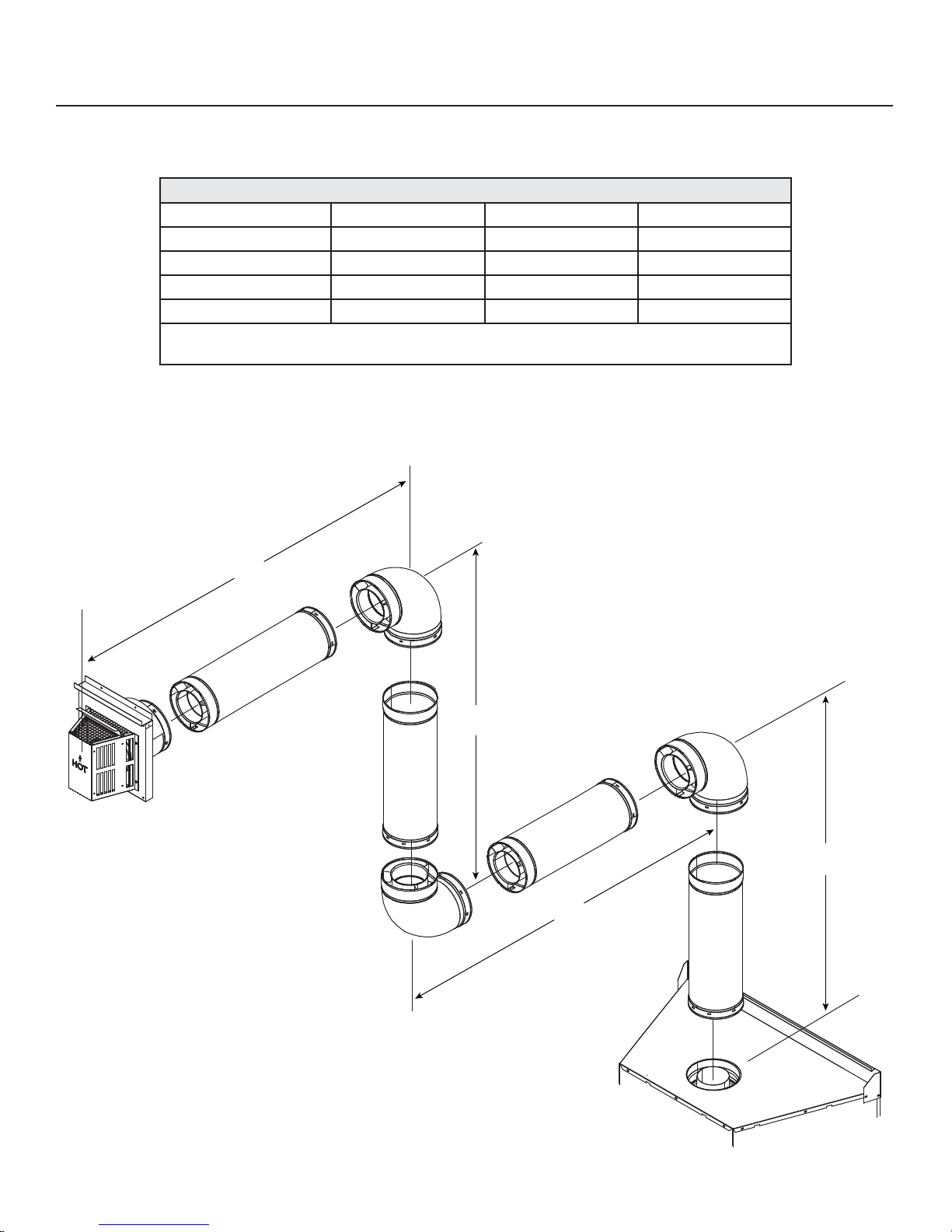

Figure 5.5
1. Horizontal Termination - (continued)
Three Elbows
Three Elbows
V1Minimum H1Maximum V2Minimum H2Maximum
30 cm 61 cm 30 cm 61 cm
61 cm 1.2 m 61 cm 1.2 m
91 cm 1.8 m 91 cm 1.8 m
1.2 m 2.4 m 1.2 m 2.2 m
V1+ V2+ H1+ H2= Maximum = 11.9 m
H1+ H2Maximum = 4.6 m
H
1
V
2
H
2
V
1

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10 13
2. Vertical Termination
No Elbow
Figure 5.6
Figure 5.7
Two Elbows
V1= 11.8 m Maximum
V
1
V
1
V
2
H
1
Two Elbows
V1Minimum H Maximum
Elbow only 46 cm
30 cm 91 cm
61 cm 1.2 m
91 cm 1.8 m
1.2 m 2.4 m
1.8 m 4.6 m
V1+ V2+ H Maximum = 11.9 m
H1+ H2Maximum = 4.6 m

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10
14
Figure 5.8
2. Vertical Termination - (continued)
Three Elbows
V2
H2V1
INSTALLED
HORIZONTALLY
H1
Three Elbows
V1Minimum H1+ H2Maximum
30 cm 61 cm
61 cm 91 cm
91 cm 1.5 m
1.2 m 2.1 m
1.5 m 4.3 m
V1+ V2+ H1+ H2Maximum = 11.9 m
H1+ H2Maximum = 4.3 m

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10 15
B. Wall Penetration Framing
Combustible Wall Penetration
Frame a hole in a combustible wall for an interior wall
shield firestop, (Figure 6.2) whenever a wall is penetrated.
Use same size framing materials as those used in the wall
construction. The wall shield firestop maintains minimum
clearances and prevents cold air infiltration. Awall shield
firestop must be placed on each side of an interior wall.
A minimum 4cm overlap of attached heat shield must be
maintained. See Figure 6.3.
Non-Combustible Wall Penetration
If theholebeingpenetratedissurroundedbynoncombustible
materials such as concrete, a hole with diameter 2.54
cm greater than the pipe is acceptable. Whenever
a non-combustible wall is penetrated, the wall shield
firestop is only required on one side and no heat shield
is necessary.
Figure 6.2 Exterior Wall Hole
A
B
* Shows center of flue framing hole. The center of the hole is
2.54 cm above the center of the horizontal flue pipe.
Fire Risk.
Explosion Risk.
Maintain flue clearance to combustibles as
specified.
• Donotpackair space with insulation or other
materials.
Failure to keep insulation or other materials
away from flue pipe may cause fire.
Figure 6.1 Pipe Clearances
7.62 cm TOP
CLEARANCE
2.54 cm CLEARANCE
AROUND VERTICAL
SECTIONS
2.54 cm SIDE AND
BOTTOM CLEARANCE
WARNING
A* B
97.1 cm 94.6 cm
A. Pipe Clearances to Combustibles
6
6 Flue Clearances and Framing
Figure 6.3 Heat Shield, Interior & Exterior Wall Shield Firestops
TRIM HEAT
SHIELD IFTOO
LONG, ADD TO
SHIELD IFTOO
SHORT
WALL SHIELD
FIRESTOP
(INTERIOR)
HEAT SHIELD
WALL SHIELD
FIRESTOP
(EXTERIOR)

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10
16

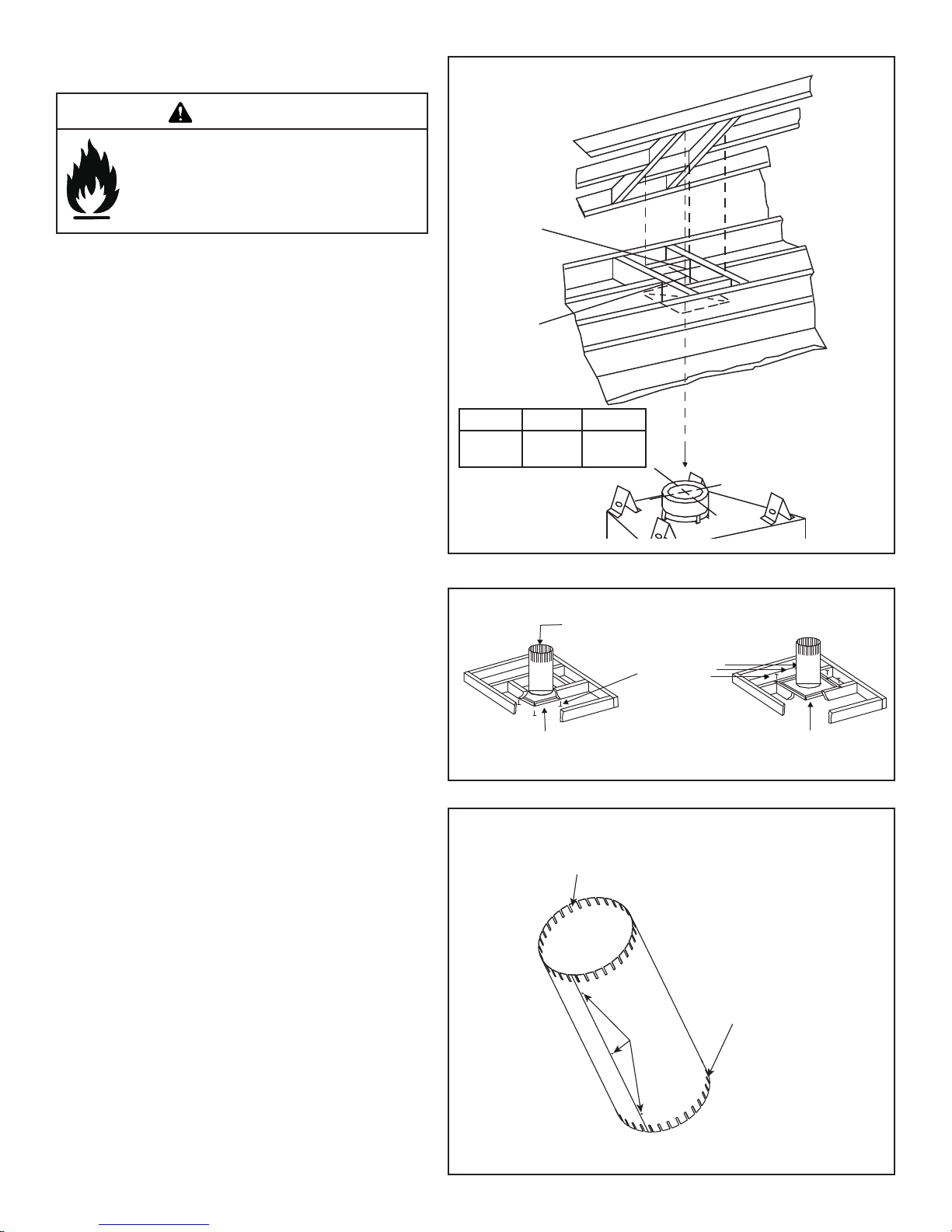

Installing the Ceiling Firestop
• Frame an opening 22.9 cm by 22.9 cm whenever the
system penetrates a ceiling/floor (see Figure 6.4). A
steeply slanted roof may require an enlarged opening
size in order to maintain proper flue pipe clearances.
• Frame the area with the same sized lumber as used
in ceiling/floor joist.
• The ceiling firestop may be installed above or below
theceilingjoists wheninstalled with anattic insulation
shield. It must be under joists between floors that are
not insulated. See Figure 6.5.
• Secure with 3 fasteners on each side. See Figure 6.5.
• Donot packinsulation aroundthe flue.Insulation must
be kept away from the pipe.
Installing Attic Shield
• Remove one shield from box.
NOTICE: Cutpreviously installedbatt insulationto make
room for the attic insulation shield.
• Wrap shield around pipe if pipe is already installed in
area to be insulated.
• Match the three holes in each side and fasten with
three screws to form a tube.
• Bend three tabs on the bottom of the shield outward
to allow attachment to the ceiling firestop.
• Bendtheremainingbottomtabsinward90°to maintain
the air space between the pipe and the shield. Set
the shield on the ceiling firestop and attach to the
firestop.
• Bend all tabs inward 90° around the top of the shield.
These tabs must be used to prevent blown insulation
from getting between the shield and flue pipe, and to
maintain air space clearance.
C. Vertical Penetration Framing
Figure 6.4
ATTIC
ABOVE
A
B
Figure 6.5 Installing the Attic Shield
A B
SLP
PIPE 22.9 cm 22.9 cm
3 FASTENERS
PER SIDE
INSTALL ATTIC INSULATION SHIELDS
BEFORE OR AFTER INSTALLATION OF VENT SYSTEM
CEILING FIRESTOP
INSTALLED BELOW CEILING CEILING FIRESTOP INSTALLED ABOVE CEILING
Fire Hazard
Keep loose materials or blown insulation from
touching the flue pipe.
• Hearth& HomeTechnologies requires the use
of an attic shield.
WARNING
Figure 6.6 Attic Insulation Shield
BEND ALL TABS INWARD 90°
TO MAINTAIN CLEARANCE
AND PREVENT INSULATION
FROM FALLING INSIDE
INSERT 3
SCREWS
BEND 3 TABS
OUTWARD TO
FASTEN TO CEILING
FIRESTOP-BEND
REMAINING TABS
INWARD 90 DEGREES
TO MAINTAIN
CLEARANCE

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10 17
7
7 Appliance Preparation
NAILING TABS
111.8 cm
A. Securing and Leveling the Appliance
The diagram shows how to properly position, level, and se-
cure the appliance (see Figure 7.7). Nailing tabs are pro-
vided to secure the appliance to the framing members.
• Place the appliance into position.
• Level the appliance from side to side and front to back.
• Shimtheappliance, asnecessary.Itis acceptableto use
wood shims.
• Bend out nailing tabs on each side.
• Keep nailing tabs flush with the framing.
• Secure the appliance to the framing by using nails or
screws through the nailing tabs.
Figure 7.7 Proper Positioning, Leveling and
Securing of a Appliance
Fire Risk.
• ALWAYS maintain specified
clearances around the appliance.
• Do NOT notch into the framing around the appliance spacers.
Failuretokeep insulation, framing or othermaterial away from
the appliance may cause fire.
WARNING

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10
18
8
8 Installing Flue Pipe
Install Support Brackets
ForHorizontal Runs- Theflue system mustbe supported
every 1.5 meters of horizontal run by a horizontal pipe
support.
To install support brackets for horizontal runs:
• Place the pipe supports around the flue pipe.
• Nail the pipe supports to the framing members.
For Vertical Runs - The flue system must be supported
every 2.4 meters above the appliance flue outlet by wall
brackets. To install support brackets for vertical runs:
• Attach wall brackets to the flue pipe and secure the wall
bracket to the framing members with nails or screws.
A. Assembly of Flue Sections
To attach the first flue component to the starting collars of
the appliance:
• Lock the flue components into place by sliding the pipe
section onto the collar.
• Align the seam of the pipe and seam of collar to allow
engagement. Rotate the vent component to lock into
place. Use this procedure for all vent components. See
Figure 8.1.
• Slide the gasket over the first flue section and place it
flushtotheappliance.Thiswillpreventcoldairinfiltration.
High temperature caulk may be used to hold the part in
place.
• Continue adding flue components, locking each
succeeding component into place.
• Ensurethat eachsucceeding ventcomponent issecurely
fitted and locked into the preceding component.
Commercial, Multi-family (Multi-level exceeding two sto-
ries), or High-Rise Applications
For Installation into a commercial, multi-family (multi-level
exceeding two stories) or high-rise applications: All outer
pipe joints must be sealed with high temperature silicone,
including the slip section that connects directly to the hori-
zontal termination cap.
• Apply a bead of silicone sealant inside the female outer
pipe joint prior to joining sections.
• Only outer pipes need to be sealed. All unit collar, pipe,
slip section, elbow and cap outer flues shall be sealed
in this manner, unless otherwise stated.

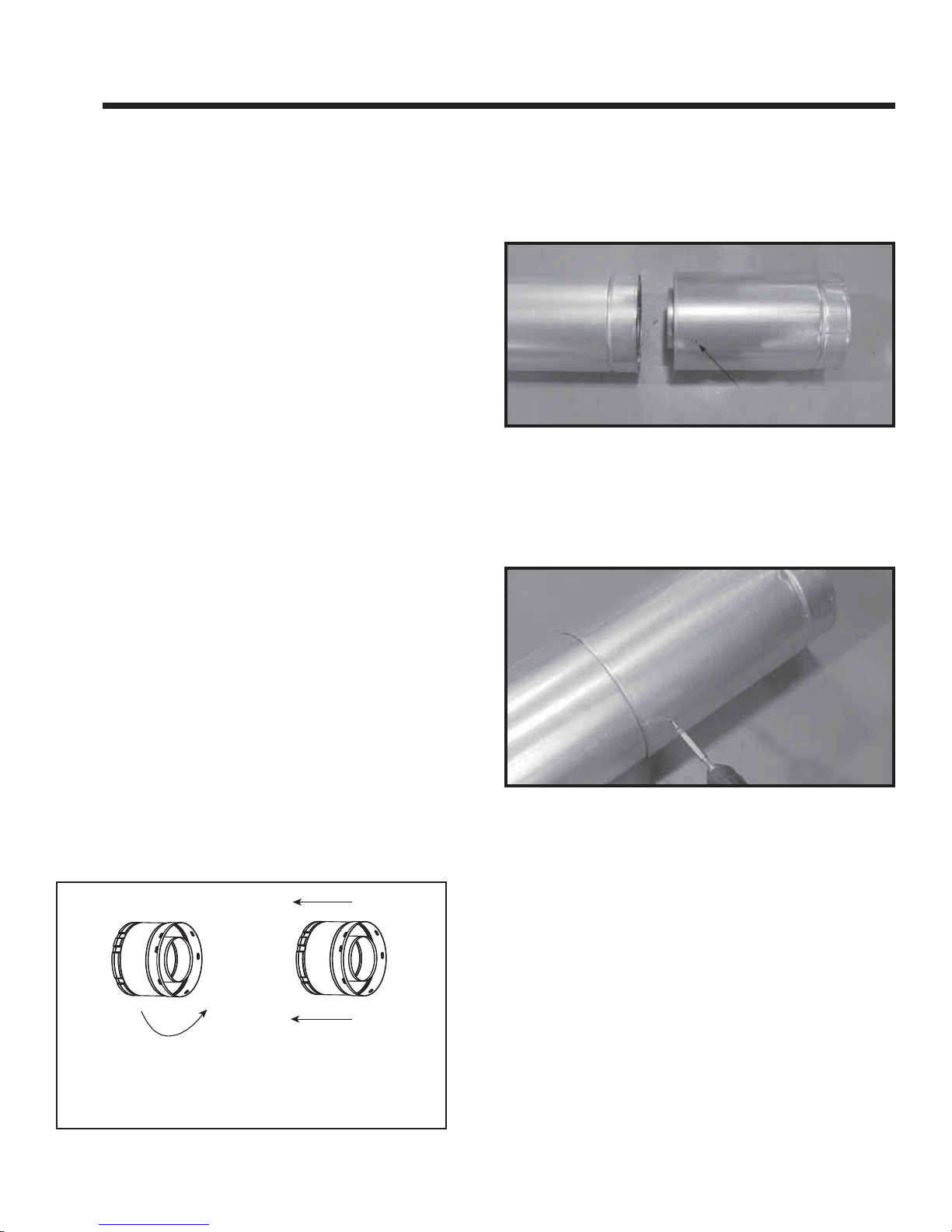

Figure 8.1 Adding Venting Components
WARNING! Risk of Fire or Explosion! DO NOT break
silicone seals on slip sections. Use care when remov-
ing termination cap from slip pipe. If slip section seals
are broken during removal of the termination cap, flue
may leak.
Note: Align seams to engage pipe,
then rotate counterclockwise to lock
Slip Sections
• Slide the inner flue of the slip section into the inner flue
of the pipe section and the outer flue of the slip section
over the outer flue of the pipe section. See Figure 8.2.
• Slide together to the desired length.
Figure 8.2 Slip Section Pilot Holes
Figure 8.3 Screws into Slip Section
Pilot hole
Pilot hole
• Continueadding pipeas necessaryfollowing instructions
in “Assembling Pipe Sections.”
NOTICE: Ifslip sectionistoolong,theinnerandouterflues
of the slip section can be cut to the desired length.
• Maintain a 4 cm overlap between the slip section and
the pipe section.
• Secure the pipe and slip section with two screws no
longer than 1.3 cm, using the pilot holes in the slip
section. See Figure 8.3.

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10 19
Note: Where required, an exterior wall flashing is available.
When penetrating a brick wall, a brick extension kit is avail-
able for framing the brick.
Important Notice: Heat shields may not be field constructed.
B. Heat Shield Requirements for Horizontal
Termination
WARNING! Risk of Fire! To prevent overheating and fire,
heat shields must extend through the entire wall thick-
ness.
• DO NOT remove the heat shields attached to the
wall shield firestop and the horizontal termination cap
(shown in Figure 8.4).
• Heat shields must overlap 4 cm minimum.
There are two sections of the heat shield. One section
is factory-attached to the wall shield firestop. The other
section is factory-attached to the cap. See Figure 8.4.
If the wall thickness does not allow the required 4 cm heat
shield overlap when installed, an extended heat shield
must be used.
• Ifthewallthicknessislessthan11.1cm,theheatshields
on the cap and wall shield firestop must to be trimmed.
A minimum 4 cm overlap MUST be maintained.
• Useanextendedheatshieldifthefinishedwallthickness
is greater than 18 cm.
• The extended heat shield may need to be cut to length
maintaining sufficient length for a 4 cm overlap between
heat shields.
• Attach the extended heat shield to either of the existing
heatshieldsusingthescrewssuppliedwiththeextended
heat shield.
• Rest the small leg on the extended heat shield on top
of the pipe section to properly space it from the pipe
section.
INTERIOR
HEAT SHIELD OR
EXTENDED
HEAT SHIELD
WALL SHIELD
FIRESTOP
HEAT SHIELD
4 cm MIN.
OVERLAP
SHEATHING
SLIP SECTION
CAN BE EXTENDED
INNER FLUE
OUTER FLUE
EXTERIOR
Figure 8.4 Venting through the wall
C. Install Horizontal Termination Cap
WARNING! Risk of Fire! The telescoping flue section of
the termination cap MUST be used when connecting vent.
• 4 cm minimum overlap of flue telescoping section is
required.
Failure to maintain overlap may cause overheating and
fire.
• Flueterminationmust notbe recessed inthe wall.Siding
may be brought to the edge of the cap base.
• Flash and seal as appropriate for siding material at
outside edges of cap.

Heat & Glo • Soho-CE • 2111-900 Rev. i • 10/10
20

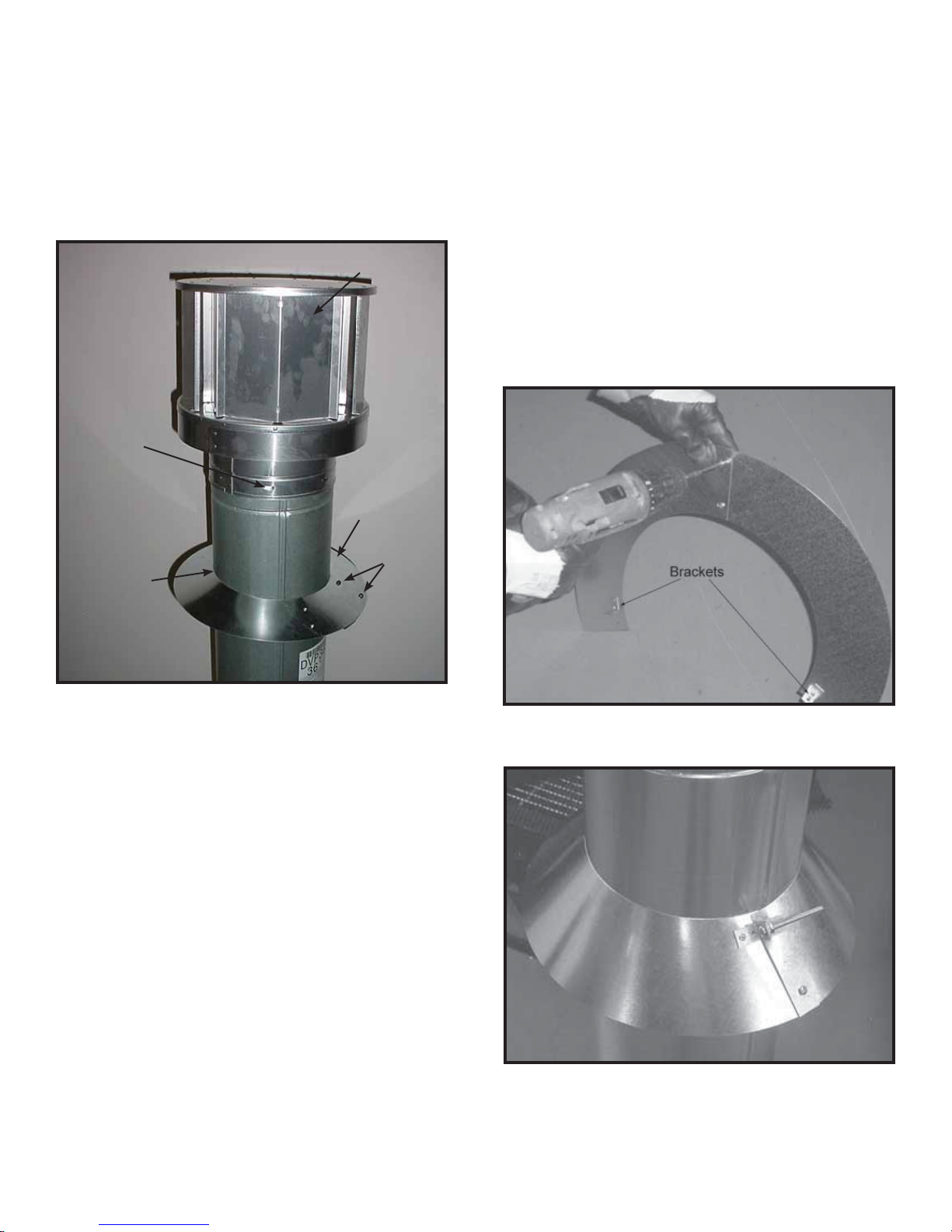

Figure 8.5
SCREWS
CAULK
STORM COLLAR
(1 of 3)
TERMINATION CAP
Figure 8.6 Assembling the Storm Collar
Figure 8.7 Assembling the Storm Collar Around the Pipe
E. Assemble and Install Storm Collar
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
• Connect both halves of the storm collar with two screws
(see Figure 8.6).
• Wrap the storm collar around the exposed pipe section
closest to the roof and align brackets. Insert a bolt
(provided) through the brackets and tighten the nut to
completethe stormcollarassembly.Make surethecollar
is tight against the pipe section.
• Slide the assembled storm collar down the pipe section
until it rests on the roof flashing (see Figure 8.7).
• Caulk around the top of the storm collar (see Figure
8.5).
D. Installing Vertical Termination Cap
• Attach the vertical termination cap by sliding the inner
collar of the cap into the inner flue of the pipe section
while placing the outer collar of the cap over the outer
flue of the pipe section.
• Secure the cap by driving three self-tapping screws
(supplied) through the pilot holes in the outer collar of
the cap into the outer flue of the pipe (see Figure 8.5).
