Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13 1
Model:
SL-350TRS-CE-D
Installers Guide
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR FUTURE
REFERENCE.
0086
This is a room sealed appliance and no other ventilation is
required than what is provided.
These instructions are only valid if the following country symbol is
on the appliance. If this symbol is not present on the appliance,
it is necessary to refer to the technical instructions which will
provide the necessary information concerning the modication
of the appliance to the conditions of use for the country.
These instructions are valid for the following countries: GB, IE
WARNING
This appliance has been supplied with an integral barrier


HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other ammable
materials.
• Keep clothing, furniture, draperies and other ammable
materials away.
• Do not store or use gasoline or other am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas
- Do not try to light any appliance
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the re department.
• Installation and service must be performed
by a qualied installer, service agency, or the
gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a re
or explosion may result causing property
damage, personal injury, or death.
Please contact your Heat & Glo dealer with any questions or
concerns. For the number of your nearest Heat & Glo dealer,
please visit www.heatnglo.com.
This product may be covered by one or more of the following patents: (United States) 5601073, 5613487, 5647340,
5890485, 5941237, 6006743, 6019099, 6053165, 6145502, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122,
7098269, 7258116, 7470729, 8147240 or other U.S. and foreign patents pending.
2000-945B


Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/132
!
This appliance is intended for use on a gas installation with a governed meter.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
READ and UNDERSTAND all instructions carefully before starting the installation. FAILURE
these installation instructions may result in a possible re hazard and will
void the warranty.
Prior to the rst ring of the replace, READ the Using Your Fireplace section of the Users
Guide.
this appliance if any part has been under water. Immediately CALL a qualied
service technician to inspect the unit and to replace any part of the control system and any
gas control which has been under water.

Installation and repair should be by a qualied service person. The appliance
and ue system should be INSPECTED before initial use and at least annually by a
professional service person.
Always KEEP the appliance clear and free from combustible materials, petrol, and other
ammable vapors and liquids.
  the ow of combustion and ventilation air. Keep the front of the
appliance CLEAR of all obstacles and materials for servicing and proper operations.
Due to the high temperature, the appliance should be out of trafc areas and
away from furniture and draperies. Clothing or ammable material   
PLACED on or near the appliance.
Children and adults should be ALERTED to the hazards of high surface temperature
and should STAY AWAY to avoid burns or clothing ignition. Young children should be
CAREFULLY SUPERVISED when they are in the same room as the appliance.
These units use one of the uing systems described in the Installing the Fireplace
section of the Installers Guide. ue systems or components .
This gas appliance and ue assembly be vented directly to the outside and 
NEVER be attached to a chimney serving a separate solid fuel burning appliance. Each gas
appliance a separate ue system. Common ue systems are .
INSPECT the external terminal cap on a regular basis to make sure that no debris is
interfering with the air ow.
The glass door assembly be in place and sealed, and the trim door assembly 
be in place on the appliance before the unit can be placed into safe operation.
   this appliance with the glass door removed, cracked, or broken.
Replacement of the glass door should be performed by a licensed or qualied service
person. strike or slam the glass door.
The glass door assembly be replaced as a complete unit, as supplied by the
gas appliance manufacturer. material may be used.
abrasive cleaners on the glass door assembly. to clean
the glass door when it is hot.
Turn off the gas before servicing this appliance. It is recommended that a qualied service
technician perform an appliance check-up at the beginning of each heating season.
Any safety screen or guard removed for servicing must be replaced before operating this
appliance.

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13 3
Table of
Contents
Safety and Warning Information .................................................................... 2
Service Parts List ............................................................................................ 4
Section 1: Approvals and Regulations.......................................................... 7
Appliance Certication .................................................................................. 7
Installation Regulations ................................................................................ 7
Section 2: Getting Started .............................................................................. 8
Introducing the Heat & Glo Gas Fireplaces .................................................. 8
Pre-installation Preparation .......................................................................... 8
Section 3: Installing the Fireplace ............................................................... 10
Step 1 Locating the Fireplace................................................................ 10
Step 2 Framing the Fireplace ................................................................ 11

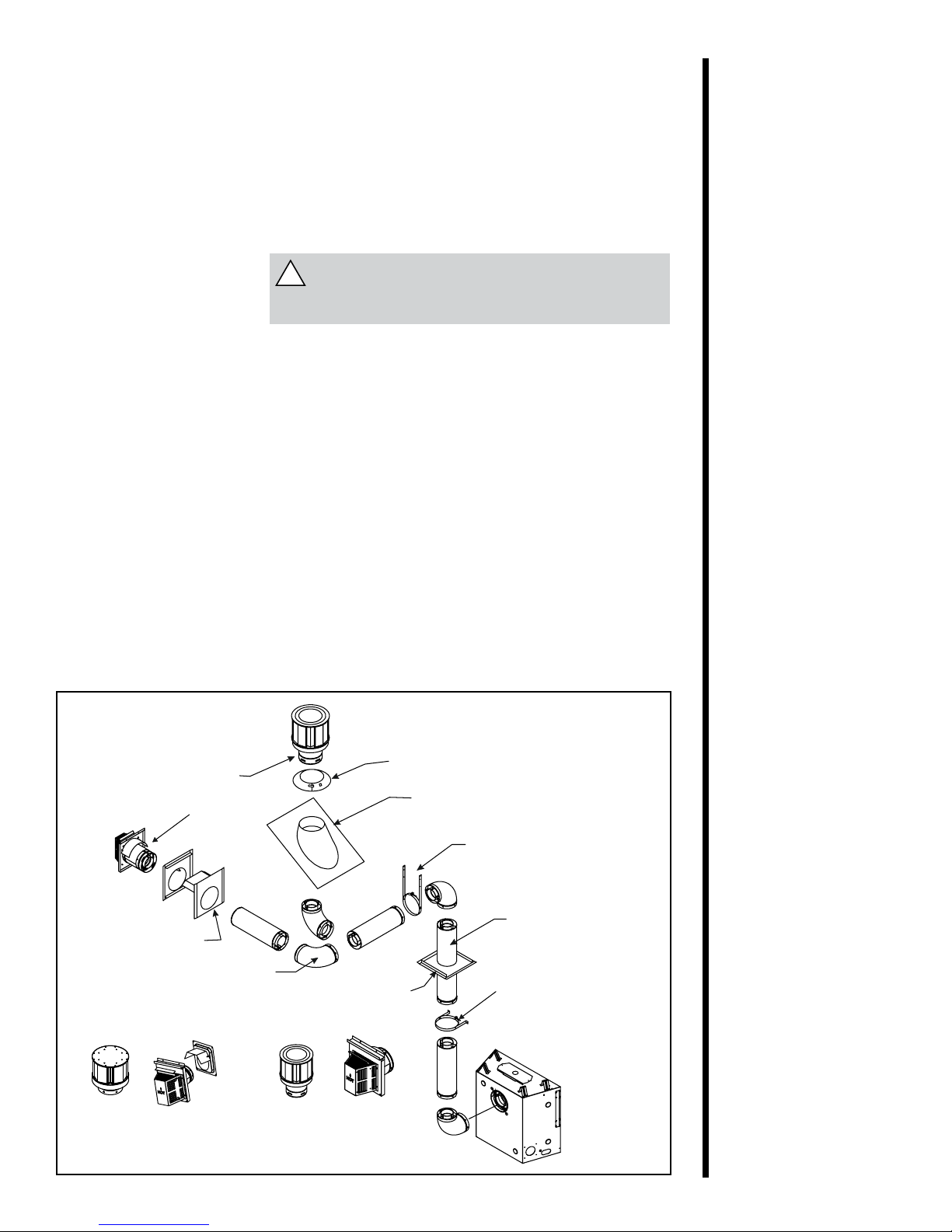

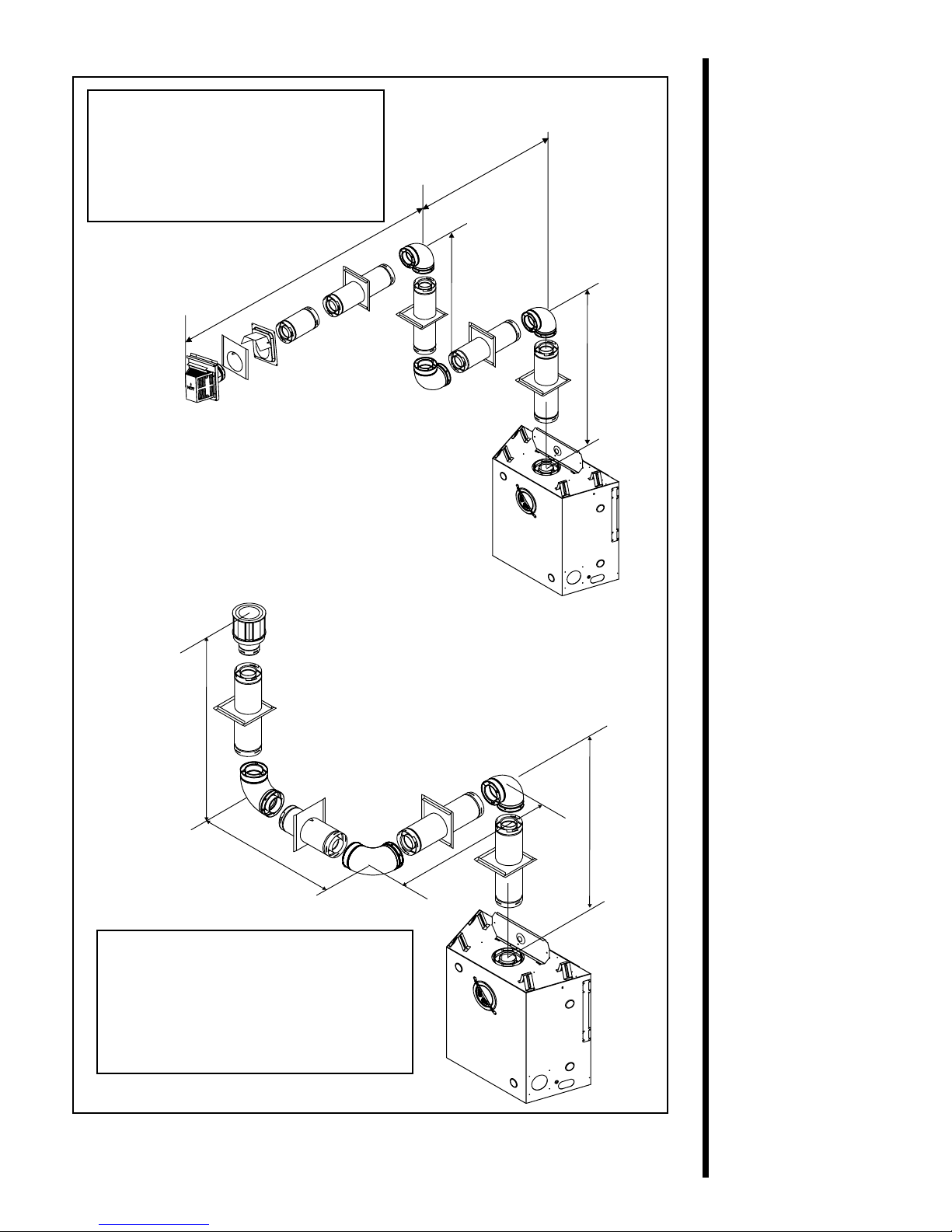

Step 3 Installing the Flue System .......................................................... 12
A. Flue System Approvals.......................................................... 12
B. Flue Pipe Clearances to Combustibles ................................. 23
C. Wall Penetration Framing ...................................................... 23
D. Vertical Penetration Framing ................................................. 24
E. Assemble Flue Pipe Sections (DVP Pipe Only) .................... 25
F. Assemble Flue Pipe Sections (SLP Pipe Only)...................... 26
G. Assemble SLP or DVP Slip Sections .................................... 26
H. Securing the Flue Pipe Sections (DVP and SLP Pipe) ......... 27
I. Installing Metal Roof Flashing ................................................. 28
J. Installing Vertical Termination Cap ........................................ 29
K. Assemble and Install Storm Collar ........................................ 29
L. Heat Shield Requirements for Horizontal Termination ........... 30
Step 4 Positioning, Leveling and Securing the Fireplace ...................... 32
Step 5 The Gas Control Systems .......................................................... 32
Step 6 The Gas Supply Line ................................................................. 33
Step 7 Gas Pressure Requirements...................................................... 34
Step 8 Wiring the Fireplace ................................................................... 34
Step 9 Finishing..................................................................................... 35
Step 10
Installing Trim, Logs & Ember Material ......................................... 36
Installing the Trim....................................................................... 36
Positioning the Logs................................................................... 37
Placing the Ember Material ........................................................ 39
Step 11 Before Lighting the Fireplace ..................................................... 40
Step 12 Lighting the Fireplace................................................................. 40
After the Installation .................................................................. 40
Section 4: Maintaining and Servicing Your Fireplace................................ 41
Section 5: Troubleshooting.......................................................................... 43
Limited Lifetime Warranty ................................................................................ 46
 = Contains updated information.



Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/134
Service Parts SL-350TRS-CE-D
Beginning Manufacturing Date: Sept 2003
Ending Manufacturing Date: Active
Log Assembly
28” Gas Fireplace - DV
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance, please
provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
ITEM DESCRIPTION COMMENTS PART NUMBER
Log Set Assembly LOGS-350CE-D
1 Log 1 SRV327-701
2 Log 2 SRV2033-701
3 Log 3 SRV705-703
4 Log 4 SRV530-716
5 Log 5 SRV438-724
6 Log 6 SRV540-704
7 Grate Assembly 2033-013
8 Base Pan 2033-105
9
Burner N Pre Sept 2007 2033-007
Post Sept 2007 2033-027
Burner P Pre Sept 2007 2033-008
Post Sept 2007 2033-028
Burner B Pre Sept 2007 2033-009
Post Sept 2007 2033-029
10 Glass Door Assembly Pre 0021061383 GLA-350TRS
Post 0021061383 GLA-3504TRS
11 Hood SRV540-174
12 Door Assembly Pre 00295123 540-382A
Post 00295123 2033-020
13 Door Assembly, Lower Post 00295123 2033-042
14 Junction Box 546-250A
Additional service part numbers appear on following page. 3/13
7
14
13
12
11 10
98
41
3
6
2
5

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13 5
Service Parts SL-350TRS-CE-D
Beginning Manufacturing Date: Sept 2003
Ending Manufacturing Date: Active

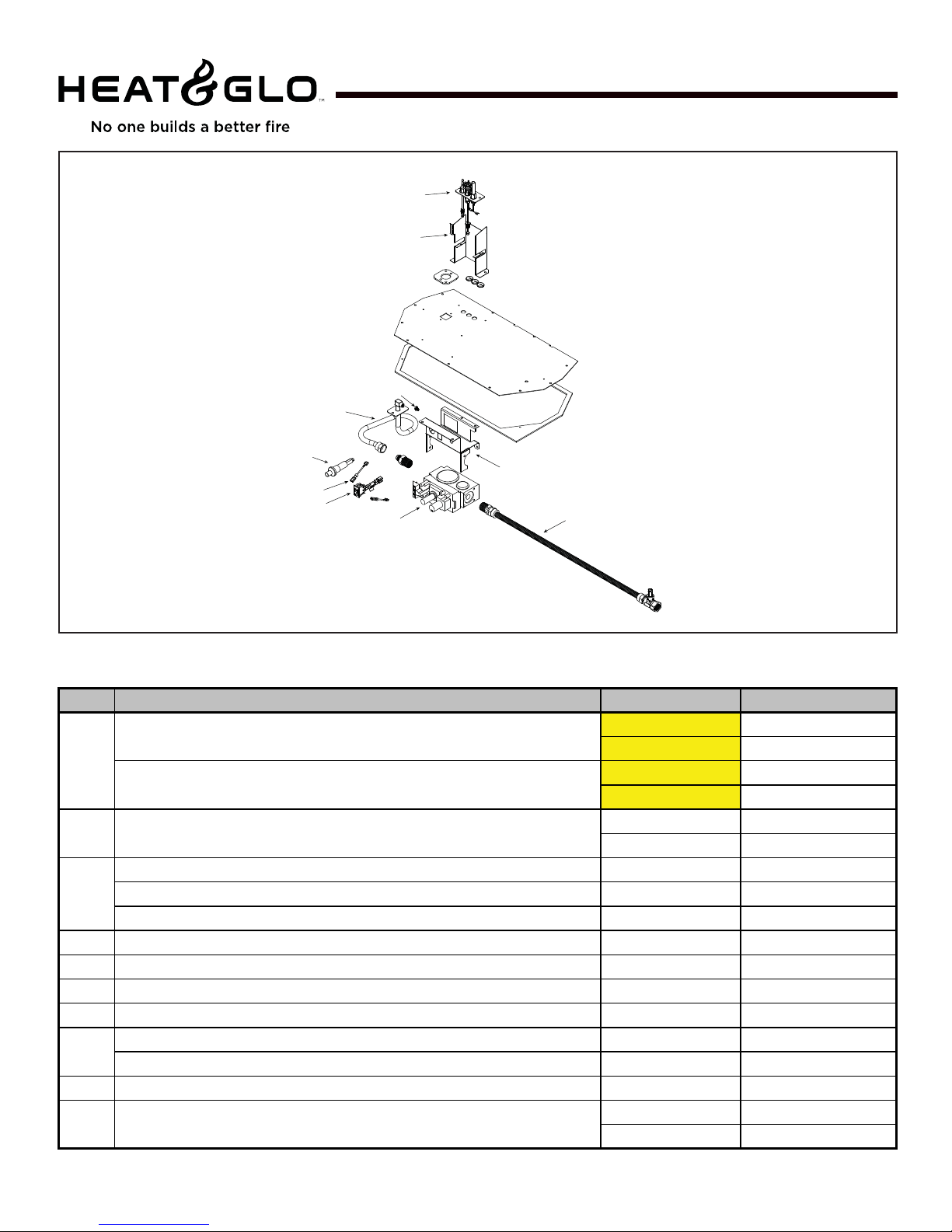

#15 Valve Assembly
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance, please
provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
ITEM DESCRIPTION COMMENTS PART NUMBER
15.1
Pilot Assembly N Pre Mar 2013 529-550A
Post Mar 2013 2033-550
Pilot Assembly P Pre Mar 2013 529-551A
Post Mar 2013 2033-551
15.2 Pilot Bracket Pre Sept 2007 2033-103
Post Sept 2007 2033-133
15.3
Ori ce N (# 44C) 582-844
Ori ce B (# 56C) 582-856
Ori ce P (# 55C) 582-855
15.4 Flexible Gas Connector 383-302A
15.5 Piezo Ignitor 291-513
15.6 Wire Assembly 049-552A
15.7 On/Off Switch Assembly 060-521A
15.8 Valve N 060-524
Valve P 060-526
15.9 Flex Ball Valve Assembly 531-320A
15.10 Valve Bracket No longer available 529-169
Post Sept 2007 2118-104
Additional service part numbers appear on following page.
15.2
15.10
15.9
15.8
15.1
15.7
15.6
15.5
15.4
15.3

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/136
Service Parts SL-350TRS-CE-D
Beginning Manufacturing Date: Sept 2003
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your appliance, please
provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
ITEM DESCRIPTION COMMENTS PART NUMBER
Louver, Upper Pre 00295123 540-256A
Louver, Lower Pre 00295123 540-257A
Glass Latch Assembly Pkg of 2 33858/2
Exhaust Bafe 530-299
Mineral Wool 050-721
Gasket Assembly
2113-080
Includes: Burner Neck, Shutter Bracket, Vent, Seal Cap, Valve
Plate, and Air Passage Gaskets
Touch Up Paint TUP-GBK-12
Wall Switch ( off White) WSK-21
Wall Switch (White) WSK-21-W
Conversion Kit N NGK-350TRSCE-D
Conversion Kit P LPK-350TRSCE-D
Conversion Kit B BGK-350TRSCE-D
Pilot Ori ce N 529-512
Pilot Ori ce P/ B 200-2630
Regulator N 230-1570
Regulator P/B 230-1520

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/137
1
Approvals
and
Regulations
Appliance Certication
The Heat & Glo replace models discussed in this
Installers Guide have been tested to certication
standards and listed by the applicable laboratories.
Installation Regulations
Before installation check that local distribution conditions, nature of gas and
pressure, and adjustment of the appliance are compatible.
This appliance must be installed with the rules in force, and used only in a
sufciently ventilated space. Consult instructions before installation and use of
this appliance.
MODEL LABORATORY TYPE CERTIFICATION STANDARD
SL-350TRS-CE-D BSI Gas Fireplace BS EN 613:2001 (Amd 1)

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13 8
Heat & Glo direct ue gas replaces are designed to
operate with all combustion air siphoned from outside
of the building and all exhaust gases expelled to the
outside.
The information contained in this Installers Guide,
unless noted otherwise, applies to all models and gas
control systems.
Gas replace diagrams, including the dimensions, are
shown in this section.
This gas replace and its components are tested and
safe when installed in accordance with this Installers
Guide. Report to your dealer any parts damaged in
shipment, particularly the condition of the glass. Do
not install any unit with damaged, incomplete, or
substitute parts.
The flue system components and trim doors are
shipped in separate packages. The gas logs are
packaged separately and must be eld installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benet. Failure to follow these instructions
will void the owner’s warranty and may present
a re hazard.
The Heat & Glo Fireplace Products, Inc. Warranty
will be voided by, and Heat & Glo Fireplace Products,
Inc. disclaims any responsibility for, the following
actions:
• Installation of any damaged replace or ue system
component.
• Modication of the replace or direct ue system.
• Installation other than as instructed by Heat & Glo
Fireplace Products, Inc.
• Improper positioning of the gas logs or the glass
door.
• Installation and/or use of any component part not
manufactured and approved by Heat & Glo Fireplace
Products, Inc., not withstanding any independent
testing laboratory or other party approval of such
component part or accessory.
       

Introducing the
Heat & Glo
Gas Fireplaces
Pre-installation
Preparation
2
Getting
Started

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/139

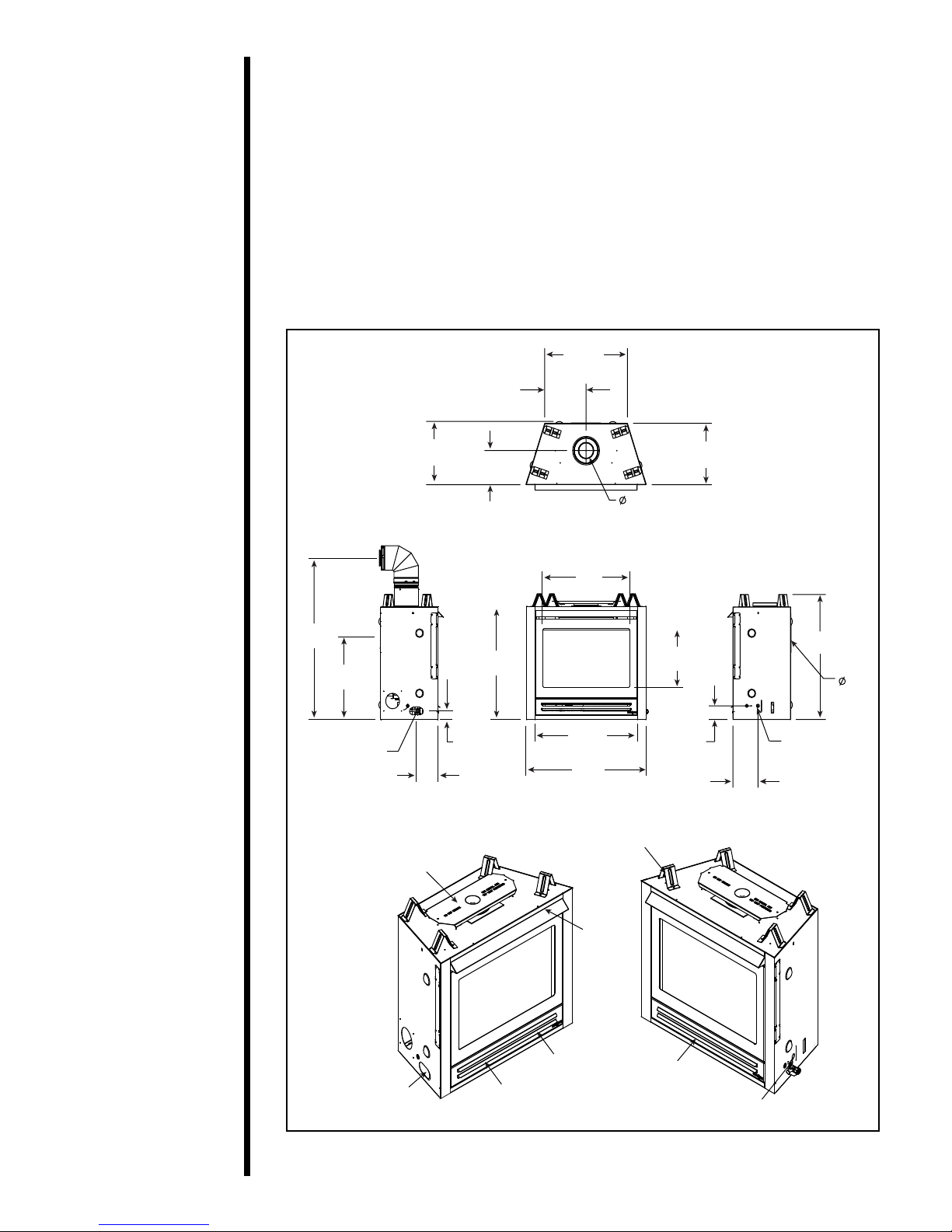

Figure 1. Diagram of the SL-350TRS-CE
54.4 cm
15.3 cm
5.8 cm 9.3 cm
17.4 cm
74.1 cm
71.4 cm
83.7 cm
102.9 cm
20.3 cm
GAS LINE
ACCESS
ELECTRICAL
ACCESS
16.7 cm
40.2 cm
38.4 cm
82.7 cm
61 cm
41.4 cm
22.3 cm
28.9 cm
57.7 cm
TOP HEAT SHIELD
(FLUE COLLAR COVER PLATE)
GAS
CONTROLS
HOOD
TOP STANDOFFS
GAS
ACCESS
BOTTOM
GRILLE COVER
RATING PLATE/LABELS
ELECTRICAL ACCESS
When planning a replace installation, it’s necessary to determine:
• Where the unit is to be installed.
• The ue system conguration to be used.
• Gas supply piping.
• Electrical wiring.
• Framing and nishing details.
• Whether optional accessories—devices such as a fan, wall switch, or re-
mote control—are desired.
If the replace is to be installed on carpeting or tile, or on any combustible
material other than wood ooring, the replace should be installed on a metal
or wood panel that extends the full width and depth of the replace.

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13 10
A B C D E
86.4 cm 41.3 cm 72.8 cm 100.1 cm 141.6 cm
Figure 2. Fireplace Dimensions, Locations, and
Space Requirements
A
B
C
D
E
7.6 cm
1.3 cm
3
Installing the
Fireplace
The diagram below shows space and clearance require-
ments for locating a replace within a room.
Step 1
Locating the
Fireplace
* NOTE: Dimensions
are shown with the
sides, back and/or
corners of the unit
13 mm from the
wall.
MODEL: SL-350TRS-CE-D RECESSED DEPTH: 41.3 cm
Minimum Clearances from the Fireplace to Combustible Materials
Glass
Front Floor  Fireplace

Fireplace

Fireplace Ceiling
91.4 cm 0 1.3 cm 1.3 cm 8.9 cm 79 cm
Figure 3. Heat Shield
Clearance Requirements
The top and back of the replace
are dened by standoffs.
The heat shield must be at-
tached as shown if combustible
materials are placed directly on
top standoffs (Figure 3).
The minimum clearance to a
perpendicular wall extending
past the face of the replace is
7.62 cm.
The back of the replaces may
be recessed into combustible
construction, as shown below.
TOP STANDOFFS
HEAT SHIELD
HEAT SHIELD
INSTALLED

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/1311
Figure 4. Framing Dimensions

Step 2
Framing the
Fireplace

   
   

Fireplace framing can be built before or after the
replace is set in place. Framing should be positioned
to accommodate wall coverings and replace facing
material. The diagram below shows framing reference
dimensions.
Minimum Clearances from the Flue Pipe to Combustible Materials
For Horizontal Sections For Vertical
Sections At Wall Firestops
Top Bottom Sides 2.54 cm Top Bottom Sides
7.6 cm 2.54 cm 2.54 cm 6.4 cm 1.3 cm 2.54 cm
Framing should be
constructed of 2 X 4 lumber or heavier.
The framing headers may rest
on the replace stand-offs.
B
A
C
The center of the framing hole is
2.54 cm above the center of the
horizontal ue pipe.
D
VENT
FRAMING
HOLE
E
A B C D E
86.4 cm 83.2 cm 41.3 cm 105.4 cm 54.2 cm

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13 12
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION
STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
DVP-SERIES
SLP SERIES
DVP-TRAP
DVP-TVHW
Flue system termination kits
SLP-TVHW SLP-TRAP2
Figure 5. Flue Components and Terminations
A. Flue System Approvals
These models have ue starting collars on both the top and
the back of the unit. Depending upon the installation, decide
which ONE set of starting collars will be used to attach the
ue system. The starting collar sealing cap must remain on
the starting collar NOT used.
These models use SLP series, direct ue components when
using the TOP ue collars and DVP SERIES direct ue
components when using the REAR ue collars.
Step 3
Installing the
Flue System
Approved flue system components are labeled for
identification. NO OTHER FLUEING SYSTEMS OR
COMPONENTS MAY BE USED. Detailed installation
instructions are included with each ue termination kit and
should be used in conjunction with this Installers Guide.
Figure 4 shows ue system components and terminations.
Identifying Flue Components
The ue systems installed on this gas replace may include
one, two, or three 90° elbow assemblies. The relationships
of vertical rise to horizontal run in ue congurations using
90° elbows MUST BE strictly adhered to. The rise to run
relationships are shown in the ueing drawings and tables on the
next several pages.
NOTE: Two 45° elbows may be used in place of one 90°
elbow. You MUST always maintain the MAXIMUM and
MINIMUM rise-to-run ratios in the ue system when using
45° elbows.
WARNING: YOU MUST NOT MIX DVP SERIES
AND SLP SERIES COMPONENTS IN ANY
FLUE SYSTEM CONFIGURATION.
!

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/1313
Figure 6. DVP SERIES Balanced Flue Component Specications (12.7 cm inner ue
pipe / 20.3 cm outer ue pipe)
NOTE: PIPES OVERLAP 32 mm AT EACH JOINT.
DVP90ST
31.9 cm
28.6 cm
18.4 cm
3.2 cm TYP
1.3 cm TYP
21.7 cm
DVP36
DVP48
121.9 cm
61.0 cm
91.4 cm
10.2 cm
15.2 cm
DVP4
DVP6
30.5 cm
DVP12
5.1 cm
MIN.
DVP12A
31.0 cm
MAX.
DVP24
25.1 cm
45.0º
26.0 cm
DVP45
36.2 cm

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13 14

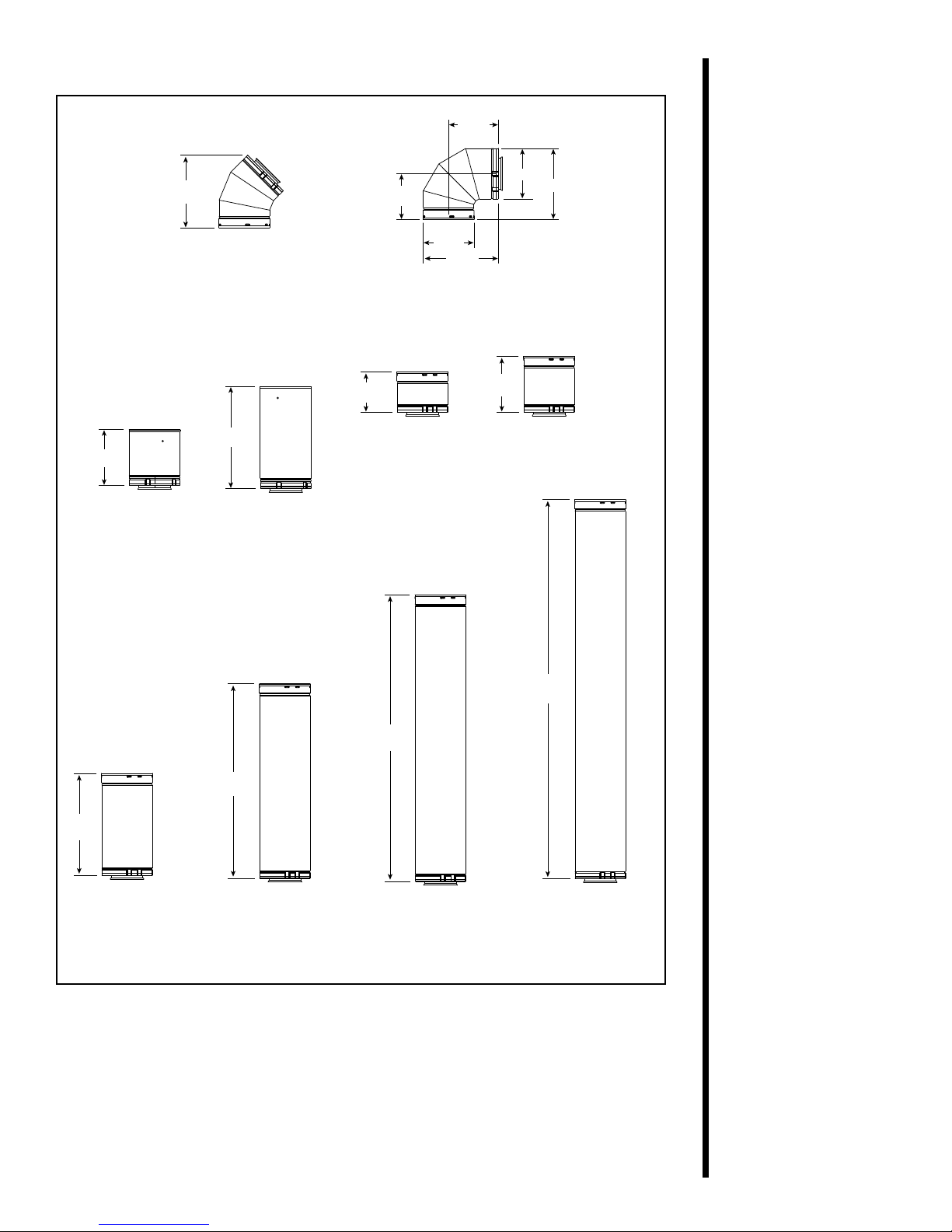

Figure 7. SLP Series Flue Component Specications (10.2 cm inner ue pipe/16.8
cm outer ue pipe)
Note: Pipes overlap 3.5 cm at each joint.
24 cm
16.7 cm
15.2 cm
16.5 cm
24.8 cm
23.5 cm
18.4 cm
18.4 cm
13.3 cm
64.1 cm
94.6 cm
125.1 cm
33.7 cm
33.7 cm
16.8 cm
SLP45 SLP90
SLP12
SLP6
SLP4
SLP24 SLP36 SLP48
SLP12A
SLP6A

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/1315
H
STRAIGHT UP
VERTICAL FLUE
V
11.8 m MAX.

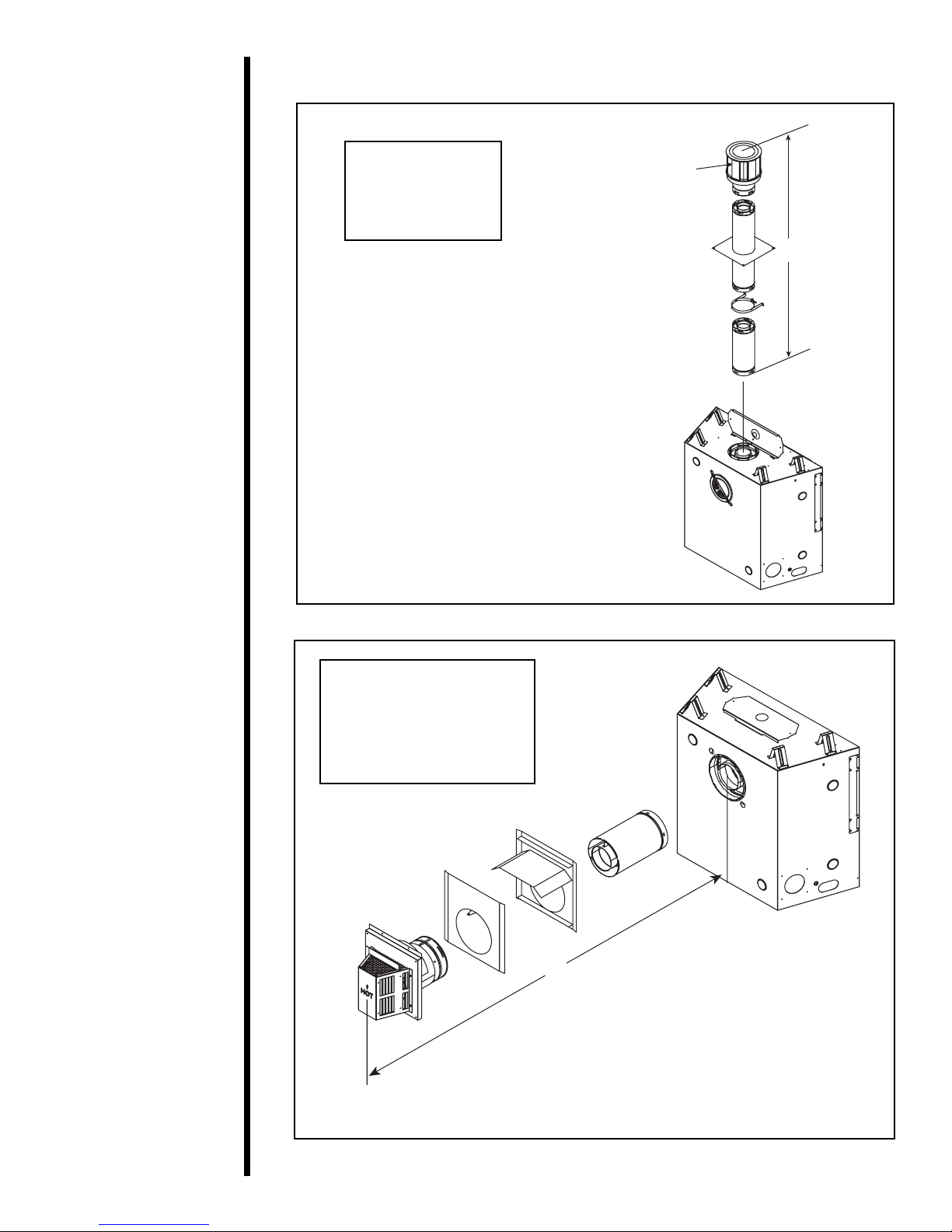

Figure 8. Straight up Vertical Flue
USE SLP SERIES
COMPONENTS ONLY.
STRAIGHT OUT HORIZONTAL
FLUE
H
Max. Run
61 cm
USE DVP SERIES
COMPONENTS ONLY.
Figure 9. Straight Out Horizontal Flue
CAP
V
1

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13 16
V
H
V
H
FLUE WITH ONE (1) 90º ELBOW
V H
MIN. 457 mm MAX. 1.37 m
MIN. 914 mm MAX. 2.74 m
MIN. 1.37 m MAX. 4.11 m
MIN. 1.83 m MAX. 5.48 m
V+H = MAX. 11.6 m H= MAX. 5.48 m
USE DVP SERIES
COMPONENTS ONLY.
Figure 10. Flue with One 90° Elbow
Figure 11. Flue with One 90° Elbow
FLUE WITH ONE (1) 90º ELBOW
V H
MIN. 381 mm MAX. 1.43 m
MIN. 762 mm MAX. 2.29 m
MIN. 1.14 m MAX. 3.43 m
MIN. 1.52 m MAX. 4.57 m
V + H = MAX 11.6 m H = MAX. 4.57 m
NOTE: A 23 cm vertical section
must be attached to the unit
before the 90º elbow.
USE SLP SERIES
COMPONENTS ONLY.

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/1317
V
HH
1
H
1
V
H

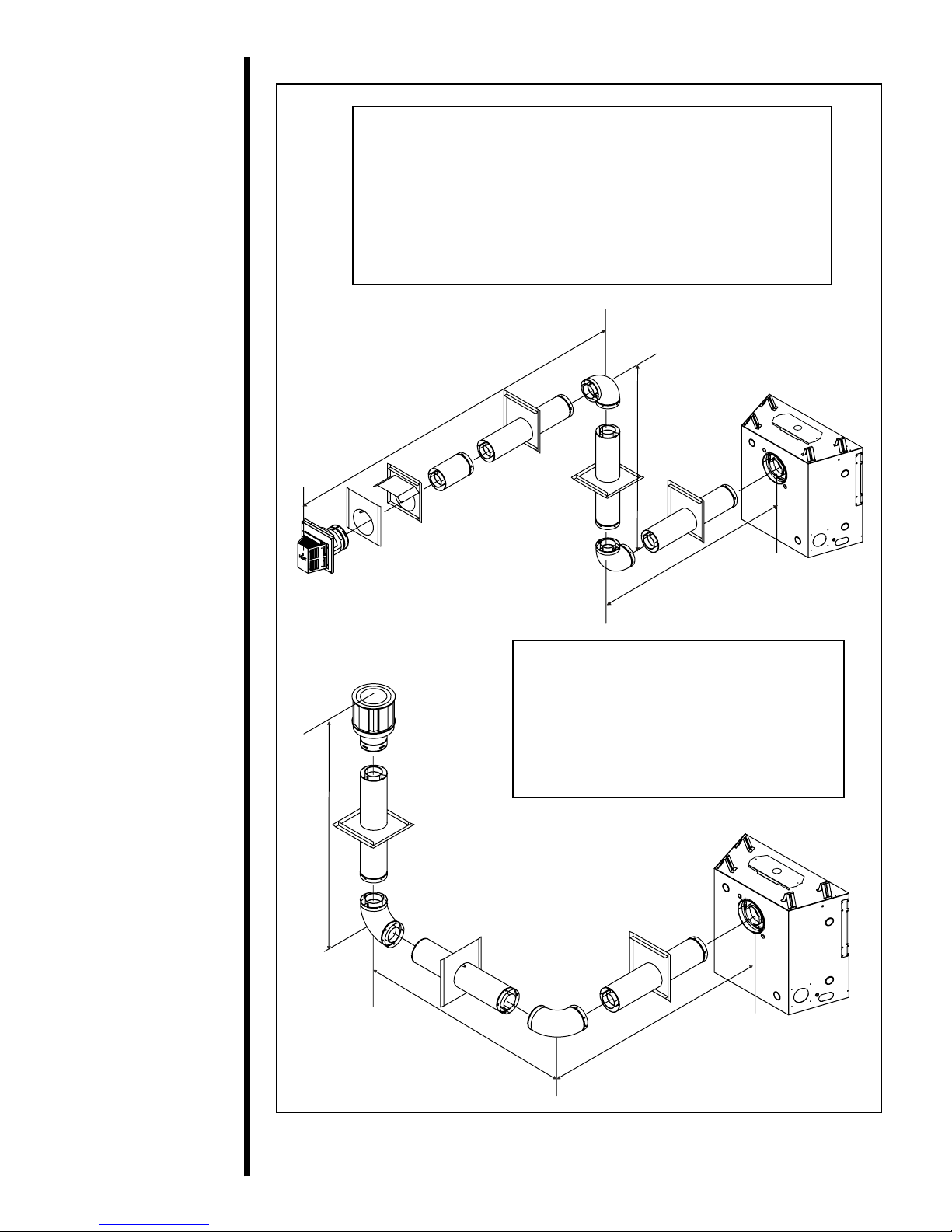

FLUE WITH TWO (2) 90° ELBOWS
V H H + H1
MIN. 305 mm MAX. 610 mm MAX. 1.22 m
MIN. 610 mm MAX. 1.22 m MAX. 2.4 m
MIN. 914 mm MAX. 1.86 m MAX. 3.6 m
MIN. 1.22 m MAX. 2.48 m MAX. 4.8 m
H = MAX. 2.48 m H + H1= MAX. 4.8 m V + H + H1 = 11.6 m MAX.
FLUE WITH TWO (2) 90° ELBOWS
V H + H1
MIN. 305 mm MAX. 610 mm
MIN. 610 mm MAX. 1.22 m
MIN. 914 mm MAX. 1.86 m
MIN. 1.22 m MAX. 2.48 m
H + H1= MAX. 2.48 m V + H + H1= 11.6 m MAX.
USE DVP SERIES
COMPONENTS ONLY.
Figure 12. Flue with Two 90° Elbows

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13 18
H
1
H
V
V H
MIN. 305 mm MAX. 610 mm
MIN. 610 mm MAX. 1.22 m
MIN. 914 mm MAX. 1.86 m
MIN. 1.22 m MAX. 2.48 m
MIN. 1.52 m MAX. 4.8 m
H = MAX. 4.8 m V + V1 + H = MAX. 11.6 m
FLUE WITH TWO (2) 90° ELBOWS
MIN. 305 mm MAX. 610 mm
MIN. 610 mm MAX. 1.22 m
MIN. 914 mm MAX. 1.86 m
MIN. 1.22 m MAX. 2.48 m
MIN. 1.52 m MAX. 4.8 m
V+H+H1= MAX. 11.6 m H+H1= MAX. 4.8 m
FLUE WITH TWO (2) 90° ELBOWS
V H + H1
Figure 13. Flue with Two 90° Elbows
USE SLP SERIES
COMPONENTS ONLY.
H
V
V11

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/1319
H
V
H2
H1
V
1
H
V
H
1
FLUE WITH THREE (3) 90° ELBOWS
MIN. 305 mm MAX. 610 mm MAX. 1.22 m
MIN. 610 mm MAX. 1.22 m MAX. 2.48 m
MIN. 914 mm MAX. 1.86 m MAX. 3.72 m
MIN. 1.22 m MAX. 2.48 m MAX. 4.8 m
V H H + H1
V H H + H1+ H2
MIN. 305 mm MAX. 610 mm MAX. 1.22 m
MIN. 610 mm MAX. 1.22 m MAX. 2.48 m
MIN. 914 mm MAX. 1.86 m MAX. 3.7 m
MIN. 1.22 m MAX. 2.48 m MAX. 4.8 m
V + H + H1+ H2= 11.6 m MAX. H = MAX 2.48 m H + H1 + H2= MAX. 4.8 m
FLUE WITH THREE (3) 90° ELBOWS
Figure 14. Flue with three 90° elbows
USE DVP SERIES
COMPONENTS ONLY.
H = MAX. 2.48 m H + H1= MAX. 4.8 m V + V, + H + H1= 11.6 m MAX.

Heat & Glo • SL-350TRS-CE-D • 2033-900 Rev. V • 3/13 20
H 1
H
V
1
V
V 1
H
1
H
V
Figure 15. Flue with three 90° elbows
V H H + H1
MIN. 305 mm MAX. 610 mm MAX. 1.22 m
MIN. 610 mm MAX. 1.22 m MAX. 2.48 m
MIN. 914 mm MAX. 1.86 m MAX. 3.7 m
MIN. 1.22 m MAX. 2.48 m MAX. 4.8 m
V + V1+ H + H1= 11.6m MAX.
H = MAX 2.48m H + H1= MAX. 4.8m
FLUE WITH THREE (3) 90° ELBOWS
V H H + H1
MIN. 305 mm MAX. 610 mm MAX. 1.22 m
MIN. 610 mm MAX. 1.22 m MAX. 2.48 m
MIN. 914 mm MAX. 1.86 m MAX. 3.7 m
MIN. 1.22 m MAX. 2.48 m MAX. 4.8 m
V + V1+ H + H1= 11.6m MAX.
H = MAX 2.48m H + H1= MAX. 4.8m
FLUE WITH THREE (3) 90° ELBOWS
USE SLP SERIES
COMPONENTS ONLY.
