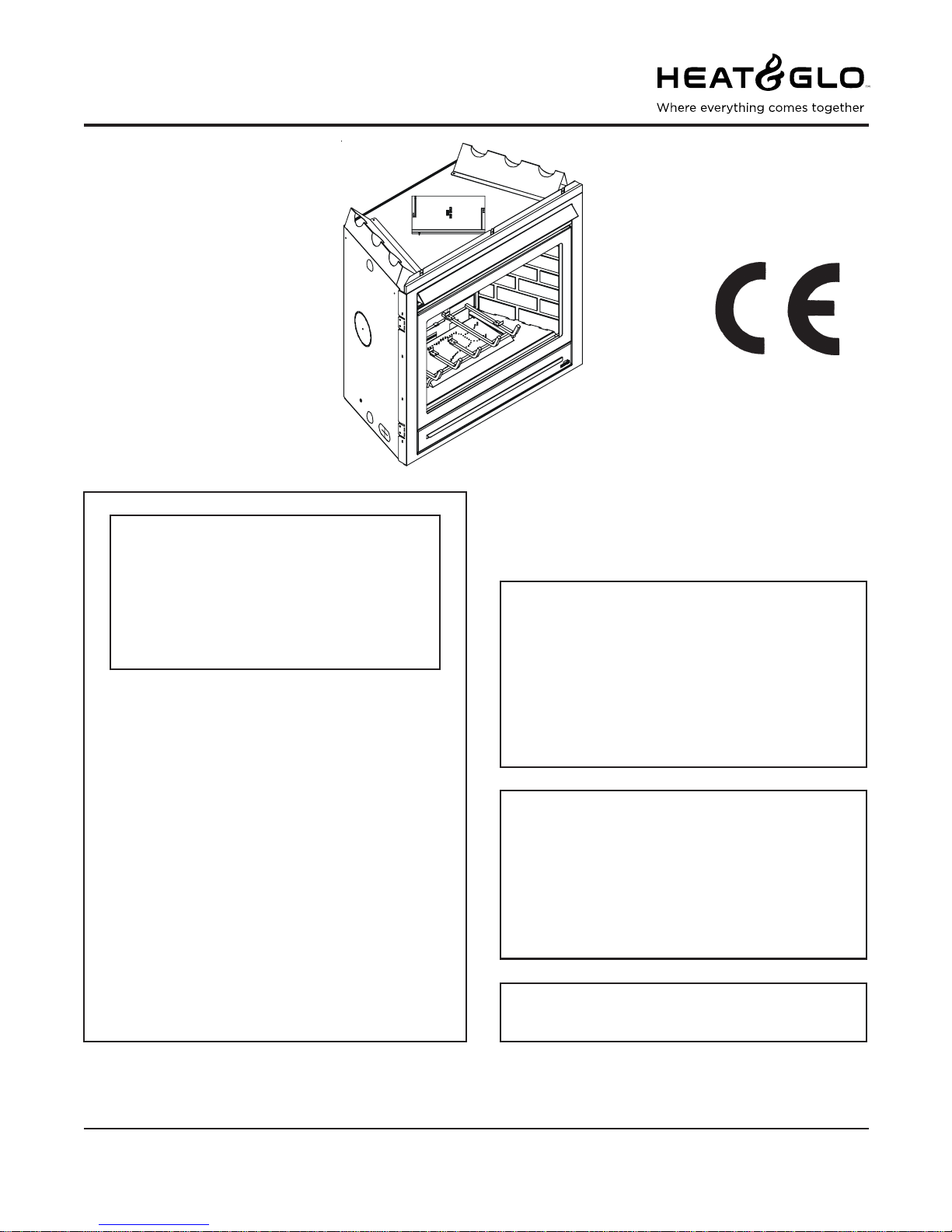

Heat & Glo 6000TRS-CE Assembly instructions

- Do not store or use petrol or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
-What to do if you smell gas
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier’s instructions
• If you cannot reach your gas supplier,
call the fire department.
- Installation and service must be performed
by a qualified installer or competent
person.
Model:
6000TRS-CE Installers Guide
WARNING: IMPROPER INSTALLATION,
ADJUSTMENT, ALTERATION, SERVICE
OR MAINTENANCE CAN CAUSE INJURY
OR PROPERTY DAMAGE. REFER TO
THIS MANUAL. FOR ASSISTANCE OR
ADDITIONAL INFORMATION CONSULT A
QUALIFIED INSTALLER OR
COMPETENT PERSON.
2049-900H 10/06
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
Please contact your Heat & Glo dealer with any
questionsorconcerns. Forthenumberofyournearest
Heat & Glo dealer, please visitwww.heatnglo.com.
Printed in U.S.A. Copyright 2005
Heat & Glo, a brand of Hearth & Home Technologies Inc.
20802KensingtonBlvd., Lakeville, MN 55044, USA
These instructions are only valid if the
following country symbol is on the appliance.
If this symbol is not present on the appliance,
it is necessary to refer to the technical
instructions which will provide the necessary
information concerning the modification of the
appliance to the conditions of use for the
country.
0087
These instructions are valid for the following
countries: GB, IE
WARNING:
IF THE INFORMATION IN THESE
INSTRUCTIONS IS NOT
FOLLOWED EXACTLY,A FIRE OR
EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE,
PERSONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
!
SAFETY AND WARNING INFORMATION
READ and UNDERSTAND all instructions carefully before starting the installation.
FAILURE TO FOLLOW these installation instructions may result in a possible fire
hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the Using Your Fireplace section of the
Users Guide.
DO NOT USE this appliance if any part has been under water. Immediately CALL a
qualified service technician to inspect the unit and to replace any part of the control
system and any gas control which has been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a qualified service person. The
appliance and flue system should be INSPECTED before initial use and at least
annually by a professional service person.
Always KEEP the appliance clear and free from combustible materials, petrol, and
other flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and ventilation air. Keep the front of the
appliance CLEAR of all obstacles and materials for servicing and proper operations.
Due to the high temperature, the appliance should be LOCATED out of traffic areas
and away from furniture and draperies. Clothing or flammable material SHOULD NOT
BE PLACED on or near the appliance.
Children and adults should be ALERTED to the hazards of high surface temperature
and should STAY AWAY to avoid burns or clothing ignition. Young children should be
CAREFULLY SUPERVISED when they are in the same room as the appliance.
These units MUST use one of the fluing systems described in the Installing the Fireplace
section of the Installers Guide. NO OTHER flue systems or components MAY BE USED.
This gas appliance and flue assembly MUST be vented directly to the outside and
MUST NEVER be attached to a chimney serving a separate solid fuel burning
appliance. Each gas appliance MUST USE a separate flue system. Common flue
systems are PROHIBITED.
INSPECT the external terminal cap on a regular basis to make sure that no debris is
interfering with the air flow.
The glass door assembly MUST be in place and sealed, and the trim door assembly
MUST be in place on the appliance before the unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass door removed, cracked, or broken.
Replacement of the glass door should be performed by a licensed or qualified service
person. DO NOT strike or slam the glass door.
The glass door assembly SHALL ONLY be replaced as a complete unit, as supplied
by the gas appliance manufacturer. NO SUBSTITUTE material may be used.
DO NOT USE abrasive cleaners on the glass door assembly. DO NOT ATTEMPT to
clean the glass door when it is hot.
Turn off the gas before servicing this appliance. It is recommended that a qualified
service technician perform an appliance check-up at the beginning of each heating
season.
Any safety screen or guard removed for servicing must be replaced before operating
this appliance.
This appliance is intended for use on a gas installation with a governed meter.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

3
Table of
Contents
Safety and Warning Information .................................. 2
Service Parts List ......................................................... 4
Section 1: Approvals and Regulations ....................... 7
ApplianceCertification ................................................ 7
InstallationRegulations ............................................... 7
Section 2: Getting Started ........................................... 8
Introducing the Heat & Glo Gas Fireplaces................. 8
Pre-installationPreparation......................................... 8
Section 3: Installing the Fireplace ............................ 10

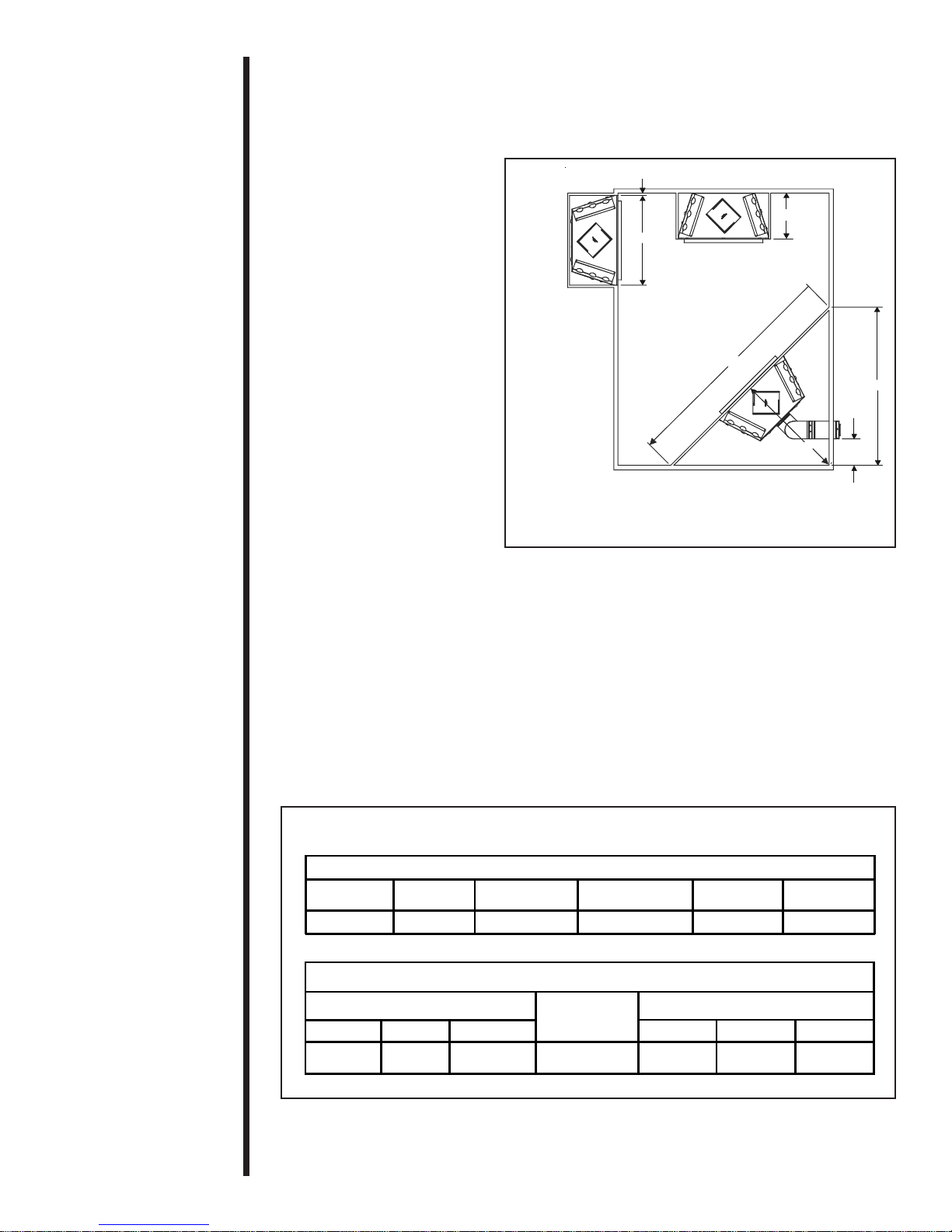

Step 1 Locating the Fireplace ................................. 10
Step 2 Framing the Fireplace ..................................11
Step 3 Installing the Flue System ........................... 12
A. Flue SystemApprovals ........................... 12
B. Installing Flue Components..................... 20
C. Flue Termination ..................................... 24
Step 4 Positioning, Levelingand
Securing the Fireplace ................................ 29
Step 5 The Gas Control Systems........................... 29
Step 6 The Gas Supply Line ................................... 30
Step 7 Gas Pressure Requirements ...................... 31
Step 8 Wiring the Fireplace .................................... 31
Step 9 Finishing ...................................................... 32
Step 10
Installing Trim, Logs & Ember Material......... 33
Installing the Trim ........................................ 33
Positioning the Logs .................................... 34
Placing the Ember Material ......................... 36
Step 11 Before Lighting the Fireplace....................... 37
Step 12 Lighting the Fireplace .................................. 37
Afterthe Installation ..................................... 37
Section 4: Maintaining and Servicing
Your Fireplace .......................................... 38
Section 5: Troubleshooting ....................................... 40
Î= Containsupdatedinformation.
Î

4
*Partnumber list on followingpage.
9 Log SetAssembly
(NG, LP) Exploded Parts Diagram
Service Parts 6000TRS-CE
Beginning Manufacturing Date: 1/04
Ending Manufacturing Date: ______
2
3
4
6
8
7
15
1
5
10
11 12
13 14
19
20 17
16
18

ITEM PARTS SERIAL # PART NUMBER
1 Junction Box 546-250A
2 Burner NG 2049-010
3 Glass Door Assembly GLA-6TRXI
4 Log Grate 2049-020
5 Base Refractory 2049-102
6 Hood SRV60-143-BK
7 Door Assembly 392-180A
8 Top Louver Assembly 392-182A
9 Log Set Assembly LOGS-6TRSCE
10 Log 1 SRV2049-700
11 Log 2 SRV2049-701
12 Log 3 SRV385-723
13 Log 4 SRV385-721
14 Log 5 SRV385-722
15 Surround 2026-108
Refractory Kit BRICK-6000-FB
16 Back Wall Refractory SRV2027-730
17 Left Wall Refractory SRV2027-731
18 Right Wall Refractory SRV2027-732
19 Insulation Board 385-401
20 Exhaust Baffle 2049-101
Flue Gasket 2025-114
Pilot Orifice NG 529-512
Insulation Mineral Wool 050-721
ACCESSORIES
Extended Vertical Baffle Kit BAF-VERT
Wall Switch Kit, Off-white WSK-21
Wall Switch Kit, White WSK-21-W
Conversion Kit NG NGK-6TRS-CE
Conversion Kit LP LPK-6TRS-CE
Conversion Kit Butane BGK-6TRS-CE
(NG) Service Parts List
IMPORTANT: THIS IS DATED INFORMATION. The most current information is located on your dealers VIP site. When
ordering,supply serialandmodelnumbers to ensurecorrectservice parts.
5
6000TRS-CE
Alsoseefollowingpagefor Standing Pilot valve assembly service partnumbers.

(NG) Exploded Parts Diagram
Service Parts 6000TRS-CE
Beginning Manufacturing Date: 1-04
Ending Manufacturing Date: ______
Standing Pilot
ValveAssembly
6
1
2
3
4
5
8
6
7
9
10 11 12
13
ITEM DESCRIPTION SERIAL # PART NUMBER
1PilotAssemblyNG 529-540A
2 Pilot Bracket 2049-105
3 Orifice NG (#33) 582-833
4 30.5 cm Flex 383-302A
5 Burner Neck Gasket 438-407
6 Valve Plate Gasket 385-402
7 Valve Bracket 2049-108
8 Flex Assembly 302-330A
9WireAssembly 049-552A
10 ON/Off Rocker Switch 060-521A
11 Piezo Ignitor 219-513
12 Control Panel 2049-109
13 S.I.T. Valve NG 060-524
Í

7
Appliance Certification
The Heat & Glo fireplace models discussed in this
Installers Guide have been tested to certification
standards and listed by the applicable laboratories.
CERTIFICATION
MODEL LABORATORY TYPE STANDARD
6000TRS-CE Advantica Gas Fireplace 90/396/EEC
Installation Regulations
Before installation check that local distribution conditions, nature of gas and
pressure, and adjustment of the appliance are compatible.
This appliance must be installed with the rules in force, and used only in a
sufficiently ventilated space. Consult instructions before installation and use of
this appliance.
1
Approvals
and
Regulations

8
Heat & Glo direct flue gas fireplaces are designed to
operate with all combustion air siphoned from outside
of the building and all exhaust gases expelled to the
outside.
The information contained in this Installers Guide,
unless noted otherwise, applies to all models and gas
control systems.
Gas fireplace diagrams, including the dimensions, are
shown in this section.
This gas fireplace and its components are tested and
safe when installed in accordance with this Installers
Guide. Report to your dealer any parts damaged in
shipment, particularly the condition of the glass. Do
not install any unit with damaged, incomplete, or
substitute parts.
The flue system components and trim doors are
shipped in separate packages. The gas logs are
packaged separately and must be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benefit. Failure to follow these instructions
will void the owner’s warranty and may present a
fire hazard.
The Heat & Glo Fireplace Products, Inc. Warranty will
be voided by, and Heat & Glo Fireplace Products, Inc.
disclaims any responsibility for, the following actions:
• Installation of any damaged fireplace or flue system
component.
• Modification of the fireplace or direct flue system.
• Installation other than as instructed by Heat & Glo
Fireplace Products, Inc.
• Improper positioning of the gas logs or the glass
door.
• Installation and/or use of any component part not
manufactured and approved by Heat & Glo Fire-
place Products, Inc., not withstanding any indepen-
dent testing laboratory or other party approval of
such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A
FIRE HAZARD.
Introducing the
Heat & Glo
Gas Fireplaces
Pre-installation
Preparation
2
Getting
Started

9
Figure 1. Diagram of the 6000TRS-CE
RATING PLATE/LABELS
GAS
ACCESS
GAS
CONTROLS ELECTRICAL
ACCESS
VENT
COLLARS
TOP STANDOFFS
HOOD
CERAMIC
FIBER PAD
When planning a fireplace installation, it’s necessary to determine:
•Where the unit is to be installed.
•The flue system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framing and finishing details.
•Whether optional accessories—devices such as a fan, wall switch, or
remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on any combustible
material other than wood flooring, the fireplace should be installed on a metal
or wood panel that extends the full width and depth of the fireplace.
28-3/8”
(72.1 cm)
14-1/4”
(36.2 cm)
21”
(53.3 cm)
Ø8”
(20.3 cm)
21-1/2”
(54.7 cm)
11-5/8”
(29.7 cm)
36-1/8”
(91.8 cm) 18-3/4”
(47.6 cm)
2-1/2”
(6.4 cm)
31-5/8”
(80.3 cm)
41”
(104.1 cm)
38”
(96.5 cm)
ELECTRICAL
ACCESS
5”
(12.7 cm)
GAS LINE
ACCESS 6-7/8”
(17.5 cm)
2-3/8”
(6.0 cm)
27”
(68.6 cm)
41-7/8”
(106.4 cm)
Ø8”
(20.3 cm)

10
AB CDE
106.6cm 55.9cm 100.3cm 143.5cm 203.2cm
*
Figure 2. Fireplace Dimensions, Locations, and
Space Requirements
1”MIN. (2.54cmm)
A
B
D
E
20”
(50.8cm)
C
3
Installing the
Fireplace
The diagram below shows space and clearance
requirements for locating a fireplace within a room.
Step 1
Locating the
Fireplace
NOTE:
Dimensions are
shown with the
sides, back
and/or corners
of the unit
touching the wall.
Clearance Requirements
The top and back of the fireplace are defined by
stand-offs.
The minimum clearance to a perpendicular wall
extending past the face ofthe fireplace is 7.62cm.
The back of the fireplaces may be recessed into
combustible construction (see Figure 3).
MODEL: 6000TRS-CE RECESSED DEPTH: 54.6cm
Minimum Clearances from the Fireplace to Combustible Materials
Glass
Front Floor Back of Fireplace Sides of Fireplace Top of Fireplace Ceiling
91.4cm 0 1.3cm 1.3cm 8.9cm 79cm
Figure 3. Minimum Clearances
Minimum Clearances from the Flue Pipe to Combustible Materials
For Horizontal Sections For Vertical
Sections At Wall Firestops
Top Bottom Sides Top Bottom Sides
7.6cm 2.54 cm 2.54 cm 2.54 cm 6.4 cm 1.3 cm 2.54 cm

11
Framing should be
constructed of 2 X 4
lumber or heavier.
The framing headers may rest
on the heater stand-offs.
*NOTE: Dimension Btaken
fromfinished hearth frame.
DimensionsDand Etaken
frombottomof unit.
7.6cm
8.6cm
WALL
STUD
NON-COMBUSTIBLE ZONE
IS DEFINED BY 7.6CM ABOVE
THE ELBOW FOR THE ENTIRE
WIDTH AND DEPTH (BEHIND
THE FRONT HEADER) OF
THE FIREBOX.
A
B
C
*
AB C D E
42" 38-1/2" 22" 26-7/8" 41 3/4"
(106.7cm) (97.8cm) (55.9cm) (68.3cm) (106.0cm)
Figure 4. FramingDimensions
Fireplace framing can be built before or after the
fireplace is set in place. Framing should be positioned
to accommodate wall coverings and fireplace facing
material. The diagram below shows framing
reference dimensions.
CAUTION
Step 2
Framing the
Fireplace
E
D
*
*
MEASURE FIREPLACE DIMENSIONS, AND
VERIFY FRAMING METHODS AND WALL
COVERING DETAILS, BEFORE FRAMING
CONSTRUCTION BEGINS.

12 Figure 5. Flue Components and Terminations
A. Flue System Approvals
These models have flue starting collars on both the
top and the back of the unit. Depending upon the
installation, decide which ONE set of starting collars
will be used to attached the flue system. The starting
collar sealing cap must remain on the starting collar
NOT used.
These models use DVP-series direct flue components
when using the TOP and REAR flue collars.
Approved flue system components are labeled for
identification. NO OTHER FLUEING SYSTEMS OR
COMPONENTS MAY BE USED. Detailed installation
instructions are included with each flue termination kit
and should be used in conjunction with this Installers
Guide. Figure 4 shows flue system components and
terminations.
Identifying Flue Components
The flue systems installed on this gas fireplace may
include one, two, or three 90° elbow assemblies. The
relationships of vertical rise to horizontal run in flue
configurations using 90° elbows MUST BE strictly
adhered to. The rise to run relationships are shown in the
flueing drawings and tables on the next several pages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. You MUST always maintain the MAXIMUM
and MINIMUM rise-to-run ratios in the flue system
when using 45° elbows.
Step 3
Installing the
Flue System
Flue system termination kits
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKETCEILING
FIRESTOP
DVP-SERIES
DVP-TRAP
DVP-TVHW
SERIES

13
NOTE: PIPES OVERLAP 32 mmAT EACH JOINT.

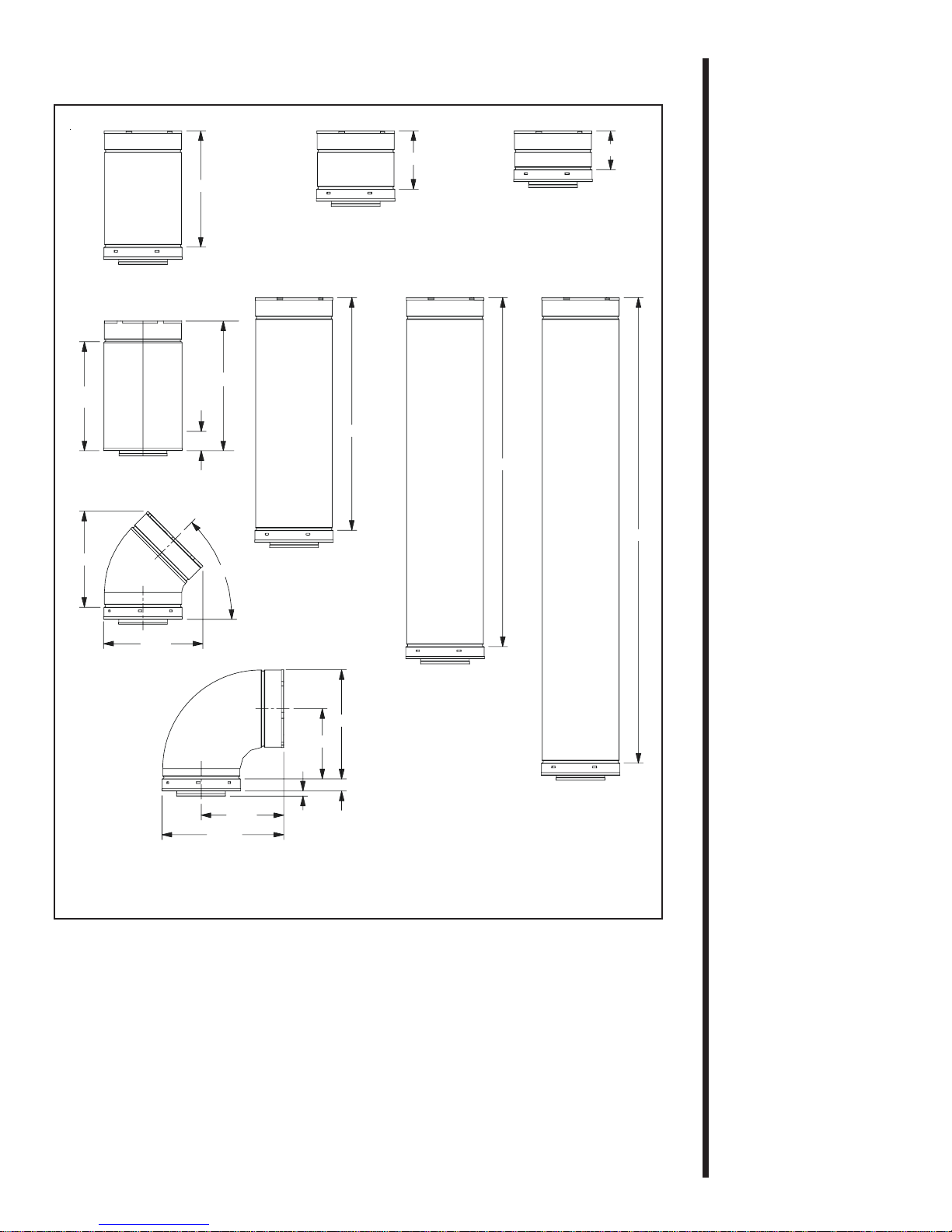

FIGURE 6. DVP-Series Balanced Flue Component Specifications
(127 mm inner pipe / 203 mm outer pipe)
DVP90ST
31.9cm
28.6cm
18.4cm
3.2cm TYP
1.3cm TYP
21.7cm
DVP36
DVP48
121.9cm
61.0cm
91.4cm
10.2cm
15.2cm
DVP4
DVP6
30.5cm
DVP12
5.1cm
MIN.
DVP12A
31.0cm
MAX.
DVP24
25.1cm
45.0
O
26.0cm
DVP45
36.2cm
.

14
STRAIGHTUP
VERTICALFLUE
Figure 7. Straight up Vertical Flue
Figure 8. Straight Out Horizontal Flue
V
CAP
H
V
11.8mMAX.
STRAIGHTOUTHORIZONTALFLUE
HH
MIN.RUN MAX. RUN
13.1” (33.2 cm) 24" (61.0 cm)

15
Figure 9.
Flue with One 90° Elbow
Figure 10. Flue with One 90° Elbow
NOTE: For corner installations: A 15.2cm
MINIMUM length of straight pipe must be first
attached to the fireplace before 90oelbow. This
will allow the flue pipe to clear the top standoffs.
NOTE: Ifa 90oelbow is first attachedtotheunit,
the maximum horizontal run is 3 feet (91.4cm).
V
H
H
V
FLUEWITHONE(1)90oELBOW
VH
MIN. 30.5 cm MAX.61.0cm
MIN. 61.0 cm MAX.1.22m
MIN. 91.4 cm MAX.1.86m
MIN. 1.22 m MAX.2.48m
MAX.7.3m MAX.2.48 m
FLUEWITHONE(1)90oELBOW
VH
MIN. 30.5 cm MAX.1.22 m
MIN. 61.0 cm MAX.2.4m
MIN. 91.4 cm MAX.3.7m
MIN. 1.22 m MAX.4.9m
V + H = MAX 7.3 m H = MAX. 2.4 m

16
Figure 11. Flue with Two 90° Elbows
H
1
V
H
FLUE WITH TWO (2) 90° ELBOWS
V H H + H1
MIN. 30.5 cm MAX. 61.0cm MAX.1.22m
MIN. 61.0 cm MAX. 61.0cm MAX.2.48m
MIN. 91.4 cm MAX. 1.22m MAX.3.72m
MIN. 1.22 m MAX.1.8m MAX.4.9m
MAX.6.1m MAX.1.8m MAX. 4.9m

17
Figure 12. Flue with Two 90° Elbows
H
1
H
V
V
V
1
H
MIN. 30.5 cm MAX. 1.22 m
MIN. 61.0 cm MAX. 2.4 m
MIN. 91.4 cm MAX. 3.7 m
MIN. 1.22 m MAX. 4.9 m
V+H+H1= MAX. 11.8m H+H1= MAX. 4.9m
V+V1+H1=MAX.12.97m
FLUE WITH TWO (2) 90° ELBOWS
V H + H1

18

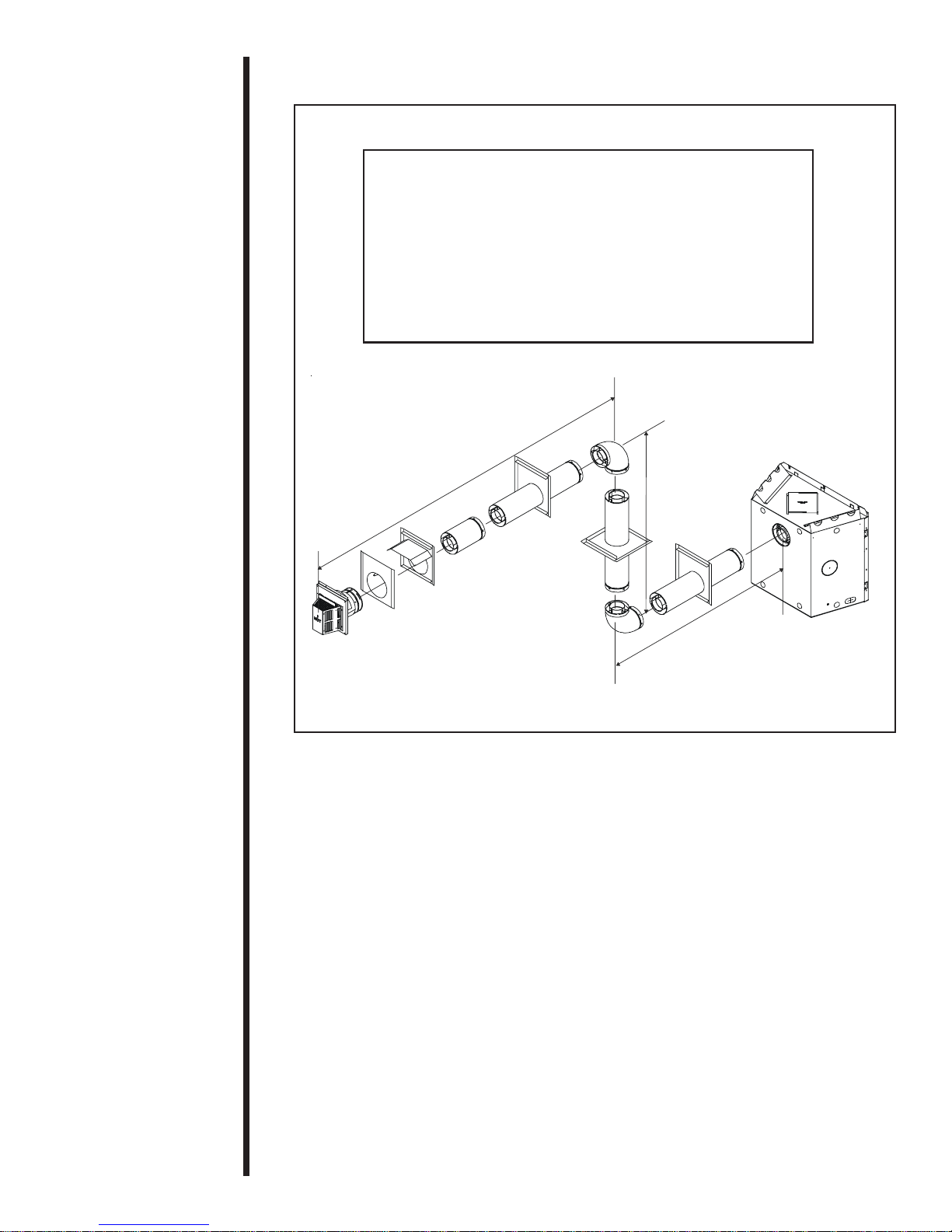

Figure 13. Flue with three 90° elbows
H
V
H
1
V
1
H
H
1
H
2
V
FLUE WITH THREE (3) 90° ELBOWS
MIN. 30.5 cm MAX. 61.0 cm MAX. 1.22 m
MIN. 61.0 cm MAX. 1.22 m MAX. 2.48 m
MIN. 91.4 cm MAX. 1.86 m MAX. 3.6 m
MIN. 1.22 m MAX. 2.48 m MAX. 4.9 m
H = MAX. 2.48 m MAX. 4.9 m
NOTE: V + V1+ H + H1= MAX. 10.97 m
V H H + H1
V H H + H1+ H2
MIN. 30.5 cm MAX. 61.0 cm MAX. 1.22 m
MIN. 61.0 cm MAX. 61.0 cm MAX. 2.48 m
MIN. 91.4 cm MAX. 1.22 m MAX. 3.6 m
MIN. 1.22 m MAX. 1.86 m MAX. 4.9 m
Max. 6.1 m MAX. 1.86 m MAX. 4.9 m
FLUE WITH THREE (3) 90° ELBOWS

19

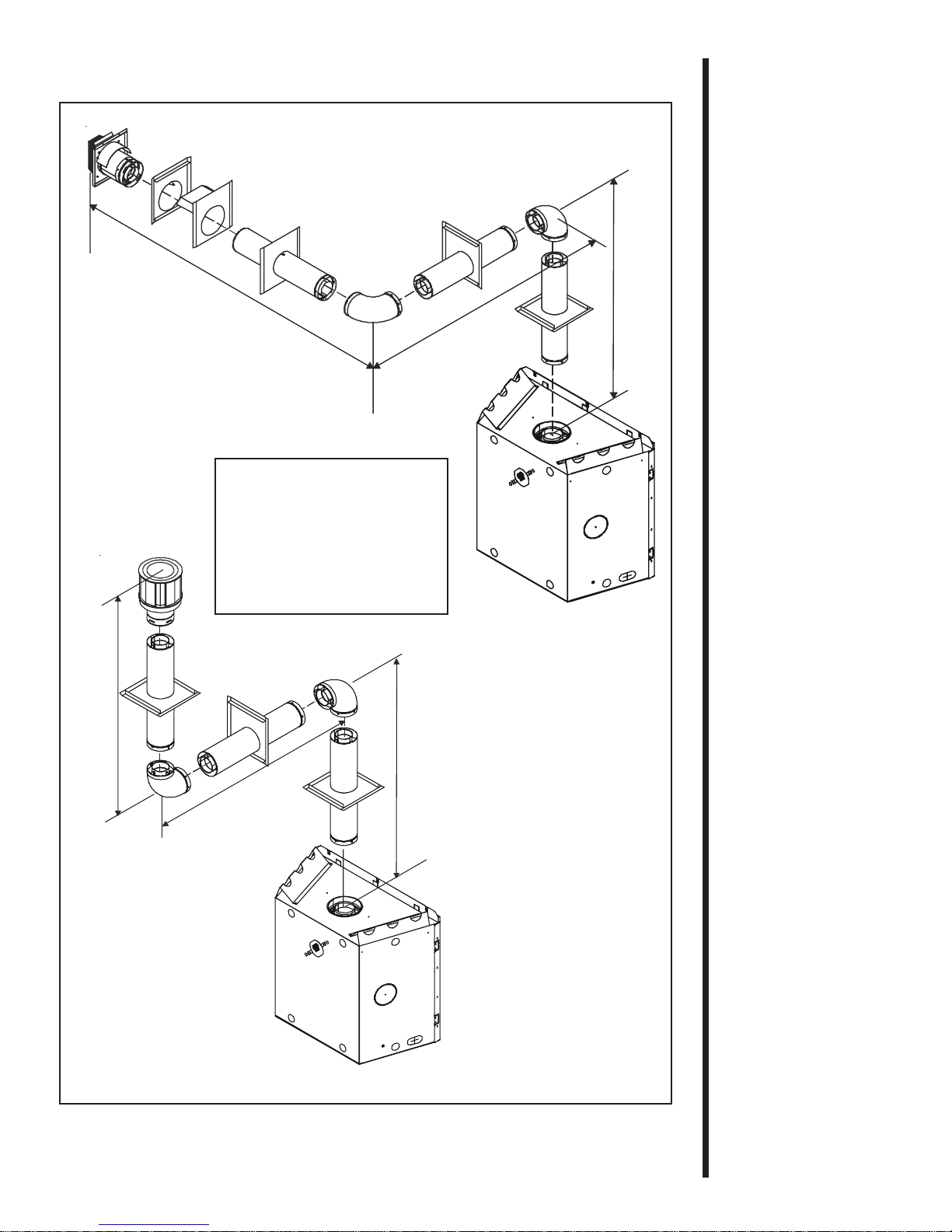

Figure 14. Flue with three 90° elbows
V
H
H
1
V
1
V
H
H
1
V
1
V H + H1
MIN. 30.5 cm MAX. 1.22 m
MIN. 61.0 cm MAX. 2.4 m
MIN. 91.4 cm MAX. 3.7 m
MIN. 1.22 m MAX. 4.9 m
V + V1+ H + H1= MAX. 10.97 m
H + H1= MAX. 4.9 m
FLUE WITH THREE (3) 90° ELBOWS
V H + H1
MIN. 30.5 cm MAX. 1.22 m
MIN. 61.0 cm MAX. 2.4 m
MIN. 91.4 cm MAX. 3.7 m
MIN. 1.22 m MAX. 4.9 m
V + V1+ H + H1= MAX. 10.97 m
H + H1= MAX. 4.9 m
FLUE WITH THREE (3) 90° ELBOWS

20
WARNING: THE REAR FLUE COLLAR SEAL
CAP MUST REMAIN ATTACHED TO THE
REAR FLUE COLLARS IF THE FLUE SYSTEM
IS ATTACHED TO THE TOP STARTING COL-
LARS. SEE FIGURE 15.

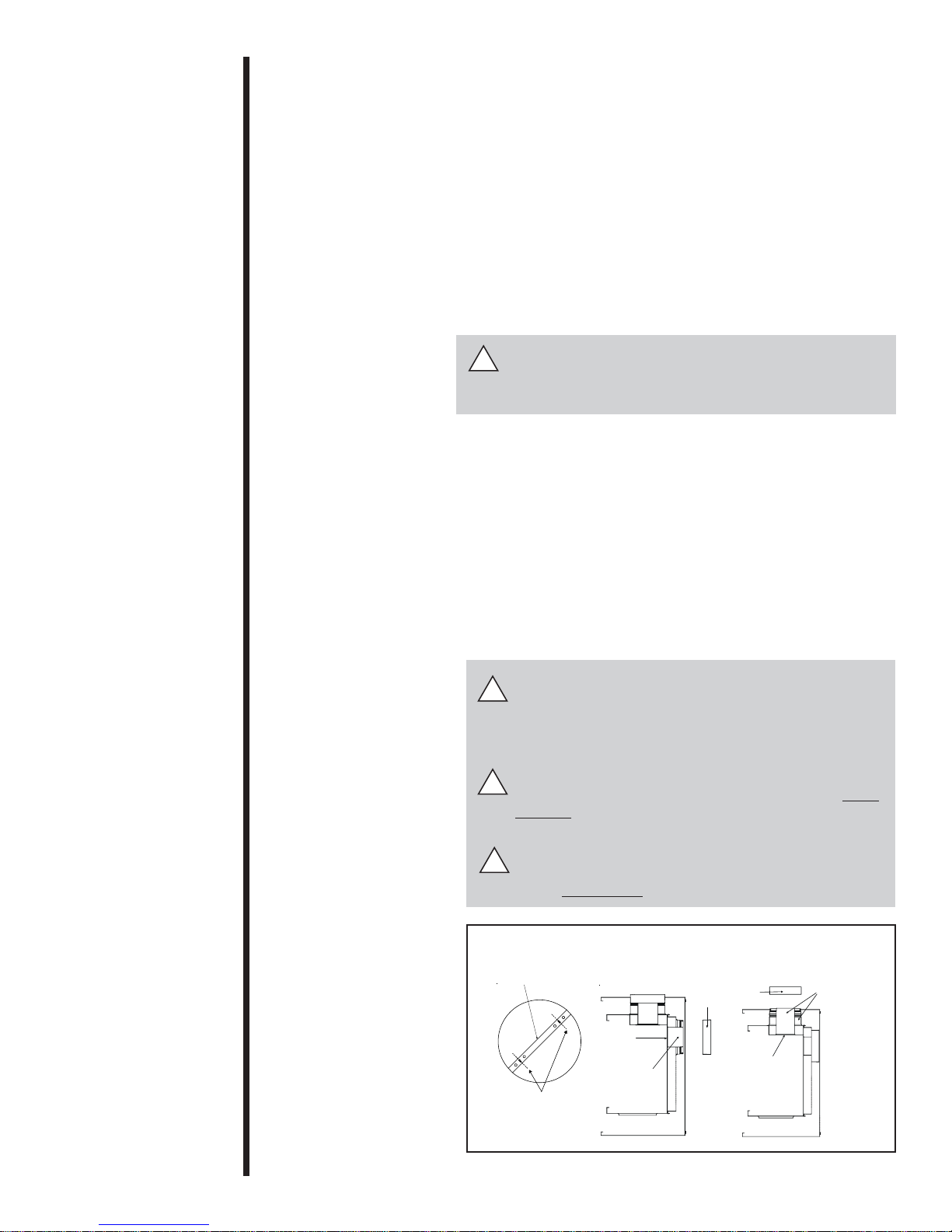

Figure 15
B. Installing Flue Components
After determining which set of starting collars will be
used (top or rear), follow venting instructions accordingly.
Venting Out the Rear Flue
Remove the installed rear seal cap from the rear
starting collars by cutting the strap at each end (See
Figure 15). Follow the flue configuration tables
accordingly.
Removethe12.7cm diameterheat shieldfromthe1.27cm
diameter collar by sliding it out. Remove insulation piece.
WARNING: THE TOP HEAT SHIELD (INSIDE
THE FIREBOX) MUST REMAIN ATTACHED IF
THE FLUE SYSTEM IS ATTACHED TO THE REAR
STARTING COLLARS. SEE FIGURE 15.
Venting Out the Top Flue
Remove the top flue collar seal cap by cutting the strap
on each end. Remove both pieces of insulation inside
the top two starting collars (see Figure 15).
Removethe10.2cmdiameterheat shieldfrom the10.2cm
diameter collar by sliding it out.
You have to take the glass off again for positioning the
logs when the unit is finally installed in place and
finished around it. Reinstall the glass door. Attach flue
system to the top starting collars.
WARNING: FAILURE TO REMOVE INSULA-
TION IN THE SET OF COLLARS YOU ARE
USING COULD CAUSE A FIRE.
WARNING: YOU MUST LEAVE THE INSULA-
TION IN PLACE IN THE SET OF COLLARS
YOU ARE NOT USING.
!
!
!
!
Insert screwdriver
or similar object
here to remove cap.
CUTHERE
Venting
Out Rear Venting
Out Top
HEAT
SHIELD
DISCARD
INSULATION
SEAL
CAP
SEAL
CAP
HEAT
SHIELD
INSULATION,
DISCARD
BOTH
PIECES
