Heat-N-Glo Pier-PV-IPI Assembly instructions

1
-Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
- What to do if you smell gas
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
•If you cannot reach your gas supplier, call
the fire department.
-Installation and service must be performed by
a qualified installer, service agency, or the gas
supplier.
Models:
Pier-PV-IPI
ST-PV-IPI
Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURYOR PROPERTYDAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT AQUALIFIED IN-
STALLER,SERVICEAGENCY,ORTHE
GASSUPPLIER.
Underwriters
Laboratories Listed
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS
INSTALLERS GUIDE MUST BE LEFT WITH
APPLIANCE FOR FUTURE REFERENCE.
1.This appliance may be installed in an af-
termarket, permanently located, manu-
factured (mobile) home, where not pro-
hibited by local codes.
2.Thisapplianceisonlyforusewiththetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
Please contact your Heat-N-Glo dealer with any
questions or concerns. For the number of your nearest
Heat-N-Glo dealer, please call 1-888-427-3973.
Printed in U.S.A. Copyright 2004
Heat-N-Glo, a brand of Hearth & Home Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWEDEXACTLY,AFIRE OR
EXPLOSIONMAYRESULTCAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
Thisproductiscoveredbyoneormoreofthefollowingpatents:(UnitedStates)4,112,913;4,408,594;4,422,426;4,424,792;4,520,791;4,793,322;4,852,548;
4,875,464;5,000,162;5,016,609;5,076,2545,191,877;5,218,953;5,328,356;5,429,495;5,452,708;5,542,407;5,613,487;(Australia)543790;586383;(Canada)
1,123,296;1,297,746;2,195,264;(Mexico)97-0457; (NewZealand)200265; orotherU.S.and foreignpatentspending.
2037-900C 2/04

2
TheseunitsMUSTuseoneoftheventsystems
describedintheInstallingtheFireplacesectionofthe
Installers Guide.NO OTHERventsystemsor
components MAYBEUSED.
Thisgas fireplaceandvent assemblyMUSTbe
vented directly to the outside andMUST NEVERbe
attachedtoa chimneyservingaseparate solidfuel
burning appliance. Each gas applianceMUSTUSEa
separatevent system.Commonvent systemsare
PROHIBITED.
INSPECT the external vent cap on a regular basis to
makesure thatnodebris isinterferingwith theair
flow.
TheglassdoorassemblyMUST beinplaceand
sealed,and thetrimdoor assemblyMUSTbein
place on the fireplace before the unit can be placed
intosafeoperation.
DO NOT OPERATE thisappliancewiththeglass
doorremoved,cracked,orbroken.Replacementof
theglassdoorshouldbeperformedbyalicensedor
qualified service person. DO NOTstrikeorslam the
glassdoor.
Theglassdoorassembly SHALLONLYbereplaced
asacompleteunit,assuppliedby thegasfireplace
manufacturer. NO SUBSTITUTE materialmaybe
used.
DO NOT USE abrasivecleanersontheglassdoor
assembly. DO NOT ATTEMPTtocleantheglass
doorwhenitishot.
Turnoffthegas before servicing this appliance. Itis
recommendedthataqualifiedservicetechnician
performan appliancecheck-upatthebeginningof
eachheatingseason.
Any safety screen or guard removed for servicing
mustbereplacedbeforeoperatingthisappliance.
DO NOT place furniture or any other combustible
householdobjectswithin36inchesofthefireplace
front.
READ andUNDERSTANDallinstructionscarefully
beforestartingtheinstallation.FAILURETO
FOLLOW theseinstallationinstructionsmayresultin
a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READthe
Using Your Fireplace section of theOwnersGuide.
DO NOT USE this appliance if any part has been
underwater. ImmediatelyCALL aqualifiedservice
technician to inspect the unit and to replace any part
ofthecontrolsystem and any gas control whichhas
beenunderwater.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should bePERFORMEDbya
qualifiedservice person.Theappliance andventing
system should beINSPECTED beforeinitialuseand
atleast annuallybyaprofessionalserviceperson.
More frequent cleaning may be required due to
excessivelint fromcarpeting,bedding material,etc.
It isIMPERATIVE thatthe unit’scontrol
compartment,burners,andcirculatingair
passageways BE KEPT CLEANtoprovidefor
adequatecombustionandventilationair.
Always KEEP theapplianceclear and freefrom
combustiblematerials,gasoline,andother
flammablevapors andliquids.
NEVER OBSTRUCT theflowofcombustionand
ventilation air. Keep the front of the appliance
CLEAR ofallobstaclesandmaterialsforservicing
andproperoperations.
Dueto thehightemperature,theapplianceshould
be LOCATED out of traffic areas and away from
furnitureanddraperies.Clothingorflammable
material SHOULD NOT BE PLACEDon or near the
appliance.
Children and adults should beALERTED tothe
hazardsof highsurfacetemperature andshould
STAYAWAYto avoid burns or clothing ignition.
Young children should be CAREFULLY
SUPERVISED when they are in the same room as
theappliance.
!
!
!
!
!!
!
!!
!
!
!
!
!
!
!
!
Safetyand WarningInformation
!
!

3
Safety and Warning Information....................................................... 2
Service Parts List.................................................................................. 4
Approvals and Codes .......................................................................... 9
Appliance Certification .............................................................................9
Installation Codes ....................................................................................9
High Altitude Installations .........................................................................9
Getting Started ....................................................................................10
Introducing the Heat-N-Glo Gas Fireplaces .............................................10
Pre-install Preparation............................................................................10
Installing the Fireplace......................................................................13
Step 1. Locating the Fireplace................................................................13
Step 2. Framing the Fireplace................................................................13
Step 3. Installing the Vent System ..........................................................15
A. Vent System Approvals...................................................... 15
B. Installing Vent Components ............................................... 18
C. Vent Termination ............................................................... 19
Step 4. Positioning, Leveling, and Securing the Fireplace.........................22
Step 5. The Gas Control System ............................................................22
Step 6. The Gas Supply Line .................................................................23
Step 7. Gas Pressure Requirements ......................................................23
Step 8. Wiring the Fireplace ..................................................................24
Step 9. Finishing ...................................................................................25
Step 10. Installing Trim, Logs & Ember Material.......................................27
Installing the Trim.....................................................................27
Positioning the Logs .................................................................27
Shutter Settings .......................................................................27
Glass Specifications .................................................................27
Attachment of Lower Louver Door Assembly ..............................27
Placing the Ember Material .......................................................28
Ember Light Bulb Replacement .................................................28
Step 11. Before Lighting the Fireplace ...................................................29
Step 12. Lighting the Fireplace...............................................................29
After the Installation ...............................................................................29
Maintaining and Servicing Your Fireplace ...................................30
Table of Contents
u= Contains updated information.
u
u

9
Appliance Certification
The Heat-N-Glo fireplace models discussed in this
Installers Guide have been tested to certification standards
and listed by the applicable laboratories.
Certification
MODELS: PIER-PV-IPI, ST-PV-IPI
LABORATORY: Underwriters Laboratories
TYPE: Vented Gas Fireplace
STANDARD: ANSI Z21.50•CGA2.22•UL307B
Installation Codes
The fireplace installation must conform to local codes.
Before installing the fireplace, consult the local building
code agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
In the absence of local codes, the fireplace installation must
conform to the National Fuel Gas Code ANSI Z223.1 (in
the United States) or the CAN/CGA-B149 Installation
Codes (in Canada). The appliance must be electrically
grounded in accordance with local codes or, in the absence
of local codes with the National Electric Code ANSI/NFPA
No. 70 (in the United States), or to the CSA C22.1
Canadian Electric Code (in Canada).
These models (natural gas and propane) can be installed
in a bedroom (in the United States) which has a total volume
of unconfined space appropriate to the particular
installation. Refer to the National Fuel Gas Code ANSI
Z223.1/NFPA54 (current edition). The Uniform Mechanical
Code - (current edition), and local Building Officials for the
options allowed in obtaining an effective bedroom volume
of unconfined space.
These models (natural gas and propane) can be installed
in a bedroom (in Canada) if a thermostat (Model WH-STAT)
is installed with the unit. Consult local code authorities.
Detailed installation instructions for Model WH-STAT are
included with the kit.
1
Approvals and
Codes
Heat-N-Glo Quality
Systemsregistered
by SGS ICS
High Altitude Installations
U.L. Listed gas appliances are tested and approved with-
out requiring changes for elevations from 0 to 2,000 feet
in the U. S. A. and in Canada.
When installing this appliance at an elevation above 2,000
feet, it may be necessary to decrease the input rating by
changing the existing burner orifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between 2000 and 4500 feet in Canada. If the heating value
of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas
utility.
If installing this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.

10
2
Getting Started
Introducing the Heat-N-Glo Gas Fireplaces
Heat-N-Glo gas fireplaces are designed to operate with all
exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems. Gas fireplace diagrams, including the
dimensions, are shown in this section.
Pre-install Preparation
This gas fireplace and its components are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The vent system components are shipped in separate
packages. The gas logs are shipped in the fireplace and
must be unwrapped before firing the unit.
Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the own-
er’s warranty and may present a fire hazard.
The Heat-N-Glo Warranty will be voided by, and Heat-N-
Glo disclaims any responsibility for, the following actions:
•Installation of any damaged fireplace or vent system
component.
•Modification of the fireplace or direct vent system.
•Installation other than as instructed by Heat-N-Glo.
•Improper positioning of the gas logs or the glass door.
•Installation and/or use of any component part not manu-
factured and approved by Heat-N-Glo, not withstanding
any independent testing laboratory or other party ap-
proval of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary
to determine:
•Where the unit is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framing and finishing details.
•Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or
on any combustible material other than wood flooring,
the fireplace should be installed on a metal or wood
panel that extends the full width and depth of the
fireplace.

11
Figure 1. Diagram of the PIER-PV-IPI
ELECTRICAL
ACCESS GAS LINE
ACCESS
GAS CONTROLS
& LABELS
SIDEGLASS
DOOR
TOP STANDOFFS
1/2”
(13mm)
(2)
43-5/8”
(1107mm)
42-5/8”
(1081mm)
42”
(1067mm)
32-3/4”
(829mm)
21”
(533mm)
32-5/16”
(820mm)
8-1/2”
(216mm)
37-7/16”
(950mm)
17-15/16”
(455mm)
24”
(610mm)
21”
(533mm)
12”
(304mm)
(2)
ELECTRICAL
ACCESS
Ø4”
(100mm)
(2)
26-5/8”
(676mm)
GAS
ACCESS
2-5/16”
(58mm)
4-3/4”
(121mm)
10-1/2”
(266mm)
4-1/16”
(102mm)
4-1/2”
(114mm)
(2)
6-1/16”
(153mm)

12
Figure 2. Diagram of the ST-PV-IPI
1/2”
(13mm)
(4)
46-5/8”
(1183mm)
42”
(1067mm)
32-5/16”
(820mm)
21”
(533mm)
36-3/16”
(919mm) 8-1/2”
(216mm)
24”
(610mm)
2-9/16”
(64mm)
4-1/2”
(114mm)
47-5/8”
(1208mm)
32-3/4”
(829mm)
12”
(304mm)
(2)
Ø 4”
(100mm)
(2)
ELECTRICAL
ACCESS
GAS LINE
ACCESS
26-5/8”
(676mm)
10-1/2”
(266mm)
4-1/16”
(102mm)
(2)
4-1/2”
(114mm)
(2)
4-3/4”
(121mm)
2-5/16”
(58mm)
6-1/16”
(153mm)
ELECTRICAL
ACCESS GAS LINE
ACCESS
GAS CONTROLS
& LABELS SIDE GLASS
DOOR
TOP STANDOFFS

13
3InstallingtheFireplace
Step 1. Locating the Fireplace
The diagram below shows space and clearance require-
ments for locating a fireplace within a room.
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Sides or Ends ......... 36 ...................914
Floor ................................ 0......................0
Rear Vent ........................1/2 ....................13
Metal Sides or Ends .........1/2 ....................13
Top.................................2 1/2...................64
Ceiling*............................ 31 ...................787
Figure 3. Fireplace Dimensions and Locations
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs. The minimum clearance to a perpendicular wall
extending past the face of the fireplace is1/2inch (12.5mm).
The metal ends of the fireplace may NOT be recessed
into combustible construction.
For minimum clearances, see the direct vent termination
clearance diagrams on pages 20 and 21 in this manual.
Step 2. Framing the Fireplace
Fireplace framing can be built before or after the fireplace
is set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
gram below shows framing reference dimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILS BEFORE FRAMING.
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections. ........... 1...............25
Horizontal Sections
Top............................... 1-1/2 ...........37.5
Bottom............................. 1...............25
Sides ............................... 1...............25
At Wall Firestops
Top............................... 1-1/2 ...........37.5
Bottom............................. 1...............25
Sides ............................... 1...............25
*The clearance to the ceiling is measured from the top
of the unit, excluding the standoffs (see Step 9).
The distance from the unit to combustible construction is
to be measured from the unit outer wrap surface to the
combustible construction, NOT from the screw heads that
secure the unit together.
!
WARNING: FRAMING DIMENSIONS ASSUME
USE OF 1/2 INCH THICK WALL COVERING
MATERIALS ON EXTERIOR OF FRAMING ONLY
AND NO SHEETROCK ON INTERIOR OF FRAMING.
36"
GLASS
GLASS
GLASS
36"
36"
GLASS
GLASS
36"
1/2”
1/2”
36"
PIER-PV-IPI
TOP VIEW
ST-PV-IPI
TOP VIEW

14
Framing should be constructed of 2 X 4 lumber or heavier.
Model A B C D
PIER-PV-IPI 42-1/8 42-1/2 23 25-5/8
ST-PV-IPI 47-5/8 42-1/2 23 26-5/8
Figure 4. Framing Dimensions
NOTE: DIMENSIONS SHOWN IN INCHES
Showscenterof
12” x 12” vent
framingholesfor
venting.
D
B
C
A
A
C
B
ST-PV-IPI PIER-PV-IPI

15
Figure 5. Vent System Components and Termination Kits
Step 3. Installing the Vent System
A. Vent System Approvals
These models are approved to use PVFLEX series vent
pipe components and terminations (see Figure 5). Ap-
proved vent system components are labeled for identifi-
cation. This pipe is tested and listed as an approved com-
ponent of the fireplace. The pipe is tested to be run inside
an enclosed wall. There is no requirement for inspection
openings at each joint within the wall. There is no required
pitch for horizontal vent runs. NO OTHER VENTING SYS-
TEMS OR COMPONENTS MAY BE USED.
Detailed installation instructions are included with each vent
termination kit and should be used in conjunction with this
Installers Guide.
The flame and ember appearance may vary based on the
type of fuel burned and the venting configuration used.
90 DEGREE
BEND
LISTED VERTICAL
B-TYPE TERMINATION
STORM
COLLAR
ROOF
FLASHING
LISTED
SINGLE WALL
B-VENT
PV-VERT
INSIDE WALL OR
CEILING FIRESTOP
PV-HORZ
PV-FS
FIRESTOP
PV-FLEX-10
PV-FLEX-25 25’LengthofFlexPipe
10’LengthofFlexPipe
PV-HORZ
PV-VERT
TERMINATION KITS
PV-WIRE
PVWIRE-10 .....10 feet, 5 wire harness
PVWIRE-40 .....40 feet, 5 wire harness
PVWIRE-80 .....80 feet, 5 wire harness
PVFLEX-CONNECT

16
Figure 6
STRAIGHT OUT
HORIZONTAL VENTING
H (FT.)
36" MIN. (914 mm)
40’ MAX. (12.2 M)
8 (900) Bends MAX.
Figure 7
STRAIGHT UP
VERTICAL VENTING
V (FT.)
40' MAX. (12.2 M)
8 (900) Bends MAX.
Figure 8
V
H
VERTICAL DROP
V
MAX. Run
48" (1219 mm)
8 (900) Bends MAX.
V

17
These units are designed to either use house air or outside
air for combustion. For houses concerned with negative
pressure from appliances using house air, installing the
make-up air kit is recommmended. By doing so this
appliance will operate as a direct vent using no house air
for combustion.
The causes of negative pressure to a house can include
the following:
•Stack effect in the building.
•Exhaust only appliances (mechanically and atmospher-
ically vented).
•Inadequate make-up air (which is increasingly more
prevalent in new construction).
NOTE: Heat-N-Glo assumes no responsibility for the
improper performance of the fireplace system or other
appliances caused by inadequate draft due to
environmental conditions, down drafts, tight sealing
construction of the structure, or mechanical exhausting
devices which create a negative air pressure within the
structure where the fireplace is located.
It is recommended that the building be mechanically or
passively balanced to allow atmospherically vented
appliances, such as gas fireplaces, to draft properly. If the
home experiences negative pressure or is likely to
experience negative pressure, connection to an outside
air source is mandatory.
A 4 inch side collar (see Figure 9) found in your termination
kit, must be installed on the fireplace by removing the cover
plate and attaching the side collar to the outer wrap as
shown (see Figure 10).
Step 4. Negative Pressure Make-up Air
Termination of the Fresh Air Duct:
The fresh air duct can be terminated directly adjacent to
or directly above the exhaust termination but, must be no
closer than 3 feet below and a minimum of 12” above the
grade.
Figure 11. Duct Termination Assembly
!
WARNING: IN ANEGATIVE PRESSURE
CONDITION (LIKELYTO OCCUR IN NEW
HOMES THAT DO NOT HAVE ADEQUATE MAKE-
UP AIR) THE OUTSIDE AIR KIT MUST BE IN-
STALLED TO OBTAIN PROPER PERFORMANCE
AND TO HELP PREVENT SPILLAGE OF COMBUS-
TION GASES.

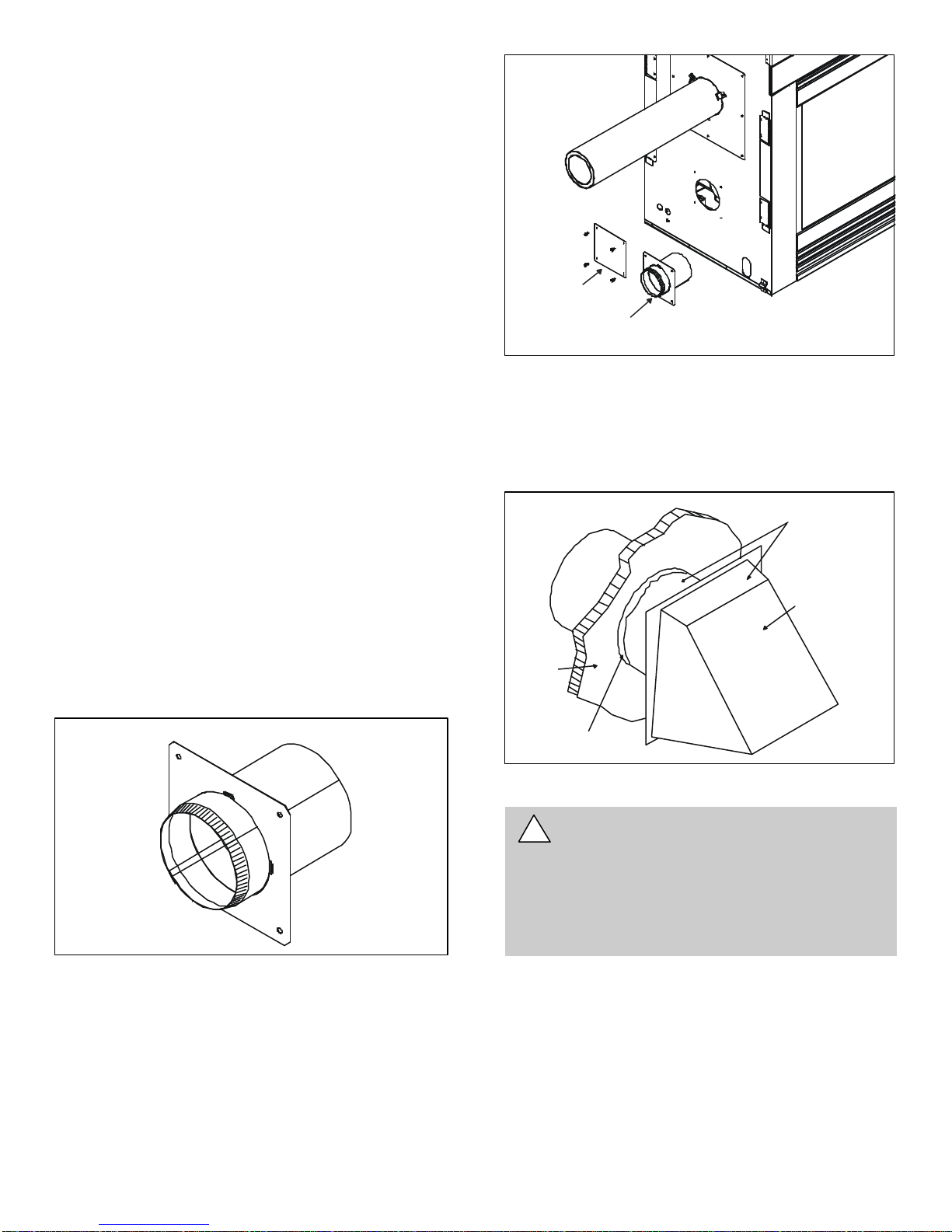

Figure 9. Side Collar
Figure 10. Fresh Air Kit
REMOVE
COVER PLATE
ATTACH
SIDE COLLAR
Using 4 inch Class-I flex vent make the connection to the
outside of the house, terminating with the duct termination
included in the termination kit. The fresh air make-up vent
run should not exceed 25 feet (see Figure 11).
DUCT
TERMINATION
RAIN CAP
WALL
CAULKING

18
Figure 12. Hole and Vent Pipe
2. Continue Adding Vent Components
Refer to Termination Cap installation instructions.
•Continue adding vent components, locking each suc-
ceeding component into place using the PV-connect.
•Ensure that each succeeding vent component is secure-
ly fitted and locked into the preceding component in the
vent system. Securing pipe sections with three screws
is recommended.
3. Install Support Brackets
Refer to Termination Cap installation instructions.
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on both
sides of a combustible wall through which the vent passes.
NOTE: Model PV-HORZ CAP does not need an exte-
rior firestop on an exterior combustible wall. The
firestop is built into the cap.
To install firestops for horizontal runs that pass through
interior walls:
•Cut a 9” x 9” (229mm X 229mm) hole through the wall.
•Position the firestop on one side of the hole previously
cut and secure the firestop with nails or screws.
•Continue the vent run through the firestop.
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.
9”
9”
INTERIOR
WALL SHIELD
FLEX
PIPE

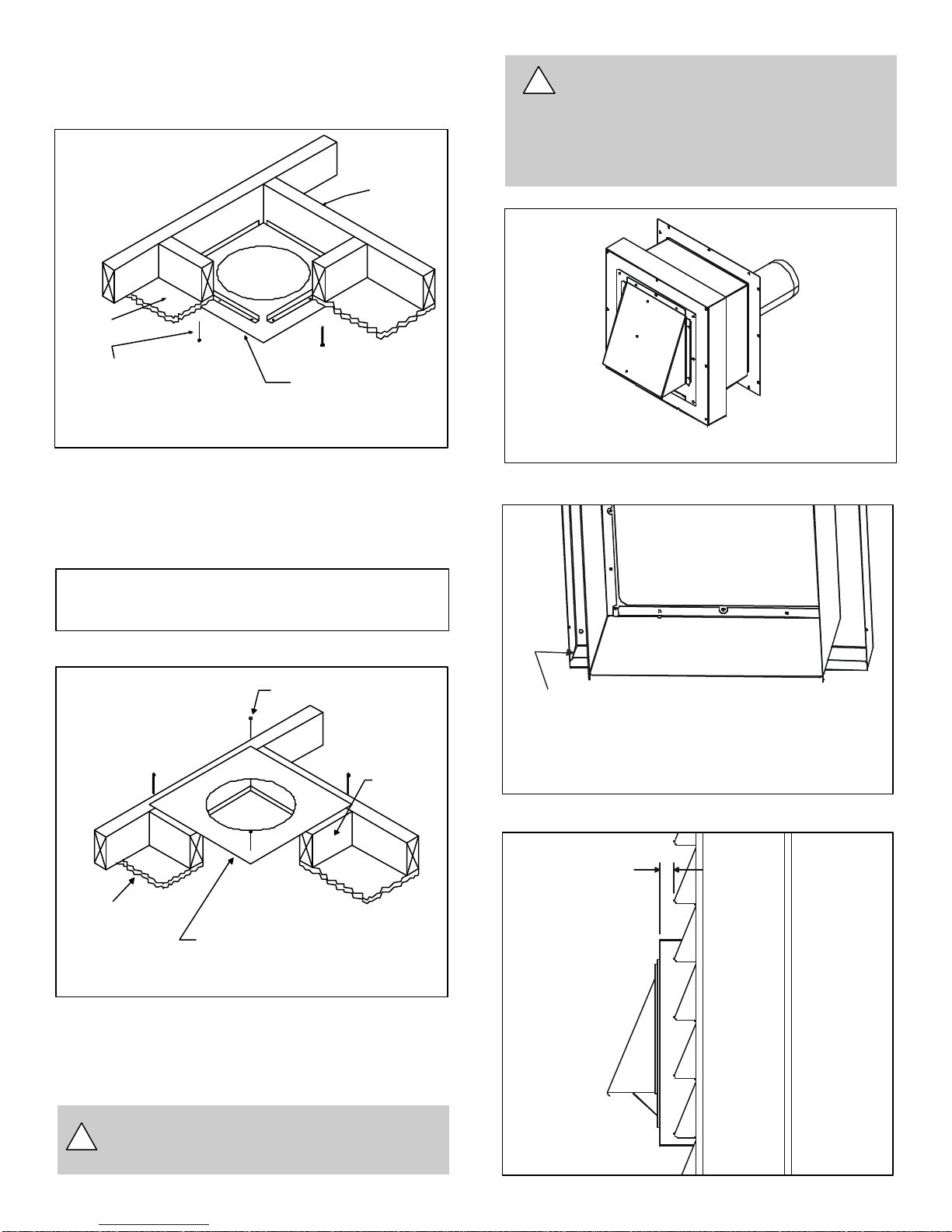

For Vertical Runs - One ceiling firestop is REQUIRED at
the hole in each ceiling through which the vent passes.
To install firestops for vertical runs that pass through
ceilings:
•Position a plumb bob directly over the center of the ver-
tical vent component.
•Mark the ceiling to establish the centerpoint of the vent.
•Drill a hole or drive a nail through this centerpoint.
•Check the floor above for any obstructions, such as wir-
ing or plumbing runs.
•Reposition the fireplace and vent system, if necessary,
to accommodate the ceiling joists and/or obstructions.
•Cut a 9-inch X 9-inch (229mm x 229mm) hole through
the ceiling, using the centerpoint previously marked.
•Frame the hole with framing lumber the same size as
the ceiling joists.
Figure 13. Hole & New Framing Members
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
9" (229mm)
9" (229mm)
B. Installing Vent Components
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting collars
of the fireplace:
•Slide the first vent section of pipe onto the starting col-
lar until it covers the entire starting collar.
•Tighten the hose clamp to secure the pipe to the start-
ing collar.
•Using self tapping screws secure the pipe to the collar
with three screws.

19
Figure 14. Ceiling Firestop (Ceiling Side)
If the area above the ceiling is NOT an attic, position and
secure the ceiling firestop on the ceiling side of the
previously cut and framed hole.
If the area above the ceiling IS an attic, position and secure
the firestop on top of the previously framed hole.
NOTE: Keep insulation away from the vent pipe at least 1
inch (25mm). If necessary use an attic insulation shield.
Figure 15. Attic Firestop
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
NOTE: There must be NO INSULATION or other
combustibles inside the framed firestop opening.
!
WARNING: VENTING TERMINALS SHALL
NOT BE RECESSED INTO AWALL OR
SIDING. VENT TERMINATION CLEARANCES
MUST BE FOLLOWED TO AVOID FIRE DANGER.
SEE VENT TERMINATION MINIMUM CLEAR-
ANCES DIAGRAM ON FOLLOWING PAGE.
Figure 16. Horizontal Termination Cap
Figure 18.
1” MIN.
Figure 17. Caulk Corners
!
C. Vent Termination
For Horizontal Terminations - To attach and secure the
termination to the last section of horizontal vent refer to
the Termination Cap installation instructions.
WARNING: THE TERMINATION CAP MUST
BE POSITIONED SO THAT THE EXHAUST
CHUTE IS POINTING DOWN.
CAULK THE INSIDE
OF ALL 4 CORNERS
OUTSIDE FIRESTOP
OF THE
PV-HORZKIT

20
V= VENT TERMINAL X= AIR SUPPLY INLET = AREA WHERE TERMINAL IS NOT PERMITTED
Figure 19. Vent Termination Minimum Clearances
A=12".......................... clearances above grade, veran-
da, porch, deck or balcony
B=12".......................... clearances to window or door
that may be opened, or to per-
manentlyclosedwindow.
D* =18".......................... vertical clearance to unventilat-
ed soffit or to ventilated soffit lo-
cated above the terminal
E*18” min................. for vinyl clad soffits and below
electricalservice
F=9"........................... clearanceto outsidecorner
G=12".......................... clearance to inside corner
H=3 ft. (Canada) ....... not to be installed above a gas
meter/regulatorassemblywithin3
feet (90cm) horizontally from the
center-lineof theregulator
I=3 ft. (U.S.A.)
6ft.(Canada)........ clearancetogasserviceregula-
tor vent outlet
J=9" (U.S.A.)
12"(Canada).......... clearanceto non-mechanicalair
supply inlet to building or the
combustionairinlettoanyother
appliance
K=3 ft. (U.S.A.)
6 ft. (Canada) .......... clearance to a mechanical
airsupplyinlet
L** =7 ft. ........................... clearance above pavedside-
walk or a paved driveway lo-
cated onpublic property
M*** =18"............................ clearance under veranda,
porch, deck or balcony
N=12” ............................ non-vinylsidewalls
12” ............................ vinylsidewalls
O=18” ............................ non-vinylsoffitandoverhang
18” ............................ vinyl soffit and overhang
P=8 ft.
** a vent shall not terminate directly above a sidewalk or paved
drivewaywhichis located betweentwosinglefamily dwellingsand
serves both dwellings.
*** only permitted if veranda, porch, deck or balcony is fully open on a
minimum of 2 sides beneath the floor.
NOTE 1:On privatepropertywhere terminationisless than7feet above
a sidewalk, driveway, deck, porch, veranda or balcony, use of a listed
cap shield is suggested.
NOTE 2:Termination inanalcove space(spacesopen onlyonone side
and with an overhang) are permitted with the dimensions specified for
vinyl or non-vinyl siding and soffits. 1. There must be 3 feet minimum
between termination caps. 2. All mechanical air intakes within 10 feet
of a termination cap must be a minimum of 3 feet below the termination
cap. 3. All gravity air intakes within 3 feet of a termination cap must be
a minimum of 1 foot below the termination cap.
(See Note 1)
(See Note 1)
S=6" MIN. ................... clearancefromsidesofelec-
trical service
T=36" MIN. .................. clearance above electrical
service
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
______________________________________________________________________
QMIN RMAX
1 cap 3 feet 2 x Q ACTUAL
2 caps 6 feet 1 x Q ACTUAL
3 caps 9 feet 2/3 x Q ACTUAL
4 caps 12 feet 1/2 x Q ACTUAL
QMIN = # termination capsx 3 RMAX = (2 / # termination caps) x QACTUAL
(See Note 5)
(See Note 5)
NOTE 3: Local codes or regulations may require different
clearances.
NOTE 4: Termination caps may be hot. Consider their proximity
todoors orothertraffic areas.
NOTE 5: Location of the vent termination must not interfere with
access to the electrical service.
WARNING: In the U.S: Vent system termination is NOT permit-
ted in screened porches. You must follow side wall, overhang
and ground clearances as stated in the instructions.
In Canada:Vent system termination isNOT permittedinscreened
porches.Vent systemtermination ispermitted in porchareas with
twoor moresides open. Youmust followall sidewalls, overhang
and ground clearances as stated in the instructions.
Heat-N-Glo assumes no responsibility for the improper perfor-
mance of the fireplace when the venting system does not meet
theserequirements.
DE
B
L
v
v
v
v
v
v
v
v
BB
A
H
M
X
J or K
I
A
G
F
U.S.
(3 FT)
B
ON
P
R
Q
(See Note 2)
Electrical
Service
V
S
VS
V
T
D*
V

21
For Vertical Terminations - To locate the vent and install
the vent sections:
•Locate and mark the vent centerpoint on the underside
of the roof, and drive a nail through the centerpoint.
•Make the outline of the roof hole around the centerpoint
nail.
•The size of the roof hole framing dimensions depend on
the pitch of the roof. There MUST BE a 1-inch (25.4mm)
clearance from the vertical vent pipe to combustible mate-
rials.
•Mark the roof hole accordingly.
•Cover the opening of the installed vent pipes.
•Cut and frame the roof hole.
•Use framing lumber the same size as the roof rafters
and install the frame securely. Flashing anchored to the
frame must withstand heavy winds.
•Continue to install concentric vent sections up through
the roof hole (for inside vent installations) or up past the
roof line until you reach the appropriate distance above
the roof (for outside terminations).
WARNING: MAJOR U.S. BUILDING CODES
SPECIFY MINIMUM CHIMNEY AND/OR VENT
HEIGHT ABOVE THE ROOF TOP. THESE MINIMUM
HEIGHTS ARE NECESSARY IN THE INTEREST OF
SAFETY. SEE THE FOLLOWING DIAGRAM FOR
MINIMUM HEIGHTS, PROVIDED THE TERMINA-
TION CAP IS AT LEAST 20 INCHES FROM AVER-
TICAL WALL AND 2-FEET BELOW AHORIZONTAL
OVERHANG.
NOTE: This also pertains to vertical vent systems in-
stalled on the outside of the building.
!
Roof Pitch H (min.) ft.
flat to 6/12 1.0
6/12 to 7/12 1.25
over 7/12 to 8/12 1.5
over 8/12 to 9/12 2.0
over 9/12 to 10/12 2.5
over 10/12 to 11/12 3.25
over 11/12 to 12/12 4.0
over 12/12 to 14/12 5.0
over 14/12 to 16/12 6.0
over 16/12 to 18/12 7.0
over 18/12 to 20/12 7.5
over 20/12 to 21/12 8.0
Figure 21. Minimum Height from Roof to
Lowest Discharge Opening
To seal the roof hole, and to divert rain and snow from the
vent system:
•Attach a flashing to the roof using nails, and use a non-
hardening mastic around the edges of the flashing base
where it meets the roof.
•Attach a storm collar over the flashing joint to form a
water-tight seal. Place non-hardening mastic around the
joint, between the storm collar and the vertical pipe.
•Slide the termination cap over the end of the vent pipe
and snap into place.
HORIZONTAL
OVERHANG
VERTICAL
WALL
TERMINATION
CAP
12
X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING
2 FT.
MIN. 20 INCH MIN.
Figure 20.
B-VENT
COMPONENT
PV-FLEX
PIPE

22
Step 4. Positioning, Leveling, and Securing
the Fireplace
•Place the fireplace into position.
•Level the fireplace from side to side and from front to
back.
•Shim the fireplace with non-combustible material, such
as sheet metal, as necessary.
•Secure the fireplace to the framing by nailing or screw-
ing.
•Holes are provided in the base pan for securing the unit
to the floor.
!
The diagram below shows how to properly position,
level, and secure the fireplace.
Figure 22. Proper Positioning, Leveling, and
Securing of a Fireplace
Step 5. The Gas Control System
WARNING: THIS UNIT IS NOT FOR USE
WITH SOLID FUEL.
Figure 23. Gas Control System
IPI PILOT
!
WARNING: CONTINUOUS 110-120 VAC
SERVICE MUST BE WIRED DIRECTLYTO
THE FIREPLACE JUNCTION BOX IN AIPI SYSTEM.
Intermittent Pilot Ignition (IPI) System
This system includes a 3V control valve, electronic mod-
ule and intermittent pilot.
FLAME
SENSOR
ROD
NAILING
TABS
(BOTH SIDES)

23
•Insert insulation from the outside of the fireplace and
pack the insulation tightly to totally seal between the
pipe and the outer casing.
•At the gas line access hole the gap between the supply
piping and gas access hole can be plugged with non-
combustible insulation to prevent cold air infiltration.
Step 6. The Gas Supply Line
NOTE: Have the gas supply line installed in accordance
with local building codes by a qualified installer
approved and/or licensed as required by the locality.
(In the Commonwealth of Massachusetts installation
must be performed by a licensed plumber or gas
fitter).
NOTE: Before the first firing of the fireplace, the gas
supply line should be purged of any trapped air.
NOTE: Consult local building codes to properly size
the gas supply line leading to the 1/2 inch
(13 mm) hook-up at the unit.
This gas fireplace is designed to accept a 1/2 inch
(13 mm) gas supply line. To install the gas supply line:
•A listed (and Commonwealth of Massachusetts approved)
1/2 inch (13mm) tee-handle manual shut-off valve and a
listed flexible gas connector are connected to the 1/2
inch (13mm) inlet of the control valve. NOTE: If substi-
tuting for these components, please consult local codes
for compliance.
•Locate the gas line access hole in the outer casing of
the fireplace.
•The gas line may be run from either side of the fireplace
provided the hole in the outer wrap does not exceed 2” in
diameter and it does not penetrate the actual firebox.
•Open the fireplace lower grille, insert the gas supply line
through the gas line hole, and connect it to the shut-off
valve.
•When attaching the pipe, support the control so that the
lines are not bent or torn.
•After the gas line installation is complete, all connec-
tions must be tightened and checked for leaks with a
commercially available, non-corrosive leak check solu-
tion. Be sure to rinse off all leak check solution following
testing.
WARNING: DO NOT USE AN OPEN FLAME
TO CHECK FOR GAS LEAKS.
!
Step 7. Gas Pressure Requirements
Pressure requirements for Heat-N-Glo gas fireplaces
are shown in the table below.
Pressure Natural Gas Propane
Minimum 5.0inches 11.0inches
Inlet Pressure w.c. w.c.
Maximum Inlet 14.0inches 14.0inches
GasPressure w.c. w.c.
Manifold 3.5inches 10.0inches
Pressure w.c. w.c.
A one-eighth (1/8) inch (3 mm) N.P.T. plugged tapping is
provided on the inlet and outlet side of the gas control for
a test gauge connection to measure the manifold pressure.
The fireplace and its individual shut-off valve must be
disconnected from the gas supply piping system during
any pressure testing of the system at test pressures in
excess of one-half (1/2) psig (3.5 kPa).
The fireplace must be isolated from the gas supply piping
system by closing its individual shut-off valve during any
pressure testing of the gas supply piping system at test
pressures equal to or less than one-half (1/2) psig (3.5 kPa).
u
Figure 24. Gas Supply Line
USE A WRENCH ON
SHUT-OFF VALVE
WHEN TIGHTENING
GAS LINE.
MANUAL
SHUT-OFF
VALVE
FLEX CONNECTOR
GAS VALVE
GAS LINE
ACCESS CONTROL VALVE

24
Step 8. Wiring the Fireplace
NOTE: Electrical wiring must be installed by a licensed
electrician.
CAUTION: DISCONNECT REMOTE CONTROLS IF AB-
SENT FOR EXTENDED TIME PERIODS. THIS WILL
PREVENT ACCIDENTAL FIREPLACE OPERATION.
Figure 25. Intermittent Pilot Ignition (IPI) Wiring Diagram
IGNITION
MODULE
(3V)
VALVE LOW VOLTAGE
PLUG-IN
3V TRANSFORMER
NEUTRAL HOT
GROUND
FLAMESPARKER/
SENSOR
REMOTE
CONTROL
SEENOTE1
IGNITION MODULE 3 VAC
INTERMITTENT PILOT IGNITOR
GROUNDTO
FIREPLACE
CHASSIS
VALVE
TRANSFORMER
3 VAC
ORG
WHT
ORG GRN
WHT
ON/OFF
WALLSWITCH
BRN
BRN
BLK
WHT
BLK
WHT
BLK
WHT
BLK
TERMINAL BLOCK
BULB SOCKET ASSEMBLY (3)
ROCKER SWITCH
BLK
OPTIONAL ELECTRIC EMBER KIT
(EMBERKIT-MS)
RED
BRN
BLK
BLK
WHT
RED
BRN
BLK
WHT
GRN
GROUNDCLIP
ON TERMINATION
CAP
EXHAUST
BLOWER
VACUUM SWITCH
WIRE HARNESS, 5 WIRE
PLUGIN
BLACK WIRE CAN BE
PLUGGEDINTOANYOF
#1 - #5 LOCATIONS
ON THE HOT SIDE
WHITE WIRE
CAN BE
PLUGGED
INTO ANY
OF #1 - #5
LOCATIONS
ON THE
NEUTRAL
SIDE
PIGGYBACK SWITCH
SCALE 1/1
MALE/FEMALE WIRE
HITEMP
LIMIT SWITCH
MALE/FEMALEWIRE
I
S
For Intermittent Pilot Ignition Wiring
Appliance Requirements
This appliance requires that 110-120 VAC be wired to the
junction box. Maintain correct polarity when wiring the junc-
tion box.

25
WallSwitch
Position the wall switch in the desired position on a wall.
Run a maximum of 25 feet (7.8 m) or less length of 18
A.W.G. minimum wire and connect it to the fireplace ON/
OFF switch pigtails.
CAUTION: LABEL ALL WIRES PRIOR TO DISCONNEC-
TION WHEN SERVICING CONTROLS. WIRING ERRORS
CAN CAUSE IMPROPER AND DANGEROUS OPERA-
TION. VERIFY PROPER OPERATION AFTER SERVICING.
Fan Installation
Recommended fan locations for the type of fireplace you
have (see Figures 27).
Figure 26. Fan Wiring Diagram
Optional Accessories
Optional fan and remote control kits require that 110-120
VAC be wired to the factory installed junction box before
the fireplace is permanently installed.
NOTE: If any of the original wire as supplied with the
appliance must be replaced, it must be replaced with
the type 105oC rated wire.
FAN JUNCTION
BOX
SPEED CONTROL
(RHEOSTAT)
TEMPERATURE
SENSOR SWITCH
SEE DETAIL A
DETAIL A
SCALE 1/1
Figure 27. ST & PIER fan location
FAN
ST & Pier fan location
It is recommended that the fan be positioned on the same
side of the fireplace as the vent collars. This will provide the
best air flow (see Figure 27).
