Heat-N-Glo 6000TRS-AU User manual

1
MODEL: 6000TRS-AU
AUSTRALIAN GAS ASSOCIATION APPROVED
AGAAPPROVALNUMBER5668
THIS MANUAL MUST BE USED FOR INSTALLATION AND RETAINED
BY HOMEOWNER FOR OPERATION AND MAINTENANCE.
HEAT-N-GLO, a division of Hearth Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044, USA 1-888-427-3973
392-900D 10/02
INSTALLATION AND OPERATION INSTRUCTIONS
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790;586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.

2
IMPORTANT: Read all instructions carefully before starting installation.
Failure to follow these installation instructions may result in a possible fire
hazard and will voidthe warranty. Save thismanual forfuture reference.
MODEL6000TRS-AU
IS AUSTRALIAN GAS ASSOCIATION
APPROVED FOR NATURAL GAS OR PROPANE
ASABALANCED FLUE HEATER.
Refer to the appliance data plates for gas consump-
tions and pressures.
Installation of this appliance should only be carried
out by an authorized person in accordance with the
manufacturers instructions. All relevant codes and
regulations laid down by the gas fitting authorities,
municipalbuilding regulations, electricalwiring regu-
lations, and the requirements of theAGA Gas Instal-
lationCode must beobserved.
This appliance and its components are tested and
safe when installed in accordance with this Installa-
tion Manual. Report to your dealer any parts dam-
aged in shipment, specifically check glass condition.
Thegaslogsandfluesystemcomponentsareinsepa-
rate packages. Read all instructions before starting
installationand followthese instructionscarefully dur-
inginstallation toensuremaximum benefitandsafety.
Failureto follow themwill voidyour warranty andmay
presenta fire hazard.
The Heat-N-Glo warranty will be voided by, and Heat-
N-Glo disclaims any responsibility for the following
actions:
• Installationof anydamaged heater orflue system
component
• Modificationof theheater or balancedflue system
installationotherthan asinstructedby Heat-N-Glo.
• Improper positioning of the gas logs or the glass
door
• Installation and/oruse of anycomponent part not
manufacturedorapprovedbyHeat-N-Glo,not with-
standing any independent testing laboratory or
other party approval of such componentpart or
accessory.
INSTALLATIONAND OPERATIONINSTRUCTIONS
PLEASE READ THIS MANUAL BEFORE INSTALLING AND
USING THIS APPLIANCE.
Copyright 2002 • Printed in U.S.A.

3
TABLE OF CONTENTS
1.0 INSTALLATION INSTRUCTIONS. ...................................................................4
1.1 LocatingtheHeater .....................................................................................5
1.2 FramingtheHeater......................................................................................6
1.3 FlueSystemApprovalsandInstallations.......................................................8
1.4 Connectingthe GasSupply..........................................................................16
1.5 Fan .............................................................................................................17
1.6 MantelClearances ......................................................................................18
1.7 LogPlacement ............................................................................................19
1.8 InstallerTesting ............................................................................................21
2.0 OPERATING INSTRUCTIONS. ........................................................................21
2.1 Safety andLighting Information ....................................................................23
2.2 SafetyInformation........................................................................................23
2.3 Lighting Instructions .....................................................................................24
2.4 FanOperation .............................................................................................25
3.0 SERVICING AND MAINTENANCE. .................................................................25
3.1 RemovalofCoversforServicing..................................................................26
3.2 Removalof Componentsfor Service............................................................26
3.3 PartsReplacement......................................................................................26
3.4 AdjustmentsandReplacementParts ...........................................................26
3.5 Troubleshooting ...........................................................................................27
4.0 REPLACEMENT PARTS. ................................................................................31
LimitedWarranty ...............................................................................................33
= Contains updated information.





4
FIGURE1. Diagram of the 6000 Series
1.0 INSTALLATION INSTRUCTIONS
When planning a heater installation, it’s necessary
todetermine:
•Where the unit is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framingand finishing details.
•Whether optional accessories—devices such as a
fan, wall switch, or remote control—are desired.
Ifthe heater is tobe installed oncarpeting or tile,or on
anycombustible materialother than woodflooring, the
heater should be installed on a metal or wood panel
that extends the full width and depth of the heater.
ELECTRICAL
ACCESS
GAS LINE
ACCESS
STANDOFFS
GAS CONTROLS
AND SWITCHES
DATA BADGE/LABELS
GLASS
DOOR
TOP
STANDOFFS
27”
(686mm)
GAS LINE
ACCESS
38”
(965mm)
36-1/8”
(917mm)
6-3/4”
(173mm) 36-1/8”
(917mm)
41”
(1043mm)
21”
(534mm)
9”
(228mm)
28-3/8”
(722mm)
14-1/4”
(361mm)
8-7/8”
(225mm)
3-5/8”
(94mm)
ELECTRICAL
ACCESS
2-1/4”
(58mm)

5
Clearance Requirements
The top, back, and sides of the heater are defined by
stand-offs.
The minimum clearance to a perpendicular wall
extending past the face of the heater is one inch (25
mm).
For 6000 Series Models, the back of the heater may
berecessed 21-1/2 inches (546mm) into combustible
construction.
FIGURE 2. Heater Dimensions, Locations,
and Space Requirements
1.1 Locating the Heater
Thediagram(See figure2) showsspaceand clearance
requirementsfor locating aheater withina room.
Minimum Clearances from the Heater to
Combustible Materials
Glass Back of Sides of Top of
Front Floor Heater Heater Heater Ceiling
36 inches 0 1/2 inch 1/2 inch 3-1/2 inches 31 inches
(914mm) (13mm) (13mm) (89mm) (787mm)
AB C D E
42 22 4911/32 6925/32 9823/32
(1066mm) (559mm) (1254MM) (1773mm) (2570mm)
1”MIN. (25mm)
A
B
D
C
20”(508mm)

6
Minimum Clearances from the Flue Pipe to
Combustible Materials
For Vertical
For Horizontal Sections Sections At Wall Firestops
Top Bottom Sides Top Bottom Sides
3 inches 1 inch 1 inch 1 inch 2-1/2inches 1/2 inch 1 inch
(75mm) (25mm) (25mm) (25mm) (63.7 mm) (13mm) (25mm)
Framing should be constructed of
2 X 4 lumber or heavier.
A BCD E
42" 38-1/2" 22" 26-7/8" 41 1/2"
(1066mm) (978mm) (559mm) (6837mm) (1054mm)
FIGURE3. Framing Dimensions
Forminimumclearances,seethe directventtermination
clearancediagrams on page 7.
1.2 Framing the Heater
Framing can be built before or after the heater is set in
place. Framing should be positioned to accommodate
wallcoverings andheater facingmaterial. Thediagram
belowshows framingreference dimensions.
CAUTION: MEASURE HEATER DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVER-
ING DETAILS, BEFORE FRAMING CONSTRUCTION
BEGINS.
The framing
headers may rest
on the heater
stand-offs.
A
B
C

E D

7
NOTES: 1. All distances are measured vertically or horizontally along the wall to a point
in line with the nearest part of the terminal.
2. Prohibited area below electricity meter or fuse box extends to ground level.
3. See clause 5.13.6.6 for restrictions on a flue terminal under a roofed area.
4. See Appendix J, Figure J1(a) and J2(a) for clearances required from a flue
terminal to a LP Gas cylinder. A flue terminal is considered to be a source of ignition.
MINIMUMCLEARANCES REQUIREDFOR BALANCEDFLUETERMINALS
ORTHE FLUETERMINALSOFOUTDOORAPPLIANCES
FIGURE4.
CLEARANCES 'n' (mm)
Space heaters All other appliances
Up to 50 MJ/h
input UP to 50 MJ/h input Over 50 MJ/h & up
to 150 MJ/h
Over 150 MJ/h
input
150 500 1000 1500
a - Below eaves, balconies or other projections: MIN. CLEARANCE (mm)
Appliances up to 50 MJ/h input...........................................................................................300
Appliances over 50 MJ/h input............................................................................................500
b - From the ground or above a balcony .....................................................................................300
c - From a return wall or external corner .....................................................................................500
d - From a gas meter (M) ...........................................................................................................1000
e - From an electricity meter or fuse box (P) ...............................................................................500
f - From a drain or soil pipe ........................................................................................................150
g - Horizontally from any building structure (unless appliance approved
for closer installation) or obstruction facing a terminal.........................................................500
h - From any other flue terminal, cowl, or combustion air intake...............................................500
j - Horizontally from an openable window, door, non-mechanical air
inlet, or any other opening into a building, with the exception of
sub-floor ventilation:
Appliances up to 150 MJ/h input.........................................................................................500
Appliances over 150 MJ/h input........................................................................................1500
k - From a mechanical air inlet, including a spa blower .........................................................1500
n - Vertically below an openable window, non-mechanical air
inlet or any other opening into a building, with the exception of ................................. See table
sub-floor ventilation ............................................................................................................ below
T = Flue terminal M = Gas meter Shading indicates prohibited
I = Mechanical air inlet P = Electricity meter or fuse box areas for flue terminals

8
MODEL FLUE TERMINATIONAPPROVALS
6000TRS-AU DVK-01DA, DVK-TVCD
DVK-01TRD
TABLE 1
1.3 FLUE SYSTEM APPROVALS AND
INSTALLATIONS
ThismodelisapprovedtouseD-Seriesfluepipecompo-
nents. A DVK-01DA or DVK-01TRD Termination Cap
must be used to terminate vent systems in a horizontal
position.ADVK-TVCDverticalTerminationCapmustbe
used to terminate vent systems in a vertical position.
Figures 5 through 14 show the flue systems approved
for use with these models.Approved flue system com-
ponentsare labeledfor identification.NOOTHERFLUE
SYSTEMSORCOMPONENTSMAYBEUSED.Detailed
installation instructions are included with each flue ter-
minationkit and shouldbe used inconjunction with this
manual.
WARNING: THIS GAS APPLIANCE AND FLUE AS-
SEMBLY MUST BE FLUED DIRECTLY TO THE OUT-
SIDEAND MUST NEVER BE ATTACHED TO ACHIM-
NEY SERVING ASEPARATE SOLID FUEL BURNING
APPLIANCE. EACH GAS APPLIANCE MUST USE A
SEPARATE FLUE SYSTEM-COMMON FLUE SYS-
TEMS ARE PROHIBITED.
CAUTION: UNDER NO CONDITION SHOULD COM-
BUSTIBLE MATERIAL BE CLOSER THAN 3 INCHES
(2 1/2 INCHES AT WALL FIRESTOPS) FROM THE
TOP OF THE 8 5/8-INCH PIPE OR 1-INCH TO THE
SIDESAND THE BOTTOM FOR HORIZONTALSEC-
TIONSOFTHISFLUESYSTEM. VERTICAL SECTIONS
OF THIS SYSTEM REQUIRE A MINIMUM OF 1-INCH
CLEARANCE TO COMBUSTIBLE MATERIALS ALL
AROUND THE 8 5/8 - INCH PIPE.
For alternative installations, other than depicted, con-
tact your dealer for further information.
Refer to Figure 4 for required clearances to flue termi-
nals.
STRAIGHT UP VERTICAL FLUE SYSTEM
Figure5shows straightupvertical fluesystemapproved
for use on this model.
STRAIGHT OUT HORIZONTAL FLUE SYSTEM
Figure 6 shows straight out horizontal flue systems ap-
provedfor use onthis model.
ELBOWS
The flue systems installed on this gas heater may also
include one (1), two (2), or three (3) 90 - degree elbow
assemblies.
Figures 7 through 14 and their corresponding tables
show examples of vent configurations using elbows.
The relationships of vertical rise to horizontal run in
vent configurations using elbows MUST bestrictly ad-
hered to.
NOTE: TWO 45-DEGREE ELBOWS MAY BEUSED
IN PLACE OF ONE 90 -DEGREE ELBOW.
CAUTION:DONOT INSTALLA45-DEGREEELBOW
DIRECTLYTOTHEHEATERFORACORNERINSTAL-
LATION.USE TWO 90-DEGREE ELBOWS.
ONE(1) 90-DEGREE ELBOW
Figures 6 and 7 show an installation using one (1) 90-
degreeelbow. Dimension Vis listed asMINIMUM ver-
tical dimensions and dimension H is listed as corre-
sponding MAXIMUM horizontaldimensions.
TWO(2) 90-DEGREE ELBOWS
Figures 9 and 10 show examples of possible installa-
tions using two (2) 90-degree elbows. Dimension V is
listed as MINIMUM vertical dimensions, dimension H
is listed as MAXIMUM beginning horizontal dimen-
sions, and dimension H+H1is listed as corresponding
TOTALMAXIMUM horizontal dimensions.
THREE(3) 90-DEGREE ELBOWS
Figures 12 through 14 show examples of possible in-
stallations using three (3) 90-degree elbows. Dimen-
sions V are listed MINIMUM first vertical dimensions
and dimensions H are listed as beginningMAXIMUM
horizontal di-
mensions. Di-
mensions H+H1
andH+H1+H2are
listed as TOTAL
MAXIMUM hori-
zontal dimen-
sions. Dimen-
sions V+V1are
listed as TOTAL
MAXIMUM verti-
cal dimensions.
FIGURE5
V
CAP
V
MAX. RUN
36FT.
(10.9m)

9
FIGURE 6. Straight Out Horizontal Flueing
HH
MIN. RUN MAX. RUN
13.1"(331mm) 24"(610mm)
H
FIGURE7. Flueing with One 90° Elbow
V H
1´ MIN. (305 mm) 2´ MAX. (610 mm)
2´ MIN. (610 mm) 4´ MAX. (1.22 M)
3´ MIN. (914 mm) 6´ MAX. (1.86 M)
4´ MIN. (1.22 M) 8´ MAX. (2.48 M)
24´ MAX. (7.3 M) 8´ MAX. (2.48 M)
V
H
V (FT.) H (FT.)
1' MIN. (305mm) 4' MAX. (1.22m)
2' MIN. (610mm) 8'MAX. (2.4m)
3' MIN. (914mm) 12'MAX. (3.7m)
4' MIN. (1.22m) 16' MAX. (4.9m)
V+H= 24’ MAX. (7.3m) H = 8' MAX. (2.4m)
FIGURE8. Flueing with One 90° Elbow
NOTE: If a 90oelbow is first attached to the unit,
themaximum horizontal runis 3-feet (914mm).
NOTE: Forcorner installations:A6-inch(152mm)
section of straight pipe may need to be attached to
the fireplace before a 90oelbow, to allow the vent
pipe to clear the top standoffs.
H
V

10
FIGURE 9. Flueing with Two 90° Elbows
V FT.) H (FT.) H+H1(FT.)
1' MIN. (350mm) 2'MAX. (610mm) 4' MAX. (1.22m)
2' MIN. (610mm) 2'MAX. (610mm) 8' MAX. (2.48m)
3' MIN. (914mm) 4'MAX. (1.22m) 12'MAX. (3.72m)
4' MIN. (1.22m) 6' MAX. (1.8m) 16'MAX. (4.9m)
20'MAX. (6.1m) 6'MAX. (1.8m) 16'MAX. (4.9m)
H
1
V
H
FIGURE10. Flueing with Two 90° Elbows
V FT. H + H1(FT.)
1' MIN. (305mm) 4' MAX. (1.22m)
2' MIN. (610mm) 8' MAX. (2.4m)
3' MIN. (914mm) 12'MAX. (3.7m)
4' MIN. (1.22m) 16' MAX. (4.9m)
V+H+H1= 36'MAX.(10.9m)
H+H
1
= 16'MAX.(4.9m)
V+V1+H= 36' MAX.(10.9m)

11
FIGURE12. Flueing with three 90° elbows
FLUEING WITH THREE (3) 90° ELBOWS
V H H + H1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 4´ MAX. (1.22 m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 8´ MAX. (2.48 m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 12´ MAX. (3.6 m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 16´ MAX. (4.9 m)
8´ MAX. (2.48 m) 16´ MAX. (4.9 m)
NOTE: V + V, MAX. 36´ (10.9 m)
FLUEING WITH THREE (3) 90° ELBOWS
FIGURE11. Flueing with three 90° elbows
V H H + H1+ H2
1´ MIN. (305 mm) 2´ MAX. (610 mm) 4´ MAX. (1.22 m)
2´ MIN. (610 mm) 2´ MAX. (610 mm) 8´ MAX. (2.48 m)
3´ MIN. (914 mm) 4´ MAX. (1.22 m) 12´ MAX. (3.6 m)
4´ MIN. (1.22 m) 6´ MAX. (1.86 m) 16´ MAX. (4.9 m)
20´ MAX. (6.1 m) 6´ MAX. (1.86 m) 16´ MAX. (4.9 m)

12
VENTING WITH THREE (3) 90° ELBOWS
V (FT.) H + H1(FT.)
1' MIN. (305mm) 4' MAX. (1.22m)
2' MIN. (610mm) 8' MAX. (2.4m)
3' MIN. (914mm) 12' MAX. (3.7m)
4' MIN. (1.22m) 16'MAX. (4.9m)
NOTE: H + H1= 16' MAX. (4.9m)
V + V1+ H + H1= 36' MAX. (10.9m)
V (FT.) H + H1(FT.)
1' MIN. (305mm) 4' MAX. (1.22m)
2' MIN.(610mm) 8' MAX. (2.4m)
3' MIN.(914mm) 12' MAX. (3.7m)
4' MIN.(1.22m) 16' MAX. (4.9m)
H +H1= 16' MAX. (4.9m)
NOTE:V+V1+H+H1= 36'MAX.(10.9m)
H 1
V 1
H
V
FIGURE13. Flueing with three 90° elbows

13
Installing Flue Components
1. Attach the First Flue Component to the
Starting Collars
Toattach thefirst fluecomponentto thestarting collars
ofthe fireplace:
• Apply a 3/8 inch (10mm) bead of stove cement
around the inner pipe heater starting collar.
• Makesurethat theheater ropegasketsupplied with
the heater seals between the first flue component
and the outer heater wrap.
• Lock the flue components into place by sliding the
concentricpipesections withfour(4)equally spaced
interior beads into the heater collar or previously
installedcomponentendwithfour(4) equallyspaced
indented sections.
• Whenthe internal beadsof each outerpipe line up,
rotatethe pipesection clockwiseabout one-quarter
(1/4) turn. The flue pipe is now locked together.
• The first 90° elbow installed in the flue system of a
rearflueing heater MUST BE in avertical position.

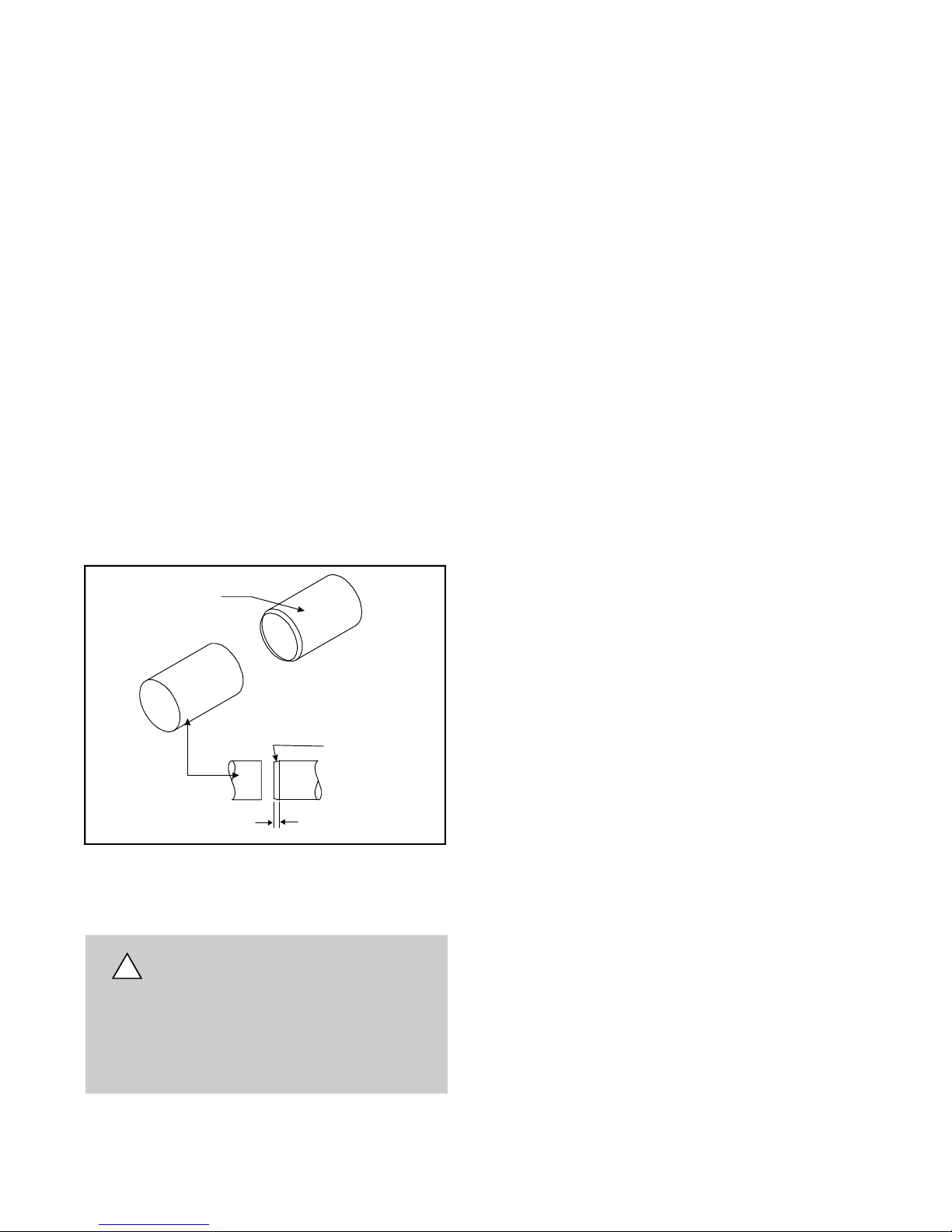

FIGURE 14. Attaching the First Flue
Component to the Starting Collars
WARNING: A 3/8 INCH (10MM) BEAD
OFSTOVECEMENTMUSTBEPLACED
AROUNDTHEINNERPIPEHEATER STARTING
COLLARBEFOREATTACHINGTHEFIRSTFLUE
COMPONENT. FAILURETO SEAL THIS JOINT
MAY CAUSE THE HEATER TO OPERATE IM-
PROPERLY. SEE FIGURE14.
WARNING:ENSURETHATTHEFIBER-GLASSROPE
GASKET SUPPLIED WITH THE HEATER SEALS
BETWEEN THE FIRST FLUE COMPONENT AND
THE OUTER HEATER WRAP.
2. Continue Adding Flue Components
Tocontinueadding fluecomponentsinaccordance with
thepre-planned flue system configuration:
• Ensure that each succeeding flue component is
securely fitted and locked into the preceding com-
ponent in the flue system.
90° elbows may be installed and rotated to any point
around the preceding component’s vertical axis. If an
elbow does not end up in a locked position with the
preceding component, attach with a minimum of two
(2) sheet metal screws.
3. Install Support Brackets
For Horizontal Runs - The flue system must be
supportedevery five (5)feet ofhorizontal run bya
horizontalpipe support.
To install support brackets for horizontal runs:
• Place the pipe supports around the flue pipe.
• Nail the pipe supports to the framing members.
!
STARTING
COLLAR
FIRST
FLUE
COMPONENT
STOVE
SEALANT
BEAD
3/8" (10mm)
1 INCH (25mm)

14
For Vertical Runs
Theflue systemmust be supportedevery eight(8) feet
(2.4 M) above the heater flue outlet by wall brackets.
To install support brackets for vertical runs:
• Attachwall brackets tothe fluepipe and securethe
wall bracket to the framing members with nails or
screws.
Use wall brackets to support vertical runs every 8 feet
(2.4M) above theheater flue outlet.

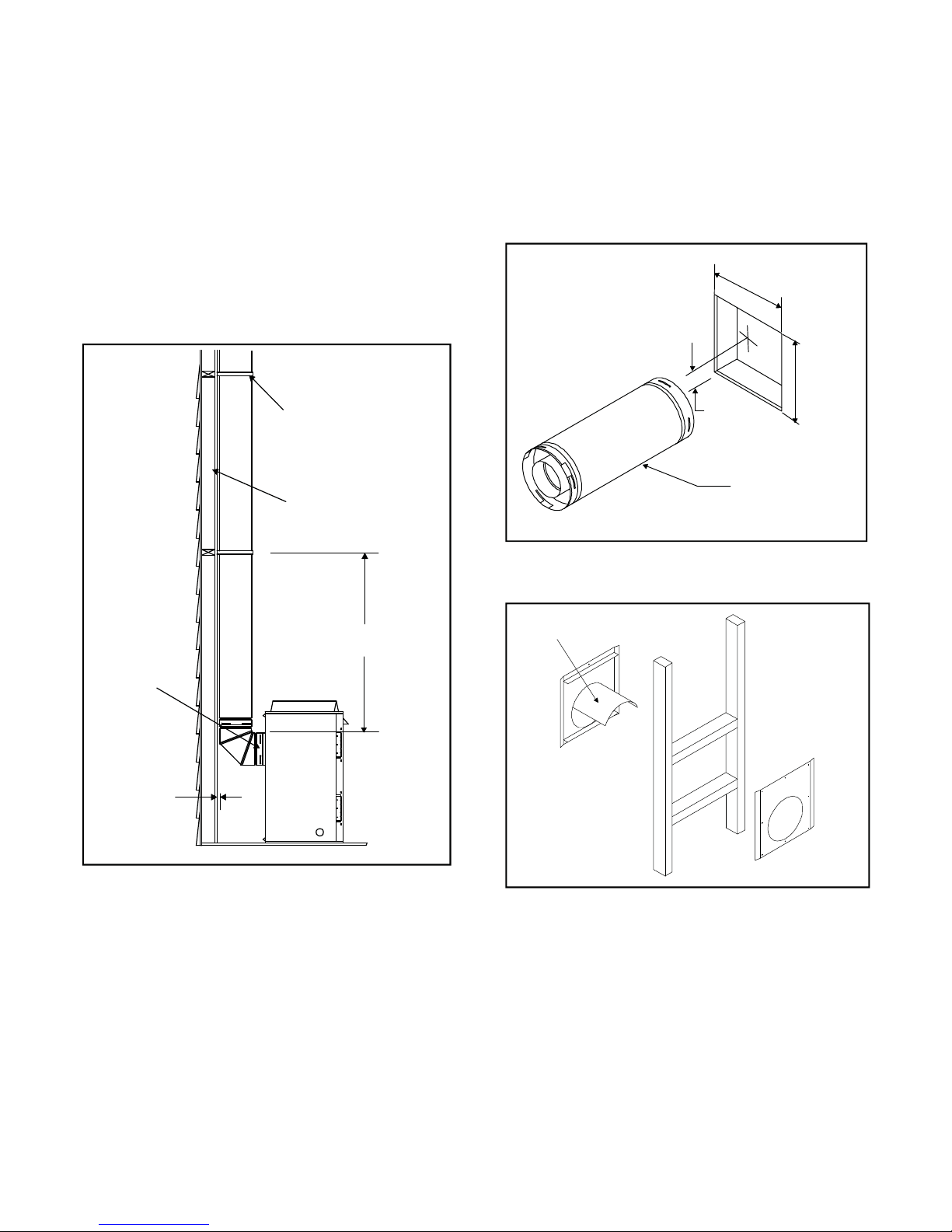

FIGURE 15. Installing Support Brackets
4. Install Firestops
For Horizontal Runs - Firestops are REQUIRED on
bothsides of acombustible wall through whichthe flue
passes.
Toinstall firestops forhorizontal runsthat pass through
either interior or exterior walls:
• Cut a 12-inch by 12-inch (305 mm X 305 mm) hole
through the wall. The center of the hole is one (1)
inch (25mm) above the center of the horizontal flue
pipe.
• Positionthe firestops onboth sides of the hole pre-
viously cut and secure the firestops with nails or
screws.
• The heat shields of the firestops MUST BE placed
towards the top of the hole.
• Continue the flue run through the firestops.
FIGURE 16. Hole and Flue Pipe
FIGURE 17. Heat Shield, Interior and Exterior
Firestops
For Vertical Runs - One ceilingfirestop isREQUIRED
at the hole in each ceiling through which the flue
passes.
To install firestops for vertical runs that pass through
ceilings:
• Positiona plumb bobdirectly over thecenter of the
verticalflue component.
• Mark the ceiling to establish the centerpoint of the
flue.
TRIM HEAT
SHIELD IF TOO
LONG, ADD TO
SHIELD IF TOO
SHORT
EXTERIOR
FIRESTOP
INTERIOR
FIRESTOP
HEAT SHIELD
FLUE PIPE
1" (25mm)
12" (305mm)
12" (305mm)
WALL BRACKET
WALL STUD
8 FT.
(2.4m)
FLUE
OUTLET
1 INCH MIN.
(25mm)

15
!
• Drill a hole or drive a nail through this center point.
• Checkthe floor abovefor anyobstructions, such as
wiringor plumbing runs.
• Repositionthe heaterand fluesystem, ifnecessary,
to accommodate the ceiling joists and/or obstruc-
tions.
• Cut an 11-inch X 11-inch (280 mm X 280 mm) hole
throughthe ceiling,usingthe centerpoint previously
marked.
• Frame the hole with framing lumber the same size
as the ceiling joists.
FIGURE 18. Hole and New Framing Members
If the area above the ceiling is NOT an attic, position
and secure the ceiling firestop on the ceiling side of
thepreviously cut andframed hole.
FIGURE 19. Ceiling Firestop (Ceiling Side)
If the area above the ceiling IS an attic, position and
securethefirestopon topofthepreviouslyframed hole.
FIGURE 20. Attic Firestop
C. Flue Termination
For Horizontal Terminations - To attach and secure
the termination to the last section of horizontal flue:
• Rotate and interlock the ends as described at the
beginningofthe InstallingFlue Componentssection.
• The termination kit should pass through the wall fir-
estops from the exterior of the building.
• Adjust the termination cap to its final exterior posi-
tion on the building.
WARNING: THE TERMINATION CAP
MUST BE POSITIONED SO THAT THE
ARROW IS POINTING UP.
• Usethe exteriorpipelock holeprovided onthe round
flange of the wall firestop to secure the flue pipe in
place.
• Use a high-temperature sealant or fiberglass rope
gaskettoseal betweenthepipeand exteriorfirestop.
• SeeFigure 4 forflue termination clearances.
JOIST
CEILING FIRESTOP
CEILING
NAILS (4 REQUIRED)
CEILING
CEILING FIRESTOP
RAFTER
NAILS (4 REQUIRED)
CEILING
NEW
FRAMING
MEMBERS
EXISTING CEILING
JOISTS
CHIMNEY
HOLE
11" (280 mm) 11" (280mm)

16
FIGURE22.
1.4 CONNECTING THE GAS SUPPLY
Thegas is introducedto the applianceon theleft hand
side. See Figure 22.
Afterthe gas pipeinstallation iscomplete, check care-
fullyall gas connectionsfor leakswith a soapsolution.
DO NOT USEAN OPEN FLAME.
NOTE: THE GAS SUPPLY LINE SHOULD BE
PURGED OF ANY TRAPPED AIR PRIOR TO THE
FIRST FIRING OF THE UNIT.

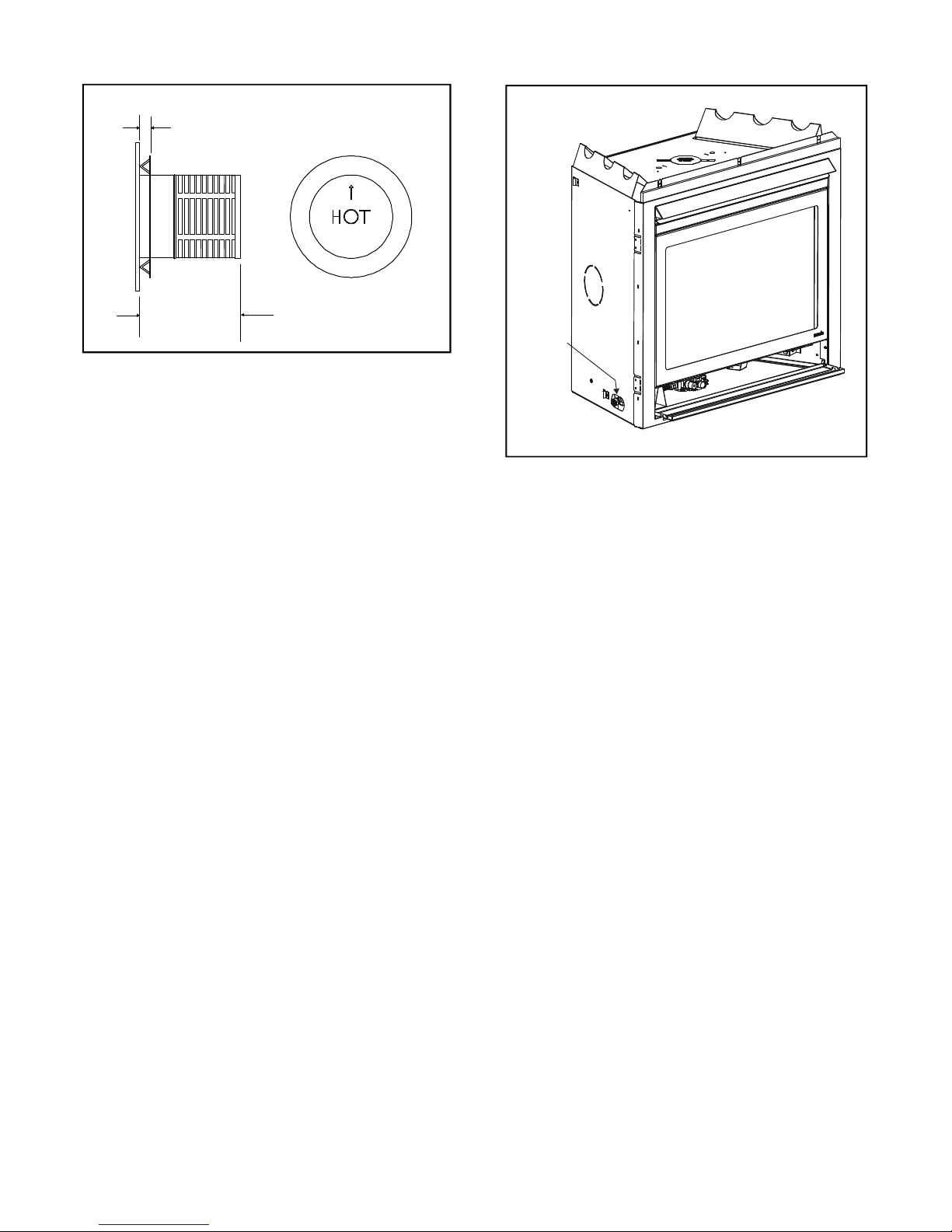

FIGURE 21. Round Termination Caps
For Vertical Terminations - To locate the flue and
install the flue sections:
• Locateand mark theflue center pointon the under-
side of the roof, and drive a nail through the center
point.
• Make the outline of the roof hole around the center
point nail.
• Thesizeof theroof holeframingdimensions depend
onthe pitchofthe roof.ThereMUST BE a1-inch(25
mm)clearancefrom thevertical fluepipeto combus-
tible materials.
• Mark the roof hole accordingly.
• Cover the opening of the installed flue pipes.
• Cut and frame the roof hole.
• Useframing lumberthesame sizeas theroofrafters
and install the frame securely. Flashing anchored to
the frame must withstand heavy winds.
• Continuetoinstallconcentricflue sectionsupthrough
theroof hole andup pastthe roofline until youreach
theappropriate distance abovethe roof.
CAUTION: FOLLOW THE REQUIREMENTS OF THE
AGA GAS INSTALLATION CODE FOR MINIMUM
HEIGHT REQUIREMENTSABOVE THE ROOF.
To seal the roof hole, and to divert rain and snow from
the flue system:
• Attach a flashing to the roof using nails, and use a
non-hardeningmastic aroundthe edgesof theflash-
ing base where it meets the roof.
• Attacha storm collarover theflashing joint to form a
water-tightseal. Placenon-hardeningmastic around
the joint, between the storm collar and the vertical
pipe.
• Slide the termination cap over the end of the flue
pipe and rotate the pipe clockwise 1/4 turn.

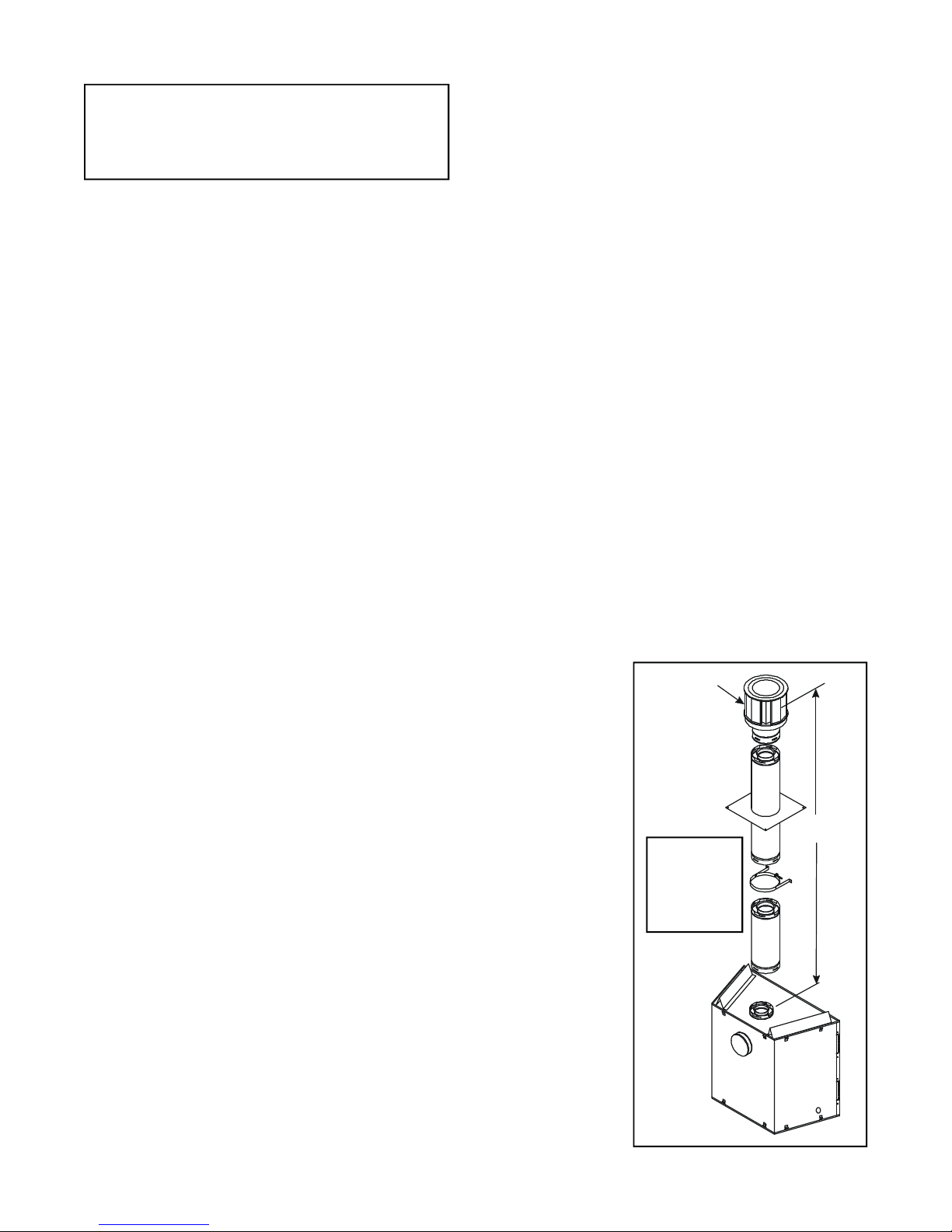

ROUND CAP TERMINATION
7 1/2”
(191mm)
MINIMUM
1” (25mm)
GAS LINE
ACCESS

17
FIGURE23.
NOTE: IF ANY OF THE ORIGINAL
WIRE AS SUPPLIED WITH THE
APPLIANCE MUST BE REPLACED,
IT MUST BE REPLACED WITH TYPE
105•C RATED WIRE.
FIGURE24.
WARNING: DO NOT CONNECT 220 VAC TO THE
GASCONTROLVALVE OR CONTROLWIRINGSYS-
TEM OF THIS MODEL.
NEUTRAL (BLUE)
BLUE
HOT (BROWN)
BROWNBLACK
BLACK
JUNCTION BOX FAN
BLUE
BROWN
Y
ELLOW/GREEN
BLUE
BRN
YW/GR
BLK
BLK
TEMP. SENSOR
SWITCH
BLK
BLK
SPEED CONTROL
FAN WIRING DIAGRAM
BLK
BLK
YELLOW/GRN
Y
ELLOW/GRN
BLUE
BRN
BRN
BLUE
GRD
BLUE
JUNCTION BOX DETAIL
FAN
TEMPERATURE
SENSOR SWITCH
FAN SPEED
CONTROL
JUNCTION BOX
1.5 FAN
These heaters have a factory installed Fan, Electrical
JunctionBoxes,variablespeedRheostat ControlSwitch
andTemperatureSensorSwitchforthefan. Thesecom-
ponents are located behind the lower grille.
Use of the fan requires that the Junction Box (factory
installed)be connectedto240 VACservice beforeper-
manently enclosing the heater. The factory installed
powercord is attachedon the lower frontright exterior
side of the heater. Figure 23 shows the fan, switches,
andfan wiringdiagram. SeeFigure 24for wireconnec-
tion detail.

18
FIGURE26.
FIGURE25.

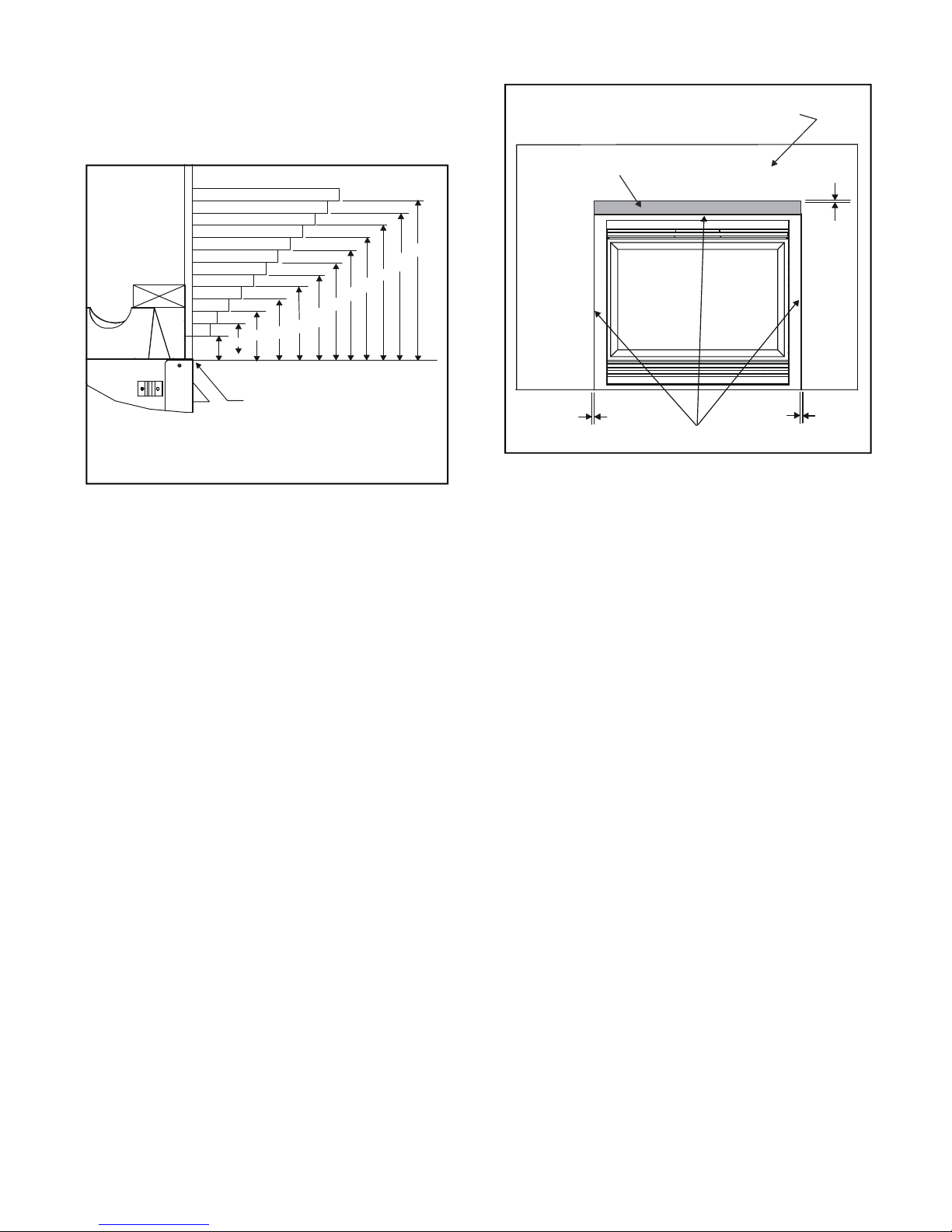

1.6 MANTEL CLEARANCES
Clearancetoa mantelpieceis 12-inches(305mm). See
Figure 25.
NOTE:ALLDIMENSIONSARE
SHOWNIN MILLIMETERS.
IF JOINTS BETWEEN THE FINISHED WALLSAND
THE FIREPLACE SURROUND (TOP AND SIDES)
ARE SEALED, A 150° C. MINIMUM SEALANT
MATERIAL MUST BE USED. THESE JOINTSARE
NOT REQUIRED TO BE SEALED. ONLY NON-
COMBUSTIBLE MATERIAL (USING 150° C.
MINIMUM ADHESIVE, IF NEEDED) CAN BE
APPLIED AS FACING TO THE FIREPLACE
SURROUND. SEE FIGURE 26.
89
127
152178203
254279
5176
102
127
305
279
254
229
203
178
152
TOP FRONT EDGE
OF FIREPLACE
38
25 76 102 114
229


0
FINISH WALL MATERIAL MAY BE
COMBUSTIBLE - TOP AND SIDES
0
0
NON-COMBUSTIBLE
BOARD

19

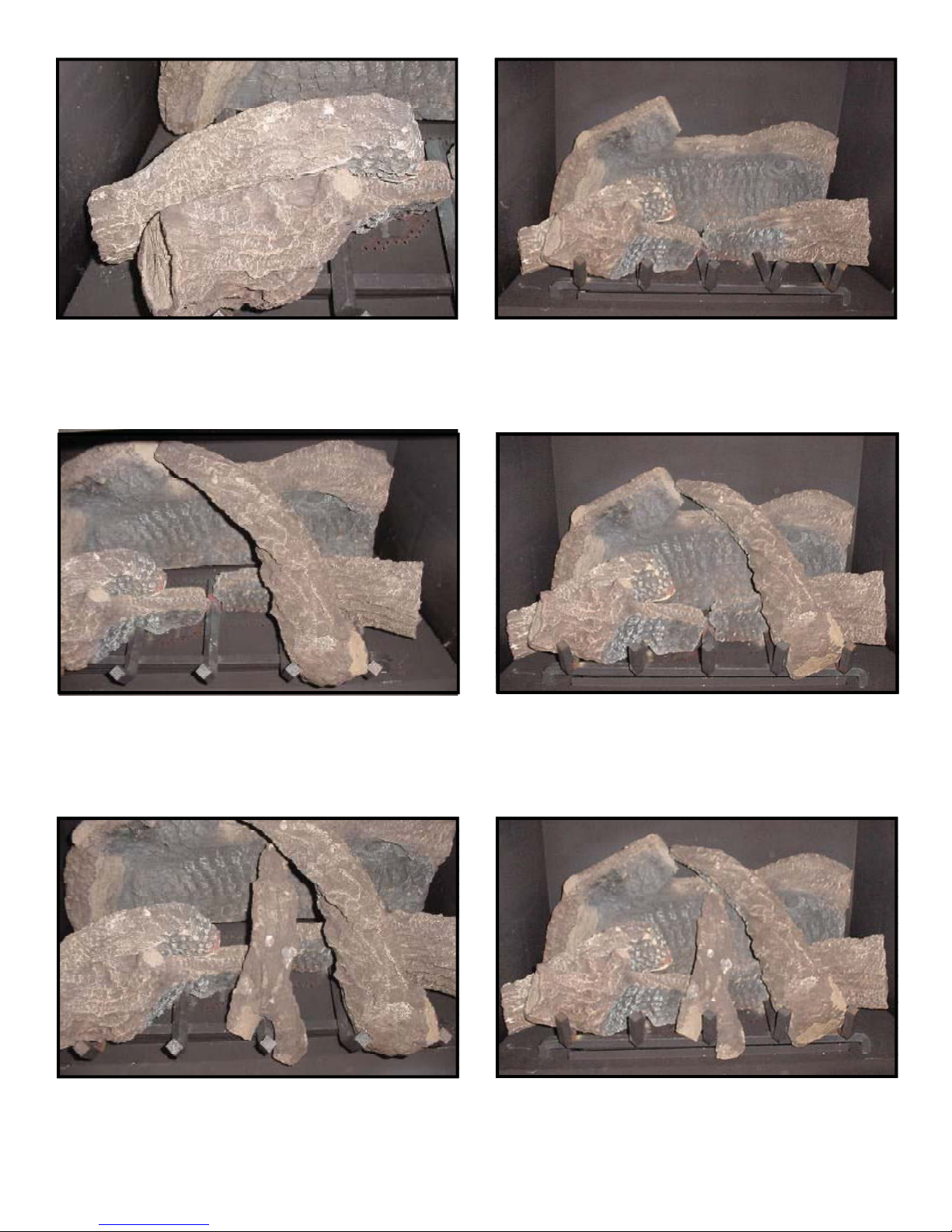

1.7 LOG PLACEMENT INSTRUCTIONS
Carefullyremove the logsfrom the packaging.CAUTION: Logs arefragile!
LOG #1 (SRV382-701): Locate log #1 on grate with knotches and push log towards rear of firebox.
LOG #2 (SRV382-702): Locate log #2 on grate with knotches. Slide left end of log forward and right side back
against tab.
Log Assembly: LOG-6TRS-AU
1
22
LOG #3 (SRV382-703): Locate log #3 on grate with knotches. Slide back against the tabs.
3
3

20
LOG #4 (SRV675-723): Place log #4 between log #2 and grate tab. Rest the right end on top of log #2.
LOG #5 (SRV382-705): Place bottom of log #5 between the 4th and 5th grate bars rest the top onto log #1.
LOG #6 (SRV438-724): Place the "Y" shaped part of log #6 over the 3rd grate bar. Rest the tip of the log against
log #1 and log #5.
66
55
44
