Heat-N-Glo 6000TRXI Assembly instructions

1
-Do not store or use gasoline or other flam-
mablevaporsandliquidsinthevicinityofthis
orany otherappliance.
-What to do if you smell gas
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your building.
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
•If you cannot reach your gas supplier, call
thefiredepartment.
-Installationandservicemustbeperformedbya
qualified installer, service agency, or the gas
supplier.
Installers Guide
WARNING: IMPROPER INSTALLA-
TION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN
CAUSE INJURYOR PROPERTY DAM-
AGE. REFER TO THIS MANUAL. FOR
ASSISTANCE ORADDITIONAL INFOR-
MATION CONSULT AQUALIFIED IN-
STALLER, SERVICEAGENCY, OR THE
GAS SUPPLIER.
Underwriters
Laboratories Listed
386-900N 3/03
READ THIS MANUAL BEFORE INSTALLING OR
OPERATING THIS APPLIANCE. THIS INSTALLERS
GUIDE MUST BE LEFT WITH APPLIANCE FOR
FUTUREREFERENCE.
1. This appliance may be installed in an af-
termarket,permanentlylocated,manufac-
tured(mobile)home,wherenotprohibited
bylocalcodes.
2. Thisapplianceisonlyforusewiththetype
of gas indicated on the rating plate. This
appliance is not convertible for use with
othergases,unlessacertifiedkitisused.
Please contact your Heat-N-Glo dealer with any
questions or concerns. For the number of your nearest
Heat-N-Glo dealer, please call 1-888-427-3973.
Printed in U.S.A. Copyright 2003,
Heat-N-Glo,abrandofHearth&HomeTechnologiesInc.
20802 Kensington Boulevard, Lakeville, MN 55044
WARNING: IF THE INFORMATION
IN THESE INSTRUCTIONS IS NOT
FOLLOWED EXACTLY, AFIRE OR
EXPLOSION MAYRESULT CAUS-
ING PROPERTY DAMAGE, PER-
SONAL INJURY, OR DEATH.
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790; 586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.
Model:
6000TRXI

2
These units MUST use one of the vent systems
described in the Installing the Fireplace section of
the Installers Guide. NO OTHER vent systems or
components MAYBE USED.
This gas fireplace and vent assembly MUST be
vented directly to the outside and MUST NEVER be
attached to a chimney serving a separate solid fuel
burning appliance. Each gas appliance MUST USE
a separate vent system. Common vent systems are
PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air
flow.
The glass door assembly MUST be in place and
sealed, and the trim door assembly MUST be in
place on the fireplace before the unit can be placed
into safe operation.
DO NOT OPERATE this appliance with the glass
door removed, cracked, or broken. Replacement of
the glass door should be performed by a licensed
or qualified service person. DO NOT strike or slam
the glass door.
The glass door assembly SHALL ONLYbe
replaced as a complete unit, as supplied by the gas
fireplace manufacturer. NO SUBSTITUTE material
may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass
door when it is hot.
Turn off the gas before servicing this appliance. It is
recommended that a qualified service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
must be replaced before operating this appliance.
DO NOT place furniture or any other combustible
household objects within 36 inches of the fireplace
front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO
FOLLOW these installation instructions may result
in a possible fire hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Using Your Fireplace section of the Owners Guide.
DO NOT USE this appliance if any part has been
under water. Immediately CALL a qualified service
technician to inspect the unit and to replace any part
of the control system and any gas control which has
been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use
and at least annually by a professional service
person. More frequent cleaning may be required
due to excessive lint from carpeting, bedding
material, etc. It is IMPERATIVE that the unit’s
control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other
flammable vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance
CLEAR of all obstacles and materials for servicing
and proper operations.
Due to the high temperature, the appliance should
be LOCATED out of traffic areas and away from
furniture and draperies. Clothing or flammable
material SHOULD NOT BE PLACED on or near the
appliance.
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAYAWAYto avoid burns or clothing ignition.
Young children should be CAREFULLYSUPERVISED
when they are in the same room as the appliance.
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
SAFETY AND WARNING INFORMATION
!
!

3
TABLE OF CONTENTS
Safety and Warning Information ............................................... 2
Service Parts Lists.................................................................... 4
Section 1: Approvals and Codes .............................................. 6
Appliance Certification ................................................................. 6
Installation Codes ........................................................................ 6
HighAltitude Installations.............................................................. 6
Section 2: Getting Started ........................................................ 7
Introducing the Heat-N-Glo Gas Fireplaces.................................. 7
Pre-installation Preparation .......................................................... 7
Section 3: Installing the Fireplace ........................................... 9
Constructing the Fireplace Chase................................................ 9
Step 1Locating the Fireplace .................................................. 9
Step 2Framing the Fireplace................................................. 10
Step 3Installing the Vent System ........................................... 12
A. Vent System Approvals .......................................... 12
B. Installing Vent Components ................................... 19
C. VentTermination.................................................... 23
Step 4Positioning,Leveling, and
Securing the Fireplace................................................ 25
Step 5Installthe Optional Heat-Zone Kit ................................ 26
Step 6The Gas Control Systems .......................................... 26
Step 7The Gas Supply Line .................................................. 27
Step 8Gas Pressure Requirements...................................... 27
Step 9Wiring the Fireplace.................................................... 28
Step 10 Finishing ..................................................................... 29
Step 11 Installing Trim, Logs and Ember Material .................... 30
InstallingtheTrim........................................................ 30
Positioning the Logs ................................................... 30
ShutterSettings ........................................................... 30
Placing the Ember Material ......................................... 30
Glass Specifications ................................................... 30
Step 12 Before Lighting the Fireplace ...................................... 31
Step 13 Lighting the Fireplace.................................................. 31
Step 14 Climate Control........................................................... 31
Afterthe Installation.................................................................... 31
Section 4: Maintaining and Servicing Your Fireplace......... 32
u= Contains updated information.
u
u
u

4
*Part number list on following page.
*La liste des numéros de pièce se
trouve à la page suivante.
14
4
5
17 18
16
6 Log set assembly
2
3
115
7
8
9
10
11
12
13
19
(NG, LP) Exploded Parts Diagram
(GN, PL) Vue éclatée des pièces
Service Parts 6000TRXI
Beginning Manufacturing Date: 4-01
Ending Manufacturing Date:_______
20
u

5
ITEM /
PIÈCE STANDING PILOT AND DSI IGNITION COMMON PARTS / UNE VEILLEUSE ET ALLUMAGE DSI PIÉCES COMMUNES SERIAL # / N° DE SÉRIE PART NUMBER / N° DE PIÈCE
ON/OFF Rocker Switch / Interrupteur à bascule marche/arrêt 060-511
Piezo Ignitor / Allumage Piézo 418-513
Burner Tube / Tube de brûleur 477-301A
Burner Orifice NG (#39C) / Orifice de brûleur GN (#39C) 582-839
Left and Right Log Burner Orifice NG (#55C) /
Orifice de brûleur de bûche gauche et droite GN (#55C) 582-855
Burner Orifice LP (#54C) / Orifice de brûleur PL (#54C) 582-854
Right Burner Orifice LP (#66) / Droite orifice de brûleur PL (#66) 582-866
Left Burner Orifice LP (#68) / Gauche orifice de brûleur PL (#68) 582-868
1Surround / Entourent 385-130
2Hood / Hotte SRV60-143-BK
3Glass Door Assembly / Porte en verre GLA-6TRXI
4Burner NG, LP / Brûleur GN, PL 386-339A
5Log Grate / Grille de Bûche 385-360A
66TRXI NG Log Set Assembly / Jeu de Bûches GN LOGS-6TRXI
66TRXI LP Log Set Assembly / Jeu de Bûches PL LOGS-6TRXILP
7Log 1 NG / Bûche 1 GN SRV386-711A
7Log 1 LP / Bûche 1 PL SRV386-721A
8Log 2 NG / Bûche 2 GN SRV386-710A
8Log 2 LP / Bûche 2 PL SRV386-720A
9Log 3 / Bûche 3 SRV386-714
10 Log 4 / Bûche 4 SRV386-713
11 Log 5 / Bûche 5 SRV386-716
12 Log 6 / Bûche 6 SRV386-715
13 Log 7 / Bûche 7 SRV386-712
14 Insulation Board / Conseil d'Isolation 385-401
Flue Restrictor / Restricteur de conduite de cheminée 385-128
19 Manifold Assembly, Solenoid 386-301A
20 Blower Motor with Magnets / Moteur de Ventilateur(Téléphone) avec Aimants 107-500A
Manifold Gasket /Joint Diversifié(Varié) 385-410
Rheostat Knob - Black / Bouton de Rhéostat - Noir 100-512
Flex Ball Valve Assembly / Fléchir l'Assemblée de Soupape de Balle 302-320A
Rheostat Assembly / Assemblée de Rhéostat 100-510A
Switch Assembly, Solenoid / Changer l'Assemblée, le Solénoïde 385-520A
Pilot Control Knob / Piloter le Bouton de Contrôle 571-530
Flame Control Knob / Flamber le Bouton de Contrôle 571-531
STANDING PILOT IGNITION ONLY / ALLUMAGE UNE VEILLEUSE SEULEMENT
15 Junction Box / Boîtier de raccordement 100-250A
Valve NG / Valve GN 060-522
Valve LP / Valve PL 060-523
Pilot Assembly NG / Module de veilleuse GN 485-510A
Pilot Assembly LP / Module de veilleuse PL 485-511A
ACCESSORIES / ACCESSOIRES
Fan Kit / Module de ventilateur GFK-160A
Wall Switch Kit, Off-white / Interrupteur mural, blanc crème WSK-21
Wall Switch Kit, White / Interrupteur mural, blanc WSK-21-W
Trim Door Mesh / Écran porte de garniture MESH-6000
NG Conversion NGK-6TRXI
LP Conversion LPK-6TRXI
Wall Refractory Kit BRICK-6000
16 Wall Refractory Kit - Right Wall SRV386-372
17 Wall Refractory Kit - Left Wall SRV386-371
18 Wall Refractory Kit - Back Wall SRV386-370
Service Parts List / Liste des pièces de rechange
IMPORTANT: THISIS DATEDINFORMATION. The mostcurrent informationis locatedon your dealers VIP site.When order-
ing,supplyserial andmodelnumbers toensurecorrect serviceparts./IMPORTANT : L'informationfourniedans cettebrochure
n'est valide que pendant une courte période. Les sites VIP des distributeurs disposent des renseignements les plus récents.
Lorsd'une commande, veuillez fournir lesnuméros de série et demodèles pour un remplacement adéquatdes pièces.
6000TRXI
u
u

6
Appliance Certification
TheHeat-N-GlofireplacemodelsdiscussedinthisInstallers
Guide havebeen testedto certification standardsand listed
by the applicable laboratories.
Certification
MODELS: 6000TRXI
LABORATORY: UnderwritersLaboratories
TYPE: Direct Vent Gas Fireplace Heater
STANDARD: ANSI Z21.88-2000•CSA2.33-M98•UL307B
Installation Codes
Thefireplaceinstallationmustconformtolocalcodes.Before
installing the fireplace, consult the local building code
agency to ensure that you are in compliance with all
applicable codes, including permits and inspections.
Intheabsence oflocalcodes, thefireplaceinstallation must
conform to the National Fuel Gas CodeANSI Z223.1 (in
theUnitedStates) or theCAN/CGA-B149InstallationCodes
(in Canada). The appliance must be electrically grounded
in accordance with local codes or, in the absence of local
codes with the National Electric Code ANSI/NFPA No. 70
(intheUnitedStates),ortothe CSAC22.1CanadianElectric
Code(in Canada).
Thesemodels may be installed ina bedroomor bed-sitting
room in the U.S.A. and Canada.
Approvals and
Codes
HighAltitudeInstallations
U.L. Listed gas appliances are tested and approved with-
out requiring changes for elevations from 0 to 2,000 feet in
the U. S.A. and in Canada.
Wheninstalling this appliance at an elevation above2,000
feet, it may be necessary to decrease the input rating by
changingthe existing burnerorifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. or 10% for elevations
between2000 and4500 feetin Canada. Ifthe heatingvalue
of the gas has been reduced, these rules do not apply. To
identify the proper orifice size, check with the local gas
utility.
If installing this appliance at an elevation above 4,500 feet
(in Canada), check with local authorities.
Heat-N-GloQuality
Systems registered
by SGS ICS

7
Getting Started
Introducing the Heat-N-Glo Gas Fireplaces
Heat-N-Glodirect ventgas fireplaces aredesigned tooper-
ate with all combustion air siphoned from outside of the
building and all exhaust gases expelled to the outside.
The information contained in this Installers Guide, unless
noted otherwise, applies to all models and gas control
systems.Gasfireplace diagrams,includingthe dimensions,
are shown in this section.
Pre-install Preparation
Thisgas fireplace and itscomponents are tested and safe
when installed in accordance with this Installers Guide.
Report to your dealer any parts damaged in shipment,
particularly the condition of the glass. Do not install any
unit with damaged, incomplete, or substitute parts.
The vent system components and trim doors are shipped
in separate packages. The gas logs may be packaged
separately and must be field installed.
Read all of the instructions before starting the
installation. Follow these instructions carefully during
the installation to ensure maximum safety and benefit.
Failure to follow these instructions will void the
owner’s warranty and may present a fire hazard.
TheHeat-N-GloWarrantywillbe voided by,andHeat-N-Glo
disclaims any responsibility for, the following actions:
•Installation of any damaged fireplace or vent system
component.
•Modification of the fireplace or direct vent system.
•Installation other than as instructed by Heat-N-Glo.
•Improper positioning of the gas logs or the glass door.
•Installationand/or useof any component part notmanu-
factured and approved by Heat-N-Glo, not withstanding
anyindependenttestinglaboratoryorotherpartyapproval
of such component part or accessory.
ANY SUCH ACTION MAY POSSIBLY CAUSE A FIRE
HAZARD.
When planning a fireplace installation, it’s necessary to
determine:
•Where the unit is to be installed.
•The vent system configuration to be used.
•Gas supply piping.
•Electrical wiring.
•Framingand finishing details.
•Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
If the fireplace is to be installed on carpeting or tile, or on
any combustible material other than wood flooring, the
fireplace should be installed on a metal or wood panel that
extends the full width and depth of the fireplace.

8
Figure 1. Diagram of the 6000TRXI
TOP VENT COLLARS
REAR VENT COLLARS
GAS
LINE
ACCESS ELECTRICAL
ACCESS
GAS
CONTROLS
RATING PLATE
AND LABELS
TRIM
DOOR
HOOD
TOP STANDOFFS
41 1/8
[1044mm]
38
[965mm]
36 1/8
[916mm]
25 1/4
[642mm]
34 5/8
[879mm]
8 5/8
[219mm]
VENT
COLLARS
ELECTRICAL
ACCESS
26 7/8
[682mm]
12 3/4
[323mm]
3 1/2
[90mm]
GAS LINE
ACCESS
2 1/8
[55mm]
6 7/8 [174mm]
14 1/4
[362mm]
8 5/8 [219mm]
VENT COLLARS
21 1/2 [548mm]
11 5/8 [297mm]
28 1/2 [724mm]

9
Installing the Fireplace
Step 1. Locating the Fireplace
Thefollowing diagramshows space andclearance require-
ments for locating a fireplace within a room.
ABCD E
42” 22” 36” 51” 72”
Minimum Clearances
from the Fireplace to Combustible Materials
Inches mm
Glass Front ........................36 ..................... 914
Floor ....................................0........................ 0
Rear ................................... 1/2 ..................... 13
Sides ................................. 1/2 ..................... 13
SurroundSides* ..................0........................ 0
Top ....................................3 1/2.................... 89
Ceiling**..............................31 ..................... 787
Figure 2. Fireplace Dimensions, Locations,
and Space Requirements
Minimum Clearances
from the Vent Pipe to Combustible Materials
Inches mm
Vertical Sections...............1................. 25
Horizontal Sections
Top ......................................3................. 75
Bottom................................1................. 25
Sides ..................................1................. 25
At Wall Firestops
Top ...................................2 1/2.............63.7
Bottom.............................. 1/2 ............... 13
Sides ..................................1................. 25
* See Figure 3.
**Theclearance totheceilingismeasuredfromthetop
of the unit, excluding the standoffs (see Figure 40).
Thedistance fromthe unit tocombustible construction
is to be measured from the unit outer wrap surface to
thecombustibleconstruction,NOT fromthescrewheads
that secure the unit together.
For minimum clearances, see the direct vent termination
clearance diagrams on pages 23 and 24 in this manual.
1/2” MIN. (13mm)
D
C
E
B
1” MIN. (25mm)
A
Clearance Requirements
The top, back, and sides of the fireplace are defined by
stand-offs.The minimumclearance to a perpendicular wall
extendingpast the faceof thefireplace is oneinch (25mm).
The back of the fireplace may be recessed 21 1/2 inches
(546 mm) into combustible construction.
Constructing the Fireplace Chase
A chase is a vertical box-like structure built to enclose the
gasfireplace and/orits vent system. Vertical ventsthat run
on the outside of a building may be, but are not required to
be, installed inside a chase.
CAUTION: TREATMENT OF FIRESTOPSPACERSAND
CONSTRUCTIONOFTHE CHASEMAYVARYWITHTHE
TYPE OF BUILDING. THESE INSTRUCTIONS ARE NOT
SUBSTITUTES FOR THE REQUIREMENTS OF LOCAL
BUILDINGCODES.THEREFORE,YOURLOCAL BUILD-
ING CODES MUST BE CHECKED TO DETERMINE THE
REQUIREMENTS FOR THESE STEPS.
Factory-builtfireplace chasesshould beconstructed in the
manner of all outside walls of the home to prevent cold air
draftingproblems. The chase should notbreak the outside
buildingenvelope inany manner.
This means that the walls, ceiling, base plate and cantile-
ver floor of the chase should be insulated. Vapor and air
infiltration barriers should be installed in the chase as per
regional codes for the rest of the home.Additionally, Heat-
N-Glorecommendsthattheinside surfaces besheetrocked
and taped for maximum air tightness.
Tofurther preventdrafts, the firestopsshould becaulked to
seal gaps. Gas line holes and other openings should be
caulked or stuffed with insulation. If the unit is being in-
stalled on a cement slab, we recommend that a layer of
plywood be placed underneath to prevent conducting cold
up into the room. Be sure to include spark arrestors for
woodburningunits ifthey arerequired.
THECHASE SHOULD BECONSTRUCTEDSOTHATALL
CLEARANCES TO THE FIREPLACEARE MAINTAINED
AS SPECIFIED WITHIN THIS INSTALLERS GUIDE.

10
Framing should be
constructed of 2 X 4
lumber or heavier.
A. ............. 42”*
B. .........38 1/2”
C. ...............22”
D. ...............42”
E. .........27 7/8”
Figure 3. Framing Dimensions
Step 2. Framing the Fireplace
Fireplaceframingcan bebuiltbefore orafterthe fireplaceis
set in place. Framing should be positioned to accommo-
date wall coverings and fireplace facing material. The dia-
grambelowshows framing referencedimensions.
CAUTION: MEASURE FIREPLACE DIMENSIONS AND
VERIFY FRAMING METHODS AND WALL COVERING
DETAILSBEFORE FRAMING.
Shows center of 12” x 12” vent framing
holes for top and rear venting. The center
of the hole is one (1) inch (25.4mm) above
the center of the horizontal vent pipe.
A
B
C
1/2” CLEARANCE FROM BACK OF FIREPLACE TO COMBUSTIBLE
0” CLEARANCE TO
FRAMING MEMBER
0” CLEARANCE
1/2” CLEARANCE
FROM BOTH SIDES
OF FIREPLACE
TO COMBUSTIBLE
FRAMING
MEMBER
ED
u

11

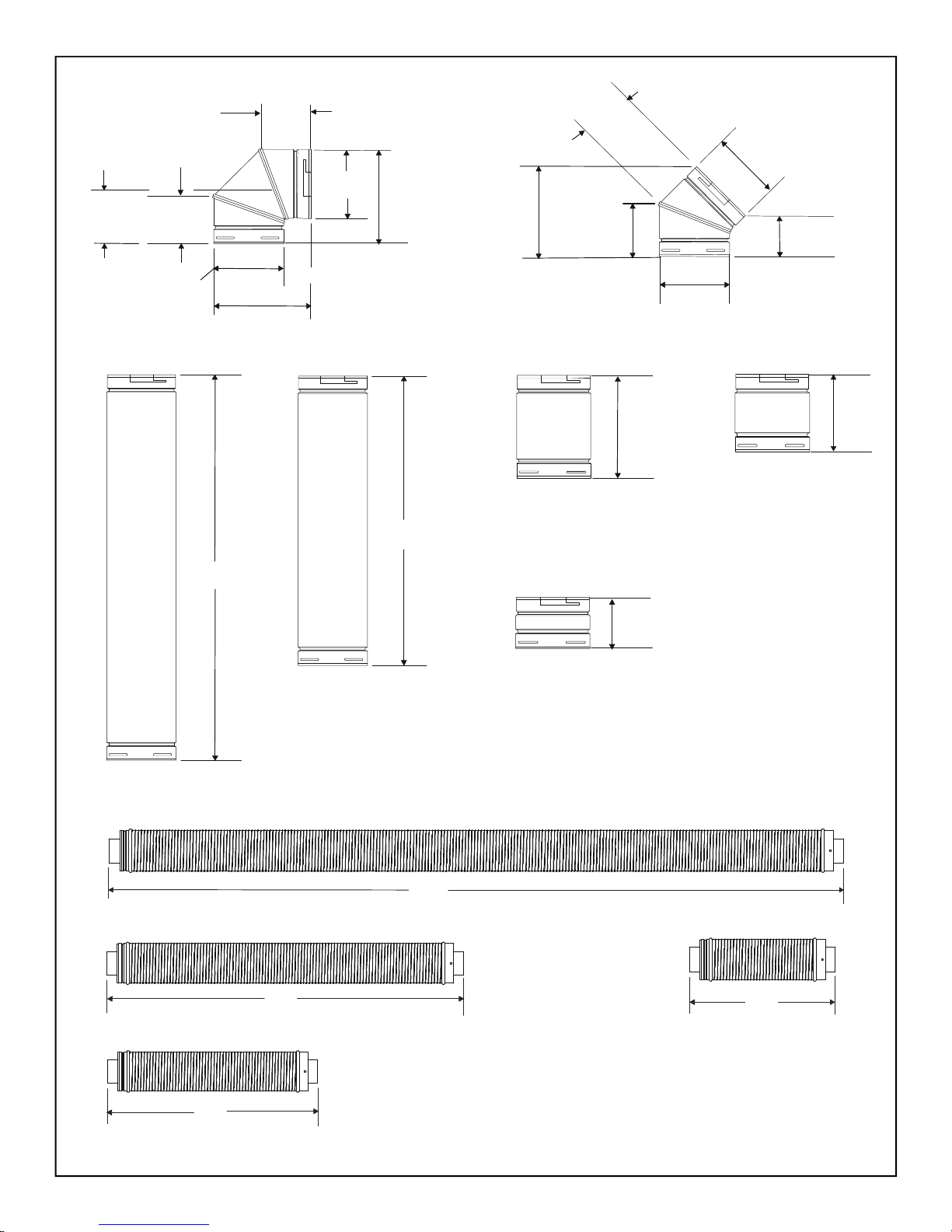

Figure 4. D-Series Direct Vent Component Specifications (5-inch inner pipe / 8 5/8-inch outer pipe)
NOTE: PIPES OVERLAP 1-3/8 INCHES (34.93mm)
ATEACH JOINT.
DV-36D
5 3/4”
(146mm)
8 3/4”
(222mm)
11 3/4”
(298mm)
DV-48D
7 3/8”
(187mm)
6 5/32”
(156mm)
11 5/8”
(295mm)
8 5/8”
(220mm)
8 1/2”
(216mm)
6 7/16”
(164mm)
11 1/16”
(281mm) 6 1/2”
(165mm)
8 1/2”
(216mm)
5 1/16”
(129mm)
8 5/8”
(220mm)
35 3/4”
(908mm)
47 3/4”
(1.2m)
DV-12D
DV-09D
DV-06D
DV-45D
DV-90D
11 15/16”
(303mm)
5 7/8”
(149mm)
120”
(3048mm)
24”
(610mm)
36”
(914mm)
60”
(1524mm)
DV-FLEX-10
DV-FLEX-5
DV-FLEX-3
DV-FLEX-2

12
Figure 5. Vent System Components and Termination Kits
Step 3. Installing the Vent System
A. Vent System Approvals
Thesemodelsareapproved touseD-seriesdirect ventpipe
components and terminations (see Figures 4 and 5). Ap-
provedvent system componentsare labeledfor identifica-
tion. This pipe is tested and listed as an approved compo-
nent of the fireplace. The pipe is tested to be run inside an
enclosedwall.There isnorequirement for inspectionopen-
ingsat each jointwithin the wall.There is no required pitch
for horizontal ventruns. NO OTHERVENTING SYSTEMS
OR COMPONENTS MAY BE USED.
Detailedinstallationinstructions are includedwitheach vent
termination kit and should be used in conjunction with this
Installers Guide.
Theflameandemberappearancemayvarybasedonthetype
offuelburnedandtheventingconfigurationused.
Terminations Kits
Identifying Vent Components
The vent systems installed on this gas fireplace may in-
clude one, two, or three 90°elbow assemblies. The rela-
tionships of vertical rise to horizontal run in vent configura-
tions using 90° elbows MUST BE strictly adhered to. The
rise to run relationships are shown in the venting drawings
andtables.Referto thediagramsonthe next severalpages.
NOTE: Two 45° elbows may be used in place of one
90° elbow. Rise to run ratios in the vent system must
be followed if 45° elbows are used.
Thismodel hasvent startingcollars on both the top and the
back of the unit. Depending upon the installation, decide
which ONE set of starting collars will be used to attach the
vent system. The starting collar sealing cap must remain
on the starting collar NOT used.
HORIZONTAL
TERMINATION
WALL FIRESTOP
90 DEGREE
ELBOW
VERTICAL
TERMINATION STORM COLLAR
ROOF FLASHING
HORIZONTAL PIPE
SUPPORT
PIPE LENGTH
WALL BRACKET
CEILING
FIRESTOP
DVK-TVCD
DVK-01TRD
DVK-SNKD DV-FLEX2-01TRF
DVK-01TRF*
*For use with flex vent only.

13

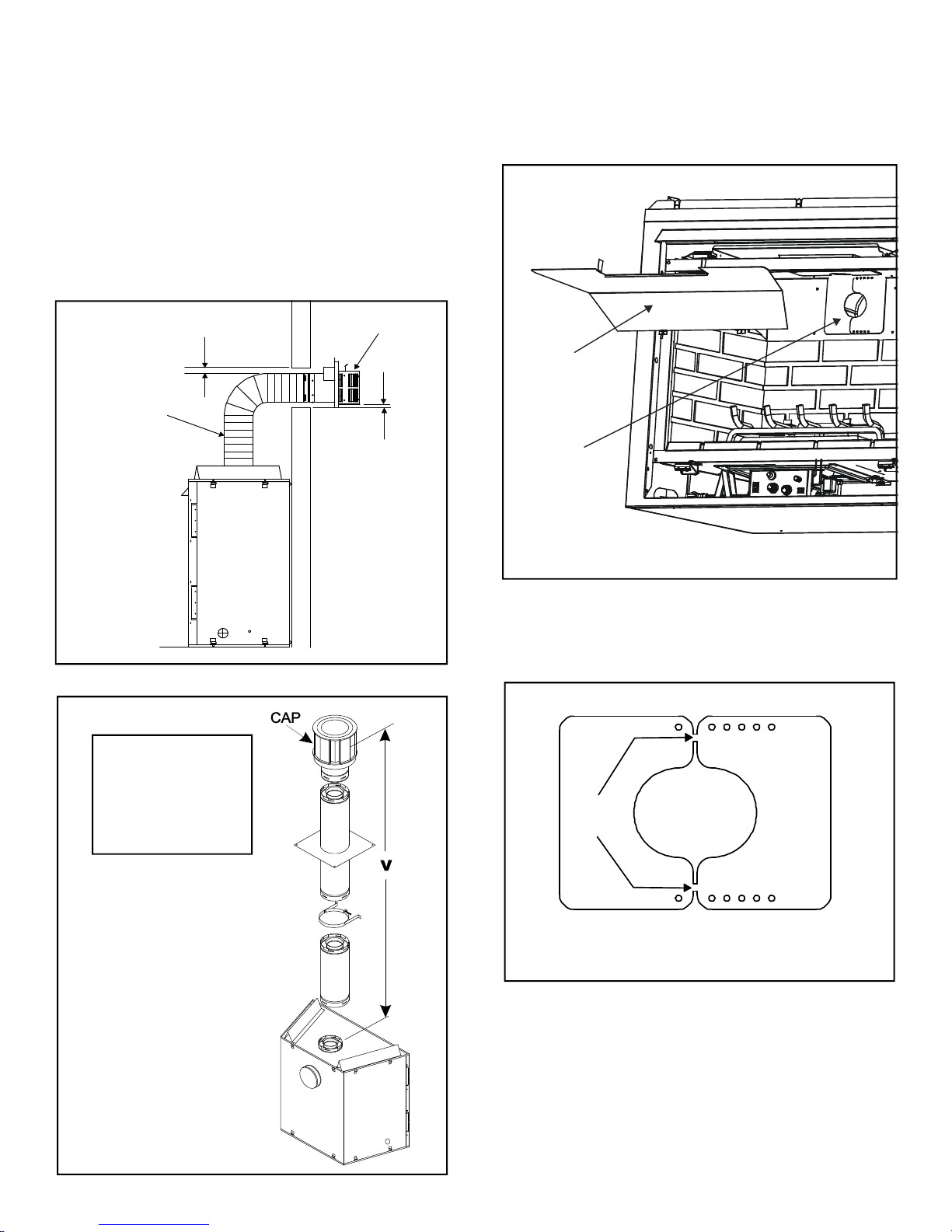

Figure 7.
Straight Up Vertical Venting
STRAIGHT UP
VERTICALVENTING
V (FT.)
40' MAX. (12.4 M)
Flue Restrictor Instructions
1. Remove Exhaust Shield using a 1/4” nut driver by
removingthe four screws securing itin place(see
Figure 8).
Figure 9. Flue Restrictor
BREAK
HERE
Figure 8
FLUE
RESTRICTOR
EXHAUST
SHIELD
2. Break the Flue Restrictor into two pieces. Do this
by bending the part back and forth until it breaks
(see Figure 9).
NOTE: Onverticalventing
configurations you may
want to install the vertical
baffle (385-128). See flue
restrictor installation in-
structions.
Figure 6.
Flex Vent
The flex vent must be supported with the spacing be-
tween support intervals not exceeding 4 feet, with no
more than ½ inch sag between supports.
Asupport is requiredat each change inventing direc-
tion,andinany location where itisnecessarytomain-
tainthenecessaryclearancetocombustibles.Asimple
“up and out” installation (Figure 6) requires only
enough support to maintain the necessary clearance
to combustibles. However, the vent attachment point
andthefirestoplocationareconsideredtobesupports.
3” CLEARANCE TERMINATION
CAP
FLEX-VENT
1”
CLEARANCE

14
HORIZONTALVENTING
KitNo. H Max. Run
DVK-01TRD 24" (610 mm)
Figure 11. Corner Installation
NOTE: This model is NOT tested and NOT
approved to use 45° elbows in corner instal-
lations. 90° elbows may be used in corner
installations.
45-DEGREE
ELBOW
90-DEGREE
ELBOWS
H
3. Match the amount of vertical you have in the sys-
tem with the chart to find the appropriate position
to set the Flue Restrictor.
1 2 3 4 5
SETTINGS
1 2 3 4 5
Figure 10
- CHART -
Vertical Top Vent
NG Top Vent LP Rear Vent NG Rear Vent LP
4' 1-1 No
Restrictor No Restrictor No Restrictor
8' 2-2 1-2 1-1 No
Restrictor
15' 3-3 3-2 2-2 1-2
20' 3-4 3-3 3-3 2-3
25' 3-4 3-3 3-3 2-3
30' 4-4 3-4 3-4 3-3
35' 4-4 3-4 3-4 3-3
40' 5-4 4-4 4-4 3-4
4.Center the Flue Restrictor on vent and secure in
place by using two self-tapping screws (see Fig-
ure 10).
5. Reinstall the Exhaust Shield.

15
VH
1' MIN. (305mm) 2' MAX. (610mm)
2' MIN. (610mm) 4' MAX. (1.22m)
3' MIN. (914mm) 6' MAX. (1.86m)
4' MIN. (1.22m) 8' MAX. (2.4m)
V+H=40' MAX. (12.4m) H = 8' MAX. (2.4m)
NOTE: Onverticalventingconfigurationswhere
thevertical componentis over 10feet, youmay
wantto install the vertical baffle included inthe
manual bag assembly to improve flame
appearance.

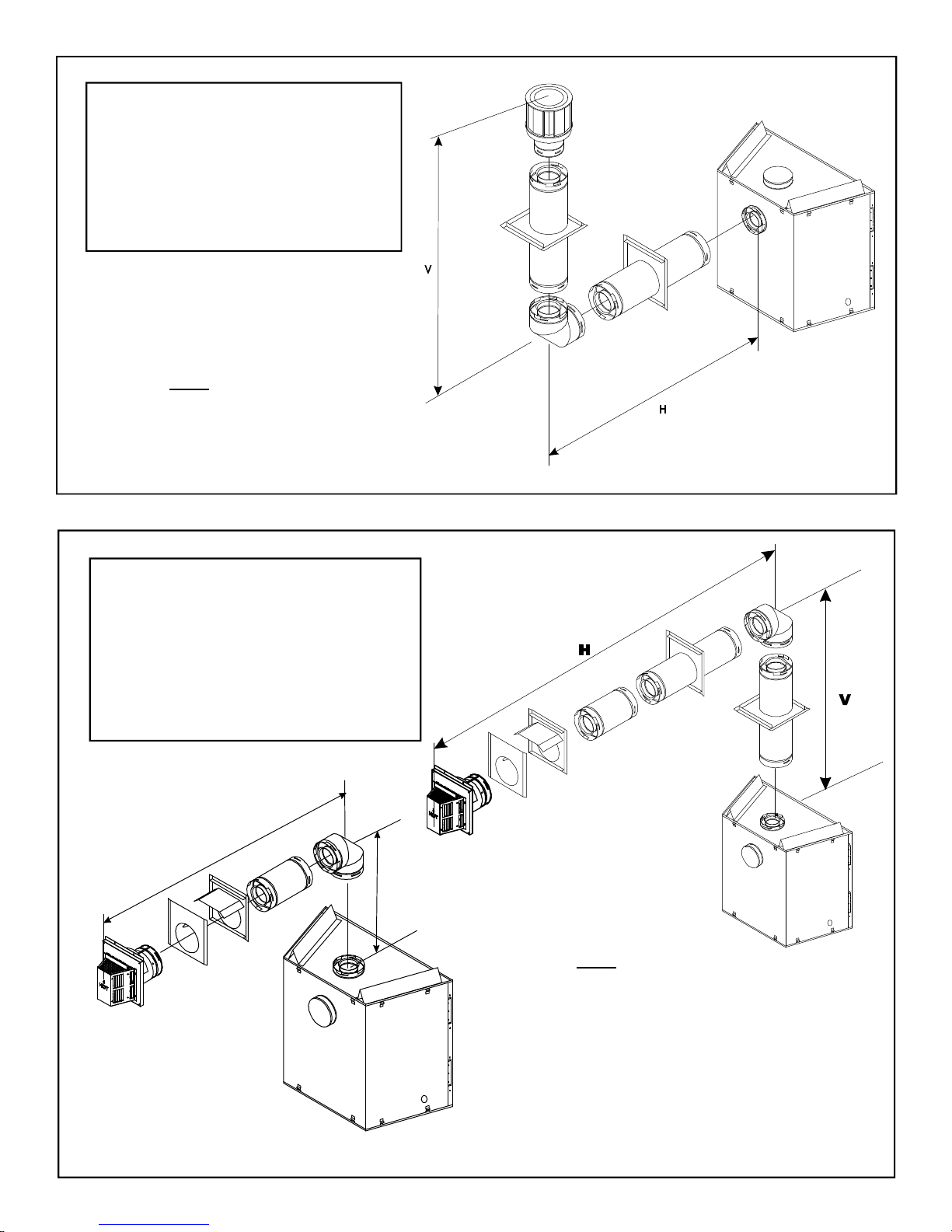

Figure 12. Venting with One 90° Elbow
VENTING WITH ONE (1) 90° ELBOW
VENTING WITH ONE (1) 90° ELBOW
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10'MAX. (3.1m)
3' MIN. (914mm) 15'MAX. (4.65m)
4' MIN. (1.22m) 20'MAX. (6.2m)
V+H= 40’ MAX. (12.4MM) H = 20' MAX. (6.2m)
Figure 13. Venting with One 90° Elbow NOTE: If a 90oelbow is first attached to the unit,
themaximum horizontal runis 3-feet (914mm).
NOTE: Forcorner installations:A6-inch(152mm)
section of straight pipe may need to be attached to
the fireplace before a 90o elbow, to allow the vent
pipe to clear the top standoffs.
H
V
NOTE: There MUST be a 25% reduction in
total H when using flex vent except when
using the simple up and out installation
(see Figure 6).
NOTE: ThereMUST be a 25% reduction in total H
when using flex vent except when using the
simple up and out installation (see Figure 6).

16

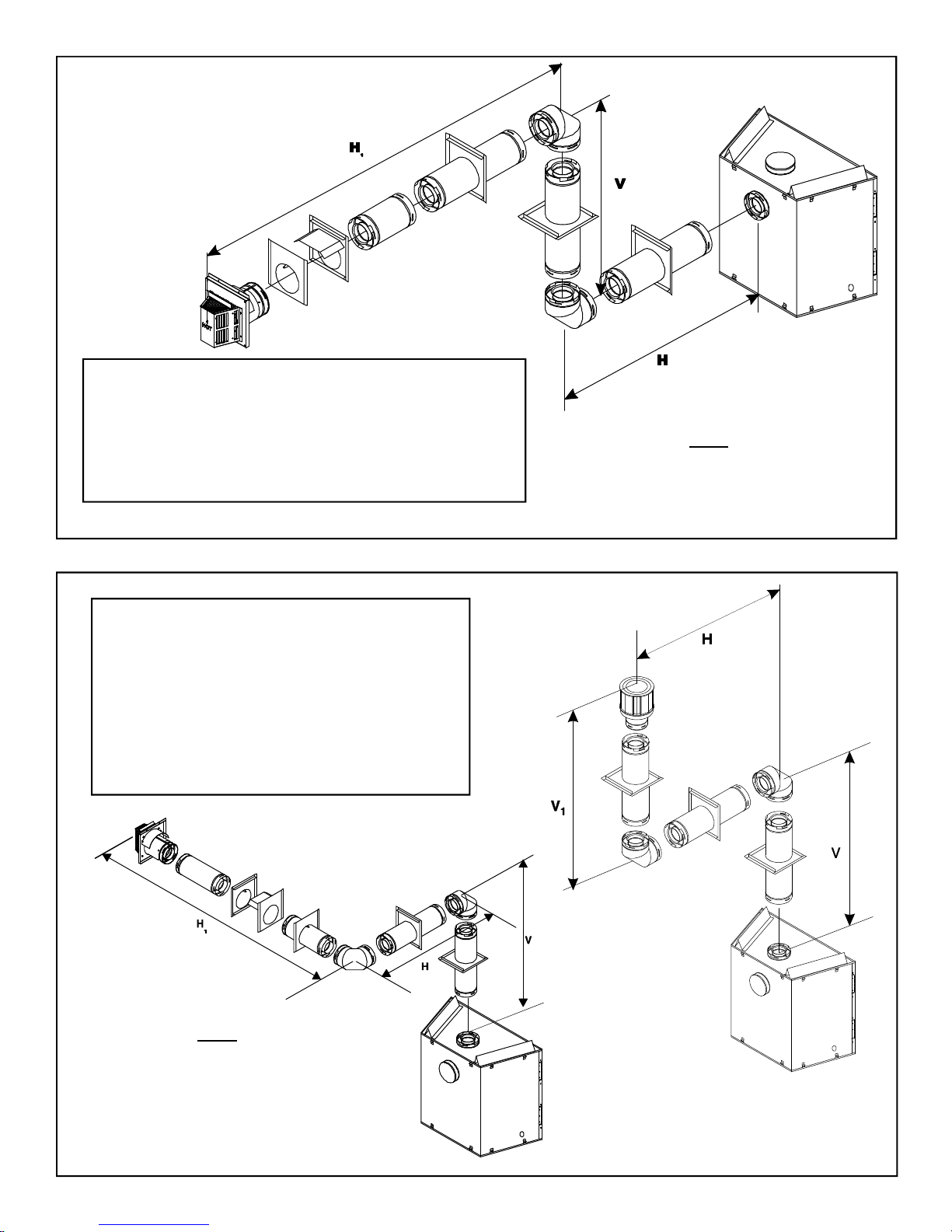

Figure 14. Venting with Two 90° Elbows
VENTING WITH TWO (2)
90° ELBOWS
VHH + H1
1´ MIN. (305 mm) 2´ MAX. (610 mm) 5´ MAX. (1.52m)
2´ MIN. (610 mm) 4´ MAX. (1.22 m) 10´MAX. (3.1m)
3´ MIN. (914 mm) 6´ MAX. (1.86 m) 15´ MAX. (4.65m)
4´ MIN. (1.22 m) 8´ MAX. (2.48 m) 20´MAX. (6.2m)
V+H+H 1 =40´MAX.(12.4 m) H= 8´MAX. (2.48m) H+H
1
=20´MAX.(6.2m)
Figure 15. Venting with Two 90° Elbows
VENTING WITH TWO (2) 90oELBOWS
V FT.H + H1(FT.)
1' MIN. (305mm) 5´ MAX. (1.52m)
2' MIN. (610mm) 10´ MAX. (3.1m)
3' MIN. (914mm) 15´ MAX.(4.65m)
4' MIN. (1.22m) 20´ MAX. (6.2m)
V+H+H1= 40' MAX.(12.4m) H+H
1
=20´ MAX. (6.2m)
V+V1+H=40' MAX.(12.4m)
NOTE: There MUST be a 25% reduction in
total H when using flex vent except when
using the simple up and out installation
(see Figure 6).
NOTE: There MUST be a 25% reduction in
total H when using flex vent except when
using the simple up and out installation
(see Figure 6).

17

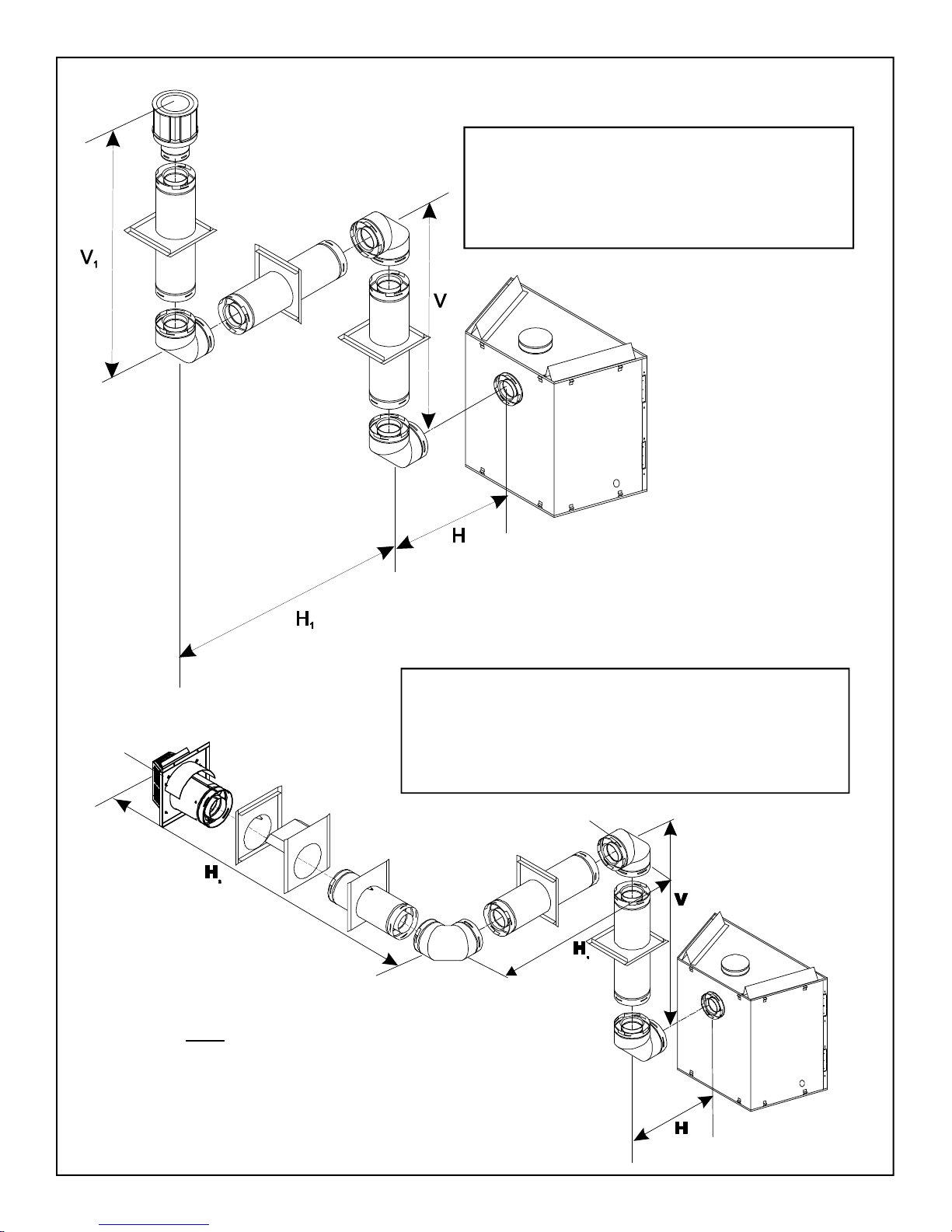

Figure 16. Venting with three 90° elbows
VENTING WITH THREE (3) 90° ELBOWS
1´MIN.(305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN.(610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN.(914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN.(1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V+H+H
1
+H
2
= 40 ´ MAX. (12.4 m) H = 8´ MAX. (2.48 m) H+H
1
+H
2
= 20´ MAX. (6.2 m)
V HH + H1 + H2
1´MIN.(305mm) 2´MAX. (610mm) 5´MAX. (1.52m)
2´MIN.(610mm) 4´MAX. (1.22m) 10´MAX. (3.1m)
3´MIN.(914mm) 6´MAX. (1.86m) 15´MAX. (4.65m)
4´MIN.(1.22m) 8´MAX. (2.48m) 20´MAX. (6.2m)
V
1
+V+H+H
1
= 40 ´ MAX.(12.4 m) H = 8´MAX.(2.48 m) H+H
1
= 20´MAX.(6.2 m)
V H H + H1
NOTE: There MUST be a 25% reduction in
total H when using flex vent except when
using the simple up and out installation
(see Figure 6).

18
VENTINGWITH THREE (3) 90° ELBOWS
V (FT.) H (FT.)
1' MIN. (305mm) 5' MAX. (1.52m)
2' MIN. (610mm) 10'MAX.(3.1m)
3' MIN. (914mm) 15'MAX.(4.65m)
4' MIN. (1.22m) 20'MAX.(6.2m)
NOTE: H + H1= 20' MAX. (6.2m)
V + V1 + H + H1= 40' MAX. (12.4m)
V (FT.) H + H1 (FT.)
1' MIN.(305mm) 5' MAX.(1.52m)
2' MIN.(610mm) 10' MAX.(3.1m)
3' MIN.(914mm) 15' MAX.(4.65m)
4' MIN.(1.22m) 20' MAX.(6.2m)
H +H1= 20'MAX. (6.2m)
NOTE:V+V1+H+H1=40'MAX.(12.4m)
Figure 17. Venting with three 90° elbows
H 1
V 1
H
V
NOTE: There MUST be a 25% reduction in
total H when using flex vent except when
using the simple up and out installation
(see Figure 6).

19
!
B. Installing Vent Components
After determining which set of starting collars will be used
(top or rear), follow venting instructions accordingly.
Venting Out the Rear Vent
Remove the installed rear seal cap from the rear starting
collars by cutting the strap at each end. (see Figure 18).
Follow the vent configuration tables accordingly.
Remove the insulation from the REAR five inch flue, pull
the heat shield out from outside of the firebox.
WARNING: THE TOP HEAT SHIELD (INSIDE
THE FIREBOX) MUST REMAINATTACHED IF
THE VENT SYSTEM IS ATTACHED TO THE
REAR STARTING COLLARS. SEE FIGURE 18.
Venting Out the Top Vent
Remove the two screws in the top vent collar seal cap and
remove the top vent collar seal cap and two pieces of in-
sulationinside the toptwo starting collars (See Figure18).
Remove the heat shield from inside the TOPfive inch flue
fromoutside of the firebox.
The glass must be taken off again for positioning the logs
whenthe unitis finallyinstalled in placeand finishedaround
it. Re-install the glass door.Attach vent system to the top
starting collars.
!
Figure 20. Attaching the First Vent Component
to the Starting Collars
WARNING: A3/8 INCH (9.5 MM) BEAD OF
STOVECEMENTMUST BE PLACED AROUND
THE5 INCH (127 MM)FIREPLACE STARTINGCOL-
LAR BEFORE ATTACHING THE FIRST VENT COM-
PONENT. FAILURE TO SEAL THIS JOINT MAY
CAUSETHEFIREPLACETOOPERATEIMPROPERLY.
STARTING
COLLAR
STOVE
SEALANT
BEAD
1 INCH
(25.4mm)
FIRST VENT
COMPONENT
1. Attach the First Vent Component to the
Starting Collars
To attach the first vent component to the starting collars of
thefireplace:
WARNING: THE REAR VENT COLLAR SEAL
CAP MUST REMAINATTACHEDTO THE REAR
VENT COLLARS IF THE VENT SYSTEM ISAT-
TACHED TO THE TOPSTARTINGCOLLARS.
WARNING:FAILURETOREMOVE INSULATION
IN THE SET OF COLLARS YOU ARE USING
COULD CAUSE A FIRE.
WARNING:YOUMUSTLEAVETHEINSULATION
IN PLACE IN THE SET OF COLLARS YOU ARE
NOT USING.
Figure 18
CUT
HERE
Venting Out Rear Venting Out Top
!
!
!
HEAT
SHIELD
DISCARD
INSULATION
and
HEAT SHIELD
HEAT
SHIELD
INSULATION
DISCARD BOTH
PIECES and
HEAT SHIELD
SEAL
CAP
SEAL
CAP
Cut the seal cap
strap and remove white
gasketmaterial.
•Apply a 3/8 inch (9.5mm) bead of stove cement around
the5inch(127mm)fireplacestartingcollar(seeFigure20).
•Make sure that the fiberglass gasket supplied in the
manual bag seals between the first 8-5/8 inch (219mm)
vent component and the outer fireplace wrap. Using 2
self-tapping screws from the manual bag secure that
gasket to the outer wrap (see Figure 19).
•Lock the vent components into place by sliding the con-
centricpipe sectionswith four (4)equally spacedinterior
beads into the fireplace collar or previously installed com-
ponentendwithfour(4)equallyspacedindentedsections.
•When the internal beads of each 8-5/8 inch (219mm)
outerpipelineup, rotatethepipesection clockwiseabout
one-quarter(1/4)turn.Theventpipeisnowlockedtogether.
•The first 90° elbow installed in the vent system of a rear
venting fireplace MUST BE ina vertical position.
Figure 19. Fiberglass Gasket
FIRST VENT
COMPONENT
FIBERGLASS
GASKET
OUTER
WRAP

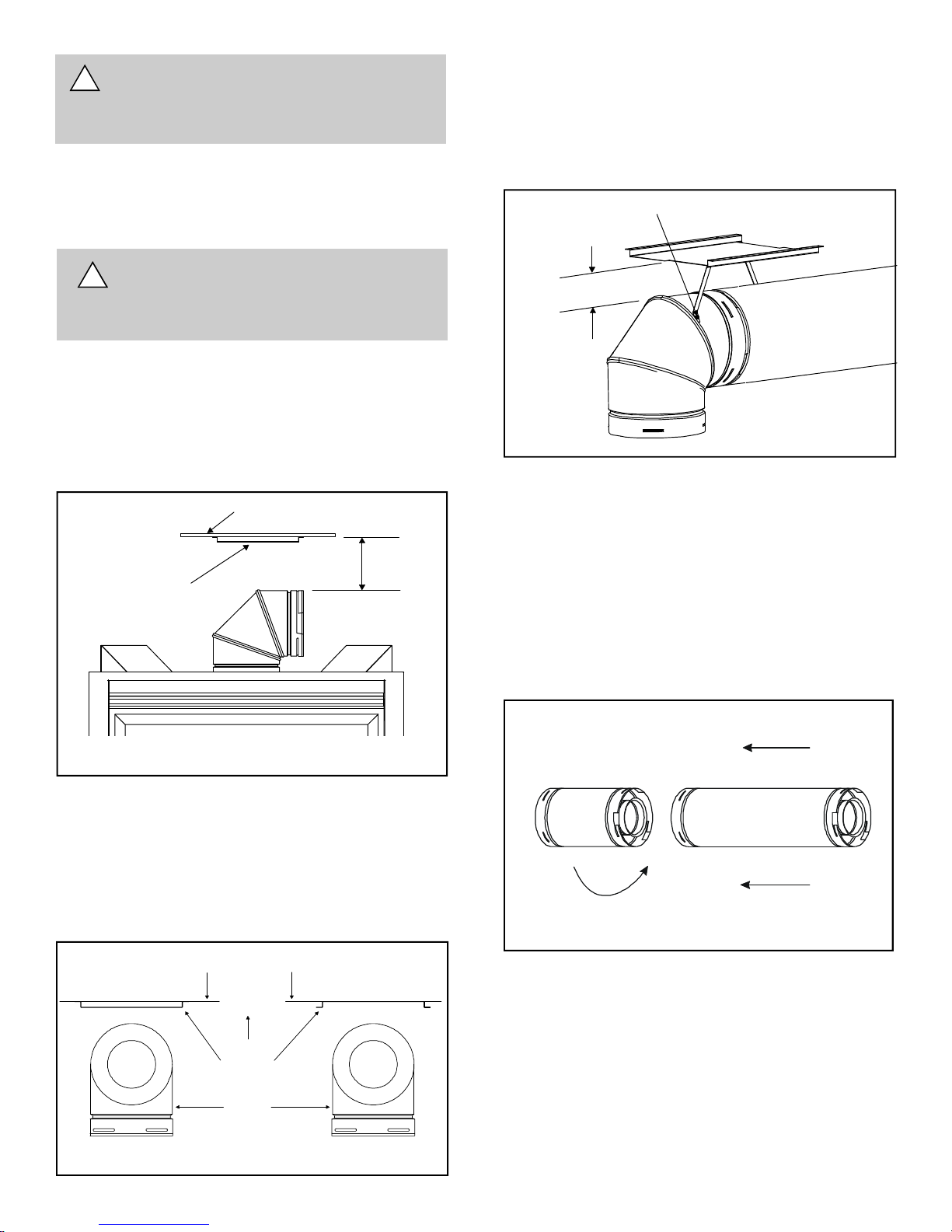

20
2. Continue Adding Vent Components
WARNING: INSTALLATION OF THIS FIRE-
PLACE REQUIRES THE USE OF HEAT
SHIELD 570-290 ABOVE THE FIRST 900ELBOWIN
THE VENTING SYSTEM.
Figure 21
To Install the Heat Shield:
1. Determine if the heat shield is required. Do so by mea-
suring the vertical distance between the top horizontal
surface of the elbow to any combustible surface above.
If the distance is more than 4 inches, the heat shield is
NOT required. If it is 4 inches or less, the heat shield IS
REQUIRED.Installperthefollowingsteps.SeeFigure21.
!
Figure 22
CORRECT INCORRECT
2. Fasten the shield in place using the four pilot holes pro-
videdin thepart. Theshield should be oriented suchthat
the 13 1/8 inch dimension (longest dimension) is run-
ning in the same direction the elbow is pointing. The
shield should be centered directly above the elbow,and
positionedso that it creates a1/2 inchairspace between
the shield and the combustible surface. See Figure 22.
3. Install Support Brackets
For Horizontal Runs - Theventsystem must besupported
everyfive(5)feetofhorizontalrunbyahorizontalpipesupport.
To install support brackets for horizontal runs:
• Place the pipe supports around the vent pipe.
• Nail the pipe supports to the framing members.
Figure 24. Adding Venting Components
HEAT
SHIELD
3” MIN.
(76mm)
COMBUSTIBLE
SURFACE
COMBUSTIBLE SURFACE
DIRECTION
UP
HEAT SHIELD
90 ELBOW
0
Figure 23
•If the combustible materials are not in place at the time
of install the elbow heat shield may be screwed to the
exhaust pipe (see Figure 23). Cut the tabs as shown
and bend down. Using the screws found in the manual
bag secure the heat shield to the pipe maintaining 3” to
4” between the pipe and shield.
3”
(76mm)
SCREW
•Continueaddingventcomponents,lockingeachsucceed-
ing component into place.
•Ensurethat eachsucceeding vent component is secure-
ly fitted and locked into the preceding component in the
vent system.
•90° elbows may be installed and rotated to any point
aroundthe precedingcomponent’s vertical axis. If anel-
bow does not end up in a locked position with the pre-
ceding component, attach with a minimum of two (2)
sheet metal screws.
!
WARNING: ENSURETHAT THE FIBERGLASS
GASKET SUPPLIED WITH THE FIREPLACE
SEALSBETWEEN THE FIRST VENT COMPONENT
AND THE OUTER FIREPLACE WRAP.
If the installation is for a termination cap attached directly
tothe fireplace, skipto the sections, Install Firestops and
Vent Termination.
