Heat Wave 07101378 User manual

FOR OUTDOOR USE ONLY
If you have questions or need assistance during assembly, please call .
To insure your satisfaction and for follow-up service, register your Heatwave Rotisserie online at
www.grillregistration.com
1-800-435-5194
CAUTION:
Read and follow all safety statements, assembly
instructions, and use and care directions before
attempting to assemble and cook.
INSTALLER/ASSEMBLER:
Leave this manual with consumer.
CONSUMER:
Keep this manual for future reference.
WARNING:
Failure to follow all manufacturer’s instructions could
result in serious personal injury and/or property
damage.
CAUTION:
Some parts may contain sharp edges – especially as
noted in the manual! Wear protective gloves if
necessary.
07101378 • 42804237 • 02-11-08
®
Heatwave Rotisserie
Product Manual
Model 07101378

2 • 07101378
Installation Safety Precautions
•Use your Heatwave Rotisserie, as purchased, only with LP
(propane) gas and the regulator/valve assembly supplied.
•Your Heatwave Rotisserie installation must conform with local
codes, or in their absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/ 4, Natural Gas
and Propane Installation Code, CSA B149.1, and Propane
Storage and Handling, CSA B149.2, Canadian Electrical Code,
CSA C22.1 or the Standard for Recreational Vehicles, ANSI
A 119.2/NFPA 1192, and CSA Z240 RV Series, Recreational
Vehicle Code, as applicable.
•The Heatwave Rotisserie is not for use in or on recreational
vehicles and/or boats.
• This Heatwave Rotisserie is safety certified for use in the
United States and/or Canada only. Do not modify for use in
any other location. Modification will result in a safety hazard.
NFPA 5
DANGER
Safety Symbols
The symbols and boxes shown below explain what each heading
means. Read and follow all of the messages found throughout
the manual.
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING
WARNING: Indicates an potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION
CAUTION: Indicates a potentially hazardous situation or
unsafe practice which, if not avoided, may result in minor
or moderate injury.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the appliance
and immediately call your fire department.
Failure to follow these instructions could result in
fire or explosion, which could cause property
damage, personal injury or death.
DANGER
1. Never operate this appliance unattended.
2. Never operate this appliance within 10ft (3m) of
any structure, combustible material or other gas
cylinder.
3. Never operate this appliance within 25 ft (7.5 m)
of any flammable liquid.
4. If a fire should occur, keep away from the
appliance and immediately call your fire
department.
Failure to follow these instructions could result in
fire, explosion or burn hazard, which could cause
property damage, personal injury or death.
CAUTION
For residential use only. Do not use for commercial
cooking.
WARNING

TABLE OF CONTENTS
ForYourSafety......................................2
GrillServiceCenter...................................2
Installation Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SafetySymbols......................................2
UseandCare ....................................4-10

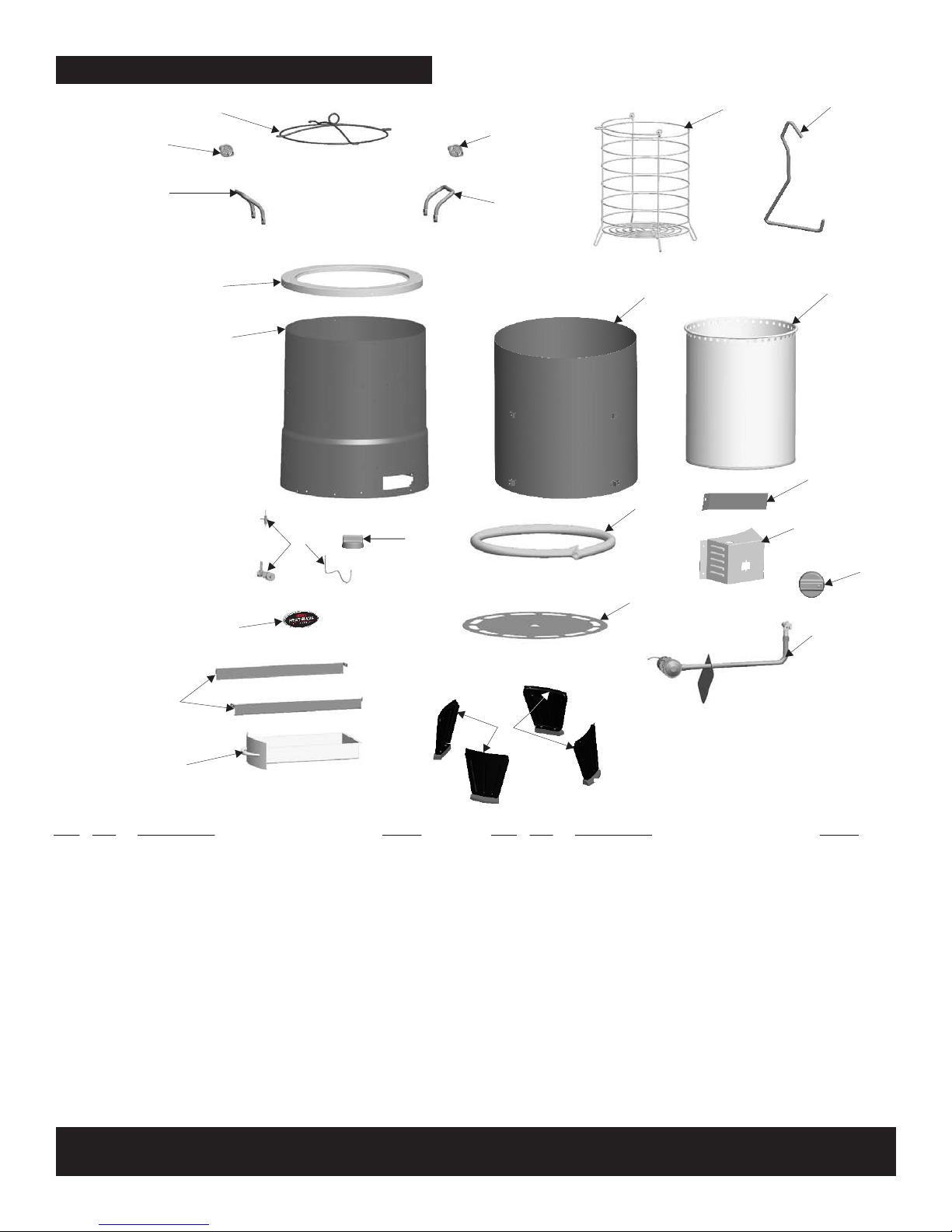

PartsList/PartsDiagram.............................11

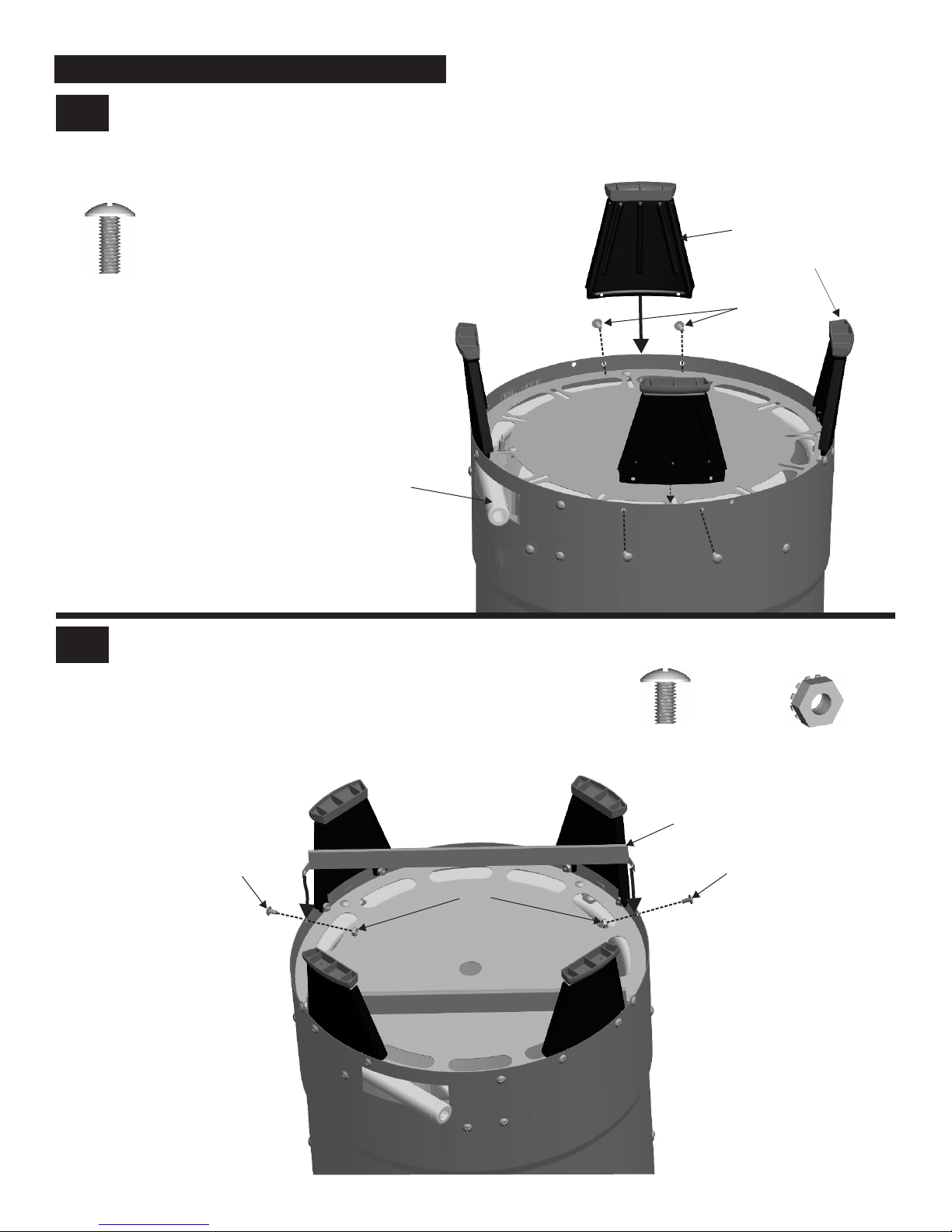

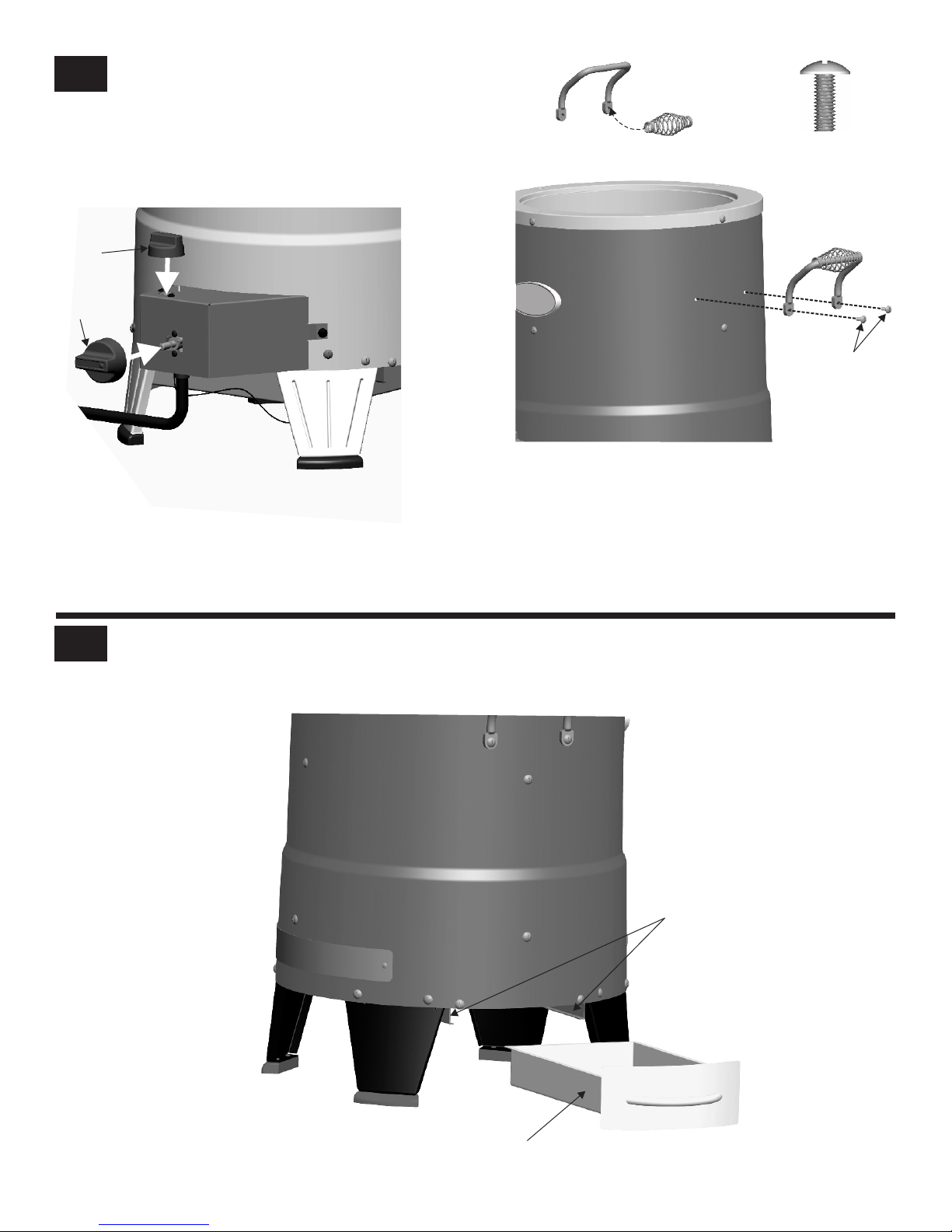

Assembly.......................................12-14
Troubleshooting..................................15-16
LimitedWarranty....................................17
RegistrationCard...................................19
ProductRecordInformation............................3
07101378 • 3
WARNING
Do not attempt to repair or alter the
hose/valve/regulator for any “assumed” defect. Any
modification to this assembly will void your warranty
and create the risk of a gas leak and fire. Use only
authorized replacement parts supplied by
manufacturer.
To insure your satisfaction
and for follow-up service,
register your
online at:
Heatwave Rotisserie
www.grillregistration.com
Call Grill Service Center for Help and Parts
• If you need assistance with your product or warranty parts call
1-800-435-5194. Hours of Service Center Operation are
8:00 A.M. To 6:00 P.M. EST Monday - Friday.
• To order non-warranty replacement parts or accessories
please visit us on the web at www.charbroil.com or call
1-800-435-5194 and one of our friendly and knowledgeable
agents will be glad to assist you.
Model Number
Serial Number
Date Purchased
IMPORTANT: Fill out the product record information below.
See rating label on grill for serial number.

• NEVER store a spare LP cylinder under or near the
appliance or in an enclosed area.
• Never fill a cylinder beyond 80% full.
• An over filled or improperly stored cylinder is a hazard
due to possible gas release from the safety relief valve.
This could cause an intense fire with risk of property
damage, serious injury or death.
• If you see, smell or hear gas escaping, immediately get
away from the LP cylinder/appliance and call your fire
department.
• Keep LP tank at a minimum distance of 24” (inches) away
from appliance at all times.
DANGER
USE AND CARE • Adisconnected LP cylinder in
storage or being transported
must have a safety cap installed (as shown).
Do not store an LP cylinder in enclosed spaces
such as a carport, garage, porch, covered
patio or other building. Never leave an LP cylinder
inside a vehicle which may become overheated
by the sun.
• Do not store an LP cylinder in an area where children play.
LP Cylinder
• The LP cylinder used with your appliance must meet the
following requirements:
•Use LP cylinders only with these required measurements: 12"
(30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.)
capacity maximum.
• LP cylinders must be constructed and marked in accordance
with specifications for LP cylinders of the U.S. Department of
Transportation (DOT) or the National Standard of Canada,
CAN/CSA-339, Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods; and commission, as
applicable. See LP cylinder collar for marking.
•LP cylinder valve must have:
• Type 1 outlet compatible with
regulator or the Heatwave Rotisserie.
• Safety relief valve.
• ULlisted Overfill Protection
Device (OPD). This OPD safety
feature is identified by a unique triangular hand wheel. Use
only LP cylinders equipped with this type of valve.
• LP cylinder must be arranged for vapor withdrawal and include
collar to protect LP cylinder valve.Always keep LP cylinders in
upright position during use, transit or storage.
OPD Hand Wheel
LP (Liquefied Petroleum Gas)
•LP gas is nontoxic, odorless and colorless when produced. For
Your Safety, LP gas has been given an odor (similar to rotten
cabbage) so that it can be smelled.
•LP gas is highly flammable and may ignite unexpectedly when
mixed with air.
LP Cylinder Filling
•Use only licensed and experienced dealers.
•LP dealer must purge new cylinder before filling.
•Dealer should NEVER fill LP cylinder more than 80% of LP
cylinder volume. Volume of propane in cylinder will vary by
temperature.
•Afrosty regulator indicates gas overfill. Immediately close LP
cylinder valve and call local LP gas dealer for assistance.
• Do not release liquid propane (LP) gas into the atmosphere.
This is a hazardous practice.
• To remove gas from LP cylinder, contact an LP dealer or call a
local fire department for assistance. Check the telephone
directory under “Gas Companies” for nearest certified LP
dealers.
4 • 07101378
LP Cylinder Valve
Retainer Strap
Safety
Cap
LP Cylinder Removal, Transport and Storage
• Turn OFF control knob and LP cylinder valve.Turn coupling nut
counterclockwise by hand only - do not use tools to
disconnect. Install safety cap onto LP cylinder valve.Always
use cap and strap supplied with valve. Failure to use safety
cap as directed may result in serious personal injury
and/or property damage.
24”

WARNING
If “growing” bubbles appear do not use or move the LP
cylinder. Contact an LP gas supplier or your fire
department!

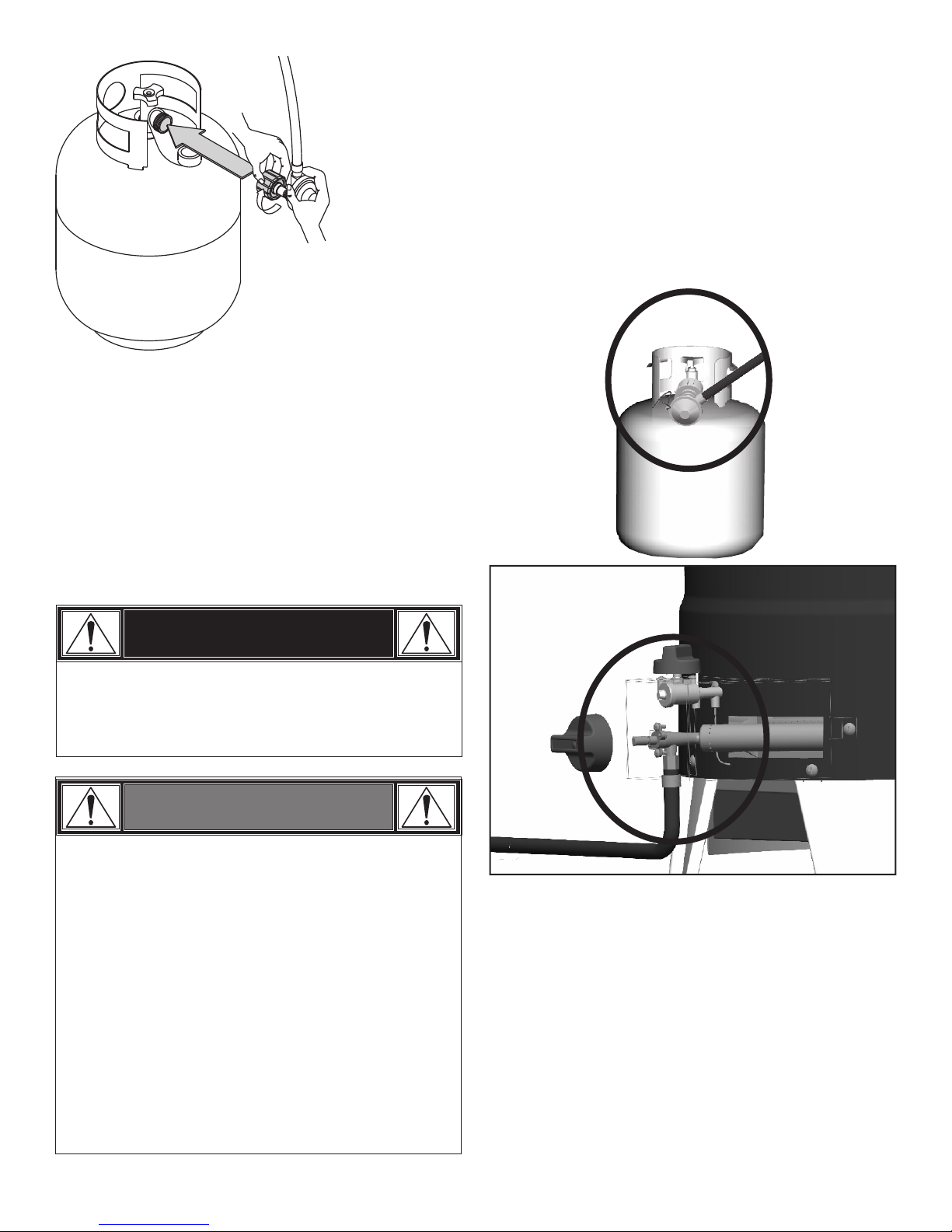

Connecting Regulator to the LP Cylinder
1. LP cylinder must be properly secured onto . (Refer to
assembly section.)
2. Turn all control knobs to the OFF position.
3. Turn LP cylinder OFF by turning hand-wheel clockwise to a
full stop.
4. Remove the protective cap from LP cylinder valve.Always use
cap and strap supplied with valve.
appliance
Safety Relief Valve
Nipple has to be centered
into the LP cylinder valve.
OPD Hand Wheel
Type 1 outlet with
thread on outside
c k w
o
l
i
s
C
e
f
f
O
Do not use a POL transport plug
(plastic part with external threads)!
It will defeat the safety feature of
the valve.
Strap and Cap
LP Cylinder Exchange
• Many retailers that sell offer you the
option of replacing your empty LP cylinder through an
exchange service. Use only those reputable exchange
companies that inspect, precision fill, test and certify their
cylinders. Exchange your cylinder only for an OPD safety
feature-equipped cylinder as described in the "LP
Cylinder" section of this manual.
•Always keep new and exchanged LP cylinders in upright
position during use, transit or storage.
•Leak test new and exchanged LP cylinders BEFORE
connecting to grill.
LP Cylinder Leak Test
For your safety
•Leak test must be repeated each time LP cylinder is exchanged
or refilled.
•Do not smoke during leak test.
•Do not use an open flame to check for gas leaks.
•Appliance must be leak tested outdoors in a well-ventilated
area, away from ignition sources such as gas fired or electrical
appliances. During leak test, keep appliance away from open
flames or sparks.
• Use a clean paintbrush and a 50/50 mild soap and water
solution.
•Do not use household cleaning agents. Damage to gas train
components can result.
Heatwave Rotisserie’s
Brush soapy solution onto areas indicated by arrows
in figure below.
5. Hold regulator and insert nipple into LP
cylinder valve. Hand-tighten the
coupling nut, holding regulator in a
straight line with LP cylinder valve so
as not to cross-thread the connection.
07101378 • 5
