Remote Controlled Products
This manual includes operating instructions for a variety of remote controlled products. Allproductswork onthesame principleanduse thesame
code setting information. Please read all instructional information and note any specific information pertaining to your particular product.
© 2007 HeathCo LLC 598-1135-08
ENGLISH
• Transmitters
– Remote Control
– Indoor Wireless Motion Sensor
– Outdoor Wireless Motion Sensor
– Add-A-Switch
– Kid’s Remote Control
– 3-Way Wall Switch
• Receivers
– Wall Switch Receiver
– Receptacle Receiver
This manual applies to the following products: FEATURES
• Products are UL/cUL and/or FCC/IC tested and approved.
• Operational range of up to 100 feet.
Heath®/Zenith wireless lighting controls are designed to
work together. Simply determine which transmitter(s) you
would like to have control which receiver(s) and set the code
setting to match.
CODE SETTINGS
Note: Most single system installations will not require any
change to the code setting. Transmitter(s) and receiver(s)
must have the same code and group setting to work together.
Switches 1 through 3 set the code. Switch 4 sets the Group (A
or B). See page 2 for switch locations.
DIM
ON
OFF
ON
OFF
DIM
Receiver(s)
Code
Transmitter(s)/
Receiver(s) Code
Group “A”
Group “B”
Remote Motion
Sensor Code
Group “A”

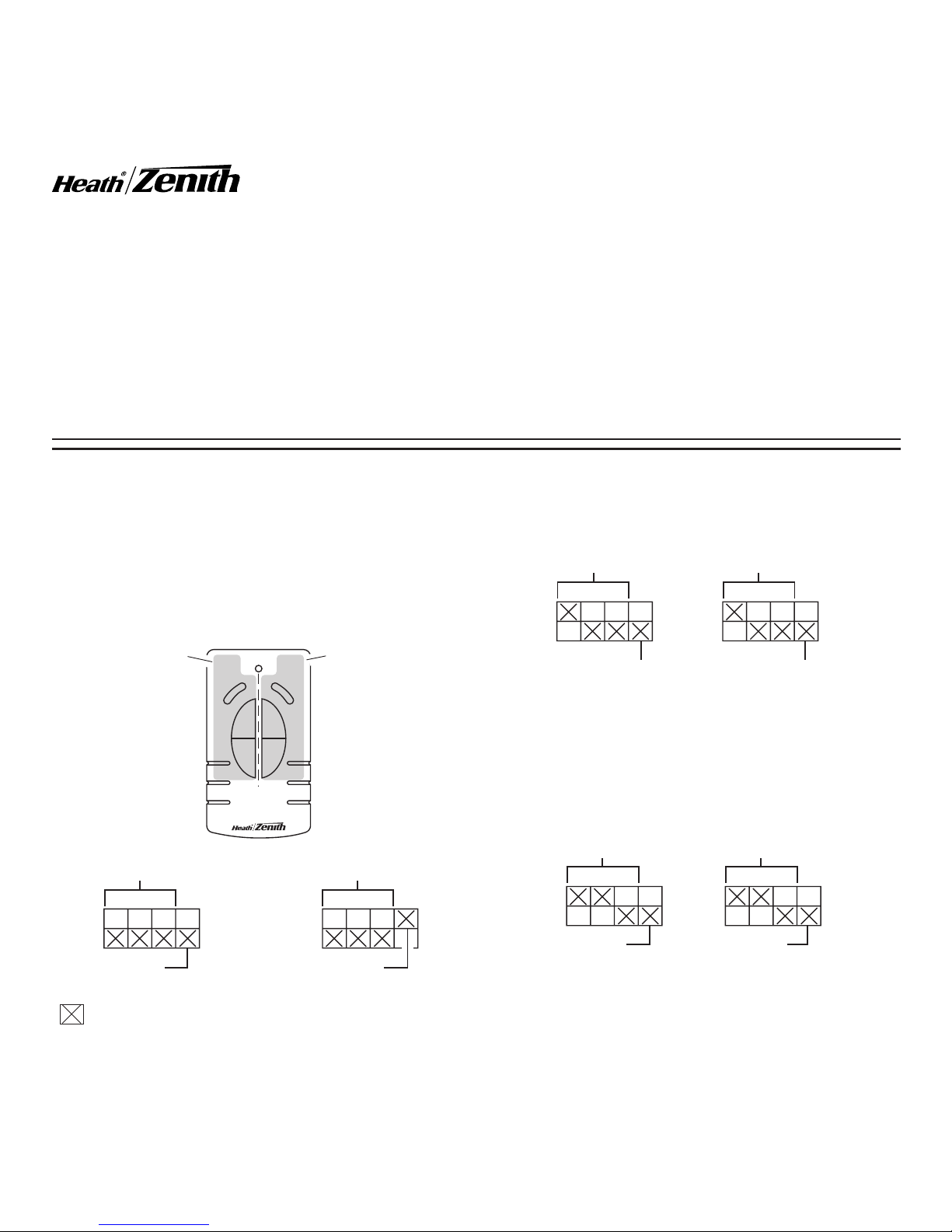

Example 1 - Code Settings, System 1
(Factory Setting)
Left Side Controls:
Controls One Set of
Group “A” or Group
“B” Receiver(s)
Right Side Controls:
Controls One Set of
Group “A” or Group
“B” Receiver(s)
Transmitter(s)/
Receiver(s) Code
Group “A”
Example 3 - Code Settings with Single Transmitter
When using a single group transmitter (i.e. DoorTransmitter, Add-A-
Switch, Remote Motion Sensor) the code and group settings must
match receiver(s) for the system to function properly.
Note: This setting will work independently of examples 1 and 2
because the code setting is different.
Note:Thecodecanalsobechangedtoreduceinterferenceproblems
fromotherwirelessproducts(i.e.wirelessphones,garagedooropen-
ers, etc.). See Troubleshooting Guide for more information.
( – Indicates Position of Switch)
Example 2 - Code Settings, System 2
Note:Whenoperatingmorethan one systemindependently of each
other, set each system to a different code.There are 8 codes avail-
able by changing the settings of switches 1 through 3.
Receiver(s)
Code
Group “A”
Transmitter
Code
Group Switch
(Group “A” Selection Shown)
ON
1 2 3 4

2598-1135-08

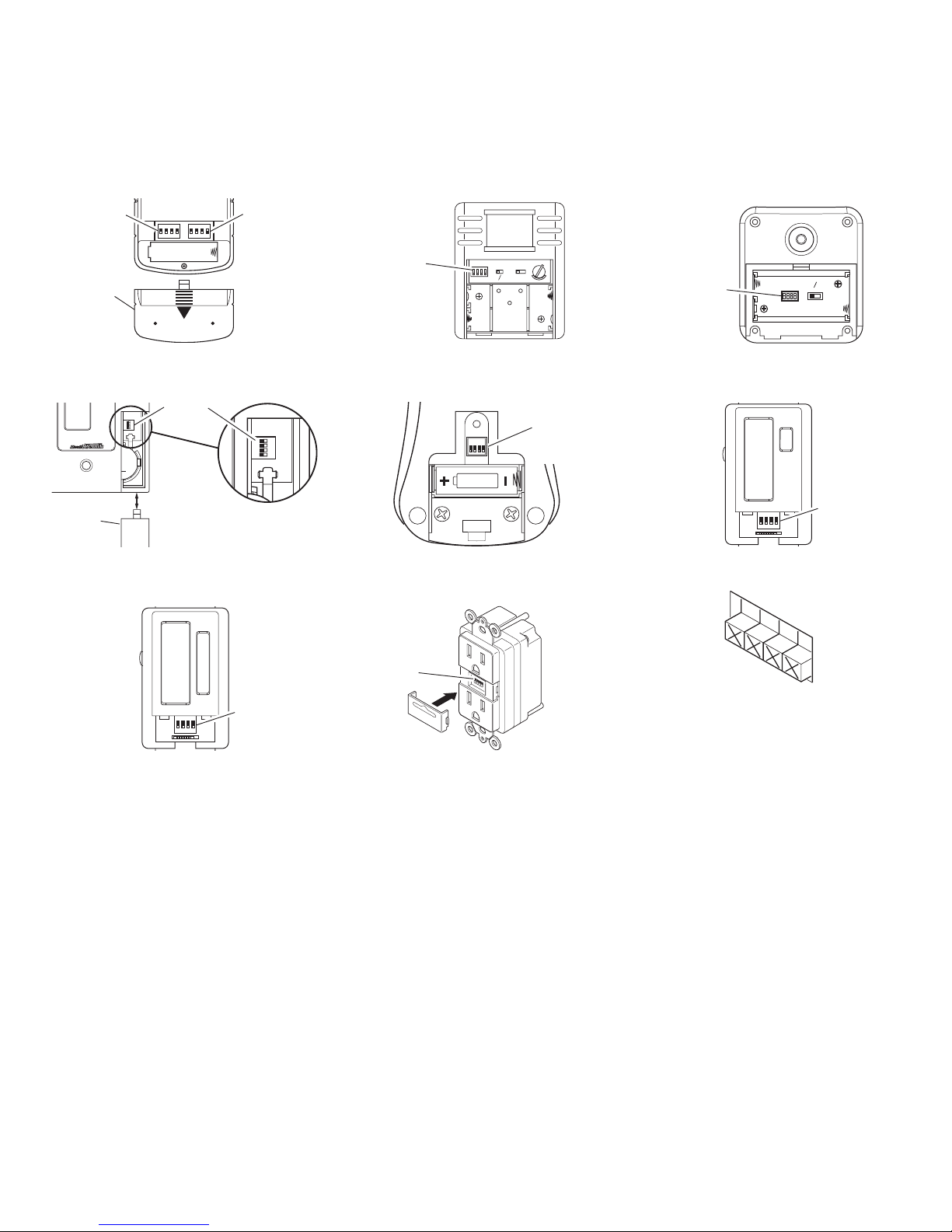

CODE SWITCH LOCATIONS
1 2 3 4
ON
2032
3
V
L
i
t
h
i
u
m
B
a
t
t
e
r
y
DIM
Add-A-Switch
Access
Door
1 2 3 4
ON
2032
3
V
L
i
t
h
i
u
m
B
a
t
t
e
r
y
DIM
Outdoor Wireless Motion Sensor
Code
Switches
DETECT
CODES
1234
DAY
NIGHT
NIGHT
ONLY
Code
Switches
ON
12V
Kid’s Remote Control
Code
Switches
CONTROLLED
ON
1 2 3 4
ON
DIM
3-Way Wall Switch Transmitter
Receptacle Receiver
Code
Switches
Code
Switches
ON
1 2 3 4
Close-Up of Typical Code Switch
(Factory Default Setting is Off)
Note: The “X” has been placed on the
switches to help clarify the code settings
on the previous page.
ON
Wall Switch Receiver
Code
Switches
Remote Control
ON DIP
1 2 3 4
ON DIP
1 2 3 4
Right Side
Code
Switches
Battery
Cover
Left Side
Code
Switches
Indoor Wireless Motion Sensor
Code
Switches
CODE
1 2 3 4
ON
5 1 TES T
ON-TIME
(MINUTES)
MIN MAX
DETECT RANGE
DAY
NIGHT
NIGHT
ONLY

3598-1135-08
ENGLISH
Note:One remotecontrol is abletoindependently operate
tworeceiverunits.Ifmorethantworeceiverunits, operating
independently, are desired, additional remote controls will
need to be purchased.

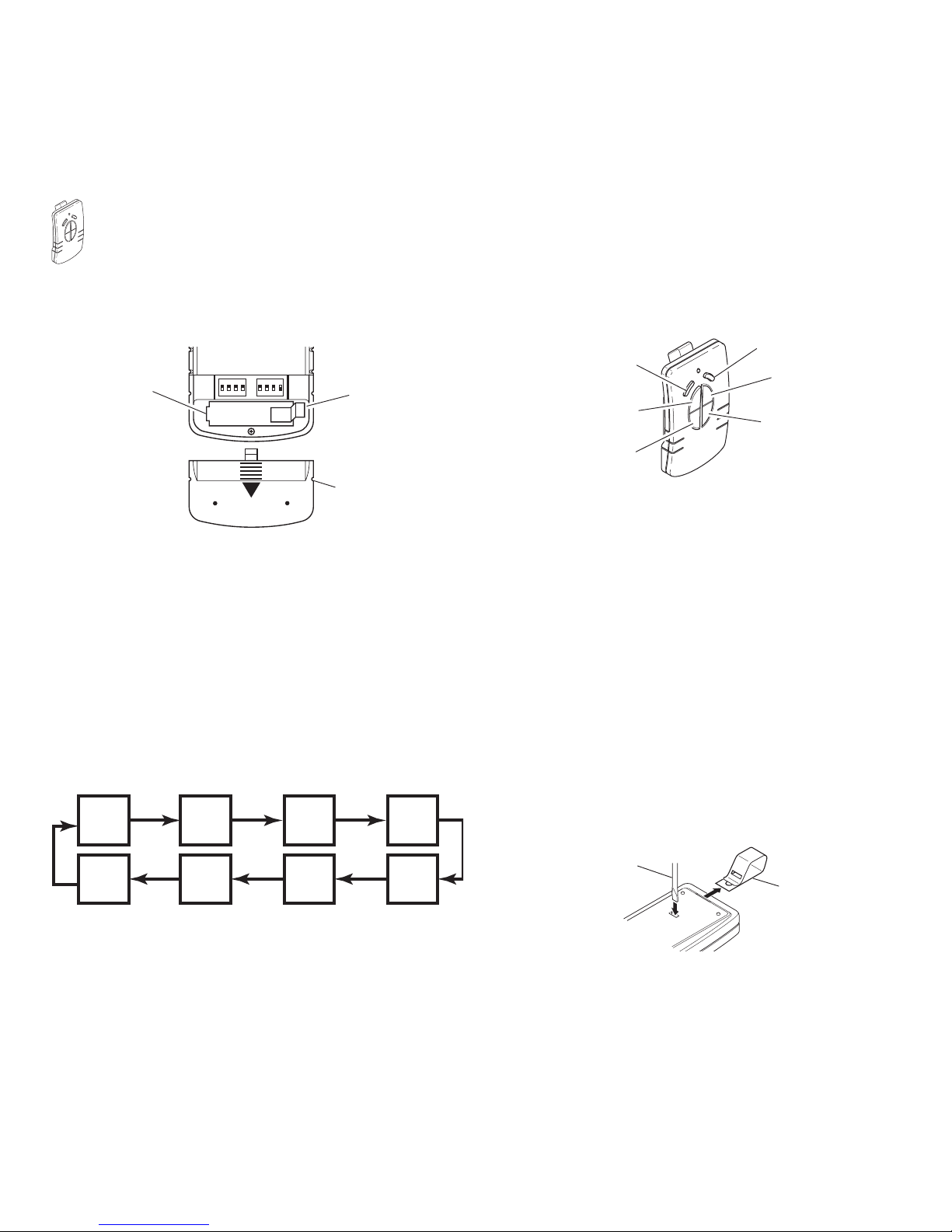

1. RemoveTabfromBatteryChamber.Remove cover
from back of transmitter.Gently pull tab out of battery chamber.
Slide cover onto transmitter.
REMOTE CONTROL
Rear View of Remote Control
4 5 43
1 2 32
2. Remote Control Functions. The three buttons on the left side
of the remote will operate one or more receiver units with
matching code settings.The three buttons on the right side of
the remote will operate a second set of one or more receiver
units.
• ON: Turns on any receiver unit set to the same code as this
remote control.
• OFF: Turns off any receiver unit set to the same code as this
remote control.
• DIM: Activates the DIM feature for any receiver unit set to the
same code as this remote control.Note: Pressing the DIM button
steps through five brightness levels.
ON DIP
1 2 3 4
ON DIP
1 2 3 4
Battery Chamber
(Type A23)
Battery
Cover
Tab
Note: To independently operate a second receiver unit using a
single remote control, make sure the second set of code switches
(Right Side) and the code switches on each receiver match (see
Code Settings section).
• Left Side - Set left side code switches.
• Right Side - Set right side code switches.
IMPORTANT:Wait 1 to 2 seconds after you press a transmitter
button before you press it again to allow the transmission to be
completed.
Note: If light does not turn on or intermittently turns on and off when
transmitter buttons are pushed, see Troubleshooting Guide.
Optional Car Visor Clip (Included)
The remote control includes an optional car visor clip for added
convenience that may be installed.
1. To attach car visor clip to remote control (if desired) push it
into slot on rear of remote unit until it snaps into place.
2. To remove car visor clip, insert a small, flat-head screwdriver
into slot on back of remote. Gently push down on portion of
visor clip inside slot with screwdriver while pulling clip out of
remote from top.
Removing Visor Clip - Rear View
Flat-Head
Screwdriver Optional
Visor Clip
Function Controls
Left Side DIM
Left Side ON
Left Side OFF
Right Side DIM
Right Side ON
Right Side OFF

4598-1135-08
DETECT
CODES
1234
DAY
NIGHT
NIGHT
ONLY
Detect
Control
Battery Compartment
INDOOR AND OUTDOOR
WIRELESS MOTION SENSOR
Features:
• No wiring required.
• Upto70feetsensingrange, 180°Coverage
(Outdoor).
• Upto30feetsensingrange, 150°Coverage
(Indoor).
• Adjustable sensitivity.
• Day/Night or Night only operation.
• Test mode.
• Uses 2 AA batteries.
• Wall or eave mount (Outdoor).
• Can be mounted directly to wall or with
mounting bracket (included) (Indoor).
• Controls receivers up to 100 feet away.
ON
Day/ Night
Night Only5 1Test
MaxMin
Outdoor Wireless
Motion Sensor
Indoor Wireless
Motion Sensor
CODE
1 2 3 4
ON
5 1 TEST
ON-TIME
(MINUTES)
MIN MAX
DETECT RANGE
DAY
NIGHT
NIGHT
ONLY
Outdoor Motion Sensor
(Rear View)
Indoor Motion Sensor
(Front View)

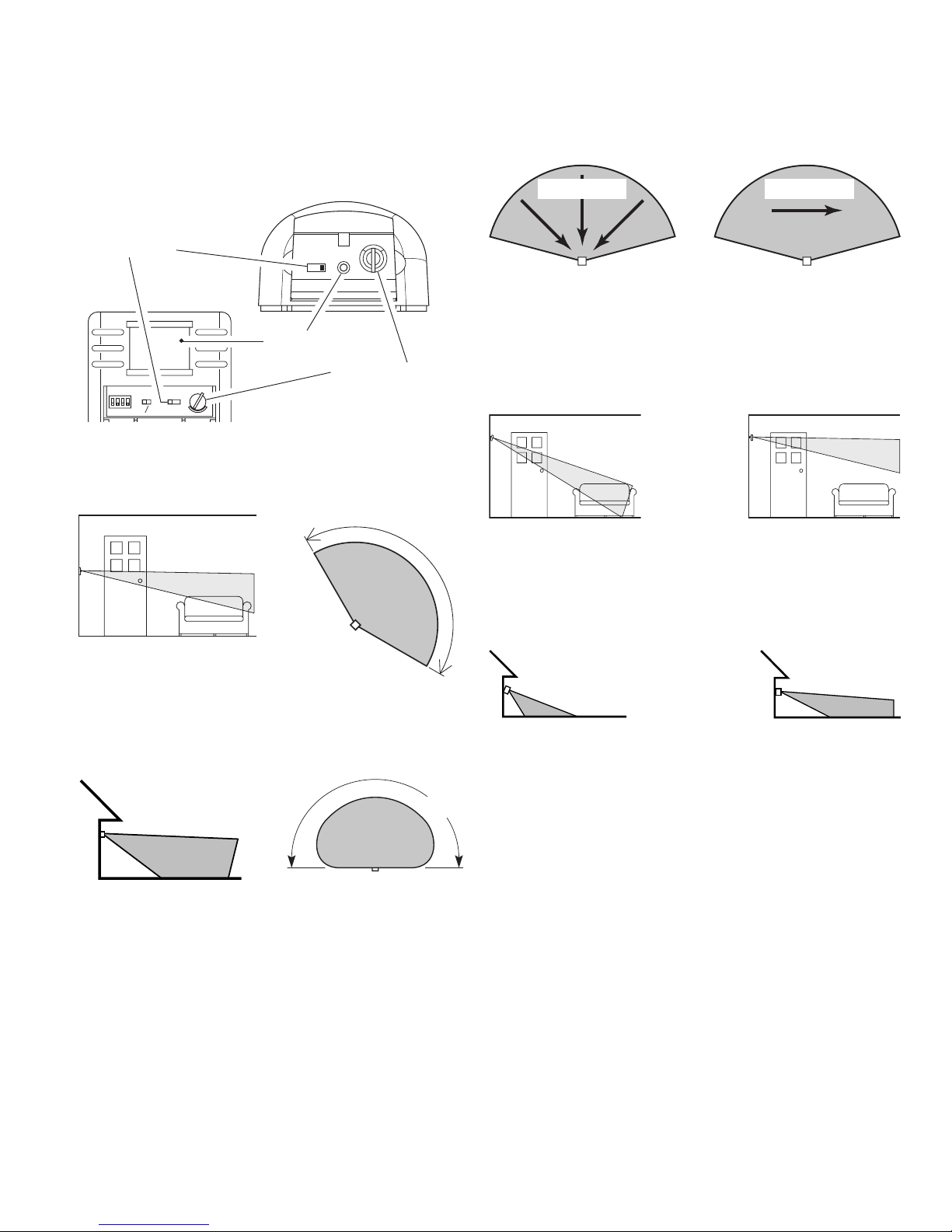

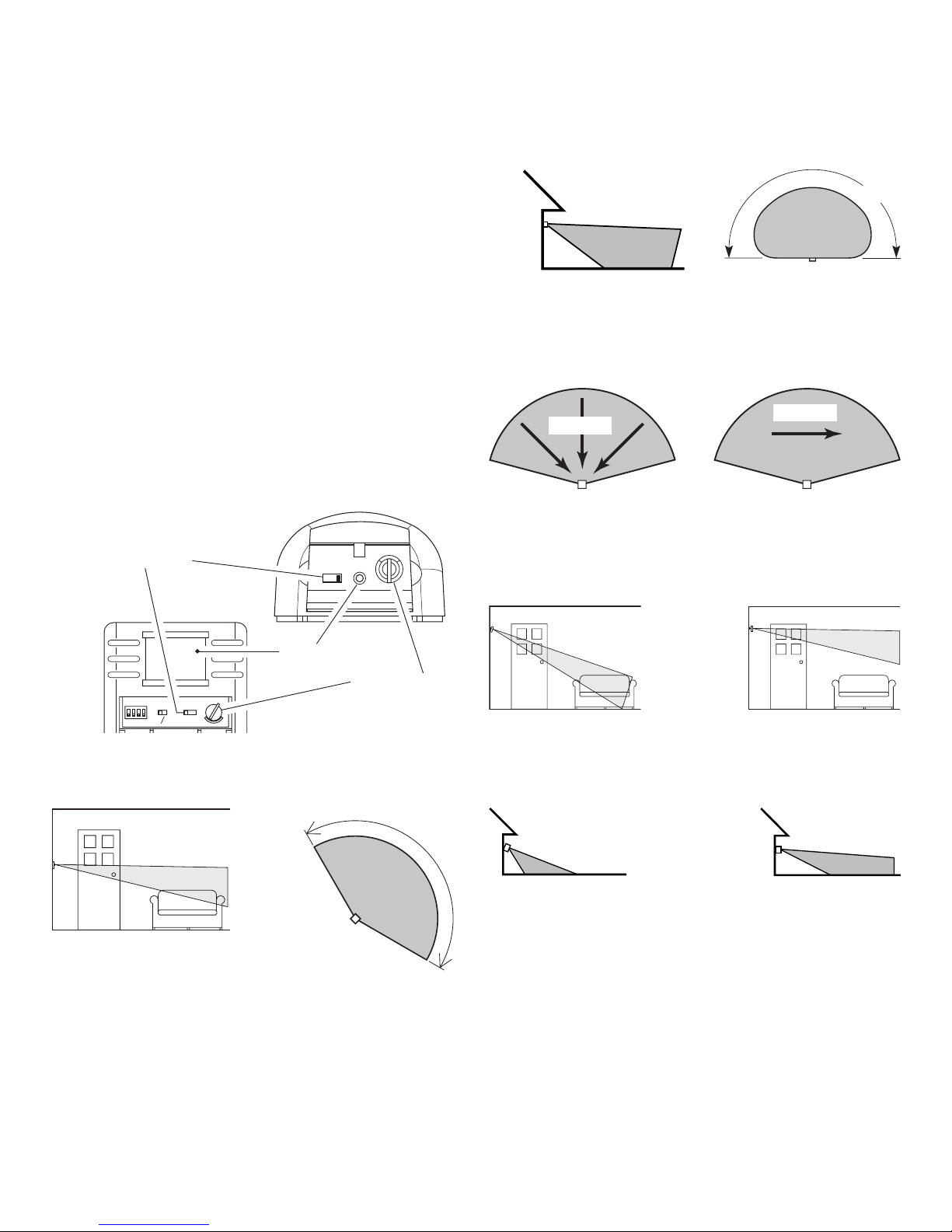

Select Night or 24 Hour Mode
These sensors are able to detect motion day and night or night
only. To set the detection mode, remove battery compartment
cover by sliding the cover down. Remove batteries if necessary.
Slide the DETECT switch to either the DAY/NIGHT or NIGHT
ONLY position. Replace battery compartment cover by reversing
the above instructions.
Installing Batteries
• Beforemountingoutdoormotionsensor, removebatterycompart-
ment cover by sliding the cover down.
• For indoor motion sensor, install batteries after sensor is in-
stalled.
Install 2 AA batteries according to polarity markings inside the
battery compartment. Replace battery compartment cover by
reversing the above instructions.
Swivel
Ball
Mount
Ball Mounting
Bracket
Ball Mounting
Bracket Screw
Tab
Rear of Sensor
Tab Slots

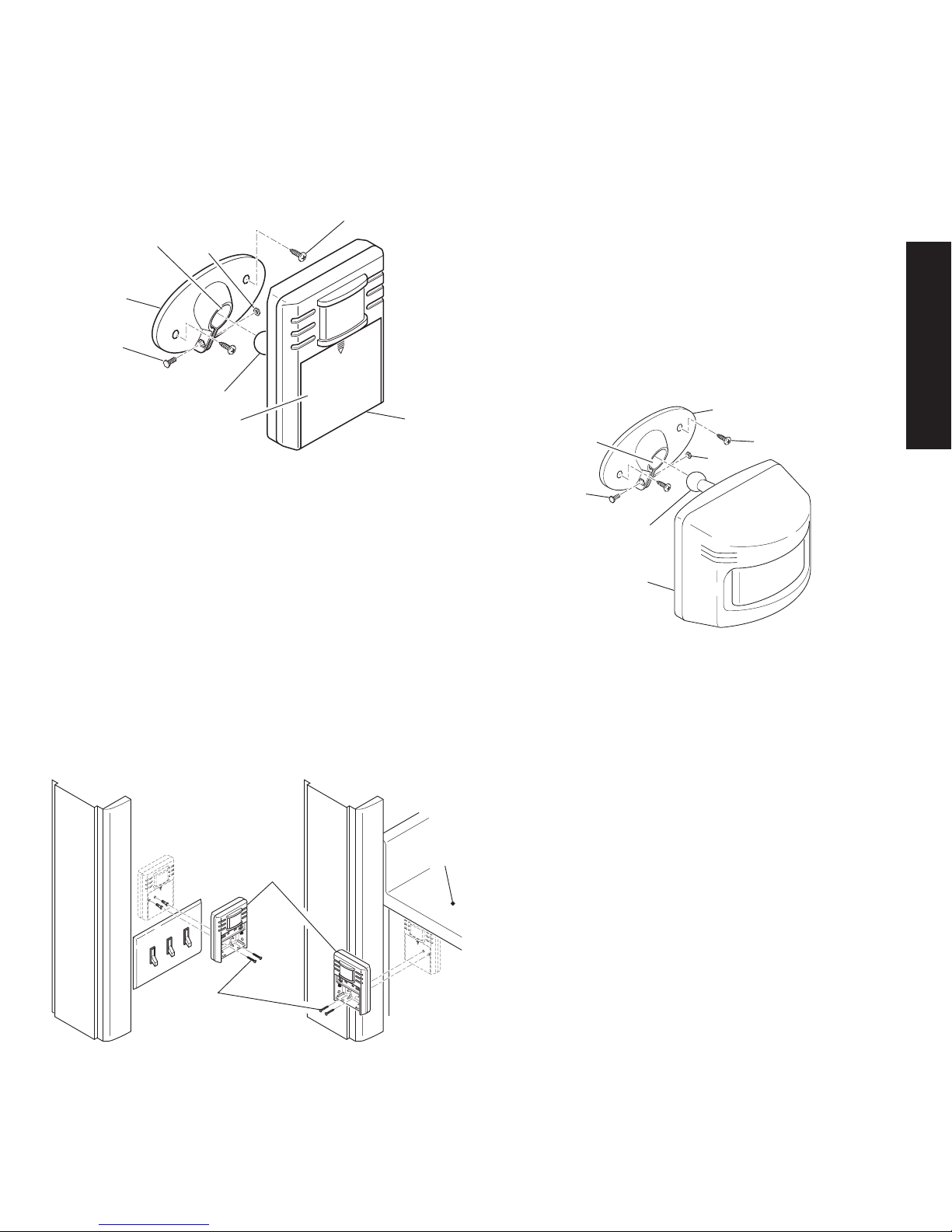

Attaching Ball Mounting Bracket to Indoor Motion Sensor
(Vertical Installation Shown)
Installing Indoor Motion Sensor Using Optional
Mounting Bracket
Note: Mount the indoor motion sensor so that it can be angled up or
down to give you the desired coverage above the floor level.
1. Attach ball mounting bracket to rear of motion sensor.The ball
mounting bracket is designed to mount to the rear of the sensor
in three possible directions depending upon the installation
requirements. To attach the ball mounting bracket, follow the
steps shown below:
• Determine the best mounting position of the sensor for the
coverage desired.
• Determine the best location of the wall mounting bracket.
• Insert the tabs on the ball mounting bracket into the tab slots
on the rear of the sensor that best align the sensor with the
wall mounting bracket.
• Remove the batteries.
• Usingaphilips-headscrewdriver,insertmountingscrewinto
the hole in the battery compartment that aligns with the hole
on the rear of the ball mounting bracket. Tighten securely.
2. Place sensor mounting bracket against surface to be mounted
on and mark hole locations with pencil or center punch.
3. Using a 2.5 mm (0.1") drill bit, drill two pilot holes for mounting
screws. If not mounting directly to wood or wood stud, drill 5
mm (0.2") pilot holes and use the included wall anchors.
4. Attachindoormotionsensormountingbrackettoasturdyobject
(i.e. wall, ceiling, post, etc.) using two screws provided. Make
sure unit has an unobstructed view. Note: Attach mounting
bracket vertically if connecting to a curved surface such as a
post.
5. Install motion sensor to mounting bracket.Using a Philips-head
screwdriver, loosen the clamp screw on the mounting bracket.
Insert swivel ball mount on sensor into mounting bracket socket

5598-1135-08
ENGLISH
(Note:You should hear a snap).Aim sensor toward area where
detection is desired. Tighten clamp screw.
ON
Day / Night
Night Only 5 1 TestMax Min
Attaching Indoor Motion Sensor to Mounting Bracket
Mounting
Bracket
Clamp
Screw
Nut
Sensor
Mounting Screw
Swivel Ball Mount
Battery Compartment
Cover
Installing Indoor Motion Sensor Directly To Wall
Note: Mount the indoor motion sensor so that it is approximately
between waist and shoulder level above the floor (Example: Level
with light switch, under counter top, etc.).
1. Determine the best mounting position of the sensor for the
coverage desired. Remove the batteries.
2. Place indoor motion sensor against surface to be mounted on.
Using two of the holes on the rear of the battery compartment,
mark hole locations with pencil or center punch.
3. Using a 2.5 mm (0.1") drill bit, drill two pilot holes for mounting
screws. If not mounting directly to wood or wood stud, drill 5
mm (0.2") pilot holes and use the included wall anchors.
4. Attachindoormotionsensor to a sturdyobject(i.e.wall,cabinet,
post, etc.) using two screws provided. Make sure unit has an
unobstructed view.
IMPORTANT: Hand tighten only - do not overtighten.
ON
Day/ Night
Night Only5 1Test
MaxMin
ON
Day/Night
NightOnly 5 1Test
MaxMin
ON
Day/Night
NightOnly5 1Test
MaxMin
ON
Day/Night
NightOnly5 1Test
MaxMin
Attaching Indoor Motion Sensor Directly to Wall
Mounting
Screw
Motion
Sensor
Counter
Top
Mounting
Bracket Socket
Continued
Installing Motion Sensor
Mounting Bracket
Clamp
Screw
Nut
Sensor
Mounting Screw
Swivel Ball Mount
Mounting
Bracket Socket
Installing Outdoor Motion Sensor
1. Installsensormountingbracketwheremotiondetectionisdesired.
Attach sensor mounting bracket to a sturdy object (i.e. tree, post,
house, etc.) using two screws provided. Make sure unit has an
unobstructed view. Note: Attach mounting bracket vertically if
connecting to a curved surface such as a post.
2. Install motion sensor to mounting bracket.Using a Philips-head
screwdriver, loosen the clamp screw on the mounting bracket.
Insert swivel ball mount on sensor into mounting bracket socket
(Note:You should hear a snap).Aim sensor toward area where
detection is desired. Tighten clamp screw.
IMPORTANT: The sensor must be mounted with the bottom cover
facing down in order to maintain water tightness.
Check Operation and Adjustment
Note: When first turned on or when switching modes wait 30
seconds.
Locate the RANGE control and ON-TIME control on the motion
sensor:
• Indoor Motion Sensor - The RANGE control and ON-TIME
control are located inside the battery compartment on the front
of the sensor. To set the RANGE or ON-TIME control, remove
battery compartment cover by sliding the cover down.
• Outdoor Motion Sensor - The RANGE control and ON-TIME
control are located on the bottom of the sensor. Using your
fingernails or a small, flat-head screwdriver, gently pry the cover
until it opens.
1. Check Operation. Set the ON-TIME control to TEST mode. Walk in
frontofsensorunit.TheLEDindicatorlightshouldflashwhenmotion
is detected (see illustration, page 6, for location of LED light).
2.
Adjust Sensor. Turn the RANGE control to the mid position and
ON-TIME control to theTEST position.Walk through coverage area
notingwhereyouarewhentheLEDbeginstoflash.Loosentheclamp
screw and move the sensor to change the coverage area. Tighten
clamp screw when finished. Do not overtighten clamp screw.

6598-1135-08
Maximum
Coverage Angle
Maximum Range
Indoor Motion Sensor Coverage Area
Motion Sensor Controls
30 ft.
(9.1 m)
150°
5 1 TE ST
ON-TIME
(MINUTES)
RANGE
MAX MIN
CODE
1 2 3 4
ON
5 1 TEST
ON-TIME
(MINUTES)
MIN MAX
DETECT RANGE
DAY
NIGHT
NIGHT
ONLY
Range Control
LED
Indicator
ON-TIME Control
Outdoor Motion Sensor
Indoor Motion Sensor
Indoor and Outdoor Motion Sensor Sensitivity
The detector is most sensitive to motion across its field of view.
Motion
Most SensitiveLeast Sensitive
Motion
Sensor Sensor
Aim Sensor Down
for Short Coverage
Aim Sensor Higher
for Long Coverage
Adjusting Indoor Motion Sensor Coverage
Maximum
Coverage Angle
Maximum Range
Outdoor Motion Sensor Coverage Area
70 ft.
(21 m)
8 ft.
(2.4 m)
180°
Aim Sensor Down
for Short Coverage
Aim Sensor Higher
for Long Coverage
Adjusting Outdoor Motion Sensor Coverage
3. AdjustRANGEControl.To increasesensitivity, turnthe RANGE
control toward MAX. To decrease sensitivity, turn the RANGE
control toward MIN. Note: If the RANGE is set too high, false
triggering may result in some environments.
Note: When using test mode to check operation in the day time:
A. Set the DETECT control switch to DAY/NIGHT and
B. Set the ON-TIME control to TEST.
4. Set ON-TIME Control. Determine the amount of time you want
the connected device to stay on after motion is detected (1 or
5 minutes). Slide the ON-TIME control to the corresponding
setting.
IMPORTANT: Avoid Aiming Control At:
• Objects that change temperature rapidly, such as heating vents,
fans, and air conditioners. These air sources could cause false
triggering.
• Areas where pets or traffic may trigger the control.
• Nearby large, light colored objects reflecting light may trigger the
shut-off feature. Do not point other lights at the sensor.

7598-1135-08
ENGLISH
5. Continue to press the DIM button until the desired dim level is
reached. Note: Receiver remembers last DIM setting used.To
recall last DIM setting, push and release the DIM button.
Note: The DIM setting defaults to 50% in the event of a power
failure.
IMPORTANT:Wait 1 to 2 seconds after you press a transmitter
button before you press it again to allow the transmission to be
completed.
Note: If light does not turn on or intermittently turns on and off when
transmitter buttons are pushed, see Troubleshooting Guide.
Battery Replacement
The wall switch transmitter requires a type CR2032, 3-volt lithium
battery to operate. The transmitter is shipped with the battery
installed. With typical use, the battery will last approximately 5
years. Remove battery when transmitter will not be used for an
extended period of time.
1. Place thumb on access door
and slide down to open.
2. Carefully bend locking tab
outward. Battery will pop up.
3. Remove battery from socket.
4. Install replacement battery in
socket plus (+) side up (see
illustration). Press down on
batteryuntillockingtabsnaps
into place.
5. Reinstall access door by
sliding it upward until it locks
in place.
ADD-A-SWITCH
Installation
1. Remove Tab from Battery Chamber. Remove cover
from front of Add-A-Switch transmitter.Gently pull tab
outofbatterychamber.Slidecoveronto Add-A-Switch
transmitter.
DIM
Add-A-Switch
Add-A-Switch
ON/OFF
Button
DIM
Button
Access Door
DIM
Removing Battery Tab
1 2 3 4
ON
2032
3
V
L
i
t
h
i
u
m
B
a
t
t
e
r
y
DIM
Battery Chamber
(Type CR2032) Access Door
Tab
2. Selectmountinglocationforadd-a-switchtransmitter.Note:Trans-
mitter should be located within 100 feet (30 m) of receiver.
Note:Transmitter should be mounted approximately 4 feet from
the floor and in the vertical position.
3. Before mounting, hold transmitter in selected location and
verify operation (see Operation). Note: If transmitter does not
operate correctly, see Troubleshooting Guide.
4. With transmitter held in place, mark the mounting holes with
a pencil or pointed object.
5. Remove transmitter and drill two 3/16" holes. Tap drywall
anchors (provided) into holes with a hammer.
6. Attach transmitter to wall using two screws (provided).
Operation
1. Verify that receiver has been properly installed. See Receiver
Information, page 10.
2. Push the ON (top) button and release.The light should turn on
full bright.
3. Push the OFF (bottom) button and release. The light should
turn off.
4. Push the DIM button and release. The light should turn on at
a DIM level.
KID’S REMOTE CONTROL
Operation
1. Verifythatreceiver hasbeenproperlyinstalled.
See Receiver Information, page 10.
Removing Access Door
Access
Door
Philips-Head
Screw
Remote Control
Back
1 2 3 4
ON
DIM
2032
3
V
L
i
t
h
i
u
m
B
a
t
t
e
r
y
CR2032
Lithium
Battery
Battery
Locking
Tab
Access
Door
Removing Access Door
and Battery

8598-1135-08
TO HOT
OR LIGHT
TO HOT
OR LIGHT
TO HOT
OR LIGHT
1
BLACK
3
BLACK
GREEN (Ground)
DIM
1
BLACK
TO HOT
OR LIGHT
4
BLACK
GREEN
(Ground)
2 RED
2
RED
3 BLACK
4 BLACK
Removing Tab In Battery Chamber
2. To remove tab from battery chamber, remove screw in access
door of remote with a small phillips-head screwdriver. Gently
pull tab out of battery chamber. Reassemble access door in
reverse order.
Tab
ON
12V
Inside of Remote Control
ON
12V
Battery
Compartment
(Type A23)
3. Push and release the ON button (left button) to turn light on or
the OFF button (right button) to turn light off. Note: Red light
on remote should come on while button is depressed.
IMPORTANT:Wait 1 to 2 seconds after you press a transmitter
button before you press it again to allow the transmission to be
completed.
Note: If light does not turn on or intermittently turns on and off when
remote buttons are pushed, see Troubleshooting Guide.
Battery Replacement
The remote control requires a type A23 12 Volt alkaline battery to
operate. The remote control is shipped with the battery installed.
With typical use, the battery will last approximately one year.
Remove battery when remote will not be used for an extended
period of time.
To replace the battery, follow the instructions below:
1. Turn remote control upside down.
2. Remove screw in access door of remote with a small phillips-
head screwdriver.
3. Remove access door and lay aside.
4. Remove battery.Install replacement battery.Make sure battery
is oriented properly (see illustration).
5. Reassemble access door in reverse order.
3-WAY WALL SWITCH TRANSMITTER
Important: This product must be used in conjunction
with the Wall Switch Receiver. 3-way circuit wiring is
required to install and use this product.
Note: If you are not familiar with electrical wiring, consult
an electrician about installation. In addition, some local
building codes may require installation by a qualified electrician.
Installation
1. Select light switch to be replaced by 3-way wall switch transmit-
ter.
2. WARNING:Turn off the power to the light switch circuit
before you proceed. Do this at your circuit breaker or fuse
box.
3. Remove the existing wall plate and switch. Label the wires on
the existing switch according to the diagram in Figure 1. Note:
Typical 3-way wiring is shown. Actual wiring and wire colors
may vary.

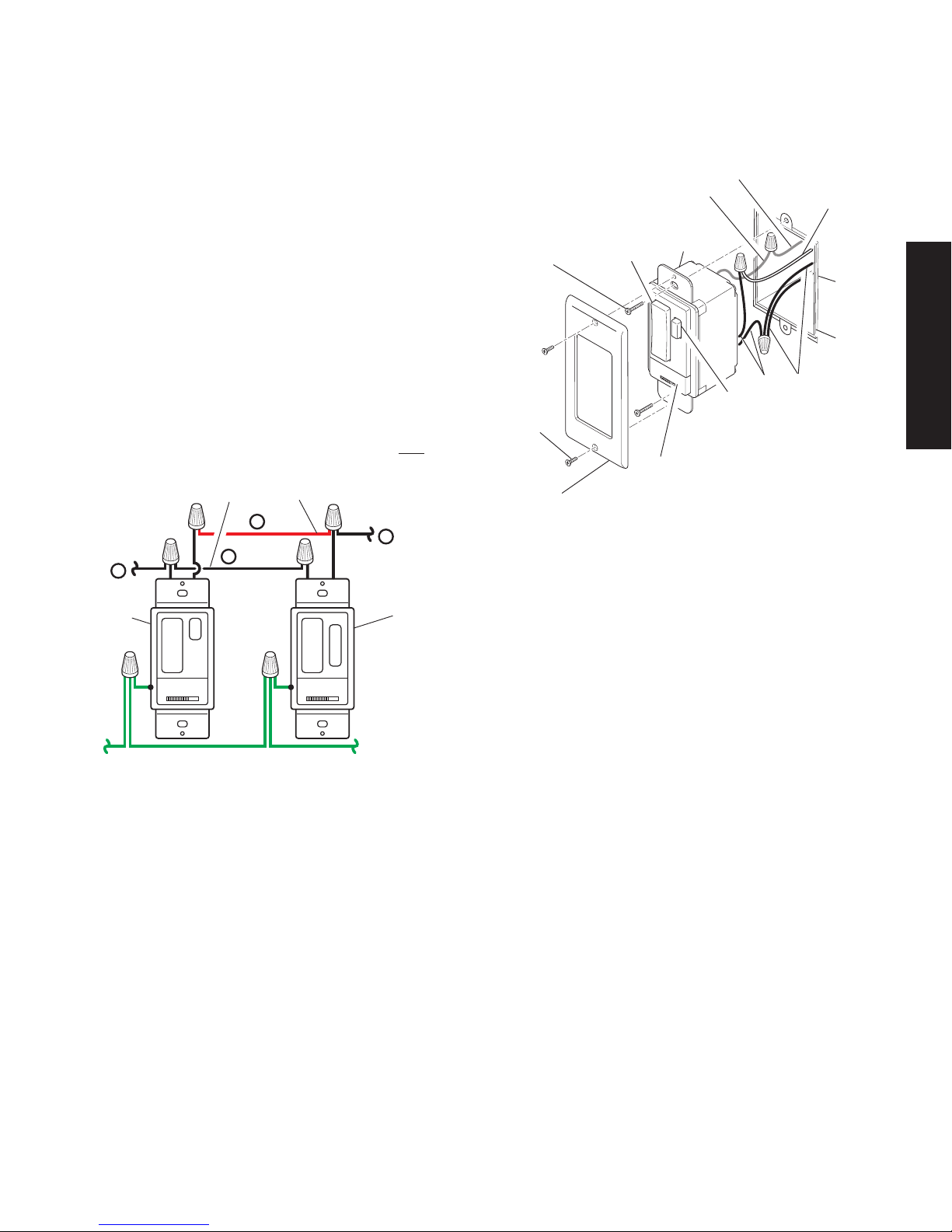

Figure 1 - Typical 3-Way Wiring
DIM
4. Disconnect the two travel wires, wire connected to common
terminal, and the ground wire.
5. Remove the wall plate from the 3-way wall switch transmitter.
6. Connect the wires of the 3-way wall switch transmitter to the
wires in the junction box as shown in Figure 2.Use the supplied
wire connectors to secure the wires (see Figure 2).Note: Either
black wire on the transmitter can be used to connect to the hot
wire (light) or traveler wire.
7. Connect the green ground wire from transmitter to the ground
wire removed from old switch. Use one of the supplied wire
connectors to secure the wires (see Figure 3).
8. Check wire connections to make sure they are secure and that
no bare wires are exposed.
WARNING: The white neutral wires in a 3-way circuit
must run continuously through the entire circuit. If pres-
ent, do not connect a white neutral wire to either of the
3-way switch wires.
Common Terminal
(Dark Screw)
3-Way Switch
3-Way
Switch
Travel
Wire
Travel Wire

9598-1135-08
ENGLISH
Figure 3 - Installing 3-Way Wall Switch
(Transmitter Shown)
DIM
ON/OFF
Button
Green Ground Wire From Switch
Wall Switch
Screw
Junction
Box
Wall
Switch
DIM
Button
Wall
Power
Disconnect
Switch
Wall Plate
Wall
Plate
Screw
Green (or Bare) Ground Wire
Black Wire
Red Wire
(Typical)
Operation
1. Verify the power disconnect switch on the transmitter and
receiver is in the ON (right side) position.
2. Push the ON (top) button and release. The light should turn on
full bright. Note: If you are controlling a lamp, make sure it is
connected to the switched outlet and the lamp is switched on.
3. Push the OFF (bottom) button and release. The light should
turn off.
4. Push the DIM button and release. The light should turn on at
50% brightness (or last setting). Note: Receiver remembers
the last DIM setting used. To recall last DIM setting, push and
release the DIM button.
5. Continue to press the DIM button until the desired dim level is
reached. Note: There are 5 DIM settings ranging from 15% to
90% brightness.
Note: The DIM setting defaults to 50% in the event of a power
failure.
IMPORTANT:Wait 1 to 2 seconds after you press a transmitter
button before you press it again to allow the transmission to be
completed.
Note: If light does not turn on or intermittently turns on and off when
transmitter buttons are pushed, see Troubleshooting Guide.
Bulb Replacement
Movethepowerdisconnectswitchonthetransmitterandreceivertothe
OFF(leftside)position.Replacebulb(s).Note:The power disconnect
switch on the transmitter prevents the unit from sending any signals
tothereceiver.Thepowerdisconnectswitchonthereceiverprevents
it from applying power to the load that it controls.
9. Position the wall switch transmitter in the junction box with the
DIM button located to the right. Use the two wall switch screws
(long) supplied to mount the transmitter to the junction box (see
Figure 3). Push excess wiring into junction box while you do
this, bending the wires to fit if necessary.
10. Mount the wall plate to the wall switch transmitter with the
screws (short) provided.
11. To install the wall switch receiver, repeat steps 5 through 10
above.Note: Route antenna between the bottom of the junction
box and the wall. Feed antenna into wall cavity while placing
wall switch into junction box.
IMPORTANT: Label wires on existing 3-way switch according
to the diagram in Figure 1. Refer to Figure 2 below when con-
necting wall switch receiver wires to existing wires.
12. Turn on thepowertothe light switchcircuit.Do thisat your circuit
breaker or fuse box. Note: If the light turns on immediately and
remains on, reverse the travel wire connections on one of the
switches.
Travel Wires
TO HOT
OR LIGHT
TO HOT
OR LIGHT
TO HOT
OR LIGHT
1
BLACK
3
BLACK
GREEN (Ground)
DIM
1
BLACK
TO HOT
OR LIGHT
4
BLACK
GREEN
(Ground)
2 RED
2
RED
3 BLACK
4 BLACK
Figure 2 - Wiring 3-Way Wall Switch
Transmitter Receiver

10 598-1135-08
Installing Wall Switch Receiver
Wall Switch Screw
Junction Box
Wall
Switch
ON/OFF Button
DIM Button
Ground Wire (Bare or Green)
Wall
Power Disconnect Switch
Antenna
Operation
1. Verify the power disconnect switch is in the ON (right side)
position.
2. Push the ON (top) button and release. The light should turn on
full bright. Note: If you are controlling a lamp, make sure it is
connected to the switched outlet and the lamp is switched on.
3. Push the OFF (bottom) button and release. The light should
turn off.
Installation
1. Select light switch to be replaced by wall switch receiver.
2.
WARNING:Turn off the power to the light switch circuit
before you proceed. Do this at your circuit breaker or fuse box.
3. Remove the existing wall plate and switch. Disconnect the two
power wires and the ground wire.
Note: If there are more than two power wires attached to the switch,
consultanelectricianaboutinstallation.Inaddition,somelocalbuild-
ing codes may require installation by a qualified electrician.
CAUTION: Do not connect neutral (white wire) to
switch.
ImportantInformationRegarding3-WaySwitchInstallations:
In order to use this product where two switches are being used
to control the light, the 3-Way Wall Switch transmitter will also
have to be installed. Refer to the 3-WayWall Switch Installation
section for details.
Wall Plate
Screw
Wall Plate
Important: When ganging these units, they must be derated as
follows:
Features and Ratings:
• Up to 500Watt maximum incandescent load depend-
ing upon switch purchased.See rating label on switch
for exact load rating.
• Not for use with Compact Fluorescent bulbs.
WARNING: FOR USE ONLY with 120 volt incandescent
or halogen bulbs.
CAUTION: To reduce the risk of overheating and pos-
sible damage to other equipment, do not install to control a
receptacle,a motor-operated appliance,a fluorescent lighting
fixture, or a transformer-supplied appliance.
WALL SWITCH RECEIVER
RECEIVER INFORMATION
All receivers have the following features and ratings:
• Rated for 120VAC/60Hz supply voltage.
• Uses existing wiring.
• Fits standard single gang junction box.
• Up to 100 feet (30 m) typical transmission range.
• When first turned on wait 15 seconds.
4. If necessary, strip away 1/2" of insulation from end of wires.
5. Connect one of the black power wires from receiver to one of the
power wires you removed from the old switch. Use one of the
supplied wire connectors to secure the wires (see illustration).
6. Connect the second black power wire from receiver to the other
power wire you removed from the old switch. Use one of the
supplied wire connectors to secure the wires (see illustration).
7. Connect the green ground wire from receiver to the ground
wire removed from old switch. Use one of the supplied wire
connectors to secure the wires (see illustration).
8. Check wire connections to make sure they are secure and that
no bare wires are exposed.
9. Route antenna between the bottom of the junction box and the
wall. Feed antenna into wall cavity while placing wall switch
into junction box.
10. Position the wall switch receiver in the junction box with the DIM
button located to the right. Use the two wall switch screws (long)
supplied to mount the receiver to the wall box (see illustration).
Push excess wiring into wall box while you do this. You may
need to bend the wires to fit inside the box. Mount wall plate on
wall switch receiver with screws (short) provided.
11. Turn on the power to the light switch circuit. Do this at your
circuit breaker or fuse box.
Gang 1 2 3
300 W 300 W 300 W 300 W
500 W 500 W 475 W 450 W
White
(Neutral)

11598-1135-08
ENGLISH
RECEPTACLE RECEIVER
Features and Ratings:
• Control up to 1800 Watts of incandescent load.
• Controls the ON/OFF function in lighting.
• Controls up to 15A loads.
Installation
1. Remove existing receptacle from junction box, if necessary.
2. Connect green wire from receptacle to ground wire in junction
box. Connect the black wire on receptacle to the load wire in
junction box and connect the white wire on receptacle to the
neutral wire in the junction box.Connections should appear as
shown in illustration. Before installing fixture, make sure there
is no wire exposed at connections.
3. Mount receptacle in junction box with the two screws (long)
provided.Note: Verify the receptacle marked “CONTROLLED”
is on top.
4. Screw on cover plate with the two screws (short) provided.
CONTROLLED
Installing Receptacle Receiver
CONTROLLED
Receptacle
Screw
Ground Wire
(Bare or Green)
Junction BoxReceptacle
Testing and Operation
Follow the steps below to operate and test the receptacle receiver
using a remote control device:
1. Set the proper channel codes on both the transmitter and
receiver modules (see Code Settings).
2. Plug in the light fixture to be controlled in the top receptacle.
Note: If installed properly, the top receptacle will be marked
with the word “CONTROLLED” below it.
3. Operate the ON/OFF buttons on the remote to verify operation.
Light should turn ON and OFF as the appropriate button is
pressed.
Note: DIM is not available on this switch.
Controlled Outlet
Wall Plate
Screw
Wall Plate
4. Push either the top or bottom of DIM button and release. The
light should turn on at 50% brightness (or last setting).
5. Push and release top of DIM button to increase brightness.
Push and release bottom of DIM button to decrease bright-
ness.Note: There are 5 DIM settings ranging from 15% to 90%
brightness.
6. Set desired DIM level. Note: DIM setting remembers last set-
ting used.To recall last DIM setting from ON or OFF, push and
release either the top or bottom of DIM button.
Note: The DIM setting defaults to 50% in the event of a power
failure.
Bulb Replacement
Move the power disconnect switch to the OFF (left side) position.
Replace bulb(s).
CAUTION: Do not exceed the maximum load limits
listed above.

12 598-1135-08
TROUBLESHOOTING GUIDE
SYMPTOM POSSIBLE CAUSE SOLUTION
Device does not come on. 1. Circuit breaker or fuse is turned off.
2. Switch on device is turned off.
3. Interrupted by another device.
4. Does not respond immediately after
installation.
5. Signals from transmitter are being
blocked, or transmitter is out of
range.
6. Weak battery in the transmitter.
7. Dipswitchesontransmitterandreceiver
units do not match.
8. Device is defective.
1. Verify circuit breaker or fuse is turned
on.
2. Verify switched device is turned on.
3. Change codes on transmitter and
receiver units.
4. Waitfor90secondinitializationperiod
(remote motion sensor).
5. Check for metal objects that could
block the signal, or reposition the
transmitter.
6. Check battery charge and replace if
necessary.
7. Verify code settings on transmitter
and receiver units are set the same.
8. Test using different device.
Device does not turn off. 1. Same as 5, 6, and 7 above. 1. Same as 5, 6, and 7 above.
Device comes on randomly. 1. Short term power line failure.
2. Another transmitter on the same
frequency.
1. Next transmission from transmitter
will reset receiver to correct state.
2. Change codes on transmitter and
receiver units.
REGULATORY INFORMATION
This device complies with Part 15 of the FCC Rules and RSS-210 of Industry Canada. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
The user is cautioned that changes or modifications not expressly approved by the party responsible for regulatory compliance could
void the user’s authority to operate the equipment.
TECHNICAL SERVICE
Please call 1-800-858-8501 (English speaking only) for assistance before returning product to store.
If you experience a problem, follow this guide.You may also want to visit our Web site at: www.hzsupport.com. If the problem persists,
call* for assistance at 1-800-858-8501 (English speaking only), 7:30 AM to 4:30 PM CST (M-F).You may also write* to:
HeathCo LLC
P.O. Box 90004, Bowling Green, KY 42102-9004
ATTN: Technical Service
* If contacting Technical Service, please have the following information available: Model Number, Date of Purchase, and Place of
Purchase.
No Service Parts Available for this Product

13598-1135-08
ENGLISH
TWO YEAR LIMITED WARRANTY
This is a “Limited Warranty” which gives you specific legal rights. You may also have other rights which vary from state to state
or province to province.
For a period of two years from the date of purchase, any malfunction caused by factory defective parts or workmanship will be
corrected at no charge to you.
Not Covered - Repair service, adjustment and calibration due to misuse, abuse or negligence, light bulbs, batteries, and other
expendable items are not covered by this warranty. Unauthorized service or modification of the product or of any furnished
component will void this warranty in its entirety. This warranty does not include reimbursement for inconvenience, installation,
setup time, loss of use, unauthorized service, or return shipping charges.
This warranty covers only HeathCo LLC assembled products and is not extended to other equipment and components that a
customer uses in conjunction with our products.
THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY
WARRANTY, REPRESENTATION OR CONDITION OF MERCHANT ABILITY OR THAT THE PRODUCTS ARE FIT FOR
ANY PARTICULAR PURPOSE OR USE, AND SPECIFICALLY IN LIEU OF ALL SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES.
REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE SHALL BE NO LIABILITY ON
THE PART OF HEATHCO LLC FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING
BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces
do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to
you. Please keep your dated sales receipt, it is required for all warranty requests.
HeathCo LLC reserves the right to discontinue products and to change specifications at any time without incurring any obligation to
incorporate new features in products previously sold.

14 598-1135-08
ON
1 2 3 4
ON
1 2 3 4
© 2007 HeathCo LLC 598-1135-08 S
CARACTERISTICAS
• Productos probados y aprobados por laboratorios UL/cUL y/o
FCC/IC.
• Distancia de operación: hasta 100 pies.
Los controles inalámbricos Heath®/Zenith para el alumbrado están
diseñados para trabajar juntos. Simplemente determine cual
transmisor(es) le gustaría que controlen tal(es) receptor(es) y fije
la calibración del código para emparejar.
• Transmisores
– Control remoto
– Detectorinalámbricodemovimiento
para uso interior
– Detector inalámbrico de mov-
imiento para uso exterior
– Interruptor A añadible
– Control remoto para niños
– Conmutador tridireccional de pared
Productos a control remoto
Este manual incluye las instrucciones de operación para una variedad de productos a control remoto. Todos los productos funcionan
basándose en el mismo principio y usan la misma información para la calibración del código. Por favor lea todas las instrucciones y
tome en cuenta cualquier información específica relativa a su producto en particular.
• Receptores
– Receptor de pared con
interruptor
– Receptor con tomaco-
rriente
Este manual sirve para los siguientes productos:
CALIBRACIONES DEL CÓDIGO
Nota: La mayoría de instalaciones de sólo un sistema no reque-
rirán ningún cambio en la calibración del código.Para que fun-
cionen juntos los transmisor(es) y los receptor(es) deben tener
la misma calibración de código y de grupo. Los interruptores
del 1 al 3 fijan el código.El interruptor 4 fija el grupo (A o B).Vea
en la página 15 la ubicación de los interruptores.
DIM
ON
OFF
ON
OFF
DIM
Código del
receptor(es)
Código del transmisor(es)/
receptor(es)
Grupo “A”
Grupo “B”
Código del detector
remoto de movimiento
Grupo “A”
Ejemplo 1 - Calibraciones del código, sistema 1
(calibración de fábrica)
Controles del
lado izquierdo:
Controla un juego de
receptor(es) del gru-
po “A” o grupo “B”
Controles del lado
derecho: Controla un
juego de receptores
del grupo “A” o grupo
“B”
Grupo “A”
Ejemplo 3 - Calibraciones del código con un
único transmisor
Cuandoseuse untransmisordesóloungrupo(ejemplo:Transmisor
de puerta, interruptor “A”añadible, detector remoto de movimiento)
las calibraciones de código y grupo deben emparejar con los
receptor(es) para que el sistema funcione correctamente.
Nota: Esta calibración funcionará independientemente de los
ejemplos uno y dos porque la calibración del código es diferente.
Nota:Elcódigopuedetambiéncambiarseparareducirlosproblemas
deinterferenciaquevienende otros productos inalámbricos.(ejem-
plo: Teléfonos inalámbricos, abridores de puertas de garajes, etc.)
Para más información vea Guía de Análisis de Averías.
( – Indica la posición del interruptor)
Ejemplo 2 - Calibraciones del código, sistema 2
Nota:Cuandooperemásdeunsistemaindependientementeelunodel
otro, fijecadasistemacon un códigodiferente.Hay8 códigosdisponi-
bles al cambiar las calibraciones de los interruptores del 1 al 3.
Código del
receptor(es)
Grupo “A”
Código del
transmisor(es)
Interruptor del grupo
(Selección Grupo “A” mostrada)
Código del transmisor(es)/
receptor(es)
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4

ESPAÑOL
15598-1135-08
UBICACIONES DE LOS INTERRUPTORES DE CIRCUITO IMPRESO
1 2 3 4
ON
2032
3
V
L
i
t
h
i
u
m
B
a
t
t
e
r
y
DIM
Control remoto para niñosInterruptor A añadible
Tapa de
acceso
1 2 3 4
ON
2032
3
V
L
i
t
h
i
u
m
B
a
t
t
e
r
y
DIM
Interruptores de
circuito impreso
Interruptores
de circuito
impreso
DETECT
CODES
1234
DAY
NIGHT
NIGHT
ONLY
ON
12V
Interruptores
de circuito
impreso
ON
Receptor de pared con interruptor Receptor con tomacorriente
Interruptores
de circuito
impreso
CONTROLLED
ON
1 2 3 4
Interruptores
de circuito
impreso
ON
1 2 3 4
Vista ampliada de un interruptor típico
del código (la calibración hecha en
fábrica es OFF- apagado)
Nota: La “X” ha sido colocada en los
interruptores para ayudar a aclarar las
calibraciones del código de la página
anterior.
ON
DIM
Interruptores
de circuito
impreso
Conmutador tridireccional de pared
Control remoto
Interruptores
de código
del lado
derecho
Tapa de la
batería
Interruptores
de código
del lado
izquierdo
ON DIP
1 2 3 4
ON DIP
1 2 3 4
Detector inalámbrico de movimiento
para uso exterior
Detector inalámbrico de movimiento
para uso interior
Interruptores
de circuito
impreso
CODE
1 2 3 4
ON
5 1 TES T
ON-TIME
(MINUTES)
MIN MAX
DETECT RANGE
DAY
NIGHT
NIGHT
ONLY

16 598-1135-08
IMPORTANTE:Espere de 1 a 2 segundos después de pulsar el
botón de un transmisor antes de pulsarlo de nuevo para permitir
que la transmisión se complete.
Nota: Si la luz no se prende o si se prende y apaga intermitente-
mente cuando se pulsan los botones del transmisor, vea la Guía
de Análisis de Averías.
Presilla opcional del visor del carro (incluida)
Paramayorconveniencia,enelcontrolremotoseincluyeunapresilla
opcional del visor del carro que puede ser instalada.
1. Para unir (si se desea)la presilla del visor del carro al control
remoto empújela contra la ranura de la parte posterior del
control hasta que se cierre a presión en su lugar.
2. Para retirar esta presilla, inserte un destornillador plano
pequeño en la ranura de la parte posterior del control. Con
el destornillador, empuje suavemente la porción de la presilla
del visor que está dentro de la ranura mientras desde arriba
hala la presilla hacia fuera del control.
Nota:Paraoperar independientementeunasegundaunidadrecep-
tora usando un único control remoto, asegúrese que el segundo
juego de interruptores de código (del lado derecho) emparejen
con los interruptores de código de cada receptor (Ver la sección
Calibraciones del Código).
• Lado izquierdo - Para calibrar los interruptores de código del
lado izquierdo.
• Lado derecho - Para calibrar los interruptores de código del
lado derecho.
Retiro de la presilla del visor – Vista posterior
Destornillador
plano Presilla
opcional del
visor
Controles de las funciones
Lado izquierdo DIM
Lado izquierdo
(ON)ENCENDIDO
Lado izquierdo
(OFF)APAGADO
Lado derecho DIM
Lado derecho
(ON)ENCENDIDO
Lado derecho
(OFF)APAGADO
Nota:Uncontrolremotopuedeoperarindependientemente
dosunidadesreceptoras.Sisedeseaoperarindependien-
temente más de dos receptores, se necesitarán comprar
controles remotos adicionales.
1. Retirelaaletadelcompartimentodelabatería.Retirela
tapaposteriordeltransmisor.Halelaaletaconsuavidad
fuera del compartimento de la batería. Deslice la tapa
en el transmisor.
CONTROL REMOTO
2. Funciones del control remoto. Los tres botones del lado izquier-
do del control remoto hacen funcionar a una o más unidades
receptoras que tienen la misma calibración del código. Los tres
botones de la derecha harán funcionar un segundo juego de uno
o más receptores.
• ON: Enciende cualquier unidad receptora del mismo código que
este control remoto.
• OFF: Apaga cualquier unidad receptora del mismo código que
este control remoto.
• DIM: Activa la característica REDUCTORA de cualquier unidad
receptoradelmismocódigoqueestecontrolremoto.Nota:Alpulsar
el botón DIM se pasa por los cinco niveles de luminosidad.
Vista posterior del control remoto
4 5 43
1 2 32
ON DIP
1 2 3 4
ON DIP
1 2 3 4
Compartimento
de la batería
(tipo A23)
Tapa de la batería
Aleta

ESPAÑOL
17598-1135-08
DETECTOR INALÁMBRICO DE MOVIMIENTO
PARA USO INTERIOR Y EXTERIOR
Seleccione modo nocturno o modo de 24 horas
Estos detectores pueden detectar movimiento durante el día o la
noche o sólo por la noche. Para fijar el modo de detección, retire
la tapa del compartimiento de la batería deslizándola hacia abajo.
Si es necesario retire las baterías. Mueva el interruptor DETECT
(DETECTAR)yaseaa laposiciónDAY/NIGHTó alaposiciónNIGHT
ONLY (SÓLO NOCHE). Vuelva a colocar el compartimiento de la
batería siguiendo a la inversa las instrucciones indicadas.
Instalación de las baterías
• Antes de montar el detector de movimiento para uso exterior,
retire la tapa del compartimiento de la batería deslizándola hacia
abajo.
• Endetectoresdemovimientoparausointerior, instalelasbaterías
luego de colocar el detector.
Coloquelas dos bateríasAAsegún la polaridad marcada dentrodel
compartimento de labatería.Vuelvaacolocar el compartimiento de
la batería siguiendo a la inversa las instrucciones indicadas.
Características:
• No se requiere cableado.
• Margen de sensibilidad hasta 21 m. 180° de cobertura (Exterior).
•
Margen de sensibilidad hasta 9.1 m. 150° de cobertura (Interior).
• Sensibilidad ajustable.
• Operación diurna/nocturna o sólo nocturna.
• Modo prueba.
• Usa dos baterías AA.
• Montaje en pared o alero (Exterior).
• Puede instalarse directamente en la pared o usando un soporte
de montaje (incluido) (Interior).
• Controla los receptores hasta 30 m de distancia.
Detector inalámbrico de
movimiento para uso
exterior
ON
Day/ Night
Night Only5 1Test
MaxMin
Detector inalámbrico de
movimiento para uso
interior
DETECT
CODES
1234
DAY
NIGHT
NIGHT
ONLY
Control
detector
Compartimento de la batería
CODE
1 2 3 4
ON
5 1 TEST
ON-TIME
(MINUTES)
MIN MAX
DETECT RANGE
DAY
NIGHT
NIGHT
ONLY
Detector de movimiento
para uso exterior
(Vista posterior)
Detector de movimiento
para uso interior
(Vista frontal)
Consola de montaje
tipo bola
Parte posterior del
detector
Ranuras para
la aleta
Sujeción de la consola de montaje tipo bola al
detector de movimiento para uso interior
(se muestra la instalación vertical)
Instalación del detector de movimiento para uso
interior usando el soporte opcional de montaje
Nota: Instale el detector de movimiento para uso interior de modo
que pueda girar hacia arriba o hacia abajo y así darle la cobertura
deseada por encima del nivel del suelo.
1. Fije la consola de montaje tipo bola a la parte posterior del
detector de movimiento. La consola de montaje tipo bola está
diseñada para instalarse en la parte posterior del detector en
tres direcciones posibles dependiendo de lo requerido por la
instalación. Para sujetar la consola de montaje tipo bola siga
los pasos que se indican:
• Determine la posición óptima de montaje del detector para
obtener la cobertura deseada.
• Determine el sitio óptimo de la consola de montaje para pared.
Montura
giratoria
de bola
Tornillo del soporte
de montaje tipo
bola
Aleta
Continuación

18 598-1135-08
• Inserte las aletas de la consola de montaje tipo bola en las
ranuras de la parte posterior del detector que mejor alineen
este detector con la consola de montaje de pared.
• Retire las baterías.
• Con un destornillador cabeza Phillips, inserte el tornillo de
montaje en el orificio del compartimiento de la batería que
alinee con el orificio posterior de la consola de montaje tipo
bola. Apriete bien.
2. Coloque el soporte de montaje del detector sobre la superficie
que lo va a instalar y con un lápiz o un punzón de marcar,
marque la ubicación del orificio.
3. Con una broca de 2,5 mm.(0,1 pulgadas), taladre dos orificios
guía para los tornillos de montaje.Si no lo instala directamente
a la madera o al espárrago de la madera, taladre orificios guía
de 5mm (0,2 pulgadas) y utilice las anclas de pared que se
incluyen.
4. Usandolosdostornillosprovistos,fijeeldetectordemovimiento
para uso interior a un objeto sólido y firme (ejemplo: pared,
armario, poste, etc.). Asegúrese que la unidad no tenga
obstrucciones en su línea de mira. Nota: Sujete la consola
de montaje verticalmente si lo instala a una superficie curva
como un poste.
5. Instale el detector de movimiento a la consola de montaje.
Usando un destornillador cabeza Philips, afloje el tornillo de
la abrazadera en la consola de montaje. Inserte la montura
giratoria de bola del detector en el zócalo de la consola de
montaje(Nota:Usteddeberíaoírunchasquido-unclic-).Apunte
el detector hacia el área que se requiere detectar. Apriete el
tornillo de la abrazadera.
ON
Day / Night
Night Only 5 1 TestMax Min
Sujeción del detector de movimiento para uso interior a la
consola de montaje
Consola de
montaje
Tornillo de la
abrazadera
Tuerca
Detector
Tornillo de montaje
Montura giratoria de bola
Zócalo de la consola
de montaje
Tapa del compartimiento
de la batería
Instalación del detector de movimiento para uso
interior directamente en la pared
Nota:Instaleeldetectordemovimientoparausointeriordemodoque
quedeaproximadamenteauna altura sobreel suelo entre la cintura
y los hombros.(Ejemplo: Al mismo nivel o altura que un interruptor
de luz, debajo de la superficie superior del mostrador, etc.).
1. Determine la posición óptima de montaje del detector para
obtener la cobertura deseada. Retire las baterías.
2. Coloque el detector de movimiento para uso interior sobre la su-
perficie que lo va a instalar. Usando dos de los orificios posteriores
del compartimiento de la batería marque, con un lápiz o con un
punzón de marcar, las ubicaciones de los orificios.
3. Con una broca de 2,5 mm.(0,1 pulgadas), taladre dos orificios
guía para los tornillos de montaje.Si no lo instala directamente
a la madera o al espárrago de la madera, taladre orificios guía
de 5mm (0,2 pulgadas) y utilice las anclas de pared que se
incluyen.
4. Usando los dos tornillos provistos, fije el detector de movi-
miento para uso interior a un objeto sólido y firme (ejemplo:
pared, armario, poste, etc.).Asegúrese que la unidad no tenga
obstrucciones en su línea de mira.
IMPORTANTE: Apriete a mano solamente - No apriete de-
masiado.
Fijación del detector de movimiento directamente a la pared
ON
Day/Night
Night Only51Test
MaxMin
ON
Day/Night
NightOnly 51Test
MaxMin
ON
Day/Night
NightOnly51Test
MaxMin
ON
Day/Night
NightOnly51Test
MaxMin
Tornillo de
montaje
Detector de
movimiento
Superficie
superior del
mostrador

ESPAÑOL
19598-1135-08
Instalación del detector de movimiento para uso
exterior
1. Instale la consola de montaje del detector en donde se nece-
site detectar movimiento. Acople esta consola de montaje a
un objeto robusto (ejemplo: árbol, poste, casa, etc.) usando
los dos tornillos provistos. Asegúrese que la unidad no tenga
obstrucciones en su línea de mira. Nota: Sujete la consola de
montaje verticalmente si lo instala a una superficie curva como
un poste.
2. Instale el detector de movimiento a la consola de montaje.
Usando un destornillador cabeza Philips, afloje el tornillo de
la abrazadera en la consola de montaje. Inserte la montura
giratoria de bola del detector en el zócalo de la consola de
montaje(Nota:Usteddeberíaoírunchasquido-unclic-).Apunte
el detector hacia el área que se requiere detectar. Apriete el
tornillo de la abrazadera.
IMPORTANTE: El detector debe estar montado con la tapa
inferior hacia abajo con el fin de mantener la hermeticidad
contra el agua.
Instalación del detector de movimiento
Consola de montaje
Tornillo de la
abrazadera
Tuerca
Detector
Tornillo de montaje
Montura giratoria
de bola
Zócalo de la consola
de montaje
Revisión de la operación y de la regulación
Nota: Cuando lo prenda por primera vez o cuando cambie de
modalidad espere 1 1/2minutos.
Localice en el detector de movimiento los controles de ALCANCE
y DURACIÓN:
• Detector de movimiento para uso interior - los controles de
ALCANCE y DURACIÓN están dentro del compartimiento de
la batería en la parte frontal del detector. Para fijar el control de
ALCANCE o el de DURACIÓN, retire la tapa del compartimiento
de la batería deslizándola hacia abajo.
• Detector de movimiento para uso exterior - Los controles
de ALCANCE y DURACIÓN están ubicados en la parte inferior
del detector. Usando las uñas de los dedos o un destornillador
pequeño de cabeza plana, haga suavemente palanca en la tapa
hasta que se abra.
1. Reviselaoperación.PongaelcontroldeDURACIÓNenelmodo
TEST (PRUEBA). Camine frente a la unidad detectora. La luz
indicadora LED debe destellar cuando se detecta movimiento
(vea la ilustración de la página 20 para ubicar la luz LED).
2. Regule el detector. Gire el control de ALCANCE a la posición
media y el de DURACIÓN a la posición TEST. Camine por el
área de cobertura y note su posición cuando el LED empiece a
destellar. Afloje el tornillo de la abrazadera y mueva el detector
para cambiar el área de cobertura. Cuando termine apriete
el tornillo de la abrazadera. No apriete excesivamente este
tornillo.
3. Regule el control de alcance.Para incrementar la sensibilidad,
gire el control de ALCANCE hacia MAX. Para disminuir la
sensibilidad, gírelo hacia MIN. Nota: En algunos ambientes
si el ALCANCE se calibra demasiado alto, puede ocurrir una
falsa activación.
Nota: Cuando use el modo de prueba (Test) para comprobar
el funcionamiento durante el día:
A. Ponga el interruptor del control DETECT (DETECTAR) a
DAY/NIGHT (NOCHE/DÍA) y
B. Ponga el control ON-TIME (DURACIÓN) a TEST.
4. Fije el control de DURACIÓN.Determine la cantidad de tiempo
quedeseaqueeldispositivoconectadopermanezcaencendido
luego que se detecta movimiento (1 ó 5 minutos). Mueva el
control de DURACIÓN a la configuración correspondiente.
IMPORTANTE: Evite apuntar el control:
• Objetosquecambianrápidamentelatemperatura,comosopladeros
de la calefacción, ventiladores y acondicionadores de aire. Estas
fuentes de calor podrían ocasionar una activación falsa.
• A áreas en donde las mascotas o el tráfico pueden activar el
control.
• En las cercanías de objetos grandes pintados con colores claros
cuyo reflejo puede activar el apagado.No enfoque otras luces al
detector.
Continuación

20 598-1135-08
Área de cobertura del detector de movimiento para uso
interior
Controles del detector de movimiento
5 1 TE ST
ON-TIME
(MINUTES)
RANGE
MAX MIN
CODE
1 2 3 4
ON
5 1 TEST
ON-TIME
(MINUTES)
MIN MAX
DETECT RANGE
DAY
NIGHT
NIGHT
ONLY
Control de alcance
Detector de movimiento
para uso exterior
Detector de movimiento
para uso interior
Sensibilidad del detector de movimiento para uso interior
y exterior
Regulación de la cobertura del detector de movimiento para
uso interior
Area de cobertura del detector de movimiento para uso
exterior
Regulación de la cobertura del detector de movimiento para
uso exterior
Control de
DURACIÓN
Indicador
LED
Ángulo máximo de
cobertura
Alcance máximo
21 m
2.4 m
180°
Apunte el detector
hacia abajo para una
cobertura menor
Apunte el detector
hacia más arriba para
una cobertura mayor
Ángulo máximo de
cobertura
Alcance máximo
El detector es más sensible a movimientos transversales a su
campo de mira.
Sensibilidad máximaSensibilidad mínima
Detector Detector
9.1 m
150°
Apunte el detector
hacia abajo para una
cobertura menor
Apunte el detector
hacia más arriba para
una cobertura mayor
MovimientoMovimiento
Table of contents
Languages:
Other Heath Zenith Remote Control manuals

Heath Zenith
Heath Zenith TT-6139 Quick start guide

Heath Zenith
Heath Zenith 598-1119-05 User manual

Heath Zenith
Heath Zenith 598-1116-10 User manual

Heath Zenith
Heath Zenith 598-1119-07 User manual

Heath Zenith
Heath Zenith SL-6139 User manual

Heath Zenith
Heath Zenith 598-1304-01 User manual

Heath Zenith
Heath Zenith SL-6132 User manual

Heath Zenith
Heath Zenith Multi-Channel Remote Control User manual

Heath Zenith
Heath Zenith SL-6005 User manual
