Heatilator NOVi30 User manual

02-02 1 30344 Rev C
NOVi30 AND NOVi35
DIRECT VENT GAS-FIRED FIREPLACE
INSERT ROOM HEATER
Installation & Operating
Instructions
WARNING!
Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this
manual. For assistance or additional information, consult a qualified installer, service agency or the gas supplier.
WARNING: If the information in this manual
is not followed exactly, a fire or explosion may
result causing property damage, personal in-
jury or loss of life
 Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
 What to do if you smell gas
 Do not try to light any appliance.
 Do not touch any electrical switch; do not
use any phone in your building.
 Immediately call your gas supplier from a
neighbors phone. ollow the gas suppliers
instructions.
 If you cannot reach your gas supplier, call
the fire department.
 Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
This manual must be used for installation of the NOVi3 and NOVi35 Direct Vent Gas Fired Fireplace Insert Room Heater and retained
by the homeowner for operating and maintenance instructions.

30344 Rev C 2 02-02
NOVI30 AND NOVI35
A. LISTINGS AND CODE APPROVALS
U.S. CERTIFICATION
The NOVi30 and NOVi35 have been tested in accordance
with AN I Z21.88-1998 and has been listed by
Underwriters Laboratory (UL) for installation and operation
as described in these installation and operating
instructions. All components are A.G.A. or UL safety
certified.
CANADA CERTIFICATION
The NOVi30 and NOVi35 have been tested in accordance
with C A 2.33-M98 and have been listed by UL for
installation and operation as described in these
installation and operating instructions. All components are
C.G.A. or C. .A safety certified.
LOCAL CODES
Check with your local building code agency prior to
installing this appliance to ensure compliance with all
local codes, including the need for permits and follow-up
inspections. This installation must conform with local
codes or, in the absence of local codes, with the National
Fuel Gas Code, AN I Z23.1-latest edition, in the U. .A.
and the CANI-B149-latest edition, in Canada.
EFFICIENCY
The efficiency rating of the appliance is a product thermal
efficiency rating determined under continuous operating
conditions and was determined independently of any
installed system.
HEATILATOR® is a registered trademark of Hearth
Technologies Inc., division HON INDU TRIE .
If any assistance is required during installation please
contact your local dealer or contact the Heatilator Technical
ervices Department, Hearth Technologies Inc., 1915 W.
aunders treet, Mt. Pleasant, Iowa, 1-800-843-2848.
B. DESCRIPTION OF THE APPLIANCE SYSTEM
The NOVi30 and NOVi35 are direct vent gas-fired fireplace insert room heaters. Combustion air is supplied from
outside, not from inside the house as with other types of appliance.
The NOVi3 and NOVi35 systems consist of the following:
1. Appliance
2. Venting ystem (must be purchased separately)
3. Termination (must be purchased separately)
4. Blower
5. urround (must be purchased separately)
Optional components include:
1. Remote Control
2. urround Bottom
Note: Operation of a direct vent appliance may be sporadic in high wind situations.
Note: Illustrations throughout these instructions reflect
typical installations and are for design purposes only.
Actual installation may vary slightly due to individual
design preferences. However, minimum and maximum
clearances must be maintained at all times.
The illustrations and diagrams used throughout these
installation instructions are not drawn to scale.
TABLE OF CONTENTS
A. Listings and Code Approvals ............................. 2
B. Description of the Appliance System ................ 2
C. Appliance System Components ....................... 3
D. Dimensional Requirements ............................... 4
E. Clearances to Appliance ................................... 5
. Venting ............................................................. 5
G. Utilities ............................................................. 8
H. Appliance Entry .............................................. 10
I. Surround Installation ....................................... 10
J. Appliance Preparation .................................... 12
K. Lighting Instructions ....................................... 13
L. Seasonal Checklist ........................................ 15
M. ield uel Conversion ..................................... 15
N. Start-up Issues ............................................... 16
O. Maintenance Instructions ............................... 17
P. Cleaning the Glass ......................................... 18
Q. Optional Components ..................................... 19
R. Replacement Parts ......................................... 19
Index .............................................................. 23
Warranty ........................................................ 24

02-02 3 30344 Rev C
NOVI30 AND NOVI35
#golataCnoitpircseD
03iVONsaglarutaN-tresnIderiFsaGtneVtceriD
L03iVONenaporP-tresnIderiFsaGtneVtceriD
53iVONsaglarutaN-tresnIderiFsaGtneVtceriD
L53iVONenaporP-tresnIderiFsaGtneVtceriD
-TH-TRAS-CR
L
)toliPgnidnatS(lortnoCetomeR
LTH-TTAB-CR)toliPgnidnatS(lortnoCetomeRdetarepo-yrettaB
--TATS-TRAS
LTH
lortnoCtatsomrehThtiwlortnoCetomeR
--TTAB-TRAS
LTH
lortnoCtatsomrehThtiwlortnoCetomeRdetarepo-yrettaB
03-VD-KNIL '03-sreniLxelF"3)2(dna,paCnoitanimreT,gnihsalF,retpadAsedulcnitiKxelF
03-4VD-KNIL '03-reniLxelF"3)1(dna'4-reniLxelF"3)1(,paCnoitanimreT,gnihsalF,retpadAsedulcnitiKxelF
29613 )KG329#tcudorptneV-aruD(tiKnoitanimreTreniLyenmihCtneVtceriD"3
19613)017#tcudorptneV-aruD('03xelFreniLyenmihC"3
089 )089#tcudorptneV-aruD(olaHdniWhtiwpaCnoitanimreTlacitreV
49613)199#tcudorptneV-aruD(paCnoitanimreTdniWhgiH
03SNmirthtiw)"2/1-04x"2/1-82(dnuorruSmuide
L03SNmirthtiw)"64x"33(dnuorruSegraL
53SNmirthtiw)"44x"2/1-82(dnuorruSmuide
L53SNmirthtiw)"84x"33(dnuorruSegraL
53BSN)"54x"4(mottoBdnuorruSmuide
03BSN)"2/1-14x"4(mottoBdnuorruSmuide
L03BSN)"74x"4(mottoBdnuorruSegraL
L53BSN)"94x"4(mottoBdnuorruSegraL
NVKCStiKnoisrevnoCsaGlarutaN
PVKCStiKnoisrevnoCenaporP
C. APPLIANCE SYSTEM COMPONENTS
LINK - DV-3
LINK - DV4-3
#31692 #31693 #31694
30 - #31691 30 - #31691
#31692 #31693 #31694
30 - #31691 4 - #31695

30344 Rev C 4 02-02
NOVI30 AND NOVI35
D. DIMENSIONAL REQUIREMENTS
NOVi30 Dimensions
NOVi30 Minimum Fireplace Opening
WARNING!
Due to high temperatures, the appliance should be located out of traffic and away from
furniture and draperies.
NOVi35 Dimensions
NOVi35 Minimum Fireplace Opening
45
49

02-02 5 30344 Rev C
NOVI30 AND NOVI35
E. CLEARANCES TO APPLIANCE
Diagram A shows the minimum vertical and corresponding maximum horizontal dimensions of mantels or other
combustible projections.
When finishing the appliance, never obstruct or modify the air inlet/outlet openings in any manner.
While a hearth extension may be desirable for aesthetic reasons, it is not required for gas wall heaters per AN I or CAN/
CGA testing standards.
Provide adequate accessibility clearances for servicing and proper operation.
Diagram A - Clearances
F. VENTING
Tools and building supplies normally required
for installation:
Tools:
Pliers
Phillips screwdriver
Tape measure
Level
Electric Drill and Bits
quare
High Temperature Sealant Material:
ealants that will withstand high temperatures
(at least 350 degrees Fahrenheit): General
Electric RTV103 (Black) or equivalent; Rutland,
Inc. Fireplace Mortar #63 or equivalent; Dow
Corning 732 or equivalent.
WARNING!
Before starting, do the following:
1. Wear gloves and safety glasses for protection.
2. Keep hand tools in good condition. Sharpen cutting edges and make sure tool handles are secure.
3. Always maintain the minimum air space required to the enclosure to prevent fire.
4. Read the following installation instructions.
Note: Fireplace chimney systems must be cleaned
thoroughly and inspected before installation of the
appliance. If any portion of the chimney system shows
signs of structural or mechanical weaknesses such
as cracks, leaky joints, corroded or warped surfaces,
the faulty portion must be repaired or replaced.
1. VENT SYSTEM APPROVALS
Approved vent system terminations are labeled for
identification. Two separate 3 diameter listed flexible
aluminum or stainless steel gas vent is used for both
exhaust and for incoming combustion air and must
be run up through the existing fireplace chimney and
terminated vertically. Horizontal terminations MU T
NOT be done. Follow the vent manufacturers
installation instructions in conjunction with this
manual.
WARNING!
To prevent contact with
sagging or loose insula-
tion, the appliance must
not be installed against
vapor barriers or ex-
posed insulation.

30344 Rev C 6 02-02
NOVI30 AND NOVI35
2. CONNECTING THE VENT PIPE
The damper of the masonry or factory-built chimney
may have to be removed to allow installation of the
flexible vent pipe.
Before installing the 3 flex vent pipe, mark or label
the exhaust pipe at both ends.
Install the 3 flexible vent pipes down through the
chimney. Remove the starting collar bracket from the
top of the appliance. ee Figure 1. Attach and secure
the bottom ends of the flex pipes to the starting collar
bracket with three sheet metal screws on each collar.
Attach the labeled pipe to the exhaust collar on the
starter collar bracket.
Place the insert on the hearth and carefully slide it
into the fireplace. Be sure the gas line enters the
appliance through the gas access opening and that
the electrical cord is hanging out of the front of the
fireplace.
Figure 1 - emoving the Starter Collar
This fireplace has been altered to
accommodate an insert and
sho ld be inspected by a q alified
person prior to re se as a
conventional fireplace.
Note: The above label, located in the instruction pack-
age, must be affixed to the existing fireplace prior to
installation of the NOVi35 Direct Vent Gas-Fired Heater.
Position any excess flex vent pipe back up into the
chimney. lide the collar bracket under the lances.
ee Figure 2. Using the handle on the collar bracket,
pull the collar bracket and slide the appliance back.
ecure the collar bracket with the two screws removed
earlier.
Attach the pipe-to-cap adapter to the termination cap
and to the top of the flexible vent pipe and set the cap
in place at the top of the chimney. Attach the labeled
vent pipe to the labeled collar on the termination. ee
Figure 3.
Figures 4 and 5 show typical installations of the
appliance.
Note: To avoid down drafts and/or cold air
problems, it is recommended to seal off the area
between the termination cap and the top of the solid-
fuel chimney opening into which the vent cap has
been installed.
Figure 2
Reinstalling the Starter Collar
Figure 3 - Pipe-to-Cap Adapter
CAUTION:
For vertically terminated installations, metal tape at
each vent joint will help prevent excess air infiltration
and improve flame appearance. All joints above the
storm collar should be taped and/or sealed with
silicone caulk to prevent water penetration.

02-02 7 30344 Rev C
NOVI30 AND NOVI35
oof Pitch .......... H (Min.) Ft.
Flat to 6/12 .......................... 1.0
6/12 to 7/12 ...................... 1.25
Over 7/12 to 8/12 ............... 1.5
Over 8/12 to 9/12 ............... 2.0
Over 9/12 to 10/12 ............. 2.5
Over 10/12 to 11/12 ......... 3.25
Over 11/12 to 12/12 ........... 4.0
Over 12/12 to 14/12 ........... 5.0
Over 14/12 to 16/12 ........... 6.0
Over 16/12 to 18/12 ........... 7.0
Over 18/12 to 20/12 ........... 7.5
Over 20/12 to 21/12 ........... 8.0
Table 1
Minimum Termination Height
WARNING!
The exhaust pipe must only
be connected to the exhaust
starting collar of the
appliance and the center
collar of the termination cap
adapter.
The air inlet pipe must only be
connected to the air inlet
collar on the appliance and
either attached to the air inlet
collar of the termination cap
adapter or terminated in the
Figure 6 - Termination Height
Figure 5 - Air inlet
not connected to the adapter at the
top
Figure 4 - Typical Installation
Figure 7 - Multiple Chimney Terminations

30344 Rev C 8 02-02
NOVI30 AND NOVI35
1. HIGH ALTITUDE INSTALLATION
For U. . installation, appliances are tested and approved for elevations from 0-2000 feet. When installing this
appliance at an elevation above 2000 feet, National Fuel Gas Codes require a decrease of the input rating by
changing the existing burner orifice to a smaller size. Input should be reduced 4% for each 1000 feet above sea
level. Check with the local gas utility for proper orifice size identification. Orifices are available from your Heatilator
distributor.
For Canada, appliances are certified for elevations from 0-4500 feet. When installing this appliance at an elevation
between 0-4500 feet in Canada, the input rating does not need to be reduced. When installing this appliance at an
elevation above 4500 feet in Canada, check with local authorities.
2. GAS LINE CONNECTION
A gas line must be run into the existing woodburning fireplace, for either a factory built fireplace or masonry. It is
recommended that a 1/2 inside diameter black pipe be run into the fireplace through the left side. If the existing
fireplace already has gas run to it, but through the right side, it is recommended that the gas line be rerouted to the
left side. The gas supply line should be installed and connected to the shut-off valve by a qualified service person
in accordance with all prevailing building codes.
A 3/8 flare adapter (not supplied) is necessary to connect the flex line (supplied) to the black pipe. Turn gas shut-
off valve to the OFF position.
Check for leaks using a soap and water solution.
eal with high temperature silicone the point where the gas line enters the exiting fireplace to prevent cold air
infiltration.
3. GAS PRESSURE
On the standing pilot gas control valve, pressure tap is included on the front face of the valve for both inlet and
manifold pressures.
Table 2 shows optimum gas pressure information.
Consult your local gas company for assistance in determining the proper orifice for your altitude or refer to AN I
Z223.1-latest edition, Appendix F.
G. UTILITIES
Note: This appliance and its
manual shutoff valve must be dis-
connected from the gas supply pip-
ing system during any pressure
testing of that system at test pres-
sures in excess of 1/2 psi (3.5 kPa).
The appliance must be isolated
from the gas supply piping system
by closing its manual shutoff valve
during any pressure testing of the
gas supply piping system at test
pressures equal to or less than 1/
2 psi (3.5 kPa).
CAUTION:
The gas supply line should be purged of any trapped air prior to the first
firing of the appliance.
tresnIecalperiFderiF-saG53iVON/03iVON
)GN(erusserPylppuSsaGtelnI.c.w)xam("0.7-)nim("5.4
woL/iH)GN(erusserPdlofinamumitpO.c.w"7.1-"5.3
)PL(erusserPylppuSsaGtelnI.c.w)xam("0.41-)nim("0.11
woL/iH)PL(erusserPdlofinamumitpO.c.w"3.6-"0.01
woL/iH)GN(03iVON:etaRtupnI
woL/iH)GN(53iVON:etaRtupnI
000,02/000,03
000,42/000,53
woL/iH)PL(L03iVON:etaRtupnI
woL/iH)PL(L53iVON:etaRtupnI
000,42/000,03
000,72/000,33
)GN(03iVON:eziSecifirorenruB
)GN(53iVONeziSecifirOrenruB
mm96.2/"601.
mm29.2/"511.
)PL(L03iVON:eziSecifirOrenruB
)PL(L53iVON:eziSecifirOrenruB
mm06.1/"360.
mm77.1/"070.
Table 2 - Gas Information for Standing Pilot Appliances

02-02 9 30344 Rev C
NOVI30 AND NOVI35
Note: This appliance must be electrically wired
and grounded in accordance with local codes or, in
the absence of local codes, with National Electric
Code AN I/NFPA 70-latest edition. This appliance
can be used with a thermostat.
Note: This appliance DOES require a 110-120V AC sup-
ply for operation of the blower.
WARNING!
DO NOT connect 11 -12 V AC to the gas control
valve or control wiring system of this appliance.
A 110-120V AC outlet should be located close to the
lower right side of the appliance to allow the blower to
be plugged in.
Figure 7 - Fan Wiring Diagram
Figure 8 - Standing Pilot Ignition Wiring Diagram
WARNING!
Disconnect the electric
power before servicing.
If any of the original wire
supplied with the appli-
ance ust be replaced, it
ust be replaced with 105
rated wire.
4. WIRING
ee Figure 7 and 8 below.

30344 Rev C 10 02-02
NOVI30 AND NOVI35
WARNING!
Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved
with this appliance may result in property damage and/or personal injury.
H. APPLIANCE ENTRY
Remove the glass by pulling out three glass retainer latches. ee Figure 9. Lift the glass door assembly up and remove
from the bottom retainer. ee Figure 10.
Place the glass in a safe place until installation is complete.
Figure 9 - Glass etainer Latches Figure 10 - Glass emoval
I. SURROUND INSTALLATION
1. Assemble the surround top to the surround sides with the screws provided. See Figure 11. Assemble the brass
trim kit with the corner brackets (provided) and slide the trim around the surround. See Figure 12.
Figure 11 - Assembling the Surround Figure 12 - Assembling the Trim
Note: Remove the front face and glass door assemblies from the appliance
before beginning the surround installation.

02-02 11 30344 Rev C
NOVI30 AND NOVI35
2. Remove and retain the four attachment screws at the corners of the face of the appliance.
3. Disconnect the ON/OFF switch from the low voltage wire leads. Pull the wires through the surround and trim. Attach
the wires to the ON/OFF rocker switch. Push the rocker switch into the hole. ee Figures 13 and 14.
4. lide the surround against the face of the appliance, aligning the holes in the upper and lower, right and left corners
and secure the surround to the appliance with the attachment screws. ee Figure 15. If optional surround bottom
is used, go to tep 5. If surround bottom is not used, slide the appliance back until the surround is tight to the
fireplace. Route power cord away from the appliance.
5. Optional urround Bottom. Remove the surround bottom from the carton. Place hooks on the surround bottom
through the slots on the bottom of the surround side. ee Figure 16. lide the surround bottom to the left. lide the
surround back until the it is tight to the appliance. Route power cord away from the appliance.
6. Installing Upper Grille and Control Access Panel. To install the upper grille, place the upper slot on the bracket over
the upper screw. Rotate the grille downward. ee Figure 17.
To install the control access panel, place the stationary pin (located on the right hand side of the grille) into the
lower slot on the surround. Pulling back the spring hinge (located on the left hand side of the grille), slide the grille
until the spring hinge lines up with the lower slot on the surround. ee Figure 18. Let the spring hinge engage the
slot. Rotate the lower grille up and over the screw on the surround.
Figure 13
Attach ON/OFF ocker Switch
Wires
Figure 14
ON/OFF ocker Switch
Figure 15
Attaching Surround
Figure 16
Optional Surround Bottom
Figure 17
Installing the Upper Grille
Figure 18
Installing the Control Access
Panel

30344 Rev C 12 02-02
NOVI30 AND NOVI35
7. Optional Grille Brass Trim. To place the brass trim on the upper grille and control access panel, place the angled
side of the brass trim onto the louver first. From the center of the trim piece, press the bottom edge of the trim onto
the louver, moving out to each end. ee Figures 19 and 20.
Note: The brass trim is only to be located on the lower louver of the top grille and on the
top louver of the control access panel. ee Figure 21.
Figure 19
Putting Trim on Upper Grille
Figure 20
Putting Trim on Control Access
Panel
Figure 21
Brass Grille Trim Assembled
J. APPLIANCE PREPARATION
The logs are shipped in place. If you have any questions regarding the logs, please contact your local dealer or the
Heatilator Technical ervices Department.
1. PLACING THE LAVA ROCK AND VERMICULITE
Figure 22 shows the proper way to disperse the lava rock. It is not necessary to use the entire bag of lava rock.
Lightly sprinkle vermiculite on top of the lava rock to complete the ash bed. ee Figure 23.
2. PLACING THE ROCK WOOL
a. Tear the rock wool into pieces no larger than 1/2 diameter.
b. Lay the rock wool pieces on the top of the burner so that the flame can touch the rock wool and create the look
of glowing embers.
c. Be sure not to pack the rock wool against the gas ports of the burner. As with the lava rock, it is not necessary
to use the entire bag of rock wool. ee Figure 24.
Note: Placement of the rock wool and lava rock should be done with care and time, as
this will effect the look of the fire when burning.
Figure 22
Placing the Lava ock
Figure 23
Placing the Vermiculite
Figure 24
Placing the ock Wool

02-02 13 30344 Rev C
NOVI30 AND NOVI35

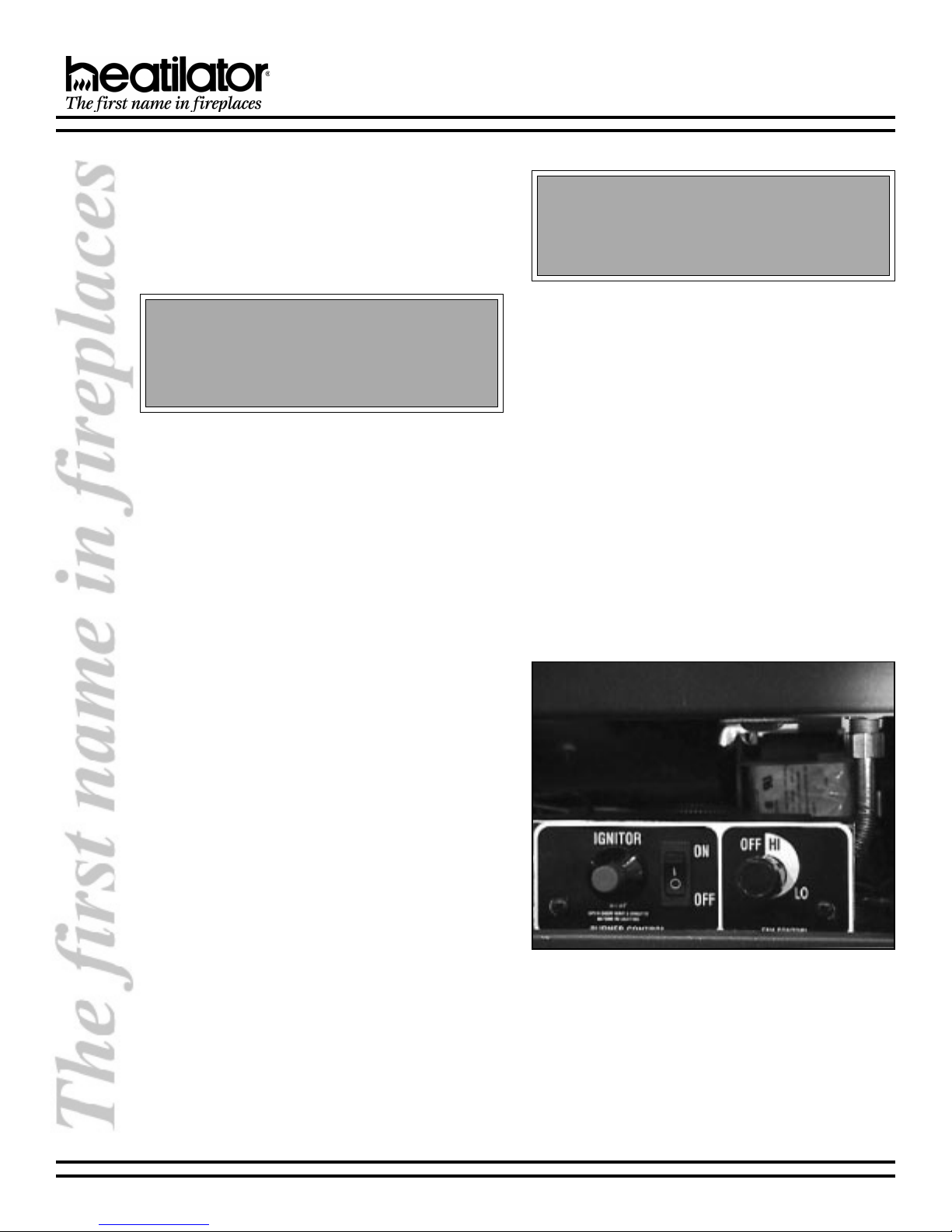

K. LIGHTING INSTRUCTIONS
WARNING!
If you do not follow these instructions exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.
1. This gas applia ce has a ma ual ig itio device that lights
the pilot. Whe lighti g the pilot, follow these i structio s
exactly.
2. STOP! Before readi g further, smell arou d the applia ce
area for gas. Be sure to smell ext to the floor because
some gas is heavier tha air a d will settle to the floor.
What to do if you smell gas:
 Do ot try to light the applia ce.
 Do ot touch a y electric switch; do ot use a y
telepho e i your buildi g.
 Immediately call your gas supplier from a eighbors
telepho e. Follow the i structio s of your utility.
 If you ca ot reach your utility, call the fire departme t.
3. If the pilot light a d bur er we t out duri g use, you must
take the glass off the applia ce a d wait to clear out a y
gas. Follow the light i structio s below.
4. Use o ly your ha d to push i or tur the gas co trol k ob to
light the pilot. Never use tools. If the k ob will ot push i or
tur by ha d, do ot try to repair it; call a qualified service
tech icia . Usi g a tool or attempti g repairs may result i a
fire or explosio .
5. Do ot use this applia ce if a y part has bee u der water.
Immediately call a qualified service tech icia to i spect the
applia ce a d to replace a y part of the co trol system a d
a y gas co trol that has bee u der water.
1. STOP! Read the safety i formatio above.
2. Tur off all electric power to the applia ce. If your applia ce
has a thermostat, set to lowest setti g.
3. Ope co trol access pa el.
4. Fi d the pilot. The pilot is i side the applia ce ext to the
mai bur er.
1. Tur rocker switch to OFF or the wall thermostat to lowest
setti g if your applia ce is so equipped.
2. Tur off all electric power to the applia ce if service is to be
performed.
3. Ope the co trol access pa el.
4. Tur the ma ual shutoff valve clockwise to OFF.
5. Close the co trol access pa el.
5. If the gas co trol k ob is at the OFF positio , go to step 7.
If the gas co trol k ob is at the ON positio , got to step 6.
FOR YOUR SAFETY READ BEFORE LIGHTING
LIGHTING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
6. If the pilot light we t out duri g ormal use with the gas
co trol k ob at the ON positio , tur the gas co trol k ob
to the OFF positio . Remove the fixed glass pa el. Wait
te (10) mi utes to clear out a y gas.
7. Smell for gas, i cludi g ear the floor. If you do t smell gas,
go to the ext step. If you smell gas, wait a other five (5)
mi utes or u til the gas odor is o lo ger prese t before
co ti ui g. If the odor of gas does ot disappear after fiftee
(15) mi utes, STOP! Follow B i the safety i formatio
above.
8. Replace glass pa el if it has bee removed.
9. Tur gas co trol k ob cou terclockwise to the PILOT
positio .
10. Push the gas co trol k ob i all the way a d hold. At the
same time, push i the red ig itio butto repeatedly u til the
pilot lights. Never hold the gas co trol k ob i for more tha
te (10) seco ds if the pilot does ot light. O ce the pilot
lights, co ti ue to hold the gas co trol k ob i for 15 seco ds.
Release the gas co trol k ob a d it will pop back up. If pilot
does ot remai lit, repeat steps 6 through 9.
If gas co trol k ob does ot pop back up whe released,
tur the k ob to OFF a d call your service tech icia or
gas supplier.
If the pilot will ot stay o after two attempts, tur the gas
co trol k ob to OFF a d call your service tech icia or
gas supplier.
11. Tur gas co trol k ob cou terclockwise to the ON positio .
The k ob ca be tur ed to the ON positio o ly if it is
popped out.
12. Close the co trol access pa el.
13. Tur o electrical power to the applia ce. If equipped with a
thermostat, set to the desired setti g.

30344 Rev C 14 02-02
NOVI30 AND NOVI35
1. LIGHTING THE APPLIANCE FOR THE
FIRST TIME
Upon completing the gas line connection, a small
amount of air will be in the lines. When first lighting
the pilot light, it will take a few minutes for the lines to
purge themselves of this air. Once the purging is
complete, the pilot and burner will light and operate
as indicated in the instruction manual.
ubsequent lightings of the appliance will not require
such purging.
When lit for the first time, the appliance will emit a
slight odor for an hour or two. This is due to paint and
lubricants used in the manufacturing process.
Additionally, for the first few minutes after each
lighting, vapor may condense and fog the glass and
the flames may be blue. After a few minutes, this
moisture will disappear and within 15-3 minutes
the flames should become yellow.
CAUTION:
During the initial purging and subsequent lightings,
NEVER allow the gas valve control knob to remain
depressed in the PILOT position without pushing
the red ignitor button at least once every second.
2. AIR SHUTTER ADJUSTMENT
The air shutter adjusts the amount of air that mixes
with the gas as it enters the burner pan. To adjust the
air shutter, locate the wing nut underneath the
appliance bottom (see Figure 25). To close the air
shutter, turn the wing nut clockwise. To open the air
shutter, turn the wing nut counterclockwise. The air
shutter is used to fine-tune the flame as necessary
for differences in altitude and vent configuration. The
air shutter is shipped fully closed with natural gas
appliances and fully open with L.P. appliances.
Allow the appliance to operate about 15-20 minutes.
This will give the flame time to reach its height and
color before making adjustments to the air shutter. As
the air shutter is closed, the flame should get taller
and darker.
The appliance may produce a noise, caused from
metal expansion and contraction as it heats up and
cools down. This noise is similar to one that a furnace
or heat duct may produce and does not affect the
operation or longevity of the appliance.
CAUTION:
The appliance bottom can get very hot during air
shutter adjustment procedures. Allow the appliance
to cool before attempting to adjust the air shutter.
Figure 25
Air Shutter Wing Nut

02-02 15 30344 Rev C
NOVI30 AND NOVI35
L. SEASONAL CHECKLIST
WARNING!
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to
avoid burns or clothing ignition. Young children should be carefully supervised when they are in the same room
as the appliance.
CAUTION:
Any safety screen or guard removed for servicing an appliance must be replaced prior to operating this appliance.
Clothing or other flammable material should not be placed on or near the appliance.
CAUTION:
Installation and repair should be done by a qualified service person. The appliance should be inspected before
use and at least annually by a qualified service person. More frequent cleaning may be required due to excessive
lint from carpeting, bedding material, etc. It is imperative that control compartments, burners and circulating air
passageways of the appliance be kept clean.
STANDING PILOT OPERATION
Hearth Technologies Inc. recommends you leave the pilot
on year round.
If you decide to shut down the appliance for a long period
of time:
1. Turn all wall switches/thermostats/remote controls
to OFF
2. Turn pilot knob on the valve to OFF.
3. Turn the gas line to CLO ED.
Lighting the Appliance During Regular Use
Turn all wall switches, thermostats, remote controls
to ON.
Shutdown During Regular Use
Turn the wall switch to OFF.
M. FUEL CONVERSION
Do not burn wood or other material in this appliance.
Natural or propane gas conversions necessary to meet the application need to be made by a qualified technician using
Hearth Technologies Inc. specified and approved parts.
In the event your appliance must be converted to burn propane, you must the CKVP conversion kit. To convert to burn
natural gas, you must use the CKVN conversion kit.
WARNING!
Keep the area near the appliance clear and free from
combustible materials, gasoline and other
flammable vapors and liquids.
WARNING!
Do not use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of
the control system and any gas control which has
been under water.
Before operating this appliance have a qualified
technician:
1. Review proper placement of logs, rock wool and
vermiculite.
2. Check wiring.
3. Check the air shutter adjustment.
4. Ensure there are no gas leaks.
5. Ensure the glass is sealed and in proper position.
6. Ensure the flow of combustion and ventilation air is
not obstructed.

30344 Rev C 16 02-02
NOVI30 AND NOVI35
N. START-UP ISSUES
melborPesuaCnoitcevitcerroC
.1tonlliwtoliP
.etingi
.At'nsibonklortnocsaG
.TOLIPotdenrut
gnithgilehteeS.evlavehtnonihsupdnaTOLIPotbonknruT
.51egapnosnoitcurtsni
.Bt'nsibonklortnocsaG
.nidehsup
.evlavffotuhslaunamehtkcehC
.C.nodenruttonsisaG.evlavffotuhslaunamehtkcehC
.D.gnikrowt'nsirotingI .rotingiehtdnanottubozeiPehtneewtebgniriwkcehC
.edortceleehtnocimarecdekcarcrofkcehC
ehT.doohtolipehtdnapitrotingiehtfognicapsehtkcehC
fomottobehtot"8/1yletamixorppagnidnetxeebdluohskraps
reporpehtevigotyrassecensapagehttsujdA.doohtolipeht
.kraps
.2tonlliwtoliP
.tilyats
.AevitcefeD
.elpuocomreht
.91egap,BerugiFeeS.emalftolipehtkcehC
sielpuocomrehtehteruseB.yrassecenfiemalfehttsujdA
.emalftolipehthtiwtcatnocniyltnatsnoc
.evlavehtotdehcattasienilelpuocomrehtehteruseB
.3renrubnia
.thgiltonlliw
.A.tuoenogsahtoliP.51egaPeeS.tolipehtthgileR
.Bt'nsibonklortnocsaG
.NOotdenrut
.NOotevlavehtnruT
.ChctiwsFFO/NO.NOothctiwsehtnruT
.hctiwsdnaevlavehttasnoitcennocgniriwehtkcehC
.DoottessitatsomrehT
sirohgih
.detcennocsid
.erutarepmetrewolaottatsomrehtehtteS
.E.elipomrehtdaB.margaidgniriwdnasnoitcennocgniriwehtkcehC
ehtotputegotetunimatuobasekat(hguonepudetaehtoN
.)erutarepmrettcerroc
.4sgofssalG
.pu
.AsagfotluserlamronA
noitsubmoc
,pudemrawsahecnailppaehtretfA.yrassecensinoitcaoN
.raelclliwssalgeht
.5.semalfeulB.AgnirudtluserlamronA
fosetunim02tsrifeht
.gninrub
eromnrutotnigeblliwsemalfehT.yrassecensinoitcaoN
.gninrubfosetunim02tuobaretfahsiwolley
.6ootsemalF
.trohs
.A.wolnoevlaV.IHotdaehelbairavehtnruT
.B.ediwootrettuhsriA tiesolcotdednemmocertonsiti;rettuhsriaehtnwodesolC
.yrassecenyletulosbasitisselnu
.7.stoosssalG.AtnemegnipmiemalF
.sgolno
ylevissecxetonseodemalfehttahtostesgolehttsujdA
.tinoegnipmi

02-02 17 30344 Rev C
NOVI30 AND NOVI35
O. MAINTENANCE INSTRUCTIONS
1. CLEANING THE BURNER AND THE
CONTROL COMPARTMENT
Keep the burner and control compartment clean by
brushing and vacuuming at least once a year. Always
turn off the wall switch (or remote control) and gas
valve before cleaning.
2. CHECKING THE VENT SYSTEM
The appliance and venting system should be
inspected before use, and at least annually, by a
qualified field service person, to ensure that the flow
of combustion and ventilation air is not obstructed.
Figure 27 - Standing Pilot
WARNING!
Do not use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of
the control system and any gas control which has
been under water.
3. CHECKING FLAME PATTERNS
Check the flame pattern of the burner periodically,
making sure the flames are steady, not lifting or
floating. The flame color should be blue with yellow
tips. ee Figure 26
The thermopile and thermocouple (standing pilot) tips
should be covered with flame. ee Figure 27.
If the vent configuration is installed incorrectly, the vent
may cause the flames inside the appliance to lift or
ghost - a dangerous situation. Inspect the flames
after installation to ensure proper performance. ee
Figure 26. If the vent configuration is correct, yet the
flames are lifting or ghosting, shut off the gas to the
appliance and contact the dealer.
Figure 28 - Flame Patterns
Note: If the air shutter is open all the way and the
flames remain sooty, shut off the gas to the appliance
and contact a qualified gas service technician.
Note: The look of the flames and embers may dif-
fer based on the type of fuel and venting assembly
that is used.
To prevent the possibility of soot buildup, we have
provided your appliance with an adjustable air shutter.
Your air shutter is set at 1/4 open for natural gas the
fully open for propane. In the event soot is
accumulating in your appliance, the air shutter should
be opened farther.

30344 Rev C 18 02-02
NOVI30 AND NOVI35
P. CLEANING THE GLASS
It is recommended to wear gloves while handling or removing the glass.
Do not remove the glass when hot!
To remove the door frame assembly for cleaning, see Figure 28.
To clean the glass, use a nonabrasive, mild cleaning solution. (For example, a glass cleaner or for stubborn film, an
oven cleaner.) imply apply an adequate amount to the glass and wipe off with a damp cloth. Please be sure all cleaner
is thoroughly rinsed from the glass.
Never operate this appliance without the glass properly secured in place or if the glass is broken.
In the event of glass breakage, follow glass removal instructions. This will allow the removal of all glass fragments and
sheet metal edge protection strips. Vacuum all remaining glass pieces with a shop vac. DO NOT VACUUM IF PIECES ARE
HOT. Replace the glass only with Heatilator glass ordered direct or through your local distributor. Never use substitute
material. Only ceramic glass may be used on this appliance.
CAUTION:
Handle the glass with care to avoid
striking, scratching or slamming shut.
NEVER clean glass when it is hot. Keep
children and pets a safe distance away.
A - emoving the Upper Grille B - emoving the Control
Access Panel
C - Latch Close-up
D - emoving the Glass to be Cleaned
Figure 28 - Glass Cleaning
CAUTION:
Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and
dangerous operation. Verify proper operation after servicing.

02-02 19 30344 Rev C
NOVI30 AND NOVI35
Q. OPTIONAL COMPONENTS
Surrounds:
NS3 M NS3 L
NS35M NS35L
(Shown Assembled with Trim)
SCKVN
Adjustable Flame Head
(Natural Gas Standing Pilot)
SCKVP
Adjustable Flame Head
(Propane Gas Standing Pilot)
RC-SMART-HTL
Remote Control
(Standing Pilot)
RC-BATT-HTL
Battery-operated Remote
Control (Standing Pilot)
SMART-STAT-HTL
Remote Control with
Thermostat Control
SMART-BATT-HTL
Battery-operated Remote
Control with Thermostat
Control
R. REPLACEMENT PARTS
Replacement parts are available from your distributor/dealer.
#METI#TRPNOITPIRCSED
L60013ylbmessAetarG/goL03iVON
90203ylbmessAetarG/goL53iVON
L122172thgiR-goLtnorF
L232172tfeL-goLtnorF
L354303goLkcaB
L452172thgiR-goLpoT
L572172tfeL-goLpoT
L621172retneC-goLtnorF
L710013ylbmessAetarG03iVON
59103ylbmessAetarG53iVON
5L 3L 4L
1L
2L
7L 6L
Surround Bottoms:
NSB3 M NSB3 L
NSB35M NSB35L

30344 Rev C 20 02-02
NOVI30 AND NOVI35
#METI#TRPNOITPIRCSED
b161431rotingInottuBhsuP
b287492saGlarutaN-ylbmessAtoliP
97492saGenaporP-ylbmessAtoliP
b354271eniLsaGxelFSS
b414691"8/3-"2/1-gnittiFssarB
b579651)eniLsaG(evlaV"FFO/NO"
b646561rotcennoCevlaV
b705892rotcennoCevlaV
b806803wercSHPPmm8xmm5
b948492saGlarutaN-evlaV
58492saGenaporP-evlaV
b0142571woblEssarB
b1130262ylbmessAeriW
b2189352hctiwSrekcoR"FFO/NO"
b3120752eniLxelF
b4175462daehkluB
b5173891.G.N-ecifirO.mm96.2/"601.
63271.P.L-ecifirOmm06.1/"360.
#METI#TRPNOITPIRCSED
190272ylbmessAetalPnoitanimreT
299903naPhtraeH
379903yrotcarfeR
419903renruB
533382ylbmessAemarFrooD
80872ylbmessAssalG
89872emarFrooD
659872)nwohston(ylbmessAhctaLssalG
711013)03SN(ediStfeL-dnuorruS
21013)L03SN(ediStfeL-dnuorruS
851013)03SN(poT-dnuorruS
61013)L03SN(poT-dnuorruS
931013)03SN(ediSthgiR-dnuorruS
41013)L03SN(ediSthgiR-dnuorruS
0139962)03SN(ediStfeL-mirT
49962)L03SN(ediStfeL-mirT
1177191)03SN(poT-mirT
97191L03SN(poT-mirT
2169962)03SN(ediSthgiR-mirT
79962)L03SN(ediSthgiR-mirT
3122013ylbmessAellirGreppU
4132013ylbmessAellirGrewoL
5191013)03BSN(.yssAdnuorruSmottoB
02013)L03BSN(.yssAdnuorruSmottoB
6182013)nwohston(ellirGreppU-mirTssarB
72013)nwohston(ellirGrewoL-mirTssarB
7179072)nwohston(ylbmessAnaF
8131602)nwohston(lortnoCdeepSelbairaV
9143272)nwohston(ylbmessAtatsomrehT
R. REPLACEMENT PARTS CONTINUED - NOVi30
11
1
8
13
9
12
15
14
4
2
3
5
7
1
