Heatilator I60 User manual

1Heatilator•I60/I80•4013-260InstallersManual•RevG•10/07/13
Installationandserviceofthisreplaceshouldbe
performedbyqualiedpersonnel.Hearth&Home
TechnologiesrecommendsNFIcertiedprofes-
sionals,ortechnicianssupervisedbyan
NFIcertiedprofessional.
WOODBURNING FIREPLACE
FireRisk.
WARNING
Forusewithsolidwoodfuelonly.
Otherfuelsmayoverreandgenerate
poisonousgases(i.e.carbonmonoxide).
Model(s):
Installation Manual
Installation and Fireplace Setup
WARNING
HOT SURFACES!
Glassandothersurfacesarehotduring
operationANDcooldown.
Hot glass will cause burns.
• DO NOTtouchglassuntilitiscooled
• NEVERallowchildrentotouchglass
• Keepchildrenaway
• CAREFULLY SUPERVISE children in same room as
replace.
• Alertchildrenandadultstohazardsofhightemperatures.
Hightemperaturesmayigniteclothingorotherammable
materials.
• Keep clothing, furniture, draperies and other ammable
materialsaway.
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
I60
I80
NOTICE: DO NOT discard this manual!
• DO NOTstoreorusegasolineorotheram-
mablevaporsandliquidsinthevicinityofthis
oranyotherappliance.
• DO NOToverre. Overringwillvoidyour
warranty.
• Complywithallminimumclearancestocom-
bustiblesasspecied.Failuretocomplymay
causehousere.
WARNING: If the information in these
instructionsisnotfollowedexactly,are
or explosion may result causing property
damage, personal injury, or death.

2Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
Safety Alert Key:
• DANGER! Indicatesahazardoussituationwhich,ifnotavoidedwillresultindeathorseriousinjury.
• WARNING!Indicatesahazardoussituationwhich,ifnotavoidedcouldresultindeathorseriousinjury.
• CAUTION! Indicatesahazardoussituationwhich,ifnotavoided,couldresultinminorormoderateinjury.
• NOTICE:Indicatespracticeswhichmaycausedamagetothereplaceortoproperty.
Table of Contents
1 ProductSpecic&ImportantSafetyInformation
A.FireplaceCertication 4
B.Non-CombustibleMaterials 4
C.CombustibleMaterials 4
2 Getting Started
A.TypicalFireplaceSystem 5
B.DesignandInstallationConsiderations 6
1.SelectingFireplaceLocations 6
2.LocatingFireplace&Chimney 7
C.ToolsandSuppliesNeeded 8
D.InspectFireplaceandComponents 8
E.FireplaceSystemRequirements 8
3 Framing and Clearances
A.FireplaceDimensions 9
B.Clearances 10
MinimumClearancestoCombustibles 10
C.ConstructtheChase 11
D.UnpacktheFireplace(I60only) 12
E.UnpacktheFireplace(I80only) 12
F. FrametheFireplace 13
G.SecureandLeveltheFireplace 14
H.ProtectiveMetalHearthStrips 14
I. OutsideAirKit 15
4 Chimney and Termination Requirements
A.ChimneyRequirements 16
B.Offsets/Returns 17
C.TerminationRequirements 18
5 Chimney Installation
A.TypicalChimneySystem 19
B.AssembleChimneySections 20
C.InstallChimneyAirKit 20
D.SecureOffset/Return 21
E.InstallCeilingFirestops 21
F. InstallAtticInsulationShield 22
G.RoofPenetration 23
H.InstallChase/ChaseTop 23
I. TerminationCapRequirements 24
J. InstallTerminationCap 24
6 Shrouds
A.RadiationShield 26
B.FieldConstructedShrouds 26
1.OpenTopShroud 26
2.MailboxStyleShroud 27
3.RoofedStyleShroud 27
7 Finishing
A.FinishingMaterial 28
B.HearthExtension,BuildingandFinishing 29
1.FireplaceInstalledFlushontheFloor
 andHearthExtensionRaisedtoBottom
 ofFireboxOpening 30
2.RaisedHearthExtensionandRaisedFireplace 31
3.FireplaceOpeningandHearthExtensionFlush
 withtheFloor 32
C.Non-CombustibleSealantMaterial 32
D.Sidewalls/Surrounds 33
E.MantelandWallProjections 34
8 Fireplace Setup
A.GasLog/LighterProvision 35
B.WoodBurningInserts 35
C.InstalltheRefractory(I80only) 36
9 Reference Materials
A.ChimneyComponents 37
B.OptionalComponents 40
►

3
Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
Customer:
Lot/Address
Model (circle one): I60 I80
YES IF NO, WHY?
Protectivehearthstripsinstalledpermanualrequirements.(Pg.14)
Outsideairkitinstalled.(Pg.15)
Atticinsulationshieldinstalled.
Shroudisinstalledproperlyperinstructions.
WARNING! Risk of Fire or Explosion! Failure to install fireplace acording to these instructions can lead to a fire or
explosion.
Verifiedthatthechaseisinsulatedandsealed.(Pg.11)
Verifiedclearancestocombustibles.(Pg.10)
Fireplaceisleveledandsecured.(Pg.14)
Hearthextensionsize/heightdecided.(Pg.29)
Chimneyconfigurationcomplieswithdiagrams.
Chimneyinstalled,lockedandsecuredinplacewithproperclearance.
Chimneyairkitinstalled.
Firestopsinstalled.
ATTENTION INSTALLER:
Follow this Standard Work Checklist
Thisstandardworkchecklististobeusedbytheinstallerinconjuctionwith,notinsteadof,theinstructionscontainedinthisinstallation
manual.
Date Installed:
Location of Fireplace:
Installer:
Dealer/Distributor Phone #
Serial #:
Roofflashinginstalled.
Terminationinstalled.
Fireplace Install
ChimneySection4&5(Pg.16)
Shrouds Section 6 (Pg. 26)
Fi i hi
S ti 7 (P 28)
Hearthextensioninstalledpermanualrequirements.
Commentscommunicatedtopartyresponsible
4013-262•RevB•3-12-13
__________________________by______________________on_________
(Builder/Gen.Contractor)(Installer)(Date)
Comments:Furtherdescriptionoftheissues,whoisresponsible(Installer/Builder/OtherTrades,etc.)andcorrectiveactionneeded:
Manualbagandallofitscontentsareremovedfromthefireplaceandgiventotheparty
responsibleforuseandoperation.
•Thatthischecklistremainvisibleatalltimesonthefireplaceuntiltheinstallationiscomplete.
•Photographingtheinstallationandcopyingthischecklistforyourfile.
Combustiblematerialsnotinstalledinnon-combustibleareas.
Hearth&HomeTechnologiesrecommendsthefollowing:
Finishing Section 7 (Pg. 28)
Fireplace Setup Section 8 (Pg. 35)
Verifiedallclearancesmeetinstallationmanualrequirements.
Mantelsandwallprojectionscomplywithinstallationmanualrequirements.
Allpackagingandprotectivematerialsremoved.
Optionaldoorsproperlyinstalled.
Moldedbrickpanelsinstalledcorrectly.
Grateisproperlyinstalled.
Firescreeninstalledproperly.

4Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
WARNING! Risk of Fire! Hearth & Home Technologies
disclaims any responsibility for, and the warranty and
agency listing will be voided by the following actions.
DO NOT:
• installoroperatedamagedreplace
• modifyreplace
• install other than as instructed by Hearth & Home
Technologies
• operate the fireplace without fully assembling all
components
• overre
• installunventedgaslogset
• installanycomponentnotapprovedbyHearth&Home
Technologies
• installpartsorcomponentsnotListedorapproved
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualied
installer, service agency or your dealer.
B. Non-Combustible Materials
• Materialswhich willnot igniteand burn,composed of
anycombinationofthefollowing:
- Steel - Iron
- Brick - Tile
- Concrete - Slate
- Glass - Plasters
• MaterialsreportedaspassingASTM E 136, Standard
Test Method for Behavior of Metals, in a Vertical Tube
Furnace at 750° C
C. Combustible Materials
• Materialsmadeoforsurfacedwithanyofthefollowing
materials:
- Wood - Compressedpaper
- Plantbers - Plastic
- Plywood/OSB - Sheetrock(drywall)
• Anymaterialthatcanigniteandburn;ameproofedor
not,plasteredorun-plastered
1 ProductSpecic&ImportantSafetyInformation
A.FireplaceCertication
ThisreplacemaybeinstalledinsleepingroomsEX-
CEPTinmanufacturedhomes.Ifinstalledwithagaslog
set,provisionsfortheNationalFuelGasCodemustbe
met.
Thisreplacehasbeentestedandlistedforusewith
theoptionalcomponentsspeciedinthismanual.These
optionalcomponentsmaybepurchasedseparatelyand
installedatalaterdate.Anoutsideairkit,gasinsert,gas
logsetorgaslog-lightershouldbeinstalledatthetimeof
replaceinstallation.
HeatilatorisaregisteredtrademarkofHearth&Home
Technologies.
Thisreplacesystemhasbeentestedandlistedinaccor-
dancewithUL127andULC-S610standardsbyUnder-
writersLaboratoriesInc.forinstallationandoperationin
theUnitedStatesandCanada.

5
Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
2 Getting Started
A. Typical Fireplace System
Figure 2.1 Typical Fireplace System
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
))
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
Non-combustible
roof flashing maintains
minimum clearance
around chimney
Additional lateral
support for chimney
above roof (or enclosed
in chase) if needed
Ceiling firestop
on floor of attic
Support straps
on rafter support
chimney
Termination cap
Chimney penetrates roof
preferably without affecting
roof rafters
Offset & Return (with hanger straps)
Framing headed off
in ceiling joists
Enclosed space above
and around fireplace
Mantel and surround
Decorative facing
and trim
Hearth extension
Factory-built fireplace
Protective metal
hearth strip(s)
Outside
combustion air
Combustible framing/header
on top of V-shaped standoffs
Chimney system
Attic insulation shield
must be used here to keep
insulation away from chimney
if attic is insulated
Storm Collar
Chimney Air Kit
Required in
Canada. Outlet
must be no
less than 4 ft.
(1.22 m) off
ground level.

6Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
F
D
E
A
In an exterior
chase or projecting
into a garage
Across a
corner
As a room
divider
Along a wall
G
B A
G
G
B
A
48 in.
(1219 mm)
min.
H
A
H
Note: I60 - 1 in. (25 mm)
I80 - 1 1/2 in. (38 mm)
minimum distance from sides
& back of fireplace to
combustible materials.
Both - 1/2 in. (13 mm)
minimum at nailing flanges.
C
H
B*
1/2 in. (13 mm)
all configurations
*8 in. (203 mm) extra space
included for outside air
connection. If outside air duct has
no bend, this dimension may be
reduced as long as minimum
clearances are met.
A B C D E F G H
inches 45 1/2 53 1/2 85 42 1/2 19 3/8 60 1/8 28
mm 1156 1359 2159 1080 492 1527 711
inches
52
59 1/2 92 3/4 46 3/8 21 1/2 65 5/8 28 1/2
mm 1308 1511 2356 1178 546 1667 724
Model
I60
I80
24 in. (610 mm)
Minimum from FP opening to an
y
perpendicular wall.
51 1/2
Figure 2.2 Fireplace Locations
NOTICE:
• Illustrationsandphotosreecttypicalinstallationsand
are FORDESIGNPURPOSESONLY.
• Illustrations/diagramsarenotdrawntoscale.
• Actualinstallation/appearancemayvaryduetoindividual
design preference.
• Hearth&HomeTechnologiesreservestherighttoalter
its products.
NOTICE: In addition to these framing dimensions, also
reference the following section:
• Clearances (Section 3).
NOTICE:
I60-Aminimum1in.airclearanceattheback
andaminimum1in.airclearancetothesidesof
thereplaceassemblymustbemaintained.
I80-Aminimum11/2in.airclearanceattheback
andaminimum11/2in.airclearancetothesides
ofthereplaceassemblymustbemaintained
Chimneysectionsatanylevelrequirea2in.mini-
mum air space clearance between the framing
and chimney sections.
B. Design and Installation Considerations
NOTICE: Checkbuildingcodespriortoinstallation.
• InstallationMUSTcomplywithlocal,regional,stateand
nationalcodesandregulations.
• Consultinsurancecarrier,localbuildinginspector,re
ofcialsorauthoritieshavingjurisdictionoverrestrictions,
installationinspectionandpermits.
• Before installing,determinethefollowing:
- Wherethereplaceistobeinstalled.
- Theventsystemcongurationtobeused.
- Gassupplypiping.
- Electricalwiring.
- Framingandnishingdetails.
- Whetheroptionalaccessories-devicessuchasa
fan,wallswitchorremotecontrol-aredesired.
1. Selecting Fireplace Locations
Thisreplacemaybeusedasaroomdivider,installed
alongawall,acrossacornerorusedinanexteriorchase.
SeeFigure2.2.
Locatingthereplaceinabasement,nearfrequently
openeddoors,centralheatoutletsorreturns,orother
locationsofconsiderableairmovementcanaffectthe
performance.
Considerationshouldbegiventothesefactorsbefore
decidingonalocation.

7
Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
2. LocatingFireplace&Chimney
Locationofthereplaceandchimneywillaffectperfor-
mance.
• Installwithinthewarmairspaceenclosedbythebuilding
envelope.Thishelpstoproducemoredraft,especially
duringlightinganddie-downofthere.
• Installingthereplaceinabasementisnotrecommended.
• Penetratethehighest partoftheroof.Thisminimizes
theeffectsofwindloading.
• Locate termination cap away from trees, adjacent
structures,unevenrooflinesandotherobstructions.
• Minimizetheuseofchimneyoffsets.
• Considerthereplacelocationrelativetooorandceiling
andatticjoists.
• Takeintoconsiderationtheterminationrequirementsin
Sections4and5.
Marginal Location:
• Below peak
Location NOT recommended:
• Not the highest point of the roof
• Wind loading possible
Multi-level Roofs
Windward
Leeward
Recommended Location:
• Above peak
Recommended:
• Insulated exterior chase
in cooler climates
Recommended Location:
• Above peak
• Inside heated space
Location NOT recommended:
• Too close to tree
• Below adjacent structure
• Lower roof line
• Avoid outside wall
Marginal Location:
• Wind loading possible

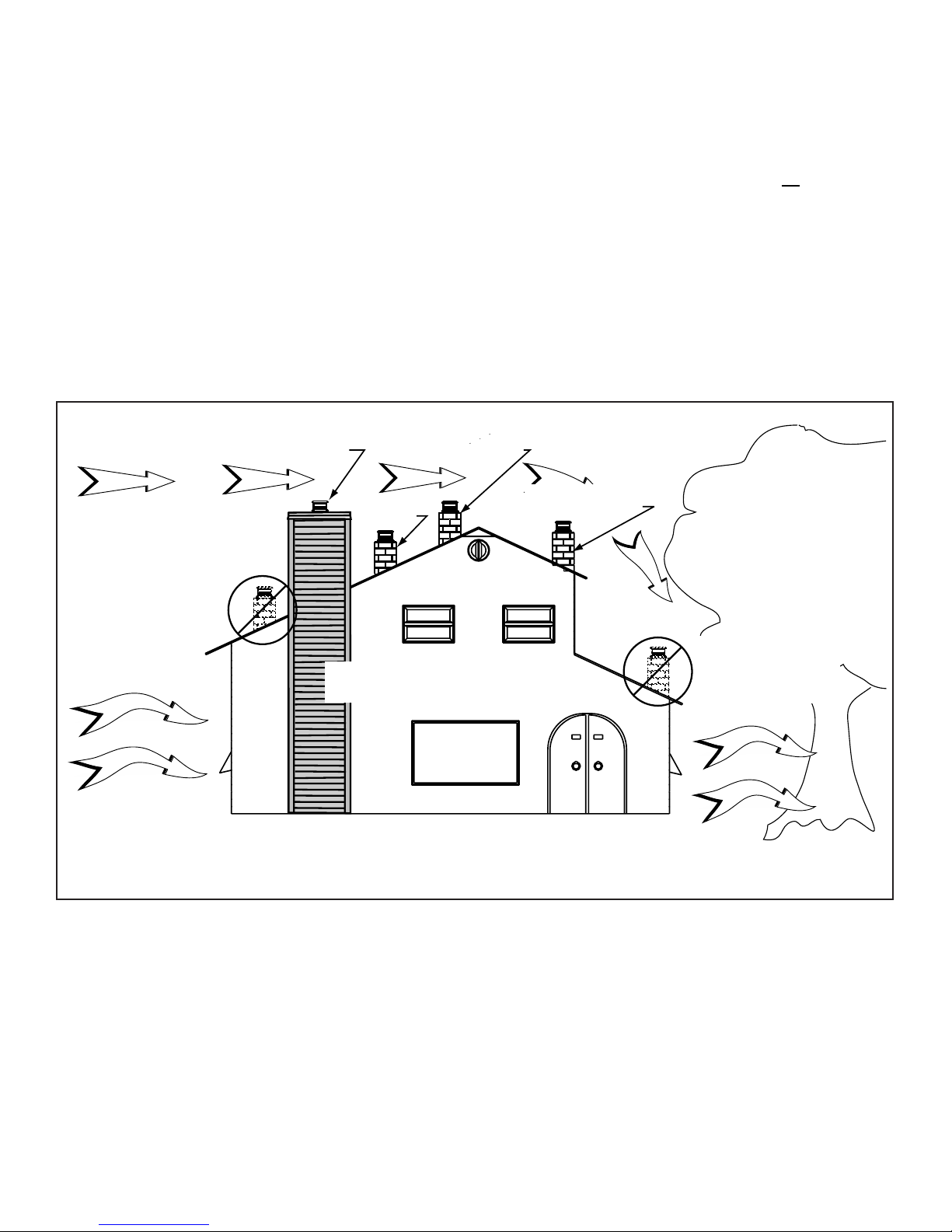

Figure 2.3 Recommended Chimney Locations
• Installtheoutsideairkitwiththeintakefacingprevailing
windsduringtheheatingseason.
• Ensure adequate outdoor air for all combustion
appliancesandexhaustequipment.
• Ensurefurnaceandairconditioningreturnventsarenot
locatedintheimmediatevicinityofthereplace.
• Avoidinstallingthereplaceneardoors,walkwaysor
smallisolatedspaces.
• Recessedlightingshouldbea“sealedcan”design.
• Attichatchesweatherstrippedorsealed.
• Atticmountedductworkandairhandlerjointsandseams
tapedorsealed.

8Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
C. Tools and Supplies Needed
Beforebeginningtheinstallationbesurethefollowing
toolsandbuildingsuppliesareavailable:
Reciprocatingsaw Framingmaterial
Pliers Non-combustiblesealant
Hammer Gloves
Phillipsscrewdriver Framingsquare
Flatbladescrewdriver Electricdrillandbits
Plumbline Safetyglasses
Level Tapemeasure
1/2-3/4in.length,#6or#8self-drillingscrews
Misc.screwsandnails
D. Inspect Fireplace and Components
WARNING! Risk of Fire and/or Explosion! Damaged
parts could impair safe operation. DO NOT install dam-
aged,incompleteorsubstitutecomponents.Keepre-
place dry.
• Inspectreplacefordamage.
• Vent system components and doors are shipped in
separatepackages.
• Reporttoyourdealeranypartsdamagedinshipment.
• Read all the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
andbenet.
E. Fireplace System Requirements
TheHeatilatorreplacesystemrequirementsconsistof
thefollowing:
• Fireplace
- Refractory(includedwithreplace)
- Firescreen(includedwithreplace)
- HearthExtension
• OutsideAirSystem
- AirInletHood(includedwithreplace)
- Flex(required,soldseparately)
• ChimneySystem
- Chimneyairkit(requiredinCanada,soldseparately)
- AtticInsulationShield(includedwithreplace)
- Chimneyterminationcap(required,soldseparately)
- SLA10adapter(requiredinCanada,soldseparately)
• Non-combustiblenishmaterial

9
Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
3 Framing and Clearances
A. Fireplace Dimensions
Gas
Knockout
8-5/8 in.
(219 mm)
9-5/8 in.
(244 mm)
9-1/2 in.
(241 mm)
Outside Air
9-1/4 in.
(235 mm)
Gas Knockout
18-1/2 in.
(470 mm)
8-5/8 in.
(219 mm)
49-5/8 in.
(1260 mm) 28-1/2 in.
(724 mm)
55-1/2 in.
(1410 mm)
(effective height)
49-1/8 in.
(1248 mm)
59-1/4 in.
(1505 mm)
7-5/8 in.
(194 mm) 36 in.
(914 mm)
28-5/8 in.
(727 mm)
14-3/8 in.
(365 mm)
44-1/2 in.
(1130 mm)
27-1/2 in.
(699 mm)
9-1/2 in.
(241 mm)
Figure 3.1 Fireplace Dimensions
28-1/2 in.
(724 mm)
55-1/2 in.
(1410 mm)
(Efective Height
49-1/8 in.
(1248 mm)
49-5/8 in.
(1260 mm)
59-1/4 in.
(1505 mm)
7-5/8 in.
(194 mm) 42 in.
(1067 mm)
Gas
Knockout
18-1/2 in.
(470 mm)
8-5/8 in.
(219 mm)
Gas
Knockout
8-5/8 in.
(219 mm)
9-5/8 in.
(244 mm)
9-1/2 in.
(241 mm)
9-1/4 in.
(235 mm)
Outside
Air
34-1/2 in.
(876 mm)
9-1/2 in.
(241 mm)
27-1/2 in.
(699 mm)
50-1/2 in.
(1283 mm)
I60
I80

10 Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
B. Clearances
WARNING! Risk of Fire!
You must comply with all minimum air space clearances
tocombustiblesasspeciedinFigure3.2.DO NOTpack
required air spaces with insulation or other materials.
Framing or nishing material used on the front of, or in
frontof,thereplacecloserthantheminimumslistedmust
be constucted entirely of non-combustible materials (i.e.,
steel studs, concrete board, etc.). Failure to comply may
causere.
Figure 3.2 Clearances to Combustible Materials
Minimum Clearances to Combustibles
WITHIN ENCLOSURE AREA
Fireplacetobackwall(I60) 1in.(25mm)
Fireplacetobackwall(I80) 11/2in.(38mm)
Fireplacetosidewall(I60) 1in.(25mm)
Fireplacetosidewall(I80) 11/2in.(38mm)
Topstandoffstoheader 0in.(0mm)
Dooropeningtosidewall 24in.(610mm)
MANTEL
Mantelminimumheight 481/8in.(1222mm)
Maximummanteldepth 12in.(305mm)
(insulation)
0 in. to level
of standoffs
Attic
Insulation
Shield
(ceiling)
(roof)
(attic)
(ceiling)
Ceiling Firestop
Offset/Return (secured
with hanger straps)
Storm Collar
Roof Flashing
Clearance to back &
sides of appliance
I60 - 1 in. (25 mm)
I80 - 1 1/2 in. (38 mm)
(except at nailing flanges
where it is 1/2 in. [13 mm])
Must have 2 in. (51 mm)
minimum clearance
to header
0 in.
to floor
2 in. (51 mm) min.
Shaded areas
represent
2 in. (51 mm) min.
air space clearance
required around pipe
Combustible Object
48 in.
1219 mm
Adapter attached here (not shown)
Note: Chimneyairkit and11-10
in./279-254 mm adapter are
not shown, but are required in
Canada.

11
Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
C. Construct the Chase
Achaseisaverticalboxlikestructurebuilttoenclosethe
replaceand/oritsventsystem.Verticalchimneysthat
runontheoutsideofabuildingmustbeinstalledinsidea
chase.
Incoldclimates,Hearth&HomeTechnologiesrecom-
mendsthatthechasebewellinsulatedusingbatttype
insulationbetweenthejoists.
Constructionofthechasemayvarywiththetypeofbuild-
ing.Theseinstructionsarenotsubstitutesfortherequire-
mentsoflocalbuildingcodes.LocalbuildingcodesMUST
bechecked.
Chasesshouldbeconstructedinthemannerofalloutside
wallsofthehometopreventcoldairdraftingproblems.
Thechaseshouldnotbreaktheoutsidebuildingenvelope
inanymanner.Allouterwallsneedtobeinsulated.
Buildingcodesrequirefalseceilingandceilingrestops/
atticshieldsateachoorofthechaseorevery10ft(3048
mm)ofclearspacetocontrolspreadofre.
Walls,ceiling,baseplateandcantileveroorattherst
levelofthechaseshouldbeinsulated(seeFigure3.3.)
Vaporandairinltrationbarriersshouldbeinstalledinthe
chaseasperregionalcodesfortherestofthehome.Ad-
ditionally,Hearth&HomeTechnologiesrecommendsthat
theinsidesurfacesbedrywalledandtaped(ortheuseof
anequivalentmethod)formaximumairtightness.
Holesandotheropeningsshouldbecaulkedwithhigh
temperaturecaulkorstuffedwithunfacedberglass
insulation.
Ceiling
Firestop
Metal Chase Top
Round Termination Cap
False Ceiling
Insulation in the
outside walls
of the chase
Attic
Insulation
Shield
Chimney
Ceiling
Firestop
Tabs
False Ceiling
False Ceiling
Insulation
Insulation
Storm Collar
Figure 3.3 Chase Assembly
1 2 3
All outside walls should be insulated.
Figure 3.4 Chase Constructions
1. Fireplaceandchimneyenclosedinanexteriorchase.
 2. Chimneyoffsetthroughexteriorwallandenclosedinchase.
 3. Chaseconstructedonroof.
• Thechaseisconstructedusingframingmaterialsmuch
thesameasthewallsinyourhome.Avarietyofsiding
materials may be used including brick, stone, veneer
brick,orstandardsidingmaterials.
• In constructing the chase, several factors must be
considered:
- Maintain a 2 in. (51 mm) air space around the
chimney.
- The chase top must be constructed of non-
combustiblematerial.
- Incoldclimates,arestopspacerandatticinsulation
shieldshouldbeinstalledinaninsulatedfalseceiling
at the 8 ft. (2438 mm) level above the replace
assembly.Thisreducesheatlossthroughthechase.
- Incold climates, the walls of the chase should be
insulatedtothelevelofthefalseceilingasshownin
Figure3.3.Thiswillhelpreduceheatlossfromthe
homearoundthereplace.
ThreeexamplesofchaseapplicationsareshowninFig-
ure3.4.
WARNING! You must install false ceilings and ceil-
ing restops at each oor of the chase or every 10 ft
(3.05 m) to control spread of re.
WARNING! Risk of Fire! DO NOT sealareabetweenre
stop opening and chimney pipe except where they enter
the attic or leave the warm air envelope of the home (use
600° F sealant).
WARNING! Risk of Fire! Youmustmaintainaminimum
2in.(51mm)airspaceclearancetoinsulationandother
materials surrounding the chimney system.
• Insulationandothermaterialsmustbermlysecuredto
prevent accidental contact with chimney system.
• Thechasemustbeproperlyblockedtopreventblown
insulation or other combustibles from entering and
makingcontactwithreplaceorchimney.
• Failuretoprevent contactbetweeninsulationorother
materials and chimney system may cause overheating
andre.

12 Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
D. Unpack the Fireplace (I60 only)
• I60isshippedwithrefractoryinplace.
• Removepackaging.
• Remove shipping brackets as shown in Figure 3.11.
Replacethescrewsremovedfromthereplace.
• RemoveI60frompalletandsetaside.
• SkiptoF.FrametheFireplace.
Figure 3.5 Unpacking Back Refractory
•Remove back refractory from outside of replace by
bendingtabs upand liftingrefractory out of brackets.
SeeFigure3.5.
E. Unpack the Fireplace (I80 only)
Figure 3.6 Bending Refractory Shipping Tabs
Back Down
• Bendtabsbackdownoutoftheway.SeeFigure3.6.Do
notremovescrewsorbracketsfromreplace.Ifbrackets
areremoved,llholesinoutershellwithscrews.
• Repeatthisprocesstoremovesiderefractories.
•Remove smoke shield by removing ve screws. See
Figure3.7.Smokeshieldislocatedattopofreplace
front.
• Remove screens by removing screw from the end of
eachscreenrod.SeeFigure3.8.
Figure 3.9 Shipping Spacers
Figure 3.8 Removing the Screen Rods
Front Face
Smoke Shield
Remove these screws.
Skip Skip
Figure 3.7 Removing Smoke Shield
•Remove hearth stone by removing three corrugated
shippingspacers(Figure3.9).Lifthearthstoneoutof
replace.SeeFigure3.10.
Figure 3.10 Lifting Out the Hearth Stone
Figure 3.11 Removing Shipping Brackets
•Removereplacefrompallet.
 Thereplaceisattachedtopalletwithtwobracketson
eachsideandrearofoutershell.SeeFigure3.11.
• Remove screws from bracket, pallet and fireplace.
Replacescrewsremovedfromreplace.
We recommendtwoinstallersforhearthstoneandrefrac-
toryinstallation!

13
Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
B
A
2 in. (51 mm)
min. air space
clearance
from chimney.
Header MUST NOT be notched!
C
C = extra space needed for outside air connection.
If outside air duct has no bend, this dimension may be
reduced as long as minimum clearances are met.
Model A B*
C
(4" duct)
in. 45 1/2 28 8
mm 1156 711 203
in. 51 1/2 28 1/2 8
mm 1308 724 203
I60
I80
Header will sit on
top of front stand
offs after fireplace
is installed.
Framing must be extended
straight up, all the way to the
ceiling.
* If interior of chase will be drywalled, add the thickness to
this measurement.
F. Frame the Fireplace
NOTICE: Hearth extension design must be determined
beforeinstallationofreplace.
Ifthereplaceisplacedontheoorthemaximumheight
ofanishedraisedhearthis7-5/8in.,ifyouwanta
higherraisedhearththereplacemustbeplacedona
platform.
Figure3.12showsatypicalframing(using2x4lumber)
ofthereplace,assumingcombustiblematerialsare
used.Allrequiredclearancestocombustiblesaroundthe
replacemustbeadheredto.SeeFigure3.2.Anyfram-
ingacrossthetopofthereplacemustbeabovethelevel
ofthetopstandoffs.(Norecessabovestandoffs.)
The nishedcavitydepthmustbenolessthan:
• I60-28in.(711mm)fromthenishedbackwalltothe
outsideoffrontwallframing.
• I80-281/2in.(724mm)fromthenishedbackwallto
theoutsideoffrontwallframing.
Framingmustextendstraightupallthewaytotheceiling.
DONOTinstallheaderuntilthereplaceisinposition.
WARNING! Risk of Fire! Youmustcomplywithall
minimum air space clearances to combustibles. DO NOT
packrequiredairspaceswithinsulationorothermateri-
als.
WARNING! Risk of Fire! Comply with all minimum clear-
ancesspecied.
• I60 - A minimum 1 in. (25 mm) air clearance must
be maintained at the back and sides of the replace
assembly.
• I80-Aminimum11/2in.(38mm)airclearancemust
be maintained at the back and sides of the replace
assembly.
• Chimneysectionsatanylevelrequirea2in.(51mm)
minimum air space clearance between the framing and
chimney section.
CAUTION! RiskofCuts/Abrasions.Wearprotectivegloves
and safety glasses during installation. Sheet metal edges
are sharp.
WARNING! Risk of Fire! Prevent contact with sagging,
loose insulation.
• DO NOT install against vapor barriers or exposed
insulation.
• Secureinsulationandvaporbarriers.
• Provideminimumairspaceclearancesatthesidesand
backofthereplaceassembly.
Figure 3.12 Framing the Fireplace
1/2 in.
(13 mm)
Fireplace must be set out
1/2 in. (13 mm) in front of
the face of the framing
material.

14 Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
Protective metal strips are placed 2 in. (51 mm) under the
front of the fireplace and must extend beyond the front
and sides of fireplace opening by 2 in. (51 mm).
1 in. (25 mm)
overlap
Raised Platform
Floor
2 in.
(51 mm)
1 in. (25 mm) min.
overlap
2 in.
(51 mm)
Top piece must overlap
bottom piece
Figure 3.14 Protect the Front of an Elevated Platform

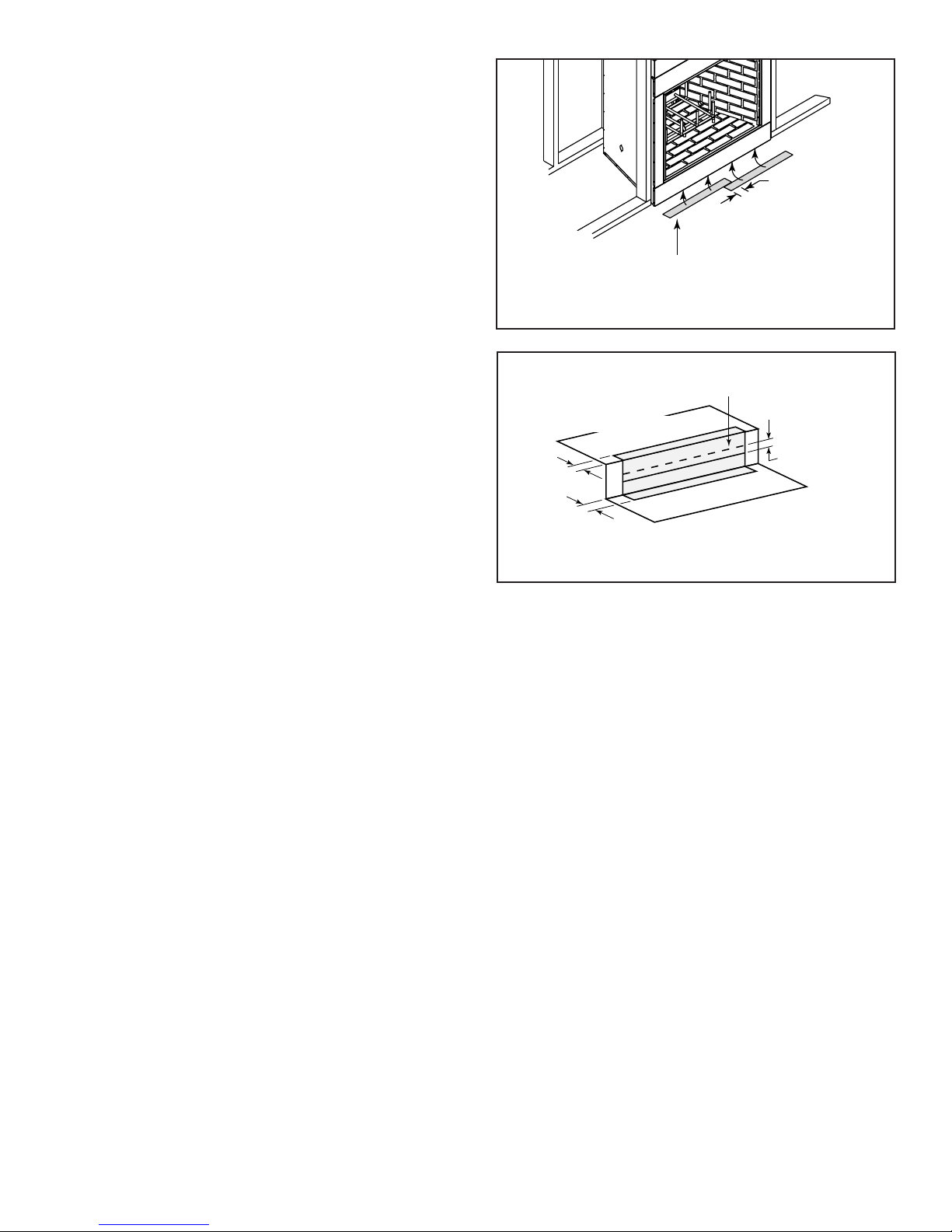

H. Protective Metal Hearth Strips Figure 3.13 Position the Protective Metal Hearth Strips
• Locatethetwoprotectivemetalhearthstripsmeasuring
approximately26in.x4in.(660mmx102mm)included
withthisreplace.
• Slideeachmetalstrip2in.(51mm)underfrontedgeof
replace.
• Overlapstripsinthemiddleofreplaceopeningby1in.
(25mm)minimum.
• Metal strips must extend beyond the front and sides
of the replace opening by at least 2 in. (51 mm),
Figure3.13).
• Protectthefrontofaplatformelevatedabovethehearth
extensionwithmetalstrips(notincludedwithreplace)
per Figure 3.14. See Section 7 for hearth extension
instructions.
WARNING! Risk of Fire! Protective metal hearth
strips MUST be installed on combustible surfaces. DO
NOT cover metal strips with combustible materials.
Sparksorembersmayigniteooring.
WARNING! Risk of re! Hightemperatures,sparks,
embers or other burning material falling from the
replacemayigniteooringorconcealedcombustible
surfaces.
• ProtectivemetalhearthstripsMUSTbeinstalled.
• Hearth extensions MUST be installed exactly as
specied.
G. Secure and Level the Fireplace
Thisreplacemaybeplacedoneitheracombustibleor
noncombustiblecontinuousatsurface.Shippingbrack-
etscanbeusedtoanchorthereplace.
Slidethereplaceintoposition.Besuretoprovidethe
minimum1in.airclearance(I60)or11/2in.airclearance
(I80)atthesidesandbackofthereplace.
Thereplaceshouldbepositionedsothefaceofthe
replacewillbeushwiththefaceofthedrywallonthe
walls.
Levelthereplaceandshimasnecessary.

15
Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
I. Outside Air Kit
Anoutsideairkitmustbeusedforcombustion.Hearth&
HomeTechnologiesrecommendsyouutilizetheshortest
ductruntooptimizetheperformanceoftheoutsideair
kit.Theoutsideairinlethoodshouldbepositionedina
mannerthatwillnotallowsnow,leaves,etc.toblockthe
inlet.Insomeinstallationstheairductmayneedtoberun
vertically.Insuchaninstallation,a3ft(914mm)height
differencemustbemaintainedfromthetopoftheupper-
mostchimneysectiontotheoutsidecombustionairinlet.
RefertoFigures3.15and3.16whenplacingtheoutside
airinlethood.
Theoutsideairkitisinstalledonthelefthandsideofthe
replace.
• Cuta4in.(102mm)holeinoutsidewalltoaccommodate
airpiping.
• Use4in.(102mm)ex(notsupplied)todirectlyconnect
outsideairtoreplaceintake.Insulatethepipetoprevent
frostcondensation.
• Usethesuppliedoutsideairinlethood.
• Seal between the wall and the pipe with silicone to
preventmoisturepenetrationandairleaks.
• Sealbetweentheoutsideairinlethoodandthehouse
withsiliconetopreventairinltration.
CAUTION! Risk of Cuts/Abrasions. Wearprotective
gloves and safety glasses during installation. Sheet metal
edges are sharp.
CAUTION! Risk of Fire or Asphyxiation! DO NOT draw
outsidecombustionairfromwall,oororceilingcavity,or
enclosed spaces such as an attic or garage.
• DO NOT place outside air inlet hood close to exhaust
vents or chimneys. Fumes or odor could be drawn into
theroomthroughthereplace.
• Locateoutsideairinlethoodtopreventblockagefrom
leaves,snow/ice,orotherdebris.Blockagescouldcause
combustion air starvation.
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)))
)
))
)
)
)
))))
)
))
))
)))
)
)
))
))
))
)
))
)
))
)
)
)
))
)
)
)
)
))
)
)
)
)
)
)
)
)
)
)
)
)
3 ft min. from
top of uppermost
chimney section
to air inlet.
Figure 3.15 Outside Air Inlet Locations
Outlet placed
higher than 3 ft
below the
termination cap
Attic space
Garage or
combustible
liquids storage
Outlet blocked by
snow, leaves, etc.
Clear area
outside
house or in
ventilated
crawl space
YES
NO
NO
NO
NO
Factory-built
fireplace
• Use UL181 Class 0 or Class 1 rigid or flexible ducting.
• Install with short run or mainly straight duct, except small
dip for cold air trap which will help prevent flow of cold air.
• Secure flex duct with metal tape, screws or wire ties.
Figure 3.16 Outside Air Installation
Note: Chimney
airkitand11-10
in./279-254 mm
adapter are
not shown, but
are required in
Canada.

16 Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
6 ft (1.8 m) max.
unsupported run
20 ft (6 m) max.
pipe between an
offset & return
Ceiling Firestop 35 ft (10.7 m)
max. straight
unsupported
chimney height
18.5 ft (5.6 m) min. height
single offset-return
24 ft. (7.3 m) min. height
double offset-return
90 ft (27.4 m) max. height
6 ft (1.8 m) max.
unsupported chimney
above roof
55-1/2 in.
(1410 mm)
Effective Height
(bottom of fireplace
to top of starter collar)
11-10 in./279-254mm
adaptor required in
Canada
Attic Insulation
Shield
CAK required in Canada
but not shown
Figure 4.1 Chimney Requirements
NOTICE: Amaximumoftwopairsofoffsetsandreturns
may be used.
Minimum overall straight height 18ft 5.49m
Minimumheightwithsingleoffset/
return
18.5ft 5.64m
Doubleoffset/returnminimumheight 24ft 7.32m
Maximum height 90ft 27.43m
Maximum chimney length between an
offset and return
20ft 6.1m
Maximum distance between chimney
stabilizers
35ft 10.67m
Maximum unsupported chimney
length between the offset and return
6 ft 1.83m
Maximum unsupported chimney
heightabovethereplace
35ft 10.67m
Maximum unsupported chimney
above roof
6 ft 1.83m
WARNING! Risk of Fire! Youmustmaintain2in.(51mm)
air space clearance to insulation and other combustible
materials around the chimney system. Failure to do so
maycauseoverheatingandre.
NOTICE: You must provide support for the pipe during
constructionandchecktobesureinadvertentloadinghas
notdislodgedthechimneysectionfromthereplaceorat
any chimney joint.
A. Chimney Requirements
Verticaldistancesaremeasuredfromthebaseofthe
replaceasshowninFigure4.1.
4 Chimney and Termination Requirements
Table 4.2 Chimney Component Dimensions
Table 4.1 Chimney Requirements
HEIGHT OF CHIMNEY COMPONENTS in. mm
US Canada ONLY
Chimney Stabilizer
SL11 SL4 4-3/4 121
Offsets/Returns
SL1130 SL430 14-1/2 368
Chimney Sections*
SL1106 SL406 4-3/4 121
SL1112 SL412 10-3/4 273
SL1118 SL418 16-3/4 425
SL1136 SL436 34-3/4 883
SL1148 SL448 46-3/4 1187
n/a SLA10 16-3/4 425
*Dimensionsreecteffectiveheight.

17
Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
B. Offsets/Returns
• Useanoffset/returntobypassoverheadobstructions.
• Anoffsetandreturncanbeusedasasingleentityorseparatedbychimneysection(s).
WARNING! Risk of Fire! DO NOT useoffset/returnsgreaterthan30°.Chimneydraftwillberestrictedandcouldcause
overheatingandre.Secureoffsetswithscrews(nottoexceed1/2”/13mminlength)Securereturnswithstrapping.
Straight chimney sections may be secured with screws. Keep chimney sections from separating or twisting.
• Measuretheshiftneededtoavoidtheoverheadobstruction.RefertodimensionAinFigure4.2.
• FindtheappropriateAdimensionlistedinTable4.3.TheBdimensioncoincidingwiththeAdimensionmeasurementin
Table4.3representstherequiredverticalclearanceneededtocompletetheoffset/return.
• Readacrossthecharttondthenumberofchimneysections/modelnumbersneededbetweentheoffsetandreturn.
A
B
1-1/4 in. (32 mm)
OVERLAP
Figure 4.2 Chimney Offset/Return
Table 4.3
Example:
Your“A”dimensionfromFigure4.2is14-1/2in.(368
mm).UsingTable4.3thedimensionclosestto,butnot
lessthan14-1/2in.(368mm)is15-3/4in.(400mm)using
a30°offset/return.
Youdeterminedfromthetablethatyouwouldneed
36-5/8in.(930mm)(Dimension“B”)betweentheoffset
andreturn.
Thechimneycomponentthatbesttsyourapplicationis
twoSL1112s.
Note: SL400seriespipeavailable
forCanadaONLY.
A B SL1106
SL406
SL1112
SL412
SL1118
SL418
SL1136
SL436
SL1148
SL448in. mm in. mm
47/8 124 177/8 454 - - - - -
71/4 184 22 559 1- - - -
93/4 248 261/8 664 2 - - - -
101/4 260 271/4 692 - 1- - -
123/4 324 313/8 797 1 1 - - -
131/4 337 323/8 822 - - 1- -
153/4 400 365/8 930 - 2 - - -
181/8 460 403/4 1035 12 - - -
183/4 476 413/4 1060 - 1 1 - -
213/4 552 47 1194 - - 2 - -
221/4 565 48 1219 - - - 1-
243/4 629 521/8 1324 1- - 1-
273/4 705 573/8 1457 - 1-1-
281/4 718 583/8 1483 - - - - 1
303/4 781 621/2 1588 1---1
333/4 857 673/4 1721 - 1- - 1
363/4 933 73 1854 - - 1-1
393/4 1010 781/8 1984 - - - 2 -
411/8 1045 823/8 2092 1- - 2 -
453/4 1162 881/2 2248 - - - 1 1
481/8 1222 923/4 2356 1- - 1 1
513/4 1314 987/8 2511 - - - - 2
Properassemblyofaircooledchimneypartsresultsinanoverlapofchimneyjoints
of1-1/4in.(32mm).Effectivelengthisbuiltintothistable.

18 Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
Slanted Roofs
Flat Roofs
Chimney must
extend 3 ft (.9 m)
above the roof
Chimney must extend 2 ft (.6 m)
above any portion of the roof or
adjacent structures within
10 ft (3 m) of the chimney
Chimney must
extend 3 ft (.9 m)
above the roof
Chimney must extend 2 ft (.6 m)
above any portion of the roof or
adjacent structures within
10 ft (3 m) of the chimney
Multiple Chimney Locations
A B
6 in. (minimum) up to 20 in.
152 mm/508 mm
18 in. minimum
457 mm
20 in. and over 0 in. minimum
Gas, Wood or Fuel Oil
Termination Cap
Wood
Minimum
(See
illustration
above)
B
Gas
Termination
Cap **
A *
Perpendicular Wall
*
If using decorative cap cover(s), this distance may need to be
increased. Refer to the installation instructions supplied with the
decorative cap cover.
**
In a staggered installation with both gas and wood terminations, the
wood termination cap must be higher than the gas termination cap.
Figure 4.3 Multiple Chimney Locations
C. Termination Requirements
• Installacapapprovedandlistedforthisreplacesystem.
• Locatecapwhereitwillnotbecomepluggedbysnoworothermaterials.
• Locatecapawayfromtreesorotherstructures.
• Thebottomoftheterminationcapmustbeatleast3ft(.91m)abovetheroofANDatleast2ft(.61m)aboveanyportion
ofroofwithin10ft(3.05m).
• Thedistancerequiredbetweencapsisshownbelow.

19
Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
5 Chimney Installation
Chimney must extend
beyond combustible
roof structure
Maintain minimum
height of chimney
above roof
Additional
support for
tall chimneys
Install roof flashing
according to minimum
requirements
Maintain minimum
clearances to
combustibles as
specified
Offsets/returns
may not exceed
30° from vertical
Lock chimney
sections together
firmly to resist
movement
Ceiling firestops
are required where
chimney passes
through ceiling or
floor
Support straps for offsets
(not shown) must be
secured to adequate framing
Termination Cap
Storm Collar
Offsets/returns must be
secured with the screws
provided (outer pipe only)
Attic shield
Figure 5.1 Typical Chimney System - Guidelines for Chimney System Installation
NOTICE: Chimney performance may vary.
• Trees,buildings,rooflinesandwindconditionsaffectperformance.
• Chimneyheightmayneedadjustmentifsmokingoroverdraftoccurs.
A. Typical Chimney System

20 Heatilator • I60/I80 • 4013-260 Installers Manual • Rev G • 10/07/13
C. Install Chimney Air Kit
• RequiredinCanada.
• Followinstructionsincludedwithaccessory.
NOTICE: Chimney sections cannot be disassembled once
lockedtogether.Planahead!
• Lockchimneysectionsand/oroffsets/returnstogetherby
pushingdownwarduntilthetopsectionmeetsthestop
beadonthelowersection.
• Pullonthetopsectiontomakesureitisfullyengaged
andwillnotseparate.
• Youmayuse#6or#8sheetmetalscrewsnolongerthan
1/2in.(13mm)tofastenchimneysectionstogether.Do
NOTpenetrateinnerue.
WARNING! Risk of Fire! YouMUSTusescrews(pro-
vided)tofastenoffset/returnstochimneysectionsto
keepthechimneypartsfromtwisting.Failuretodoso
couldcausere.
• Fasten offset/returns to chimney sections. Insert the
screws(provided)throughthepredrilledholes.DoNOT
penetrateinnerue.
• Secure chimney returns with hanger straps provided;
fastentostudsorjoists.
• Verticalstraightrunsofchimneymustbesupportedevery
35ft(10.7m).
B. Assemble Chimney Sections
Useonlythosecomponentsdescribedinthismanual.
Substituteordamagedchimneycomponentscouldimpair
safeoperationandcauseoverheatingandre.
Attacheitherastraightchimneysectionoranoffsetto
thetopofthereplace(dependingonyourinstallation
requirement).Chimneysectionsarelockedtogetherby
pushingdownwarduntilthetopsectionmeetsthestop
beadonthelowersection.
Theinnerueisplacedtotheinsideoftheuesection
belowit.Theoutercasingisplacedoutsidetheoutercas-
ingofthechimneysectionbelowit.SeeFigure5.2.
WARNING! Risk of Fire! DO NOT install substitute or
damaged chimney components.

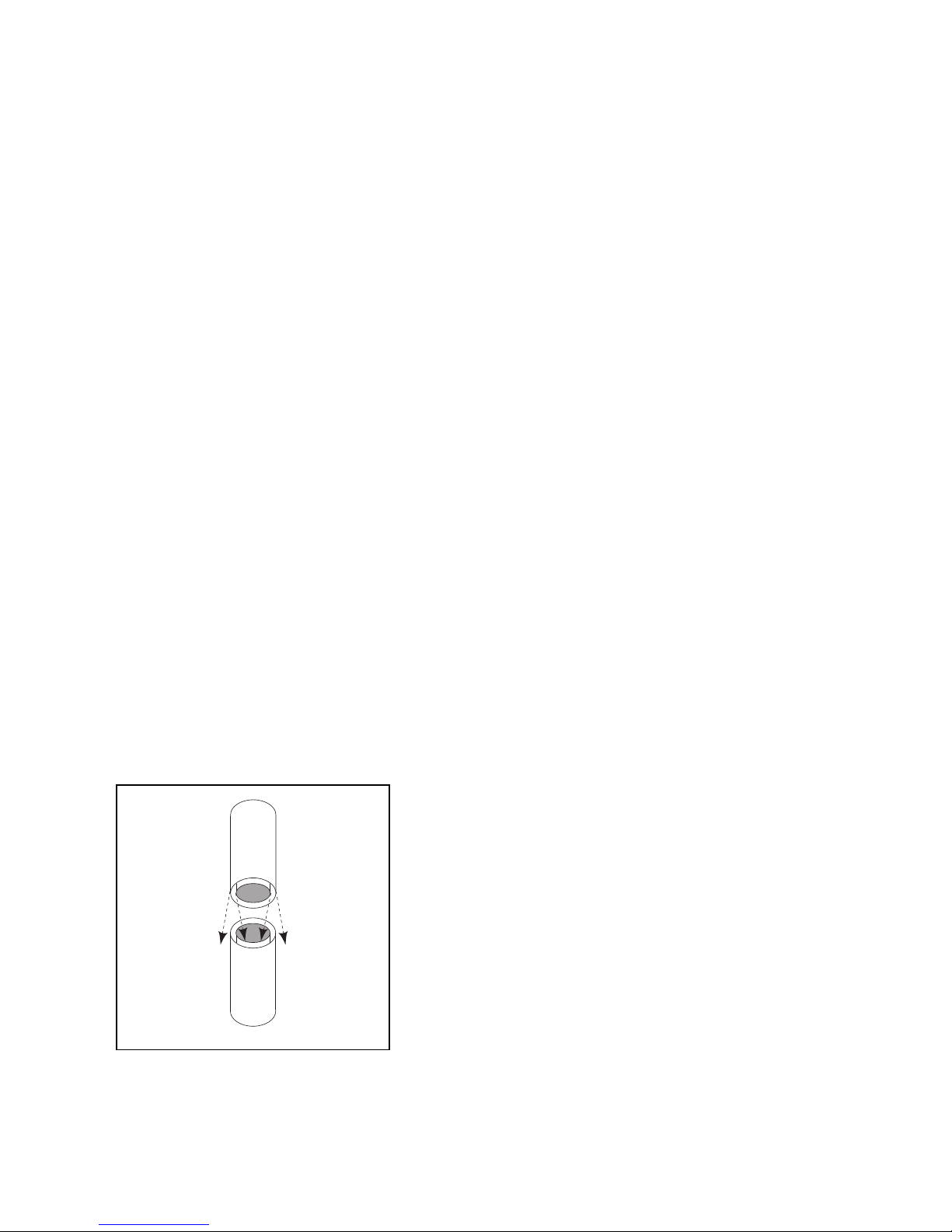

Figure 5.2 Assembling Chimney Sections
