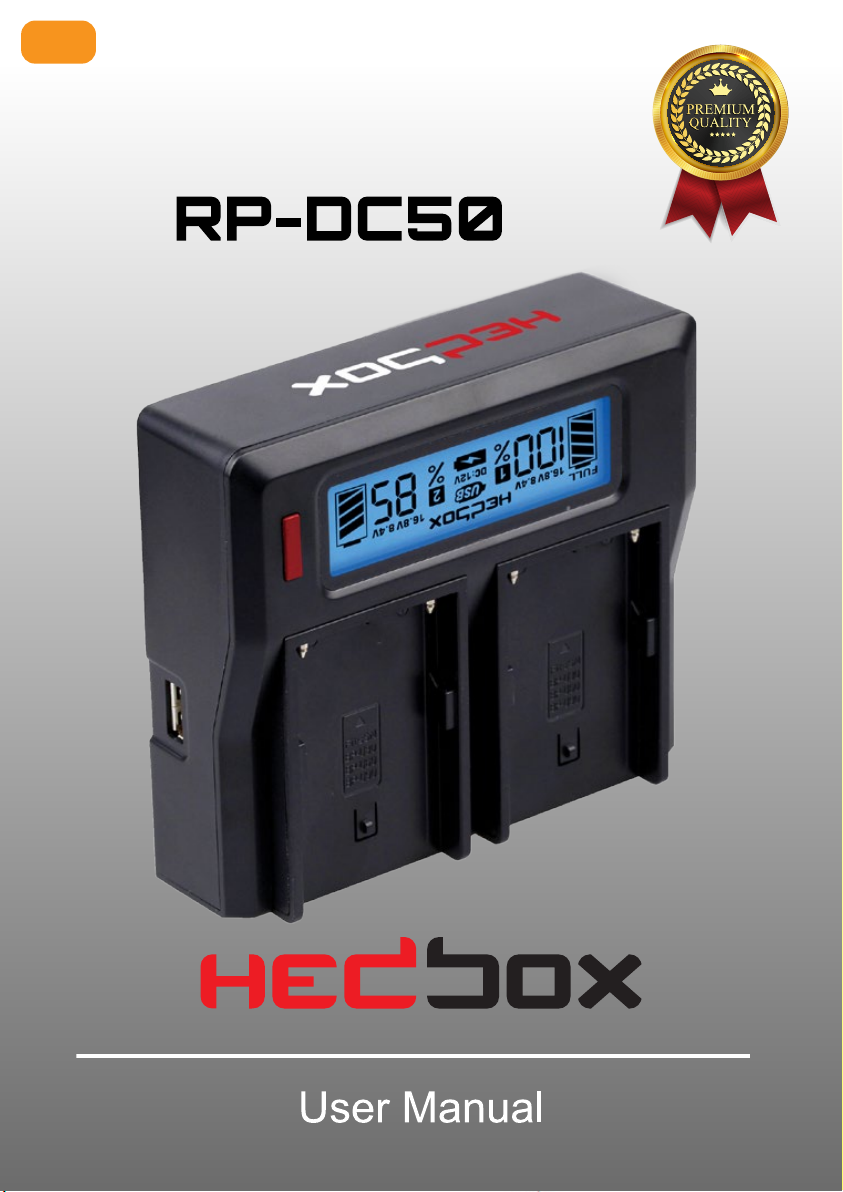

HEDBOX RP-DC50 User manual

EN English
Dual LCD Battery Charger

# 1
EN English
• Charge a Li-Ion DV Battery Pack that runs on 3.6V, 7.4V or 14.8V
• LCD Display provides a clear, accurate, and precise display of power status, charging status,
battery channel status, and boost power mode. With a bright and intense blue color backlight,
the readout function is enabled in the dark.
• Worldwide use with an input between 100 ~ 240V AC;
• With advanced MCU Micro-Computer Chip control, the charger fully controls the charging
process of the DV Li-Ion Battery pack.
• Passed MBTR 5000H test and own its patent with more reliable quality warranty;
• Safety protection:
- Over temperature protection reaches 85C,
- Over-voltage protection gets at 19.5V,
- Over-current protection gets at 6.5A,
• The charger RP-DC50 has short circuit protection and charging time protection.
• Dual charging port. Provide simultaneous charging of two batteries with different, voltage
and capacity or manufacturing brands.
• Specially designed for use on all Hedbox Battery Packs.
• Dual charging technology, the CC and CV, provide high battery charging efficiency.
• Pre-charging function 0V activation efficiently extends battery life.
• Advanced microcomputer control detects switch voltage and capacity display on the LCD.
• Don’t try to disassemble or open the cover under any circumstance in order to avoid danger.
• The charger will be damaged if not used properly.
• Children should use it under the supervision of adults.
• Take out the rechargeable battery from the charger slot when the battery is entirely charged
or if the charger process is stopped.
• It’s a common phenomenon for the unit to feel warm when using.
• This device is for indoor use only, don’t put or use it in high temperature and high moisture
environment.
• Avoid dropping and bumping otherwise the electrical components will be damaged.
Product Features
Thank you for your purchase of the Dual LCD Simulations Battery Charger RP-DC50.
• This intelligent Charger for DV Li-Ion Batteries was designed with advanced power charging
technology, allowing you to set your battery pack at home, in a studio, or a car.
• Please read these user manual carefully before operating this unit to charge battery pack.

# 2
1.
3.
2.
4.
A
C
7.
5.6. B
EN English
Overview
Product Components:
1. Boost Power switch (Boost code)
2. LCD Screen Monitor (Blue Backlight)
3. Charging Slot #1
4. Charging Slot #2
5. AC Power (100V ~ 240V - 50 / 60Hz)
6. DC 12V / 24V Power Input Socket
7. USB-A Power Out 5V ~ 2A /10W
IIntelligent charging systems integrate the control systems within the charger and the
electronics within the battery to allow precise control over the charging process. As a safety
precaution with high-capacity batteries, a pre-charging stage is used. The charging cycle is
initiated with a low current. If there is no corresponding rise in the battery voltage, it indicates
that there is possibly a short circuit in the battery (zero volt activation). Constant current
constant voltage (CC/CV) charging mode effectively charges lithium batteries. When a lithium
battery is nearly empty, we take constant current to charge it. The charger CPU automatically
adjusts the charging current to be lower than the maximum charging current that the battery
can accept. With constant current charging, the battery's voltage rises slowly until it reaches a
maximum voltage at this point, the charger switches the charging method to "constant voltage"
and reduces the charging current. When the battery is fully charged, this state is stopped.
Charging Technology

# 3
D
EN English
BOOST Button
1. Plug the supplied bower bord into the Main AC power outlet.
2. Plug the other side of the supplied bower bord to the charger AC Power (picture B).
3. Charger RP-DC50 turns ON automatically.
4. The LCD bcreen will illuminate blue, and the HEDBOX bogo will turn on (picture D).
5. Use the exchangeable battery bharger plate (purchase it separately) and gently put /slide
in one of the charging sockets.
6. Use the appropriate battery that you want to charge and put it on the battery charger plate.
7. The charging process starts with a full display of the charging process and battery capacity.
Operation
After installing the battery pack onto the charging socket, the RP-DC50 measures the internal
battery cell resistance and starts pre-charging.
• Please check that the DV Battery pack is compatible with RP-DC50 power voltage and current.
• Be sure that the battery charger plate firmly locks the battery in place.
• Observe the Charger LCD Monitor.
• If the battery is attached appropriately, it will illuminate the battery channel and current capacity.
• Please use the manual instructions of the battery pack that you want to charge.
• Read that manual carefully before using the battery with this RP-DC50 Battery Charger.
• We are not responsible for any damage caused by incorrect use or operation.
• Dual Digital LCD Battery Charger RP-DC50 has two charging modes: NORMAL and BOOST.
• When you turn ON the charger, the default charging mode is NORMAL.
• If you want to charge two (2) batteries simultaneously in a normal mod, the charger will provide
a charging power of 500mA per one charger slot.
• If you want to speed up the charging process and time, you can activate the BOOST mode.
Pressing the RED button on the top of the charger (On LCD, the boost ICON is displayed) will
provide 800mA per one battery slot.
• Charging two (2) batteries simultaneously in a fast charging mode (Boost) charger will give
a current of 800mA per channel.

# 4
EN English
LCD Information
Icon Definition Function Declaration
When this icon is on, high current charging mode is active
and provides fast boost charging of the batteries. Fast
charging mode: 1 battery / 1.5 A ; 2 batteries / 0.8 A
When it appears, 8.4 V charging mode for DV batteries
is in progress
When it appears, 16.8 V charging mode for Pro DV
batteries is in progress
When battery is on the charger and charging process
starts, the battery charging icon will be displayed.
Progress icon will be displayed one by one.
It shows that the battery is fully charged and ready.
It shows the battery capacity charging percent rate
Displays 5V USB power out
Displays that the 12 V DC IN is present (car cable in)
Shows presence of the battery on the charger/channel
Fast speed
charging mode
8.4 V
Charging icon:
18.4 V
Charging icon:
Battery full
Battery charging
progress icon
Battery capacity
percent rate
USB power
DC 12V IN icon
Battery channel

# 5
USB-A
EN English
USB
• You can use your Dual Digital Battery Charger RP-DC50 to power USB devices while charging
your DV Battery. Plug the USB-A cable of your device to the USB-A port of the RP-DC50 charger.
The USB sign on the LCD will pop up. USB is active in both charging modes, the boost and regular.

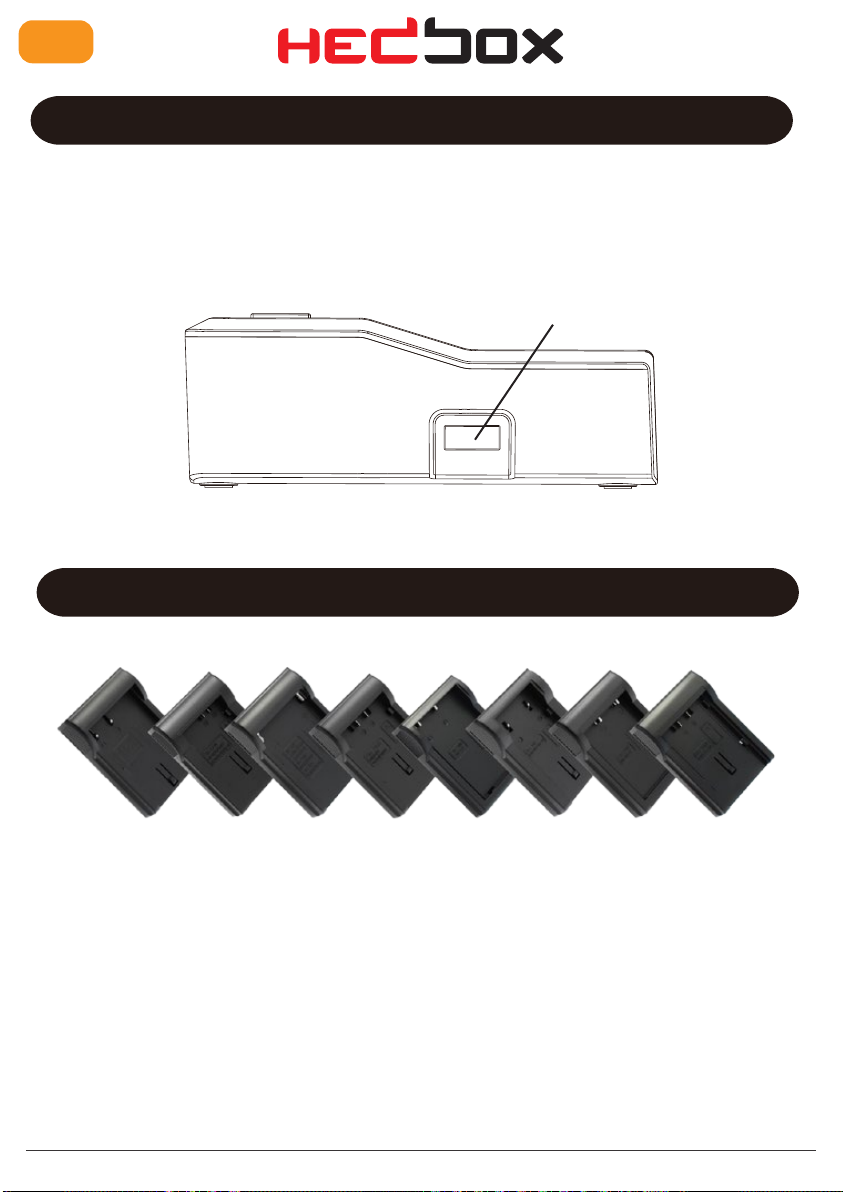

Exchangeable battery charger plate
• The RP-DC50 digital dual charger can be used for all World brand battery models with easily
interchangeable battery plates. This economical option allows you to charge many different
batteries, all with one charger and a compatible model of battery charger plate.
• The charger automatically sets the charging voltage and current for the designed battery pack.
That leaves no space for charging errors!
• The corresponding battery charger plate that fits the battery you want to charge can be found in
the link: https://www.hedbox.com/finder/
NOTE:
The exchangeable battery charger plates need to be purchased separately.

# 6
AC 100V ~ 240V / 50 - 60Hz
DC 12V - 24V / 55W (Max)
LCD Display
DC 4.2V / 8.4V / 12.6V / 16.8V
1000mA x1 / 500mA x2
5V / 2100mA / 10W
–20°C to +45°C (–4°F to +113°F)
220 g
1500mA x1 / 800mA x2
Ni-CD , Ni-MH . Li-Ion
124 x 114 x 445 mm
EN English
Specification
AC Power Input:
DC Power Input:
Control Display:
Supplied Power Voltage:
Regular Charge Output:
USB Power Output:
Battery Charging Type:
Operating Temperature:
Dimensions (WxHxD):
Neto Weight:
Boost Charge Output:
• Design and specifications are subject to change without notice.
In Car Use

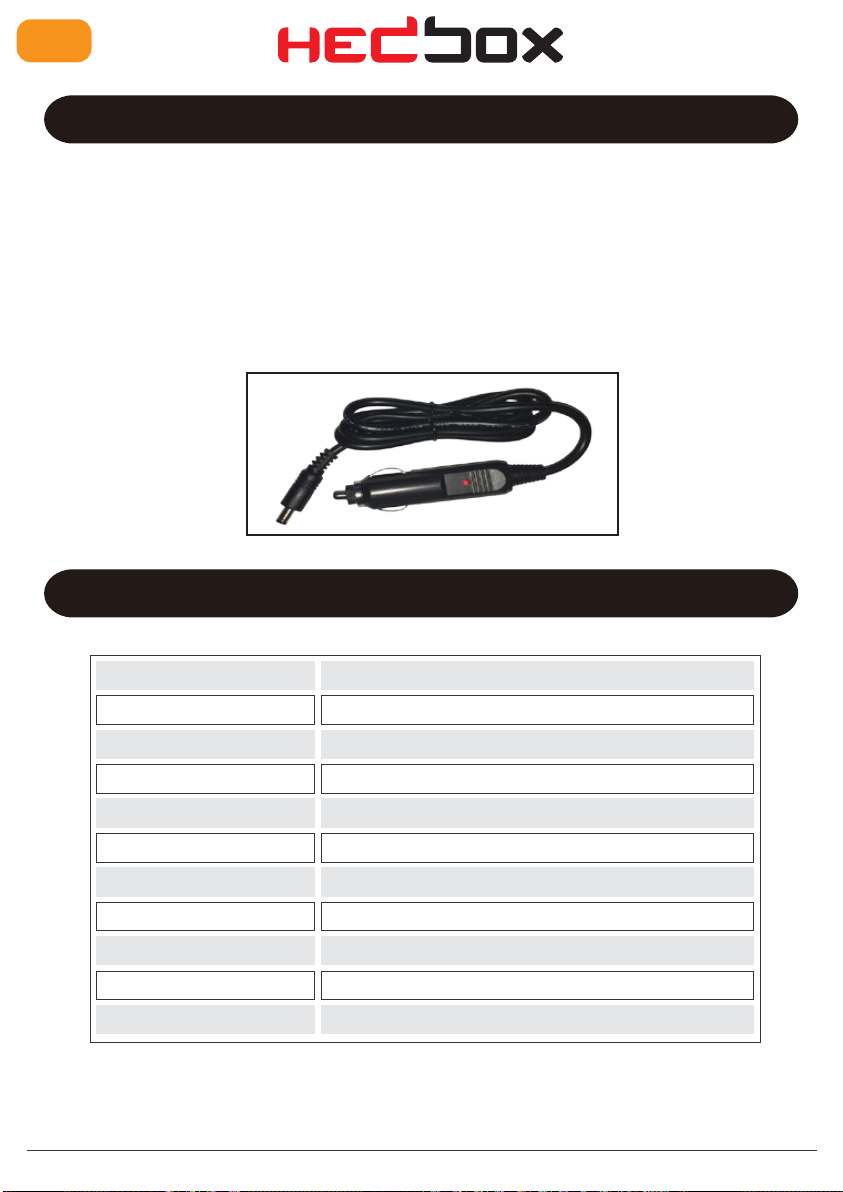

• With a 12V - 24V DC power source (a DC 12V Car charger cable suplied) you can use the
charger and charge your batteries in the Car, Airplane, Bus, or any other place where
12V-24V DC power is supplied.
NOTE:
• When using Battery Charger Plate RP-DBPU or (charging HED-BP75D or HED-BP95D) or
RP-BPA60 (charging HED-A60) or any other 14.4V battery you need to power RP-DC50
with 24V DC Power Supply.
