HEDBOX RP-DC200 User manual

EN English
Quad 4-Chanel Simultanius
UPS Battery Charger

# 1
EN English
Product features
Thank you for your purchase of the professional quad simultaneous power bank battery
charge RP-DC200.This intelligent charger for digital camera and camcorder batteries was
designed with advanced power charging technology, allowing you to charge your professional
batteries at studio, or at home.The charger is compatible with Li-Ion rechargeable batteries that
run on power voltage of 14.4V to 14.8V. Please read these operating instructions carefully
before operating use this unit to power up professional camcorder or to charge battery pack.
•Charges a professional battery pack that runs on 14.4V to 14.8V
• Supplies power for professional studio cameras, LED Light, field monitors etc.
• LED displays the power status, battery ON status, charging status, and UPS Back Up
Power Supply status, with red, blue and green colors.
• Provides constant output voltage of: 16.5V / 4.5A ; 75W
• Worldwide use with input between AC 100 - 240V;
• With advanced MCU Micro-Computer Chip control, charger fully controls the charging
process of the battery.
• With CH1, CH2, CH3 or CH4 battery attaches to the unit. On DC Power Out, RP-DC200
provides power bank Back Up power supply - UPS mode in case of AC failure.
• 100,000 levels of Anti-Static design, High Temperature and Fire-Proof makes it safer.
• Passed MBTR 5000H test and has patent with more reliable quality warranty;
• Safety protection：
- Over temperature protection reaches at 85°C,
- Over voltage protection reaches at 19.5V,
- Over current protection reaches at 6.5A,
- Short circuit protection & Charging time protection
• Quad charging port design provides simultaneous charging of four batteries different capacity.
• Specially designed for use on all V-Mount Hedbox Battery Packs.
• Dual charging technology, the CC and CV, provides high battery charging efficiency.
• Pre-charging function 0V activation efficiently extends battery life.
• Don’t try to disassemble or open the cover under any circumstance in order to avoid danger.
• The charger will be damaged if not used properly.
• Children should use it under the supervision of adults.
• Take out the rechargeable battery from the charger slot when the battery is entirely charged
or if the charger process is stopped.
• It’s a common phenomenon for the unit to feel warm when using.
• Avoid dropping and bumping otherwise the electrical components will be damaged..

# 2
4.
5.
6.
7.
8.
9.
3.
1.
2.
10.
EN English

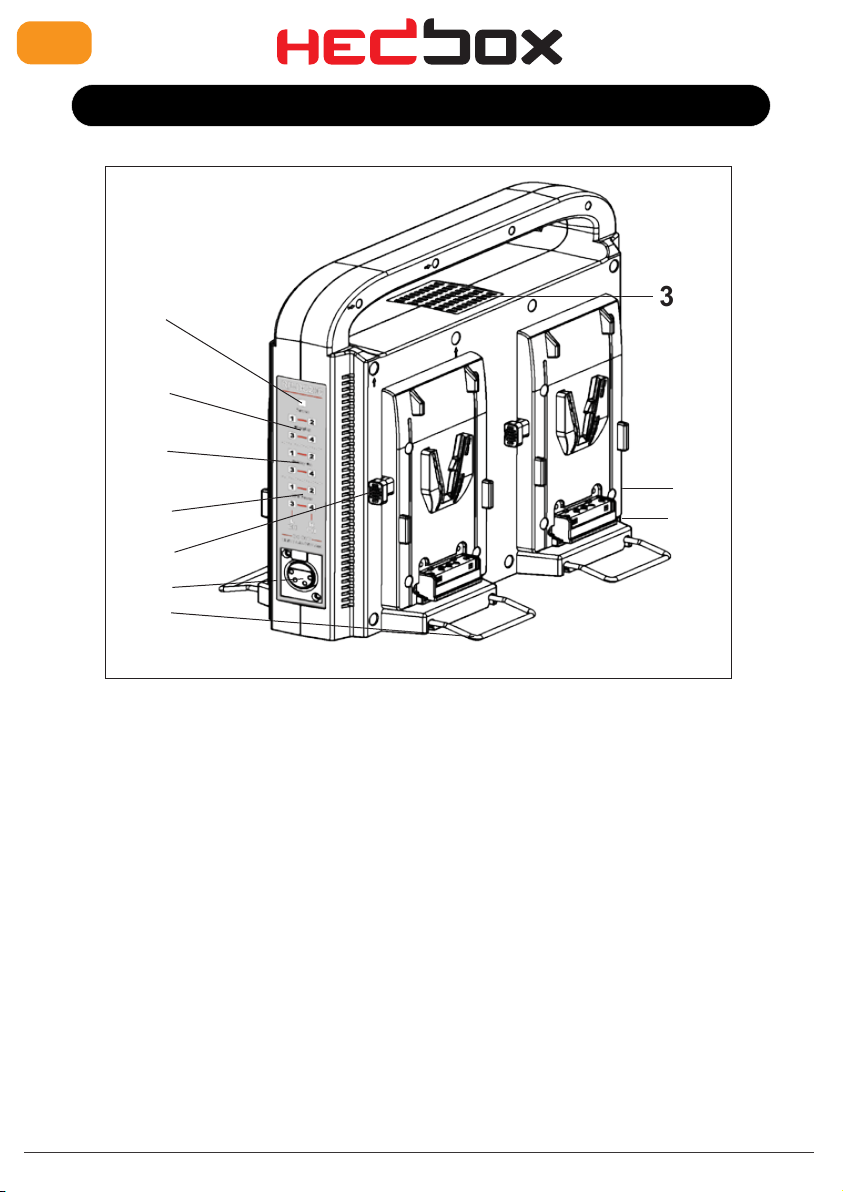

Product Components:
1. Main Power switch ON/OFF
2. Power Socket 100V - 240V / 50-60Hz
3. Fan Cooler ( Provides cooling of the unit)
4. Power LED Indicator (Red Color status charger unit is ON)
5. Battery Charging LED Status
6. Battery connected on charger LED Status
7. UPS (Uninterruptible power supply) BackUp Power Supply LED
status
8. Battery release push up button
9. 4-Pin XLR (Female) DC Output 16.5V / 4,5A 75W
Overview

# 3
1.
2.
AB
EN English
1.Plug the Power Cord on the wall AC power (picture A).
2. Plug the cord on the RP-DC200, and turn ON the AC Power Switch (picture B).
3. The “Power” LED indicator will illuminate Red during AC power.
1.On the bottom of the Charger use and
spread wide the Spider Stability Support
legs. This will allow the charger to have
extra stability when the battery is
attached to the main body of the
RP-DC200 charger.
2. Use V-Mount Battery, insert battery in
to the V-lock Mount plate. Observe the
Charger LED “Battery On” indicator. It
will illuminate BLUE, if the battery is
attached appropriately.
Operation instruction:
Battery instalation on charger:

# 4

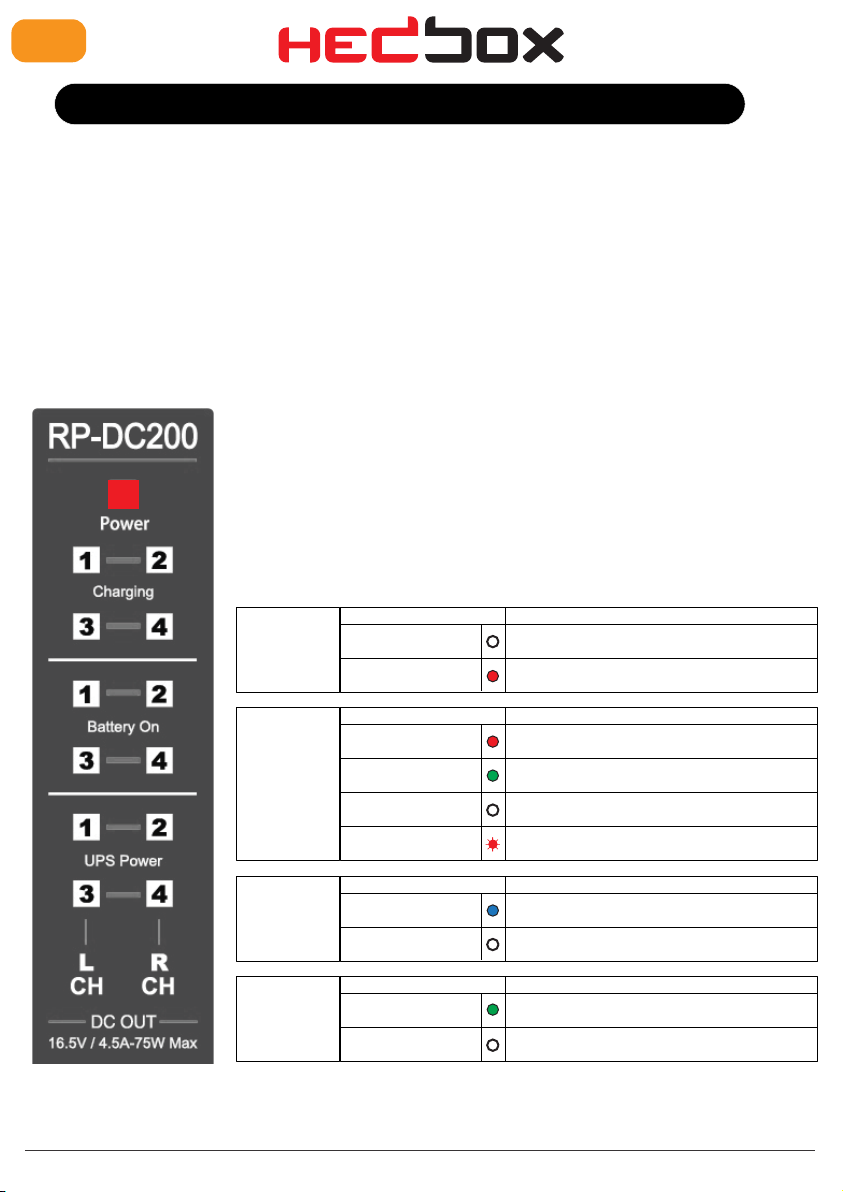

LED Indication
LED Indication
LED Indication
LED Indication
EN English
Power
Charging
Battery
UPS
Power
Charging battery pack:
1. When you insert battery to the charger, LED “Battery On” indicator illuminates BLUE, which
indicates that the battery is ready for charging. The charger has four charging plates, that on the
LED Indication screen is indicated as CH1, CH2, CH3 or CH4. After insertion of one (1) or two (2)
batteries on the charger,charging process starts automatically with 3A±400mAh (Dual Mode).
If you insert third (3) or fourth (4) battery charging process will switch to Quad Mode 2A±400mAh
(simultaneous charging). Charger LED When “Charging” indicator illuminates RED, it indicates
that the charging process of the Battery is activated.
Power LED Off
#1 #2 #3 #4 LED On
Power LED On
LED On
LED Off
LED On
LED Off
Charger Power is ON
No AC Power or Charger main power Swich is Off
#1 #2 #3 #4 LED On
#1 #2 #3 #4 LED Off
#1 #2 #3 #4 FLESH
Battery (CV) Mod Charging Proces < 85% Capacity
Battery Fuly Charged = 100% Capacity
Battery Charger Out is shorted or overloaded
Battery (CC) Mod Charging Proces > 85% Capacity
Battery ready for charging or UPS
No battery on charger
Battery provide UPS Power Supply on XLR Out
Battery off or deplided for UPS Power Supply
2. If the SOC≥85% ( State Of Charging) charger LED “Charging”
indicator illuminates GREEN, it indicates that the charging process
is at the finishing stage.
3. When the charging process is finished and battery is fully charged,
Charger LED “Charging” indicator will go OFF, indicating that the
charging process is done and the battery is full and ready to use.

# 5
F
EN English
DC out powering & power bank mod:
1.To Power any pro camcorder or any other unit with constant power, on DC out, use
the supplied DC-DC4X4 cable with 4-pin XLR (Male to Female) Connector. Connect the
cable to the charger DC 4-pin Power Out (picture F.)
2. When a RPC-DC4X4 cable is plugged into the 4-pin XLR auxiliary power output, and
the main power switch on the charger RP-DC200 is ON, charging process of the battery
will be suspended. The “Charging” LED will go OFF and “Battery On” LED indicator
(if the battery is on the charger) will illuminate BLUE.
In this case output power is 16.5V 4.5A/ 75W.
3. If you turn OFF the main power switch on the charger, or unexpected main electric power
failure occurs (AC input is cut off), Charger RP-DC200 with the inserted battery will
automatically go to the UPS BACK UP POWER MODE. In this case, the RP-DC200 provides
power to the DC Out from the battery that is attached to the charger, the “UPS Power” LED
indicator illuminating freen, indicates that the power from the battery is provided to the DC Out.
4. When two, three or four batteries are attached on the charger at the same time, the UPS
powering from the battery to the DC Out is made by priority.
5. Once the cable is unplugged, the charger will continue the previous charging sequence
and from the same point of interruption.

# 6
AC 100V ~ 240V / 50 - 60Hz
DC 16.5V / 4.5A / 75W (max)
LED Display
CH1 / CH2 / CH3 / CH4 | 16.8V / 3A
(CH1 & CH2) or (CH3 & CH4) | 16.8V / 3A
4-Pin XLR (Female)
–20°C to +45°C (–4°F to +113°F)
3300g
(CH1 & CH2 & CH3 & CH4) | 16.8V / 2A
Ni-CD , Ni-MH . Li-Ion
265 x 103 x 223 mm
EN English
Notice
Specification
AC Power Input:
DC Power Output:
Control Display:
Single Charger Out:
Dual Charger Out:
Output Connection:
Battery Charging Type:
Operating Temperature:
Dimensions (WxHxD):
Neto Weight:
Quad Charger Out:
• Design and specifications are subject to change without notice.
Please check that the components size and voltages are compatible according to
your camcorder DC Voltage input or battery pack charging voltage and current.
Please use the manual instruction of the camcorder or battery pack, and read this
manual carefully before using the unit with this AC Adaptor / Charger.
• We are not responsible for any damage caused by incorrect use or operation.
• This device is for indoor use only, don’t put or use it in high temperatures and high
moisture environment.
• It’s a common phenomenon for the unit to feel warm when using;
• Avoid dropping and bumping otherwise the electrical components will be damaged;
• Don’t try to disassemble or open the cover under any circumstance in order to avoid
danger.

# 7
EN English
Note:
Always ensure that the unit is operating properly before use.
HEDBOX WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND
INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR
REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT
OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT,
EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION
OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER
