HEDBOX HED-DC10 User manual

EN English
D-Tap & USB-C
Battery Charger

# 1
EN English
Product Features
Thank you for your purchase of the D-Tap / USB-C battery charger HED-DC10.
This intelligent charger for digital camera and camcorder batteries was designed with
advanced power charging technology, allowing you to charge your professional batteries
at studio or at home. The charger is compatible with Li-Ion rechargeable batteries that
run on power voltage of 14.4V to 14.8V. Please read these operating instructions carefully
before operating this unit to power up professional camcorder or to charge battery pack.
The IDL (Identification Display Led) with red and green light illumination provides a clear
display of power and charging status. USB-C Power Out supporting the PPS PD 3.0
Power Delivery, provides safe charge and power for any USB powered device.
• Charges a battery pack that runs on 14.4V to 14.8V thru D-tap power port
• IDL (Indication Display LED) status light displays the power, battery ON, charging, and
USB-C power supply status with dual color (red and green) light.
• USB-C support PPS and PD 3.0 QC2.0/QC3.0/PPS/AFC/FCP/SCP/DCP-1.5A/APPLE-2.4A
• Worldwide power use with voltage input between AC 100 - 240V;
• With advanced MCU control, charger fully controls the charging process of the battery.
• 100,000 levels of anti-static design, high temperature and fire-proof makes it safer.
• Passed MBTR 5000H test and has patent with more reliable quality warranty;
• Safety protection：
- Over temperature protection reaches at 85°C,
- Over voltage protection reaches at 19.5V,
- Over current protection reaches at 6.5A,
- Short circuit protection & Charging time protection
• Specially designed for use on all Hedbox Battery Packs.
• Dual charging technology, the CC and CV, provides high battery charging efficiency.
• Pre-charging function 0V activation efficiently extends battery life.
• Automatic charging power out recognitions

# 2
4. 5.
3.
1.
2.
A
EN English

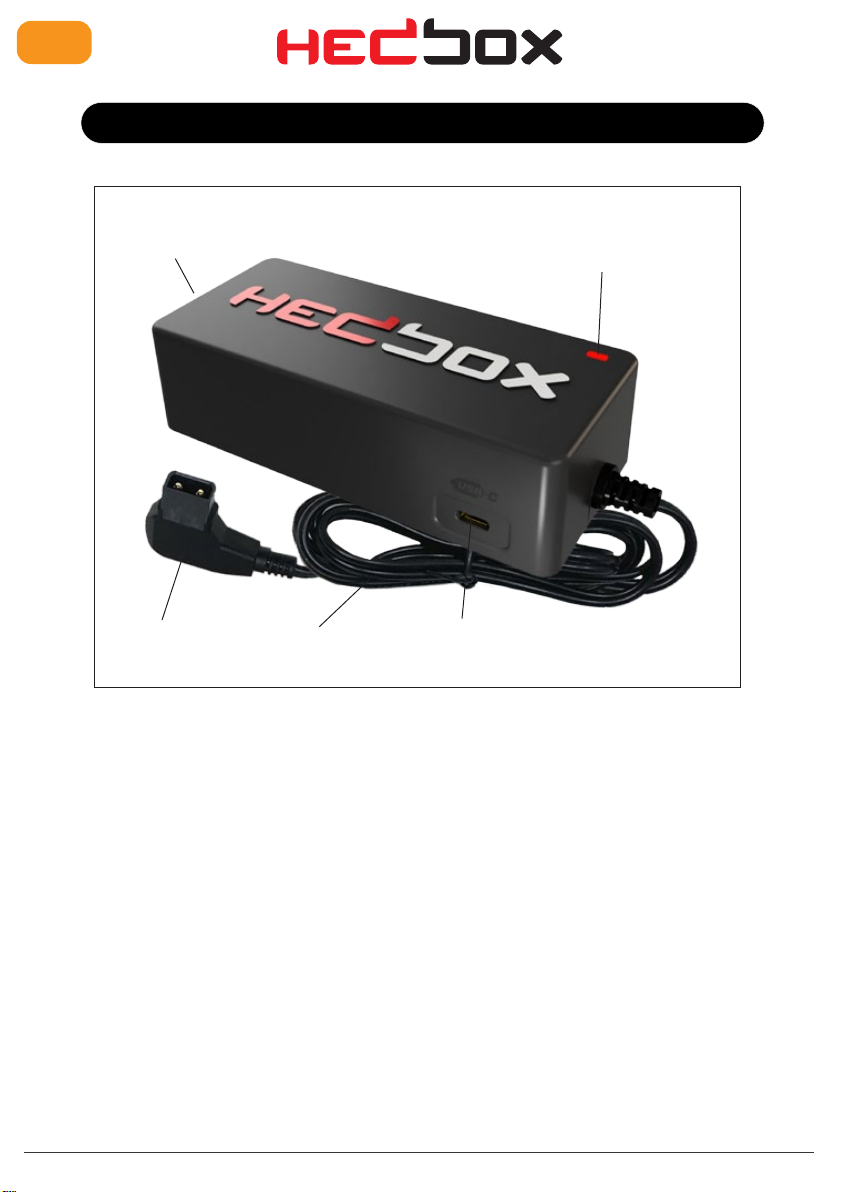

Overview
Product Components:
1. IDL Indication Display LED status light
2. AC Power Socket 100V - 240V / 50-60Hz
3. D-Tap charging connector
4. Charging cable lenght 1.2m
5. USB-C Charging power socket PPS PD 3.0

# 3
BC
D
EN English

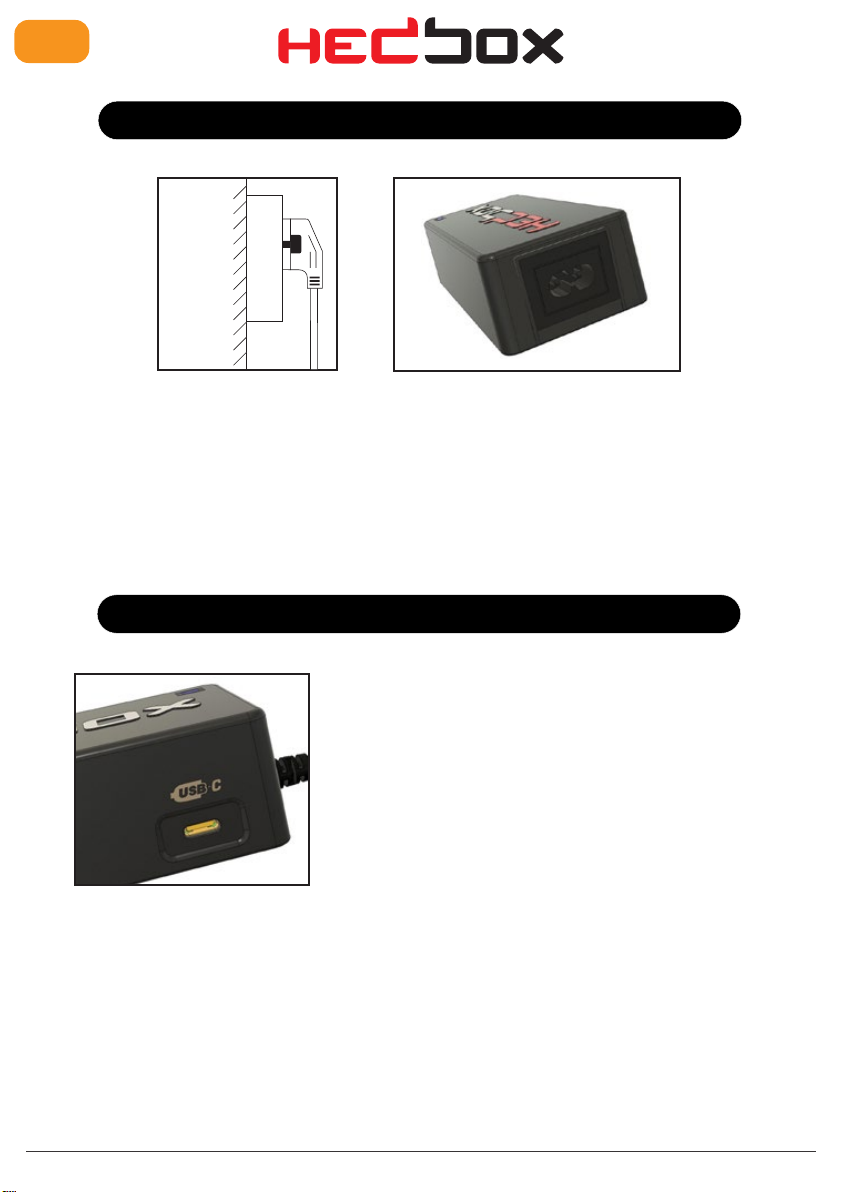

1. Plug the supplied power cord on the main AC power outlet (picture B).
2. Plug the other side of the supplied power cord to the charger AC Power (picture C).
3. The charger will turn ON automaticaly.
4. The indicational LED light will illuminate green, and the charger is operationally ready.
Operation instruction:
USB-C Power Output PD 3.0
•USB-C Power Out supporting the PPS PD 3.0
Power Delivery, provides safe charge and power
for any USB powered device (picture D).
• Use any USB-C Power cable to charge any
battery that support USB charging.
• Use any USB-C Power cable to power any
product that support USB PD 3.0 power supply.
NOTE:
• The D-Tap Charging port and USB-C Power out can not operate simultaneously.
• System automatically recognizes which power source is in use. If both outputs are
loaded at the same time, the device will prioritize the use of the USB-C output.
• The D-Tap is a charging port only and can not operate as a constant power supply!
output!

# 4
EN English
Notice
• Please check that the components size and voltages are compatible according to your
Camcorder DC Voltage Input or battery pack charging voltage and current.
• Please use the manual instruction of the camcorder or battery pack, and read this manual
carefully before using the unit with this AC Adaptor / Charger.
• We are not responsible for any damage caused by incorrect use or operation.
• This device is for indoor use only, don’t put or use it in high temperatures and high moisture
environment.
• It’s a common phenomenon for the unit to feel warm when using;
• Avoid dropping and bumping otherwise the electrical components will be damaged;
• Don’t try to disassemble or open the cover under any circumstance in order to avoid danger.
• The charger will be damaged if not used properly.
• Children should use it under the supervision of adults.
• Take out the D-tap connector from the charging slot of the rechargeable battery when the
battery is entirely charged.
or if the charger process is stopped.
• It’s common for the unit to feel warm when using.
• Avoid dropping and bumping otherwise the electrical components will be damaged.
• IIntelligent charging systems integrate the control systems within the charger and the
electronics within the battery to allow precise control over the charging process. As a safety
precaution with high-capacity batteries, a pre-charging stage is used. The charging cycle is
initiated with a low current. If there is no corresponding rise in the battery voltage, it indicates
that there is possibly a short circuit in the battery (zero volt activation).
• Constant current/constant voltage (CC/CV) charging mode effectively charges lithium
batteries. When a lithium battery is nearly empty, we take constant current to charge it.
The charger CPU automatically adjusts the charging current to be lower than the maximum
charging current that the battery can accept. With constant current charging, the battery's voltage
rises slowly until it reaches a maximum voltage; at this point, the charger switches the charging
method to "constant voltage" and reduces the charging current.
• When the battery is fully charged, this state is stopped.
Charging technology

# 5
AC 100V ~ 240V / 50 - 60Hz
85W (max)
IDL (identificational Display LED)
16.8V / 3A (max) CC/CV Charging type
USB-C / PPS PD 3.0 / 65W (max)
Super fast charging 2.0 and PPS 65W/45W/25W
–20°C to +45°C (–4°F to +113°F)
224 g / 7.9 oz.
Ni-CD , Ni-MH . Li-Ion
124 x 56 x 34.5 mm / 48.8 x 22.0 x 13.6 In
EN English
Specification
AC Power Input:
Power Consumption :
Control Display:
D-Tap Charger Out:
USB Output :
Charging Method:
Battery Charging Type:
Operating Temperature:
Dimensions (WxHxD):
Neto Weight:
• Design and specifications are subject to change without notice.

# 6
EN English
Note:
Always ensure that the unit is operating properly before use.
HEDBOX WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND
INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR
REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT
OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT,
EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION
OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER
