Hedler Profilux LED 1400 User manual

HEDLER Profilux®LED1400 and HEDLER Profilux®LED1400 DMX operation manual.
Please, read the following technical information and the HEDLER safety
instructions carefully before using the light unit.
TECHNICAL DESCRIPTION
Light units of the HEDLER Profilux®LED range are designed for professional use, they are assembled by applying precision methods and
tested individually for function and quality. The focusable daylight HEDLER Profilux®LED1400 light unit as well as the daylight HEDLER Profilux®
LED1400DMX light unit is provided with an integrated U-bracket and a friction brake and a 5/8” Quick-Lock light stand attachment. After
loosening the hex key screws by approx. 2 turns, the U-bracket can be moved back and forth in its keyway for gravity adjustment and it is
turnable for right and left hand use.
The light units of the HEDLER Profilux®LED range are designed for AC use from 110 - 230 V (with automatic mains voltage recognition) and
50/60 Hz and are equipped with a LED Softstart feature. They use one 185 W highpower single cell LED and generate a flicker-free light with
approx. 5600 K and a CRI > 95. They have an extremely quiet cooling. It can be used in automatic mode or can be switched manually to 100%.
Besides they are equipped with a special active LED fan cooling and an integrated safety switch-off.
At the front side the aluminium housing holds a Fresnel lens and the QuickFit adapter for a quick and easy compatibility of all HEDLER
lioghtformers. Interchangeable reflectors with bayonet ring can be attached in the following way: Interchangeable reflectors with bayonet ring
can be attached in the following way: place the rim of the ring into the guide grooves of the upper studs and the round opening over the
coneshaped bolt, and lock it by a turn to the left. To attach the rotatable 4-Leaf barndoors or a MaxiSoft folding reflector, place the rim of the ring
into the guide grooves of the upper studs, and then push the complete reflector towards the QuickFit´s cone-shaped bolt until the ring locks in
the bolt´s groove. Detach the reflector by lifting the QuickFit´s handle, moving the lower side of the reflector away from the light unit´s housing,
and then lifting the reflector´s ring out of the guide grooves of the upper studs.
The focusing option of the light units HEDLER Profilux®LED1400 and HEDLER Profilux®LED1400 DMX allows to adjust the light beam from spot
up to flood light characteristic. Simply turn the focusing knob located at the back of the housing and the size of the light beams diameter can be
adjusted precisely to your lighting needs or ideas - intuitively.
HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com
Telefon + 49 - (0) 6482 918 100 Telefax + 49 - (0) 6482 918 111 eMail [e-mail]
Profilux®LED1400 / Profilux®LED1400 DMX
HEDLER®
Systemlicht
OPERATION MANUAL
Handmade in Germany
< 5060 >
HEDLER Profilux®LED1400
< 5061 >
HEDLER Profilux®LED1400 DMX

HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com
Telefon + 49 - (0) 6482 918 100 Telefax + 49 - (0) 6482 918 111 eMail [e-mail]
Profilux®LED1400 / Profilux®LED1400 DMX
TECHNICAL DATA Profilux®LED1400
Type: Profilux®LED1400 Voltage: 110 - 230 V ~ 1,0A 50/60 Hz Power: 185 W LED Risk group: 0-RG
Color: CRI > 95 Kelvin: 5600K Safety class system: I Protection category: IP30
Weight: 3600g Ambient temperature (Ta): -15° - +40° C Surface temperature: 85°C
Light stand attachment: 5/8“ Fresnel lens code: < 6507 > Light unit code: < 5060 >
Safety clearance: Position:
Under any circumstances do not under-run the safety Tilt light unit max.
clearances given within the graphic to inflammable material! 45° upwards/down-
wards in operation!
HEDLER®
Systemlicht
max. +45°
max. -45°
0°
top
1m0,5m
0,5m
TECHNICAL DATA Profilux®LED1400 DMX
Type: Profilux®LED1400 DMX Voltage: 110 - 230 V ~ 1,0A 50/60 Hz Power: 185 W LED Risk group: 0-RG
Color: CRI > 95 Kelvin: 5600K Safety class system: I Protection category: IP30
Weight: 3600g Ambient temperature (Ta): -15° - +40° C Surface temperature: 85°C
Light stand attachment: 5/8“ Fresnel lens code: < 6507 > Light unit code: < 5061 >
Safety clearance: Position:
Under any circumstances do not under-run the safety Tilt light unit max.
clearances given within the graphic to inflammable material! 45° upwards/down-
wards in operation!
max. +45°
max. -45°
0°
top
1m0,5m
0,5m
OPERATION MANUAL
KEY BUTTONS
On the back of the light units of the HEDLER Profilux®LED range there are several key buttons. By pressing them the indicated functions will
be switched alternatingly.
Fan 100% / Automatic
100% - the fan cooling of the light units of the HEDLER Profilux®LED range will be set to full power irrespective of the operating temperature;
Automatic - the power of the fan cooling will be regulated as a function of the operating temperature.
Dimmer OFF / ON
OFF - the continuous light output power is set to maximum (100%), the setting of the rotary potentiometer will be ignored;
ON - dimming function is available by turning the rotary potentiometer.
POWER OFF / ON
OFF - light unit will be switched off or rather into stand-by-mode (if the light unit has to be currentless you have to disconnect the light unit from
the electric power supply);
ON - light unit will be switched on with a Softstart function, the pre-set continuous light output power will be restored.
If not in use, please disconnect the light unit from the power supply completely.
STATUS-LEDs
Additionally you will find on the back of the light units of the HEDLER Profilux®LED range several status LEDs. Their operation mode will be
indicated by their glowing or blinking.
Error
Indicates an operating mode error of the HEDLER Profilux®LED1400 / HEDLER Profilux®. In this case the light unit has to be checked. Please
contact HEDLER Systemlicht GmbH directly or contact your photographic specialized dealer.
0049 (0)6482-918100
[e-mail]
Please note:
If the light unit will be disconnected from the electric power supply the Error LED is glowing until the mains adapter is discharged. This is not
indicating an error.

HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com
Telefon + 49 - (0) 6482 918 100 Telefax + 49 - (0) 6482 918 111 eMail [e-mail]
Profilux®LED1400 / Profilux®LED1400 DMX
Service
A blinking of this LED indicates that the HEDLER Profilux®LED1400 light unit model was in operation for 6000 hours. The light unit should be send
to HEDLER Systemlicht GmbH for recalibration. Please contact HEDLER Systemlicht GmbH directly or contact your photographic specialized
dealer.
0049 (0)6482-918100
[e-mail]
Power
A continuous glowing of this LED indicates the light unit is switched on.
Cooling
A continuous glowing of this LED indicates the fan cooling is functional.
LED
The light units of the HEDLER Profilux®LED range are equipped with one 185 W high power single cell LED with 138 lm/W, which can´t be
replaced by the user. If any technical failure of the LED takes place please contact HEDLER Systemlicht GmbH or your photographic specialized
dealer.
0049 (0)6482-918100
[e-mail]
FRESNEL LENS
To replace the Fresnel lens: please, make sure that the housing of the HEDLER Profilux®LED1400 / HEDLER Profilux®LED1400 DMX has cooled off
before interchanging the Fresnel lens, otherwise there is a risk of burning! Always disconnect the HEDLER Profilux®LED1400 / HEDLER Profilux®
LED1400 DMX from the power supply before interchanging the Fresnel lens. Unscrew the four socket screws of the housings front plate and
remove the front plate with the Fresnel lens. Unscrew the securing screws of the Fresnel lens and replace the defective one with an original
HEDLER Fresnel lens only. After replacing the Fresnel lens tighten its securing screws hand-tight. Attach the front plate at the housing and tighten
the front plates four securing screws. Please, before taking the HEDLER Profilux®LED1400 / HEDLER Profilux®LED1400 DMX in operation, make
sure that the front plate is mounted correctly!
FOCUSING
To focus the HEDLER Profilux®LED1400 or the HEDLER Profilux®LED1400 DMX light beam turn the focusing knob anti clock-wise (increased
spotlight characteristic) or clock-wise (increased floodlight characteristic) to adjust the light beams size.
DMX
At the back of the HEDLER Profilux®LED1400 DMX light unit there are two 5-pin DMX-sockets with standard pin configuration. Connected
to a suitable DMX controller the light units can be switched on / off and the light output power can be adjusted remotely. The upper DMX
connect is used for the forementioned operations of the light unit. The lower DMX connect is used to connect another light unit and works as a
„passthrough feature“ for the DMX-signal. Setting the DMX-address of the respectively light unit is done directly at the light unit, no additional
accessory is needed.
Setting the DMX-address will be done as follows: a) HEDLER Profilux®LED1400 DMX must be connected to a power supply and switched off;
b) press the key button Dimmer OFF / ON for approx. 3 seconds or until „A--“ is displayed and don´t release the key button; c) pressing the
key button Fan 100% / Automatic or POWER OFF / ON once the numerical address of the light unit will be increased / decreased by one; d) to
quit the process release the key button Dimmer OFF / ON.

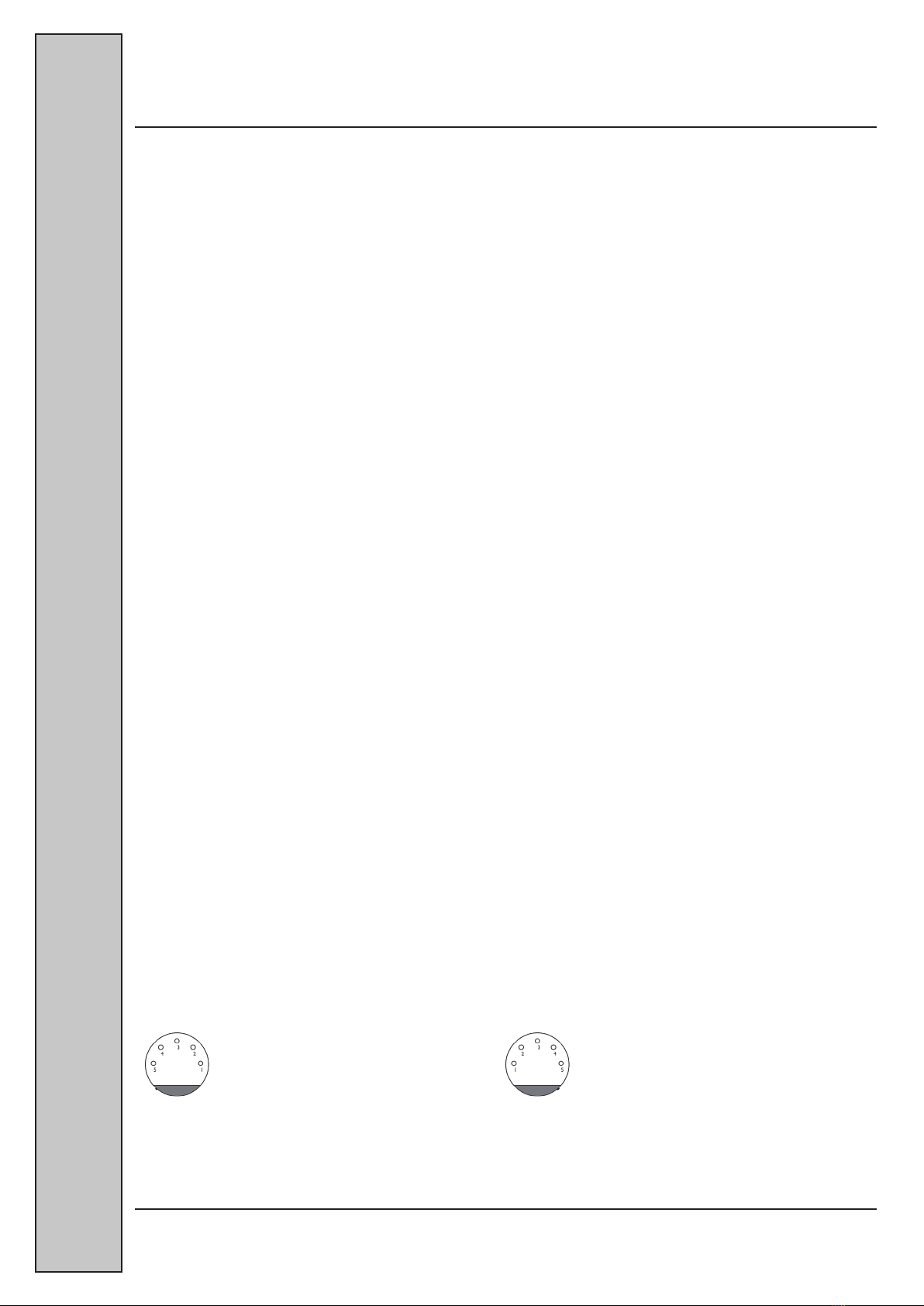

DMX-pin configuration of the HEDLER Profilux®LED1400 DMX (front view)
HEDLER®
Systemlicht
OPERATION MANUAL
5 pin XLR plug
1 - earth/shielding 2 - DMX-
3 - DMX+
4 - optional 2nd bus system - DMX-
5 - optional 2nd bus system - DMX+
5 pin XLR socket
1 - earth/shielding 2 - DMX-
3 - DMX+
4 - optional 2nd bus system - DMX-
5 - optional 2nd bus system - DMX+

ACCESSORIES
Please notice our extensive range of reflectors, umbrellas, softboxes, stands and other accessories.
Visit us on
www.hedler.com
HEDLER WARRANTY
All HEDLER equipment is fully guaranteed against any material or manufacturing defects for three years after date of purchase. Parts made out
of glass, fuses, halogen bulbs, flash tubes, Pyrex®coverings and single cell LED modules are not covered by this warranty.
MAINTENANCE and REPAIR
For a secure operation of light units they have to be maintained. Therefore: before using light units they have to be checked visually and an
electrical safety check has to be done every twelve month. The results of this check have to be documented and archived. If wou have any
questions about the safety check, please feel free to contact us.
0049 (0)6482-918100
[e-mail]
If repair is required, please, contact your dealer, the authorized distributor in your country or the HEDLER factory directly. Please note, that a
pre-dismantled light unit could cause increased repair costs.
CHECK
All HEDLER light units are tested at HEDLER Systemlicht GmbH according to DIN 0701/0702 with protocol I.
This check has to be repeated yearly.
Please contact us
0049 (0)6482-918100
[e-mail]
PLEASE NOTE - SPECIAL SET-UP ADVICE
The light units of the HEDLER Profilux®LED range has an upside and an underside, setting-up the light unit it is important to take care of the
correct position of these sides. The light unit is set-up correctly, if the QuickFit Adapter (located at the front side of the housing) is located
beneath the safety glass / bulb respectively the Fresnel lens.
To ensure a continuous operation, the light units of the HEDLER Profilux®LED range has to be set-up / operated in the position described
respectively as shown on the photograph.
If you take the light unit in operation in an upside-down set-up, the internal automatic temperature safety switch will (according to the ambient
conditions) switch off the light unit after some operation time until it has cooled down. This is not a failure or a maloperation of the light unit of,
it is a protection shutoff for the internal electronic ballast to prevent overheating.
HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com
Telefon + 49 - (0) 6482 918 100 Telefax + 49 - (0) 6482 918 111 eMail [e-mail]
Profilux®LED1400 / Profilux®LED1400 DMX
HEDLER®
Systemlicht
OPERATION MANUAL

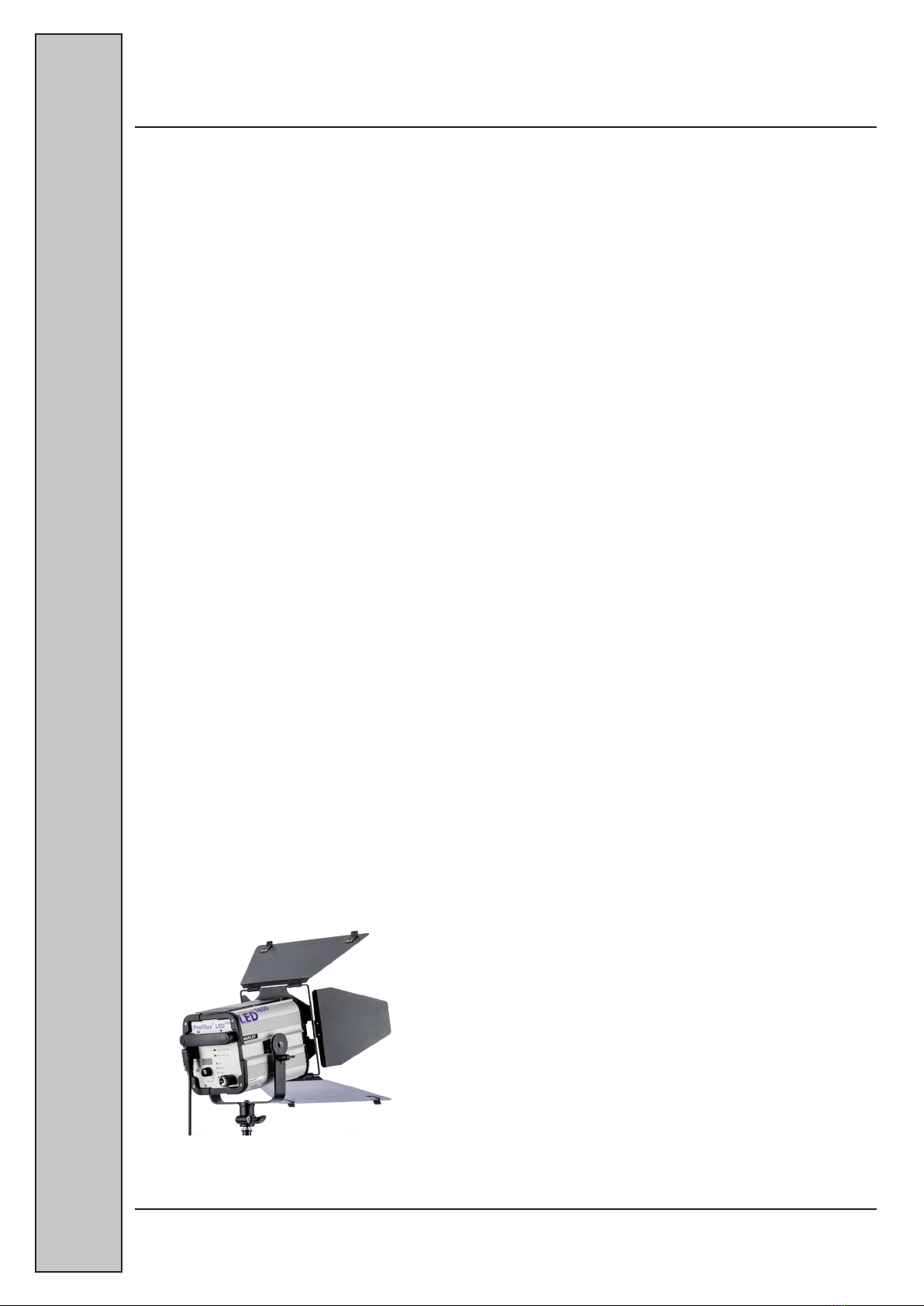

Set-up correctly - shown for the HEDLER
Profilux®LED1400 with optional 4-Leaf
barndoor 360° attached.

Safety instructions for Hedler light units and accessories
The following safety instructions are valid for Hedler light units and their accessory. Please, read these safety inst-
ructions completely before setting up a Hedler light unit and/or putting Hedler light unit(s) into operation. Please
contact Hedler Systemlicht GmbH, 65594 Runkel directly, if you do have a technical question concerning Hedler
light units and/or Hedler accessories. Please keep these safety instructions close in reach, if neccessary you can
download them from our website www.hedler.com as a PDF.
Hedler light unit(s), Hedler reflectors, softboxes, reflex umbrellas and/or Hedler accessories are designed for pro-
fessional studio or indoor use only. Never use Hedler light unit(s), Hedler reflectors, softboxes, reflex umbrellas
and/or Hedler accessories outdoors.
Setting up and putting into operation
To put Hedler light unit(s) into operation it/they have to be set up, mounted, placed, secured and monitored
appropriately.
• Always use a Hedler light unit in combination with a steady and secure standing light stand which has a loading
capacity that is adequate for the weight of the light unit plus cable plus accessory/accessories. Always work
within the light stand´s loading capacity, especially if you are using, or plan to use, large and/or heavy folding
reflectors.
• Appropriate action(s) to secure light stand(s) are (for example):
• - mounting the light stand legs to the (stage) floor,
• - weight down the light stand legs with appropriate filled sand bags for example,
• - blockade the light stand area.
• Please note the permitted tilting of the Hedler light unit(s) of max. 45° upwards and max. 45° downwards.
• Set up a Hedler light unit - light stand combination on leveled floor only. Please make sure for tilt resistance
while setting up / taking down and while in operation. Please make sure for an antislip stand while setting up /
taking down and while in operation.
• For light unit(s) in operation the ambient temperature should not underrun -15°C (5°F) or exceed approx.
35°C (95°F).
• Acclimatisation: Avoid condensation problems because of high variations of temperature. If there are high
variations of temperature do not use the Hedler light unit(s).
• Use Hedler light unit(s) in hospital(s), museum(s), factory (factories) asf. with permission of the appropriate /
responsible public authority, administration, company management or business management only.
• If not taking care of this safety instructions there is in particular a serious risk of squeezing, cutting and/or
burning caused by overthrowing, slipping or other reason(s) because of uncontrolled/unwanted movements
of a light unit(s) while setting up / taking down and/or while in operation.
• Always use a double securing like a safety wire, if you mount a Hedler light unit overhead, which has a loading
capacity that it could be loaded with the weight of the mounted light unit incl. accessory multiplied by five (for
example: (light unit 4.5 kg + reflector 1.2 kg) * 5 = 28.5 kg - for this case the safety wire to use must have a
loading capacity of minimum 28.5 kg).
• Before putting a Hedler light unit into operation check all safety and/or positioning and/or light stand srews
for being screwed in securely and/or hand-tight.
• Always keep a minimum distance of 100 cm between the safety glass (or accessories) and any combustible
materials and/or any inflammable liquids, gases or explosives when a Hedler light unit is in use.
• Never use a Hedler light unit near any inflammable liquids, gases, materials or explosives that may be ignited
by heat or spark.
• If you light through glass surfaces, windows and decoration surfaces keep appropriate distances between the
light unit(s) and these materials, because these materials can burst if overheatet and shatter could be an risk
of injuries.
• Never store any combustible material(s) and/or any inflammable liquids, gases or explosives near any Hedler
light unit(s).
• Never touch a Hedler light unit with wet hand and/or feet.
• Never use a Hedler light unit in extremely dusty nor in exceptionally humid and/or wet conditions.
• Never obstruct the forced air cooling (intakes or exhausts) in any way when the Hedler light unit is in use.
• Never obstruct the cooling intakes or exhausts in any way when the Hedler light unit is in use.
• Under no circumstances - do not block the cooling fan of a Hedler light unit.
HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com
Telefon + 49 - (0) 6482 918 100 Telefax + 49 - (0) 6482 918 111 eMail [e-mail]
Safety instructions
HEDLER®
Systemlicht

HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com
Telefon + 49 - (0) 6482 918 100 Telefax + 49 - (0) 6482 918 111 eMail [e-mail]
Safety instructions
HEDLER®
Systemlicht
• Never obstruct any opening of the housing of a Hedler light unit. Never stick any item(s) into any opening of
the housing of a Hedler light unit. Otherwise there is the serious risk of an electrical shock, of a failure mal-
function of the Hedler light unit, a short-circuit and/or a fire.
• Never carry a Hedler light unit by it´s power cord and/or it´s accessories.
• Always avoid the risk of a trip hazard caused by the power cord(s). If power cord(s) has/have to be layed
down to the floor to connect the light unit(s) to the power supply: if possible do not so without appropriate
marking or covering of the power cord(s).
• Always take care not to squeeze, to overrun, to stretch and/or to buckle the power cord of the Hedler light
unit.
• Always take care that the power cord of a Hedler light unit is not worn out and/or is damaged in any way.
• Always take care not to cause a damage of the power cord of a Hedler light unit because of thermic, mecha-
nical and/or chemical reason(s). Avoid such a risk under any circumstances.
• Never use a Hedler light unit with a defective power cord and/or plug. Replacement of a defective power
cord has to be done by Hedler Systemlicht GmbH or an authorized specialist shop only. Never use a Hedler
light unit with a „repaired“ power cord. A defective power cord must be replaced.
• Some of the Hedler continuous light units do have a high power consumption. Always take care, that the
power supply is designed for such a high power consumption.
• Before use check your Hedler product for possible damage(s):
Component: possible damage(s):
housing, lens, safety glass crack, split, deformation
power cord deformation, isolation damage, charred
power plug, mains plug deformation, broken, charred
bracket and handle not tightend, sliding block broken, brake disc doesn´t work
(correctly)
Operation
• Never use a Hedler light unit with a defective safety glass, a defective Pyrex® cover, a defective flash bulb,
defective bulb(s) and/or defective fuse(s).
• Never put a Hedler light unit into operation with a defective safety glass, a defective Pyrex® cover, a defecti-
ve flash bulb, defective bulb(s) and/or defective fuse(s).
• Under any circumstances keep the minimum safety distance(s) given on the identification plate and / or the
safety label to avoid damages caused by light beam(s) and / or thermal radiation and / or heat radiation to
person(s), animal(s) and / or item(s) and / or object(s).
• In the case of a defect or damage of the safety glass, the Pyrex® cover, the bulb(s), the flash bulb and/or the
fuse(s) of a Hedler light unit (particularly while it is in operation): switch of the light unit immediately, discon-
nect it from the power supply, let it cool down completely and replace the defective safety glass, Pyrex®
cover, the bulb(s) and/or fuse(s) with the intended original Hedler spare part. Changing/replacing a flash bulb
of a Hedler light unit is not allowed to be done by a customer. Changing/replacing of a flash bulb has to done
by Hedler Systemlicht GmbH only.
• Never use a Hedler light unit unattended.
• Always disconnect Hedler light unit(s) from the power supply if it/they is/are not in use or in operation.
• Hedler light units are not designed and they are not suitable for the use as a room lighting.
• Never use a Hedler light unit for any reason other than photographic or cinematic lighting.
• While in operation avoid to jar heavily, moving jerkily and/or overthrowing Hedler light units - this could cause
breaking, fragmenting into parts and/or bursting of the bulb(s) and/or flash bulbs and/or parts made out of
glass; because of this there is a serious risk of cutting and/or burning in particular and the risk of damage to
property like combustion, discoloring/staining, sparking, and so on.
• In the case of overthrowing, falling down and/or jaring heavily a Hedler light unit it has to be checked by Hed-
ler Systemlicht GmbH or a specialist shop authorized by Hedler Systemlicht GmbH for damages.
Safety glass, Pyrex® cover and flash bulbs, bulbs and fuses
• Before performing any kind of maintenance work on the light unit - always disconnect the Hedler light unit
from the power supply and let cool down the light unit completely.

• Before changing a safey glass or a Pyrex® cover - always disconnect the Hedler light unit from the power
supply and let cool down the light unit completely.
• Before changing a bulb and/or fuse - always disconnect the Hedler light unit from the power supply and let
cool down the light unit completely.
• For replacing a safety glass or Pyrex® cover - use the intended original Hedler spare parts only.
• For replacing a bulb and/or fuse(s) - use the intended original Hedler spare parts only.
• Never use a „repaired“ fuse.
• Changing/replacing a flash bulb of a Hedler light unit is not allowed to be done by a customer. Changing/repla-
cing of a flash bulb has to be done by Hedler Systemlicht GmbH only.
Additional safety instructions and explanation for symbols
• Hedler light units produce a very intensive and bright beam of light: never look directly into the bulb and/or
flash bulb. while it is in operation. Never light or flash directly into the eye(s) of a human or an animal, this can
cause permanent damage to the eye(s) or health threat(s) (like sunburn).
• Please note, dazzle / glare caused by continuous light unit(s) or flash light unit(s) can cause an immediate (part-
ly and/or temporarily) loss of vision - this can lead to accident(s) (traffic, stairs, and so forth).
• Before (inter-)changing accessories, light modifier(s) or bulb(s) - switch off the light unit(s) and let it cool
down completely.
• Some Hedler light units and/or Hedler reflectors, parts of softboxes and reflex umbrellas and some accesso-
ries can heat up extremely while in operation: there is a serious risk of burning. Never touch these parts while
they are in operation. (Please, use heatresistant and heatprotecting gloves to avoid burning!).
• Please let cool down Hedler light units and/or Hedler reflectors, parts of softboxes and reflex umbrellas and
some accessories completely after using them and before packing them away: not doing so can cause serious
burnig and/or the risk of sparking.
• Not used as intended and/or in the case of inappropriate use of Hedler light units and/or Hedler reflectors,
parts of softboxes and reflex umbrellas and accessories there is the serious risk of a (deadly) electrical shock.
• Hedler light units, Hedler reflectors, softboxes, reflex umbrellas and/or Hedler accessories are no toys, they
are unsuitable for use by children. Always keep Hedler light units, Hedler reflectors, softboxes, reflex umbrel-
las and/or Hedler accessories out of the reach of children.
Explanation for symbols:
Minimum Heat Volt / Watt / Min. load Warning CE Bin
distance °C / °F Voltage Demand capacity Voltage WEEE
Maintenance
For a secure operation of light units they have to be maintained. Therefore: before using light units they have to
be checked visually and an electrical safety check has to be done every twelve month. The results of this check
have to be documented and archived.
Liability limitation
For all injuiries and/or damages to people and/or objects, which are caused by using Hedler products in a way that
the are not intended for the user is liable - not the manufacturer.
If you do have a question to set up and/or to operate Hedler light units, Hedler reflectors, softboxes, reflex
umbrellas and/or Hedler accessory, please ask at Hedler Systemlicht GmbH directly or at the Hedler authorized
photographic specialised dealer (a list with this dealers you will find on our website www.hedler.com).
HEDLER Systemlicht GmbH Heerstrasse 112 D-65594 Runkel / Lahn www.hedler.com
Telefon + 49 - (0) 6482 918 100 Telefax + 49 - (0) 6482 918 111 eMail [e-mail]
Safety instructions
HEDLER®
Systemlicht
V
W
1m
min. kg
