HELKAMA HJA349M User manual

LARDER
Instruction Booklet
KYLSKÅP
Instruktionsmanual
JÄÄKAAPPI
Käyttöohje
HJA349M

EN - 1 -
Index
BEFORE USING YOUR FRIDGE ......................................................................... 2
General warnings............................................................................................................... 2
Old and out-of-order fridges .............................................................................................. 4
Safety warnings .................................................................................................................. 4
Installing and Operating your Fridge ................................................................................ 5
Before Using your Fridge ................................................................................................... 5
USAGE INFORMATION ...................................................................................... 6
Thermostat Setting ............................................................................................................. 6
CLEANING AND MAINTENANCE ........................................................................ 7
Defrosting ........................................................................................................................... 8
Replacing the Light Bulb ................................................................................................... 8
SHIPMENT AND REPOSITIONING ..................................................................... 9

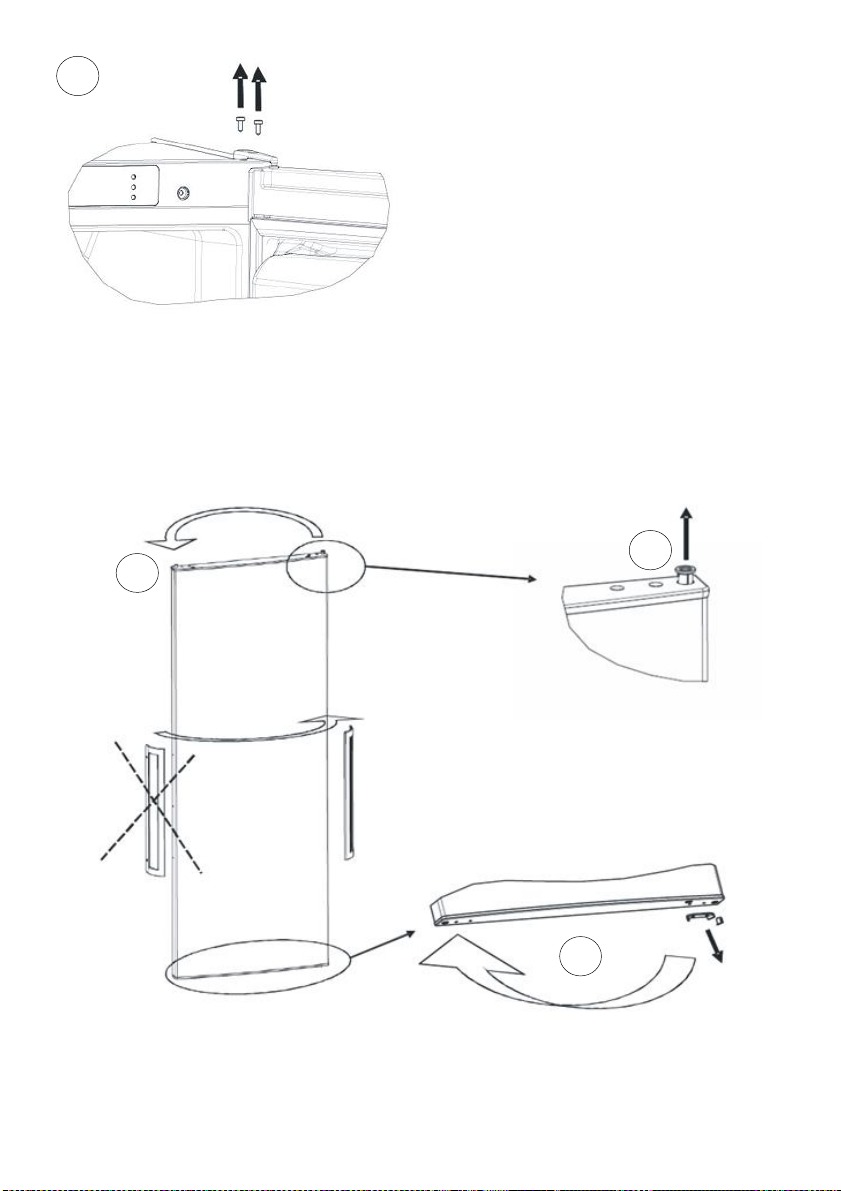

Repositioning the Door ..................................................................................................... 9
BEFORE CALLING SERVICE ............................................................................. 9
Tips for saving energy ...................................................................................................... 11
THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ........................12

EN - 2 -
CHAPTER 1. BEFORE USING YOUR FRIDGE
General warnings
WARNING: Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.
WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability of the appliance,
it must be fixed in accordance with the instructions.
•If your appliance uses R600a as a refrigerant – you can learn
this information from the label on the cooler- you should be careful
during shipment and installation to prevent your appliance’s cooler
elements from being damaged. Although R600a is an
environmentally friendly and natural gas. As it is explosive, in the
event of a leak due to damage to the cooler elements, move your
fridge from open flame or heat sources and ventilate the room
where the appliance is located for a few minutes.
•While carrying and positioning the fridge, do not damage the
cooler gas circuit.
•Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
•This appliance is intended to be used in household and similar
applications such as;
- staff kitchen areas in shops, offices and other working
environments
-farm houses and by clients in hotels, motels and other residential
type environments

EN - 3 -
- bed and breakfast type environments;
- catering and similar non-retail applications
•If the socket does not match the refrigerator plug, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
•This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
•A specially grounded plug has been connected to the power
cable of your refrigerator. This plug should be used with a
specially grounded socket of 16 amperes. If there is no such
socket in your house, please have it installed by an authorized
electrician.
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazard involved.
Children shall not play with the appliance. Cleaning and user
maintenance, shall not be made by children without supervision.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similar qualified persons in
order to avoid a hazard.

EN - 4 -
Safety warnings
• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children
to play with the appliance or let them hang off the door.
• Do not plug-in or out the plug from the receptacle with wet hands to
prevent electrocution!
• Do not place explosive or flammable material in your fridge for your
safety. Place drinks with higher alcohol amount vertically and by
closing their necks tightly in the fridge.
• Do not cover the body or top of fridge with lace. This affects the
performance of your fridge.
• Fix the accessories in the fridge during transportation to prevent
damage to accessories.
Old and out-of-order fridges
•If your old fridge has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
•Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore,
take care not to harm environment when you are discarding your old fridges.
Please ask your municipal authority about the disposal of the WEEE for the
reuse, recycle and recovery purposes.
Notes:
•Please read the instruction manual carefully before installing and using your appliance.
We are not responsible for the damage occurred due to misuse.
•Follow all instructions on your appliance and instruction manual, and keep this
manual in a safe place to resolve the problems that may occur in the future.
•This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specified purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the appliance to be cancelled
and our company will not be responsible for the losses to be occurred.
•This appliance is produced to be used in houses and it is only suitable for cooling /
storing foods. It is not suitable for commercial or common use and/or for storing
substances except for food. Our company is not responsible for the losses to be
occurred in the contrary case.

EN - 5 -
Installing and Operating your Fridge
• Operating voltage for your fridge is 220-240 V at 50Hz.
• We do not take the responsibility of the damages that occur due to ungrounded
usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Your appliance should be at least 50 cm away from stoves,
ovens and heater cores, and should be at least 5 cm away from
electrical ovens.
• It should never be used outdoors or left under the rain.
• When your fridge is placed next to a deep freezer, there should
be at least 2 cm between them to prevent humidity on the outer
surface.
• Do not place anything on your fridge, and install your fridge in a
suitable place so that at least 15 cm is available on the upper
side.
• If you will place your fridge next to your kitchen cabinets, leave a
space of 2 cm between them.
• Fit the plastic wall spacers to the condenser at the back of the
refrigerator in order to prevent leaning to the wall for good
performance.
• Install the distance adjustment plastic (the part with black vanes
at the rear) by turning it 90° to prevent the condenser from
touching the wall.
• The adjustable front legs should stabilized in an appropriate height to allow your
fridge operate in a stable and proper way. You can adjust the legs by turning them
clockwise (or in the opposite direction). This should be done before placing food in
the fridge.
• Before using your fridge, wipe all parts with warm water added with a tea spoonful of
sodium bicarbonate, and then rinse with clean water and dry. Place all parts after
cleaning.
Before Using your Cooler
• When it is operated for the first time or after transportation, keep
your fridge in the upright position for 3 hours and plug it on to
allow efficient operation. Otherwise, you may damage the
compressor.
• Your fridge may have a smell when it is operated for the first time; the smell will fade
away when your fridge starts to cool.

EN - 6 -
CHAPTER 2. USAGE INFORMATION
Thermostat Setting
Larders (coolers) have not any freezer compartment but can cool below 5°C.
Thermostat automatically regulates the inside temperature of the refrigerator compartment.
By rotating the knob from position « 1 » to « 5 », colder temperatures can be obtained.
Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.
• For short-term storage of food in the refrigerator compartment, you can set the knob
between minimum and medium position.(1-3)
• For long-term storage of food in the refrigerator compartment, you can set knob to
medium position.(3-4)
•Note that; the ambiant temperature, temperature of the freshly stored food and
how often the door is opened, affects the temperature in the refrigerator
compartment. If required,change the temperature setting.
• Larders (coolers) have not any freezer compartment but can cool below 5°C.
• When you first switch on the appliance, for starting a suitable cooling, the appliance
should work 24 hours continuously until it cools down to sufficient temperature.
• In this time do not open the door so often and place a lot of food inside the appliance.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before
restarting or re-plugged the unit in order not to damage the compressor.

EN - 7 -
• Disconnect unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
• The refrigerator and freezer compartment should be cleaned
periodically using a solution of bicarbonate of soda and
lukewarm water
• Clean the accessories separately with soap and
water. Do not clean them in the washing machine.
• Do not use abrasive products, detergents or soaps. After
washing, rinse with clean water and dry carefully. When the
cleaning operations have been completed reconnect the plug
of the unit with dry hands.
• You should clean the condenser (back of the appliance)
with broom ones a year in order to provide energy saving
and increase the productivity.
THE POWER SUPPLY MUST BE DISCONNECTED.
CHAPTER 3. CLEANING AND MAINTENANCE

EN - 8 -
Defrosting
• Defrosting occurs automatically in refrigerator compartment during operation ; the
defrost water is collected by the evaporating tray and evoparates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically
with defrost drain plug to prevent the water from collecting on the bottom of the
refrigerator instead of flowing out.
• You can also pour ½ glass of the water to drain hole to clean inside.
Replacing the Light Bulb
A
B
If the illumination is occured via lamp
To replace the bulb in freezer and fridge departments;
1- Unplug your fridge.
2- Remove the cover of the box from the claws
using a screwdriver.
3- Replace with a new similar bulb.
4- Install the cover.
5- Wait for 5 minutes before re-plugging and
bring the thermostat to its original position.
Replacing LED Lighting
If your refrigerator has LED lighting contact the help desk as this should be changed by
authorized personnel only.

EN - 9 -
CHAPTER 5. BEFORE CALLING SERVICE
If your refrigerator is not working properly,it may be a minor problem, therefore check the
following, before calling an electrician to save time and money.
What to do if your refrigerator does not operate ;
Check that ;
• There is no power,
• The general switch in your home is not disconnected ,
• The thermostat setting is on «•» position,
• The socket is not sufficient. To check this, plug in another appliance that you know
which is working into the same socket.
What to do if your refrigerator performs poorly ;
Check that ;
• You have not overloaded the appliance ,
• The doors are closed perfectly ,
• There is no dust on the condenser ,
• There is enough place at the rear and side walls.
CHAPTER 4. SHIPMENT AND REPOSITIONING
Repositioning the Door
• It is not possible to change the opening direction of your fridge door, if the door
handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any
handles.
• If the door opening direction of your fridge may be changed, you should contact the
nearest Authorized Service to have the opening direction changed.
• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow
the instructions for transportation on the package for re-transportation.
• Remove movable parts (shelves,
accessories, vegetable bins etc.) or fix
them into the fridge against shocks using
bands during re-positioning and
transportation.
• Carry your fridge in the upright position.

EN - 10 -
If there is noise ;
The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling
sound) even when the compressor is not running. Do not worry this is quite normal. If
these sounds are different check that ;
• The appliance is well leveled ,
• Nothing is touching the rear ,
• The stuffs on the appliance are vibrating.
If there is water in the lower part of the refrigerator
Check that ;
The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain
hole)
If your fridge is not cooling enough;
Your fridge is designed to operate in the ambient temperature intervals stated in the
standards, according to the climate class stated in the information label. We do not
recommend operating your fridge out of stated temperatures value limits in terms of cooling
effectiveness.
Climate Class Ambient Temperature (°C)
TBetween 16 and 43 (°C)
ST Between 16 and 38 (°C)
NBetween 16 and 32 (°C)
SN Between 10 and 32 (°C)
IMPORTANT NOTES:
• Compressor protection function will be activated after sudden power breakdowns or
after unplugging the appliance, because the gas in the cooling system is not
stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about.
• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it.
Clean your fridge according to Chapter 4 and leave the door open to prevent humidity
and smell.
• If the problem persists after you have followed all the instructions above, please
consult to the nearest Authorized service.
• The lifetime of your appliance stated and declared by the Department of the Industry
is 10 years (the period for retaining parts required for the proper functioning of the
appliance).
Conformity Information
• This equipment is designed for use at an ambient tem-perature within the 16°C -
43°C range.
• The appliance is designed in compliance with the EN62552, IEC60335-1 /
IEC60335-2-24, 2004/108/EC standards.

EN - 11 -
Tips for saving energy
1- Install the appliance in a cool, well ventilated room , but not in direct sunlight and
not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2- Allow ward food and drinks to cool down outside the appliance.
3- When thawing frozen food, place it in the refrigerator compartment. The low
temperature of the frozen food will help to cool the refrigerator compartment
when it is thawing. So it causes energy saving. If the frozen food is put out, it
causes wastage of energy.
4- When placing, drinks and slops they must be covered. Otherwise humidity
increases at the appliance. Therefore the working time gets longer. Also covering
drinks and slops helps to save smell and taste.
5- When placing food and drinks, open the appliance door as briefly as possible.
6- Keep close the covers of any different temperature compartment in the appliance
(crisper, chiller ...etc ).
7- Door gasket must be clean and pliable. Replace gaskets if worn.

EN - 12 -
CHAPTER 6. THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
This presentation is only for information about the parts of the appliance.
Parts may vary according to the appliance model.
1) Head panel
2) Turbo fan (In glass shelf models)
3) Refrigerator shelves
4) Top crisper cover (In some models)
5) Top crisper (In some models)
6) Bottom crisper cover
7) Bottom crisper
8) Bottle shelf
9) Door shelves
10) Egg holder

EN - 13 -
a
b1
b2
b3

EN - 14 -
c
d
e
f

SV - 15 -
Register
FÖRE ANVÄNDNING AV KYLSKÅPET ...................................................16
Allmänna varningar .......................................................................................................... 16
Säkerhetsinstruktioner ....................................................................................................18
Rekommendationer ......................................................................................................... 18
Installation och igångsättning .........................................................................................19
Före igångsättning ........................................................................................................... 19
FUNKTIONER OCH MÖJLIGHETER .................................................................. 20
Termostatinställningar ..................................................................................................... 20
RENGÖRING OCH UNDERHÅLL ....................................................................... 21
Byta ut glödlampan .......................................................................................................... 22
TRANSPORT OCH OMPLACERING .................................................................. 22
INNAN DU KONTAKTAR SERVICE .................................................................... 22
Tips För Att Spara Energi ................................................................................................. 24
APPARATENS DELAR ...................................................................................... 25

SV - 16 -
Allmänna varningar
VARNING: Håll ventilationsöppningar i apparatens hölje eller
inbyggnadsstruktur oblockerade.
VARNING: Använd inte mekaniska enheter eller andra metoder för
att snabba upp avfrostningen, förutom de som rekommenderas av
tillverkaren.
VARNING: Använd inte elektriska apparater inuti apparatens fack
för matförvaring, såvida de inte är av den sorten som rekommenderas
av tillverkaren.
VARNING: Skada inte kylkretsen.
VARNING: För att undvika risker på grund av instabilitet i apparaten,
måste den fästas enligt instruktionerna.
• Modellen innehåller R600a (kylmediumet isobutan), vilket är en
naturgas som är väldigt miljövänlig men också explosiv. Vid trans-
port och installation av enheten måste hänsyn tas så att
kylsystemet tar skada. Om skada uppstår; undvik öppen låga
eller tändningskälla och ventilera rummet där enheten står under
några minuter.
• Förvara inte explosiva ämnen såsom aerosol-flaskor med
lättantändliga bränslen i den här apparaten.
• Den här apparaten är avsedd att användas i hemmabruk och
liknande tillämpningar så som:
- personalkök i affärer, kontor och andra arbetsmiljöer
- stugor och av kunder på hotell, motell och andra miljöer för
boendeformer
- vandrarhemsliknande miljöer;
- kartering och liknande icke-återförsäljande tillämpningar
• Om uttaget inte stämmer överrens med kylskåpets kontakt måste
det bytas ut av tillverkaren, dess serviceagent eller likvärdigt
DEL - 1 FÖRE ANVÄNDNING AV KYL-/FRYSSKÅPET

SV - 17 -
godkänd kvalificerad person, för att undvika faror.
•Denna apparat är inte avsedd att användas av personer (inklusive
barn) med nedsatta fysiska, sensoriska eller psykiska förmågor
eller brist på erfarenhet och kunskap, såvida de inte övervakas
eller får instruktioner angående användningen av apparaten av
en person som ansvarar för deras säkerhet. Barn ska övervakas
för att säkerställa att de inte leker med apparaten.
• En speciell jordad kontakt har kopplats till strömsladden till ditt
kylskåp. Denna kontakt ska användas i ett speciellt jordat 16-
ampereuttag. Om det inte finns något sådant uttag i ditt hem ska
ett installeras av en auktoriserad elektriker.
• Den här utrustningen kan användas av barn från 8 års ålder och
äldre, samt personer mer fysisk, sensorisk eller mental
nedsättningskapacitet eller har brist på erfarenhet och kunskap
om de har någon som övervakar eller om de fått instruktioner
angående användning av apparaten på ett säkert sätt och förstå
de faror som innefattas. Barn får inte leka med apparaten.
Rengöring och underhåll vid användning, får inte utföras av barn
utan övervakning.
• Om elsladden är skadad måste den bytas ut av tillverkaren eller
en servicerepresentant eller liknande kvalificerade personer för
att undvika fara.

SV - 18 -
Säkerhetsinstruktioner
• Varning: Blockera inte ventilationsöppningarna i enhetens hölje eller med en ev.
inbyggnadsram.
• Använd aldrig mekaniska verktyg eller liknande metoder för att påskynda avfrostning.
• Om denna apparat ska ersätta en uttjänt produkt med lås; förstör eller avlägsna låset
som en säkerhetsåtgärd före deponering, för att skydda barn som vid lek kan låsa
sig inne.
• Äldre kyl- och frysskåp innehåller isoleringsgas och kylmedium som skall deponeras
ordentligt. Överlåt alltid deponeringen av en kasserad enhet till kvalificerad
återvinningscentral och rådgör med lokala myndigheter vid eventuella frågor. Se till
att inga Kylledningar skadas innan deponeringen.
Denna enhet är märkt i enlighet med der europeiska direktivet 2002/96/EG
om avfall som utgörs av eller innehåller elektroniska produkter (waste
electrical and electronic equipment - WEEE).
Direktivet anger ramarna för inom EU giltigt återtagande och korrekt
återvinning av uttjänta enheter.
Obs:
Läs noga igenom detta häfte före installation och igångsättning. Tillverkaren tar inget
ansvar för oriktig installation och användning.
Rekommendationer
• Använd inte adaptrar eller omkopplingar som kan medföra
överhettning eller brand.
• Använd ej elektriska apparater inuti kyl-/frysutrymmena.
• Använd inte gamla vridna elkablar.
• Vrid eller böj inte kablarna.
• Låt inte barn leka med apparaten. Barn får aldrig sitta på
draglådor/hyllor eller hänga i dörren.
• Använd inte vassa metallföremål för att avlägsna is från
frysutrymmen; dessa kan punktera kylledningen och medföra
oreparabel skada. Använd den medföljande plastskrapan.
• Tag aldrig i elkabeln med våta händer.
• Placera inte ömtåliga vätskebehållare (tunna eller i glas) I frysen,
särskilt inte kolsyrade drycker då de expanderar och spränger
behållaren vid frysning.
• Flaskor med hög alkoholhalt måste förseglas väl och placeras
vertikalt.

SV - 19 -
• Vidrör ej kylytorna (särskilt inte med våta händer). Det innebär risk för
brännskada.
• Ät inte is eller isglass som just tagits ur frysen.
• Om elkabeln skadas skall den bytas av tillverkaren, servicerepresentanten eller
anvisad kvalificerad person.
Installation och igångsättning
• Elkällan skall vara 220-240V ~50 Hz.
• Vid behov – kontakta service för installation och igångsättning.
• Kontrollera före anslutning till elkällan att spänningen överensstämmer med
apparatens typskylt.
• Stickkontakten bör vara åtkomlig efter det att frysskåpet står på
plats.
• Tillverkaren är inte ansvarig för fel uppkomna av otillräckligt
jordad elanslutning som beskrivs i detta häfte.
• Placera inte apparaten I direkt solljus.
• Använd inte apparaten i det fria, får ej utsättas för regn.
• Placera frysskåpet väl avskilt från värmekällor på välventilerad
plats. Apparaten skall placeras minst 50cm från radiator eller
gas-/koleldad spis och minst 5cm från elspisar.
• Lämna minst 15cm fritt utrymme ovanför.
• Montera plastdistansdonen på kylargallret (på baksidan) för att
undvika kontakt med väggytan för god prestanda.
• Förvara inte tunga eller många föremål ovanpå.
• Vid installation intill annat frys- eller kylskåp bör ett minimiavstånd på 2cm hållas för
att förhindra kondensbildning.
• Tillse att apparaten står stabilt och vågrätt på golvet. Justera nivån med de främre
fötterna för att kompensera för ojämnheter i golvet.
• Rengör ytterytor och inredning med diskvattenlösning. Innerytorna bör rengöras med
ljummen natriumbikar-bonatlösning. Montera tillbaka inredningsdelarna när de
torkat.
Före igångsättning
• Vänta i 3 timmar före anslutning till eluttag för att optimera
prestandan.
• En lätt obehaglig lukt kan uppstå vid igångsättning första gången.
Denna försvinner när kylutrymmet börjar kallna.
