HELLER HIM12 User manual

Ice Maker User Manual
Model Number: HIM12
THANK YOU FOR CHOOSING OUR ICE MAKER
PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING

IMPORTANT
Please read and follow the instructions in this user manual even if you feel you are familiar with the product,
and find a place to keep it handy for future reference.
For your convenience, record the complete model number (located on the product identification plate) and the
date you received the product together with your purchase receipt, and attach to the warranty and service
information. Retain in the event that warranty service is required.
NOTE: The rating of this product (as marked on the product identification plate) is based on specific loading
tests. Normal use or the use of other recommended attachments may draw significantly less power.
IMPORTANT SAFEGUARDS
When using any electrically powered product, basic safety precautions should always be followed,
including the following:
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT
WARNING!: - to reduce the risk of fire, electrical shock or injury to persons or property:
•Carefully read all instructions before operating your new product for the first time and keep for future
reference.
•Remove and safely discard any packaging material and promotional labels before using the product for
the first time.
•Before using the Ice maker for the first time, let it sit for 2 hours with the transparent lid open.
•Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is
dropped or damaged in any manner. Return appliance to the nearest authorized service facility for
examination, repair or electrical or mechanical adjustment.
•If the supply cord is damaged, it must be replaced by the manufacturer, an authorized service agent or
a qualified technician in order to avoid a hazard.
•Unplug from power outlet when not in use, before putting on or taking off parts and before cleaning.
•Do not let the cord hang over the edge of a bench, table or to touch hot surfaces.
•Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
•Close supervision is necessary when the appliance is being used near children or infirm persons.
•The use of accessories not recommended by the manufacturer may cause injuries to persons.
•This appliance is not intended for used by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliances by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the appliance.
•Do not operate the appliance other than for its intended use. This appliance is for household use only.
•Do not use outdoors.
•Do not position this product on an incline over 45 degrees.
•Keep the appliance 8cm from other objects to ensure the heat can be released.
•Do not use the appliance close to open flames, hot plates or stoves.

•The installation of a residual current device (safety switch) is recommended to provide additional safety
protection when using electrical appliances. It is advisable that a safety switch with a rated residual
operating current not exceeding 30mA be installed in the electrical circuit supplying the appliance. See
your electrician for professional advice.

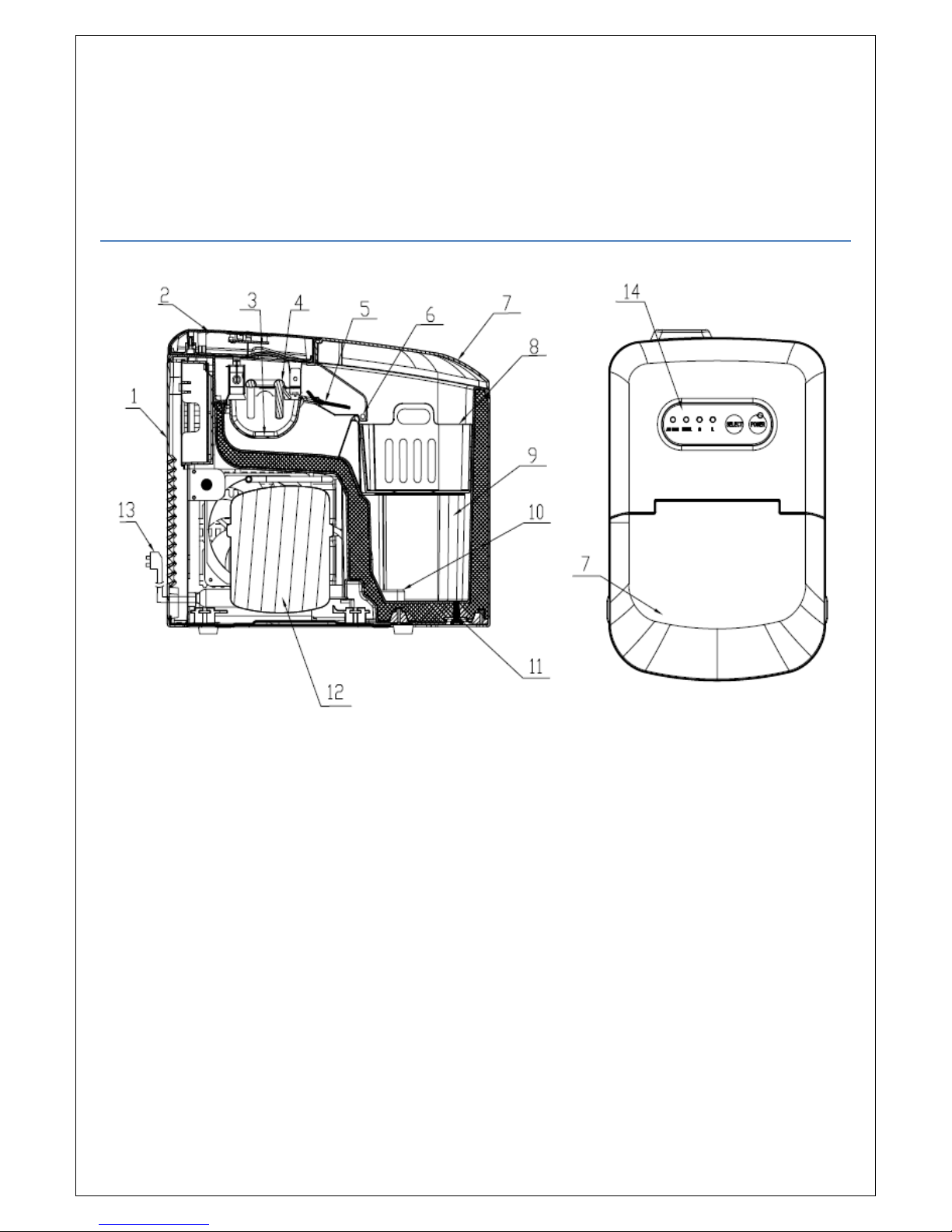

FEATURES
1. Rear Cover
2. Top Cover
3. Water Tray
4. Evaporator
5. Ice Shovel
6. Ice-Bin-Full Sensor
7. Transparent lid
8. Ice Basket
9. Water Reservoir
10. Filter
11. Water Drain Plug
12. Compressor
13. Power Cord
14. Control panel

4

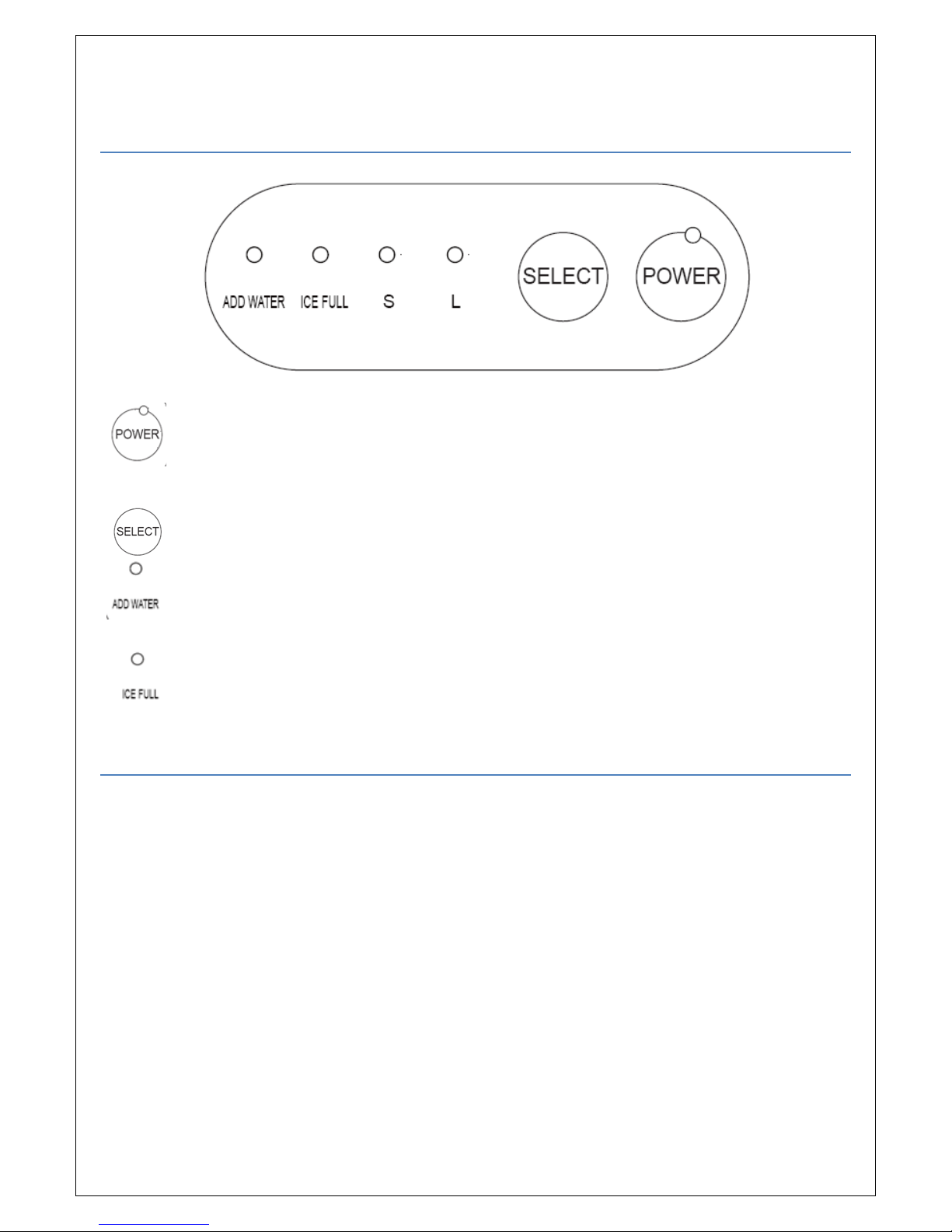

CONTROL PANEL OPERATION
The POWER indicator light will flash when the unit is plugged in. Once turned on the unit enters
standby mode. Press the POWER button to begin operation. If the POWER button is pressed
during operation, the machine will return to standby mode.
Press the SELECT button to choose the ice size. The default size is large ice. When you select the
desired ice size, the corresponding indicator light of S(small) or L(large) will illuminate.
When the ADD WATER indicator light is illuminated, it means there is insufficient water in the water
reservoir. More water will need to be added, and the POWER button will need to be pressed to
restart the machine.
When the ice compartment is full, the ICE FULL indicator will flash, and the machine will stop
working. The ice will need to be removed to make room for more ice.
OPERATING INSTRUCTIONS
1. Open the lid and take out the ice basket and add appropriate water into water reservoir.
NOTE: The water in the water reservoir should be lower than the MAX fill line. If the water is above the
MAX fill line, then open the water drain plug and drain excess water. Once finished close the transparent
lid.
2. Plug the power cord into a power outlet, and press the POWER button to start the machine.
3. Select the desired ice size by pressing the SELECT button (default ice size is ‘L’).
NOTE:
•Select the small ice size when ambient room temperature is below 15°C. When the ambient
temperature is higher than 30°C, large ice cubes are recommended.
•The ice may be small and irregular in size for the first three cycles.

5
•When the ice basket is full please remove the ice immediately, do not allow the ice basket to overfill.
CLEANING
1. Clean the inner lining, ice basket, water reservoir, ice shovel and evaporator frequently. Before commencing
any cleaning, unplug the unit and remove any ice cubes. Use a diluted solution of water and vinegar to clean
the inside and the outside surface of the Ice Maker. Do not spray Ice Maker with chemicals or diluted agents
such as acids, gasoline or oil. Rinse thoroughly.
2. Keep any ventilation openings of the appliance clear of obstruction. Do not use mechanical devices or other
means to accelerate the defrosting process, other than those recommended by the manufacturer.
3. Reuse the machine after being inactive for a period of time.
4. To ensure the cleanliness of ice, change the water in the water reservoir at least once per day. If you do not
plan on using the Ice Maker for a long time, then completely drain the water from the unit.
5. If the unit stops working due to water shortage, ‘ice full’ or interrupted power supply, it will remain off for 3mins
and will resume after 3 minutes has passed.
6. Always use fresh water before starting any ice making.
TROUBLESHOOTING
1. PLEASE NOTE: If a power failure occurs due to disconnection of the power cord, or the off power button has
been pushed during an ice making cycle, small ice chips may form and lodge in the automatic shovel causing it
to jam. If this occurs, the ice chips must be removed by disconnecting the power cord and gently pushing the
shovel to the rear of the cabinet and removing the ice chips, then restarting.
2. Please check if the water reservoir is flat when the ice shovel cannot move the ice to ice basket. If not, please
push the ice shovel gently with your hands, then press the POWER button to restart.
PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTIONS
The compressor works
abnormally with a
buzzing noise.
The voltage is lower than
recommended.
Stop the Ice maker and do not restart until the
voltage is as indicated on the rating plate.
Water shortage indicator
light is on. 1.There is no water 2.The pump is full of air 1.Add water until it reaches MAX fill line. 2. Press POWER button to restart.
Indicator lights are not
on. Blown fuse / no power Replace fuse / Turn power on.
The ice made is too
large with pieces
sticking together.
1.
water temperature is too
low
2. Ice from previous cycle
was left in the water tray.
1. Select small size.
2. Remove ice after each cycle.
All indicators twinkle
simultaneously.
Water tray is blocked by an
ice cube.
Switch the unit off and unplug the power cord.
Remove the ice which
is blocking the tray. Once
removed plug the power
cord in and press the
POWER button. The machine will start 3mins later.

6
PLEASE NOTE
•Fill with drinkable water only.
•It is normal for the compressor and condenser surface to reach temperatures between 70- 90°C during
operation, so surrounding areas may be very hot.
•Due to fast freezing, ice cubes may appear “Cloudy”. This is air trapped in the water and will not affect the
quality or taste of the ice.
•Do not immerse the appliance in water.
SPECIFICATIONS
Model Number
：
HIM12
Ice Sizes
：
Small & Large Daily Ice Output
：
12kg / 24 hours
Refrigerant
：
R134a Ice Storage Capacity
：
600g
Voltage: 220-240V Water Reservoir Capacity
：
2.1L
Power Consumption: 120W Frequency: 50Hz
Packing Dimensions
：
W334 x D468 x H390mm Unit Dimensions
：
W248 x D372 x H315mm
Gross Weight
：
13.95Kg Net Weight
：
12.2Kg
DISPOSAL
When your appliance reaches the end of its working life, care must be taken when disposing of this Ice Maker
in order to avoid a hazard. When disposing of the Ice Maker, cut off the plug so that it will render the unit
unusable to avoid electrical shock. Also contact your local council for instructions on how to safely dispose of
the compressor and refrigerant.
CUSTOMER SERVICE
Australian Customer Service
GAF Control (Sales) Pty Ltd
P.O Box 19
Altona North Victoria 3025
Phone: [phone]
Hours: 9am-5pm (EST) Mon-Fri
www.gafcontrol.com.au
*This product may vary slightly to the product illustrated due to ongoing product development.
