Quick Start Guide PROFINET-Switch 8-port, IP67
Version
1en

Quick Start Guide PROFINET-Switch 8-port, IP672
Contents
1. Safety instructions 3
2. Introduction 4
3. Preparing the PROFINET-Switch 5
4. Project planning for PROFINET-Switch 5
5. Setting the port properties 7
6. Topology detection 8
7. Assign the PROFINET-Switch a name 9
8. Media Redundancy Protocol (MRP) 10
9. Diagnosis and conguration via the web interface 11
10. Switch diagnosis and settings 13
11. Port mirroring 14
12. Statistics 14
13. Agents 15
14. SNMP 15
15. Setting the time 16
16. Resetting to factory settings 17
17. Firmware update 17
18. LED status information 18
19. Technical data 19
:z-beipack-143

Quick Start Guide PROFINET-Switch 8-port, IP67 3
1. Safety instructions
Target audience
This description is only intended for trained personnel qualied in control and auto-
mation engineering who are familiar with the applicable national standards.
For installation, commissioning, and operation of the components, compliance with the
instructions and explanations in this operating manual is essential. The specialist person-
nel is to ensure that the application or the use of the products described fullls all safety
requirements, including all applicable laws, regulations, provisions, and standards.
Intended use
The consequences of improper use may include personal injury to the user or third par-
ties, as well as property damage to the control system, the product, or the environment.
Use the device only as intended!
Operation
Successful and safe operation of the device requires proper transport, storage, setup,
assembly, installation, commissioning, operation, and maintenance.
Operate the device only in awless condition. The permissible operating conditions and
performance limits (technical data) must be adhered to.
Retrots, changes, or modications to the device are strictly forbidden.

Quick Start Guide PROFINET-Switch 8-port, IP674
2. Introduction
This Quick Start Guide explains the basic settings for the initial commissioning
of PROFINET-Switches for use in a PROFINET project.
You can nd further information in the manual. You can nd this under
www.helmholz.com or scan the QR code directly.

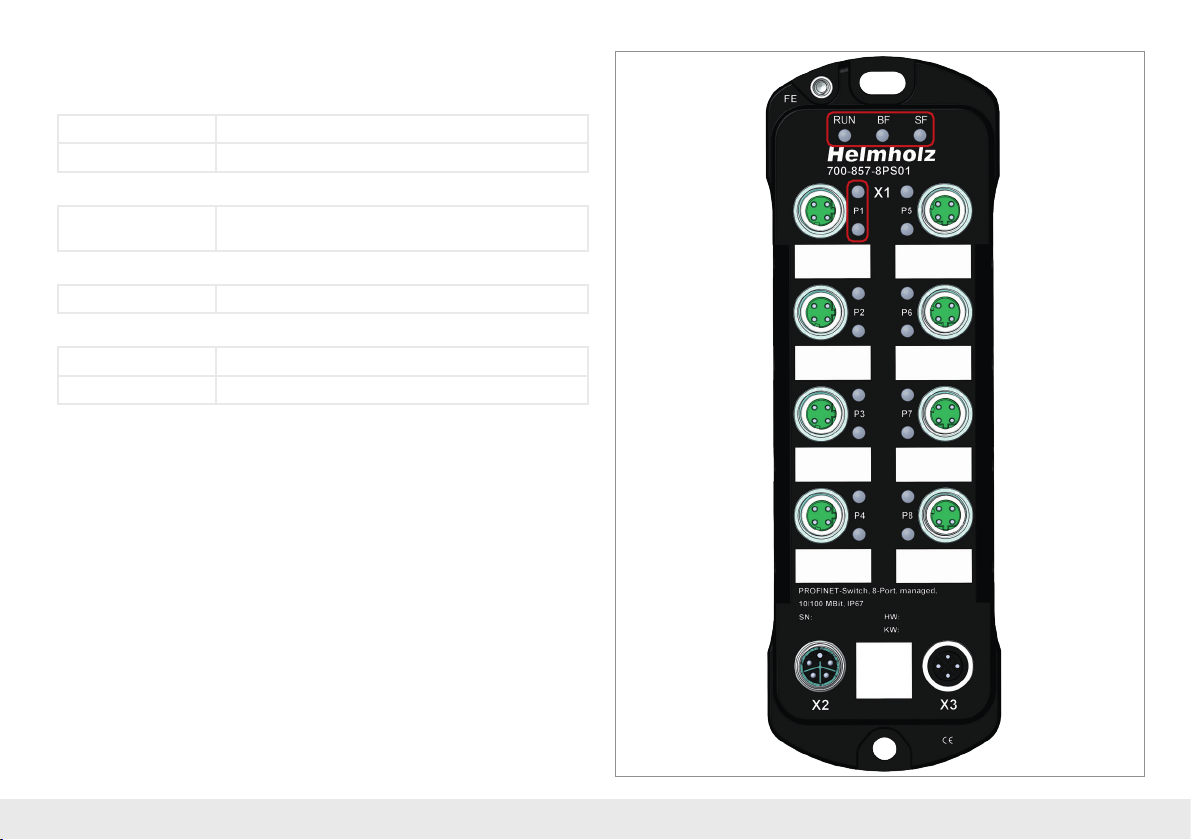

Ethernet LEDs
Digital
input/outputs
currently no
function (X3)
FE connector
Power supply
(X2)
P1 – P8
For PROFINET
and Ethernet
devices (X1)
Operation LEDs
(see page 18)
1.1. Connection layout M12
X1, M12 D-coded PROFINET connector
Pin 1 TX-P
Pin 2 RX-P
Pin 3 TX-N
Pin 4 RX-N
X2, M12 L-coded Power connector
Pin 1 24 V DC in
Pin 2.4 not connected
Pin 3 GND
Pin 5 FG
X3, M12 A-coded I/O connector
Pin 1 24 V DC out
Pin 2 D1 Input Type 3 EN 61131-2, output
24 V DC 500 mA electronic fuse
Pin 3 GND
Pin 4 D2 Input Type 3 EN 61131-2, output
24 V DC 500 mA electronic fuse
Pin 5 FG
12
43
1
2
4
3
0
FE
0
FE
5
32
4
1
0
FE
0
FE
4
5
2
1
3
PROFINET-Switch,
8-port, IP67
Documentation
SCAN
QR CODE
TO GET
MANUAL

Quick Start Guide PROFINET-Switch 8-port, IP67 5
4. Project planning for PROFINET-Switch
Following installation, the PROFINET-Switch can be found in the hardware catalog under
“PROFINET IO
g
Other eld devices
g
Network components
g
Helmholz PN-Switch”.
Add the “PROFINET-Switch 8-port, IP67” device to the project and connect it with your
PROFINET network.
3. Preparing the PROFINET-Switch
2.1 Connection
The PROFINET-Switch must be supplied with 24 V DC at the wide range input
18 – 30 V DC via the M12 connector plug (X2). The connection (FE) is for the
functional ground. Connect this correctly with the reference potential.
The M12 sockets “P1 – P8” (X1) serve the purpose of connection of the network
participants (PROFINET or Ethernet).
2.2 Install GSDML le
Please download the GSDML le under www.helmholz.com or scan the QR code.
PROFINET-Switch,
8-port, IP67
GSDML le
SCAN
QR CODE
TO GET
GSDML

Quick Start Guide PROFINET-Switch 8-port, IP676
By calling up the properties in the device view, you must assign the PROFINET-Switch
a unique PROFINET name in the project and check the IP address for plausibility.
Important: The real device must later be assigned the same name as in the project.
See also Chapter .6

Quick Start Guide PROFINET-Switch 8-port, IP67 7

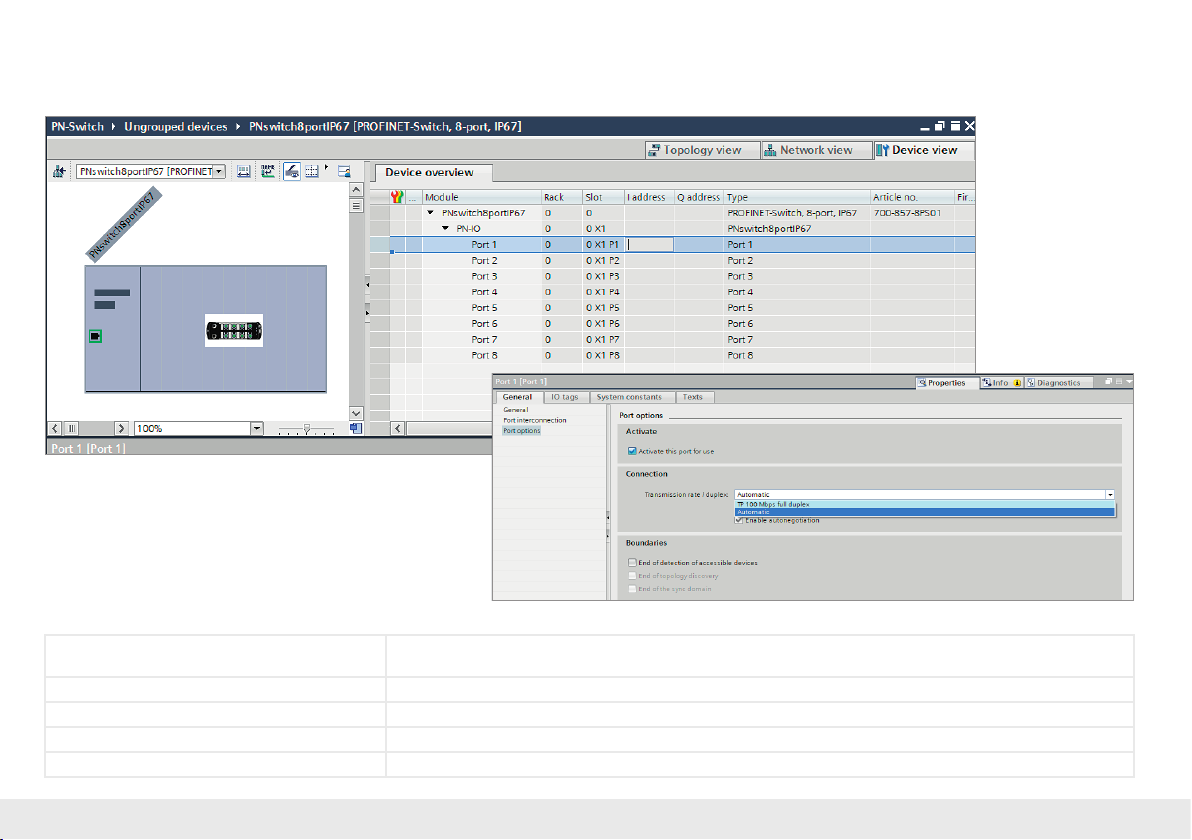

5. Setting the port properties
Each port of the PROFINET-Switch can be individually congured.
Transfer medium/duplex:
“Activate this port for use” The port not being used can be deactivated with this option.
Unauthorized access of the network is prevented.
“Automatic” setting
The port synchronizes itself automatically with the communication partner (10/100 Mbps/as well as half/full duplex).
“TP 100 Mbps“ Fixed specication of the transmission rate. This option is recommended when connecting PROFINET IO devices.
“Monitor” If no network connection can be established via this port, a diagnostics alarm is triggered.
“Enable autonegotiation” The port automatically detects the cable type (cross or patch cable)

Quick Start Guide PROFINET-Switch 8-port, IP678
6. Topology detection
The PROFINET-Switch supports the mechanisms for neighborhood detection (LLDP).
With this function it is possible to detect the topology of a PROFINET network, or to
specify it for purposes of checking for the correct structuring by the conguration.
If the topology was prescribed in the conguration, neighboring devices can also be
assigned the PROFINET name in the event of the replacement of a device.
This makes the recognition and testing of the network topology and the “device
exchange in operation” of connected PROFINET participants possible.

Quick Start Guide PROFINET-Switch 8-port, IP67 9
7. Assign the PROFINET-Switch a name
When the conguration of the PROFINET-Switch has been completed in the hardware
congurator, it can be loaded into the PLC.
For the switch connected to the PROFINET to be detected by the PROFINET controller,
the PROFINET name must be set in the device.
The function “Assign name” in the TIA portal can be used for this purpose.
With the “Update list” button, the network can be browsed for PROFINET participants.
The clear identication of the PROFINET-Switch is ensured here by the MAC address of
the device.
Important: The assigned name must match the name dened in the hardware
congurator. See Chapter 3, pages 4/ 5
If the PROFINET-Switch has been assigned the correct name, it is recognized by the
PLC and congured.
If conguration has taken place correctly, the green “RUN” LED should be on and
the “BF” and “SF” LEDs off.
Alternatively, the free “IPset” software can be used.
Please download t
he
software le under www.helmholz.com or scan the QR code.
PROFINET-Switch,
8-port, IP67
IPset
SCAN
QR CODE
TO GET
SOFTWARE

Quick Start Guide PROFINET-Switch 8-port, IP6710
8. Media Redundancy Protocol (MRP)
The PROFINET-Switch supports the optional media redundancy protocol (MRP) as
MRP client. MRP stands for “media redundancy protocol”. MRP enables ring wiring,
which also makes operation of the PROFINET network possible in the event of the
failure of a cable or of a participant.
There must be at least one MRP master (e.g. the CPU) in an MRP ring. All other
participants of the ring are then MRP clients.
In order to assign the PROFINET-Switch to an MRP ring, the “MRP domain” must be
set at slot X1 for the option “Media redundancy role” and the role set to “Client”.
Important: If ring wirinig is established without without the MRP roles being congured
for all devices involved, this can result in functional disruptions of the PROFINET network!
Helmholz
TB20-C| PROFINET IO
Helmholz
TB20-C| PROFINET IO
CPU
PROFINET-Switch
I/O System
I/O System
Operator Panel
MRP Ring
Engineering Station

Quick Start Guide PROFINET-Switch 8-port, IP67 11
9. Diagnosis and conguration via the web interface
The web interface is also accessible via the IP address assigned to the PROFINET-Switch in the PROFINET network.
When the web interface is rst called up, the password of the “admin” user is the serial number of the device. The serial number is printed on the right housing side part
(e.g. “50001234”). It is absolutely necessary to assign a new password following the rst login:

Quick Start Guide PROFINET-Switch 8-port, IP6712
One goes to the system view following entry of the new password:
Note: If the PROFINET-Switch is congured and used in a PROFINET network, settings in the web interface are only to be viewed as a diagnosis.
A reconguration of PROFINET-related settings (Port Status, LLDP, DCP, Ring Redundancy) is then not possible in the web interface.

Quick Start Guide PROFINET-Switch 8-port, IP67 13

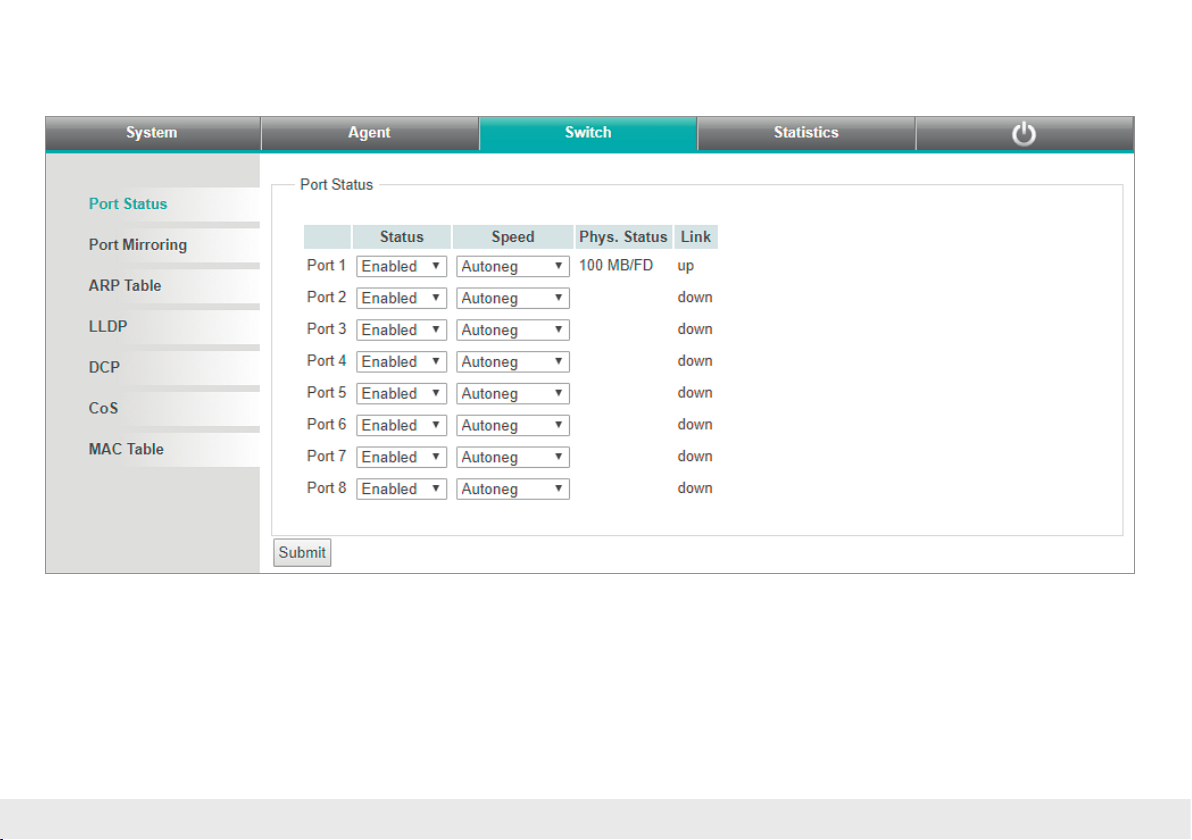

10. Switch diagnosis and settings
Extensive information and settings for the function of the switch are accessible in the Switch menu.

Quick Start Guide PROFINET-Switch 8-port, IP6714

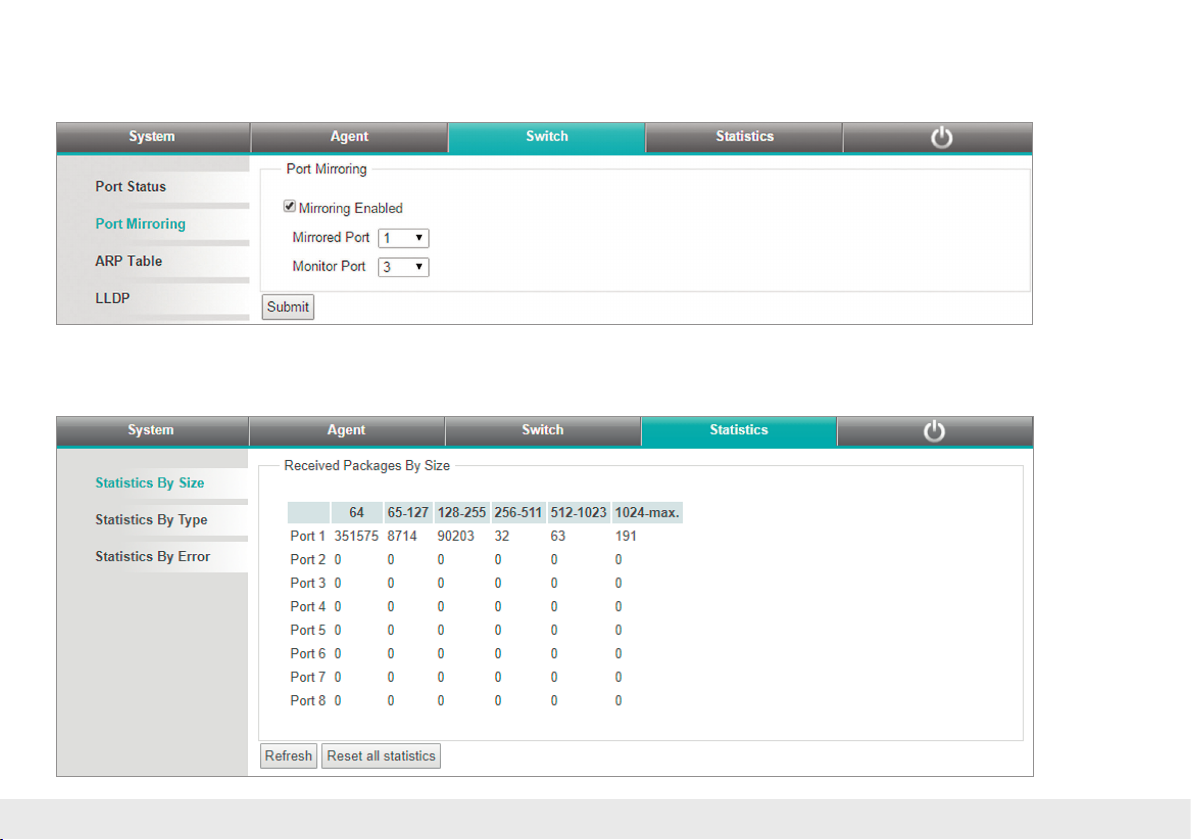

11. Port mirroring
In order to be able to carry out frame analyses or recordings, Port Mirroring can be activated in the PROFINET-Switch. With Port Mirroring, the frame transfer from one
“Mirrored Port” to the “Monitor Port” is completely mirrored, on which an analysis PC can then record everything.
12. Statistics
Detailed statistics on the data transfer can be queried in the “Statistics” menu.
Among other things, the quality of the transmission can be monitored in the sub-menu “Statistics by Error.”

Quick Start Guide PROFINET-Switch 8-port, IP67 15
13. Agents
In order to already be able to view basic information about the switch at the start website, before or without having logged in, the option “System Status Without Login” can be
selected. With “Web Session Timeout”, it can be dened whether an automatic logout should take place in the event of inactivity at the website for security reasons.
14. SNMP
The PROFINET-Switch supports SNMP (“Simple Network Management Protocol”) in order to also enable the identication and diagnosis of the switch for IT administration tools.

Quick Start Guide PROFINET-Switch 8-port, IP6716
15. Setting the time
The PROFINET-Switch contains a system clock for the issuing of logs and alarm messages. This can be set either manually or automatically by an SNTP server.

Quick Start Guide PROFINET-Switch 8-port, IP67 17
16. Resetting to factory settings
In order to reset the PROFINET-Switch to the delivery status, the function “Factory Reset” can be used in the web interface under “System” g“Restart”.
17. Firmware update
A rmware update can be carried out via the web interface.
Please download t
he
rmware le under www.helmholz.com or
scan the QR code.
PROFINET-Switch,
8-port, IP67
Firmware
SCAN
QR CODE
TO GET
FIRMWARE
The rmware update le can be selected in the menu “System gFirmware”.
The le has the ending “HUF” (Helmholz Update File).
The rmware is transferred to the PROFINET-Switch and burned with the
“Send” button.
The new rmware is active following a restart of the PROFINET-Switch.
Important: Switching off the power supply during the update process can make
the device unusable.

Quick Start Guide PROFINET-Switch 8-port, IP6718
18. LED status information
RUN
Flashing light The device starts
On The device is ready to operate
BF
On The device has no conguration and/or there is no con-
nection with the PROFINET controller
SF
On A PROFINET diagnosis is available
Ethernet LEDs
Green (Link) Connected
Orange (Act) Networktrafc
Note: The LEDs “RUN,” “BF,” and “SF” all ash synchronously when the PROFINET
function for device identication has been activated.

Quick Start Guide PROFINET-Switch 8-port, IP67 19
19. Technical data
Dimensions (D x W x H) 24 x 62 x 190 mm
Weight Approx. 410 g
PROFINET ports (X1)
-Protocol PROFINET IO device as per IEC 61158-6-10
-Physical layer Ethernet
-Type 10Base-T/ 100Base-T
-Transmission rate 10/100 Mbps
-Connection M12 D-coded
-Features Media Redundancy Protocol (MRP),
automatic addressing / topology detection (LLDP, DCP)
Status indicator 3 LEDs, function status
16 LEDs, Ethernet status
Voltage supply (X2) 24 V DC, 18–30 V DC
-Connection M12 L-coded
Current draw Max. 130 mA at 24 V DC
Power dissipation Max. 3.5 W
Permissible ambient temperature
-40°C .. +75°C
Transport and storage temperature
-40°C .. +85°C
Protection rating IP67
Certications CE
PROFINET-Switch 8-port, managed, IP67 (700-857-8PS01)

Note:
The contents of this Quick Start Guide have been checked by us so as to ensure that they match the hardware and software described.
However, we assume no liability for any existing differences, as these cannot be fully ruled out.
The information in this Quick Start Guide is, however, updated on a regular basis. When using your purchased products, please make sure to use the latest version
of this Quick Start Guide, which can be viewed and downloaded on the Internet from www.helmholz.de.
Our products contain open source software, among others. This software is subject to the respectively relevant license conditions. We can send you the corresponding license
conditions, including a copy of the complete license text together with the product. They are also provided in our download area of the respective products under www.helmholz.de.
We also offer to send you or any third party the complete corresponding source text of the respective open source software for an at-cost fee of 10.00 Euro as a DVD upon request.
This offer is valid for a period of three years, starting from the date of product delivery.
1) SIMATIC is a registered trademark of Siemens AG.
Our customers are at the center of everything we do. We welcome all ideas and suggestions.
Helmholz GmbH & Co. KG | Hannberger Weg 2 | 91091 Großenseebach | Germany | Phone +49 9135 7380-0 | Fax +49 9135 7380-110 | [email protected] | www.helmholz.com
Other manuals for 700-857-8PS01
1
Table of contents
Other Helmholz Switch manuals

Helmholz
Helmholz FLEXtra User manual

Helmholz
Helmholz Profinet 700-850-4PS01 User manual

Helmholz
Helmholz Profinet 700-850-4PS01 User manual

Helmholz
Helmholz Profinet 700-850-4PS01 User manual

Helmholz
Helmholz 700-841-16S01 User manual

Helmholz
Helmholz Profinet 700-850-4PS01 User manual

Helmholz
Helmholz 700-856-12F41 User manual

Helmholz
Helmholz 700-857-8PS01 User manual

Helmholz
Helmholz FLEXtra PROFINET-Switch FO User manual
