User Manual for Cutter Type G 0 685.2 2685639
Modification No.: 4170701CK1 Page 1 of 4
Introduction
This installation manual is provided for the connection and starting
procedure of your cutter.
Further informations like e.g. dimensioned drawings are available in our
Printers and Cutters Catalogue or on request. The devices of the type H
(0685.2 ...) model series are electric motor driven paper cutters. The paper
is cut by a double-edged rotary knife. Thus two cuts can be made per one
single turn of the knife. These models allow the following triggering of the
drive motors:
K = Cutting is triggered by applying nominal voltage
via mechanical SPDT contacts
The cutters of these model series are available in various versions,
depending on the paper width and the operating voltage.
Safety Instructions
This cutter is a quality product manufactured in accordance with
established electrical engineering standards. The unit has been delivered
from the factory in perfect conformance to safety regulations. To maintain
this condition, please observe all notes and warnings in this document!
•Installation and mounting of electrical devices may only be
performed by an electrotechnical expert!
•When installing and mounting the cutter, please observe the
demands made on the whole facility by the respective device safety
regulation.
•The cutter may only be used for the purpose it was designed for – i.e.
for cutting paper strips.
•The cutter is designed complying with EN 60950, protection class III.
To prevent dangerous structure-borne currents, the equipment has to
be run on safety extra-low voltage (SELV) and must be in an area of
equipotential bonding.
•The cutter may only be operated within the limits specified by the
technical data. Maximum operating voltages must not be exceeded!
•Hengstler Cutters are designed for industrial use.
•Installation environment and cabling have a very significant
influence on Electromagnetic Compatibilty (EMC). When installing
the cutter sub-assembly in a complete unit, you should seek
guarantees from the manufacturer of the complete unit regarding
EMC.
Caution: Danger!
•The rotary knife has two sharp cutting edges! Therefore never reach
into the cutting area, e.g. for removing jammed material! Only use
tweezers, tongs or the like for this purpose (do not damage the
knife)!
•It is expressively emphasized that the cutter is to be started only
when completely installed, i.e. the knife is covered on all sides and
the material feed and delivery slot are dimensioned such that, e.g.,
small children cannot reach into the cutting area.
•Installation or servicing works are to be carried out only when the
power supply lines are disconnected from the cutter!
•If safe operation is not possible any more, the cutter has to be set out
of order and to be protected against unintended starting.
Operating Instructions
•Do not cut self-adhesive labels! The traces of adhesive will pollute
the rotary knife and impair safe operation!
•During the cutting process, there must be no paper feed.
•Please make sure that the cutter remains free from shreds of paper.
•Having applied voltage, please ensure that the rotary knife is in home
position before paper is fed.
•If the cutter doesn’t have internal switching (page 3 of 4), the user
must install a suitable safety switch to ensure that power is removed
from the cutter within a max. of 10 seconds in the event of a break-
down, such as a jammed cutter. If this is not done, the motor may be
damaged through overheating.
•Do not use cleansing agents containing solvents.
Installation Instructions
•The cutter must be installed in the intended unit before connecting
the power lines!
•The cutter can be installed in any position. The strips cut off,
however, must not collect in the cutting area, thus blocking the
rotary knife!
•The cutter is attached by means of two M3 screws.
•Install the cutter in the unit/housing such that paper transport is
smooth. Electrically connect the cutter to the control system and
power supply when these are switched off. You will find the
connection diagrams of this model series on page 3 ”Connection
diagram” and on the units’ backs.
•Wire the cutter’s connecting lead, such that it does not disturb any
function of the assembly and that it will not be damaged or
squeezed.
Preparations for use
(please observe the key of fig. „Designation of parts“ on page 2)
•Make sure that the cutter is turned off. Slide the paper in the paper
feed direction indicated (10) through the paper channel (2).
If the rotary knife (3) is not in home position it will hinder the paper
strip from being slid through the channel.
You can put the rotary knife to home position in two different ways:
1. Insert a hex key, size 3, into the rotary knife’s shaft (7) and turn the
knife until it does not block the channel any longer. Then remove the hex
key from the shaft!
2. Turn on the assembly and conduct one cutting cycle without paper.
Perform a trial run with paper.
Ensure that the paper strips are fed to the cutter continuously and
properly and that the unit cuts them precisely.

User Manual for Cutter Type G 0 685.2 2685639
Modification No.: 4170701CK1 Page 2 of 4

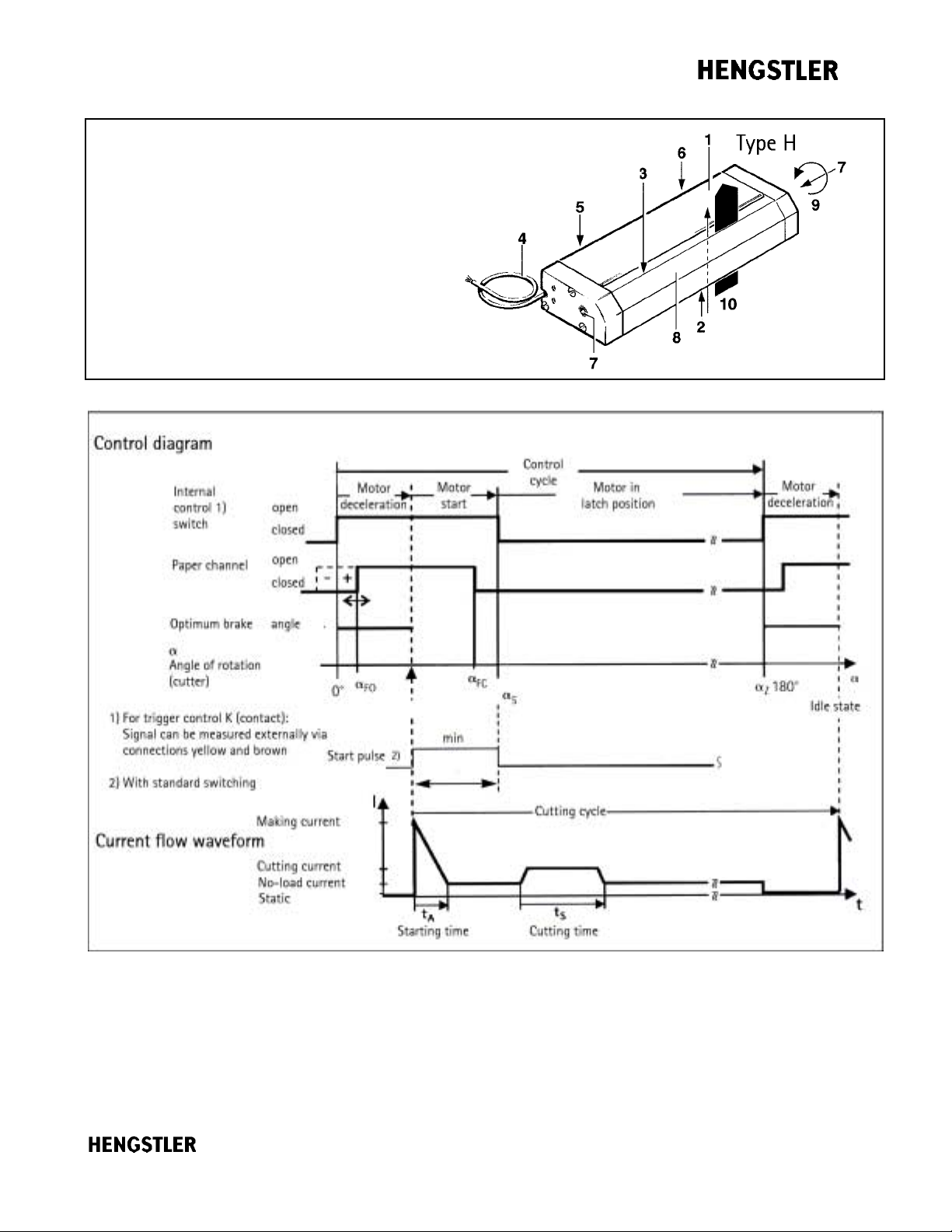

Designation of parts
1 Paper cutter – type G model series
2 Paper channel
3 Rotary knife (not visible when type G)
4 Connecting leads
5 Connection diagram (not visible)
6 Identification (not visible)
7 Shaft of rotary knife with hexagon socket
8 Knife guard
9 Sense of the knife´s rotation
10 Paper feed direction

User Manual for Cutter Type G 0 685.2 2685639
Modification No.: 4170701CK1 Page 3 of 4

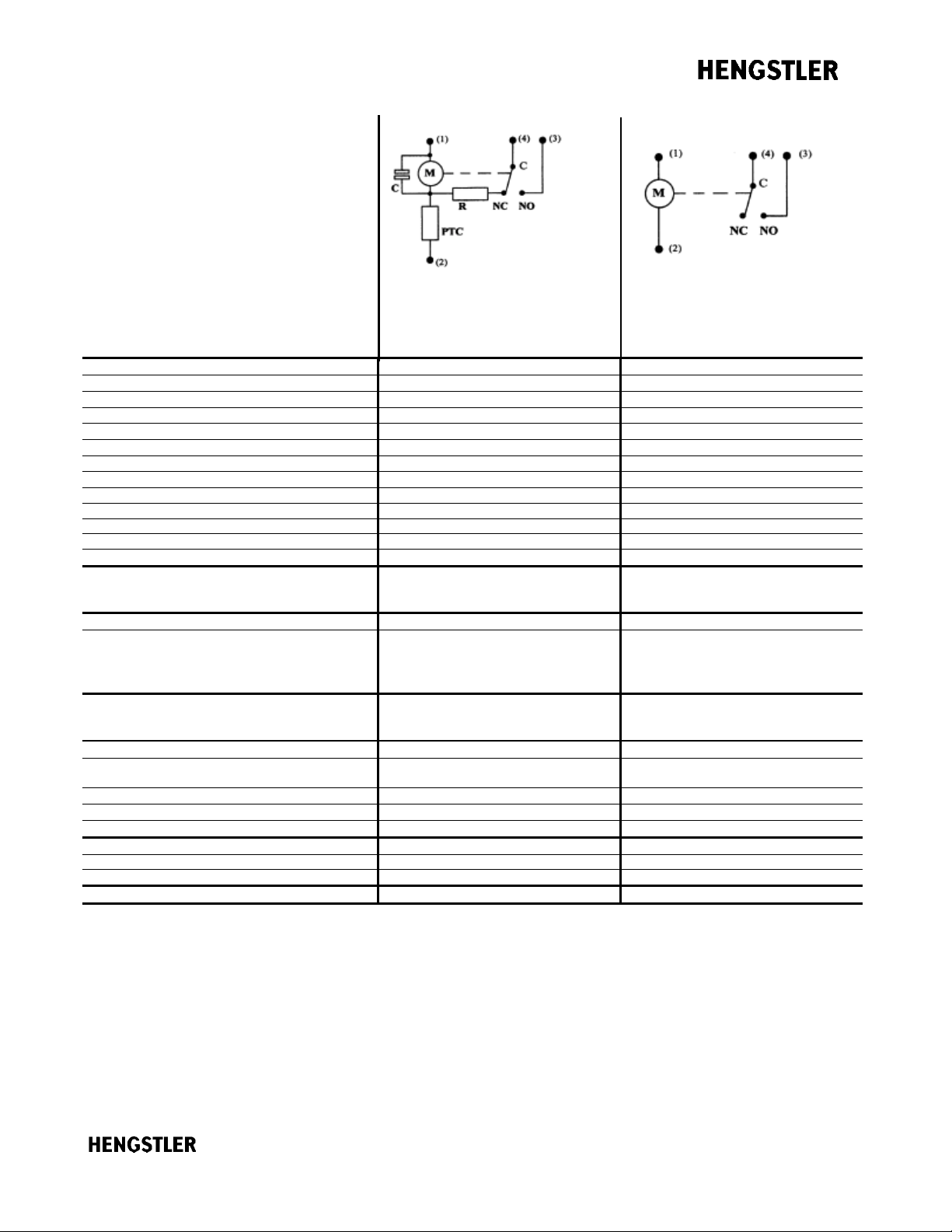

Connection diagram Standard Without internal switching
1 green 1 green
Technical Data 2 white 2 white
3 brown 3 brown
4 yellow 4 yellow
Circuit diagramm with internal switching and PTC (B) without internal switching (C)
External start pulse by SPDT contact, potential-free -
pulse length ≥150 ms, ≤350 ms -
switching level operating voltage VB-
Cutting cycle max. 550 ms 550 ms
Operating voltage VB12 VDC/24 VDC (SELV) 12 VDC/24 VDC (SELV)
voltage tolerance ±10 % ±10 %
Current (at Tu = 20°C) VB = 12 V:/ VB = 24 V: VB = 12 V:/ VB = 24 V:
static current - -
making current 2,2 A / 1,2 A 2,2 A / 1,2 A
no-load current 0,2 A / 0,13 A 0,2 A / 0,13 A
cutting current 1) 0,5 A / 0,3 A 0,5 A / 0,3 A
Failure (e.g. blocked knife) 2,4 A / 1,2 A1) 2,4 A / 1,2 A2)
Climate operating temperature
storage temperature
medium relative humidity
-10 ... + 60°C
-40 ... + 70 °C
65% without condensation
-10 ... + 60°C
-40 ... + 70 °C
65% without condensation
Service life (number of cuts) 500.000 500.000
Permissible paper weight Type H
L = 64 ... 120 mm
L = 140 ... 168 mm
L > 168 mm
200 g/m²
160 g/m²
80 g/m²
200 g/m²
160 g/m²
80 g/m²
Noice emission
distance 30 cm, VB+ 10%
General design 75 dB (A)
as per EN 60950, protection class III 75 dB (A) as per EN 60950, protection class III
Protection class (IEC 529) IP 10 IP 10
Vibration performance (IEC 68-2-6) 10 ... 60 Hz; 0,7 mm p.p.
60 ... 500 Hz; 50 m/s² 10 ... 60 Hz; 0,7 mm p.p. 60 ... 500 Hz; 50 m/s²
Shock resistance (IEC 68-2-27) 800 m/s²; 6ms 800 m/s²; 6ms
Drop test (DBP DIN ISO 2206, 2233, 2248) passed passed
Mounting 2 sunk nuts M3 (moveable) 2 sunk nuts M3 (moveable)
Paper channel width (L) 64; 90; 120; 140; 168 and 222 mm 64; 90; 120; 140; 168 and 222 mm
paper width L-3 mm .... L-15 mm L-3 mm .... L-15 mm
paper weight 60 ... 200 g/m² 60 ... 200 g/m²
Knife guard standard standard
1) After 10 seconds the PTC-resistor pull down the drive motor from operating voltage.
2) If the motor is jammed, the safety switching supplied by the customer must ensure that the power applied to the motor is limited after approx. 10 seconds.

User Manual for Cutter Type G 0 685.2 2685639
Modification No.: 4170701CK1 Page 4 of 4
Malfunctions
Result Cause Measure
Rotary knife does not move -Operating voltage failure -Check the power supply
-Defective connecting cable -Check the cutter´s connecting cable as well
as
the plug-in and soldered connections
-Defective trigger control -Check mechanical resp. electronic pulsers
-Rotary knife blocked by paper shreds/ foreign
objects -Switch off the appliance! Remove paper shreds from cutting area!
Remove foreign objects!
-Cause unknown -Please contact the manufacturer
Rotary knife does not return to home position -Defective reset switch or gear -Please contact the manufacturer
Ordering Code
(see identification plate)
We apply customer specifications on special versions. If you don´t know these please call us for the specifications, indicationg the cutter´s item
number.
_____________________________________________________________
HENGSTLER GmbH Tel.: [phone]
P.O.B. 1151 Fax: [phone]
D-78550 Aldingen e-mail: [email protected]
Germany Homepage:http://www.hengstler.com
Operating voltage
12 = 12 V DC
24 = 24 V DC
Paper channel
064;090;120;140;168 and 222mm
Cutting mode
V0 = full cut
Knife finishing
K = none
Z = tin plated
K0
/
Series
H = 0 685.2
Paper weight
80-200 g/m²
Mounting type
00 = without mounting parts
0ABS
Circuit diagram
B = with internal brake switching and PTC
C = without internal swithing
Special version *
0 = none
S = special version
Type of connection
0 = round cable,tin plated ends
2 = round cable with plug
Trigger control
K = contact
V
0K
