USER MANUAL
HMB
REV.02
09/01/2018
MONOCOQUE
TRAILERS / SEMI-TRAILERS
MODELS
HMB - 8000 / 10000 / 10000ES / 12000 / 14000 / 16000 / 18000 / 24000
HGMB – 10000 / 12000 / 14000 / 16000 / 18000
HGMB

0

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
1
CONTENTS
1 - INTRODUCTION...............................................................................................................................................................3
2 - “CE” DECLARATION OF CONFORMITY.………………………………………………………...………………….…………... 3
3 - GENERAL IDENTIFICATION OF THE EQUIPMENT
3.1 - MONOCOQUE SEMI-TRAILERS – HMB ……………….………………………………...………………….…………... 4
3.2 – MONOCOQUE DRAWBAR TRAILERS – HGMB………………………………………...………………….…………... 4
4 – GENERAL SAFETY RULES......................................................................................................................................... 5/6
5 – SELF-ADHESIVE SAFETY / WARNING LABELS...................................................................................................... 7/8
6 – INDICATOR SIGNALS AND LIGHTS. ...................................................................................................................... 9/10
6.1 – CONNECTION TO THE TRACTOR’S ELECTRICAL SYSTEM – PLUG............................................................. 11
7 – TRACTOR - TRAILER/SEMI-TRAILER COUPLING
7.1 – TRACTOR WITH HOLE COUPLER..................................................................................................................... 12
7.2 – TRACTOR WITH QUICK COUPLER................................................................................................................... 13
7.3 – CONNECTION BETWEEN THE HYDRAULIC TIPPING SYSTEM AND THE TRACTOR................................... 13
7.4 – HYDRAULIC BRAKING SYSTEM CONNECTION............................................................................................... 14
7.5 – PNEUMATIC BRAKING SYSTEM CONNECTION (*OPTIONAL)........................................................................ 14
7.6 – CONNECTION OF THE DRAWBAR’S HYDRAULIC REST - SEMI-TRAILERS (HMB)....................................... 15
7.7 – COUPLER FOR 2ND TRAILER........................................................................................................................... 15
8 - PRECAUTIONS PRIOR TO STARTING TRANSPORT AND TIPPING
8.1 – TYRE DIMENSIONS AND PRESSURES AND WHEEL TIGHTENING............................................................... 16
8.2 – ENSURE THAT.................................................................................................................................................... 17
8.3 – CHECK THE HYDRAULIC / PNEUMATIC CIRCUITS......................................................................................... 17
8.4 – TIPPING. .............................................................................................................................................................. 17
9 – PRECAUTIONS DURING TRANSPORT AND WORK................................................................................................. 18
10 – TECHNICAL CHARACTERISTICS (1) – MODELS AND VERSIONS
10.1 - MONOCOQUE SEMI-TRAILERS - HMB............................................................................................................ 19
10.2 – MONOCOQUE DRAWBAR TRAILERS – HGMB............................................................................................... 20

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
2
11 – OPTIONAL EQUIPMENT: HMB / HGMB
11.1 – OPTIONAL DRAWBARS – SEMI-TRAILERS T2ET.......................................................................................... 21
11.2 – SUPPLEMENTARY WALLS............................................................................................................................... 21
11.3 – FRONT PLATFORM.......................................................................................................................................... 21
11.4 – 2ND TRAILER COUPLER.................................................................................................................................. 21
11.5 – ROLLING CANOPY........................................................................................................................................... 22
11.6 – SIMPLE CANVAS.............................................................................................................................................. 22
11.7 – CRAMARO CANOPY WITH FACILITATOR....................................................................................................... 22
11.8 – CEREAL EXIT DOOR ……………………………………………………………………………………………………..22
11.9 - TOMATO EXIT DOOR........................................................................................................................................ 22
11.10 – WHEEL CHOCKS............................................................................................................................................ 22
11.11 – WATER TANK.................................................................................................................................................. 23
11.12 – ROTATING LIGHT KIT..................................................................................................................................... 23
11.13 – LED LIGHTING................................................................................................................................................ 23
11.14 – LONG VEHICLE KIT........................................................................................................................................ 23
11.15 – HYDRO-PNEUMATIC DRAWBAR................................................................................................................... 24
11.16 – BOGIE / TANDEM / TRIDEM (*OPTIONALS).................................................................................................. 25
11.16.1 – FORCED STEERING AXLES – INFORMATION / ASSEMBLY / ADJUSTMENT ………….…………... 26
11.17 – TRIDEM – MECHANICAL SUSPENSION / HYDRAULIC SUSPENSION………………………….………………27
11.18 – PNEUMATIC BRAKING SYSTEM – With / Without ALB................................................................................. 27
12 – MAINTENANCE.......................................................................................................................................................... 28
12.1 – DAILY................................................................................................................................................................. 28
12.2 – PERIODICALLY................................................................................................................................................. 28
12.3 – WHEN STOPPED FOR LONG PERIODS.................................................................................................... 29-30
13 – FAULTS...................................................................................................................................................................... 31
14 – WARRANTY CONDITIONS. ....................................................................................................................................... 32
15 – HOW TO ORDER PARTS. ......................................................................................................................................... 33

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
3
1. INTRODUCTION
Congratulations on your purchase. You have just acquired equipment that is constructed using state of the
art technology to the strictest quality standards.
We put every effort into researching, developing and perfecting this machine so you can take advantage of
its quality and high performance operations in safety.
This manual has been written to assist you and warn you of safety, maintenance, trust and performance
issues while using your equipment. Please start by reading it carefully to ensure that you are familiar with
all of the material, as well as with the most important aspects of its use, and other useful information.
Take note of all issues related to safety, and the suggestions contained in this Manual.
Keep the manual in a safe and accessible place, so that you can consult it whenever necessary.
This equipment must be inspected periodically, maintained and fitted with suitable replacement parts.
HERCULANO will provide you with any support that you might need with solving problems or clarifying any
doubts that may arise when using the equipment.
2. “CE DECLARATION OF CONFORMITY
This piece of equipment complies with the requirements of European Parliament and
Council Directive 2006/42/EC, of 17 May 2006, transposed into Portuguese law by
Decree-Law no. 103/2008 of 24 June 2008.
The CE Declaration of Conformity is attached to the User Manual.

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
4

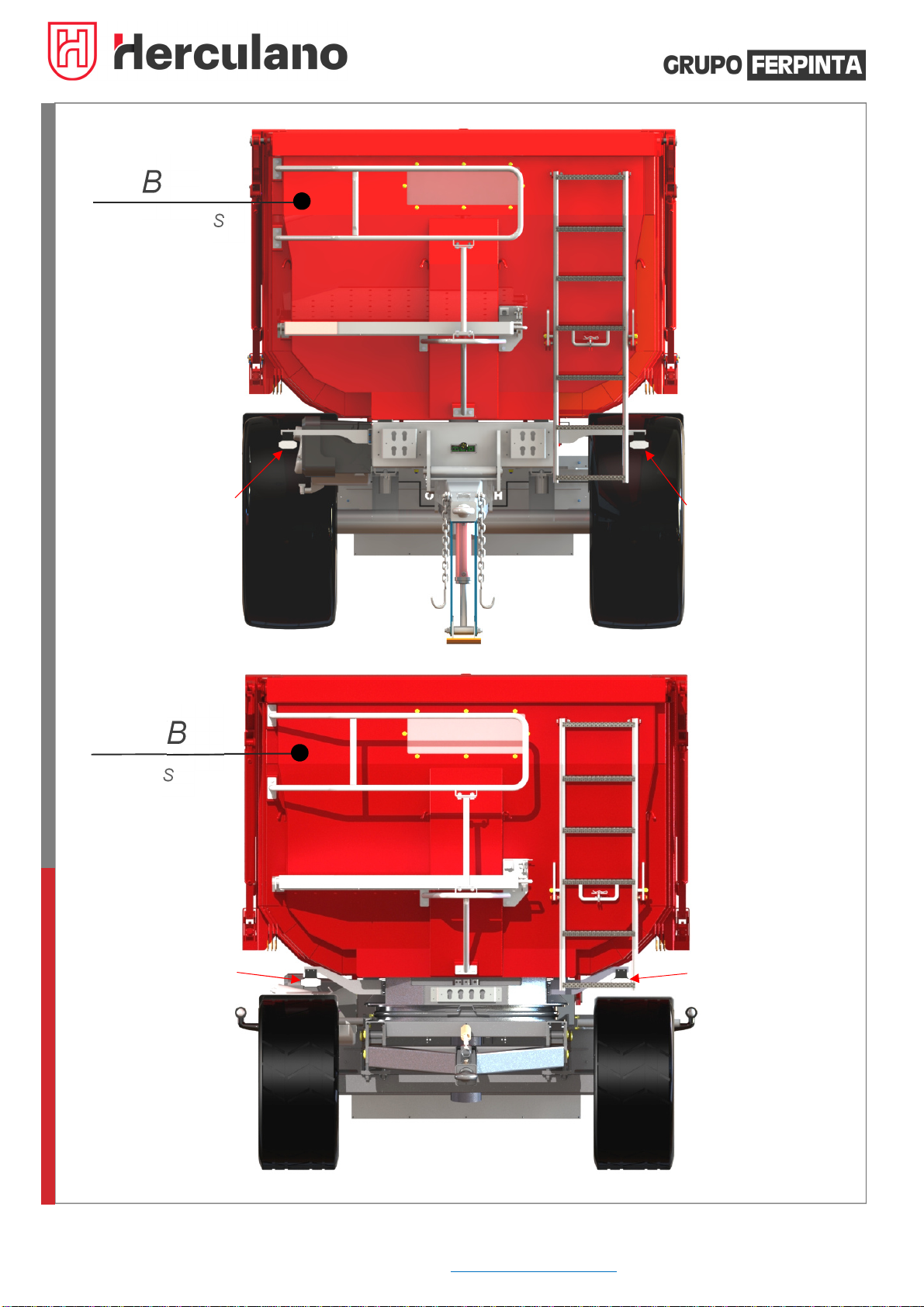

3. GENERAL IDENTIFICATION OF THE EQUIPMENT
3.1. MONOCOQUE SEMI-TRAILERS - HMB
(*) Keep points 4.6 and 4.7 of the User Manual in mind, along with the specific characteristics of your equipment.
3.2. MONOCOQUE DRAWBAR TRAILERS – HGMB
(*) – Keep points 4.6 and 4.7 of the User Manual in mind, along with the specific characteristics of your equipment.
HMB – 8000
1 REAR AXLE, TIPPING BOX, USEFUL LOAD (*) = 8,000 kg
HMB – 10000ES
1 REAR AXLE, TIPPING BOX, USEFUL LOAD (*) = 10,000 kg
HMB – 10000
2 REAR AXLES (BOGIE), TIPPING BOX, USEFUL LOAD (*) = 10,000 kg
HMB – 12000
2 REAR AXLES (BOGIE), TIPPING BOX, USEFUL LOAD (*) = 12,000 kg
HMB – 14000 / 14000RG
2 REAR AXLES (BOGIE), TIPPING BOX, USEFUL LOAD (*) = 14,000 kg
HMB – 16000 / 16000RG
2 REAR AXLES (BOGIE), TIPPING BOX, USEFUL LOAD (*) = 16,000 kg
HMB – 18000 / 18000RG
2 REAR AXLES (BOGIE), TIPPING BOX, USEFUL LOAD (*) = 18,000 kg
HMB – 24000 / 24000RG
2 REAR AXLES (TRIDEM), TIPPING BOX, USEFUL LOAD (*) = 24,000 kg
HGMB 10000
1 REAR AXLE + 1 FRONT TURNING AXLE, TIPPING BOX, USEFUL LOAD (*) = 10,000 kg.
HGMB 12000
1 REAR AXLE + 1 FRONT TURNING AXLE, TIPPING BOX, USEFUL LOAD (*) = 12,000 kg.
HGMB 14000
1 REAR AXLE + 1 FRONT TURNING AXLE, TIPPING BOX, USEFUL LOAD (*) = 14,000 kg.
HGMB 16000
1 REAR AXLE + 1 FRONT TURNING AXLE, TIPPING BOX, USEFUL LOAD (*) = 16,000 kg.
HGMB 18000
2 REAR AXLES (BOGIE) + 1 FRONT TURNING AXLE, TIPPING BOX, USEFUL LOAD (*) = 18,000 kg.
3

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
5

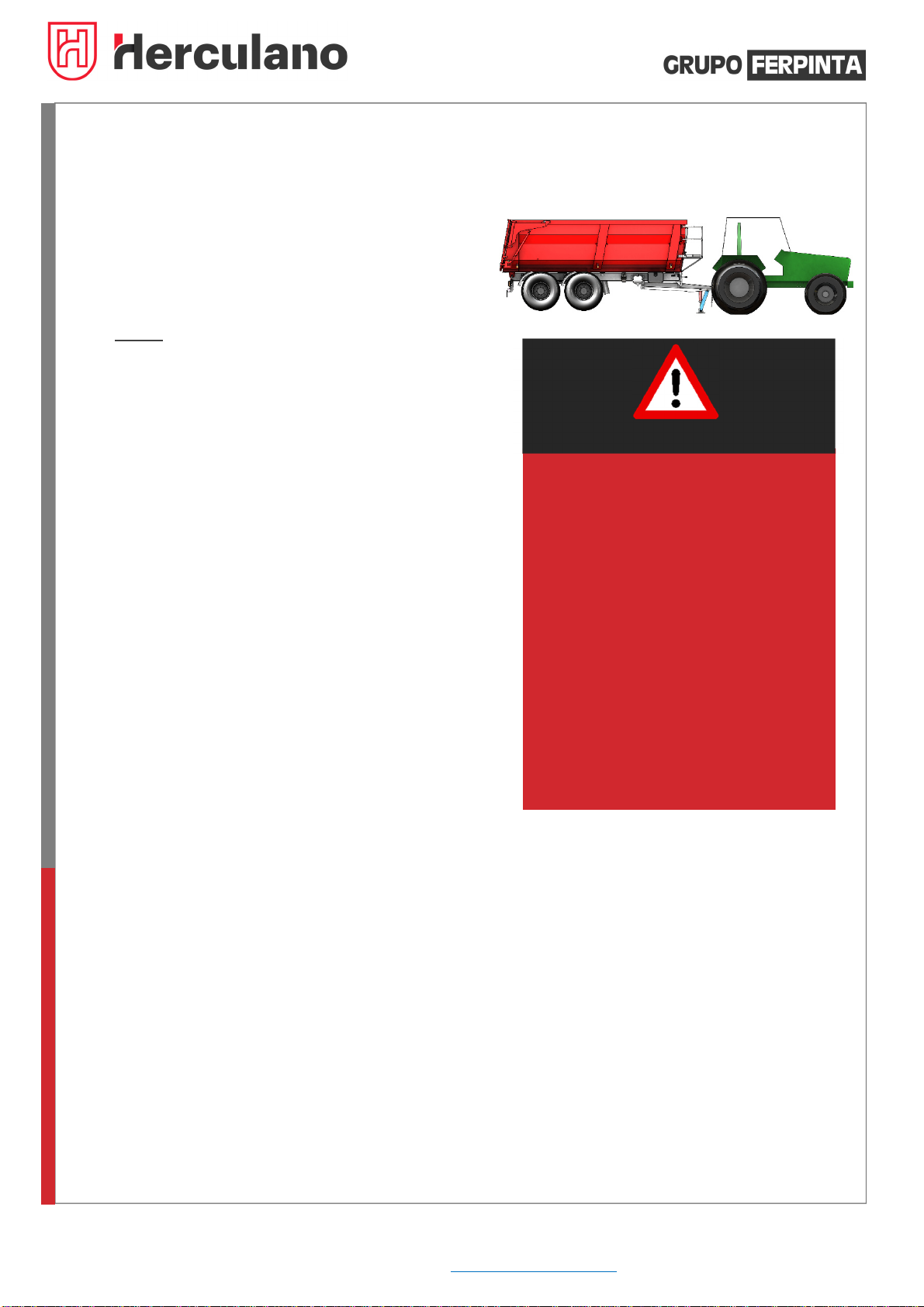

4. GENERAL SAFETY RULES
Before performing any maintenance or repair operations on the equipment that require tipping, ensure that
the vehicle is properly supported. Switch off the engine and ensure that the tractor’s brakes are properly on
before conducting any operation that could affect the safety of the operator or third parties.
Serious fatal errors could occur if due precautions are not taken and all safety measures are not respected.
Equipment must only be repaired, and damaged components only replaced, by people approved or qualified
for this purpose.
Always use the most appropriate tools and protection equipment during maintenance operations and repairs
to vehicle faults.
Ensure that all replacement parts or components are compatible with the equipment and that they do not
affect the vehicle’s safety, your safety or that of the operator or third parties
It is recommended that the manufacturer’s original spare / replacement parts are always used, to guarantee
that they fit properly and that they do not affect the vehicle’s structural capacity or safety.
Ensure that your equipment undergoes all inspections and services at specific time intervals.
Alterations to the trailer:
The chassis structure, wheels, braking system, hydraulic system and electrical system must not be modified
or converted, as they are important safety elements and they could affect the equipment’s safety if altered.

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
6
4.1. Whenever carrying out coupling or decoupling operations of the trailer/semi-trailer, it is strictly forbidden
to stand between the tractor and trailer unless they are properly immobilised with the parking brake on
and chocks on the wheels.
4.2. When it is necessary to couple the trailer/semi-trailer to the tractor, always stand off to one side of the
tractor and ensure that the safety pin is correctly fitted.
4.3. Always use suitable clothes and shoes and avoid the use of long or loose clothing.
4.4. Never perform maintenance work when the box is lifted without first placing the safety prop between
the upper chassis and the lower chassis.
4.5. Do not allow people to stand or ride on the agricultural trailer/semi-trailer.
4.6. Always check the pressure and general condition of the trailer’s tyres prior to each use.
4.7. Legal equipment load limits must not be exceeded.
4.8.Always comply with your tractor’s towing load limits.
4.9. Check hydraulic / pneumatic pipes on a regular basis and replace them if they are damaged or old.
Replacement pipes should comply with the technical requirements of the manufacturer.
4.10. Check oil levels, and always keep the lubrication points lubricated.
4.11. Before starting transport, check that the braking system works properly.
4.12. Following all rules in force when driving on public roads. Always check that the lighting devices fitted
to the rear, side and front of the vehicle operate correctly.

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
7
5. SELF-ADHESIVE SAFETY / WARNING LABELS
Warning stickers form part of the User Manual. Respect all operations, ensure that stickers remain legible
and immediately replace any lost labels.
- ALWAYS READ THE USER MANUAL
- DANGER! ARTICULATED MACHINERY.
- DANGER OF CRUSHING! ALWAYS FIT THE SAFETY PROP.

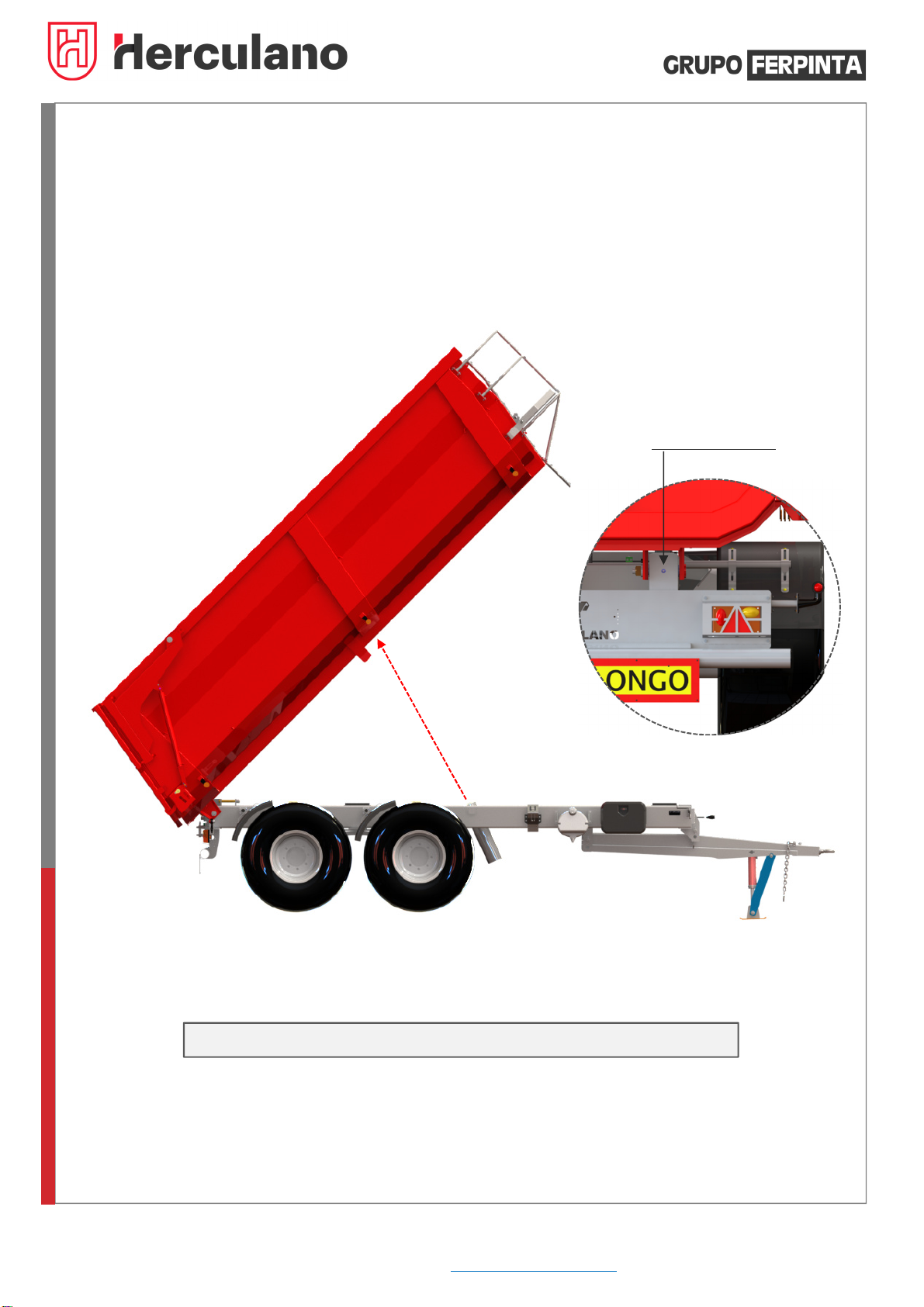

- DANGER OF CRUSHING! BOX WITH TIPPING.
- DANGER OF CRUSHING! DO NOT TIP ON INCLINED GROUND.
- DANGER OF CRUSHING! TIPPING HYDRAULIC REAR DOOR
- DANGER OF CRUSHING! TIPPING HYDRAULIC REAR DOOR

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
8
-
DANGER! KEEP THE BOX/CHASSIS BALANCE IN MIND. ENSURE THAT
IT IS BALANCED BEFORE FULLY OPENING THE TIPPING CYLINDER.
- LUBRICATION POINT.

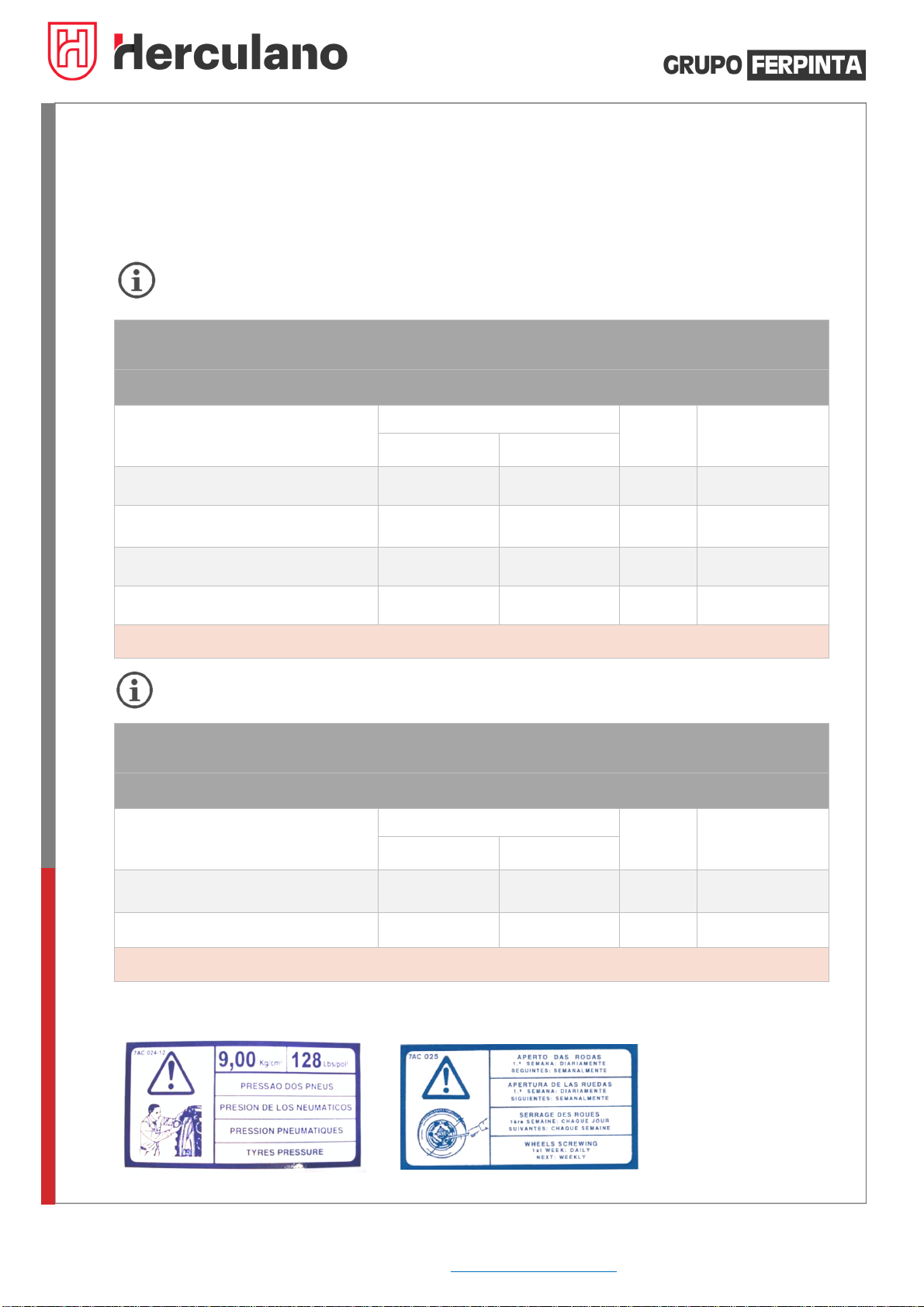

- TYRE PRESSURE INDICATOR.
NOTE: Read the label affixed to your trailer!
Inflation pressure varies depending on the tyre that is fitted!
- INDICATION OF WHEEL TIGHTENING FREQUENCY
* OPTIONAL - HYDRAULIC REAR DOOR
- WARNING! DISCONNECT THE HYDRAULIC REAR DOOR’S
HYDRAULIC HOSES BEFORE COMMENCING SIDE TIPPING, TO
PREVENT DAMAGE AND ACCIDENTS!
WARNING!
THE HYDRAULIC REAR DOOR’S HYDRAULIC
HOSES MUST BE DISCONNECTED BEFORE
COMMENCING SIDE TIPPING.

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
9

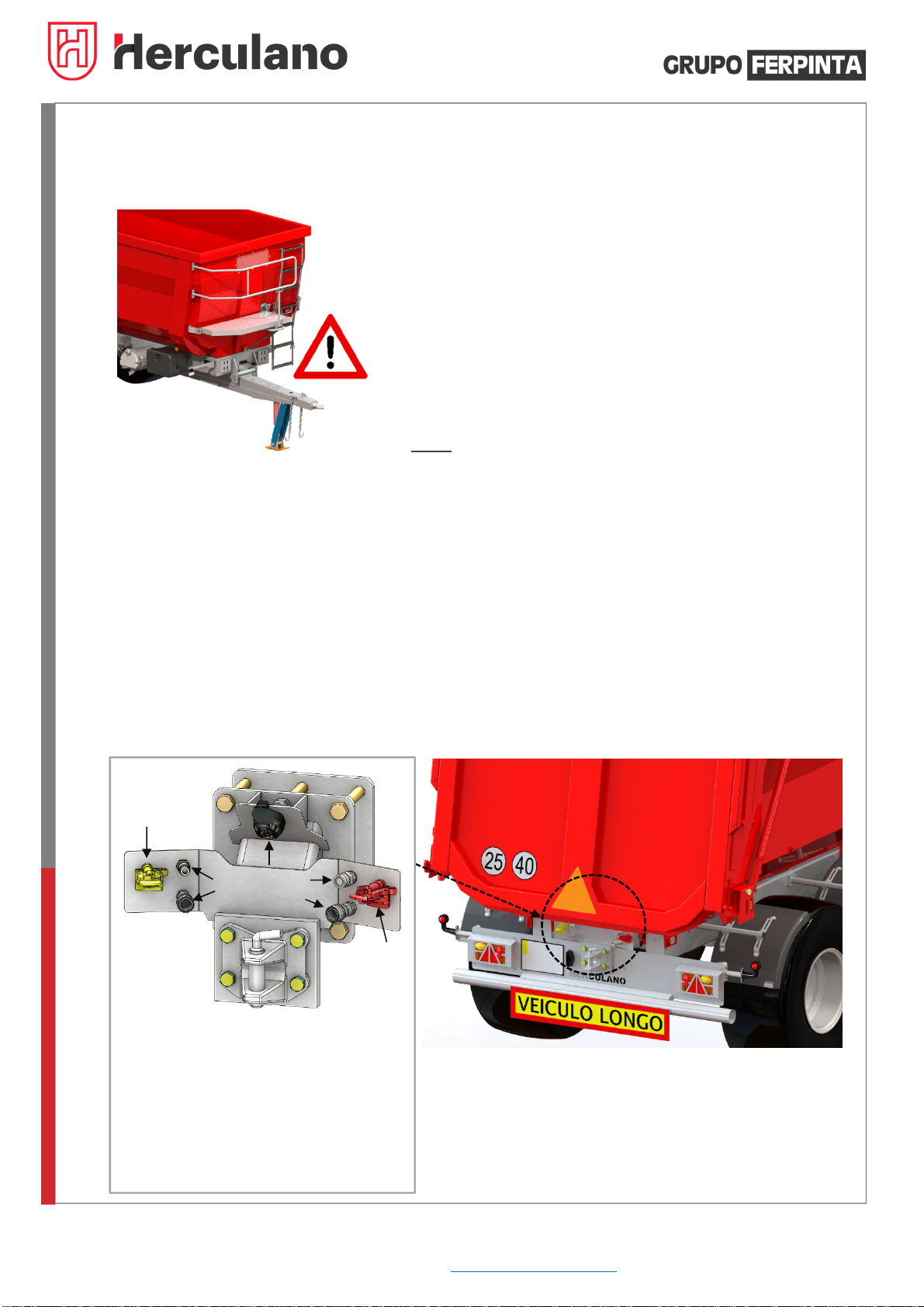

6. INDICATOR SIGNALS AND LIGHTS
All trailer/semi-trailer models are equipped with indicator signal and light devices, as per current legislation
in each country.
The following images show some of these devices, which vary from country to country.
SIDE REFLECTORS / LIGHTING
POSITION LIGHTS
LONG VEHICLE PLATE
REAR LIGHTS
SPEED LIMIT SIGNS
REGISTRATION NUMBER
LIGHTING
ROTATING LIGHT

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
10
LIGHT + FRONT REFLECTOR
LIGHT + FRONT REFLECTOR
LIGHT + FRONT REFLECTOR
LIGHT + FRONT REFLECTOR
HMB
HGMB
TRAILERS
SEMI-TRAILERS

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
11
WARNING: Failure to take notice of this warning could lead
to damage to property, serious injury or death.
6.1. CONNECTION TO THE TRACTOR’S ELECTRICAL SYSTEM – PLUG
Follow the inspection procedure set out below for good performance and durability of the trailer’s
lighting and wiring system:
•Clear all reflective components and all other lighting devices thoroughly.
•Check that all bulbs are working correctly, and replace all blown or damaged bulbs, as well as
reflective elements in poor condition.
•When replacing, always use bulbs with the same power, as well as the most appropriate
reflective components.
•Inspect all cables and verify if they are damaged. Cables must be properly supported and
protected, and their connection plugs must be tight.
•Any damaged cables must be replaced with new cables of the same dimensions, in order to
guarantee the connection of elements that they run to.
NOTE:
If you need to test bulbs, use a 12V DC power supply. Never use battery chargers or transformers.
PIN COLOUR CIRCUIT
1 BLUE / (GREEN*)
RIGHT INDICATOR LIGHT
•OPTIONAL LED (GREEN)
2 WHITE (x2) GREASE
3 “FREE” / (BLUE*) •OPTIONAL LED
4 YELLOW LEFT INDICATOR LIGHT
5 RED BRAKE
6 BROWN (x2) POSITION LIGHT
7 BLACK POSITION LIGHT
PLUG
(Cod: 20303001)
•
Lighting system diagrams are shown on the exploded diagrams document: “Spare Parts List”,
which is sent along with the User Manual.

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
12
7. TRACTOR - TRAILER / SEMI-TRAILER COUPLINGS
There should be nobody present in the danger
zone between the tractor and trailer when it is
necessary to couple / decouple the trailer from the
tractor!
NOTE: Before starting the coupling operation, ensure
that the trailer/semi-trailer is on flat ground, and that the
hand brake / parking brake are properly on. If it has
chocks, always ensure that the trailer’s wheels are
chocked prior to starting the following procedures.
7.1. TRACTOR WITH HOLE COUPLER
1º Align and move the tractor’s coupler towards the
trailer’s drawbar;
2º Connect the drawbar’s traction/safety chains to
the tractor;
3º Connect the trailer’s hydraulic system pipes to
the tractor’s respective hydraulic sockets (the
tractor must be off);
See Connection of the Tipping Hydraulic System pg. 12
4º Connect the plug of the trailer’s electrical
system to the tractor’s socket;
5º SEMI-TRAILERS (HMB) - Operate the
drawbar’s hydraulic cylinder to level the
coupling eye with the tractor’s coupler;
TRAILERS (HGMB) - Manually adjust the height of the drawbar with the help of the spring, fixing it
with the chain links; such that this is fixed at an adequate height for the coupling eye to receive the
tractor’s coupling;
6º Slowly reverse the tractor until the tractor’s coupler hole is aligned with the hole of the trailer / semi-
trailer’s coupling eye. When these are properly aligned, put the tractor’s brake on and place the
fixing bolt in the coupler, together with the bolt’s specific safety system;
7º SEMI-TRAILERS (HMB) - Retract the drawbar’s hydraulic cylinder to its operating position;
8º Remove the chocks from the wheels (if fitted) and release the hand/parking brake.
WARNING!
PEOPLE LOCATED IN THE HAZARD
AREA BETWEEN THE TRACTOR AND
THE SEMI-TRAILER / TRAILER MAY BE
CRUSHED OR RUN OVER!
 ENSURE ALL PEOPLE ARE KEPT OUT OF
THE HAZARD AREA WHEN COUPLING /
UNCOUPLING THE TRAILER;
 NO PERSON IS AUTHORISED TO REMAIN
ALONGSIDE THE AXLES OF THE SEMI-
TRAILER / TRACTOR WHEN THEY ARE
BEING COUPLED;
 THE TRACTOR’S DRIVER MUST ALWAYS
STAY WELL CLEAR OF VEHICLE WHEELS

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
13
7.2. TRACTOR WITH QUICK COUPLER
1º Align and move the tractor’s coupler towards the trailer/semi-trailer’s drawbar;
2º Connect the drawbar’s traction (safety) chains to the tractor;
3º Connect the trailer’s hydraulic system pipes to the tractor’s respective hydraulic circuits (the tractor
must be off);
4º Connect the plug of the trailer’s electrical system to the tractor’s socket;
5º SEMI-TRAILERS (HMB) - With the tractor’s coupler fully lowered, operate the drawbar’s hydraulic
cylinder to position the coupling eye slightly above the level of the tractor’s quick coupler;
TRAILERS (HGMB) - With the tractor’s coupler fully lowered, manually adjust the height of the
drawbar with the help of the spring, fixing it with the chain links, such that this is fixed in place and
the coupling eye is slightly above the level of the tractor’s quick coupler.
6º With the tractor’s coupler in its fully lowered position, slowly reverse the tractor until it reaches a
position where the trailer’s coupling eye can be coupled to the tractor’s coupler. Once this position
has been guaranteed, apply the tractor’s brake;
7º Raise the tractor’s quick coupler using the levelling control command (see the tractor’s instruction
manual). Ensure that the coupling operation has been carried out correctly, and that the safety
system operates properly. Next, apply the tractor’s brake;
8º SEMI-TRAILERS (HMB) - Retract the drawbar’s hydraulic cylinder to its operating position;
9º Remove the chocks from the wheels and release the hand/parking brake.
7.3. CONNECTION BETWEEN THE HYDRAULIC TIPPING SYSTEM AND THE TRACTOR
Note: For safety reasons, never connect/disconnect the tractor’s pipes while the box is
tipped! When connecting the pipes, ensure that the quick connect valves are not dirty!
1º Ensure that the box is not tipped;
2º Lower the tractor’s linkage to gain access to the tractor’s hydraulic sockets zone;
3º Switch off the tractor’s engine;
4º Connect the trailer’s hydraulic system pipes to the tractor’s respective hydraulic sockets; “ When
connecting the pipes, ensure that the quick connect valves are not dirty! “
5º Turn on the tractor’s engine and re-position the linkage in its elevated position to prevent collision
with the drawbar during transport.

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
14
7.4. HYDRAULIC BRAKING SYSTEM CONNECTION
1º Switch off the tractor’s engine;
2º Connect the trailer’s hydraulic pipe to the tractor’s corresponding brake socket;
“ When connecting the pipes, ensure that the quick connect valves are not dirty! “
3º Turn on the tractor’s engine and test the braking system to ensure that it is operating correctly.
Note: Do not drive on public roads if the braking system is not operating correctly, or if any anomaly
is detected that could affect the safety of the vehicle or people!
7.5. PNEUMATIC BRAKING SYSTEM CONNECTION (*OPTIONAL)
1º Switch off the tractor’s engine;
2º Connect the trailer/semi-trailer’s pneumatic braking pipes to the tractor’s sockets;
3º Turn on the tractor’s engine and test the braking system to ensure that it is operating correctly.
Note: Do not drive on public roads if the braking system is not operating correctly, or if any anomaly
is detected that could affect the safety of the vehicle or people!
•Diagrams of hydraulic systems and pneumatic braking, as well as lighting systems, can be found on the
exploded diagrams document: “Spare Parts List”, which is sent along with the User Manual.

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
15
7.6. CONNECTION OF THE DRAWBAR’S HYDRAULIC REST - SEMI-TRAILERS (HMB)
1º Switch off the tractor’s engine;
2º Whenever connecting/disconnecting the drawbar hydraulic
cylinder’s opening/closing pipes, always close the stopcock
found in the cylinder’s pipe;
3º After ensuring that the stopcock fitted to the drawbar’s rest is
properly closed, the pipes for the drawbar’s hydraulic cylinder
may be disconnected/connected to the tractor’s respective
sockets;
Note: Never disconnect the tractor’s pipes without first
closing the safety stopcock!
4º To operate the hydraulic cylinder fitted to the drawbar’s rest,
properly connect the pipes to the tractor and open the stopcock
fitted to the cylinder’s pipe. Next, turn on the tractor and operate
the cylinder safely.
7.7. COUPLER FOR 2ND TRAILER (*OPTIONAL)
Trailers and semi-trailers offer the option of a 2nd trailer coupler, as shown on the following images.
“If you experience difficulties connecting the tractor
to the pipe fitted to the stopcock, first ensure t
hat
the stopcock is fully closed and try operating the ball
in the tractor’s quick attachment valve, to
depressurise the short link present between these
two elements. After doing this, it should be easy to
make the coupling.”
1
2
3
5
4
Connections - Coupling the 2nd Trailer
1 - Pneumatic Braking System (Yellow)
2 - Pneumatic Braking System (Red)
3 - Tipping Cylinder Hydraulic Circuit
4 - Hydraulic Braking System
5 - Hydraulic Rear Door (*Optional)
6 - Lighting System Socket
“ When coupling the 2nd trailer, ensure that all hydraulic and/or pneumatic
connections are proper
ly connected, and that the systems operate correctly.
Always test the systems before moving off. Ensure that the eye’s coupling
bolt is installed correctly, and with the safety pin fitted.”
6

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
16
8. PRECAUTIONS PRIOR TO STARTING TRANSPORT AND TIPPING
8.1. Tyre dimensions and pressures and tightening wheels.
* SAMPLE INFORMATIVE SELF-ADHESIVE LABELS ABOUT TYRE PRESSURE AND WHEEL TIGHTENING - check your
equipment!
8.1.1 - TECHNICAL SPECIFICATION:
Tyre Dimensions and Pressures / Wheel Tightening Torque
MONOCOQUE SEMI-TRAILERS - HMB (STANDARD)
DIMENSION
TYRE / WHEEL
MAX. PRESSURE
BOLTS
RECOMMENDED
TORQUE
(N.M)
(BAR) (Psi)
550 / 60 - 22.5 16 PR
((10/0 335x281)
3,6
51 10 x M22 400 to 420
385 / 65 R 22.5
(8/0 A3 220x275) 9 - 10 128 - 142 8 x M20 350 to 380
435 / 50 R 19.5
(8/0 221x275) 9 128 8 x M20 350 to 380
425 / 65 R 22.5
(10/0 281x335) 8,5 - 9 120 - 128 10 x M22 400 to 420
* Other tyres / wheels - please ask.
8.1.2 – TECHNICAL SPECIFICATIONS:
Tyre Dimensions and Pressures / Wheel Tightening Torque
MONOCOQUE TRAILERS - HGMB (STANDARD)
DIMENSION
TYRE / WHEEL
MAX. PRESSURE
BOLTS
RECOMMENDED
TORQUE
(N.M)
(BAR) (Psi)
385 / 65 R 22.5
(8/0 A3 220x275) 9 - 10 128 - 142 8 x M20 350 to 380
435 / 50 R 19.5
(8/0 221x275) 9 128 8 x M20 350 to 380
* Other tyres / wheels - please ask.
- Before starting transport, check the tyre pressure and occasionally the tightness of wheel nuts

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
17
8.2. Ensure that indicator lights are in good condition and that the lighting system operates correctly.
8.3. Test the hydraulic / pneumatic circuits (for tipping and braking) and always release the trailer’s brakes
before moving off.
8.4. TIPPING
•Always keep the tipping bolts well lubricated!
Tipping bolt lubrication

HERCULANO – ALFAIAS AGRÍCOLAS, S.A
.
APARTADO 1 – 3720-051 Loureiro OAZ – Oliveira de Azeméis – Portugal
Tel.: [phone] Fax: [phone] e-mail: dep.comercial.[email protected] Internet: www.herculano.pt
18
9. CARE DURING TRANSPORT AND WORK
9.1. Ensure that the tractor is wide enough to haul the trailer / semi-trailer;
9.2. Always use a recognised coupling bolt, along with a safety pin for the drawbar’s coupling eye, to be
coupled to the tractor’s coupler.
9.3. Keep in mind the type of ground that you’re driving on, and adjust the load of your trailer or semi-
trailer;
9.4. Distribute the load uniformly over the loading area of the trailer/semi-trailer and do not overload the
vehicle;
9.5. Do not drive or tip the trailer on sloping and/or unstable ground. Driving should be adapted to the
corresponding terrain and the ground conditions.
9.6. Do not force the hydraulic tipping cylinder to the end of its travel, and do not make sharp movements;
9.7. Make sure that the tractor is aligned with the trailer before tipping;
9.8. Do not allow people to stand next to the trailer/semi-trailer when tipping or reversing;
9.9. Keep clear of the trailer / semi-trailer when tipping or tipped;
9.10. Do not move the tractor while the box is tipped;
9.11. When tipping to the side, never fully open the hydraulic tipping cylinder;
9.12. If your TRAILER/SEMI-TRAILER is fitted with a “Hydraulic Rear Door”, disconnect the respective
hydraulic hoses before commencing side tipping, to prevent damage and accidents.
9.13. If your TRAILER/SEMI-TRAILER is fitted with a “Hydraulic Rear Door”, when closing, ensure that
the latches lock the door properly. For this purpose, keep the closing function operating for 2 or 3
seconds after the door is fully closed against the columns of the rear walls.
9.14. Never decouple the trailer / semi-trailer without first applying the brakes, placing the chocks on the
wheels and activating the drawbar’s hydraulic rest;
