herdstar BinTrac RM200B User manual

Installation and Operation Manual
Version 1.01 Part Number MAN-000029
RM200B BarnTools Interface

Installation and Operation Manual
Version 1.01 2 Part Number MAN-000029
Table of Contents
Mounting...........................................................................................................................................................................3
Wiring................................................................................................................................................................................3
BarnTools Gateway Setup................................................................................................................................................5
Status Lights.....................................................................................................................................................................6
Test Button ....................................................................................................................................................................... 6
Dip Switches.....................................................................................................................................................................6
HerdStar BinTrac®Warranty.............................................................................................................................................7
is a registered trademark of HerdStar, LLC.
Copyright © 2023 HerdStar®, LLC. All rights reserved.
Printed in the USA
1400 Madison Avenue Suite 504, Mankato, MN 56001
PH: 507-344-8005 FAX: [phone]
www.herdstar.com

Installation and Operation Manual
Version 1.01 3 Part Number MAN-000029
Mounting
Mount the RM200B outdoors using the mounting holes on the top and bottom of the unit, taking care to position it in
an area with the least amount of interference.
Wiring

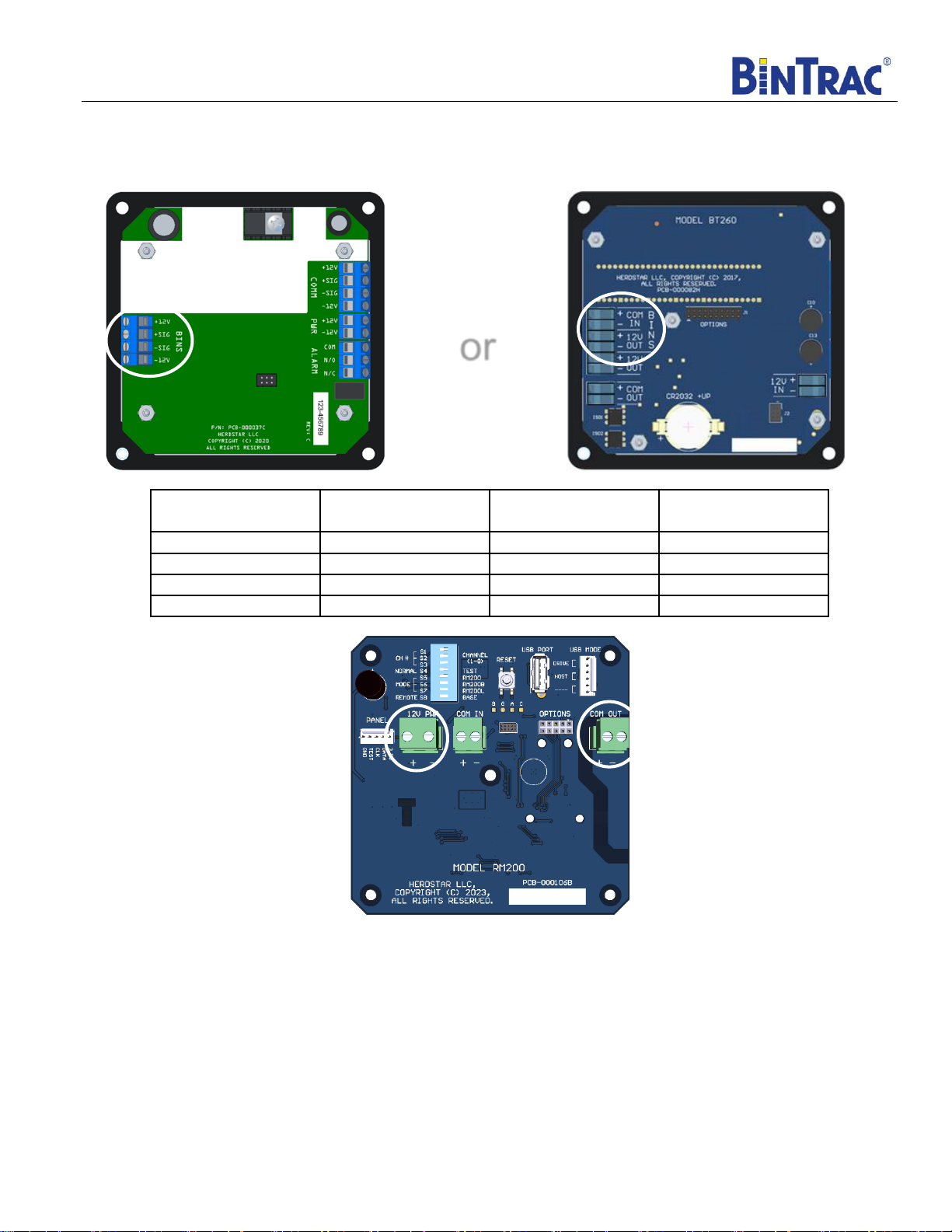

Determine which BinTrac Indicator you have, either the BT200 (smaller, 5-digit display) or the BT260 (larger, 6-digit
display) and wire the RM200B to the BinTrac Indicator using the information below. The relevant terminals on each
unit are circled in white. The unit comes standard with a pre-wired 10 foot cable.
Standard/Master Wiring –This is used when the BinTrac Indicator is either a stand alone unit, or when it is the
MASTER in a MASTER/REMOTE configuration.
BT200 BT260
BinTrac BT200
(COMM)
BinTrac BT260 (12V
& COM OUT)
RM200B (12V PWR
and COM IN)
Wire Color
+12V
+12V
12V PWR +
RED
+SIG
COM OUT +
COM IN +
GREEN
-SIG
COM OUT -
COM IN -
WHITE
-12V
-12V
12V PWR -
BLACK
or

Installation and Operation Manual
Version 1.01 4 Part Number MAN-000029

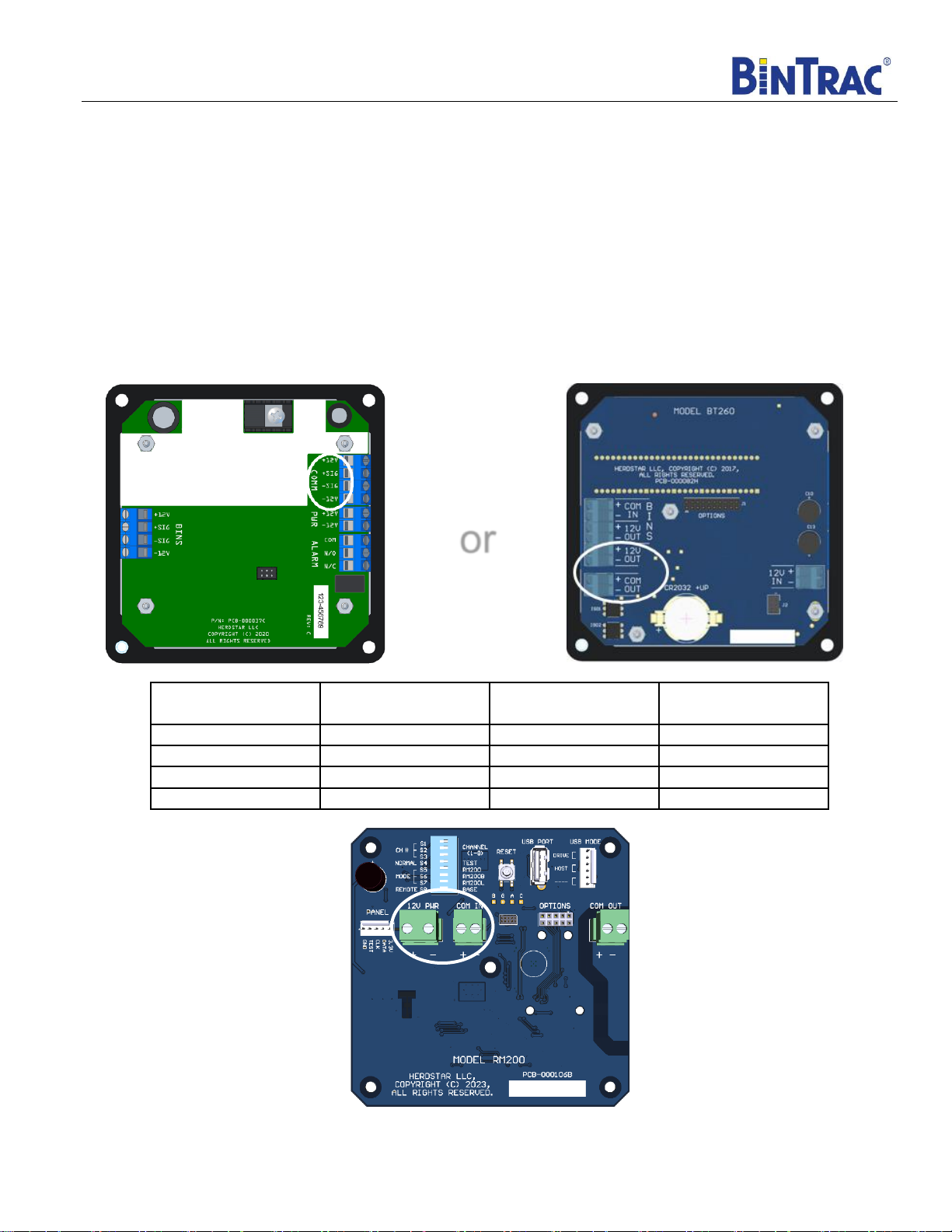

Remote Wiring - This is used when the BinTrac Indicator is the REMOTE in a MASTER/REMOTE configuration. The
COM wires in the RM200B will need to be moved from the COM IN to the COM OUT
BT200 BT260
BinTrac BT200
(BINS)
BinTrac BT260
(BINS)
RM200B (12V PWR
and COM OUT)
Wire Color
+12V
+12V
12V PWR +
RED
+SIG
COM IN +
COM OUT +
GREEN
-SIG
COM IN -
COM OUT -
WHITE
-12V
-12V
12V PWR -
BLACK
or

Installation and Operation Manual
Version 1.01 5 Part Number MAN-000029
BarnTools Gateway Setup

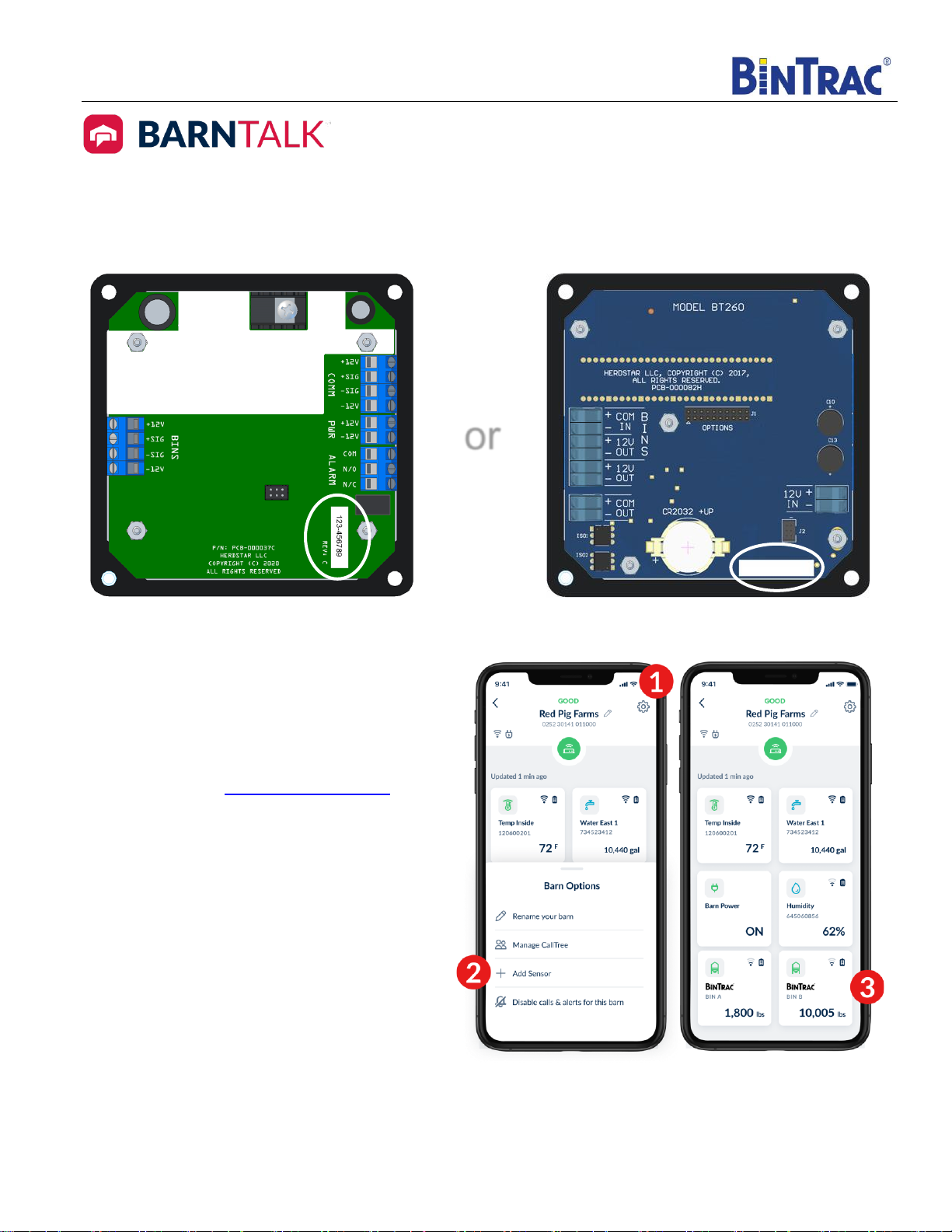

In order to pair to the BarnTools Gateway, you must first retrieve the last 6 digits of the serial number from inside the
BinTrac Indicator. This can be found on the back side of the faceplate as shown below.
BT200 BT260
123-456789
Open the gear icon in the top right of your screen and
select “Add Sensor” then enter the last 6 digits of the
serial number into the BarnTalk app. This process can
also be done by contacting the BarnTools Support
Team toll free at 855-580-0058, call/text at 515-272-
5122, or by email at sup[email protected]om with your
BarnTalk Gateway serial number and the last 6 digits
of your BinTrac indicator.
Note: The barcode will not be scannable. This
number will need to be manually entered into the app.
Once paired, the BinTrac bins will take anywhere from
15-20 minutes to appear with a reading in the app.
The BinTrac indicator is designed to communicate
every 15 minutes with the BarnTalk Gateway. Your
feed bins through BinTrac will appear in the
BarnTalk app as indicated below.
or

Installation and Operation Manual
Version 1.01 6 Part Number MAN-000029
Status Lights
The status lights on the RM200B indicate the following:
•Receive –Currently unused
•Transmit –Lights when the unit is transmitting data
•Status:
LED Condition
Description
Resolution
No Light
No power
Check power, verify proper wiring
Solid On
No communication
Verify proper wiring
Slow Blink
Communicating
Communicating properly
Test Button
Press TEST button to perform data transmission to BarnTools Gateway
Dip Switches
Ensure that dip switch number 6 is in the ON position. The other dip switches are currently unused.
