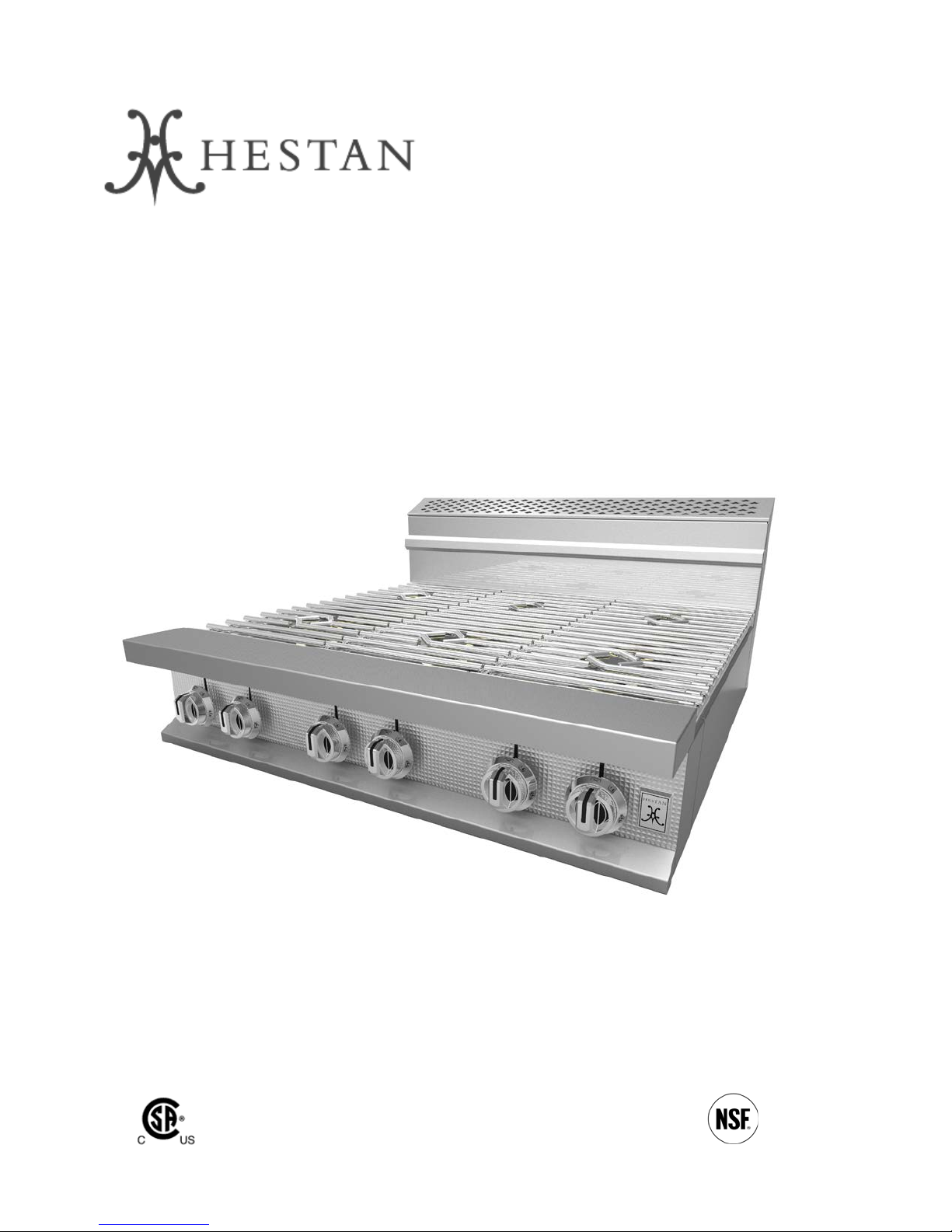

hestan HMB Series User manual

Owner’s Guide
Installation & Operation
Sealed Burners
HMB Series
HSB Series
HSP Series
Hestan Commercial Corporation
3375 E. La Palma Ave
Anaheim, CA 92806
[phone]
RETAIN THIS MANUAL FOR FUTURE REFERENCE

©2015 Hestan Commercial Division
2
P/N 002136 REV 1
IMPORTANT FOR YOUR SAFETY …
THIS MANUAL HAS BEEN PREPARED FOR PERSONNEL QUALIFIED TO
INSTALL GAS EQUIPMENT, WHO SHOULD PERFORM THE INITIAL
FIELD START-UP AND ADJUSTMENTS OF THE EQUIPMENT COVERED
BY THIS MANUAL.
POST IN A PROMINENT LOCATION THE INSTRUCTIONS TO BE
FOLLOWED IN THE EVENT THE SMELL OF GAS IS DETECTED. THIS
INFORMATION CAN BE OBTAINED FROM THE LOCAL GAS SUPPLIER.
IMPORTANT……….
IN THE EVENT A GAS ODOR IS DETECTED, SHUT DOWN UNITS AT
MAIN SHUTOFF VALVE AND CONTACT THE LOCAL GAS COMPANY OR
GAS SUPPLIER FOR SERVICE.
FOR YOUR SAFETY … …….
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS
OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
WARNING… …….
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR
MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH.
READ THE INSTALLATION, OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING
THIS EQUIPMENT.
IN THE EVENT OF A POWER FAILURE, DO NOT ATTEMPT TO OPERATE
THIS DEVICE.
THE MAXIMUM LOAD ON THE COOKING SURFACE CANNOT EXCEED
100 LBS.
Table of Contents

©2015 Hestan Commercial Division
3
Section 1: Installation ...............................................................................................4
Installation Procedure..........................................................................................4
Uncrating ........................................................................................................4
Location ..........................................................................................................4
Clearances .......................................................................................................4
Placing Appliance ............................................................................................4
Leveling...........................................................................................................4
Riser Installation..............................................................................................5
Statutory Regulations .........................................................................................5
United States of America .................................................................................5
Canada ...........................................................................................................5
Gas Supply............................................................................................................6
Gas Pressure Regulator ....................................................................................7
Ventilation Air / Flue Connections...................................................................7
Electrical Supply .............................................................................................8
Model / Serial / Rating Plate Location ..............................................................8
Section 2: Operating Instructions ..............................................................................9
Lighting and Shutdown Instructions.................................................................9
Section 3: Cleaning and Maintenance...................................................................... 10
Gas-Fired Appliances .....................................................................................10
Service ..............................................................................................11
Installation

©2015 Hestan Commercial Division
4
Installation Procedure
Uncrating
Check the crate for any possible damage sustained during transit. Carefully remove the appliance, removing all
packing material, again check for damage. Any damage to the appliance must be reported to the carrier
immediately.
Location
Proper placement of the appliance will ensure operator convenience and satisfactory performance. Adequate
clearance must be maintained so that the combustion and ventilation air is not obstructed for proper operation.
A minimum front clearance of 36 inches (914 mm) must be provided for servicing. The appliance must be kept
free and clear of combustible materials.
Clearances
The following minimum clearances must be followed:
COMBUSTIBLE
NON-COMBUSTIBLE
Model
BACK
SIDE
BACK
SIDE
Sealed Burner Top
5”
10”
0”
0”
NOTE: For use on non-combustible counters or bases only.
Placing Appliance
Place the appliance in the required position and level by means of the adjustable legs. The surface on which the
appliance is to be installed must be capable of adequately supporting the weight of the appliance.
Leveling
For proper and safe operation, each appliance must be level. Counter units must be installed on a non-
combustible surface only.
4” legs are mounted using four hex-head bolts per leg and each leg is adjustable simply by turning the inner
cylinder leg, clockwise to lower and counter-clockwise to elevate.
NOTE: A carpenter’s level can be used on the plate shelf for left to right leveling.
Riser Installation
1) Remove back panel from riser assembly by removing mounting screws.

©2015 Hestan Commercial Division
5
Riser Support Bolts
2) Remove the four bolts at the rear of the appliance holding on the side panels (two on each side, see
diagram below).
3) Place riser on support brackets on back of the appliance.
4) Re-install the four bolts into the back of the appliance through the riser channels, do not tighten.
5) Attach the bottom supports with supplied bolts, two on each side.
6) Tighten the four bolts that attach riser to appliance.
7) Tighten the four bolts that attach riser to bottom supports.
8) Re-install back cover.
Range Top Bolts
NOTE: Failure to re-install back cover could cause improper venting of exhaust gases/heat from the appliance,
creating soot that clogs the burner(s) and flue and/or creates a temperature risk to cabinet and
components.
Statutory Regulations (Install Codes)
The installation of this appliance must be carried out by a properly trained and qualified installer and in
accordance with the relevant regulations, codes of practice and the related publications of the Country, State,
County and City of destination.
United States of America
1) Local Codes
2) In the absence of local codes, installation must conform to the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1, as applicable.
Copies may be obtained from the American Gas Association, Inc., on their web site:
http://www.aga.org/
3) National Electrical Code, ANSI/NFPA-70, or latest edition. Copies may be obtained from the
National Fire Protection Association, on their web site: http://www.nfpa.org/
4) Vapor Removal From Cooking Equipment, NFPA-96, or latest edition. Copies may be obtained from
the National Fire Protection Association, on their web site: http://www.nfpa.org/
Canada
1) Local Codes
2) CSA B149.1 Natural Gas and Propane Installation Code.
3) CSA C22.1 Canadian Electrical Code
4) CSA C22.2 Canadian Electrical Code
Canadian codes can be found on the CSA website: http://www.csa.ca

©2015 Hestan Commercial Division
6
Gas Supply
The local gas authority should be consulted at the installation planning stage in order to establish the availability
of an adequate supply of gas and to ensure that the meter is adequate for the required flow rate. The pipe work
from the meter to the appliance must be an appropriate size.
All fixed (non-mobile) appliances must be fitted with an accessible upstream gas shutoff valve as a means of
isolating the appliance for emergency shut off and for servicing. A union or similar means of disconnection must
be provided between the gas-cock and the appliance.
A manually operable valve must be fitted to the gas supply to the kitchen to enable it to be isolated in an
emergency. Wherever practical, this shall be located either outside the kitchen or near an exit in a readily
accessible position.
Where it is not practical to do this, an automatic isolation valve system should be fitted which can be operated
from a readily accessible position near the exit.
In locations where the manual isolation valve is fitted or the automatic system can be reset this notice must be
posted:
“ALL DOWNSTREAM BURNER AND PILOT VALVES MUST BE TURNED OFF PRIOR TO
ATTEMPTING TO RESTORE THE SUPPLY. AFTER EXTENDED SHUT OFF, PURGE
BEFORE RESTORING GAS”
NOTE: Before assembly and connection, check gas supply.
Gas Supply Notes
1) The type of gas for which the unit is equipped is stamped on the rating plate, see locations on page 9.
Connect a unit stamped “NAT” only to natural gas and stamped “LP” only to propane gas.
2) If it is a new installation, have the gas authorities check the meter size and piping to assure that the unit
is supplied with the necessary amount of gas supply and pressure to operate the unit(s).
3) Make certain new piping and connections have been made in a clean manner and have been purged so
that piping compound, chips, etc. will not clog pilots, valves, gas regulator, or burners. Use pipe joint
compound approved for natural and liquefied petroleum gases.
4) The natural gas pressure coming into the regulator should be 7” WC or .25 psig (1.75kpa) and 5” WC
.18 psig (1.25kpa) coming out of the regulator. For liquid propane gas pressure coming into the
regulator should be 11” WC or .4 psig (2.75kpa) and 10” WC .36 psig (2.5kpa) coming out of the
regulator.

©2015 Hestan Commercial Division
7
Gas Pressure Regulator
A gas pressure regulator must be installed to regulate the proper flow of gas to the appliance. The regulator must
be installed between the main gas supply line to the unit shut off valve and the appliance and must be accessible
for servicing. Proper sizing of the regulator is extremely important, check the BTU rating of the appliance or
appliances being regulated by the regulator.
NOTE: Contact the factory for regulator sizing when multiple appliances are being installed in a line up or
island suite configuration and are interconnected using the front manifold connections.
NOTE: Gas pressure should be checked when the unit is installed and all other equipment on the same line is
on. The operating gas pressure must be the same as that specified on the rating plate. If necessary,
pressure adjustment may be made at the pressure regulator.
The appliance and its individual shutoff valve must be disconnected from the gas supply piping system
during any pressure testing of that system where pressures are in excess of .5 psig (3.45kpa).
When test pressures are .5 psig (3.45kpa) or less, the appliance must be isolated from the gas
supply system by closing its individual manual shutoff valve.
Prior to lighting, check all joints in the gas supply line for leaks. Use soap and
water solution. Do not use an open flame. After piping has been checked for
leaks, all piping receiving gas should be fully purged to remove air.
Ventilation Air / Flue Connections
The following notes are intended to give general guidance. For detailed recommendations, refer to the
applicable codes in the Country, State, County and City of installation.
Do not obstruct the flow of combustion and ventilation air.
Proper ventilation is critical for optimum performance. The ideal method of ventilating gas fired equipment is
the use of properly designed canopy that should extend six inches (152mm) beyond all sides of the appliance (s)
and six feet six inches (1981mm) above the floor. Information on the construction and installation of ventilating
hoods may be obtained from the standard for "Vapor Removal from Cooking Equipment," NFPA No. 96 (latest
edition), available from the National Fire Protection Association, on their web site: http://www.nfpa.org/.
A strong exhaust will create a vacuum in the room. For an exhaust vent to work properly, replacement air must
be equal to the amount of air exhausted. An imbalance between exhaust and replacement air can cause
degradation in the appliance’s performance.
All gas burners and pilots need sufficient air to operate. Large objects should not be placed in front of the
appliance(s) that would obstruct the flow of air into the front.
NOTICE: In the Commonwealth of Massachusetts all gas appliances vented by either mechanical systems
or ventilation hoods shall comply with 248 CMR interlocking requirements.

©2015 Hestan Commercial Division
8
Electrical Supply (Where Applicable)
Important: This appliance must be electrically grounded in accordance with local codes, or in the absence
of local codes with the National Electrical Code.
Appliances equipped with a flexible electrical supply cord are provided with a
three-prong grounding plug. It is imperative that this plug be connected into a
properly grounded three-prong receptacle. If the receptacle is not the proper
grounding type, contact an electrician. Do not remove the grounding prong
from this plug.
Model / Serial / Rating Plate Locations
Range tops
Rating plate will be located above the front panel

©2015 Hestan Commercial Division
9
Operating Instructions
Lighting Instructions
Sealed Top Burners (HMB & HSB Series)
1) Push and turn the knob to the ignition position. Igniter will spark until a flame is established. Once the
burner has been lit, turn the knob to the desired flame setting.
2) For daily shutoff, turn the knob to the “OFF” position.
NOTE:If spark does not occur, check the electrical supply to the appliance.
A 5 minute complete shutoff period is required before the appliance is re-lighted
Sealed Top Burners (HSP Series)
1) Turn main gas supply on Turn burner valve knob(s) to the “ON” position for 5 seconds to purge the
air in the gas lines, if there is no gas present wait 5 minutes and repeat the operation.
2) When gas is present, turn knob(s) to the “OFF” position. Using a log lighter, light the pilot(s).
3) Wait 3 minutes; turn all the burners “ON” and then “OFF”, one at a time, to make sure all of the lines
have been purged of air.
A 5 minute complete shutoff period is required before the appliance is re-lighted

©2015 Hestan Commercial Division
10
Cleaning and Maintenance
Gas Fired Appliances
CAUTION
TO AVOID RISK OF PERSONAL INJURY, BURNS OR DAMAGING UNIT
Allow the Top surface to cool before washing or rinsing. Hot steam can cause
injury. It may also damage the burners. Care should be taken around burner
valves to prevent soap/degreaser from getting into valve body and mixing with
valve grease. If equipment has electrical power running to it disconnect power
before cleaning or servicing.
1. Shut off all burners and let them cool.
2. Disconnect the power supply to the appliance before cleaning or servicing if applicable.
3. Once you are able to lift off burner assemblies, they can be soaked in warm soapy water or sprayed with
a degreaser, brush off caked on food particles with a strong bristle brush.
4. Rinse with clean water and dry thoroughly, do not install burners wet!
5. All stainless steel surfaces can be cleaned with a degreaser, stainless steel cleaner, and oven cleaner or
warm soapy water – do not spray on (due to open flame from pilot lights) apply cleaners with sponge or
cloth, heavy soil can be removed with a plastic cleaning pad or scraper. Wipe surfaces with clean damp
cloth to remove soap/cleaning solutions and dry.
6. After cleaning burner bowl run a brush through the venturies scrapping off any soot or debris.
7. DO NOT CLENA BRASS BURNERS IN A LOW TEMPERATURE DISH WASHER.
8. DO NOT USE STEEL WOOL OR STEEL CLEANING TOOLS ON STAINLESS STEEL
SURFACES – THEY COULD LEAVE STEEL PARTICLES BEHIND IMBEDDED IN
THE SURFACE AND RUST.
9. Inspect flue for grease and debris build up periodically, a dirty or plugged flue could cause unit to not
operate properly and allow build up of soot creating an unsafe environment.
10. Remove any debris from flue opening, have a qualified technician and or cleaning service clean flue of
any excess grease.
11. At least monthly, clean around burner air mixers and orifices if lint has accumulated.
NOTE: Where necessary use stainless steel, wood, plastic or rubber tools to scrape off heavy deposits of grease
and oil from any stainless steel equipment. This will help avoid any steel particles from becoming
embedded into the stainless steel surfaces. To maintain luster of stainless steel surfaces, apply a thin
coat of stainless steel cleaner, and wipe with a clean cotton cloth. To avoid heat tint (slight oxidation
which results in darkened areas in equipments stainless steel) never use more heat on any equipment
than is absolutely necessary. Heat tint can be removed by scouring with stainless steel wool or
scouring powder. Rub in direction of polished lines.

©2015 Hestan Commercial Division
11
Service
All warranty and non-warranty repairs should be performed by qualified service personnel. To locate an
authorized service agent in your area contact your dealer, local representative, or the manufacturer.
Hestan Commercial Products
[phone]
