Heta Scan-line 95 Series User manual

1
OPERATING AND INSTALLATION
INSTRUCTIONS
DANISH DESIGN . DANISH QUALITY . DANISH PRODUCTION
www.heta.dk
EN
SCAN-LINE 95-100 SERIES
ECODESIGN READY

2
1
BETJENINGS- OG
OPSTILLINGSVEJLEDNING
DANSK DESIGN . DANSK KVALITET . DANSK PRODUKTION
www.heta.dk
DK
SCAN-LINE 95-100
Operating /
Instruction manual
Heta glove
Q.C. check
Data plate
Heta A/S
Jupitervej 22 . DK-7620 Lemvig . Denmark
EN 13240:2001/A2:2004 - AEA - NS 3058/3059, Aus §15A
Testrapport: 300-ELAB-2276-EN
SN No. 07-2017
Scan-Line 1000
Brændsel Træ
Ovnen er godkendt til intermitterende brug
Følg fabrikantens brugervejledning
Ovnen kan anvendes på røggassamleledning
Afstand til brændbart - bag ovn 120 mm
Afstand til brændbart - foran af ovn 1300 mm
Afstand til brændbart - side af ovn 425 mm
Afstand til brændbart - under ovn ---- mm
Nominel ydelse / rum opvarmningsudelse 7,7 kW
Middel CO emission i mg/Nm
3
960 mg/Nm
3
Middel CO emission 0,077%
Røggas temperatur 204
o
C
Støv 10 mg/Nm
3
Virkningsgrad 86%
NOx 80 mg/Nm
3
OGC 76mgC/Nm
3
DOP-Scan-Line 1000 2017
8057 0000-DK
Congratulations on your new wood stove insert, we are confident that you will be more than satis-
fied with your new Heta stove. Especially if you follow the following advice and instructions.
The Scan-Line 95 and 100 series are approved according to EN 13240, NS 3058 and NS 3059.
These approvals, means that the wood stove insert meets a variety of specifications and require-
ments, ensuring it is made of quality materials, minimum environmental impact and that it has an
optimum fuel economy.
The screw must be
removed before the stove
is used/turned!
Heta A/S
Jupitervej 22,
DK-7620 Lemvig
Phone: [phone]
E-mail: [email protected]
Copyright © 2014
Heta is a registered
trademark of Heta A/S
19.01.2021
0037-1366 Version 1,3
Printed in Denmark
Subject to printing errors
and changes.
Required tools are not supplied.
With your new wood stove you should find the following:
Transportation safety devise.
Regarding Scan-Line 95 and 100 on
a turnable pedestal

3
Safety clearances
Stoves must always be installed in line with nati-
onal and, if applicable, local regulations. It is im-
portant to abide by local regulations regarding
setting up chimneys and connection to same.
Therefore, always consult your local chimney
sweep before installation, as you are personally
responsible for ensuring that the applicable re-
gulations have been met.
Distance regulations
A difference applies to installation next to flam-
mable and non-flammable walls.
If the wall is made of non-flammable material the
stove can, in principle, be placed flush against
it. However, we recommend leaving a gap of at
least 5 cm to facilitate cleaning behind the stove.
The minimum distances to flammable mate-
rial are stated on the boiler plate and are li-
sted in the table on page 6.
Warning
A stove gets hot. (In excess of
90 degrees) Take care to en sure
that children cannot come into
contact with it.
Combustible materials should not be stored
in the compartment below the ashpan.
MPORTANT
1. Make sure there is adequate provision
to sweep the chimney.
2. Make sure there is adequate ventilation to
the room.
3. Please note that any extraction fans
operating in the same room as the wood-
burning stove can reduce the chimney draft
– which may have an adverse effect on stove
combustion properties. In addition, this may
cause smoke to be emitted from the stove
when the firing door is opened.
4. It must not be possible to cover any air vents.
The floor
It is essential to ensure that the floor surface can
actually bear the weight of the stove and a top-
mounted steel chimney, if applicable. The stove
must stand on a nonflammable surface such as a
steel floor plate or a brick or tile floor. The size of
the nonflammable surface used to cover the floor
area must match national and local regulations.
The chimney connection
The chimney opening must follow national and
local regulations. However, the area of the ope-
ning should never be less than 175 cm2, which
corresponds to a diameter of 150 mm. If a dam-
per is fitted in the flue gas pipe, there must al-
ways be at least 20 cm2of free passage, even
when the damper is in its “closed” position.
Wood-burning stoves must never be con-
nected to chimneys that are also linked to a
gasfired heater.
An efficient stove makes high demand on chim-
ney properties – so always have your local chim-
ney sweep evaluate your chimney.
Connection to a brick chimney
Brick a thimble into the chimney and seat the
flue gas pipe in this. The thimble and flue gas
pipe must not penetrate the chimney opening
itself, but must be flush with the inside of the
chimney duct. Joins between brickwork, the
thimble and flue gas pipe must be sealed with
fireproof material and/or beading.
Connection to a steel chimney
When fitting a connection from a top-output
st ove directly to a steel chimney, we recommend
fitting the chimney tube inside the flue gas spigot
so that any soot and condensation drops into the
stove itself rather than collecting on the exterior
surface of the stove.
For connections to chimneys that are run through
ceilings, all national and local regulations regar-
ding distance to flammable material must be fol-
lowed. It is important that the chimney is fitted with
roof support so that the top panel of the stove is
not required to bear the entire weight of the chim-
ney (excessive weight may damage the stove).
Draft conditions
Poor draft may result in smoke being emitted
from the stove when the door is opened. The
minimum chimney draft to ensure satisfacto-
ry combustion in stoves of this kind is 13 PA.
However, there will still be a risk of smoke emis-
sion if the firing door is opened during powerful
firing. Flue gas temperature at nominal output
for Scan-Line 95 273 and Scan-Line 100 266 is
20° C.
Flue gas mass flow rate for Scan-Line 95 is 6 g/
sec and for Scan-Line 100 7.5 g/sec.
INSTALLATION INSTRUCTIONS

4
The chimney draft is generated by the difference
between the high temperature of the chimney
and the low temperature of the fresh air. The
length and insulation of the chimney, wind and
weather conditions also have an effect on the
ability of the chimney to generate appropriate
under-pressure.
If the stove has not been used in a while, check
that the chimney and stove are not blocked with
soot, bird nests, etc., before using it.
Reduced draft can occur when:
• The difference in temperature is too small
– due to insufficient chimney insulation, for
example.
• The outdoor temperature is too high – in
summer, for example.
• No wind is blowing.
• The chimney is too low and sheltered.
• The chimney contains false air.
• The chimney and flue gas pipe are blocked.
• The house is too airtight (i.e. when there is
an insufficient supply of fresh air).
• Poor smoke extraction (poor draft conditi-
ons) due to a cold chimney or bad weather
conditions can be compensated for by
increasing the airflow into the stove.
Good draft occurs when:
• The difference in temperature between the
chimney and outdoor air is high.
• The weather is fine.
• The wind is blowing strongly.
• The chimney is of the correct height: at
least 4.00 m above the stove and free of the
roof ridge.
INSTRUCTIONS FOR USE
First firing
The stove paint is fully cured from the factory,
but a minor unpleasant odour could still arise.
Fuel
Your new stove is EN approved for firing with
wood fuel. You must therefore only burn clean,
dry wood in your stove. Never use your stove
to burn driftwood, as this may contain a lot of
salt which can damage both the stove and the
chimney. Similarly, you must not fire your stove
with refuse, painted wood, pressure-impregna-
ted wood or chipboard, as these materials can
emit poisonous fumes and smoke. Correct fi-
ring using well seasoned wood provides opti-
mal heat output and maximum economy. At the
same time, correct firing prevents environmental
damage in the form of smoke and emmissions
and also reduces the risk of chimney fires. If the
wood is wet and inadequately seasoned, a large
proportion of the energy in the fuel will be used
to vaporise the water, and this will all disappear
up the chimney. Thus it is important to use dry,
well seasoned wood, i.e. wood with a moisture
content of no more than 20%. This is achieved
by storing the wood for 1–2 years before use.
Pieces of firewood with a diameter of more than
10 cm should be split before storing. The pieces
of firewood should be of an appropriate length
so that they can lie flat on the bed of embers. If
you store your wood outdoors, it is best to cover
it.
Examples of recommended
woods types
and their typical specific gravity per cubic
meter stated as 100% wood with a moisture
content of 18%
Wood kg/m3Wood kg/m3
Beech 710 Willow 560
Oak 700 Alder 540
Ash 700 Scotch pine 520
Elm 690 Larch 520
Maple 660 Lime 510
Birch 620 Spruce 450
Mountain pine 600 Poplar 450
It is advised not to use very oil-containing
woods like teak tree and mahogany, as this
can cause damage to the glass.
Heating value in wood
You have to use about 2.4 kg normal wood to
replace one litre of heating oil. All woods have
almost the same heating value per kg, which
is about 5.27 kW/hour for absolute dry wood.
Wood with a moistness of 18% has a efficiency
of about 4.18 kW/hour per kg, and one litre hea-
ting oil contains about 10 kW/hour.
CO2release
At combustion 1000 litres of heating oil forms
3.171 tons CO2. As wood is a CO2neutral heat/

5
energy source, you save the environment about
1.3 kg CO2every time you have used 1 kg nor-
mal wood.
Chimney fires
In the event of a chimney fire – which often re-
sults from incorrect operation or protracted fi-
ring with moist wood – close the door and shut
off the secondary/start-up air supply to smother
the fire. Call the fire department.
Regulating the airflow
To adjust combustion airflow, use the handle at
the front under the door. Combustion air flow is
fully open when the handle is as far as possible
to the right. To close gradually, slide the handle
to the left. Fig. 1.
1
Closed Open
Lighting the stove
Place two pieces of wood on the bottom. Stack
kindling on top in layers with air between. Set-
ting fire starter (bag, brick, paraffin) on the top,
now you are ready to light the fuel. The flames
must work from the top down.
The use of lighter fluid, oils or
any liquid fuels is strictly forbid-
den from use in a wood stove.
Fully open the combustion air and leave the
door ajar (about 1 cm open).
Once the fire is established and the chimney is
hot (after about 3-5 minutes) closed door and
3
regulate the air into operating position. We re-
commend, all of the first fuel is burned with the
combustion air fully open in the operating po-
sition. This ensures the stove and chimney are
thoroughly heated.
Startup/Lighting
Scan the code and select a
language.
Adding fuel
A fresh supply of fuel should normally be added
while there is still a good layer of hot embers.
Spread the embers over the base grate, most
towards the front of the stove. Lay a single lay-
er of wood fuel corresponding to about 1,9 kg.
(Scan-Line 95) and 2,3 kg (Scan-Line 100) over
the embers, at right angles to the stove door.
Turn handle into top position (max. combustion-
airflow). Keep door ajar if necessary. (The door
should not be left open but fuel will ignite more
quickly while the door is ajar.) The wood should
ignite within a very short time (usually 1-3 mi-
nutes). If the door is ajar, close it as soon as the
fuel is ignited. When the flames spread across
the fuel stack, adjust the combustion airflow to
the required level. Nominal output 6,5 kW for
Scan-Line 95 and 9 kW, with the combustion
air flow about 80 % open. When adding fuel,
make sure that the fuel is not too tightly packed,
as this will lead to poorer combustion and fuel
inefficiency.
Fuel must be under the level of the top row of air
holes and inside the outermost air hole to each
side. See figure 3.
Reduced burning
The stove is well suited to intermittent use. If
you wish to operate the stove with reduced out-
put, simply insert smaller volumes of wood at
each firing, and apply a lower airflow. However,
remember that the secondary combustion air
2

6
supply must never be shut off completely du-
ring firing. It is important to keep a good bed of
embers. Gentle heat is released when the fire
settles - i.e. when the wood no longer genera-
tes flames and has been converted to glowing
embers.
Optimal firing
To achieve optimal firing and the highest possi-
ble effect, it is important to make sure that the air
supply is used correctly. As a general rule, the
secondary air is to be used to control the fire to
ignite the flue gases. This produces a high effect
and keeps the glass panel completely clear of
soot as the secondary air “washes” down over
it. Please note that the stove will, naturally, pro-
duce soot if both the start-up mechanism* and
secondary air intakes are closed completely. This
will prevent oxygen from being drawn into the
stove, and the viewing window and other parts
will become covered with soot. If this situation is
combined with firing with wet wood, the build-up
Stove data table in accordance with en 13240 testing
Stove type
Scan-Line
Series
Nominal fluegas
temperature, at 20°C
room temperature
C°
Smoke
stub
mm
Fuel
volume
kg
Draught
min
mbar
Nominal
output
tested
kW
Heat
output
%
Distance to flammable
materials
mm
Distance to furnitu-
res from the stove
mm
Stove
weight
kg
behind the
stove
at the
sides
Scan-Line 95 273 Ø150 1,9 0,13 6,5 80 150 350 1100 *
Scan-Line 100 266 Ø150 2,3 0,13 9 81 100 250 1200 *
The nominal output is the output to which the stove has been tested.
The test was carried out with the combustion air 80%.
* Scan-Line 95 fast pedestal 142 kg
* Scan-Line 95 rotating pedestal 147 kg
* Scan-Line 95 without pedestal 121 kg
* Scan-Line 95R without pedestal 126 kg
* Scan-Line 95H 156 kg
* Scan-Line 100 fast pedestal 172 kg
* Scan-Line 100 rotating pedestal 177 kg
* Scan-Line 100 without pedestal 153 kg
* Scan-Line 100R pedestal 177 kg
* Scan-Line 100R rotating pedestal 181 kg
* Scan-Line 100R without pedestal 157 kg
of soot can become so thick and sticky that the
sealing rope can, for example, become detached
when the door is opened the next day.
Risk of explosion
After you add new fuel, it is very
important that you do not leave
the stove unattended until the
wood is burning constantly.
This will normally occur within 30 to 60 seconds.
A risk of explosion can possibly arise if too much
wood is placed in the stove. This may result in
the production of large volumes of gas, and this
gas can explode if the intake of primary and se-
condary air is insufficient.
It is an advantage always to leave some ash
lying in the bottom of the combstion chamber.
Take care when emptying the ash pan, as
cinders can continue to burn in the ash for
long periods of time.

7

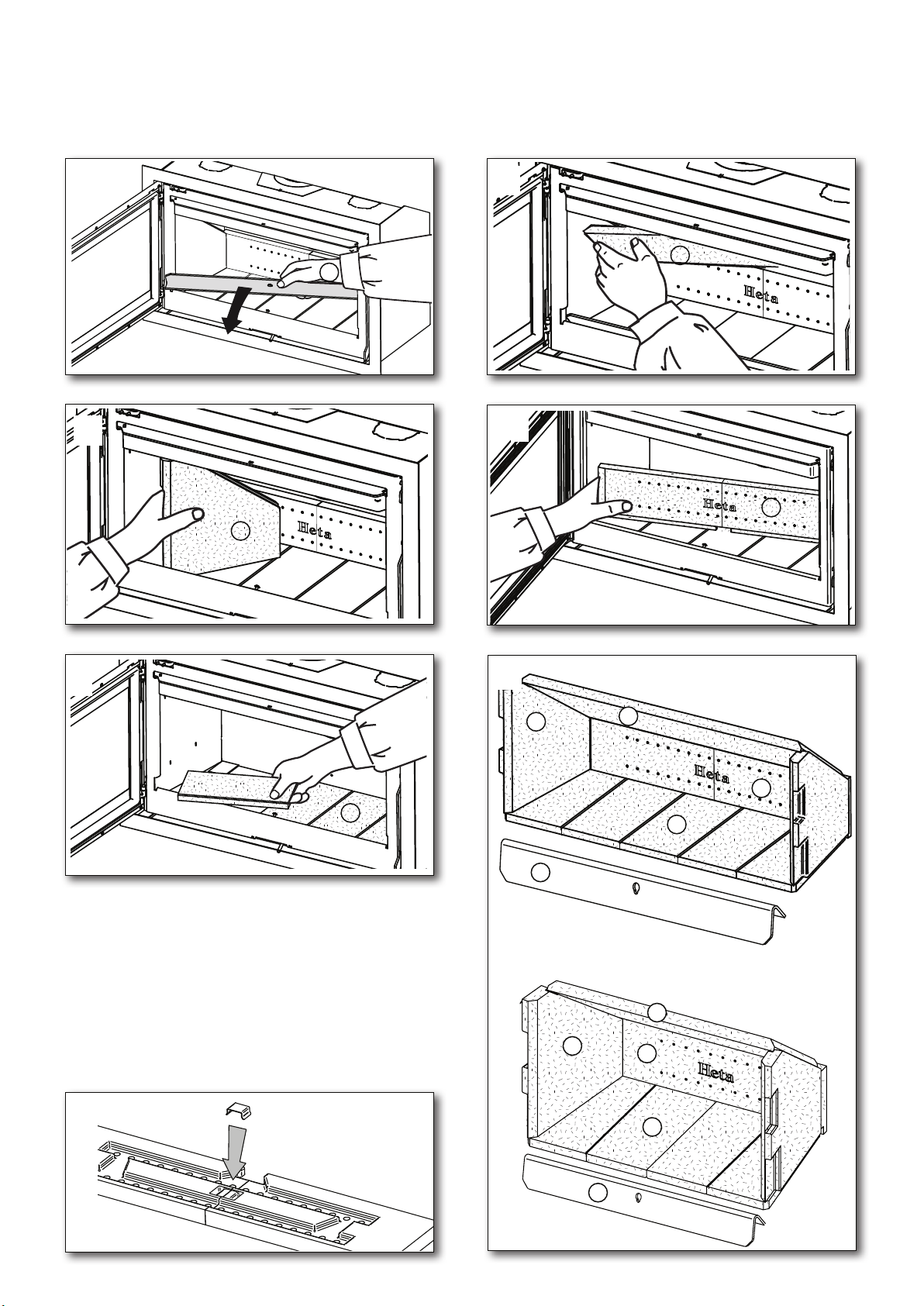

Cleaning after sweeping or before replacing vermiculite stones
7
1
34
5
2
1
2
3
4
5
6
1
2
Scan-Line 100
Scan-Line 95
1
2
5
4
4
3
3
5
Note: it may be necessary to clean/vaccum the holes and air ducts behind the rear stone
Rear stone
The rear stone on Scan-Line 100 is divided into
two. They are held together by a bracket on the
rear side which is pressed down into the reces-
ses. Fig. 7.
Removal sequence of stones.
Replace in reverse order. Starting with Fig. 5.

8

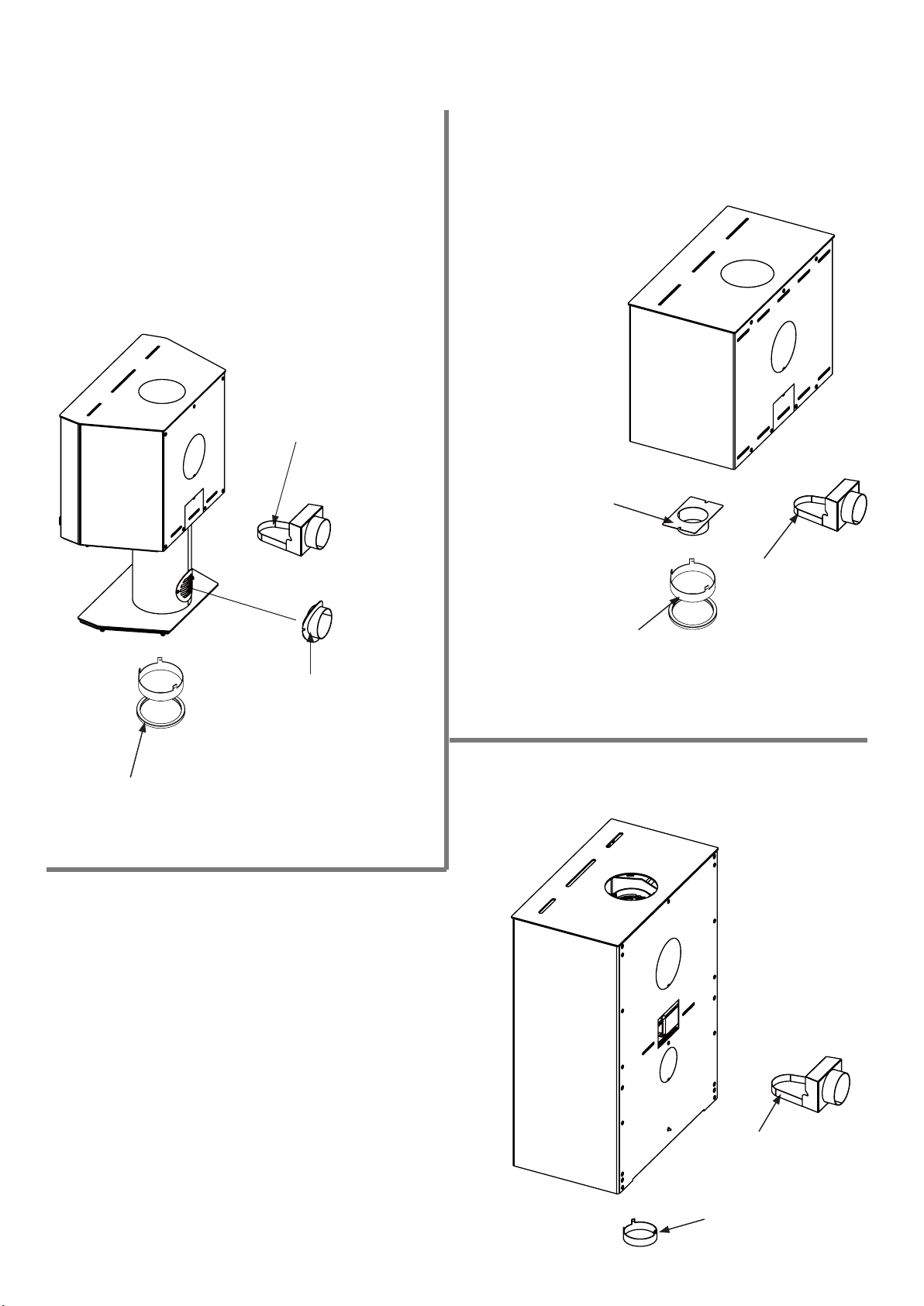

External fresh air - Accessory
Pedestal Models
Scan-Line 95 fast pedestal
Scan-Line 95 rotating pedestal
Scan-Line 100 fast pedestal
Scan-Line 100 rotating pedestal
Scan-Line 100R fast pedestal
Scan-Line 100R rotating pedestal
Models without pedestal
Scan-Line 95
Scan-Line 95R
Scan-Line 100
Scan-Line 100R
- 1511-0028
Behind
- 1511-0028
fast pedestal
Behind
- 1511-0028
Behind
- 0032-0015
From below
1515-0013 -
From below
6000-024055 -
Mounted under
the bottom
Scan-Line 95 H
- 1515-0013
Fast- and rotating pedestal
From below
- 1515-0012
rotating
pedestal
Behind

9
0032-0015 -
Connecting external fresh air supply from below
12
35
4
6
x 4
x 3
87
Remove the vermiculite in the combustion chamber. See on page 7.
Accessory
1515-0013 -
Check that the air controller moves freely. Replace the vermiculite. See page 7.

10
3
12
1511-0028 -
Connecting external air supply from behind
Possibly leakage around the coupling spigot
can be sealed with heat resistant silicone or fire
rope.
The chimney must be swept at least once a year,
we recommend the use of a NACS (national as-
sociation of chimney sweeps) registered chim-
ney sweep. In the event of smoke or malodorous
fumes being produced, you must first check to
see whether the chimney is blocked. The chim-
ney must, of course, always provide the minimum
draught necessary to ensure that it is possible
to regulate the fire. Please note, however, that
chimney draft is dependent on the weather con-
ditions. In high winds, the draft can become so
powerful that it may be necessary to fit a damper
in the flue gas pipe to regulate the draft. When
cleaning the chimney, soot and other deposits
may come to fall on the smoke turning plate. In
cases where the wood burns too quickly, this
may be due to excessive chimney draught. You
should also check to make sure that the door
seal is intact and correctly fitting.
If the stove it generating too little heat, this may
be because you are firing with wet wood. In this
case, much of the heating energy is used to dry
the wood, resulting in poor heating economics
and an increased risk of soot deposits in the
chimney.
Check whether the air holes in the stones are
blocked with for example ashes etc. Below the
casted shaking grate is it possible to clean the
air channel for the start-up airflow.
Operational problems
Maintenance
The surface of the stove has been trea-ted with
heat-resistant paint.
The stove should be cleaned with a damp cloth.
Any damage to the surface in the form of chips
or scratches can be repaired using touch-up
paint, which is available in spray cans.
Cleaning the glass
Incorrect firing, for example using wet wood, can
result in the viewing window becoming covered
in soot. This soot can be easily and effectively
removed by using proprietary stove glass clea-
ner.

11
Special conditions regarding Scan-Line 95 and 100 without
pedestal

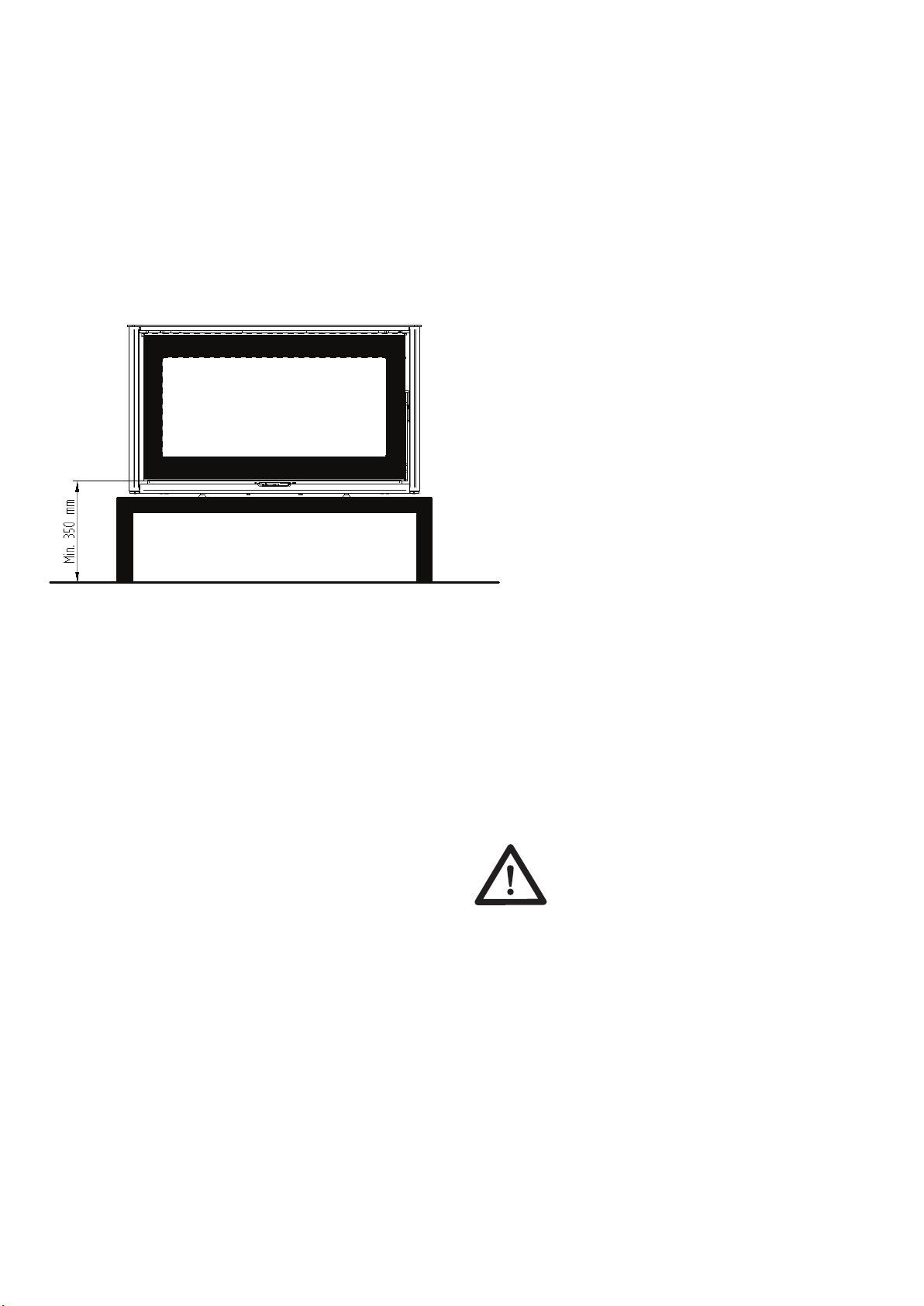

Make sure that the distance from the lower edge
of the door to the floor is minimum 350 mm to-
gether with min. 530 mm permanent non-com-
bustible flooring in front of stove (e.g. quarry
tiles, tiles, etc. laid on top of a concrete sub-
flooring).
If the min. distance 350 mm (from flooring to lo-
wer edge of door) is increased to min. 460 mm,
there are no special requirements regarding flo-
oring material.
Please also read the part about the floor on
page 3.
Ventilation
Adequate ventilation must be provided in ac-
cordance with building regulations (Doc J Oct
2010) especially when installing in newer build
properties when the stove is not going to be in-
stalled to an outside air supply. Houses built af-
ter 2008 where the air leakage rate is less than
5m3/ hour/m2then a ventilator equivalent to 550
mm2per kW output will be required (4.5 kW x
550 mm = 2475 mm2) unless the stove is con-
nected to an outside fresh air supply.
Guarantee
Heta wood stoves, subjected to a strict quality
control during production and before delivery to
the dealer.
Therefore, the stoves guarantee is
FOR FIVE YEARS
Against defects in manufacturing
The guarantee does not cover:
Wearing parts / fragile parts such as:
- Vermiculite stones in the combustion
chamber, glass, seals and the casted bottom
or shaking grate.
- Damage caused by improper use.
- Transportation costs for warranty repair.
- Assembly / disassembly of warranty repair.
Should you have cause to make a complaint,
please quote our invoice no.
Warning
Any unauthorized alterations to the
stove and the use of non-original
parts will void the warranty.

12
Appendix A
The Clean Air Act 1993 and Smoke Control
Areas Under the Clean Air Act local authorities
may declare the whole or part of the district of
the authority to be a smoke control area. It is
an offence to emit smoke from a chimney of a
building, from a furnace or from any fixed boiler
if located in a designated smoke control area. It
is also an offence to acquire an ”unauthorised
fuel” for use within a smoke control area unless
it is used in an ”exempt” appliance (”exempted”
from the controls which generally apply in the
smoke control area).
The Secretary of State for Environment, Food
and Rural Affairs has powers under the Act to
authorise smokeless fuels or exempt applian-
ces for use in smoke control areas in England.
In Scotland and Wales this power rests with
Ministers in the devolved administrations for
those countries. Separate legislation, the Clean
Air (Northern Ireland) Order 1981, applies in
Northern Ireland. Therefore it is a requirement
that fuels burnt or obtained for use in smoke
control areas have been ”authorised” in Regu-
lations and that appliances used to burn solid
fuel in those areas (other than ”authorised” fuels)
have been exempted by an Order made and signed
by the Secretary of State or Minister in the de-
volved administrations.
The Panorama/Panorama XL been recommen-
ded as suitable for use in smoke control areas
when burning dry wood logs.
Further information on the requirements of the
Clean Air Act can be found here: https://www.
gov.uk/ smoke-control-area-rules
Your local authority is responsible for implemen-
ting the Clean Air Act 1993 including designation
and supervision of smoke control areas and you
can contact them for details of Clean Air Act re-
quirements.
