Elfin-EG46
RS485/Ethernet to 4G Router
User Manual
V 1.2
Overview of Characteristic
Use MIPS MCU (32MB SRAM) and 16MB Flash, based on Linux OS
Support LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA, cellular network, sub-type to support specific
cellular network
Support RS485 to 4G Data Transmission, UART baud rate Up to 460800bps
Support 10/100M Ethernet to 4G Data Transmission
Supports Max 5 Channel TCP/UDP connections, Each Connection Supports 1400 Bytes of Data
Cache
Support Multiple Working Modes: Network Transparent Transmission Mode, HTTP Mode, MQTT
Support Modbus Master Function
Support IOTService Tool, Remotely and Dynamically Modify Module Parameters
Support APN
Support VPN(PPTP, L2TP, L2TP+IPSEC)
Supports Registration Packet, Heartbeat Packet Function, and Packet Supports Combination of
ICCID, IMEI, IMSI, Software Version, cellular network Connection Status.

Elfin-EG46 User Manual
http://www.iotworkshop.com - 2 -
Support NTP
Support Modbus TCP to Modbus RTU
Support IOTBridge for Remote Control and Config.
Support IOTBridge working time, for example only works from 10:00 to 10:30 to save the data flow
charge.
Support Serial Port, Network OTA Upgrade Firmware.
Size: 68.5 x 35 x 17.8mm
9～18VDC@1A Wide Power Supply

Elfin-EG46 User Manual
http://www.iotworkshop.com - 3 -
TABLE OF CONTENTS
TABLE OF CONTENTS....................................................................................................................3
LIST OF FIGURES............................................................................................................................4
LIST OF TABLES .............................................................................................................................4
1. PRODUCT OVERVIER ........................................................................................................5
1.1. General Description.........................................................................................................5
1.2. Device Parameters...........................................................................................................5
1.3. Key Applications..............................................................................................................7
2. HARDWARE INTRODUCTION ...........................................................................................8
2.1. APPEARANCE..................................................................................................................8
2.2. Elfin-EG46 Pin Definition.................................................................................................8
2.3. RS485 Interface................................................................................................................9
2.4. Mechanical Size ...............................................................................................................9
2.5. RJ45 8PIN Connector ....................................................................................................10
2.6. EG46 Interface Conversion Cable................................................................................11
2.7. Fixed Bracket .................................................................................................................11
2.8. Rail Bracket ....................................................................................................................11
2.9. Bracket............................................................................................................................12
2.10. RJ45 Transform Connector...........................................................................................12
2.11. Product Installation .......................................................................................................13
2.12. EVK..................................................................................................................................13
2.13. Product Order Information............................................................................................14
APPENDIX A: CONTACT INFORMATION....................................................................................16

Elfin-EG46 User Manual
http://www.iotworkshop.com - 4 -
LIST OF FIGURES
Figure 1. Elfin-EG46 Structure........................................................................................................................5
Figure 2. Elfin-EG46 Appearance...................................................................................................................8
Figure 3. Elfin-EG46 RJ45 Interface Pin.........................................................................................................8
Figure 4. Elfin-EG46 Mechanical Size ..........................................................................................................10
Figure 5. RJ45 8PIN Connector....................................................................................................................10
Figure 6. EG46+8PIN Connector..................................................................................................................10
Figure 7. Interface Conversion Cable ...........................................................................................................11
Figure 8. Fixed Bracket.................................................................................................................................11
Figure 9. Rail Bracket ...................................................................................................................................12
Figure 10. Bracket Install Picture....................................................................................................................12
Figure 11. RJ45 Transform Connector............................................................................................................12
Figure 12. Product Installation........................................................................................................................13
Figure 13. EVK Package.................................................................................................................................14
Figure 14. Elfin-EG46 Product Order Information...........................................................................................15
LIST OF TABLES
Elfin-EG46 Technical Specifications.......................................................................................................5
Elfin-EG46 Interface Definition ...............................................................................................................9
HISTORY
V 1.1 07-01-2019. First Version
V 1.208-23-2019. First Version

Elfin-EG46 User Manual
http://www.iotworkshop.com - 5 -
1.PRODUCT OVERVIER
1.1. General Description
The Elfin-EG46 support LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA, cellular network full network. 4G
network support maximum download data rate 150Mbps, upload data rate 50Mbps.
The Elfin-EG46 module support TCPIP protocol, with its RS485 interface, it makes traditional UART
device easy connecting to IOT.
Elfin-EG46 is an RJ45 interface serial server with ultra-small size: 68.5 x 35 x 17.8mm
Figure 1. Elfin-EG46 Structure
1.2. Device Parameters
Elfin-EG46 Technical Specifications
Item
Parameters
System Information
Processor/Frequency
320MHz
Operating System
OpenWRT Linux
2G/3G/4G Interface
Transmit Power
LTE-TDD: Class 3(23dBm+1/-3dB)
LTE-FDD: Class 3(23dBm±2dB)
WCDMA: Class 3(24dBm+1/-3dB)
TD-SCDMA: Class 3(24dBm+1/-3dB)

Elfin-EG46 User Manual
http://www.iotworkshop.com - 6 -
GSM900: Class 4(33dBm±3dB)
DCS1800: Class 1(30dBm±3dB)
GSM900 8-PSK: Class E2(27dBm±3dB)
DCS1800 8-PSK: Class E2(26dBm±3dB)
Receive Sensivity
FDD B1: -96dBm(10M)
FDD B3: -96dBm(10M)
FDD B5: -96dBm(10M)
FDD B8: -96.5dBm(10M)
TDD B38: -96dBm(10M)
TDD B39: -97dBm(10M)
TDD B40: -96.5dBm(10M)
TDD B41: -96dBm(10M)
WCDMA B1: -110dBm
WCDMA B8: -111dBm
TDSCDMA B34: -109dBm
TDSCDMA B39: -109dBm
GSM 900M: -109dBm
GSM 1800M: -109dBm
LTE
Maximum Support non-CA CAT4
Support 1.4~20MHz RF Bandwidth
Downstream Support Multiple Users MIMO
FDD: Maximum Upstream Rate 50Mbpsm Maximum
Downstream Rate 150Mbps
TDD: Maximum Upstream Rate 35Mbpsm Maximum
Downstream Rate 130Mbps
WCDMA
3GPP R8 DC-HSPA+
16-QAM,64-QAM and QPSK Modulation
Maximum Upstream 5.76Mbps
Maximum Downstream 42Mbps
TD-SCDMA
CCSA Relese 3
Maximum Upstream 2.2Mbps
Maximum Downstream 4.2Mbps
GSM/cellular network
R99：
CSD Transmission Rate：9.6Kbps/14.4Kbps
cellular network：
Support cellular network multi-slot class 12
Code Method：CS-1/CS-2/CS-3/CS-4
Serial Port
Port Number
1
Interface Standard
EG46: RS485
Data Bits
7,8
Stop Bit
1,2
Check Bit
None,Even,Odd
Baud Rate
TTL：1200 bps~460800 bps
Flow Control
No Flow Control
Half-Duplex(RS485)
Software Flow Contorl
Software
Configuration
Serial AT Command
IOTService Serial Port Configuration Software
IOTService Network Configuration Software
Firmware Upgrade
UART or OTA Upgrade
Basic Parameter
SIM Card
Nano SIM card(1.8V/3V)
Size
68.5mm x 35mm x 17.8mm

Elfin-EG46 User Manual
http://www.iotworkshop.com - 7 -
Operating Temp.
-25 ~ 70°C
Storage Temp.
-45 ~ 105°C, 5 ~ 95% RH（no condensation）
Input Voltage
9~18VDC@1A
Typical 9V@1A
Average Working
Current
~300mA@9V
Peak Current
2A
1.3. Key Applications
The Elfin-EG46 module connects the serial device to the Internet and conforms to the TCP/IP protocol
for transmitting serial data.
⚫Remote device monitoring
⚫Production asset tracking and monitoring
⚫Security field
⚫Industrial sensors and controllers
⚫Health medical equipment
⚫ATM equipment
⚫Data acquisition equipment
⚫UPS power management equipment
⚫Telecommunication equipment
⚫Data display device
⚫Hand-held device
⚫Attendance system and terminal equipment

Elfin-EG46 User Manual
http://www.iotworkshop.com - 8 -
2.HARDWARE INTRODUCTION
Elfin-EG46 is a cellular network solution for serial device networking. Data transmission via cellular
network makes product integration very easy. This product meets EMC Class B security level and can
pass relevant certification tests in various countries.
2.1. APPEARANCE

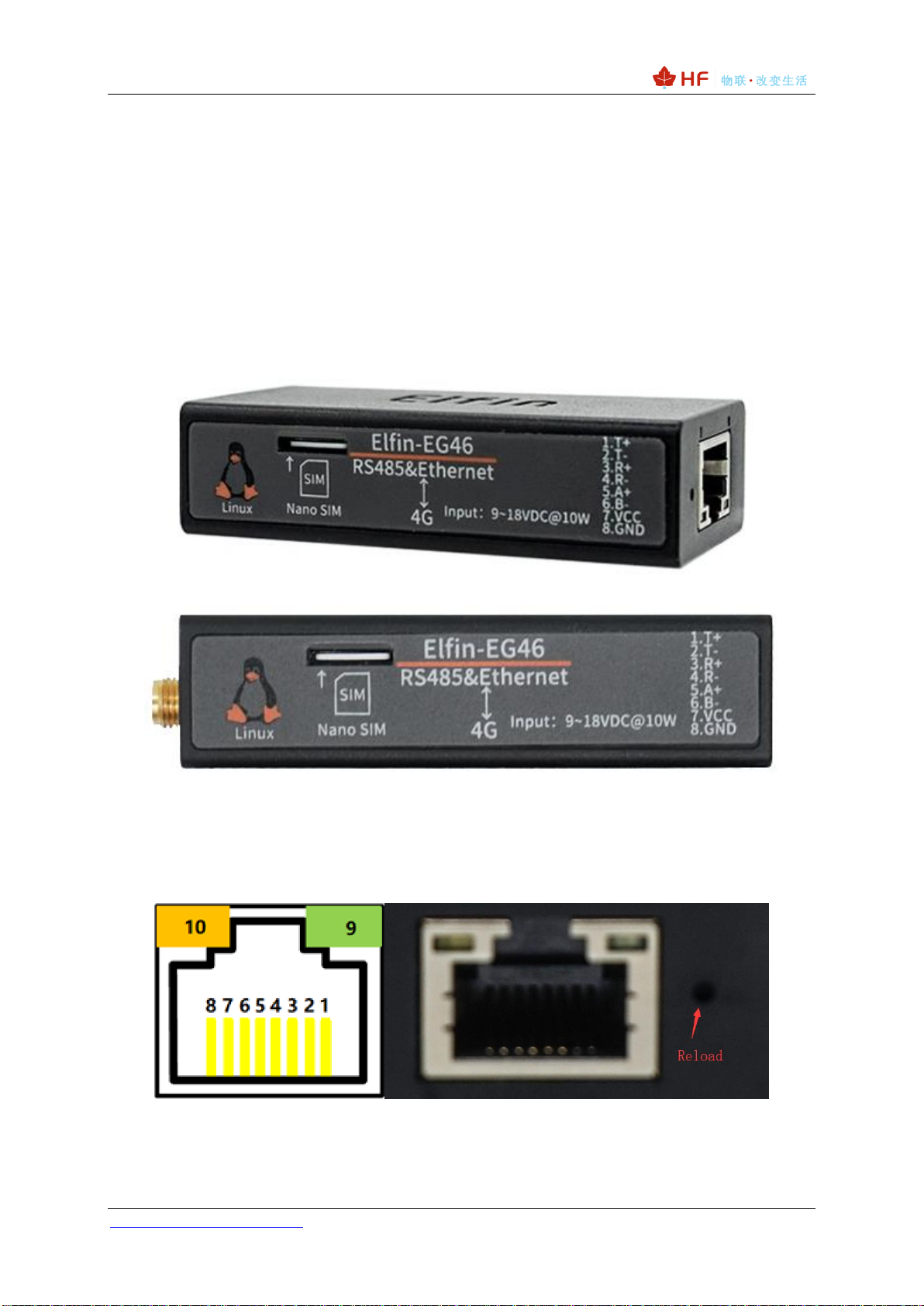

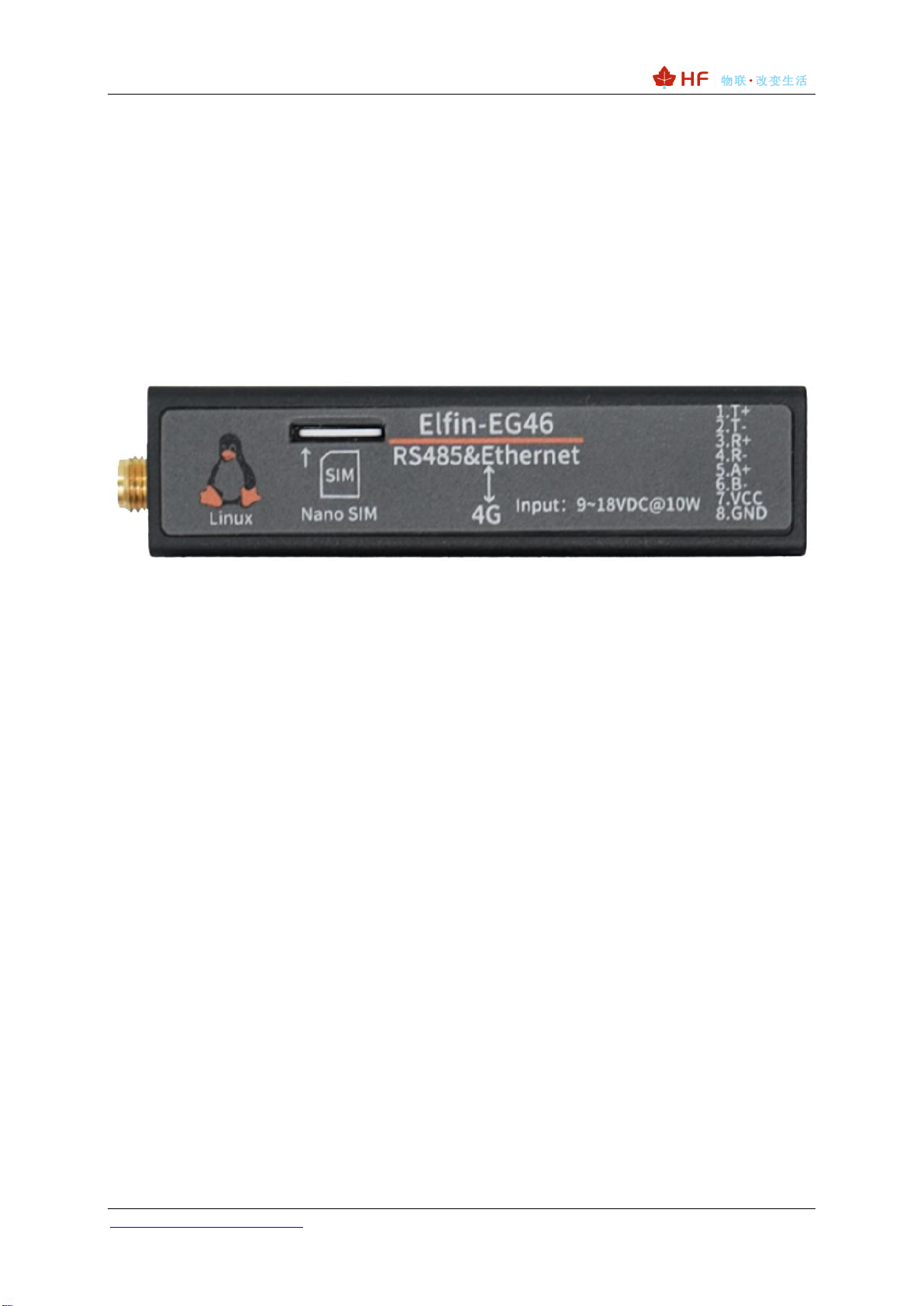

Figure 2. Elfin-EG46 Appearance
2.2. Elfin-EG46 Pin Definition
Figure 3. Elfin-EG46 RJ45 Interface Pin

Elfin-EG46 User Manual
http://www.iotworkshop.com - 9 -
Elfin-EG46 Interface Definition
Pin
Description
Net Name
Signal Type
Notes
1
Ethernet TX+
TX+
O
Connect to Standard Ethernet RJ45 PIN1
2
Ethernet TX-
TX-
O
Connect to Standard Ethernet RJ45 PIN2
3
Ethernet RX+
RX+
I
Connect to Standard Ethernet RJ45 PIN3
4
Ethernet RX-
RX-
I
Connect to Standard Ethernet RJ45 PIN6
5
RS485_A+
RS485_A+
IO
6
RS485_B-
RS485_B-
IO
7
Power VCC
VCC
Power
9～18VDC@1A
8
Power GND
GND
Power
9
Green LED
Net Status
Net
O
Boot On: Power is OK.
2s Off -> 2s On: cellular network Register
is OK.
0.1s Off -> 0.1s On: cellular network data
is transferring.
10
Amber LED
Data Transfer
Active
O
On: Ethernet connection OK
Off: No Ethernet connection
0.1s Off -> 0.1s On: UART data transfer
Restore to
Factory
nReload
I
Default high. Long press this button
("Low">3s) and loose to make the module
restore to factory setting.
<Notes>:
I —Input; O —Output; Power—Power Supply
2.3. RS485 Interface
RS485 use two wire links, A(DATA+), B(DATA-). Connect A(+) to A(+), B(-) to B(-) for communication.
Suggest to connect GND together when interference is very severe.
The RS485 interface support maximum 32 485 device, device. The cable maximum length is 1200
meters. Need to add 120Ohm terminal resistor for over 300 meters.
2.4. Mechanical Size
The dimensions of Elfin-EG46 are defined as following pictures(mm):

Elfin-EG46 User Manual
http://www.iotworkshop.com - 10 -
Figure 4. Elfin-EG46 Mechanical Size
2.5. RJ45 8PIN Connector
RJ45 8PIN Connector Type Order: 10810001001
Figure 5. RJ45 8PIN Connector
Figure 6. EG46+8PIN Connector

Elfin-EG46 User Manual
http://www.iotworkshop.com - 11 -
2.6. EG46 Interface Conversion Cable
Figure 7. Interface Conversion Cable
2.7. Fixed Bracket
Figure 8. Fixed Bracket
2.8. Rail Bracket

Elfin-EG46 User Manual
http://www.iotworkshop.com - 12 -
Figure 9. Rail Bracket
2.9. Bracket
Figure 10. Bracket Install Picture
2.10.RJ45 Transform Connector
Figure 11. RJ45 Transform Connector

Elfin-EG46 User Manual
http://www.iotworkshop.com - 13 -
2.11.Product Installation
Figure 12. Product Installation
2.12.EVK
EVK indluce one Elfin device, one RJ45 Connector and one screw driver.

Elfin-EG46 User Manual
http://www.iotworkshop.com - 14 -
Figure 13. EVK Package
2.13.Product Order Information
Based on customers detailed requirements, we provide different configuration Elfin-EG46, details as
below:

Elfin-EG46 User Manual
http://www.iotworkshop.com - 15 -
Figure 14. Elfin-EG46 Product Order Information

Elfin-EG46 User Manual
http://www.iotworkshop.com - 16 -
APPENDIX A: CONTACT INFORMATION
------------------------------------------------------------------------------------------------------------
Address: Room1002 , #1Building, No.3000 Longdong Avenue, Pudong District, Shanghai,
China 201202
Website: www.iotworkshop.com or www.hi-flying.com
Contact:
Sales：[e-mail]
Support：[e-mail]
Service：serv[email protected]
Business：[e-mail]
---------------------------------------------------------------------------- -------------------------------
For more information about us, please visit our website: www.iotworkshop.com
< END OF DOCUMENT >
