HIDE AND SEAT MXZ-EC User manual

Backless Booster Seat
Model MXZ-EC
INSTRUCTION MANUAL
45-85 lb
READ INSTRUCTION MANUAL
BEFORE USING
LEER EL MANUAL DE INSTRUCCIONES
ANTES DE USAR

Register your product in case of recall
Please take a moment to visit our website: hideandseat.com/setupandsafety
For safety purposes, child restraints may undergo recalls. To be notified in case
of a recall, it is essential to register this restraint.
The necessary information is found on the label inside the base of the seat.
For U.S. recall information, call the U.S. Government’s Vehicle Safety Hotline at
1-888-327-4236 or go to http://www.NHTSA.gov

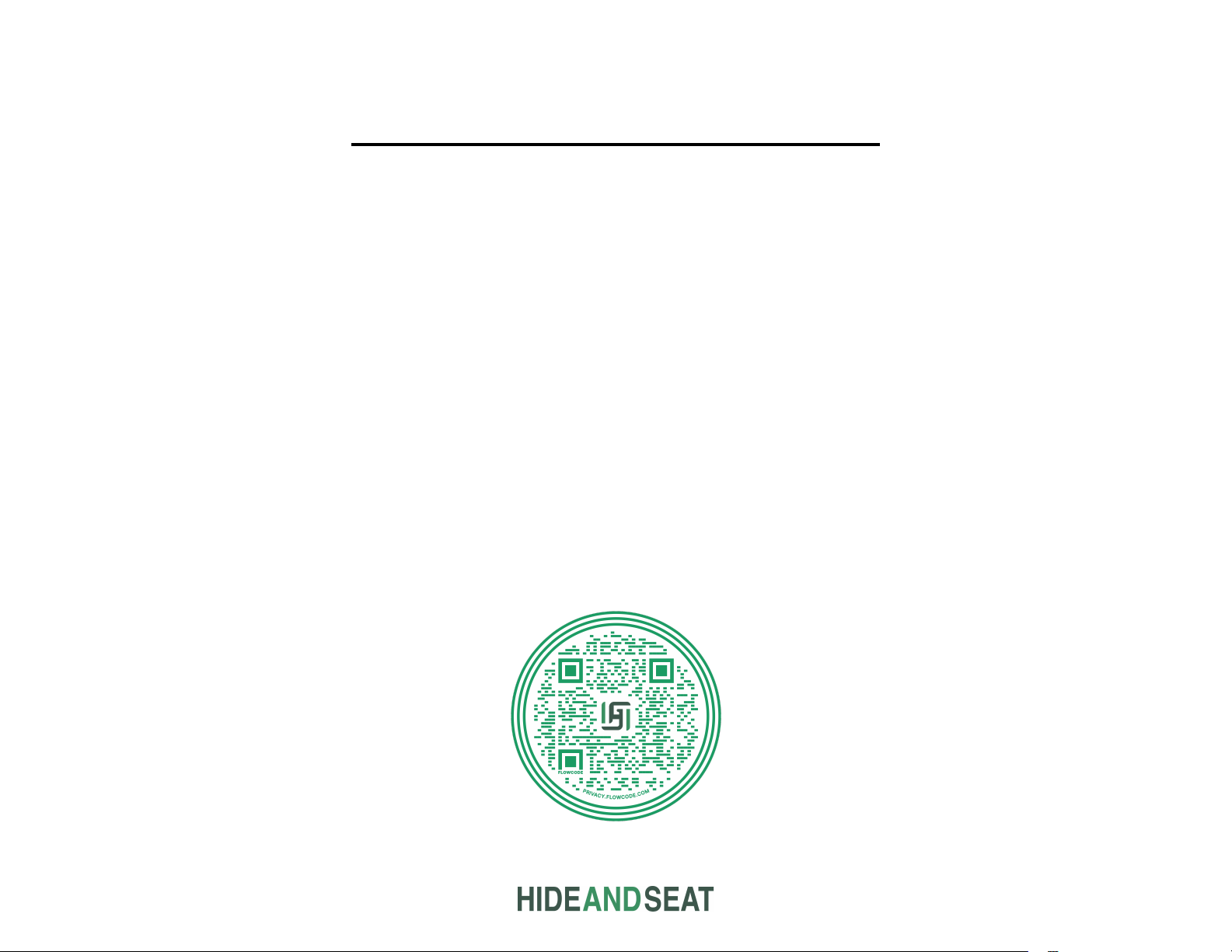

For easy access to the site for safety and registration, scan the QR code below.
1

1. Introduction
1.1 Product Overview 1.2 Safety Guidelines
2. Installation
2.1 Pre-Installation Checks 2.2 Installation Process 2.3 Post-Installation Checks
3. Usage
3.1 Fastening and Unfastening the Harness 3.2 Adjusting the Seat and Headrest
4. Maintenance and Cleaning
4.1 Removing and Reattaching the Cover 4.2 Cleaning the Seat 4.3 Checking for Wear
and Damage
5. Warranty and Customer Service
5.1 Warranty Information 5.2 How to Contact Customer Service
Para español, vaya a la página 15
2

1.1 Product Overview
The MXZ-EC Child Booster Seat from Hide and Seat LLC is a backless booster
seat designed to provide enhanced safety for your child. The booster seat is
available in two colors - Black and Cream White, and is covered with faux leather
for extra comfort and easy cleaning. Made from high-density polyethylene
(HDPE) and polyester, this booster seat is lightweight yet sturdy, weighing only 2
lbs. The dimensions of the seat are 14x16x7.5 inches.
1.2 Safety Guidelines
Please read this manual carefully before installing and using this booster seat.
Always follow the manufacturer's instructions and check that the seat is correctly
installed before every trip.
3

CAUTION - Important Safety Instructions:
Please carefully read and comprehend all instructions and cautions in this
guide, as well as those provided with your Child Restraint. Failure to do so may
lead to SERIOUS INJURY or DEATH of your child.
SAFE USAGE GUIDELINES:
●This Child Restraint is specifically designed for use ONLY with children
weighing 45–85 lb AND having a height of 37–60 in.
●Child Height: If the top of the child's ears surpasses the top of the raised
vehicle seat headrest, the child is too tall for this restraint.
●Always utilize the vehicle lap and shoulder belt system when securing the
child in this booster seat. DO NOT utilize a lap belt alone.
4

CERTIFICATIONS:
●This child restraint system adheres to all relevant requirements of U.S.
Federal Motor Vehicle Safety Standards (FMVSS) 213 per CPSIA standards set
forth in 49 CFR 571.213. It is certified for use solely in passenger cars,
multi-purpose passenger vehicles, and trucks.
●Rigorously crash tested and approved to the ECE R44/04 as a booster seat
for group III.
●PLEASE NOTE: This restraint is NOT CERTIFIED FOR USE IN AIRCRAFT.
Aircraft seats lack the necessary shoulder belts required for using this booster
seat.
5

WARNING - DO NOT INSTALL A CHILD RESTRAINT ON THE FRONT SEAT OF A
VEHICLE EQUIPPED WITH A PASSENGER AIRBAG. SERIOUS INJURY OR DEATH
MAY RESULT.
●In the event of an airbag deployment, the force generated can cause
significant harm or even fatal injuries to the child or the child restraint.
●For the safety of children aged 12 and below, it is strongly recommended to
place them in the back seat of the vehicle. Please consult your vehicle owner's
manual for specific instructions on how to correctly install your child restraint.
6

Additional Safety Requirements
●Please ensure to carefully read and follow all guidelines provided in this
manual and store it securely in the booster cover.
●Prior to installing the child restraint in your vehicle, consult the vehicle
owner's manual for proper installation instructions.
●Only use this booster seat as directed in the instructions. It is designed for
children weighing 45–85 lb and whose height ranges from 37–60 in. If the top of
the ears exceeds the fully raised vehicle headrest, the child is too tall for this
seat.
●Always utilize the vehicle lap and shoulder belt system to restrain the child in
this booster seat. Never use only the vehicle lap belt as this could lead to serious
injury or death.
●Before each use, ensure that the vehicle seat belt can retract correctly.
7

●Never leave your child unattended while using the booster seat.
●Do not install the booster seat in a rear-facing, side-facing, or on the back of
a folded-down vehicle seat.
●Always install the booster seat in the rear vehicle seat.
●Only use this booster seat if there is a vehicle headrest available for the
seating position.
●Avoid using this booster seat with any other cushions.
●Even when unoccupied, securely fasten the booster seat using the vehicle
belt to prevent injury to other occupants in case of sudden stops or crashes.
●Do not use any accessories, inserts, or products not included with this
booster seat, unless they are approved by Hide and Seat.
8

●Do not modify the booster seat in any way.
●When providing this booster seat to another person, always include the
instruction manual.
9

Using Your Car Seat After a Collision
According to the U.S. National Highway Traffic Safety Administration (NHTSA), it
is recommended to replace car seats after experiencing a MODERATE or SEVERE
collision to ensure ongoing optimal collision protection for child passengers.
Car seats do not necessarily require replacement after a MINOR collision, as
defined by NHTSA, which includes the following conditions:
●The vehicle was drivable after the collision.
●The vehicle door closest to the car seat showed no damage.
●No occupants in the vehicle sustained injuries.
●There is no visible damage to the car seat.
●The airbags, if equipped, did not deploy.
However, it is crucial to NEVER utilize a car seat that has been involved in a
MODERATE or SEVERE collision.
10

2.1 Pre-Installation Checks
Before installing the booster seat, ensure your vehicle's seat is flat and the
booster seat fits properly. The entire base of the booster seat should be in
contact with the vehicle seat.
2.2 Installation Process
Position the booster seat on the vehicle seat where your child will be sitting. If
your vehicle's seat has a headrest, adjust it to a comfortable height for your child.
The tether strap included in the box should be attached to the anchor point
behind the vehicle's seat for added stability.
2.3 Post-Installation Checks
Check that the booster seat is stable and does not move side-to-side or
front-to-back more than 1 inch when pulled at the belt path.
11

3.1 Fastening and Unfastening the Harness
Position your child on the booster seat and run the vehicle's seat belt across
their body, ensuring that the lap belt lies flat across their thighs and the shoulder
belt crosses the middle of their shoulder and chest.
Always utilize the vehicle lap and shoulder belt system to restrain the child in this
booster seat. Never use only the vehicle lap belt as this could lead to serious
injury or death.
3.2 Adjusting the Seat and Headrest
As a backless booster seat, the MXZ-EC does not have its own headrest. Adjust
the vehicle's headrest to ensure it supports the back of your child's head.
12

4.1 Removing and Reattaching the Cover
The faux leather cover of the MXZ-EC Child Booster Seat can be easily wiped
clean with a damp cloth. If necessary, it can be removed for a more thorough
cleaning.
4.2 Cleaning the Seat
Use mild soap and warm water to clean the booster seat. Avoid abrasive
cleaners or bleach as they may damage the material and compromise the seat's
integrity. The cover can be washed in a washing machine and should dry using
air dry only.
4.3 Checking for Wear and Damage
Regularly check the booster seat for signs of wear or damage. If any parts are
worn or damaged, stop using the seat immediately and contact customer
service.
The booster seat has a life of 5 years from the purchase date.
13

5.1 Warranty
Your MXZ-EC Child Booster Seat comes with a manufacturer's warranty against
manufacturing defects
5.2 How to Contact Customer Service
You can reach our customer service team by visiting our official website and
following the 'Contact Us' link, or by calling or texting our helpline at (646)
535-9673.
14

Registre su producto en caso de retirada
Tómese un momento para visitar nuestro sitio web: hideandseat.com/setupandsafety
Por motivos de seguridad, los sistemas de sujeción para niños pueden someterse a
retiros del mercado. Para ser notificado en caso de un retiro, es esencial registrar esta
restricción.
La información necesaria se encuentra en la etiqueta dentro de la base del asiento.
Para obtener información sobre retiros en EE. UU., llame a la línea directa de seguridad
de vehículos del gobierno de EE. UU. al 1-888-327-4236 o visite http://www.NHTSA.gov
Para acceder fácilmente al sitio por seguridad y registro, escanee el código QR a
continuación.
15

1.1 Resumen del producto
El asiento elevador para niños MXZ-EC de Hide and Seat LLC es un asiento
elevador sin respaldo de alta calidad diseñado para brindar mayor seguridad a su
hijo. El asiento elevador está disponible en dos colores: negro y blanco crema, y
está cubierto con piel sintética para mayor comodidad y fácil limpieza. Hecho de
polietileno de alta densidad (HDPE) y poliéster, este asiento elevador es liviano
pero resistente, con un peso de solo 2 lb. Las dimensiones del asiento son
14x16x7.5 pulgadas.
1.2 Pautas de seguridad
Lea atentamente este manual antes de instalar y utilizar este asiento elevador.
Siga siempre las instrucciones del fabricante y compruebe que el asiento esté
correctamente instalado antes de cada viaje.
16

PRECAUCIÓN - Instrucciones de seguridad importantes:
Lea detenidamente y comprenda todas las instrucciones y precauciones de esta
guía, así como las proporcionadas con su sistema de seguridad para niños. El
no hacerlo puede causar LESIONES GRAVES o la MUERTE de su hijo.
DIRECTRICES DE USO SEGURO:
●Este sistema de seguridad para niños está diseñado específicamente para
usarse ÚNICAMENTE con niños que pesen entre 45 y 85 libras Y tengan una
altura de 37 a 60 pulgadas.
●Altura del niño: si la parte superior de las orejas del niño sobrepasa la parte
superior del reposacabezas del asiento elevado del vehículo, el niño es
demasiado alto para este sistema de sujeción.
●Utilice siempre el sistema de cinturón de regazo y hombro del vehículo
cuando asegure al niño en este asiento elevado. NO utilice un cinturón de regazo
solo.
17

CERTIFICACIONES:
Este sistema de sujeción para niños cumple con todos los requisitos pertinentes
de las Normas federales de seguridad para vehículos motorizados (FMVSS) 213
de EE. UU. según las normas CPSIA establecidas en 49 CFR 571.213. Está
certificado para su uso únicamente en automóviles de pasajeros, vehículos de
pasajeros de usos múltiples y camiones.
Rigurosamente probado contra choques y aprobado según ECE R44/04 como
asiento elevador para el grupo III.
TENGA EN CUENTA: Este sistema de sujeción NO ESTÁ CERTIFICADO PARA USO
EN AERONAVE.
Los asientos de los aviones carecen de los cinturones de hombro necesarios
para usar este asiento elevado.
18

ADVERTENCIA: NO INSTALE UN SISTEMA DE SEGURIDAD PARA NIÑOS EN EL
ASIENTO DELANTERO DE UN VEHÍCULO EQUIPADO CON UNA BOLSA DE AIRE
PARA EL PASAJERO. SE PUEDEN OCASIONAR LESIONES GRAVES O LA
MUERTE.
●En caso de que se despliegue una bolsa de aire, la fuerza generada puede
causar daños significativos o incluso lesiones fatales al niño o al sistema de
retención infantil.
●Para la seguridad de los niños menores de 12 años, se recomienda
encarecidamente colocarlos en el asiento trasero del vehículo. Consulte el
manual del propietario de su vehículo para obtener instrucciones específicas
sobre cómo instalar correctamente su asiento de seguridad para niños.
19
