HIFU Ultraformer 3 User manual

7D
1
7D
When operating this product, please read the manual carefully first

7D
2
Preface
First of all, we would like to express our heartfelt thanks to the customers who purchase our
instruments. This manual is for customers to use the instrument better, To use the instrument correctly,
Prevent damage to operations and users, To protect the instrument from damage, To avoid
unnecessary loss of property, Please read the instructions carefully before using.
The Company is responsible for the safety and reliability of the instrument only if: The assembly
operation, reloading, improvement and maintenance are carried out by the personnel approved by our
company, The electrical equipment connected to this instrument conforms to the national standard,
and the use of this instrument is carried out in accordance with the operation instructions.
This is a life beauty instrument.
If the beauty agency using this instrument can not operate the instrument formally, it may cause
the failure of the instrument function and may endanger the personal health. The company will provide
the circuit diagram at the request of the user, and also list the calibration method and other
information to help the user to repair the equipment part of the company classified by the by qualified
technicians.
This product must be used in strict accordance with the method of use in this manual, the misuse
of methods other than the manual caused by all the consequences of their own responsibility, the
company does not bear any responsibility.
The Company does not provide any form of security, including (but not limited to) real and
suitable security against it for a particular purpose. The Company shall not be liable for any incidental
or indirect damage caused by the error contained in this information or by the actual performance and
use of this manual. This user manual contains all the basic information of this instrument. This is the
starting point for new users to start using this instrument, because it gives a basic introduction to the
system, explains how it works, introduces the installation of this instrument and various operating
methods, can be through the directory to find the required information.
this manual contains proprietary information protected by patent law. All rights reserved. No part of
this manual shall be photographed, copied, reproduced or translated into other languages without the
written consent of the Company. The contents of the manual can be changed without notice to the
user.

7D
3
Directory
1. Introduction of Instrument.....................................................................4
1.1 Instrument function.........................................................................4
1.2 Instrument parameters................................................................... 4
1.3 Appearance of instrument.............................................................. 5
1.4Instrument installation...................................................................6-8
2.Points for attention..................................................................................9
2.1 Precautions before use....................................................................9
2.2 Contraindications.............................................................................9
2.3 Attention in Customer Use.............................................................. 9
2.4 How to use the instrument............................................................. 9
3.Introduction to the main interface of the instrument............................. 10
4.Maintenance and repair.....................................................................11
4.1 Maintenance................................................................................. 11
4.2 repair............................................................................................. 11
5.Common Troubleshooting Methods............................................ 11
6.Manufacturer's liability...................................................................... 12
7.Storage and Transportation.............................................................. 12
8.Duration of use.................................................................................... 12
9.List of accessories............................................................................ 13
10.Warranty card ..........................................................................13

7D
4
1. Introduction to the instrument
2. 1.1 Instrument principle
The 7D Polylift with MMFU technology is a non-invasive device that has a firming effect on the skin.
It can lift the face by non-surgical treatment, tighten and shape the contours, and has extraordinary
clinical effects.
Utilizing the patented technology of HFI and MMFU, it generates high-energy focused ultrasound,
which quickly penetrates the epidermis, fat layer, and stimulates the membrane contraction of the
SMAS layer to instantly make the skin tissue reach a high temperature of 65°C, thereby generating a
thermal coagulation effect on the skin and muscles. The membrane layer forms a net-like condensation
point, which stimulates the shrinkage and firmness of fiber and collagen tissue, regeneration and repair,
and achieves layer-by-layer lifting and firmness.
7D poly-lifting, direct hitting flawless skin tightening L7-1.5mm (7MHz 1.5mm)
Targeting the superficial dermis, stimulates and reorganizes collagen, eliminates wrinkles; the
superficial dermis can regenerate, smooth pores and whiten the skin.
L7-2.0mm (7MHz 2.0mm)
is effective against pregnancy lines, eye bags, forehead lines, wrinkles around the eyes and other
wrinkles immediately, slowing down skin aging, and smoothing signs of aging.
L7-3.0mm (7MHz 3.0mm)
Targeting the deep dermis, it induces and stimulates the proliferation of collagen in the deep layer,
which starts to become elastic from the bottom of the muscle.
L4-4.5mm (4MHz 4.5mm)
uses dot matrix technology to focus 1.5 joules of energy into the SMAS layer to exert its hanging
power; effectively stimulate collagen proliferation, and skin rejuvenation grows from within.
1.2 Instrument parameters
Name
Parameters
input power
220V 50HZ
Output powe
150W
Frequency
4MHz
Energy size
0.1~3.0
Machine colour
white

7D
5
1.3Instrument appearance
Instrument side view
Display screen
handle
Key switch

7D
6

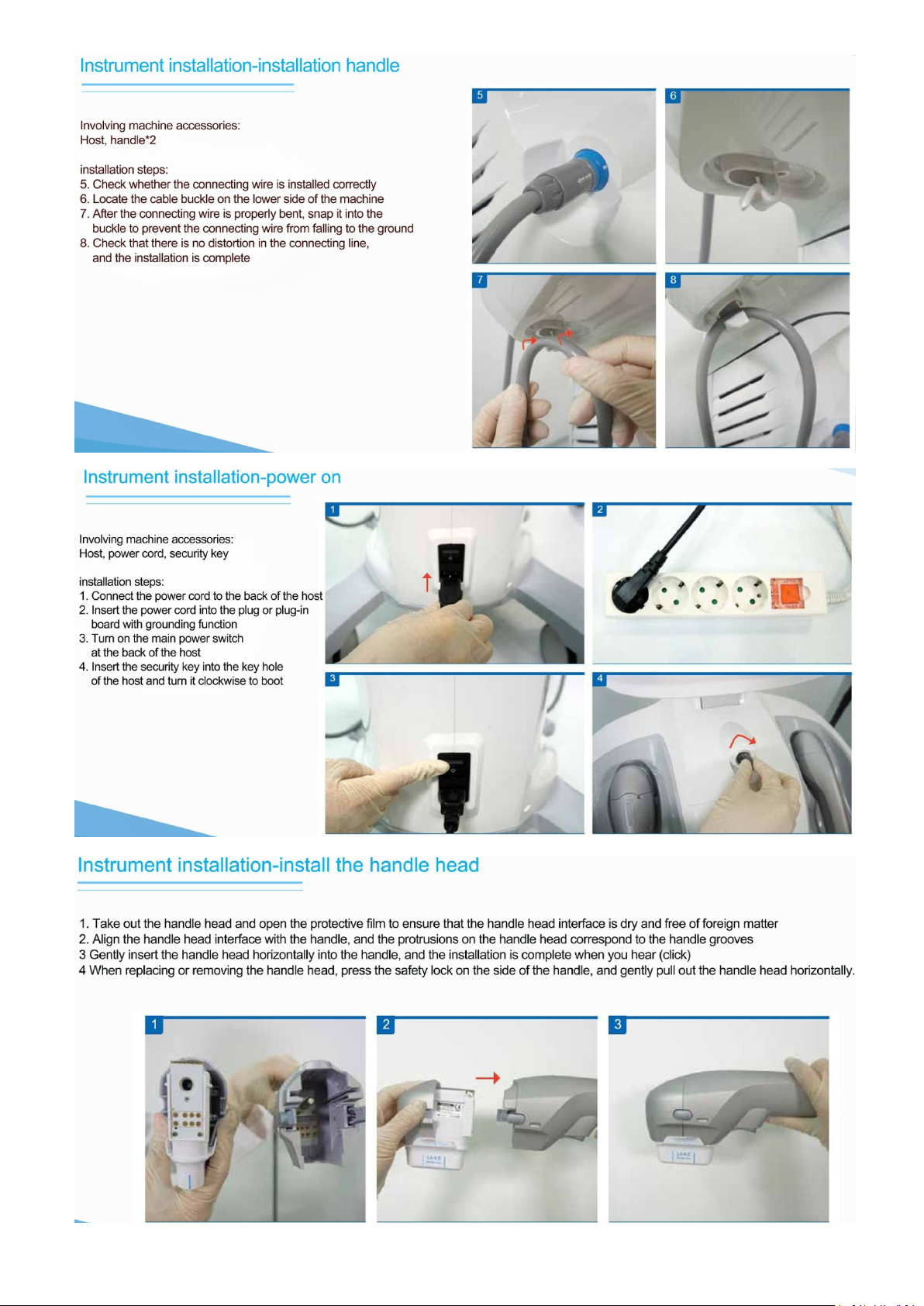

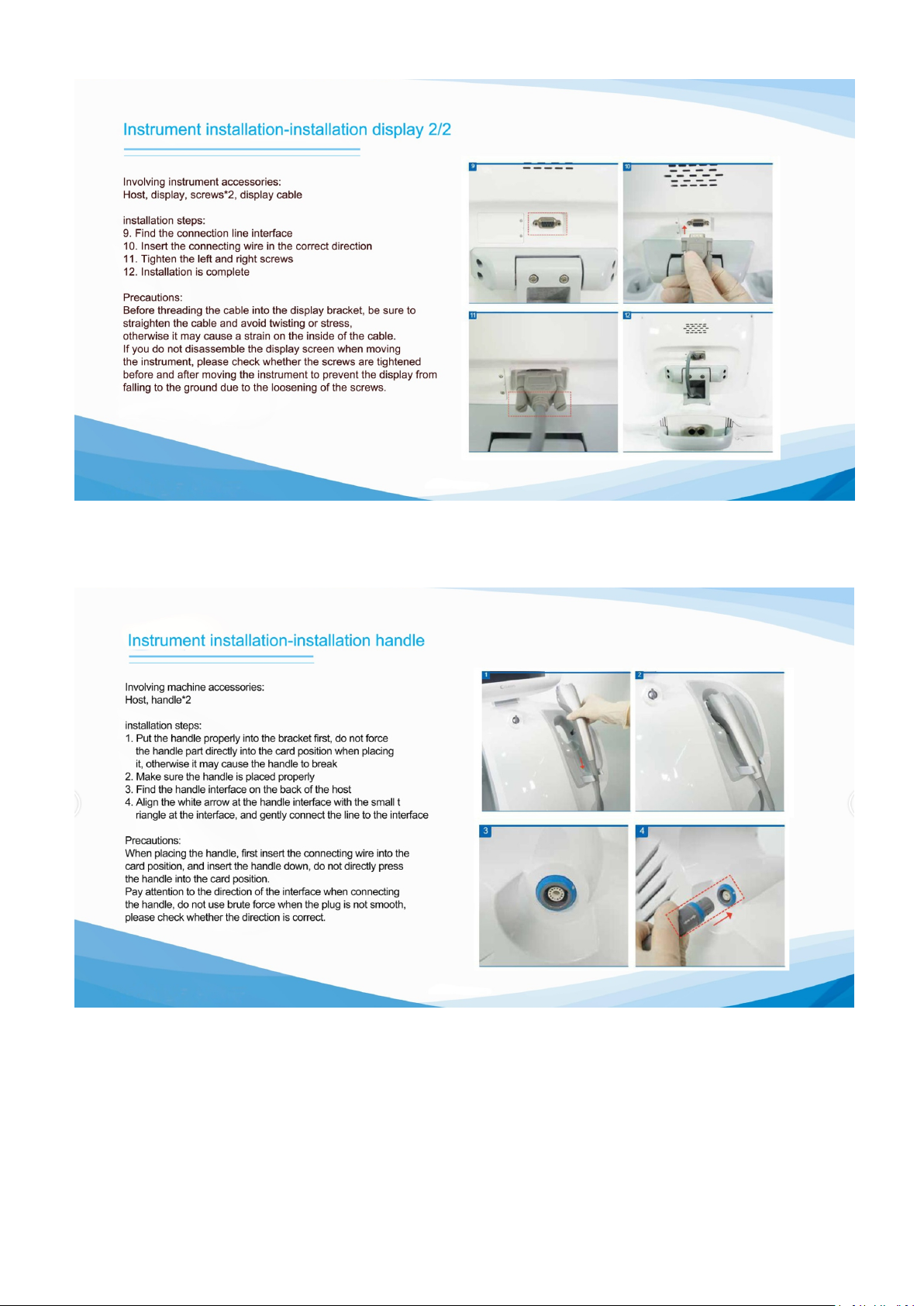

Instrument installation instructions:

7D
7

7D
8

7D
9
2.Matters needing attention
1. 2.1 Precautions before use
To prevent unauthorized use of the equipment, ensure that it is only used by trained and certified personnel.
In order to avoid possible injury during the nursing process, please do not operate near the eyes of the patient
Avoid caring for the thyroid, thyroid cartilage and trachea.
Avoid direct nursing of breast tissue and main blood vessels.
If there is any failure or adverse event, immediately stop the nursing program.
Before taking care, remember to apply an appropriate amount of ultrasound gel in the care area.
Before outputting energy, check whether the probe is correctly and completely attached to the skin.
2.2 Contraindications (forbidden to be used in the following patients)
When pregnant or breastfeeding
Open wounds or injuries in the nursing area
Severe or cystic acne in the nursing area
Metal stents/electrical implants in the nursing area
Bioabsorbable mechanical implants
Any type of skin infection
Bleeding disease or dysfunction
2.3 Precautions for illness (Patients with the following diseases should pay attention to and confirm the
appropriateness of care:
Anticoagulation therapy
Skin caused by autoimmune diseases, skin cancer and herpes simplex
Diabetes or epilepsy
Severe skin diseases
Exfoliation surgery or heart disease
Allergies or hyperplastic scars
Hemostatic dysfunction
2.4 System safety precautions
To avoid the risk of electric shock, be sure to check the probe, hand tools and power cord before use.
Do not use a power cord or probe that has been damaged or is leaking liquid.
Do not remove the cover or hand tools of the host, because it is not allowed to modify the device.
Do not lean on the device, and do not cause physical external shocks to the device, as this may cause permanent
system damage.
Do not use equipment with anesthetic gas or flammable materials in the surrounding area.
2.5The steps of using the instrument
1. Before using the instrument, disinfect and wipe the probe used with alcohol, and wipe off the water droplets on the
face;
2. Apply the product (photosensitive gel) evenly to the area to be treated;
3. Before the operation of the instrument, replace the required treatment head, and the energy range from low to
high to the range that the experiencer can bear is better.
4. Keep the treatment head flat against the skin during the operation, and the operation spacing should be closely
arranged;
5. During the operation, the experiencer should be constantly asked about the comfort level and the adjustment of
the energy level to ensure that the experiencer accepts the experience in a pleasant state;
6. Focus on strengthening treatment in the problem area (increasing energy);

7D
10

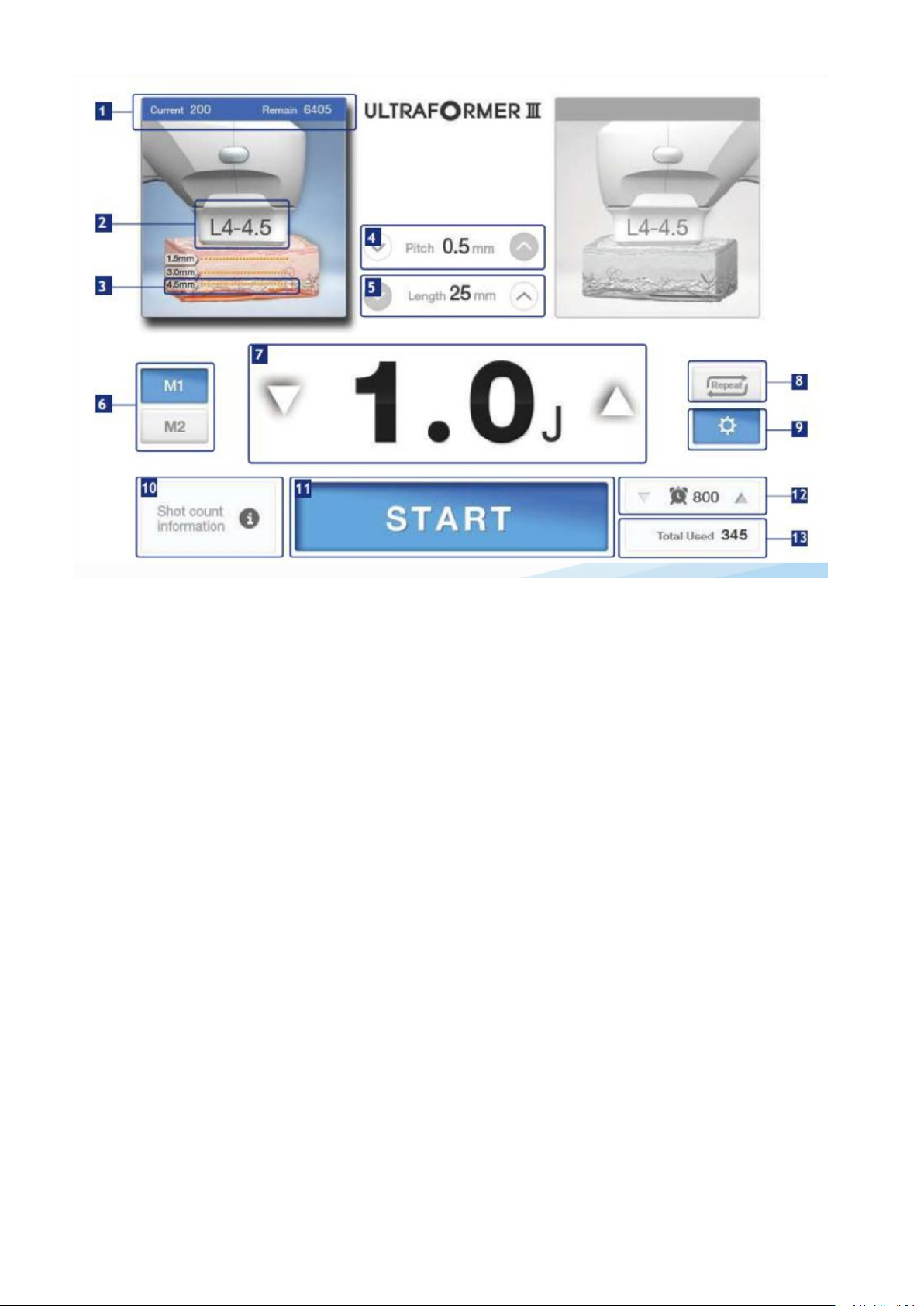

3. Introduction to the main interface of the instrument:
1. Current Used times, Remain remaining times
2. Handle head information
3. Depth of the handle head, wavelength, spacing display (display only)
4. Set the distance between the condensation points
5. Set energy length (5mm-25mm, minimum adjustment interval 5mm)
6. M1, M2 save parameters (long press for 3 seconds to save)
7. Energy regulation
8. Repeat is continuous transmission mode Single is single transmission mode
9. Settings
10. Send number information
11. System status "standby" and "start"
12. Set the limit of the number of transmissions, and buzzer prompts
13.the total number of times used
Step:
Preparation: Plug in the handle and probe, then adjust the dot ④density and ⑤intensity to start
working (if you need to save the data, first adjust the required parameters, press and hold for 3 seconds
⑥M1, M2 to save)
Start: first press ⑪to start and then press the handle button, close to the skin, you can start
treatment
Stop: first press the handle button and then press ⑪to stop, switch the mode by pressing ⑥to
switch the mode.
Note: When CURRENT①<⑫value, it can work; when CURRENT①=⑫value, it means that the probe
times have been used up, and the instrument has a beep and cannot work.

7D
11
Maintenance and repair
4.1 maintenance
4.1.1daily inspection
Management personnel must regularly inspect instruments and components.
Are power outlets reliably connected to the ground.
Please check whether the power cord is damaged before using the instrument, and stop using the instrument if
it is damaged.
4.1.2 clean
Clean equipment regularly to ensure cleanliness and good operation of equipment.Wipe the device case with a
wet cloth and use soapy water or a neutral cleaner if the device is powered off.
4.1.3replacement of fuse
When replacing the fuse, please turn off the power and pull the plug to prevent
electric shock.
4.2 maintenance
Fter the purchase of equipment to fill in the warranty card, and send to the manufacturer or agent, to have the
warranty effect;From the date of issuing the bill for the purchase of the machine belongs to the company's
product quality problems mainframe free warranty for one year (note: with the purchase bill and warranty card
warranty;This warranty is limited to the main machine, excluding spare parts and other consumables that need
to be replaced periodically.After the warranty period, please contact the manufacturer directly to provide paid
after-sales service.Maintenance of the machine must contact with the company's business department or
dealers, do not repair with
5.Common faults and troubleshooting methods
The fault
phenomenon
Cause of occurrence
Exclusion and resolution
Equipment not
working
The power plug is not
plugged into the socket
The power switch is not on
Power fuse failure
Check the power supply
Check the power switch
Replace fuse
Handle not
working
The probe is notinstalled correctly
The work head hasbeen damaged
The interface behindthe instrument is
notinstalled correctly
Check whether the probe is installed
correctly
Replace working head or silicone ring
reinstal

7D
12
6.Manufacturer's liability
The products produced shall conform to the product standards. If the products do not conform to the product
standards, the company is responsible for the replacement and return of goods.
The company shall bear the corresponding liability for personal and property damage caused by the manufacturing
defects of the products, provided that the company shall not be liable for the following situations:
The purchaser or operation user fails to use the product in accordance with the operation specification in the
instruction manual, or fails to use the product in accordance with the safety precautions and warning instructions.
Violation of regulations on transportation, installation, use, maintenance and storage of products, causing damage to
products, human life or property.
The company carries out lifelong maintenance and technical service for the products, and will repair for users free of
charge any manufacturing quality problems occurred during the stipulated quality assurance period.
When the accessories need to be replaced, the original accessories must be purchased from the company, otherwise
the user shall bear the adverse consequences.
7. Storage and transportation management
Storage: the equipment should be stored in the original packaging box, in a well-ventilated room, the
packing box should be high, the ambient temperature is -10℃~40℃, the relative humidity is not greater than
93%, not allowed to be placed in the vicinity of harmful gases, flammable, explosive substances and corrosive
gases.
Transportation: the instrument under the packing condition is suitable for highway, railway, air and water
transportation. In the process of loading, unloading and transportation, it shall prevent violent vibration and
impact, and shall not be affected by moisture, and shall not be mixed with inflammable and corrosion-prone
substances, mixed transport, specific requirements in accordance with the provisions of the order contract.
8.Use period
The warranty period of this instrument is 1 year (except for man-made damage).
The warranty period of spare parts is 3 months (except for man-made damage).
If the instrument beyond the service life continues to use, it shall be tested and approved by the engineer, and the
performance of the instrument shall be tested regularly by the engineer in the subsequent use.
Scrapped instruments and accessories that have expired should be disposed of according to local regulations.

7D
13
9.List of accessories
10.Warranty card
Warranty card the prod：
Type no：
The date of production：
Factory number：
1.the machine (with notes) since the acquisition date within 7 days of occurrence quality problem and
appearance is in good condition before change to new one, the host one year warranty (except wearing parts),
or other non warranty scope is over the warranty period, can also be responsible for the maintenance and
update, need appropriate maintenance fee, if the equipment fails to return to repair, half a year since
Serial
number
name
number
Remarks
1
The host
1 Taiwan
2
handle
2pcs
3
Handle head
1.5、3.0、4.5
4
The power cord
1article
5
Film
6pes
6
Acrylic sheet
2.5MM 12 pes
3.5MM 6pes
7
The instructions
1 this

7D
14
the date the buyer bear the return freight, sent the seller bear the freight;The freight for more than
half a year shall be borne by the buyer.
2. No free warranty service is provided for the failure caused by the following users'
personal reasons;
1Failure caused by dismantling or refitting the product without authorization;
2Malfunction caused by accidental drop
③ Failure caused by lack of proper maintenance;
④ Failure to follow the correct operation instructions in the operation manual;
The customer name：
Purchase date：
address：
number：
Dealer name：
Contact name：
addres：
number：
Records of the warrant
Maintenanc:
Send a date:
Mode
The delivery date：
The cause of the problem:
Customer name：
Contact phone number：
Processing methods and
results：
Shipping address：
Records of the
warranty
Maintenance：
Send a date
Mode：
Calibration date：
Failure cause：
Customer behavior：
phone：
Processing methods
and resultus：
Delivery Address：

7D
15
