INTRODUCTION
Congratulations on your purchase of ENDURO SERIES OUTDOOR WRIST
INSTRUMENT. These products represent the state-of-the-art in recreational watches.
Please keep in mind, your watch is a sensitive technical instrument. With proper care
and maintenance, it will last for many years. However, improper care and handling can
cause the various sensors to be damaged and to stop functioning.
This manual is prepared in easy-to-read sections to familiarize you with setting and
operating the watch’s functions. Please read all sections of this manual carefully and
become fully familiar with the operation of the watch before using it in the field.
Proper setup and operation will greatly enhance the watches usefulness and
your enjoyment.
WARNINGS AND CAUTIONS
WARNING: Before starting any exercise program or performing any vigorous physical
activity, we strongly suggest you visit your doctor for a complete physical and to discuss
your plans.
CAUTION: Your watch is designed to be water resistant to a static pressure of 5 ATM
and can be worn while showering and light swimming. However, we recommend that
extensive use of the unit in the water be avoided whenever possible.
CAUTION: Care should be taken not to press any keys while the unit is wet or
submerged as this can force moisture past the key seals and damage the unit.

3
TABLE OF CONTENTS
english
4
TABLE OF CONTENTS
english
HOW TO USE THIS MANUAL 5
CARE & MAINTENANCE 6
REPLACING THE WATCH BATTERY 7
RESETTING THE WATCH 8
DISPLAY SYMBOLS AND THEIR MEANINGS 9
KEYS AND THEIR FUNCTIONS 11
MODES OF OPERATION 13
SETTING THE WATCH FUNCTIONS 14
EL/BACKLIGHT SYSTEM 14
VIEW TIME ZONE 1 / TIME ZONE 2 15
SETTING TIME/DATE 16
SETTING THE CHRONOGRAPH 18
SETTING THE TIMERS 19
SETTING DAILY ALARMS 22
OPERATING THE WATCH 24
OPERATING THE CHRONOGRAPH 24
CHRONOGRAPH DATA REVIEW MEMORY 25
REVIEWING RUNS/WORKOUTS 26
OPERATING THE COUNTDOWN TIMERS 27
FUNCTIONAL SPECIFICATIONS AND RANGES 28
TROUBLE SHOOTING BASIC 29

5
english
6
english
HOW TO USE THIS MANUAL
Enduro watches have many unique features and functions. Be sure to read each section
carefully so that you will fully understand how the units and its features work.
The manual is divided into sections outlining each of the major functions of the watch.
A drawing of the watch screen that represents the starting point or other important
screen for each operational process is shown adjacent to the instructions for the
process; important keys are shown in color indicating PRESS & HOLD and PRESS.
The steps for the programming or operation are adjacent to the screen illustration. Key
points and important information are shown in highlighted blocks.
The watch itself is an important part of this manual as it prompts you through its
operation.
CARE & MAINTENANCE
Your Enduro watch should be protected from shocks, extreme heat and extended
exposure to direct sunlight. You should only perform service procedures related to the
changing of the battery as shown in this manual. NEVER attempt to disassemble. Store
your watch in a clean, dry area at room temperature.
Clean your watch using a moist cloth. Care should be taken when cleaning the lens not
to rub dirt into the surface as it can become scratched and hard to read.

7
english
8
english
REPLACING THE WATCH BATTERY
The Enduro watches use a common CR1632 3v Lithium battery. Normal battery life is
approximately 1yr.
NOTE: Heavy usage of the Backlight system may significantly reduce battery
life.
NOTE: A blank display or inaccurate readings are indications that the battery is
getting weak and should be replaced.
1. Remove battery door using a coin.
2. Carefully remove the old battery. Do not damage the O-ring
seal.
3. Place a fresh battery in the battery compartment with the
positive (+) side facing up.
4. Replace battery door using a coin.
5. If the O-ring has been damaged, replace it before reinstalling
the battery door. Most jewelers and watch shops should have
replacement O-ring seals.
NOTE: Extreme care should be taken when replacing the battery to ensure the
unit remains fully water resistant. Failure to properly replace the battery and
correctly seal the unit may cause the unit to become damaged and may void the
warranty
RESETTING THE WATCH
To reset the watch back to its default values PRESS the MODE,
SET/CLEAR, START/LAP and STOP/NEXT keys down at the
same time. The display will light up showing all segments
followed by a sequence of screens showing various numbers.
The watch will then automatically change to the time of day
screen at 12 o’clock on the first of January.
Resetting the watch will clear any information stored in the
watch. This should be done only as a last resort.
-
!
$
%

)
.

#
(
)
.
!



s






-
%
4
%
2
3

7
!
4
%
2

2
%
3
)
3
4
!
.
4

#
(
2
/
.
/
'
2
!
0
(

9
english
10
english
DISPLAY SYMBOLS
symbol description what it means
"AUTO-EL" BACKLIGHT Auto-El Backlight is active when displayed
CHRONOGRAPH Chronograph is active when displayed
TIMER Timer is active when displayed
HOURLY CHIME Hourly chime is active when displayed
ALARM ON Alarm is active when displayed
MODE SYMBOLS
symbol description what it means
SPLIT INIDCATOR Displays when Chronograph is running and Lap Detail in
Chronograph memory
LAP INDICATOR Displays when Chronograph is running and Lap Detail in
Chronograph memory
CHRONO STOPPED Displays when Chronograph is stopped
PM INDICATOR Indicates PM Time
AM INDICATOR Indicates AM Time
TIME ZONE 2 Indicates Time Zone 2 on display
BATTERY SYMBOLS
symbol battery status what it means
none GOOD Battery is in good condition.
MEDIUM Battery is half full.
LOW Battery needs to be replaced
DISPLAY SYMBOLS AND THEIR MEANINGS DISPLAY SYMBOLS AND THEIR MEANINGS

11
english
12
english

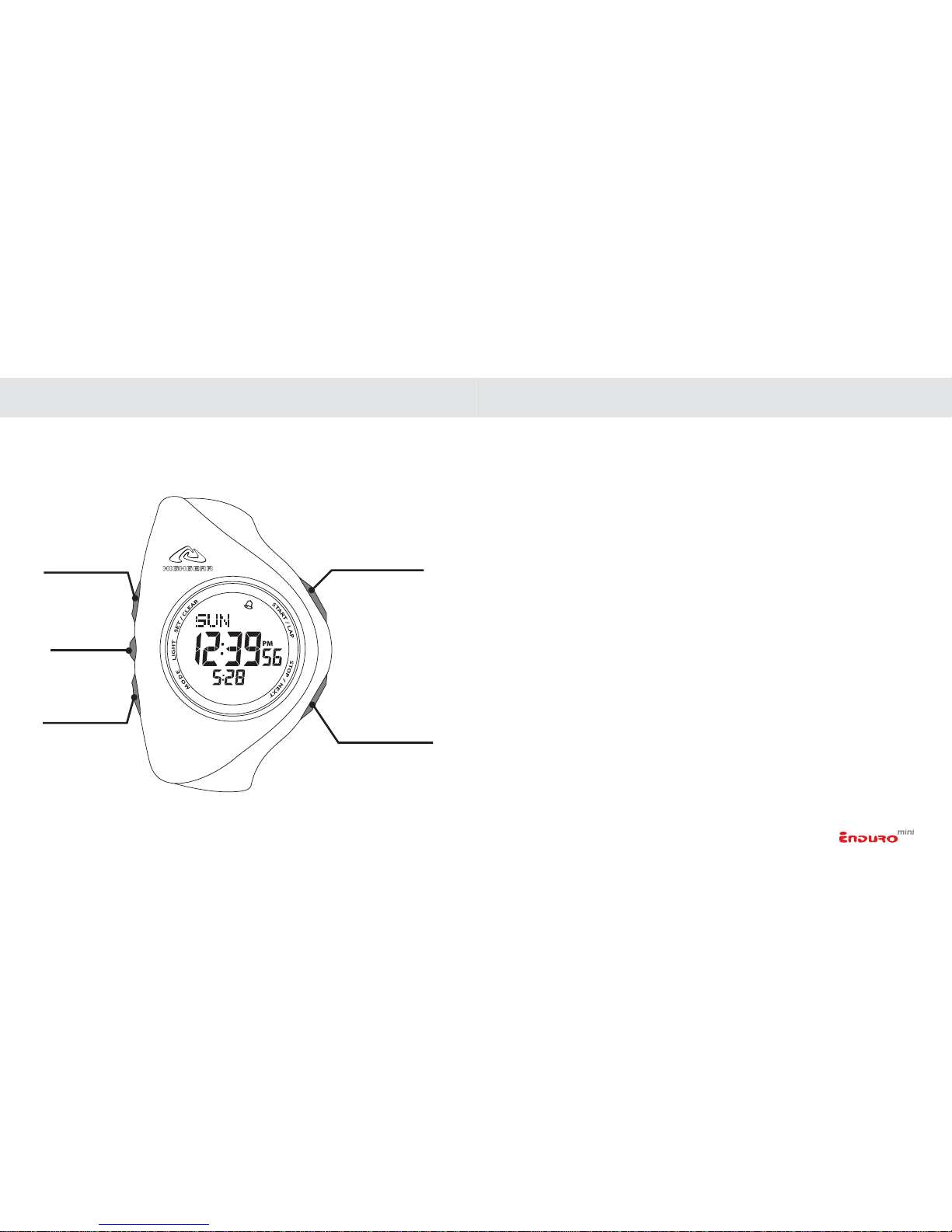

SET/CLEAR KEY
EL/LIGHT KEY
STOP/NEXT KEY
START/LAP KEY
KEYS AND THEIR FUNCTIONS KEYS AND THEIR FUNCTIONS
The Enduro has 5 individual keys. Each key has several functions. The drawing identifies
the keys and their names as used in this manual.
MODE KEY
- Advances display through the various
operational modes
- Selects variable in setting mode
SET / CLEAR KEY
- Enter/Exit setting sequence for each
function
- Clear Chronograph and memories
START / LAP KEY
- View/Select Time 1 / Time 2 in Time mode
- Increases variable in Setting sequence
- Start/Lap/Split action in Chronograph
mode
- Starts recall and scrolls through
information in Memory mode
- Starts Timer(s)
- Turns Daily Alarm On/Off
- Selects Key Beep On/Off in Time setting
sequence
STOP / NEXT KEY
- Stops Chronograph
- Stores Chronograph data to memory
- Decreases variable in Setting sequence
- Advances to next data file in Review mode
- Stops Timer
- Scrolls through Daily Alarms
- Selects Key Beep On/Off in Time setting
sequence
EL / LIGHT KEY
- Activates EL/Backlight
- Hold 3 Sec. Activates/deactivates
Automatic Backlight
MODE KEY

13
english
14
english
MODES OF OPERATION
ENDURO MAIN DISPLAY MODES

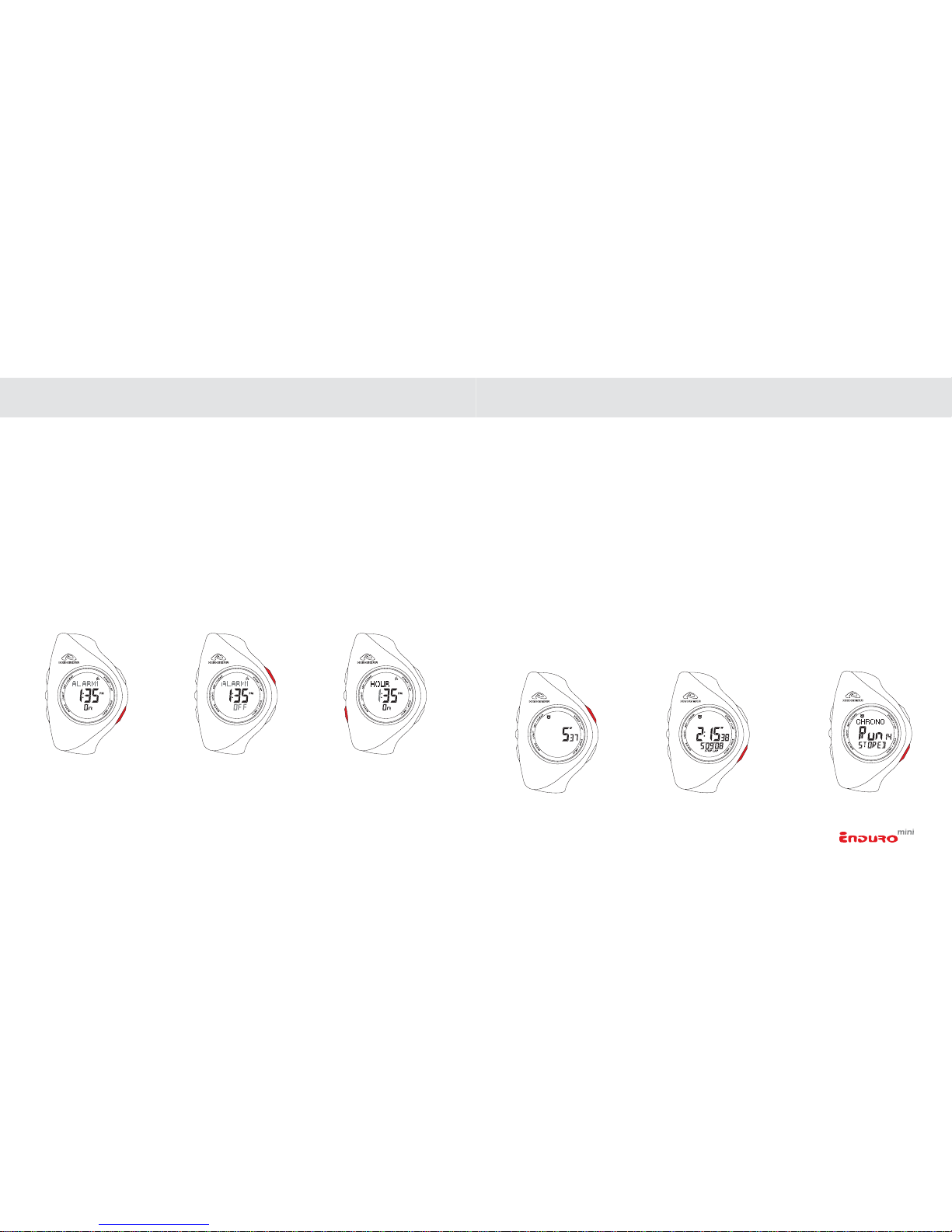

Advance through the modes below using QUICK PRESSES of the MODE key.
SETTING THE WATCH FUNCTIONS
TIME CHRONOGRAPH REVIEW DATA
TIMERALARM
EL/BACKLIGHT SYSTEM
Activate the BACKLIGHT system at any time by PRESSING of
the EL/LIGHT key. The backlight will remain active for a period
of 2 seconds.
AUTO EL/BACKLIGHT
Auto-EL mode automatically illuminates the backlight for 2
seconds whenever any key is pressed. This is convenient when
operating the watch at night or in other low light situations.
To activate/deactivate the AUTO-EL MODE, PRESS & HOLD
EL/LIGHT key for 2 seconds. Auto-El status is indicated by
icon in upper center of display.
NOTE: Excessive use of the backlight system will result in shorter battery life.

15
english
16
english
SETTING THE WATCH FUNCTIONS
VIEW TIME ZONE 1 / TIME ZONE 2
Your Enduro watch allows you to set two separate time zones.
In TIME MODE, Time Zone 2 can be viewed by a PRESSING
the START/LAP key. When viewing Time Zone 2, the display
will indicate T2 in the upper left of the display. PRESS &
HOLD the START/LAP key to change primary time zone
display.
NOTES FOR SETTING THE WATCH
NOTE: When in setting sequence, the variable being
set will blink.
NOTE: When in setting sequence, “+” and “-” icons
are displayed whenever it is possible to increase or
decrease a variable that is being set.
NOTE: If no key is pressed for 60 seconds while in
setting mode, setting mode automatically exits and
changes will not be saved.
NOTE: PRESS SET/CLEAR key to exit setting
sequence.
SETTING TIME/DATE
1. Advance to TIME screen by PRESSING the MODE key.
2. PRESS & HOLD the SET/CLEAR key to enter the setting
sequence.
3. Adjust HOURS by PRESSING the START/LAP or STOP/
NEXT keys.
4. Advance to set MINUTES by PRESSING the MODE key.
Adjust by PRESSING the START/LAP or STOP/NEXT keys.
5. Advance to set SECONDS by PRESSING the MODE key.
Adjust by PRESSING the START/LAP or STOP/NEXT keys.
6. Advance to set YEAR by PRESSING the MODE key. Adjust
by PRESSING the START/LAP or STOP/NEXT keys.
(CONTINUED NEXT PAGE)
SETTING THE WATCH FUNCTIONS

17
english
18
english
SETTING TIME/DATE (CONTINUED)
7. Advance to set MONTH by PRESSING the MODE key.
Adjust by PRESSING the START/LAP or STOP/NEXT
keys.
8. Advance to set DAY by PRESSING the MODE key.
Adjust by PRESSING the START/LAP or STOP/NEXT
keys.

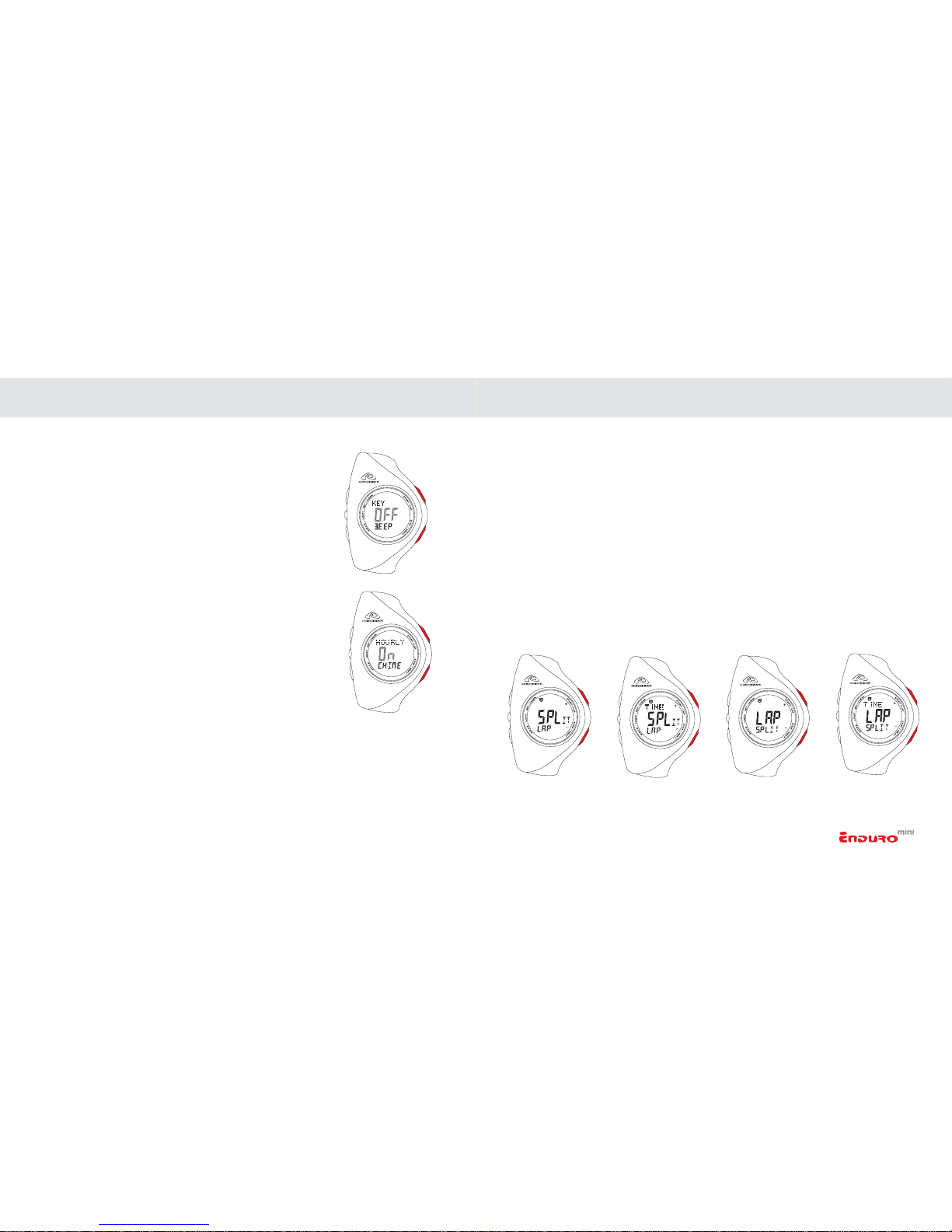

9. Advance to select 12 OR 24-HOUR mode. Select by
PRESSING the START/LAP or STOP/NEXT keys.
10. Advance to set HOURLY CHIME by PRESSING the
MODE Key. Turn ON/OFF by PRESSING the START/LAP
or STOP/NEXT keys.
11. Advance to set KEY BEEP by PRESSING the MODE
Key. Turn ON/OFF by PRESSING the START/LAP or
STOP/NEXT keys.
12. PRESS the SET/CLEAR key to exit the setting sequence
and return to Time of Day screen.
NOTE: You can exit the setting sequence at any time by
PRESSING the SET/CLEAR key.
SETTING THE WATCH FUNCTIONS SETTING THE WATCH FUNCTIONS
SETTING THE CHRONOGRAPH
Enduro watches are equipped with a 24-hour, 100-lap Chronograph with 1/100-second
resolution. The Chronograph has 4 viewing options.
In Chronograph mode:
NOTE: If there is information in the Chronograph, you must first RESET the
Chronograph by PRESSING the SET/CLEAR key or SAVE to memory by
PRESSING the STOP/NEXT key.
1. PRESS & HOLD the SET/CLEAR key to enter the setting sequence.
2. Select VIEWING OPTION by PRESSING the START/LAP or STOP/NEXT keys.
3. PRESS SET/CLEAR key to return to Chronograph mode.

19
english
20
english
SETTING THE WATCH FUNCTIONS SETTING THE WATCH FUNCTIONS
SETTING THE TIMERS
Enduro watches are equipped with 3 independent 24-hour Timers with enhanced
functionality. In TIMER MODE, you can scroll through Timers 1 through 3 by
PRESSING the STOP/NEXT key.
Timer options are:
CD-STOP: Counts down, then stops at 00:00:00.
CD-REPEAT: Counts down, then automatically starts to count down again.
CD-UP: Counts down, then automatically begins counting up. Example: you can
program a 10-minute warm up followed by a 45-minute workout. The timer counts down
10 minutes, then begins timing like a regular chronograph.
TRAIN: Trainer mode has up to 9 settable segments. The length of each segment
can be set independently. Each segment counts down to 00:00:00 and automatically
advances to the next segment which begins counting down immediately in a continuous
loop.
SETTING THE TIMERS (CONTINUED)
In Timer mode:
1. Select TIMER 1, 2or 3by PRESSING the STOP/NEXT key.
2. PRESS & HOLD the SET/CLEAR key to enter the setting
sequence.
3. Select TIMER MODE (CD-STOP, CD-REPEAT, CD-UP or
TRAIN) by PRESSING the START/LAP or STOP/NEXT
keys.
4. Advance to set HOURS by PRESSING the MODE key.
Adjust by PRESSING the START/LAP or STOP/NEXT keys.
5. Advance to set MINUTES by PRESSING the MODE key.
Adjust by PRESSING the START/LAP or STOP/NEXT keys.
6. Advance to set SECONDS by PRESSING the MODE key.
Adjust by PRESSING the START/LAP or STOP/NEXT keys.
7. PRESS SET/CLEAR to exit the setting sequence.
(CONTINUED NEXT PAGE)

21
english
22
english
SETTING THE WATCH FUNCTIONS
SETTING THE TIMERS (CONTINUED)
If TRAIN mode is selected:
1. Program Segment 1: Advance to set HOURS by PRESSING the MODE key.
Adjust by PRESSING the START/LAP or STOP/NEXT keys.
2. Advance to set MINUTES by PRESSING the MODE key. Adjust by PRESSING
the START/LAP or STOP/NEXT keys.
3. Advance to set SECONDS by PRESSING the MODE key. Adjust by PRESSING
the START/LAP or STOP/NEXT keys.
4. Advance to PROGRAM NEXT SEGMENT by PRESSING the MODE key. Repeat
programming sequence (up to 9 individual segments).
5. PRESS SET/CLEAR to exit the setting sequence at any time.
SETTING DAILY ALARMS
The Enduro watches are equipped with three individual daily alarms which can be set to
the hour and minute. Alarms are active for current Time Zone selected.
SELECTING ALARM 1, 2 OR 3
Scroll through ALARM 1, 2or 3(indicated in the upper line of the display) by
PRESSING the STOP/NEXT key.
TURNING AN ALARM ON/OFF
In Alarm mode:
1. Select ALARM 1, 2or 3by PRESSING the STOP/NEXT key.
2. Toggle between ON and OFF by PRESSING the START/LAP key.
SETTING THE WATCH FUNCTIONS

23
english
24
english
TO SET AN ALARM
In Alarm mode:
1. Select ALARM 1, 2or 3by PRESSING the STOP/NEXT key.
2. PRESS & HOLD the SET/CLEAR key to enter the setting sequence.
3. Adjust HOURS by PRESSING the START/LAP or STOP/NEXT keys.
4. Advance to set MINUTES by PRESSING the MODE key. Adjust by PRESSING
the START/LAP or STOP/NEXT keys.
5. PRESS SET/CLEAR to exit the setting sequence.
OPERATING THE CHRONOGRAPH
Enduro watches are equipped with a 24-hour, 100-lap Chronograph with 1/100-second
resolution.
In Chronograph mode:
1. PRESS the START/LAP key to BEGIN TIMING.
2. To ACTIVATE A LAP, PRESS the START/LAP key.
3. To STOP TIMING, PRESS the STOP/NEXT key.
4. To RESUME TIMING, PRESS the START/LAP key.
5. To SAVE CHRONOGRAPH DATA, when chronograph is stopped, PRESS &
HOLD the STOP/NEXT key. File will be saved to memory and chronograph will
reset to 00:00:00.
6. To RESET CHRONOGRAPH (without saving data), PRESS & HOLD the
SET/CLEAR key.
SETTING THE WATCH FUNCTIONS OPERATING THE WATCH

25
english
26
english
CHRONOGRAPH DATA REVIEW MEMORY
Enduro watches have a memory that allows you to store up to 20 runs/workouts.
Information recorded includes time and split for each lap, best (fastest) lap, average lap
time and total time for workout. When you store a Run/Workout it is captured by the
Chronograph Data Review memory.
MANAGING THE CHRONOGRAPH DATA LOG
Runs are stored in chronological order (earliest to latest). The center line of the
display will indicate the number 1-20 and the lower line will display the DATE the
run/workout was recorded.
(CONTINUED NEXT PAGE)
REVIEWING RUNS/WORKOUTS
In Review mode:
1. Scroll through the STORED RUNS by PRESSING the
STOP/NEXT key.
2. Select FILE TO REVIEW by PRESSING the START/LAP
key.
3. View LAP, SPLIT, BEST, AVERAGE and TOTAL TIMES by
PRESSING the START/NEXT key.
4. PRESS the STOP/NEXT key to exit file review and return to
Review directory.
5. To ERASE a stored file, PRESS & HOLD the SET/CLEAR
key. The display will indicate file has been erased.
6. To CLEAR all files in memory, PRESS & HOLD the SET/
CLEAR key until display indicates “ALL ERASED”.
OPERATING THE WATCH OPERATING THE WATCH

27
english
28
english
OPERATING THE COUNTDOWN TIMERS
Enduro watches are equipped with 3 independent 24-hour
Timers with enhanced functionality. In Timer mode, you can
scroll through TIMERS 1 through 3by PRESSING the STOP/
NEXT key.
In Timer mode:
1. Select TIMER 1, 2, or 3by PRESSING the STOP/NEXT
key. The TIMER FORMAT is indicated on the bottom
display line (CD-STOP, CD-REPT, CD-UP, or TRAIN).
2. PRESS START/LAP to START TIMER.
3. PRESS STOP/NEXT to STOP TIMER.
4. When timer is stopped, PRESS SET/CLEAR to RESET TIMER.
GENERAL
Operational Temperature -10°C to +50°C/ 14°F to 120°F
50 Meter Water Resistant
Watch Battery CR 1632 3v Lithium
EL Backlight System with Auto EL-Feature
Approximate battery life: 1 year
WATCH
Auto Calendar 2006-2054
Time of Day – 12 or 24-hr. formats with 1-second resolution
Daily Alarm – 24 hours with 1-minute resolution
CHRONOGRAPH
24 Hour Chrono 1/100 second resolution
100 Laps with up to 20 sessions of Workout Memory
100 Split Time with Workout Memory / 20 sessions
Training Log with Best/Average Lap and Total Training Time
Split/Lap Display user selectable
TIMER
3 Independent Timers
9 interval Timers
Maximum setting time 23h 59m 59s
FUNCTIONAL SPECIFICATIONS AND RANGESOPERATING THE WATCH

29
english
30
english
TROUBLE SHOOTING BASIC
Your Enduro watch is a very sensitive and sophisticated instrument. If properly cared for
it should last and remain accurate for many years. However, from time to time problems
may occur. It has been our experience that the majority of the problems seen by
consumers with products such as the Enduro are related to dead or dying batteries.
While the estimated life of a fresh battery in the unit is approximately 1 year, this
can be shortened considerably if the backlight feature of the unit is used extensively.
Whenever you are experiencing issues related to the function of the unit, it is
recommended that you install a fresh battery as a first course of action, especially if it
has been more than a half a year since the last time the battery was replaced.
BE AWARE: Lithium batteries of the type used in this watch are very susceptible to
improper storage. Many times, batteries purchased as new are dead or weak before
they are purchased. Do not assume that batteries in stores are good. If you try a new
battery and problems persist, please try a second battery from another source, just to
be certain.
If the battery on the watch unit is failing it may show itself in several ways. Indications
of a weak battery are:
A fading or blank display. Also if the display goes blank when the backlight is operated
and then comes back on when the backlight system turns off.
If the display goes blank when the EL system is operated and then comes back on when
the EL system turns off.
The display of your watch may “freeze” due to static electricity or battery replacement.
If this occurs, remove the battery and re-insert it. This will erase the data in the memory
and reset the watch to factory settings.
Enduro watches are equipped with a display which allow them to be used in a wide
variety of environments. However, if the unit is used in extreme cold (<32°F or 1°C) the
function of the display may be slower than normal. If exposed to extreme heat or cold,
the display may also darken. The display should return to normal once the temperature
returns to normal levels.
TROUBLE SHOOTING BASIC

HIGHGEAR USA/TECHTRAIL INC.
web: www.highgear.com
www.techtrail.com
email: [e-mail]
© 2006 HighGear USA/TechTrail, Inc.
All Rights Reserved.
SET/CLEAR KEY
EL/LIGHT KEY
STOP/NEXT KEY
START/LAP KEY
MODE KEY
