HIK VISION DS-6700HFHI/V Series User manual

User Manual of Network Audio/Video Encoder
Network Audio/Video Encoder
User Manual
UD.6L0202D2215A01

DS-6700HFHI/V Series Network HD Encoder User Manual
1
User Manual
COPYRIGHT ©2016 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures, graphs are the properties of
Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be
“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,
changed, translated, or distributed, partially or wholly, by any means, without the prior written
permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,
guarantees or representations, express or implied, regarding to the Manual.
About this Manual
This Manual is applicable to Network HD Audio/Video Encoder.
The Manual includes instructions for using and managing the product. Pictures, charts, images
and all other information hereinafter are for description and explanation only. The information
contained in the Manual is subject to change, without notice, due to firmware updates or other
reasons. Please find the latest version in the company website (http://overseas.hikvision.com/en/).
Please use this user manual under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the properties of Hikvision in
various jurisdictions. Other trademarks and logos mentioned below are the properties of their
respective owners.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS
IS”, WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY,
SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND
NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS
DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY
SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING,
AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH
THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT
SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY
RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER
DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS
INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL
PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT
LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO
ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL
NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE
PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS.

DS-6700HFHI/V Series Network HD Encoder User Manual
2
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct the interference at his
own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply
therefore with the applicable harmonized European standards listed under the EMC Directive
2004/108/EC, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper recycling, return this product to your local
supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted
municipal waste in the European Union. See the product documentation for specific battery
information. The battery is marked with this symbol, which may include lettering to indicate
cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a
designated collection point. For more information see: www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

DS-6700HFHI/V Series Network HD Encoder User Manual
3
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings are neglected.
Cautions: Injury or equipment damage may occur if any of the cautions are neglected.
Warnings
●Proper configuration of all passwords and other security settings is the responsibility of the installer and/or
end-user.
●In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation
and region. Please refer to technical specifications for detailed information.
●Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with
100~240 VAC, 48VDC or 12 VDC according to the IEC60950-1 standard. Please refer to technical
specifications for detailed information.
●Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire
hazard.
●Please make sure that the plug is firmly connected to the power socket.
●If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cable, and then
please contact the service center.
Warnings Follow these
safeguards to prevent serious
injury or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.

DS-6700HFHI/V Series Network HD Encoder User Manual
4
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
•Ensure unit is installed in a well-ventilated, dust-free environment.
•Unit is designed for indoor use only.
•Keep all liquids away from the device.
•Ensure environmental conditions meet factory specifications.
•Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it
may cause damage to the sensitive electronics within the unit.
•Use the device in conjunction with an UPS if possible.
•Power down the unit before connecting and disconnecting accessories and peripherals.
•A factory recommended HDD should be used for this device.
•Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or
equivalent type only. Dispose of used batteries according to the instructions provided by the battery
manufacturer.

DS-6700HFHI/V Series Network HD Encoder User Manual
5
TABLE OF CONTENTS
Chapter 1 Introduction................................................................................................................................ 7
1.1 Description .............................................................................................................. 7
1.2 Features................................................................................................................... 7
Chapter 2 Panels and Connections ............................................................................................................. 9
2.1 Front Panel .............................................................................................................. 9

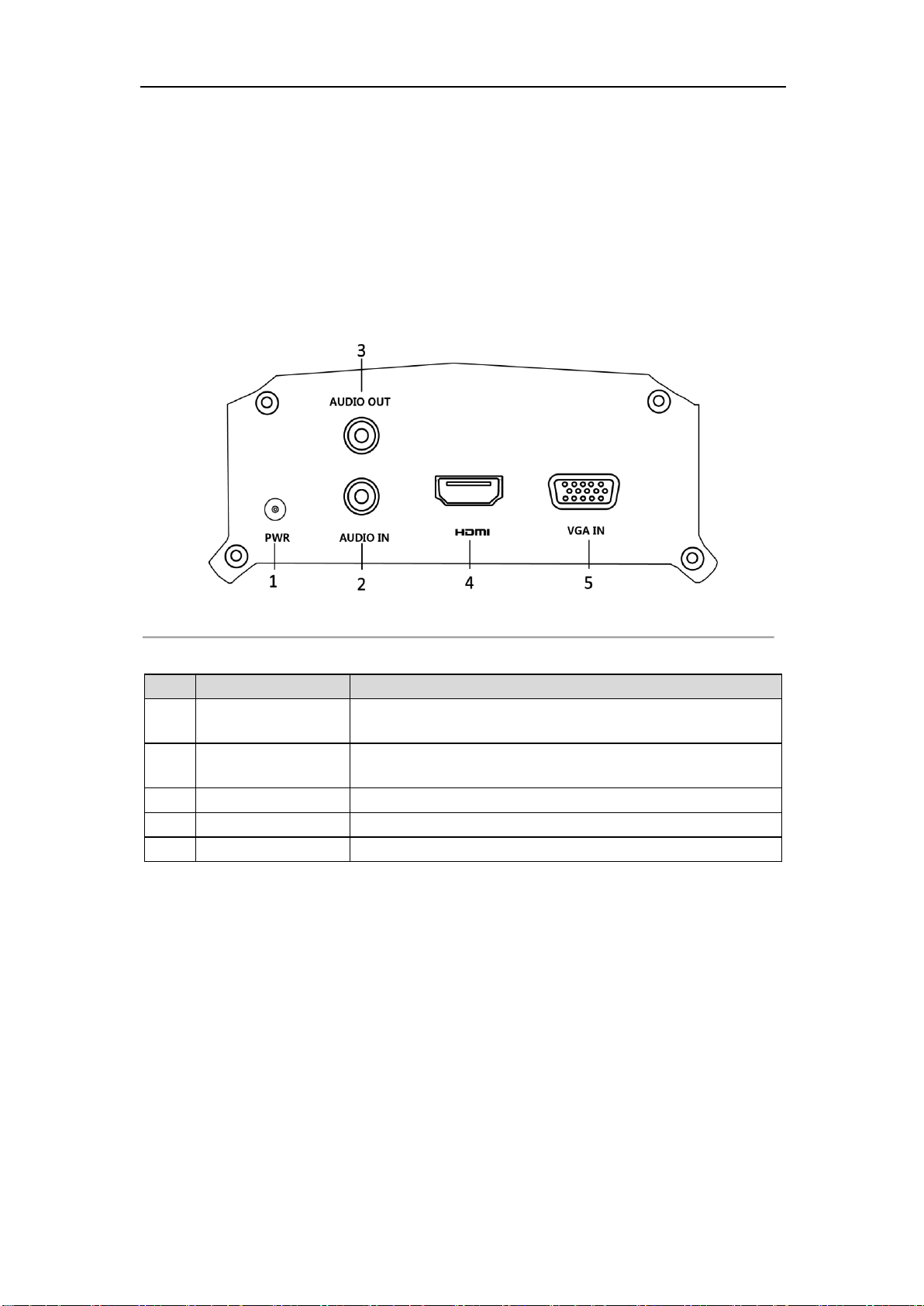

2.2 Rear Panel.............................................................................................................. 10
Chapter 3 Activation and Initial Network Configuration for the Encoder ............................................11

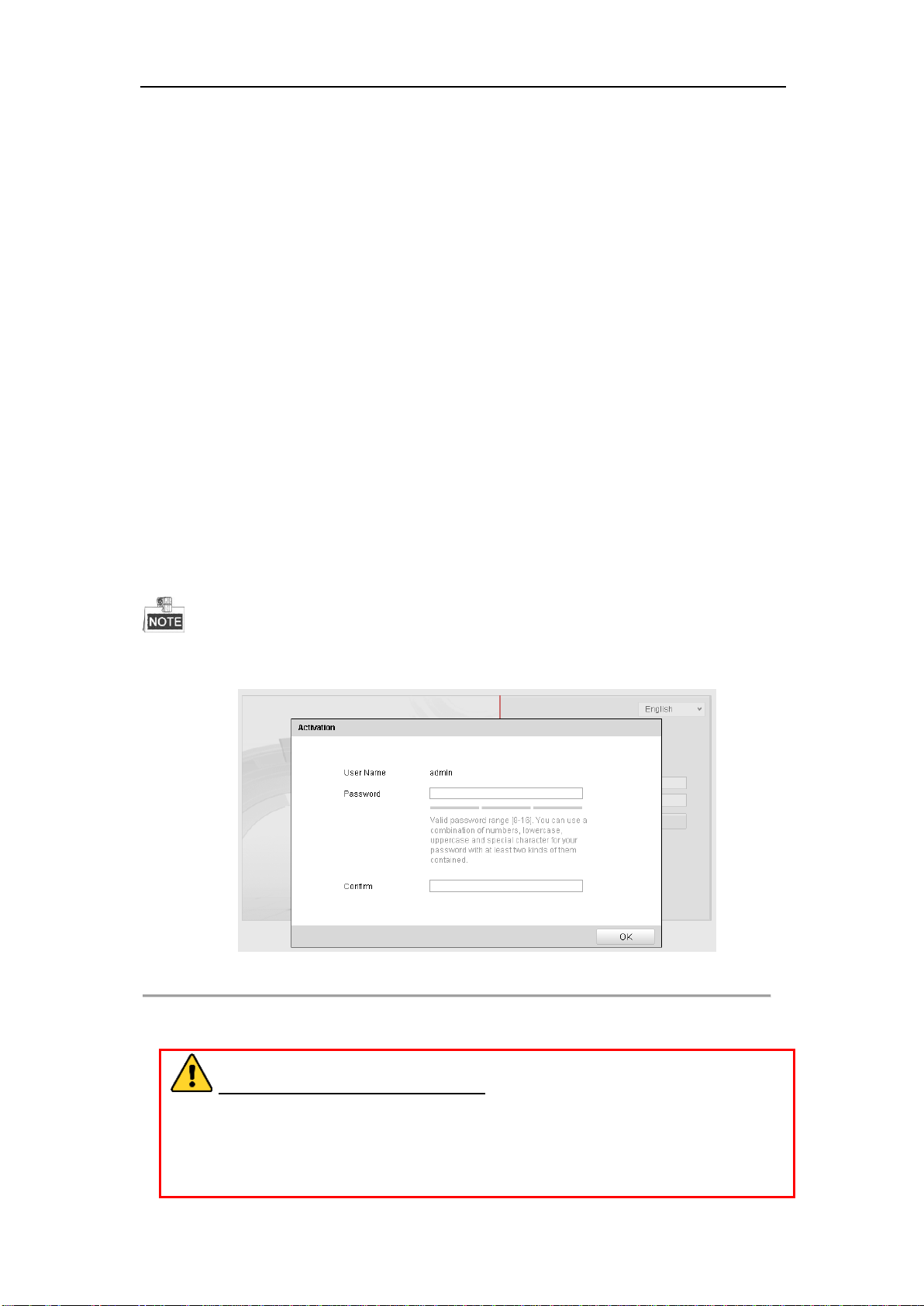

3.1 Setting the Admin Password via Web Browser...................................................... 11

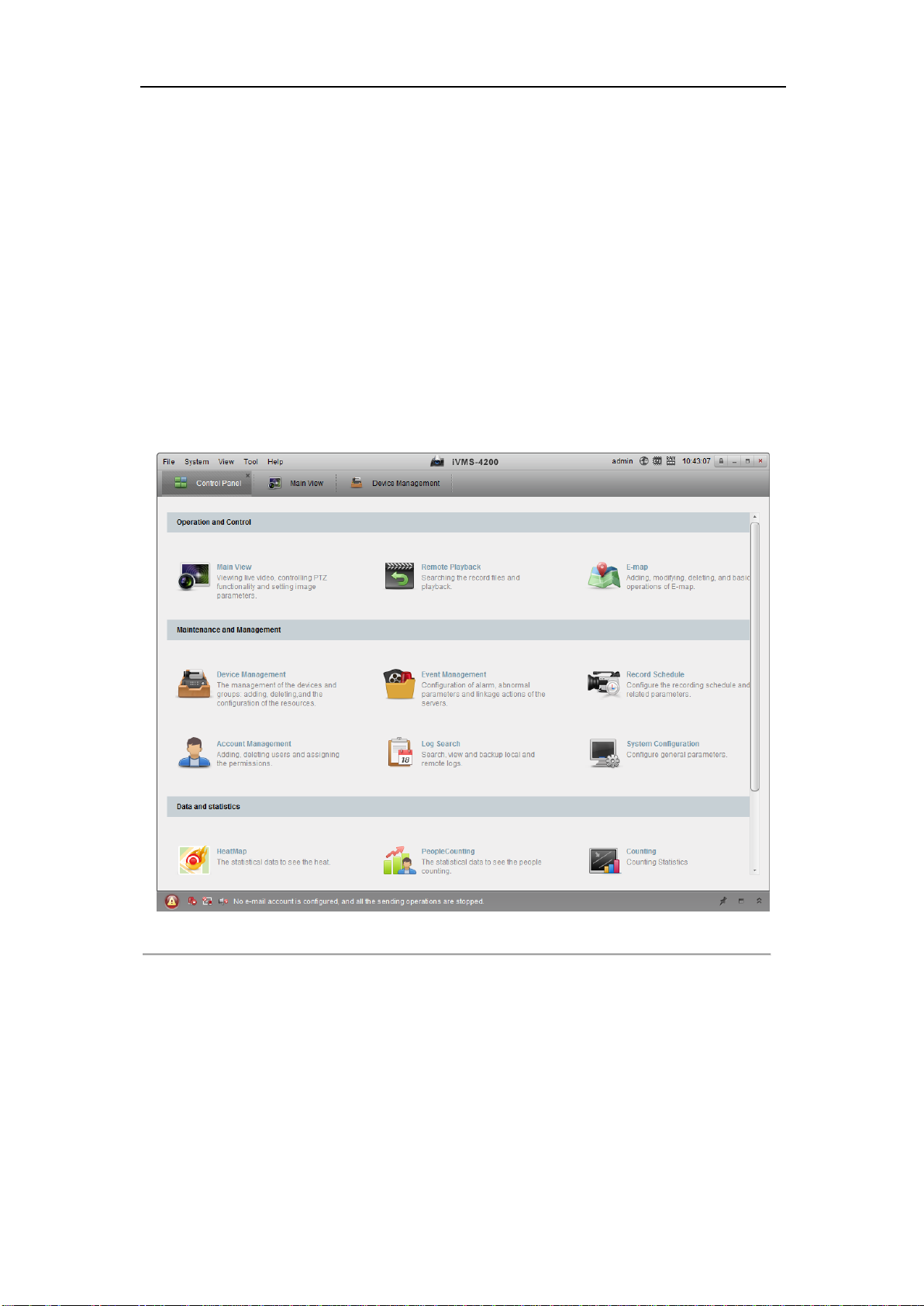

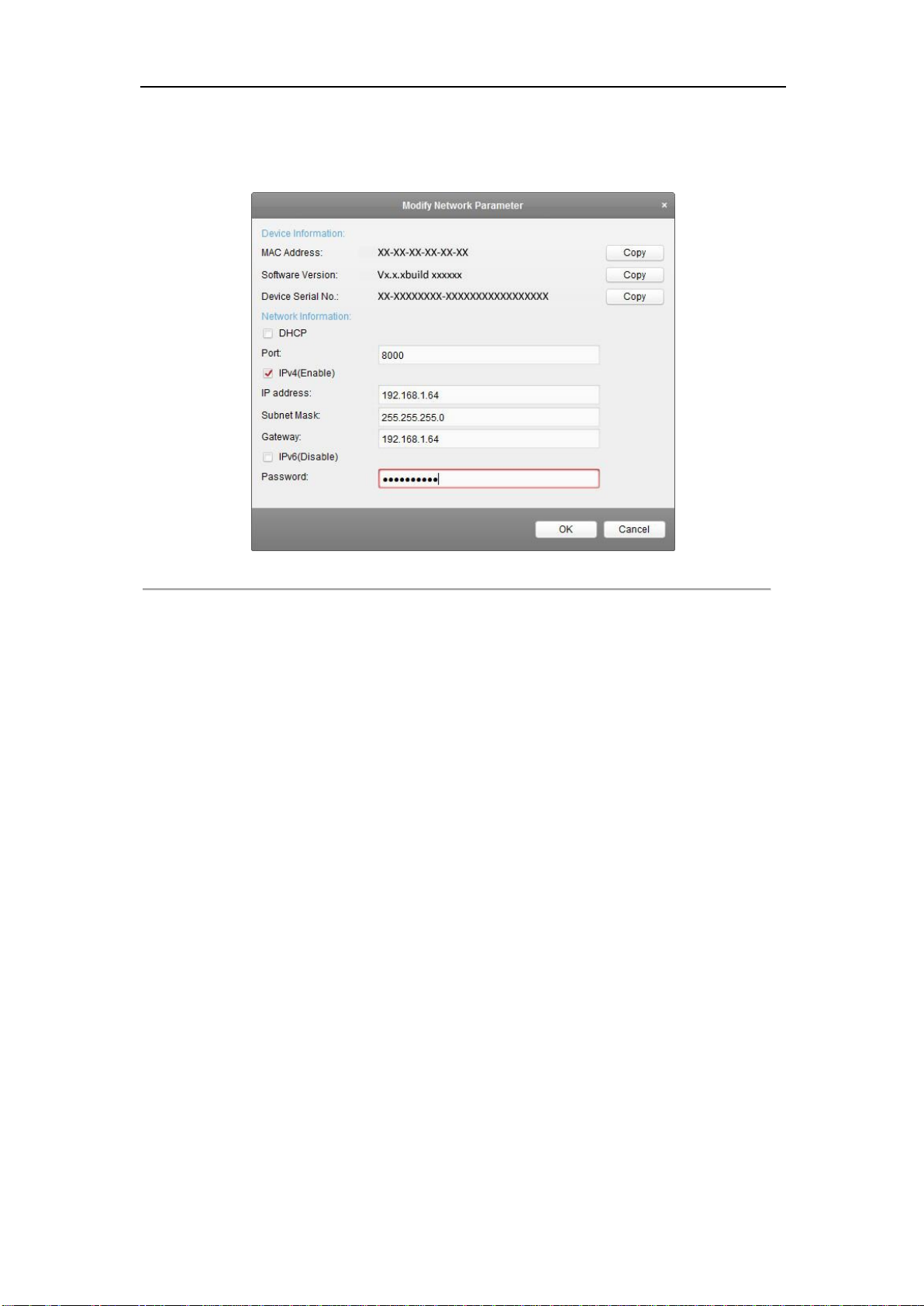

3.2 Setting Admin Password and Modifying Network Parameters via Client Software
………………………………………………………………………………………………………………………….12
Chapter 4 Access to DS-6700 by WEB Browser ...................................................................................... 15
Chapter 5 Live View................................................................................................................................... 18

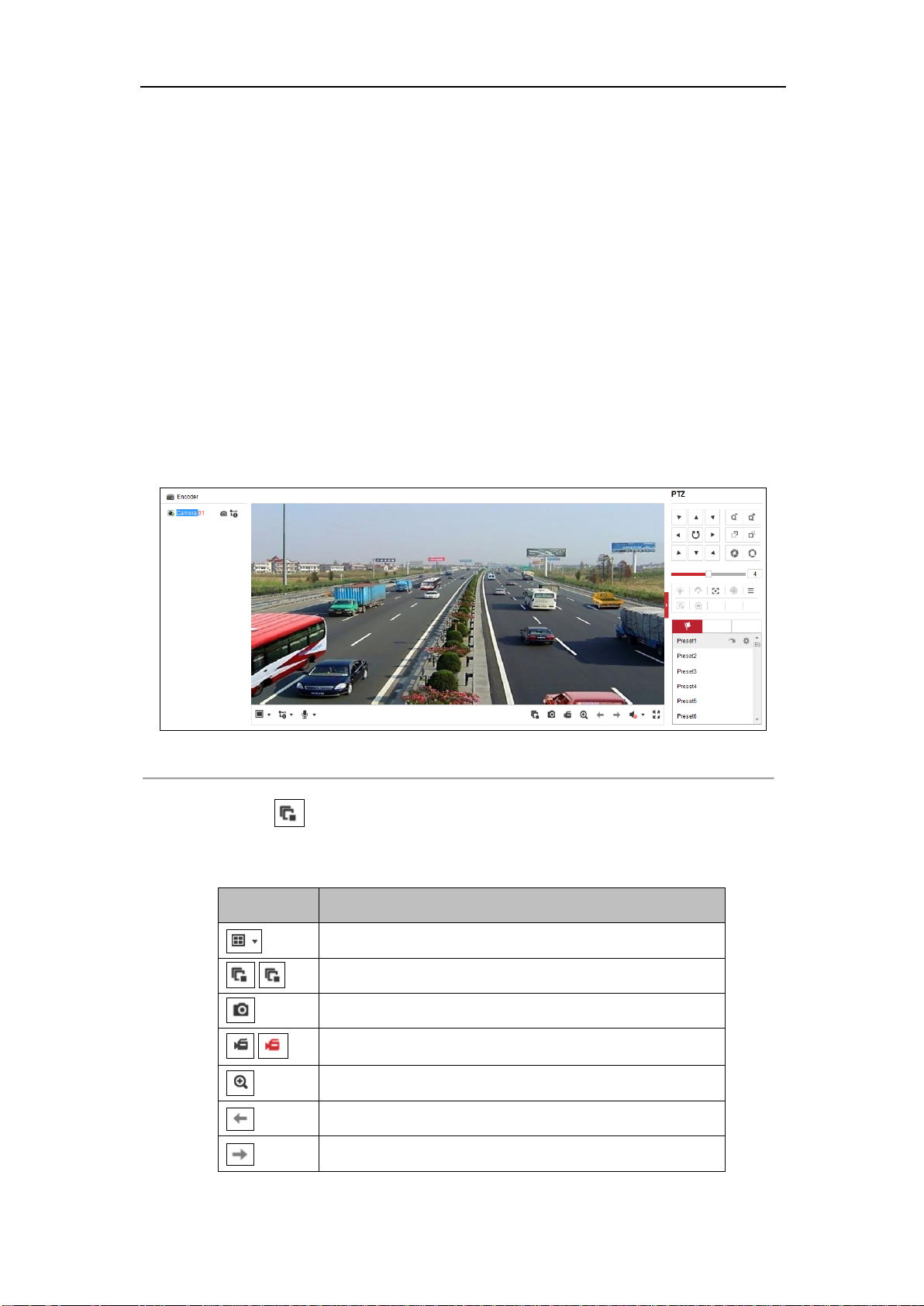

5.1 Starting Live View.................................................................................................. 18
5.1.1 Main/Sub Stream Live View .......................................................................... 19
5.1.2 Full-screen Mode........................................................................................... 19
5.2 Capturing the Picture ............................................................................................ 19
5.3 Operating PTZ Control ........................................................................................... 20
5.3.1 Operating PTZ Movement ............................................................................. 20
5.3.2 Setting/Calling a Preset ................................................................................. 21
Chapter 6 Device Configuration ............................................................................................................... 24
6.1 Local Configuration................................................................................................ 24
6.2 System Time Settings ............................................................................................ 25
6.3 Network Settings ................................................................................................... 28
6.3.1 Configuring TCP/IP Settings ........................................................................... 28
6.3.2 Configuring DDNS Settings ............................................................................ 28
6.3.3 Configuring PPPoE Settings ........................................................................... 31
6.3.4 Configuring Port Settings............................................................................... 32
6.3.5 Configuring NAT Settings ............................................................................... 33
6.3.6 Configuring SNMP Settings............................................................................ 34
6.3.7 Configuring Email Settings............................................................................. 34
6.3.8 Configuring HTTPS Settings............................................................................ 36
6.3.9 Configuring Active Multicast ......................................................................... 37
6.3.10 Configuring Remote Alarm Host and Multicast............................................. 38
6.3.11 Configuring Platform Access.......................................................................... 38
6.3.12 Configuring RTMP.......................................................................................... 39
Chapter 7 Camera Settings........................................................................................................................ 40
7.1 Configuring Display Parameters ............................................................................ 40
7.2 Configuring OSD Settings....................................................................................... 40
7.3 Configuring Video Settings.................................................................................... 43
7.4 Configuring Audio Settings.................................................................................... 44
7.5 Configuring Target Cropping.................................................................................. 44

DS-6700HFHI/V Series Network HD Encoder User Manual
6
7.6 Adjusting VGA Output Position ............................................................................. 46
7.7 Configuring and Handling Alarms.......................................................................... 47
7.7.1 Configuring Motion Detection....................................................................... 47
7.7.2 Configuring External Alarm Input.................................................................. 50
7.7.3 Configuring Video Loss Alarm ....................................................................... 52
7.7.4 Configuring Video Tampering Alarm ............................................................. 52
7.7.5 Handling Exception........................................................................................ 53
7.8 Configuring Privacy Mask ...................................................................................... 54
7.9 Configuring RS-485 Settings .................................................................................. 56
Chapter 8 Storage Configuration.............................................................................................................. 57
8.1 Adding Network Disk............................................................................................. 57
8.2 Record Settings...................................................................................................... 60
8.2.1 Configuring Packet Time of Recording .......................................................... 60
8.2.2 Configuring Holiday Settings ......................................................................... 60
8.2.3 Configuring Scheduled Recording.................................................................. 62
Chapter 9 Playback.................................................................................................................................... 65
Chapter 10 Managing User Accounts ......................................................................................................... 67
10.1 Adding a User ........................................................................................................ 67
10.2 Modifying a User ................................................................................................... 68
10.3 Deleting a User ...................................................................................................... 69
Chapter 11 Log Search and Maintenance.................................................................................................. 70
11.1 Log Search ............................................................................................................. 70
11.2 Viewing Device Information.................................................................................. 71
11.3 Upgrade & Maintenance ....................................................................................... 71
11.3.1 Rebooting the Device .................................................................................... 71
11.3.2 Restoring Default Settings ............................................................................. 71
11.3.3 Importing/Exporting Configuration Files....................................................... 72
11.3.4 Upgrading the System.................................................................................... 73
Chapter 12 Specifications ............................................................................................................................ 74
Chapter 13 FAQ........................................................................................................................................... 75

DS-6700HFHI/V Series Network HD Encoder User Manual
7
Chapter 1 Introduction
1.1Description
Developed on the basis of the latest encoding technology, DS-6700HFHI/V Series Audio/Video Encoder Server
allows the analog signal to be digitized and then stored in micro SD card/network disk or transmitted via network.
The DS-6700HFHI/V provides HDMI and VGAinput at up to 1080p resolution
Adopting the latest embedded processor, the DS-6700HFHI/V Series Audio/Video Encoder provides more
powerful capabilities in audio/video encoding; various network protocols are supported; and code downloaded in
FLASH ensures high stability and reliability of system performance.
1.2Features
Encoding
H.264 encoding formats available; independent configuration of encoding formats for main stream and sub
stream;
1-ch HDMI or VGAvideo input and 1-ch VGA video loop output provided;
Encoding at HD resolution of 1080p/720p/UXGA, etc.;
Dual stream encoding.
VGApicture position adjustment and target cropping (for HDMI/VGA output).
Up to 128G Micro SD card available;
NFS/iSCSI protocol to realize NAS/IPSAN network storage;
Either compound streams encoding or video stream encoding selectable; audio and video synchronization
during compound streams encoding.
Network
One 10M/100Mbps adaptive Ethernet interface.
Cross-platform access via multi-browsers such as IE, FireFox, Chrome, Safari, etc.;
Remote web browser access by HTTPS ensures high security.
Support SNMP simple network management protocol.
Auto/Manual port mapping by UPnP™.
Support ONVIF and ISAP protocols.
Support SADP software to automatically search and discover the online devices in local network area.
Automatically get IP address by DHCP protocol.
RTSP/RTP standard stream media protocol allows user to live view by unicast.
Multicast address for live view of multiple cameras through network.
Two-way audio and single-directional broadcasting.
Transmission via RS-485 transparent channel.
Access to Internet by PPPoE method, and support Peanut Hull, DynDNS, HiDDNS, etc.
Easy network access via Hikvision EZVIZ Cloud P2P;
Set time by NTP.

DS-6700HFHI/V Series Network HD Encoder User Manual
8
Connectable with network HDD in NAS, IP SAN mode.
Send email by SMTP protocol, and support attachment of captured JPEG image and SSL encryption.
PTZ Control
Support Multiple PTZ Protocols
Different channels can be configured with protocol type, RS-485 address, baud rate, data bit, stop bit, even &
odd parity, stream control method, etc.; and remote configuration of presets, patrols and patterns.
Digital Zooming (with Speed Dome)
When connected with Hikvision speed dome, digital zooming can be realized by clicking on the image
through client software.
PTZ linkage
Relay input alarm can be responded with PTZ linkage actions, e.g., callup of predefined presets or patrols.
Alarm
Relay Alarm Input
Either NO mode or NC mode can be set.
Four different alarm arming periods are configurable.
Capabilities of triggering corresponding alarm handling methods, relay alarm output, buzzer alarm, upload
to control center, PTZ linkage, presets/patrols/patterns callup, etc.
Relay Alarm Output
Relay alarm output can be connected with alarm devices for alarm handling within arming period.
Exceptions
ExceptionAlarm Handling
Exception alarms include network disconnect alarm, IP address conflict alarm, illegal access alarm, etc.;
multiple alarm handling methods are supported, relay alarm output, buzzer alarm, upload to center, etc.
Exception Reboot
Software watchdog capability: for inspecting important threads and system resources of device; in case of
exceptions detected, the device will be automatically rebooted.
Firmware watchdog: for inspecting the firmware of device; in case of exceptions in system task scheduling,
the device will be automatically rebooted.
Logs
The system logs can be classified into the operation logs, alarm logs, exception logs and information logs.
User may search and view all recorded system logs by date or type, as well as export the logs to the text
format over network.
Network disk/microSD card must be connected before log operation.

DS-6700HFHI/V Series Network HD Encoder User Manual
9
Chapter 2 Panels and Connections
2.1 Front Panel
Figure 2. 1 Front Panel
Table 2. 1 Description of Front Panel
No.
Item
Description
1
POWER LED Indicator
Lights in red when the device is powered on; light in orange when the SD
card is inserted.
2
AUDIO IN
3.5mm interface for line in and audio input; connect to audio input device
or active pick-up, microphone, etc.
3
AUDIO OUT
3.5mm interface; connect to audio output device, e.g., loudspeaker, etc.
4
HDMI
HDMI video input connector.
5
VGA IN
VGA video input connector.

DS-6700HFHI/V Series Network HD Encoder User Manual
10
2.2 Rear Panel
Figure 2. 2 Rear Panel
Table 2. 2 Description of Rear Panel
No.
Item
Description
1
ALARM IN
Relay alarm input.
ALARM OUT
Relay alarm output.
2
RS-232
Serial interface for configuration of device’s parameters or used as transparent
channel.
3
RS-485
RS-485 serial interface; connect to pan/tilt unit, speed dome, etc.
4
RESET
Restore the factory default settings by holding the RESET button for more than
15 seconds after the device is turned on.
5
microSD
microSD interface for data storage.
6
VGA OUT
VGA video output connector.
7
LAN
10M/100Mbps adaptive Ethernet interface
8
DC12V
12 VDC power supply.
9
GND
Grounding

DS-6700HFHI/V Series Network HD Encoder User Manual
11
Chapter 3 Activation and Initial Network
Configuration for the Encoder
You are required to activate the encoder first by setting a strong password for it before you can use the device.
Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported.
3.1 Setting the Admin Password via Web
Browser
Steps:
1. Power on the encoder, and connect the encoder to the network.
2. Input the IP address into the address bar of the web browser, and press the Enter button to enter the
activation interface.
The default IP address of the network encoder is 192.0.0.64. You are recommended to change the default IP
address after your access.
Figure 3. 1 Activation Interface
3. Create a password and input the password into the password field.
STRONG PASSWORD RECOMMENDED–We highly recommend that you create a strong
password of your own choosing (using 8-16 characters, including upper case letters, lower case letters,
numbers, and special characters) in order to increase the security of your product. And we recommend that
you reset your password regularly, especially in the high security system, resetting the password monthly or
weekly can better protect your product.

DS-6700HFHI/V Series Network HD Encoder User Manual
12
4. Confirm the password.
5. Click OK to save the password and enter the live view interface.
3.2 Setting Admin Password and Modifying
Network Parameters via Client Software
The client software is versatile video management software for multiple kinds of devices.
Get the client software from the supplied disk or the official website, and install the software according to the
prompts. Follow the steps to activate the camera.
Steps:
1. Run the client software and the control panel of the software pops up, as shown in the figure below.
Figure 3. 2 Control Panel
2. Click the Device Management icon to enter the Device Management interface, as shown in the figure below.

DS-6700HFHI/V Series Network HD Encoder User Manual
13
Figure 3. 3 Control Panel
3. Check the device status from the device list, and select an inactive device.
4. Click the Activate button to pop up theActivation interface.
5. Create a password and input the password in the password field, and confirm the password.
STRONG PASSWORD RECOMMENDED–We highly recommend that you create a strong
password of your own choosing (using 8-16 characters, including upper case letters, lower case letters,
numbers, and special characters) in order to increase the security of your product. And we recommend that
you reset your password regularly, especially in the high security system, resetting the password monthly or
weekly can better protect your product.
Figure 3. 4 Activation Interface (Client Software)

DS-6700HFHI/V Series Network HD Encoder User Manual
14
6. Click OK button to start activation.
7. Click the Modify Netinfo button to pop up the Network Parameter Modification interface, as shown in the
figure below.
Figure 3. 5 Modifying the Network Parameters
8. Change the device IP address to the same subnet with your computer by either modifying the IP address
manually or checking the checkbox of Enable DHCP.
9. Input the password to activate your IP address modification.

DS-6700HFHI/V Series Network HD Encoder User Manual
15
Chapter 4 Access to DS-6700 by WEB
Browser
The DS-6700 can also be accessed by WEB Browser for configuration and operation. The supported WEB
browsers include: Internet Explorer 6/7/8/9, Firefox 3.5 and above, Chrome 8 and above, Safari 5.0.2 and above,
Windows XP SP1 and above (32-bit).
Before you start:
Before access, you need to configure the network settings of device according to Chapter 3 Activation
and Initial Network Configuration for the Encoder.
Connect the device to the LAN, and prepare a PC connected to the same LAN with the device.
The factory default IP address of the device is 192.0.0.64.
Steps:
1. Open WEB browser, input the IP address of DS-6700 (e.g., http://192.0.0.64) and then press the Enter key
on PC. The system will display the login interface.
When the HTTPS feature is enabled, the system will use the HTTPS login mode (e.g., https://192.0.0.64) by
default after you input the IP address. You can also input http://IP address/index.asp (e.g.,
http://192.0.0.64/index.asp) if you want to use HTTP mode to log into the device.
Figure 4. 1 Login Page
2. Input the user name and the password to log into the system.
In the Login dialog box, if you have entered the wrong password for 7 times for the admin user or 5 times for the
normal user, the current user account will be locked for 60 seconds.
3. On the main page of DS-6700, you need to download and install the plug-in.
(1) Click on the live view window by following the hints on the screen.

DS-6700HFHI/V Series Network HD Encoder User Manual
16
Figure 4. 2 Download and Install Plug-in
(2) Click Run or Save on the pop-up warning message box.
Figure 4. 3 Run Web Components
(3) Click Next on the pop-up Setup dialog box.
Figure 4. 4 Click Next
(4) When the installation completes, click Finish to finish the installation of Web Components.

DS-6700HFHI/V Series Network HD Encoder User Manual
17
Figure 4. 5 Install the Web Components
4. After having successfully installed the web components, you enter the main page.

DS-6700HFHI/V Series Network HD Encoder User Manual
18
Chapter 5 Live View
Live view shows you the video image getting from the connected camera in real time. After successful login, the
system will enter the live view page automatically.
5.1 Starting Live View
Steps:
1. In the live view window, select a playing window by clicking the mouse.
2. Double click a camera from the device list to start the live view.
Figure 5. 1 Start Live View
3. You can click the button on the toolbar to start the live view of all cameras on the device list.
Refer to the following table for the description of buttons on the live view window:
Table 5. 1 Description of Toolbar
Icon
Description
Select the window-division mode
/
Start/Stop all live view
Capture pictures in live view mode
/
Manually start/stop recording
Enable digital zoom
Previous page
Next page

DS-6700HFHI/V Series Network HD Encoder User Manual
19
/
Audio on/off
/
Start/Stop two-way audio
Select the main stream or sub stream for live view
Switch to full-screen live view mode.
Before using two-way audio function or recording with audio, please select the Stream Type to Video & Audio
on Section Configuring Video Settings.
5.1.1 Main/Sub Stream Live View
You can select the main stream or sub stream for live view by clicking the corresponding icon as shown below:
Figure 5. 2 Main Stream/Sub Stream for Live View
The main stream gets higher video quality while the sub stream requires lower bandwidth.
5.1.2 Full-screen Mode
You can click the button on the toolbar or double click on the live video to switch to the full-screen view
mode. To switch back to the normal mode, click the Esc key on PC or double click on the live video again.
Please refer to the following section for more information:
1. Capturing pictures on Section 5.2 Capturing the Picture. .
2. Configuring recording on Section 8.2 Record Settings.
3. Setting the image quality of live view on Section 6.1 Local Configuration.
4. Setting the saving path for the recorded video files and captured pictures on Section 6.1 Local Configuration.
5. Setting the OSD text on live video on Section 7.2 Configuring OSD Settings.
5.2 Capturing the Picture
In live view mode, click the button on the toolbar to capture the live pictures.
When the picture is captured, the following pop-up message box will appear at the lower right corner.
