HIK VISION DeepinMind Super iDS-96128NXI-I24 User manual

Network Video Recorder
Quick Start Guide

Network Video Recorder Quick Start Guide
1
TABLE OF CONTENTS
Chapter 1 Panels Description.....................................................................................................8
1.1 Front Panel ...............................................................................................................................8
1.1.1 iDS-96000NXI-I16(B) Series.............................................................................................8
1.1.2 iDS-96000NXI-I24(B) Series.............................................................................................9
1.1.3 iDS-9600NXI-I8/8F(B) and iDS-9600NXI-I8/16S(B) Series...............................................10
1.1.4 iDS-9600NXI-I16/8F(B) and iDS-9600NXI-I16/16S(B) Series...........................................11
1.1.5 iDS-7700NXI-I4/(16P)/16S(B) Series ..............................................................................12
1.1.6 iDS-6700NXI-I/8F(B) and iDS-6700NXI-I/16S(B) Series ..................................................13
1.2 Rear Panel ..............................................................................................................................13
1.2.1 iDS-96000NXI-I16/24(B) Series ......................................................................................13
1.2.2 iDS-9600NXI-I8/8F(B) and iDS-9600NXI-I8/16S(B) Series...............................................15
1.2.3 iDS-9600NXI-I16/8F(B) and iDS-9600NXI-I16/16S(B) Series...........................................16
1.2.4 iDS-7700NXI-I4/(16P)/16S(B) Series ..............................................................................17
1.2.5 iDS-6700NXI-I/16S(B) and iDS-6700NXI-I/8F(B) Series ..................................................19
Chapter 2 Installation and Connections.....................................................................................21
2.1 Installation..............................................................................................................................21
2.2 Hard Disk Installation .............................................................................................................21
2.2.1 iDS-96000NXI-I16/24(B) Series ......................................................................................21
2.2.2 iDS-7700NXI-I4/(16P)/16S(B) Series ..............................................................................24
2.2.3 Other Series...................................................................................................................25
2.3 Connections............................................................................................................................27
2.3.1 Alarm Input Wiring .......................................................................................................27
2.3.2 Alarm Output Wiring.....................................................................................................27
2.3.3 Alarm Connection .........................................................................................................28
2.3.4 Controller Connection...................................................................................................28
2.4 HDD Storage Calculation Chart ..............................................................................................29
Chapter 3 Menu Operation.......................................................................................................30
3.1 Start up Your Device...............................................................................................................30
3.2 Activate Your Device...............................................................................................................30
3.3 Configure Unlock Pattern for Login........................................................................................31
3.4 Log into the System................................................................................................................32
3.5 Enter Wizard to Configure Quick Basic Settings ....................................................................33
3.6 Network Settings....................................................................................................................34
3.7 Add IP Cameras ......................................................................................................................34
3.8 Start Live View .......................................................................................................................35
3.9 One-Touch RAID Configuration ..............................................................................................36
3.10 Recording Settings................................................................................................................37
3.11 Playback ...............................................................................................................................38
Chapter 4 Face Picture Comparison ..........................................................................................40
Chapter 5 Access by Web Browser ............................................................................................41

Network Video Recorder Quick Start Guide
2
Quick Start Guide
COPYRIGHT © 2018 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures, graphs are the properties of
Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be
“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,
changed, translated, or distributed, partially or wholly, by any means, without the prior written
permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,
guarantees or representations, express or implied, regarding to the Manual.
About this Manual
This Manual is applicable to Network Video Recorder (NVR).
The Manual includes instructions for using and managing the product. Pictures, charts, images and
all other information hereinafter are for description and explanation only. The information
contained in the Manual is subject to change, without notice, due to firmware updates or other
reasons. Please find the latest version in the company website
(http://overseas.hikvision.com/en/).
Please use this user manual under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the properties of Hikvision in various
jurisdictions. Other trademarks and logos mentioned below are the properties of their respective
owners.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS
HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,
AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND
NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS,
EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR
INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE
USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY
AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL
OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER
ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL
PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR
JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS
THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS
USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER
PREVAILS.

Network Video Recorder Quick Start Guide
3
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at
his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and
comply therefore with the applicable harmonized European standards listed under the
EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of
as unsorted municipal waste in the European Union. For proper recycling, return this
product to your local supplier upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be disposed
of as unsorted municipal waste in the European Union. See the product documentation
for specific battery information. The battery is marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return
the battery to your supplier or to a designated collection point. For more information see:
www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Network Video Recorder Quick Start Guide
4
Applicable Models
This manual is applicable to the models listed in the following table.
Series
Model
iDS-96000NXI-I16/24(B)
iDS-96064NXI-I16(B)
iDS-96128NXI-I16(B)
iDS-96128NXI-I24(B)
iDS-9600NXI-I8/8F(B)
iDS-9616NXI-I8/8F(B)
iDS-9632NXI-I8/8F(B)
iDS-9664NXI-I8/8F(B)
iDS-9600NXI-I8/16S(B)
iDS-9616NXI-I8/16S(B)
iDS-9632NXI-I8/16S(B)
iDS-9664NXI-I8/16S(B)
iDS-9600NXI-I16/8F(B)
iDS-9616NXI-I16/8F(B)
iDS-9632NXI-I16/8F(B)
iDS-9664NXI-I16/8F(B)
iDS-9600NXI-I16/16S(B)
iDS-9616NXI-I16/16S(B)
iDS-9632NXI-I16/16S(B)
iDS-9664NXI-I16/16S(B)
iDS-6700NXI-I/8F(B)
iDS-6708NXI-I/8F(B)
iDS-6716NXI-I/16S(B)
iDS-6716NXI-I/16S(B)
iDS-7700NXI-I4/16P/16S(B)
iDS-7716NXI-I4/16P/16S(B)
iDS-7732NXI-I4/16P/16S(B)
iDS-7700NXI-I4/16S(B)
iDS-7716NXI-I4/16S(B)
iDS-7732NXI-I4/16S(B)

Network Video Recorder Quick Start Guide
5
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol
Description
Provides additional information to emphasize or supplement
important points of the main text.
Indicates a potentially hazardous situation, which if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Indicates a hazard with a high level of risk, which if not avoided, will
result in death or serious injury.

Network Video Recorder Quick Start Guide
6
Safety Instructions
Proper configuration of all passwords and other security settings is the responsibility of the
installer and/or end-user.
In the use of the product, you must be in strict compliance with the electrical safety
regulations of the nation and region. Please refer to technical specifications for detailed
information.
Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power
Source with 100~240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to
technical specifications for detailed information.
Do not connect several devices to one power adapter as adapter overload may cause
over-heating or a fire hazard.
Please make sure that the plug is firmly connected to the power socket.
If smoke, odor or noise rise from the device, turn off the power at once and unplug the power
cable, and then please contact the service center.
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
Ensure unit is installed in a well-ventilated, dust-free environment.
Unit is designed for indoor use only.
Keep all liquids away from the device.
Ensure environmental conditions meet factory specifications.
Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of
dropping it may cause damage to the sensitive electronics within the unit.
Use the device in conjunction with an UPS if possible.
Power down the unit before connecting and disconnecting accessories and peripherals.
A factory recommended HDD should be used for this device.
Improper use or replacement of the battery may result in hazard of explosion. Replace with
the same or equivalent type only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.

Network Video Recorder Quick Start Guide
7

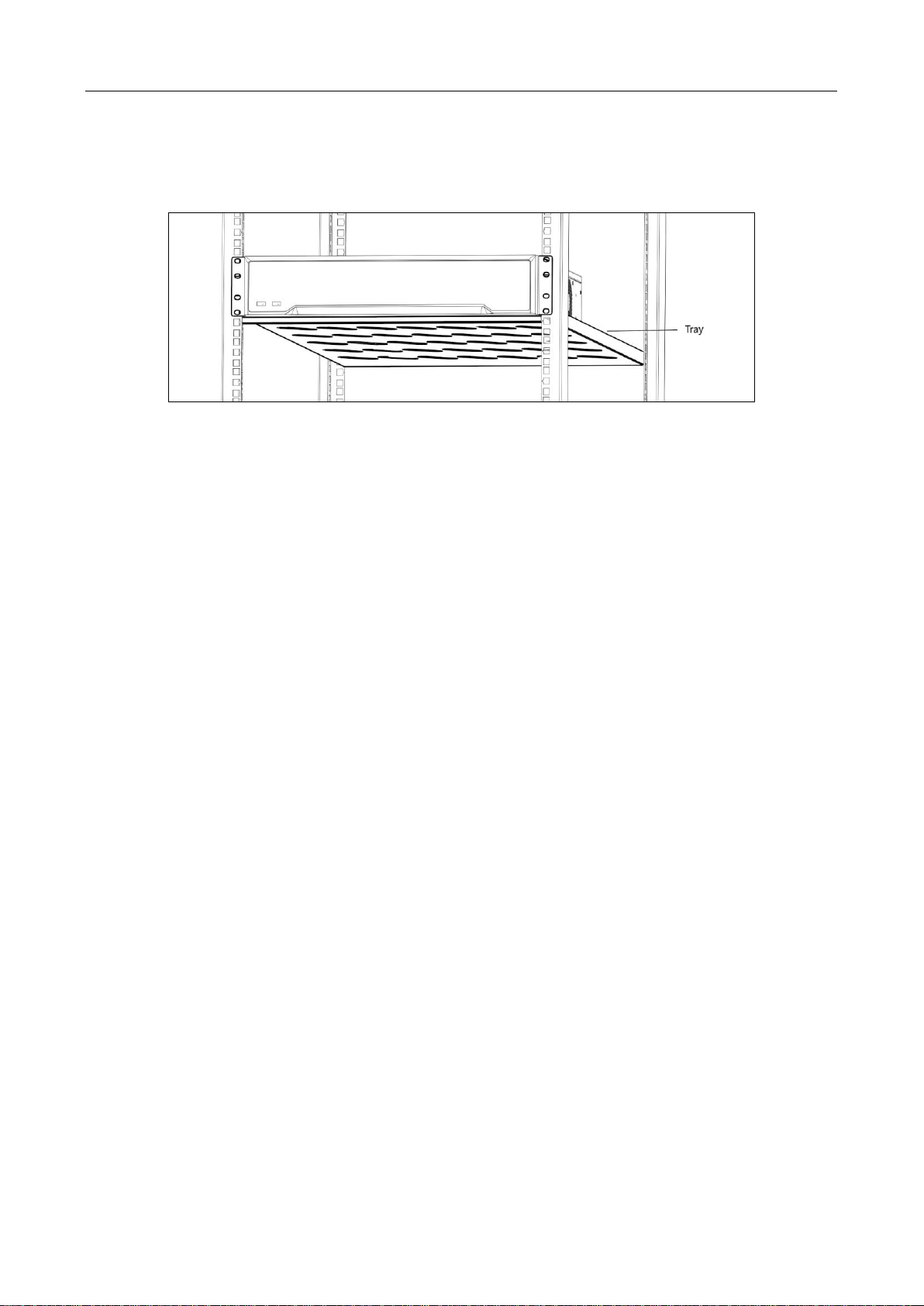

When installing the device into a cabinet over 2U height, it is suggest to use rack shelf to bear
the weight. If the cabinet height is over 4U, it is suggest to use slide rails or rack shelf to bear
the weight.

Network Video Recorder Quick Start Guide
8
Chapter 1 Panels Description
1.1 Front Panel
1.1.1 iDS-96000NXI-I16(B) Series
Figure 1-1 Front Panel
Table 1-1 Panel Description
No.
Name
Function Description
1
Front Panel
Lock
Locks or unlocks the panel by the key.
2
Power button
Turn on/off device.
Solid blue: device is on.
Solid red: device is off.
3
Mute button
Turn on/off alarm beep.
Solid blue: Alarm sound is off.
Unlit: Alarm sound is on.
4
HDD indicator
Solid red: at least one HDD is installed
Unlit: no HDD is detected.
Blinking red: HDD is reading/writing.
5
Tx/Rx
Flashing blue: network transmission is normal.
6
USB interfaces
USB 2.0 ports for additional devices such as USB mouse and
USB Hard Disk Drive (HDD).

Network Video Recorder Quick Start Guide
9
1.1.2 iDS-96000NXI-I24(B) Series
Figure 1-2 Front Panel
Table 1-2 Panel Description
7
HDD sequence
indicator
Shows the HDD sequence.
8
LCD
7-inch LCD for live-view image and menu operation.
No.
Name
Function Description
1
Front Panel
Lock
Locks or unlocks the panel by the key.
2
Power button
Turn on/off device.
Solid blue: device is on.
Solid red: device is off.
3
LCD
7-inch LCD for live-view image and menu operation.
4
HDD sequence
indicator
Shows the HDD sequence.
5
Power
indicator
Flashing blue: network transmission is normal.
HDD indicator
Solid red: at least one HDD is installed
Unlit: no HDD is detected.
Blinking red: HDD is reading/writing.
Tx/Rx indicator
Flashing blue: network transmission is normal.

Network Video Recorder Quick Start Guide
10
1.1.3 iDS-9600NXI-I8/8F(B) and iDS-9600NXI-I8/16S(B) Series
Figure 1-3 Front Panel
Table 1-3 Panel Description
Ready indicator
Solid blue: Device in running normally.
Alarm indicator
Solid red: Relay alarm occurs.
6
USB interfaces
USB port for additional devices such as USB mouse and USB
Hard Disk Drive (HDD).
No.
Name
Function Description
1
POWER
Turns red when the power is connected but the system
isn’t running; turns blue when the power is connected and
the system is running.
2
Tx/Rx
Flickers blue when network connection is functioning
properly.
3
READY
Turns blue when the device is functioning properly.
4
Front Panel
Lock
Locks or unlocks the panel by the key.
5
USB Interfaces
Universal Serial Bus (USB) ports for additional devices such
as USB mouse and USB Hard Disk Drive (HDD).
6
POWER
ON/OFF
Long press the button for more than 3 seconds to turn
on/off the NVR.
7
Backup
Back up video files.

Network Video Recorder Quick Start Guide
11
1.1.4 iDS-9600NXI-I16/8F(B) and iDS-9600NXI-I16/16S(B) Series
Figure 1-4 Front Panel
Table 1-4 Description
No.
Name
Description
1
Panel lock
Locks or unlocks the panel by the key.
2
Power switch
Powers on/off device. Solid blue indicates device is
powered on. Solid red indicates device is shut down.
3
Status
indicator
HDD
Solid red: at least one HDD is installed
Unlit: no HDD is detected.
Blinking red: HDD is reading/writing.
Tx/Rx
Blinking blue indicates network communication is
normal.
4
Shortcut
buttons
Exit
Returns to the previous menu.
Press it twice quickly to switch the main and auxiliary
port.
In live view mode, press it to enter PTZ control
interface.
Menu
Press it to pop up main menu.
Hold it for 5 seconds to turn on/off button sound.
During playback, press it to show/hide control panel.
5
Control
buttons
ENTER
Confirms selection in any of the menu modes.
Checks the checkbox fields.

Network Video Recorder Quick Start Guide
12
1.1.5 iDS-7700NXI-I4/(16P)/16S(B) Series
Figure 1-5 Front Panel
Switches on/off status.
Plays or pauses the video playing in playback mode.
Advances the video by a single frame in single-frame
playback mode.
Stops/starts auto switch in auto-switch mode.
DIRECTION
Navigates between different fields and items in
menus.
In the playback mode, use the Up and Down buttons
to speed up and slow down recorded video. Use the
Left and Right buttons to select the next and previous
video files.
Cycles through channels in live view mode.
Controls the movement of the PTZ camera in PTZ
control mode.
6
USB interfaces
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
No.
Name
Function Description
1
HDD
Blinking white: HDD is reading/writing.
2
POWER
Turns white when the power is connected and the system
is running.
3
Tx/Rx
Flickers white when network connection is functioning
properly.
4
IR Receiver
Receiver for IR remote .
5
USB Interfaces
Universal Serial Bus (USB) ports for additional devices such
as USB mouse and USB Hard Disk Drive (HDD).

Network Video Recorder Quick Start Guide
13
1.1.6 iDS-6700NXI-I/8F(B) and iDS-6700NXI-I/16S(B) Series
Figure 1-6 Front Panel
Table 1-5 Indicator Description
Item
Description
Turns red when device is powered up.
Turns red when data is being read from or written to HDD.
Flickers blue when network connection is functioning properly.
1.2 Rear Panel
1.2.1 iDS-96000NXI-I16/24(B) Series
Figure 1-7 iDS-96000NXI-I16(B) Series Rear Panel

Network Video Recorder Quick Start Guide
14
Figure 1-8 iDS-96000NXI-I24(B) Series Rear Panel
Table 1-6 Panel Description
No.
Name
Description
1
HDMI1/HDMI2
HDMI video output connector.
2
AUDIO OUT
RCA connector for audio output.
3
USB 3.0 interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
4
LAN1/LAN2
Interface
4 RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interfaces provided.
5
MiniSAS interface
2 miniSAS interfaces
6
Reset
Reset button
7
RS-485
RS-485 interface
8
KB
Keyboard interface
9
ALARM IN/OUT
Connector for alarm input/output.
10
Ground
Ground (needs to be connected when NVR starts up).
11
Power supply
100 to 240 VAC power supply.
12
Audio IN
RCA connector for audio input.
13
eSATA
Connects external SATA HDD, CD/DVD-RM.
14
VGA
DB9 connector for VGA output. Display local video
output and menu.

Network Video Recorder Quick Start Guide
15
1.2.2 iDS-9600NXI-I8/8F(B) and iDS-9600NXI-I8/16S(B) Series
Figure 1-9 Rear Panel
Table 1-7 Panel Description
15
RS-232 Interface
Connector for RS-232 devices.
16
Extension board
4 × RJ-45 10/100/1000 Mbps self-adaptive optical
interface,
8 × RS-485 (full-duplex),
Alarm input/output: 32/16
No.
Name
Description
1
LAN1/LAN2
Interface
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interfaces provided.
2
LINE IN
RCA connector for audio input.
3
AUDIO OUT
2 RCA connectors for audio output.
4
HDMI1/HDMI2
HDMI video output connector.
5
VGA1/VGA2
DB9 connector for VGA output. Display local video
output and menu.
6
USB 3.0 interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
7
RS-232 Interface
Connector for RS-232 devices.
8
eSATA
Connects external SATA HDD, CD/DVD-RM.
9
Controller Port
D+, D- pin connects to Ta, Tb pin of controller. For
cascading devices, the first NVR’s D+, D- pin should be
connected with the D+, D- pin of the next NVR.

Network Video Recorder Quick Start Guide
16
1.2.3 iDS-9600NXI-I16/8F(B) and iDS-9600NXI-I16/16S(B) Series
Figure 1-10 Rear Panel
Table 1-8 Panel Description
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
10
100 to 240 VAC
100 to 240 VAC power supply.
11
Power Switch
Switch for turning on/off the device.
12
GROUND
Ground (needs to be connected when NVR starts up).
No.
Name
Description
1
LAN1/LAN2
Interface
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet
interfaces provided.
2
LINE IN
RCA connector for audio input.
3
AUDIO OUT
2 RCA connectors for audio output.
4
HDMI1/HDMI2
HDMI video output connector.
5
VGA1/VGA2
DB9 connector for VGA output. Display local video
output and menu.
6
USB 3.0 interface
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk Drive
(HDD).
7
RS-232 Interface
Connector for RS-232 devices.
8
eSATA
Connects external SATA HDD, CD/DVD-RM.

Network Video Recorder Quick Start Guide
17
1.2.4 iDS-7700NXI-I4/(16P)/16S(B) Series
Figure 1-11 iDS-7700NXI-I4/16S(B) Series Rear Panel
Figure 1-12 iDS-7700NXI-I4/16P/16S(B) Series Rear Panel
Table 1-9 Panel Description
9
Controller Port
D+, D- pin connects to Ta, Tb pin of controller. For
cascading devices, the first NVR’s D+, D- pin should
be connected with the D+, D- pin of the next NVR.
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
10
100 to 240 VAC
100 to 240 VAC power supply.
11
Power Switch
Switch for turning on/off the device.
12
GROUND
Ground (needs to be connected when NVR starts
up).
No.
Name
Description
1
LAN Interface
1 network interface provided by
iDS-7700NXI-I4/16P/16S(B) series, and 2
network interfaces by iDS-7700NXI-I4/16S(B)
series.
2
AUDIO OUT
RCA connector for audio output.
3
LINE IN
RCA connector for audio input.
4
HDMI
HDMI video output connector.

Network Video Recorder Quick Start Guide
18
5
USB 3.0 Interface
Universal Serial Bus (USB) ports for additional
devices such as USB mouse and USB Hard Disk
Drive (HDD).
6
RS-232 Interface
Connector for RS-232 devices.
7
VGA
DB9 connector for VGA output. Display local
video output and menu.
8
RS-485 Interface
Half-duplex connector for RS-485 devices.
9
ALARM IN
Connector for alarm input.
ALARM OUT
Connector for alarm output.
10
GROUND
Ground (needs to be connected when NVR
starts up).
11
AC 100V ~ 240V
100 to 240 VAC power supply.
12
Power Switch
Switch for turning on/off the device.
13
Network Interfaces with PoE
function
Network interfaces for the cameras and to
provide power over Ethernet.
14
eSATA Interface
Connects external SATA HDD, CD/DVD-RM.
15
VIDEO OUT
BNC connector for video output.

Network Video Recorder Quick Start Guide
19
1.2.5 iDS-6700NXI-I/16S(B) and iDS-6700NXI-I/8F(B) Series
2
13
46
7 9
5 8
Figure 1-13 iDS-6700NXI-I/16S(B) Series Rear Panel
Table 1-10 Interface Description
Index
Item
Description
1
LAN1/LAN2
10M/100Mbps adaptive Ethernet interface
2
LINE IN
3.5mm interface for line in; connect to audio input device
or active pick-up, microphone, etc.
3
AUDIO OUT
3.5mm interface; connect to audio output device, e.g.,
loudspeaker, etc.
4
RS-232
Serial interface for configuration of device’s parameters or
used as transparent channel.
5
DC12V
12 VDC power supply
6
RS-485
RS-485 serial interface; connect to pan/tilt unit, speed
dome, etc.
7
ALARM IN
Relay alarm input.
8
ALARM OUT
Relay alarm output.
9
GND
Grounding
