DS-K3G201 User manual
Ver1.0-20210628

DS-K3G201 Series Tripod Turnstile User Manual
1
Legal Information
© 2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
This Manual is the property of Hangzhou Hikvision Digital Technology Co., Ltd. or its affiliates (hereinafter referred to as
"Hikvision"), and it cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without
the prior written permission of Hikvision. Unless otherwise expressly stated herein, Hikvision does not make any
warranties, guarantees or representations, express or implied, regarding to the Manual, any information contained
herein.
About this Manual
The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information
hereinafter are for description and explanation only. The information contained in the Manual is subject to change,
without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision
website (https://www.hikvision.com/).
Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.
Trademarks Acknowledgement
 and other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdictions.
Other trademarks and logos mentioned are the properties of their respective owners.
LEGAL DISCLAIMER
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS
HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH ALL FAULTS AND ERRORS”. HIKVISION
MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY
QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO
EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,
INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA,
CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT
(INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT,
EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL
NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING
FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER,
HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE
FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING
THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT
LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY
RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR
PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR
BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR
FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

DS-K3G201 Series Tripod Turnstile User Manual
2
CONTENTS
Chapter 1 Overview....................................................................................................................3
Introduction .............................................................................................................................3
Main structure..........................................................................................................................4
1.2.1 Mechanical parts.............................................................................................................4
1.2.2 Electronic control parts...................................................................................................5
Chapter 2 Installation .................................................................................................................6
Install pedestals........................................................................................................................6
2.1.1 Entrance direction diagram.............................................................................................6
2.1.2 Installation diagram (against the wall)............................................................................7
2.1.3 Turnstile installation hole diagram..................................................................................8
Chapter 3 General Wiring ...........................................................................................................9
Wiring Electric Supply ..............................................................................................................9
Access control connection .......................................................................................................9
Chapter 4 Mainboard instructions ............................................................................................11
Main Board Description .........................................................................................................11
4.1.1 Motherboard interface .................................................................................................11
4.1.2 Function key function description ................................................................................12
4.1.3 Operation example description.....................................................................................13
Menu introduction .................................................................................................................13
Chapter 5 Maintenance ............................................................................................................15

DS-K3G201 Series Tripod Turnstile User Manual
3
Chapter 1 Overview
Introduction
DS-K3G201 series is stamped and formed by sus304 stainless steel plate, beautiful in
appearance, sturdy and durable, not easy to be damaged by external force, can be connected with
card reader, face recognition terminal, etc., dedicated to the entrance and exit of the construction
site.
Different product models will have different hardware configurations and appearances.

DS-K3G201 Series Tripod Turnstile User Manual
4

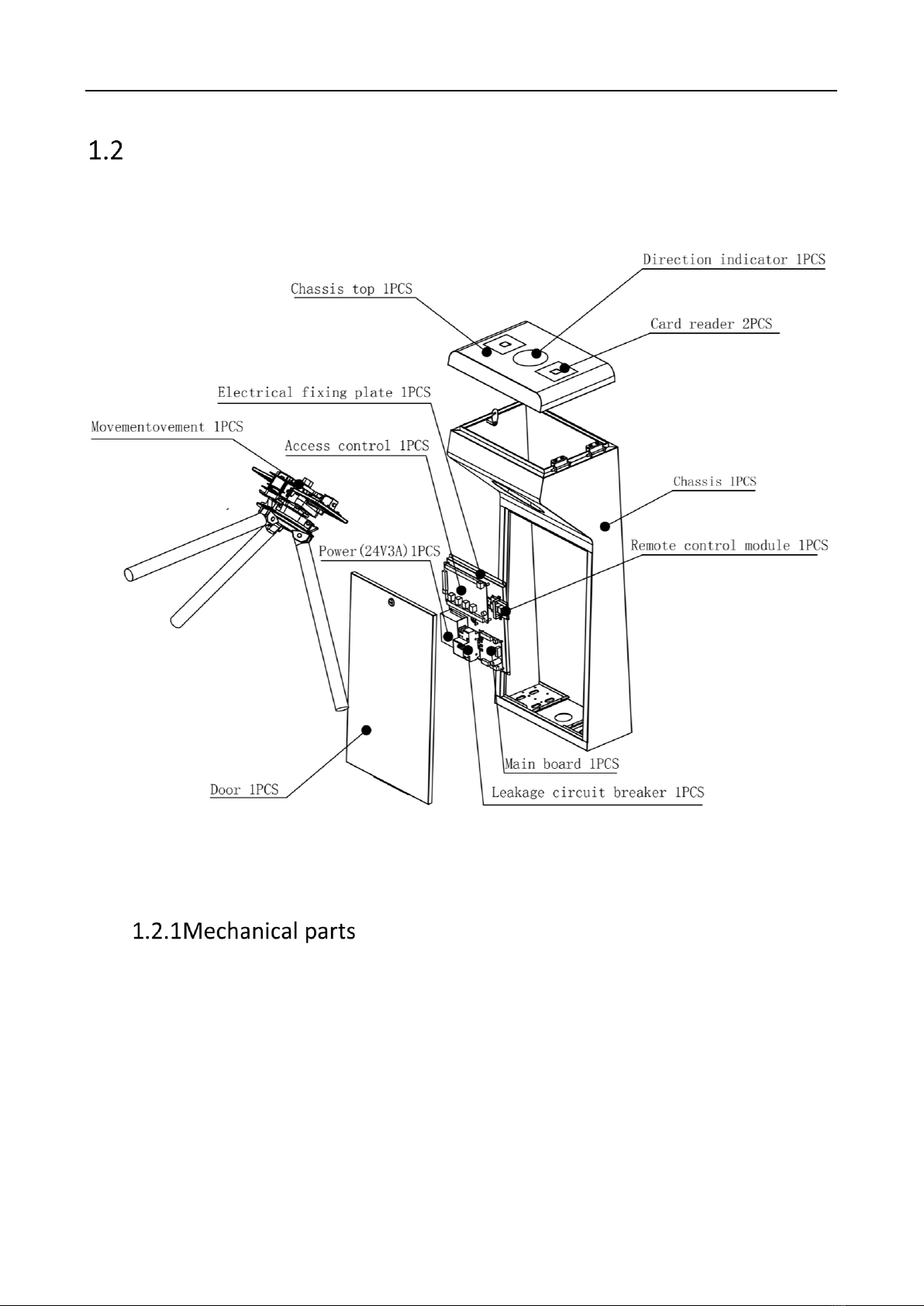

Main structure
The product structure is shown in the figure below. The turnstile is mainly composed of
mechanical parts and electronic control parts.
A card reader space and direction indicator space are reserved on the top of the box. The main
components of the movement are rod-falling electromagnets, telescopic electromagnets, frame,
drive shaft, three-roll turnstile roller, etc.

DS-K3G201 Series Tripod Turnstile User Manual
5
The electronic control part is composed of a card reader, a main board, a direction indicator
board, a leakage circuit breaker, etc.
Card reader
Read the card number information, send the read information to the access controller and verify
the access control authority.
Main board
The control center of the system, which receives the signals from the access system, performs
logical judgment and processing on these signals, and then sends execution commands to the
direction indicator, electromagnets, counter etc...
Direction indicator
Display the current status of passage signs and guide pedestrians to pass through the passage
safely and orderly.

DS-K3G201 Series Tripod Turnstile User Manual
6
Chapter 2 Installation
Install pedestals
Before You Start
Prepare for the installation tools, check the device and the accessories, and clear the installation
base.
The installation position of the turnstile is installed on the right, which is convenient for the
right hand to swipe the card to move forward. The entrance direction corresponds to the left
opening of the motherboard wiring port, and the exit direction corresponds to the right opening of
the motherboard wiring port.
Entrance

DS-K3G201 Series Tripod Turnstile User Manual
7

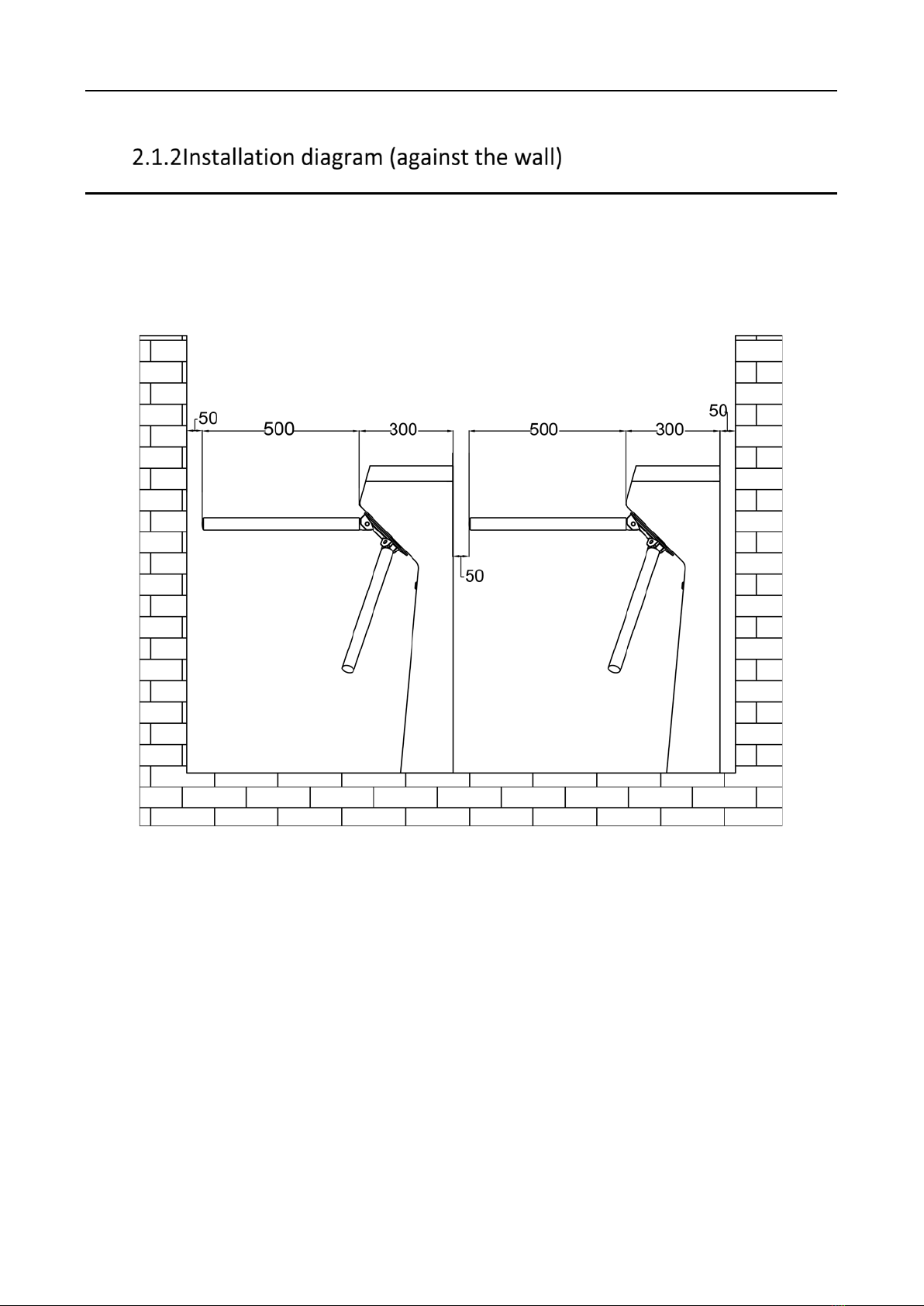

The device should be installed on the concrete surface or other non-flammable surfaces.
No face recognition terminal installed: If the installation area is too close to the wall, make sure
the distance between the pedestal and the wall should be more than 50 mm, or the surface may
be scratched.

DS-K3G201 Series Tripod Turnstile User Manual
8
The size of the expansion screw should be M12. The length of the expansion screw should not
be less than 120mm. It is recommended to use the expansion screw with a length of 120mm.

DS-K3G201 Series Tripod Turnstile User Manual
9
Chapter 3 General Wiring
Wiring Electric Supply
The turnstile supports wiring the AC electric supply for the whole system's power supply.
The voltage fluctuation of the electric supply is between 100 VAC and 220 VAC, 50 to 60 Hz.
Usage about steps and lists are illustrated as follows.
Terminal PE should connect to a ground wire to avoid hazard when people touching the device.
Access control connection
The access control panel of the turnstile can realize the two-way function of in and out. The
external access control board needs to have the relay output function. The connect interfaces of
external access board is shown in the figure below;

DS-K3G201 Series Tripod Turnstile User Manual
10
The place marked by the red box is the external relay output signal connection. No distinction
between positive and negative wiring.

DS-K3G201 Series Tripod Turnstile User Manual
11
Chapter 4 Mainboard instructions
Main Board Description

DS-K3G201 Series Tripod Turnstile User Manual
12
Main Board Description
Function Key description
No.
Interface
Description
1
Power in
DC 24V power supply
2
ZERO/VCC/GND
Arm position detection, when triggered the Magnet
magnetic recovered, arm locked.
3
OP_L/COM
Entrance direction open
4
OP_R/COM
Exit direction open
5
VCC/GND
DC 12V power out
6
VCC/G/R/GND
direction indicator control
7
24V_M/GND
Drop arm electromagnets connection
8
M1/V_M
Exit direction electromagnets connection
9
M0/V_M
Entrance direction electromagnets connection
10
MENU KEYS
【MENU】,【INC】,【DEC】for debuging
Key name
Description
MENU
1. Press this key in the standby interface to enter the
system menu
2. In the system menu interface, select the
corresponding menu and press this key to enter the
menu parameter setting interface
3. After the menu is set, press this key to save the
parameters and return to the system menu interface
INC
Scroll up to select the system menu and add 1 function
when setting parameters
DEC
Scroll down to select the system menu and the function
of subtracting 1 when setting parameters
Remark
In the system menu and menu setting interface, if there
is no key operation within 5 seconds, the system will
automatically exit the menu to the standby interface.

DS-K3G201 Series Tripod Turnstile User Manual
13
For example: to change the operation time of the turnstile opening time.
Press the [MENU] key to enter the system menu, use the [INC] and [DEC] keys to scroll
up and down to select the "F**" menu.
Press [MENU] key to enter the door open duration setting interface.
Use [INC] and [DEC] keys to increase and decrease the parameter value up and down
respectively.
After setting, press [MENU] key to save.
Exit the menu: select the menu to the "F07" menu, press the [MENU] key to manually
exit the menu or automatically exit the menu without operating the button for 5
seconds.
Menu introduction
Menu description
MENU No.
Value range
Default value
Description
F-01
0-255
5
Turnstile door open time duration
F-02
0-4
0
0: All allowed
1: All prohibited
2: Left opening is prohibited, right opening is
allowed
3: Right opening is prohibited, left opening is
allowed
F-03
0-1
1
Working mode:
0. Free passage
1. Authorized passage
F-04
0-1
0
Memory function: For example, if you swipe
the card 5 times, you can pass 5 people.
0. off
1. on
F-05
/
/
Test mode: enter the menu to start automatic
left-open right-open uninterrupted test

DS-K3G201 Series Tripod Turnstile User Manual
14
F-06
0-1
0
system initialization
0. Exit
1. Initialize the system
F-07
/
/
Press menu in this interface to exit the setting
mode and return to the initial interface

DS-K3G201 Series Tripod Turnstile User Manual
15
Chapter 5 Maintenance
The main element of the turnstile is stainless steel, which is rustless (antioxidant) and corrosion
resistant (The anti corrosion ability in the medium of acid, alkali, and salt). In order to keep the
stainless steel from being oxidized or corroded, you should clean and care the turnstile surface
periodically .
The instructions and tips for maintaining the turnstile are as follows:
Select different stainless steel types according to the variety of the environments. You
can select 304 stainless steel for Common circumstances and 316 stainless steel for the
scenarios of seasides and chemical plants.
Keep the device surface clean and dry.
Use non-woven cloth and ethyl alcohol to clean the dirt on the device surface.
Use sourcing pad (do not use mesh cleaning ball) to clean the rust on the device surface
by following the wire drawing on the stainless steel. And then use non-woven cloth and
stainless steel cleaner to wipe the device surface.
Clean and maintain the device by using non-woven cloth and stainless steel cleaner
periodically. It is suggest to clean the device every month in common circumstances and
every week for severe environments (seaside and chemical plants for instance).
