Hillrom AccuMax Quantum PAC User manual

174152 REV 10
Hillrom is a part of Baxter Baxter
AccuMax Quantum
VPC Mattress and
AccuMax Quantum VPC
Mattress with Airport
Instructions for Use
Product No. PAC, PAF,
PAH, and PAU

AccuMax Quantum VPC Mattress and Accumax Quantum VPC Mattress with Airport
Instructions for Use (174152 REV 10) i
PATENTS / PATENT hillrom.com/patents
May be covered by one or more patents. See the above Internet
address.
The Hill-Rom companies are the proprietors of European, US, and
other patents and pending patent applications.
No part of this text shall be reproduced or transmitted in any form or by
any means, electronic or mechanical, including photocopying, recording,
or by any information or retrieval system without written permission from
Hill-Rom Services, Inc. (Hill-Rom).
The information in this manual is confidential and may not be disclosed to
third parties without the prior written consent of Hill-Rom.
The information in this manual is subject to change without notice.
Hill-Rom makes no commitment to update or keep current the
information in this manual.
Hill-Rom reserves the right to make changes without notice in design,
specifications, and models. The only warranty Hill-Rom makes is the
express written warranty extended on the sale or rental of its products.
Legal Manufacturer:
HILL-ROM, INC.
1069 STATE ROUTE 46 E
BATESVILLE, IN 47006 USA
Authorized European Union
Representative and EU
Importer:
Authorized Brazilian
Representative:
HILL-ROM SAS
B.P. 14 - Z.I. DU TALHOUËT
56330 PLUVIGNER
FRANCE
Tel: [phone]
VR MEDICAL - MEDICAL DEVICES
IMPORTER & DISTRIBUTOR, LTDA.
391 BATATAES STREET
CJ 11-13, 8TH FLOOR
SÃO PAULO, SP - BRAZIL
CNPJ: 04.718.143/0001-94

ii AccuMax Quantum VPC Mattress and Accumax Quantum VPC Mattress with Airport
Instructions for Use(174152 REV 10)
Notice to Users and/or Patients in EU—Any serious incident that has
occurred in relation to this device, should be reported to the
manufacturer and the competent authority of the Member State in
which the user and/or patient is established.
Product images and labels are for illustrative purposes only. Actual
product and label may vary.
Tenth Edition, 2022-10
First Printing, August 2013
Clorox Healthcare is a registered trademark of Clorox Professional
Products Company, Inc.
Oxycide is a registered trademark of Ecolab USA, Inc.
Peridox is a registered trademark of Contec, Inc.
Virex is a registered trademark of Diversey, Inc.
Wexcide is a trademark of Wexford Labs, Inc.
Baxter,AccuMax Quantum, Advanta, Avantguard, CareAssist,
Controlled Release, FlexAfoot,Heel Pillow, Hill-Rom,Hillrom,
TotalCare, and VersaCare are trademarks of Baxter International Inc, or
it’s subsidiaries.
Replace this manual (174152) if it is damaged and/or can not be read.
For product support or to order additional copies of this manual (174152),
contact your distributor, local Hill-Rom representative, or go to
hillrom.com.

AccuMax Quantum VPC Mattress and AccuMax Quantum VPC Mattresswith Airport
Instructions for Use (174152 REV 10) iii
Table of Content s
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Document Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Product Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Control Unit Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
AccuMax Quantum VPC Mattress with Airport and Optional
CU2 Control Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
How it works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Features—AccuMax Quantum VPC Mattress. . . . . . . . . . . . . . . . . . . . . . 9
Features—AccuMax Quantum VPC Mattress with Airport . . . . . . . . 10
Install and Use the Mattress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Bed Exit System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Low pressure indicator (when the AccuMax Quantum VPC
Mattress with Airport is installed and the CU2 control unit is
connected) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning and Disinfecting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and Disinfection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
STEP 1: Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
STEP 2: Disinfection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Laundry Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Decommissioning and Disposal Instructions . . . . . . . . . . . . . . . . . . . . . . 20
Expected Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Service Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Model Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Regulations, Standards, and Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

iv AccuMax Quantum VPC Mattress and AccuMax Quantum VPC Mattress with Airport
Instructions for Use (174152 REV 10)
Table of Contents
NOTES:

AccuMax Quantum VPC Mattress and AccuMax Quantum VPC Mattress with Airport
Instructions for Use (174152 REV 10) 1
Symbols
SYMBOLS
DOCUMENT SYMBOLS
This document contains different typefaces and symbols to make the
content easier to read and understand:
• Standard text—used for regular information.
•Boldface text—stresses a word, phrase, or trademark.
•NOTE:—sets apart special information or important instruction
clarification.
• CONTRAINDICATION, WARNING, or CAUTION
– A CONTRAINDICATION identifies situations or actions that
may have an effect on patient safety.
– A WARNING identifies situations or actions that may have an
effect on patient or user safety. To ignore a warning could
cause patient or user injury.
– A CAUTION identifies special procedures or precautions that
persons must obey to help prevent equipment damage.
PRODUCT SYMBOLS
Symbol Definition
Foot end of the mattress.
Must consult the user manual.
Medical Device

2AccuMax Quantum VPC Mattress and Accumax Quantum VPC Mattress with Airport
Instructions for Use(174152 REV 10)
Symbols

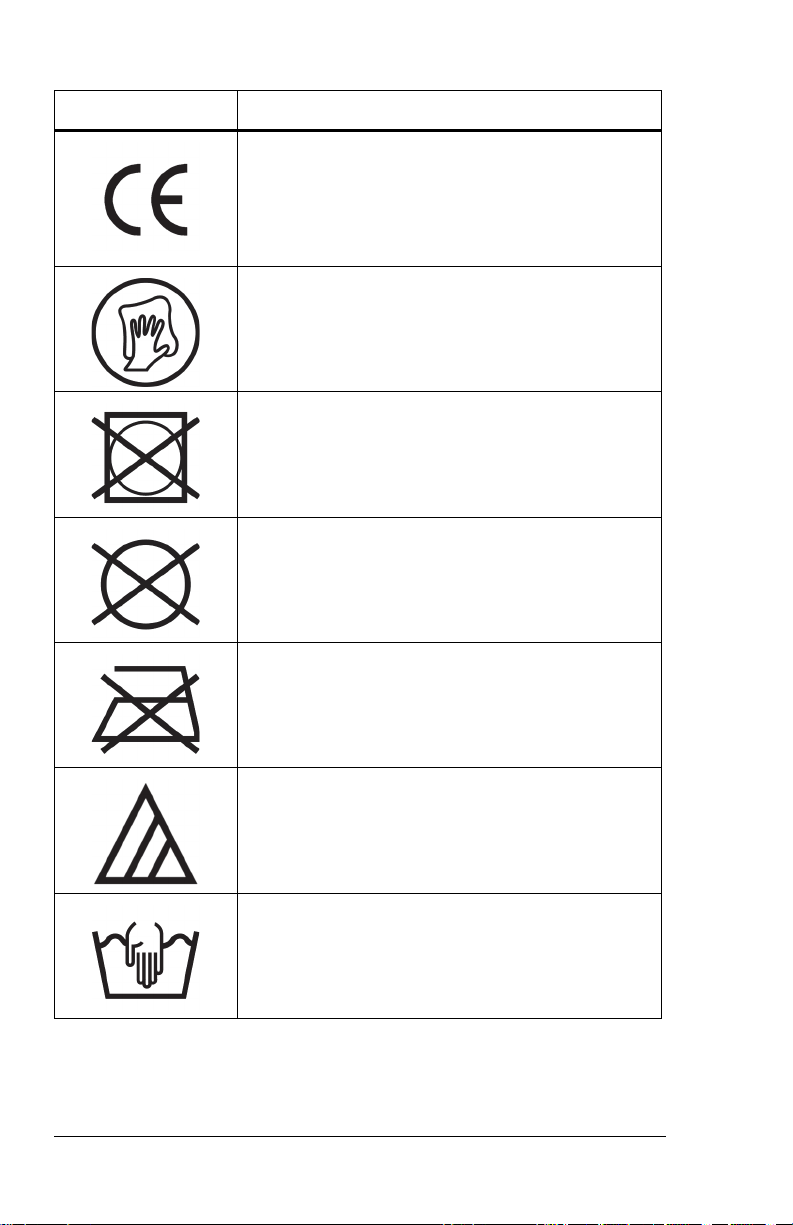

Conforms to European requirements for class I
medical devices in accordance with:
• Directive 93/42/EEC until May 25, 2021
• Regulation (EU) 2017/745 regulation by
May 26, 2021
Hand cleaning instructions.
No tumble dry.
No dry cleaning.
No ironing.
No chlorine (applies to machine washing only).
Hand wash in water no hotter than 120° F (50° C).
Symbol Definition

AccuMax Quantum VPC Mattress and AccuMax Quantum VPC Mattress with Airport
Instructions for Use (174152 REV 10) 3
Symbols
≤ 5500 ppm
Use chlorine concentration less than or equal to
5500 ppm (applies to hand cleaning only).
Product not made with natural rubber latex.
Meets fire code BS 7177.
Maximum patient weight 500 lb (227 kg) for the
mattress.
NOTE:
Consult the bed user manual for the bed safe
working load.
X-ray capable product.
Symbol Definition

4AccuMax Quantum VPC Mattress and Accumax Quantum VPC Mattress with Airport
Instructions for Use(174152 REV 10)
Symbols

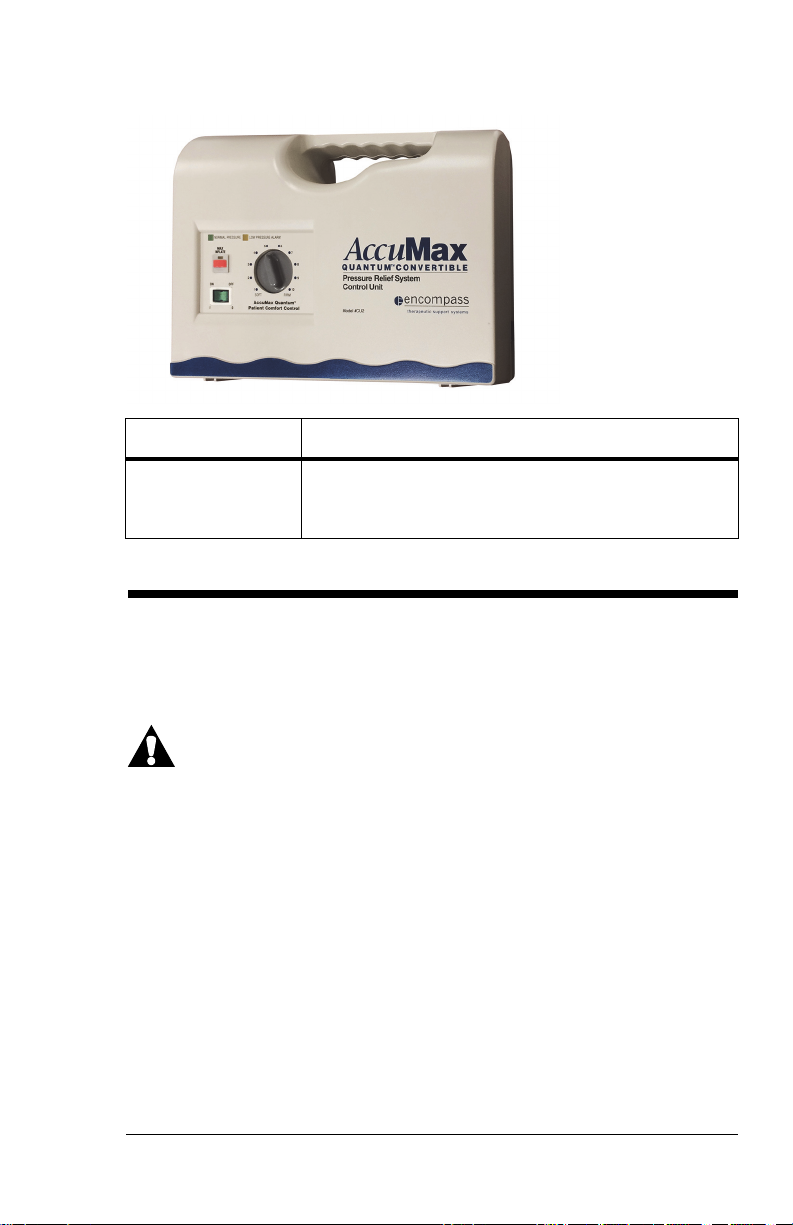

CONTROL UNIT PANEL
Item Description
1 Normal pressure indicator
2 Max inflate button and indicator
3On/Offswitch
4 Low pressure alarm
5 Patient comfort control selector

AccuMax Quantum VPC Mattress and AccuMax Quantum VPC Mattress with Airport
Instructions for Use (174152 REV 10) 5
Symbols
ACCUMAX QUANTUM VPC MATTRESS WITH AIRPORT AND OPTIONAL
CU2 CONTROL UNIT
AccuMax Quantum VPC Mattress and Connected CU2 Control Unit

6AccuMax Quantum VPC Mattress and Accumax Quantum VPC Mattress with Airport
Instructions for Use(174152 REV 10)
Intended Use
INTENDED USE
The AccuMax Quantum VPC Mattress is a therapeutic pressure
redistribution system comprised of foam-filled air cylinders that aid in the
prevention/treatment of pressure injuries in patients and residents with
up to moderate risk and/or Stage I and II pressure injuries when combined
with recommended turning protocols.
The AccuMax Quantum VPC Mattress can support a patient weight up to
500 lb (227 kg). Refer to the bed manufacturer’s user manual for the bed
safe working load.
CONTRAINDICATION:
Contraindication—Use of active therapy surfaces for patients with
unstable spinal cord injury or in cervical or skeletal traction could cause
serious injury to the patient.
WARNING:
Warning—Some safety features of the bed may not function or may not
operate as intended with mattresses that are not designed specifically for
this bed. Check with the mattress manufacturer to make sure that the
safety features of the bed have been tested and verified to operate
correctly with the replacement mattress. Failure to do so could cause
serious personal injury or equipment damage.
NOTE:
Hill-Rom recommends the use of Hill-Rom mattresses that have been
designed and tested specifically for the bed. If you purchase a
replacement mattress from Hill-Rom or another manufacturer, make sure
that the safety features of the bed have been tested and verified to
operate correctly with the replacement mattress. The replacement
mattress should meet the applicable regulations and technical standards
to minimize the risk of injury to patients and caregivers.
Mattresses should—
• Minimize the gaps where entrapment could occur
• Allow enough siderail height from the top of the mattress to the
top of the siderail to prevent accidental roll-overs
• Have appropriate firmness to assist with safe patient transfers
• Not interfere with siderail operation

AccuMax Quantum VPC Mattress and AccuMax Quantum VPC Mattress with Airport
Instructions for Use (174152 REV 10) 7
Introduction
INTRODUCTION
The AccuMax Quantum VPC Mattress is a non-powered surface that uses
a system of intake and output valves to provide weight-based pressure
redistribution whenever a patient moves or is repositioned. It has a top
layer of visco-elastic foam for improved patient comfort.
The AccuMax Quantum VPC Mattress with Airport can be operated in a
non-powered or powered mode. In the non-powered configuration, the
mattress uses a system of intake and output valves to provide pressure
redistribution whenever a patient moves or is repositioned. It has a top
layer of visco-elastic foam for improved patient comfort. In the powered
configuration, the AccuMax Quantum VPC Mattress offers alternating
pressure therapy when connected to the CU2 control unit.
Many factors can contribute to skin breakdown in the healthcare facility
and home care environments. These can include, but are not limited to:
nutritional status, incontinence level, alertness, mobility, etc. The
AccuMax Quantum VPC Mattresses must be used properly and here are
some key items when using the mattresses:
• Make sure to use the AccuMax Quantum VPC Mattress and the
AccuMax Quantum VPC Mattress with Airport with the stenciled side
up and with the foot-end indicator placed at the foot end of the bed.
•TheAccuMax Quantum VPC Mattress and the AccuMax Quantum
VPC Mattress with Airport are mattress replacement systems.
• A chest X-ray can be performed while lying on the mattress.
• Follow local CPR procedures for non-powered surfaces when the
patient is on an AccuMax Quantum VPC Mattress or an AccuMax
Quantum VPC Mattress with Airport.
• The mattresses are multi-zoned and layered with varying Indentation
Load Deflections (ILD) and densities.
• The mattresses provide uninterrupted pressure redistribution
through a series of interconnected air sectors along with Controlled
Release Technology System.
• No blower box, pump, or power is required, but additional alternating
pressure therapy is offered when the AccuMax Quantum VPC
Mattress with Airport is connected to the optional CU2 control unit.
• There is no interruption of pressure redistribution capabilities in the
event of facility power failure.
• The mattresses have a patented Heel Pillow with heel slope (flat deck
and CareAssist Bed mattresses only).

8AccuMax Quantum VPC Mattress and Accumax Quantum VPC Mattress with Airport
Instructions for Use(174152 REV 10)
Introduction
• The CU2 unit offers on-demand alternating pressure therapy
(optional for AccuMax Quantum VPC Mattress with Airport).
• The mattresses accommodate patient weight up to 500 lb (227 kg).
HOW IT WORKS
Through a series of air sectors along with our innovative Controlled
Release Technology intake and output valves, the AccuMax Quantum
VPC Mattress and the AccuMax Quantum VPC Mattress with Airport
automatically begin to create a custom pressure redistribution profile
immediately after a patient is placed upon the system.
The AccuMax Quantum VPC Mattress and AccuMax Quantum VPC
Mattress with Airport have the ability to reconfigure and reinflate any
time the patient moves or is repositioned. Whenever the pressure
gradient changes, the intake and output valves automatically adjust the
sectors to again achieve a low pressure balance providing therapy for your
patient. The unique Controlled Release Valve System of the mattresses
allow for these pressure changes to occur very slowly.
The AccuMax Quantum VPC Mattress with Airport allows for alternating
pressure therapy when connected to the CU2 control unit. This provides a
cycle of loading and off-loading pressure by alternating the inflation and
deflation of the air bladders.
The CU2 unit also offers:
• Max Inflate for patient repositioning.
• Soft/firm comfort controls.
• Low pressure warning in case the control unit malfunctions or
there is a bad airport connection to the hose.

AccuMax Quantum VPC Mattress and AccuMax Quantum VPC Mattress with Airport
Instructions for Use (174152 REV 10) 9
Features—AccuMax Quantum VPC Mattress
FEATURES—ACCUMAX QUANTUM VPC MATTRESS
Item Description
Top cover (A) Low friction and low shear material.
Very low moisture vapor transmission rates.
Water resistant, and stain resistant.
Topper (B) A top layer of visco-elastic foam helps to create a custom
body conforming surface that increases patient
envelopment and comfort, helping to lower interface
pressures.
Air sectors (C) Horizontally oriented air sectors that evenly distribute
the patient's weight providing low interface pressure
readings.
The Controlled Release Valve System allows for
“communication”among these air sectors that provide
support for patients up to 500 lb (227 kg).
(29" (74 cm) wide therapeutic support surface)
Bottomcover
(D)
Durable, water resistant,and flame retardant
polyurethane laminated nylon.
A flap behind the zipper helps to prevent ingress of
fluids.

10 AccuMax Quantum VPC Mattress and Accumax Quantum VPC Mattress with Airport
Instructions for Use(174152 REV 10)
Features—AccuMax Quantum VPC Mattress with Airport
FEATURES—ACCUMAX QUANTUM VPC MATTRESS WITH
AIRPORT
Item Description
Topper (A) A top layer of visco-elastic foam helps to create a
custom body conforming mattress that increases
patient envelopment and comfort, helping to
lower interface pressures.
Air sectors (B) Horizontally oriented air sectors that evenly
distribute the patient's weight providing low
interface pressure readings.
The Controlled Release Valve System allows for
“communication” among these air sectors that
provide support for patients up to 500 lb (227 kg).
(29" (74 cm) wide therapeutic support mattress)
Airport Connector
(C)
Optional Airport connection.
Bottom cover (D) Durable, water resistant, and flame retardant
polyurethane laminated nylon.
A flap behind the zipper helps to prevent ingress
of fluids.
Top cover (E) Low friction and low shear material.
Very low moisture vapor transmission rates.
Water resistant and stain resistant.

AccuMax Quantum VPC Mattress and AccuMax Quantum VPC Mattress with Airport
Instructions for Use (174152 REV 10) 11
Install and Use the Mattress
CU2 Control Unit (Optional)
INSTALL AND USE THE MATTRESS
The internal temperature of the mattress will affect the firmness of the
mattress. Allow the mattress to normalize to room temperature before
you install it on a bed.
WARNING:
To help prevent injury and/or equipment damage, obey these warnings:
•Warning—Make sure the siderails (if installed) operate correctly
before you put an occupant on the surface.
•Warning—Make sure the mattress is applicable for the bed
frame.
1. Make sure the siderails (if installed) operate correctly.
2. Make sure the bed frame is applicable for use with the mattress.
3. Turn the mattress so the foot symbol is up and at the foot end of the
bed.
4. Put the mattress on the bed.
5. Put linens on the mattress as applicable.
Item Description
CU2 Control Unit The optional CU2 Control Unit controls the
firmness of the mattress when it is used with the
optional Airport connector.

12 AccuMax Quantum VPC Mattress and Accumax Quantum VPC Mattress with Airport
Instructions for Use(174152 REV 10)
Bed Exit System
6. If the AccuMax Quantum VPC Mattress with Airport and the optional
control unit are used, then do the steps that follow:
a. Pull the hooks outward from the back of the control unit, and
suspend the control unit from the footboard of the bed frame.
b. Uncoil the power cord, and plug the cord into the appropriate AC
power source.
c. Press the mating connectors in place until you hear a click from
both connectors.
d. Make sure the connectors have a good connection by gently
tugging on both hoses. Make sure that the mattress hose is freely
suspended without being pinched or kinked.
7. Put the patient in position on the mattress:
a. Make sure the patient’s heels are toward the foot end of the
mattress.
b. Make sure the patient is centered on the mattress so his or her
body aligns correctly within the perimeter foam.
c. If the bed has the FlexAfoot Retractable Foot Mechanism, adjust
the heel section for the patient’s height.
BED EXIT SYSTEM
The mattress is compatible with most bed exit systems. The performance
of the bed exit system could be reduced when you use the AccuMax
Quantum VPC Mattress or the AccuMax Quantum VPC Mattress with
Airport. It is recommended to test each bed’s bed exit system when you
install the mattress.
LOW PRESSURE INDICATOR (WHEN THE ACCUMAX
QUANTUM VPC MATTRESS WITH AIRPORT IS INSTALLED
AND THE CU2 CONTROL UNIT IS CONNECTED)
In the event the hose is disconnected from either the CU2 control unit or
the Airport connector, the microprocessor will activate an audiovisual
signal to alert the caregiver by flashing the amber Low Pressure LED and
turning on the buzzer. Once the hose is connected, the alarm will stop and
the control unit will resume operating at its set mode.

AccuMax Quantum VPC Mattress and AccuMax Quantum VPC Mattress with Airport
Instructions for Use (174152 REV 10) 13
Cleaning and Disinfecting
CLEANING AND DISINFECTING
WARNING:
To help prevent injury and/or equipment damage, obey these warnings:
•Warning—The mattress must be cleaned and disinfected per the
cleaning and disinfecting instructions.
•Warning—The potential for electrical shock exists with electrical
equipment. Failure to follow facility protocol could cause death
or serious injury.
•Warning—Before you attempt to clean the control unit, turn off
the unit and disconnect its power cord from the power source.
•Warning—Do not reuse wiping material for multiple steps or on
multiple products.
•Warning—Harmful cleaning solutions may cause skin rash
and/or irritation upon contact. Follow the manufacturer’s
instructions found on the product label and Safety Data Sheet
(SDS).
•Warning—Lift and move items correctly. Do not twist, and seek
assistance when necessary. Make sure the bed is at a correct
height to lift items off the bed.
•Warning—Fluid spills on to the bed electronics could cause a
hazard. If such a spill occurs, unplug the bed and remove it from
service. When fluid spills occur outside of what is seen in normal
use, immediately do as follows:
a. Unplug the bed from its power source.
b. Remove the patient from the bed.
c. Clean the fluid spill from the bed system.
d. Have maintenance examine the system completely.
e. Do not put the bed back into service until it is completely
dry, tested, and found to be safe to operate.

14 AccuMax Quantum VPC Mattress and Accumax Quantum VPC Mattress with Airport
Instructions for Use(174152 REV 10)
Cleaning and Disinfecting
CAUTION:
To help prevent equipment damage, obey these cautions:
•Caution—Do not steam clean or power wash the mattress or
optional control unit. Pressure and excessive moisture can
damage the protective surfaces of the bed and its electrical
components.
•Caution—Do not use harsh cleansers/detergents, heavy duty
grease removers, solvents such as toluene, xylene, or acetone,
and do not use scouring pads (you may use a soft bristle brush).
•Caution—Steam cleaning only approved for model
PAH005010180-EW.
•Caution—Do not use bleach as your primary everyday
cleaner/disinfectant.
•Caution—Fully extend the foot section prior to the cleaning and
disinfection process.
RECOMMENDATIONS
For proper cleaning and disinfection, staff members should be trained.
The trainer should carefully read the instructions and follow them when
the trainee is being trained. The trainee should:
• Be given time to read the instructions and to ask any questions.
• Clean and disinfect the product while the trainer supervises.
During, and/or after this process, the trainer should correct the
trainee of any differences from the instructions for use.
The trainer should supervise the trainee until the trainee can clean and
disinfect the bed as instructed.
Hill-Rom recommends to clean and disinfect the bed and mattress before
first patient use, between patient use, and regularly during extended
patient stays.
Some fluids used in the hospital environment, such as iodophor and zinc
oxide creams, can cause permanent stains. Remove temporary stains by
wiping vigorously with a lightly-dampened wiping cloth.
