Hilti SI-AT-A22 User manual

SIATA22
English 1
Français 20
Español 40
Português 60

1

2
3
4
5

6
7

SIATA22
en Original operating instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 1
fr Moded'emploioriginal ............................... 20
es Manual de instrucciones original . . . . . . . . . . . . . . . . . . . . . . . 40
pt Manual de instruções original . . . . . . . . . . . . . . . . . . . . . . . . . . 60

*2124681* 2124681 English 1
Original operating instructions
1 Information about the documentation
1.1 About this documentation
• Read this documentation before initial operation or use. This is a
prerequisite for safe, trouble-free handling and use of the product.
• Observe the safety instructions and warnings in this documentation and
on the product.
• Always keep the operating instructions with the product and make sure
that the operating instructions are with the product when it is given to
other persons.
1.2 Explanation of symbols used
1.2.1 Warnings
Warnings alert persons to hazards that occur when handling or using the
product. The following signal words are used:
DANGER
DANGER !
▶Draws attention to imminent danger that will lead to serious personal
injury or fatality.
WARNING
WARNING !
▶Draws attention to a potential threat of danger that can lead to serious
injury or fatality.
CAUTION
CAUTION !
▶Draws attention to a potentially dangerous situation that could lead to
slight personal injury or damage to the equipment or other property.
1.2.2 Symbols in the documentation
The following symbols are used in this document:
Read the operating instructions before use.
Instructions for use and other useful information
Dealing with recyclable materials
Do not dispose of electric equipment and batteries as household
waste

2 English 2124681 *2124681*
1.2.3 Symbols in the illustrations
The following symbols are used in illustrations:
These numbers refer to the corresponding illustrations found at the
beginning of these operating instructions
The numbering reflects the sequence of operations shown in the
illustrations and may deviate from the steps described in the text
Item reference numbers are used in the overview illustrations and
refer to the numbers used in the product overview section
This symbol is intended to draw special attention to certain points
when handling the product.
1.3 Product-dependent symbols
1.3.1 Symbols on the product
The following symbols are used on the product:
Direct current (DC)
1.4 Product information
products are designed for professional users and only trained,
authorized personnel are permitted to operate, service and maintain the
products. This personnel must be specifically informed about the possible
hazards. The product and its ancillary equipment can present hazards if
used incorrectly by untrained personnel or if used not in accordance with
the intended use.
The type designation and serial number are printed on the rating plate.
▶Write down the serial number in the table below. You will be required to
state the product details when contacting Hilti Service or your local Hilti
organization to inquire about the product.
Product information
Type SIATA22
Generation 01
Serial no.
2 Safety
2.1 Safety precautions
▶Observe the safety precautions in the operating instructions for the
wrench.

*2124681* 2124681 English 3
3 Description

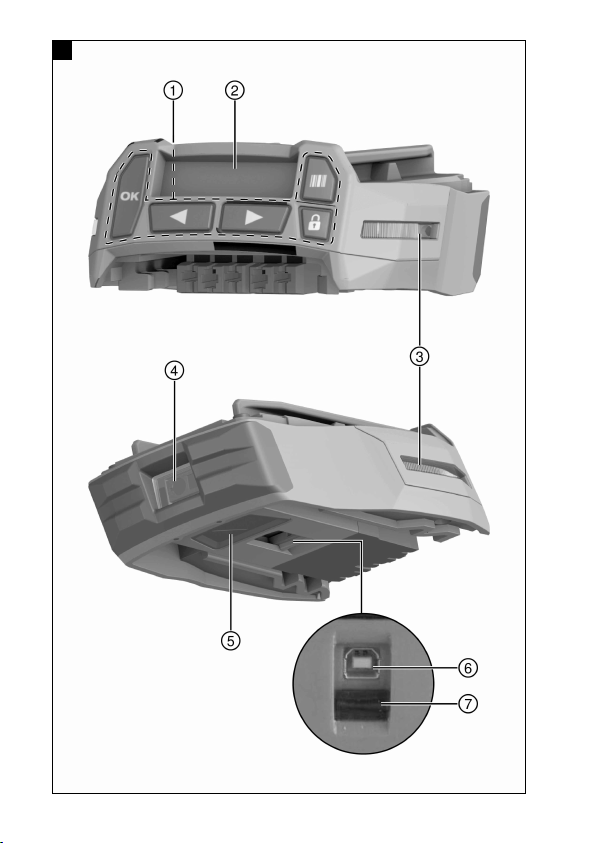

3.1 Adaptive torque module 1
@Control panel buttons
;Liquid crystal display
=Indicator LEDs
%Barcode scanner
&Release button
(USB port
)USB port cover (shown open
in the illustration)
3.2 Control panel buttons 2
@OK button
;Left arrow button
=Right arrow button
%Lock button
&Scan button
3.3 Intended use
The product described is an electronic module that can be used with Hilti
impact wrenches of the types SI… …ATA22 ("…" = any character) to tighten
threaded fasteners under controlled conditions, thereby safeguarding the
quality of the bolted connection. A record of the work carried out is saved
in the module and can be read out, for documentation purposes, using the
AT Documentation Software PC application.
It is not possible to set a torque with this module!
• Use only Hilti lithiumion batteries of the B 22 series with this product.
• Use only Hilti-approved battery chargers to charge these batteries. More
information is available from your Hilti Store or from www.hilti.group
• Use only the impact sockets described in the operating instructions of the
relevant product to tighten Hlti fasteners.
3.4 Possible misuse
This product is not suitable for Hilti fasteners in nuclear power plants!
3.5 Indicator LEDs
The LEDs on each side of the module indicate the following:
Status Meaning
The LEDs show green. • When scanning: the barcode or
QR code has been recognized.
• When tightening, after the impact
wrench has switched off auto-
matically: the tightening operation
was completed successfully.

4 English 2124681 *2124681*
Status Meaning
The LEDs flash red. • When scanning: the barcode or
QR code was not recognized.
• When tightening, after the im-
pact wrench switches off: The
threaded fastener could not be
tightened in accordance with the
selected settings. The reason for
this could be, for example, that
the impact wrench was switched
off manually.
The LEDs flash yellow. The module detected that the
threaded fastener had been
tightened and subsequently
slackened. Consequently, the
threaded fastener has been
retightened in accordance with
defined parameters for retightening,
and the tightening operation has
been completed successfully.
3.6 Buzzer
The buzzer in the adaptive torque module emits the following signal tones
as audible feedback:
• Long buzz: Confirmation signal (OK / operation completed successfully)
• 2 short buzzes, the LEDs flash yellow: Warning 1 (OK or, as applicable,
not OK / repeat tightening)
• 4 short buzzes, the LEDs flash red: Warning 2 (not OK / operation aborted)
3.7 USB connection
The USB port can be used to connect the adaptive torque module to a PC.
When this connection is made, the AT Documentation Software offers a
range of functions, including:
• Adding new data records for new fasteners
• Changing / updating existing data records
• Deactivating / activating the documentation function
• Loading the log from the documentation function
• Setting the clock in the torque module

*2124681* 2124681 English 5
Further information can be found in the documentation for the
AT Documentation Software.
The software can be downloaded from here:
http://www.hilti.com/adaptive_torque_documentation_software
3.8 Items supplied
Adaptive torque module, operating instructions, quick-start guide, USB
cable.
Other system products approved for use with this product can be found at
your local Hilti Store or at: www.hilti.group
4 Technical data
Weight 0.57 lb
(0.26 kg)
Bar code scanner Camera / scanner (imager)
5 Operation
5.1 Inserting the adaptive torque module 3
WARNING
Risk of short circuit !
▶Before inserting the torque module, make sure that the contacts on the
torque module and the contacts on the impact wrench are free of foreign
matter.
WARNING
Risk of injury by a falling torque module !
▶Check that the torque module is secure on the impact wrench.
▶Push the torque module on to the impact wrench from the rear until it
engages with an audible click.
5.2 Inserting the battery 4
WARNING
Risk of short circuit !
▶Before inserting the battery, make sure that the contacts on the battery
and the contacts on the torque module are free of foreign matter.
WARNING
Risk of injury by a falling battery !
▶Check that the battery is secure on the torque module.

6 English 2124681 *2124681*
▶Push the battery on to the torque module from the rear until it engages
with an audible click.
5.3 Switching on and off
5.3.1 Switching on the torque module
Conditions: The torque module is switched off, the display is blank.
1. Set the forward/reverse switch on the impact wrench to the "forward"
position.
2. Short-press the control switch on the impact wrench.
▶The display lights up and briefly shows the start screen.
▶As a function check the LEDs briefly show red and yellow, before
turning green. An acoustic signal sounds.
▶The last operating mode selected appears inside a selection frame on
the display.
▶If the display shows a fault:
▶Refer to the "Troubleshooting”" section for information about pos-
sible causes of error messages and the steps to be taken to rectify
the problem.
3. Press the lock button.
▶The torque module is now locked and the impact wrench is ready for
use.
5.3.2 Switching off the torque module
The adaptive torque module switches itself off automatically:
• when the impact wrench switches off automatically after a long idle period
• when the battery is removed
• when a USB connector is unplugged, interrupting the USB connection
between the torque module and the PC.
5.4 Basic operation
This section explains the most frequently used basic functions in order
to illustrate how the module is used. A detailed description of certain
operations can be found in the sections covering specific applications.
Unlocking the module
The adaptive torque module has to be unlocked before changes can be
made to the settings.

*2124681* 2124681 English 7
▶To unlock the adaptive torque module, press the lock button and hold
it down for at least 1 second.
▶In the display a selection frame appears around the last previously
shown type of fastener and the last previously shown operating mode.
▶The torque module is unlocked and in setting mode. The impact wrench
is deactivated.
Navigation
When the selection frame and two or more elements (options, parameters)
are visible in the display, you can move the selection frame by pressing the
arrow buttons and .
Selecting options / changing parameters
When the torque module is unlocked, you can change options or parameters
as described below.
▶Position the selection frame in the display on the element (option /
parameter) you want to change.
▶Press the OK button.
▶A black background appears behind the element.
▶Use the arrow buttons to select the setting you want.
▶Press the OK button to accept the setting.
▶The element reappears surrounded by the selection frame.
Locking the module
When you have made all your changes you have to relock the adaptive
torque module.
▶Press the lock button .
▶The selection frame disappears. Your operating parameters settings
have now been saved and cannot be changed accidentally.
▶The adaptive torque module is locked and the impact wrench is
reactivated.
5.5 Basic settings
5.5.1 Calling up the "Basic settings" menu
1. If it is locked, unlock the torque module by pressing the lock button and
holding it down for at least 1 second.
2. Press the OK button and hold it down for at least 1 second.
▶The "Basic settings" menu appears on the display.

8 English 2124681 *2124681*
5.5.2 Selecting functions from the basic settings menu
1. Use the arrow buttons to move the selection frame to the symbol for the
desired function.
Functions in the "Basic settings" menu
Sym-
bol
Function
Show the date and time set in the torque module's clock
The AT Documentation Software has to be used to set the
clock.
Show the remaining time / period of use until servicing of the im-
pact wrench is due
Show the percentage of memory used in the torque module
When the reading reaches 100%, the oldest data will be overwrit-
ten.
You can use the AT Documentation Software to export the
logged data and clear the torque module's memory.
Show the version of the software installed in the torque module
Exit the "Basic settings" menu
2. Press the OK button.
5.5.3 Display showing maintenance status / remaining period of use
After activation of the symbol in the basic settings menu the remaining
period of use of the impact wrench until the next service is shown in the
following display screens.
Irrespective of what is shown in the display, the impact wrench must be
serviced at least once a year in order to ensure the quality of the bolt
fastenings made with it.
Display icons for maintenance status of the impact wrench
Display Meaning
The impact wrench is in good condition, no maintenance
required in the foreseeable future.
Maintenance of the impact wrench will soon be due.
The segments in the rectangle on the right in the display
indicate residual usage period.
Maintenance of the impact wrench must be carried out im-
mediately.
This warning appears automatically when the residual usage
period expires. The "Adaptive" and "Tightening" operating
modes can no longer be selected.

*2124681* 2124681 English 9
5.5.4 Leaving the basic settings menu
1. Move the selection frame to the symbol.
2. Press the OK button.
▶The last previously shown operating mode will be displayed.
5.6 Operating modes
The descriptions of the individual operating modes below apply only
to forward rotation of the impact wrench (tightening). In reverse
(slackening), the action of the impact wrench is not controlled.
5.6.1 Adaptive operation
In this operating mode the adaptive torque module regulates the tightening
of the selected type of threaded fastener. The tightening parameters from
the most recently installed software update are used. Product designations
and tightening parameters can change, so it essential to ensure that the
software version installed in the torque module is always up to date.
• When the "Adaptive" operating mode is selected, the impact
wrench's "AT" torque indicator lights up.
• The switch for selecting the operating stage is not active. But you can
use the control switch to turn the impact wrench ON and OFF.
Follow the operating instructions for your impact wrench.

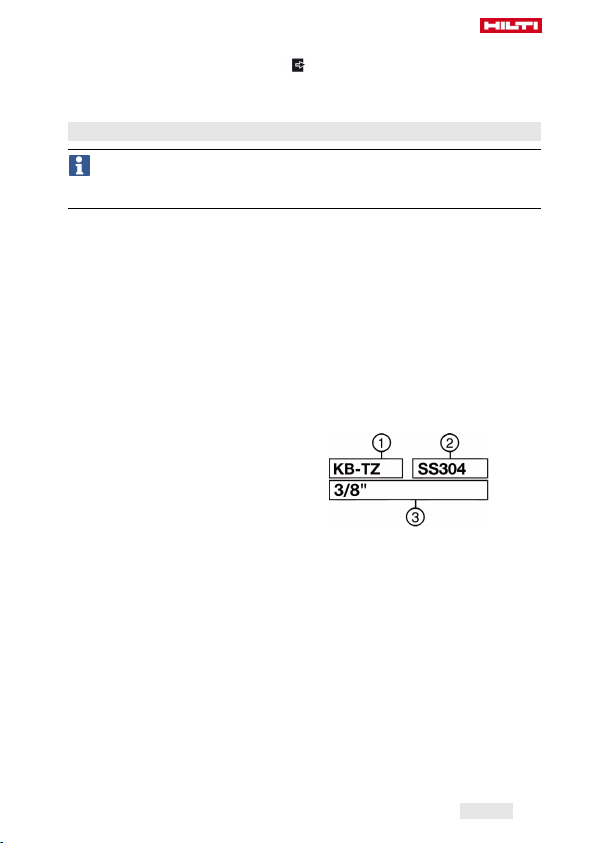

Parameters in adaptive operating mode
@Type of threaded fastener (short
name for fastener)
;Material grade / quality
=Diameter (optional)
The illustration shows the layout of the operating parameters on the display.
Type of threaded fastener
Parameters for various types of threaded fastener are saved ex-works in the
torque module.
The fastener shown must correspond to the fastener used.
Further information can be found in the quick-start guide of the SI-AT-A22
and in the operating instructions of the product you use.
5.6.2 "Tightening" operating mode
In this operating mode a total of 30 torque settings are available. The setting
to be selected for a particular type of fastener depends on the diameter of
the fastener and the specified torque. The setting has to be determined step
by step on the basis of these data.
For the "Tightening" operating mode, the display shows the following:

10 English 2124681 *2124681*
The number to the right of the threaded-fastener symbol shows the selected
setting.
5.6.2.1 Determining the required setting for the "Tightening" operating
mode
1. ATTENTION: Before starting to tighten a threaded fastener, always
check that the mating faces of the components to be joined are seated
flat against each other and that the nut has been screwed down until it is
seated against the component.
2. Use a low setting for initial tightening of the fastener.
▶Start the step-by-step process with as low a setting as possible, to
avoid the possibility of overtightening and damaging the fastener.
3. Use a calibrated torque wrench to check the torque applied to the fastener.
For repeatable torquing of two or more identical fasteners, make sure
that all torquing conditions remain unchanged. A change in torquing
conditions can necessitate a change to a different stage.
Result 1 / 3
The specified tightening torque of the fastener to be tightened was not
achieved.
▶Back off the fastener and set the torque module to a higher stage.
▶Tighten the fastener with the new stage setting and repeat this test
step.
Result 2 / 3
The specified tightening torque of the fastener to be tightened was
exceeded.
▶Back off the fastener and set the torque module to a lower stage.
▶Tighten the fastener with the new stage setting and repeat this test
step.
Result 3 / 3
The fastener was tightened to the specified tightening torque.
This stage setting is correct for this fastener.
5.6.3 "Unregulated" operating mode
In this operating mode the adaptive torque module is deactivated. The
impact wrench works as though the adaptive torque module were not fitted
to the tool. The adaptive torque module therefore does not have to be
actually removed when it is not needed for short periods of use.
In the "Unregulated" operating mode the display shows the following:

*2124681* 2124681 English 11
In "Unregulated" mode the impact
wrench's "AT" torque indicator
does not light up, but the button
on the impact wrench for selecting
the various stages is operational.
5.7 Setting the operating mode
There are 2 ways of setting the operating mode to suit the type of fastener:
• Scan the barcode or QR code on the packaging of the Hilti product you
are going to tighten.
• Manual adjustment using the buttons on the torque module
Scanning the barcode or QR code
If a barcode or a QR code is available for the Hilti product to be tightened,
the operating mode can be set correctly for the product quickly and easily
by scanning the code.
▶Set the operating mode by scanning the barcode or QR code. → page 11
Manual adjustment
If no barcode or QR code is available for the product to be tightened, the
operating mode can be set by using the buttons on the torque module.
The "Unregulated" operating mode can be set only manually.
▶Select the operating mode with the control panel buttons. → page 11
5.7.1 Setting the operating mode with the control panel buttons
1. Unlock the torque module. → page 6
2. Use the arrow buttons to move the selection frame, as necessary, to the
option you want to change.
3. Press the OK button.
▶A black background appears behind the option you selected.
4. Use the arrow buttons to select the desired setting.
5. Press the OK button.
▶The selected setting appears in the selection frame.
6. Repeat the last 3 steps as necessary to make other changes.
7. Lock the torque module. → page 6
5.7.2 Setting the operating mode by scanning the barcode or QR code
5
1. Unlock the torque module. → page 6
2. Press the "Scan" button.
▶The scanner is activated and the symbol appears on the display to
indicate that the scanner is ready.

12 English 2124681 *2124681*
3. Hold the module facing the barcode or QR code at a distance of
approx. 15 centimeters (6″), so that the code is inside the frame projected
by the scanner.
▶The LEDs show green.
▶The confirmation tone sounds.
▶The operating mode for the product to be tightened appears on the
display.
▶The LEDs flash red.
▶The warning tone sounds.
▶appears on the display (code could not be read or was not
recognized).
▶Press the "Scan" button and scan the code again.
Operating parameters for the product to be tightened might
not yet be available in the torque module's memory. If the
product is SI-AT-compatible, you can scan the QR code of the
corresponding product in the SI-AT-A22 operating instructions.
In this way you can write the operating parameters into the
memory of the SI-AT module. The operating parameters for the
product can also be uploaded to the torque module via USB with
the AT Documentation Software. Regularly check for updates
to the software installed in the torque module in order to ensure
that the latest parameters are always applied.
4. Lock the torque module. → page 6
5.8 Tightening the threaded fastener in "Adaptive" operating mode
Before using the torque module, make sure that the threaded fastener
to be tightened is correctly installed. Follow the instructions in the
operating instructions of the product to be tightened and the information
on checking the fasteners.
1. Select the "Adaptive" operating mode.
2. Set the forward/reverse switch to the "Forward" position.
3. Install a suitable accessory tool on the impact wrench and engage the
product to be tightened.
4. Press the control switch and hold it down until the torque module returns
one of the following feedback signals:

*2124681* 2124681 English 13
Result 1 / 4
• The symbol indicating "Tighten-
ing completed successfully" is dis-
played.
• The LEDs show green.
• The confirmation tone sounds.
The fastener was tightened correctly.
Proceed with the next fastener of the
same type.
Result 2 / 4
• The symbol indicating "Retighten-
ing completed successfully" is dis-
played.
• The LEDs flash yellow.
• The warning tone sounds.
A threaded fastener that had
been tightened and subsequently
slackened has been re-tightened.
INFO: If the fastener had not been
correctly tightened beforehand, use
a calibrated torque wrench to check
and, if necessary, tighten to the
correct tightening torque.
Result 3 / 4
• The symbols indicating "Battery
voltage too low" are displayed.
• The LEDs flash red.
The battery does not have enough
power left for tightening the next fas-
tener.
▶Press the OK button to confirm the
message.
▶Insert a charged battery.
Result 4 / 4
• The symbols indicating "Tighten-
ing not completed correctly" are
displayed.
• The LEDs flash red.
• The warning tone sounds.
▶Use a calibrated torque wrench to
apply the correct tightening torque
to the fastener.

14 English 2124681 *2124681*
5.9 Tightening the threaded fastener in "Tightening" operating mode
1. Select the "Tightening" operating mode.
2. Determine the tightening setting for the threaded fastener to be tightened
→ page 10 and select this setting.
3. Set the forward/reverse switch to the "Forward" position.
4. Install a suitable accessory tool on the impact wrench and engage the
product to be tightened.
5. Press the control switch and hold it down until the torque module returns
one of the following feedback signals:
Result 1 / 2
• The symbol indicating "Tighten-
ing completed successfully" is dis-
played.
• The LEDs show green.
• The confirmation tone sounds.
The fastener was tightened correctly.
You can continue directly to the next
fastener of the same type.
Result 2 / 2
• The symbols indicating "Tighten-
ing not completed correctly" are
displayed.
• The LEDs flash red.
• The warning tone sounds.
▶Use a calibrated torque wrench to
apply the correct tightening torque
to the fastener.
5.10 Checking fastener
All Hilti products are subject to a process of constant updating, which means
that products not described in this documentation might also be supported
by the SI-AT module. Keep the software and the operating instructions up
to date at all times.
Other system products approved for use with this product, the latest
operating instructions and instructions for testing can be found online at:
www.hilti.group | USA: www.hilti.com.
