Original operating instructions
1 Information about the operating instructions
1.1 About these operating instructions
•Warning! Read and understand all accompanying documentation, including but not limited to instruc-
tions, safety warnings, illustrations, and specifications provided with this product. Familiarize yourself
with all the instructions, safety warnings, illustrations, specifications, components, and functions of the
product before use. Failure to do so may result in electric shock, fire, and/or serious injury. Save all
warnings and instructions for future reference.
•products are designed for professional users and only trained, authorized personnel are
permitted to operate, service and maintain the products. This personnel must be specifically informed
about the possible hazards. The product and its ancillary equipment can present hazards if used
incorrectly by untrained personnel or if used not in accordance with the intended use.
• The accompanying documentation corresponds to the current state of the art at the time of printing.
Please always check for the latest version on the product’s page on Hilti’s website. To do this, follow the
link or scan the QR code in this documentation, marked with the symbol .
• Ensure that these operating instructions are with the product when it is given to other persons.
1.2 Explanation of symbols
1.2.1 Warnings
Warnings alert persons to hazards that occur when handling or using the product. The following signal words
are used:
DANGER
DANGER !
▶Draws attention to imminent danger that will lead to serious personal injury or fatality.
WARNING
WARNING !
▶Draws attention to a potential threat of danger that can lead to serious injury or fatality.
CAUTION
CAUTION !
▶Draws attention to a potentially dangerous situation that could lead to personal injury or damage to the
equipment or other property.
1.2.2 Symbols in the operating instructions
The following symbols are used in these operating instructions:
Comply with the operating instructions
Instructions for use and other useful information
Dealing with recyclable materials
Do not dispose of electric equipment and batteries as household waste
Hilti Liion battery
Hilti charger
1.2.3 Symbols in illustrations
The following symbols are used in illustrations:

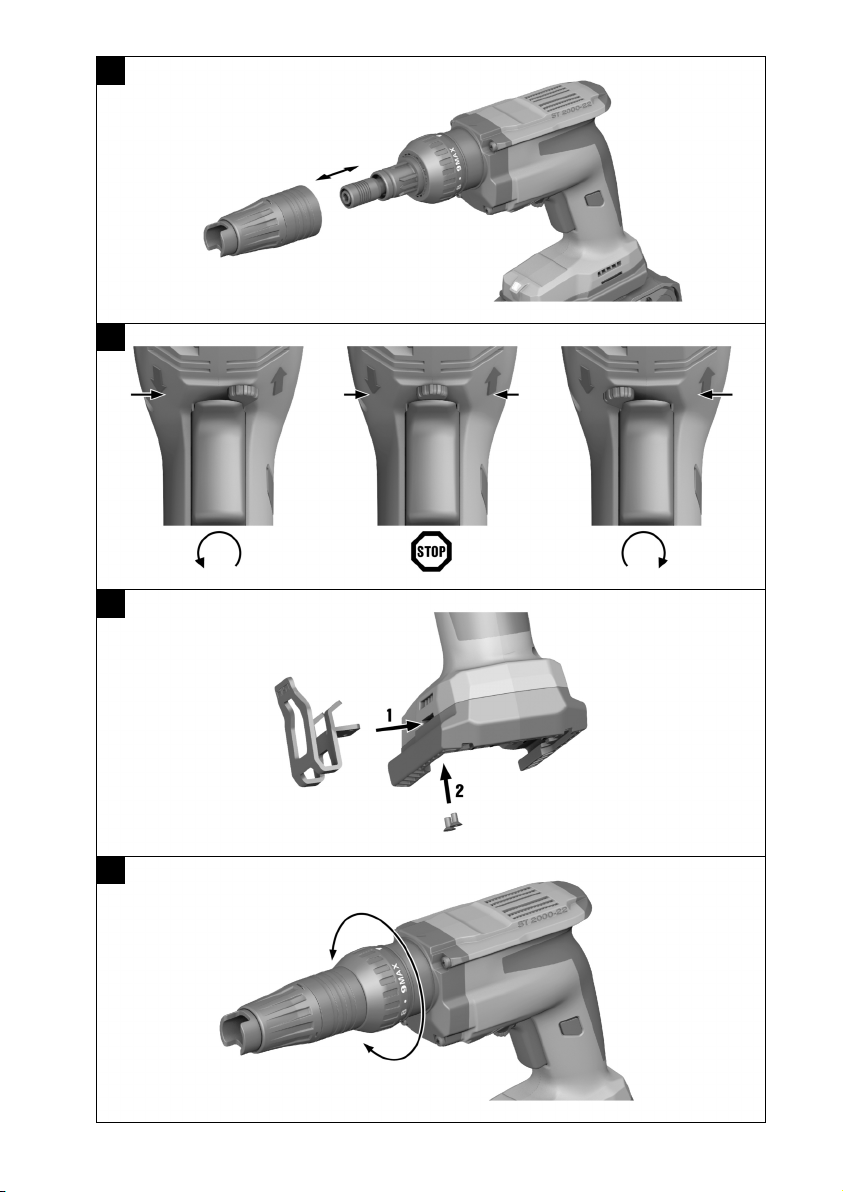

These numbers refer to the illustrations at the beginning of these operating instructions.

2 English 2383936 *2383936*
The numbers in illustrations refer to important work steps or to components important for the
work steps. In the text, the corresponding numbers draw attention to these work steps or compo-
nents, e.g. (3).
Item reference numbers are used in the overview illustration and refer to the numbers used in
the key in the product overview section.
This symbol is intended to draw your special attention to certain points for handling the product.

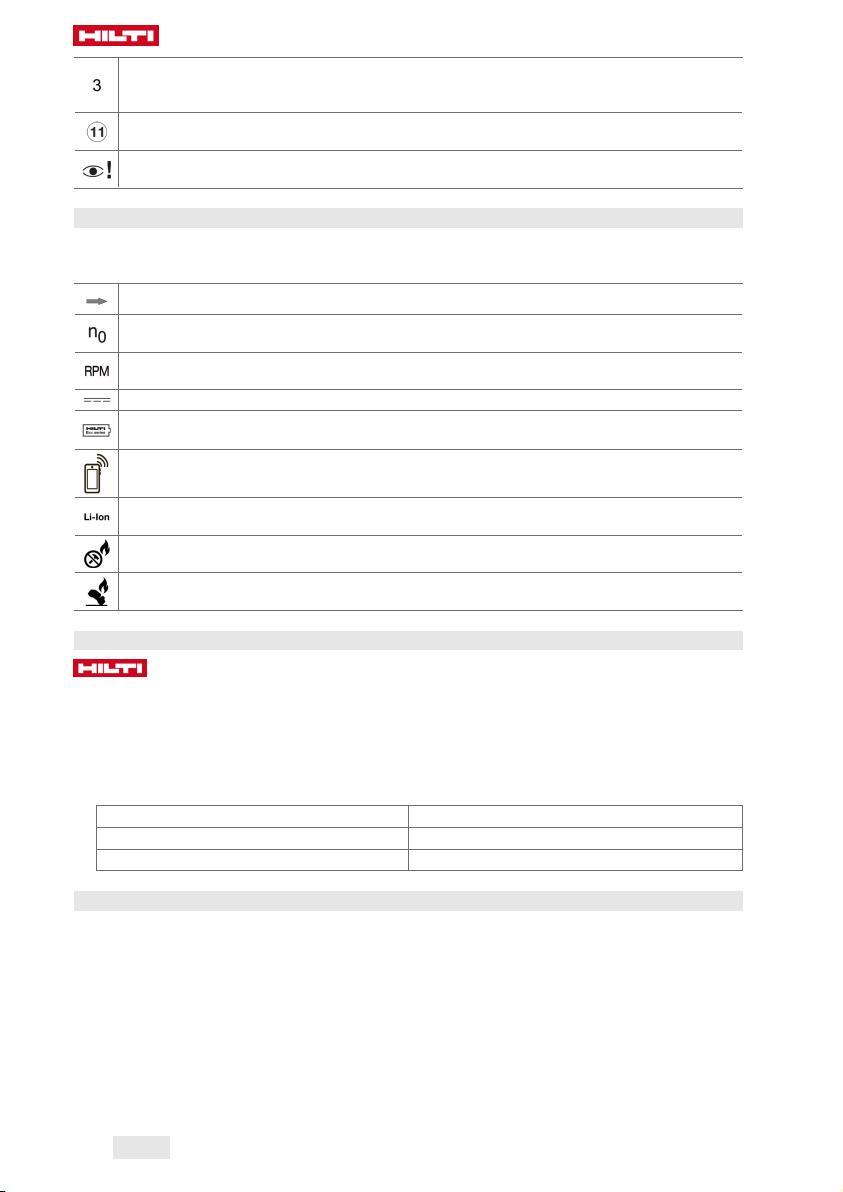

1.3 Product-dependent symbols
1.3.1 General symbols
Symbols used in relation to the product.
Forward / reverse
Rated speed under no load
Revolutions per minute
Direct current (DC)
Hilti Li-ion battery type series used. Observe the information given in the section headed Intend-
ed use.
The product supports near-field communication (NFC) technology compatible with iOS and
Android platforms.
Li-ion battery
Never use the battery as a striking tool.
Do not drop the battery. Never use a battery that has suffered an impact or is damaged in any
other way.
1.4 Product information
products are designed for professional users and only trained, authorized personnel are
permitted to operate, service and maintain the products. This personnel must be specifically informed about
the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by
untrained personnel or if used not in accordance with the intended use.
The type designation and serial number are printed on the rating plate.
▶Write down the serial number in the table below. You will be required to state the product details when
contacting Hilti Service or your local Hilti organization to inquire about the product.
Product information
Metal construction screwdriver ST 200022
Generation 02
Serial no.
1.5 Declaration of conformity
The manufacturer declares, on his sole responsibility, that the product described here complies with the
applicable legislation and standards. A copy of the declaration of conformity can be found at the end of this
documentation.
The technical documentation is filed here:
Hilti Entwicklungsgesellschaft mbH | Tool Certification | Hiltistrasse 6 | D-86916 Kaufering, Germany

*2383936* 2383936 English 3
2 Safety
2.1 General power tool safety warnings
WARNING Read all safety warnings, instructions, illustrations and specifications provided with this
power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
▶Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
Electrical safety
▶Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
▶Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
▶Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the
risk of electric shock.
▶When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
▶If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
▶Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
▶Use personal protective equipment. Always wear eye protection. Protective equipment such as a
dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will
reduce personal injuries.
▶Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on
the switch or energising power tools that have the switch on invites accidents.
▶Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
▶Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
▶Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
▶If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
▶Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore
tool safety principles. A careless action can cause severe injury within a fraction of a second.
Power tool use and care
▶Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
▶Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
▶Disconnect the plug from the power source and/or remove the battery pack, if detachable, from
the power tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.

4 English 2383936 *2383936*
▶Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
▶Maintain power tools and accessories. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained power
tools.
▶Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
▶Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
▶Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
Battery tool use and care
▶Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with another battery pack.
▶Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and fire.
▶When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
▶Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
▶Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may
exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
▶Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature
above 130° C (265 °F) may cause explosion.
▶Follow all charging instructions and do not charge the battery pack or tool outside the temperature
range specified in the instructions. Charging improperly or at temperatures outside the specified range
may damage the battery and increase the risk of fire.
Service
▶Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
▶Never service damaged battery packs. Service of battery packs should only be performed by the
manufacturer or authorized service providers.
2.2 Safety warnings for screwdrivers and impact wrenches
▶Hold the power tool by insulated gripping surfaces, when performing an operation where the
fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts
of the power tool "live" and could give the operator an electric shock.
2.3 Additional safety instructions for torquing threaded fasteners
Personal safety
▶Use the product and accessories only when they are in perfect working order.
▶Never tamper with or modify the product or accessories in any way.
▶Use auxiliary handles supplied with the product. Loss of control can cause personal injury.
▶Hold the product securely by the grips provided. If possible, use both hands to hold the product securely.
Keep the grips clean and dry.
▶Avoid touching rotating parts – risk of injury!
▶Wear suitable eye protection, a hard hat, ear protection, and light respiratory protection while the product
is in use.
▶Wear protective gloves when changing the accessory tool. Touching the accessory tool can result in
cuts and burns.
▶Wear eye protection. Flying fragments present a risk of injury to the body and eyes.

*2383936* 2383936 English 5
▶Dust produced by grinding, sanding, cutting and drilling can contain dangerous chemicals. Some
examples are: lead or lead-based paints; brick, concrete and other masonry products, natural stone
and other products containing silicates; certain types of wood, such as oak, beech and chemically
treated wood; asbestos or materials that contain asbestos. Determine the exposure of the operator and
bystanders by means of the hazard classification of the materials to be worked. Implement the necessary
measures to restrict exposure to a safe level, for example by the use of a dust collection system or by
the wearing of suitable respiratory protection. The general measures for reducing exposure include:
▶working in an area that is well ventilated,
▶avoidance of prolonged contact with dust,
▶directing dust away from the face and body,
▶wearing protective clothing and washing exposed areas of the skin with water and soap.
▶Take frequent breaks and do physical exercises to improve the blood circulation in your fingers. High
vibration during long periods of work can lead to disorders of the blood vessels and nervous system in
the fingers, hands and wrists.
Electrical safety
▶Before beginning work, check the working area for concealed electric cables or gas and water pipes.
External metal parts of the product could give you an electric shock or cause an explosion if you
accidentally damage an electric cable or a gas or water pipe.
Power tool use and care
▶Switch the product off immediately if the accessory tool jams. The product might twist off-line.
▶Wait until the product stops completely before you lay it down.
2.4 Additional safety instructions
▶Use the product and accessories only when they are in perfect working order.
▶Never tamper with or modify the product or accessories in any way.
▶Risk of injury by falling tools and/or accessories. Before starting work, check that the battery and installed
accessories are secure.
▶Dust produced by grinding, sanding, cutting and drilling can contain dangerous chemicals. Some
examples are: lead or lead-based paints; brick, concrete and other masonry products, natural stone
and other products containing silicates; certain types of wood, such as oak, beech and chemically
treated wood; asbestos or materials that contain asbestos. Determine the exposure of the operator and
bystanders by means of the hazard classification of the materials to be worked. Implement the necessary
measures to restrict exposure to a safe level, for example by the use of a dust collection system or by
the wearing of suitable respiratory protection. The general measures for reducing exposure include:
▶working in an area that is well ventilated,
▶avoidance of prolonged contact with dust,
▶directing dust away from the face and body,
▶wearing protective clothing and washing exposed areas of the skin with water and soap.
▶Do not look directly into the light source (LEDs) incorporated in the power tool and do not direct the light
at other persons’ faces.
▶Keep the air vents clear at all times. Risk of burn injuries due to blocked air vents!
▶Always hold the tool securely by the grip. The drill/driver can suddenly rotate around its own axis while
torquing is in progress
2.5 Careful handling and use of batteries
▶Comply with the following safety instructions for the safe handling and use of Li-ion batteries.
Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosion.
▶Use only batteries that are in perfect working order.
▶Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely
harmful to health!
▶Do not under any circumstances modify or tamper with batteries!
▶Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80 °C
(176 °F).
▶Never use or charge a battery that has suffered an impact or been damaged in any other way. Check
your batteries regularly for signs of damage.
▶Never use recycled or repaired batteries.
▶Never use the battery or a battery-operated power tool as a striking tool.

6 English 2383936 *2383936*
▶Never expose batteries to the direct rays of the sun, elevated temperature, sparking, or open flame. This
can lead to explosions.
▶Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects.
This can damage the battery and also cause material damage and personal injury.
▶Keep batteries away from rain, moisture and liquids. Penetrating moisture can cause short circuits,
electric shock, burns, fire and explosions.
▶Use only chargers and power tools approved for the specific battery type. Read and follow the relevant
operating instructions.
▶Do not use or store the battery in explosive environments.
▶If the battery is too hot to touch, it may be defective. Put the battery in a place where it is clearly visible
and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery to
cool down. If it is still too hot to touch after an hour, the battery is faulty. Consult Hilti Service or read the
document entitled "Instructions on safety and use for Hilti Li-ion batteries".
Observe the special guidelines applicable to the transport, storage and use of lithium-ion batteries.
Read the instructions on safety and use of Hilti Li-ion batteries that you can access by scanning
the QR code at the end of these operating instructions.
3 Description
3.1 Product overview 1
@Tool holder
;Interface to depth gauge (ST-DG) and screw
guide (ST-SG)
=Torque adjustment
%Interface to stand-up tool (SDT)
&Air intake
(Grip
)Air discharge
+Lockbutton
§Installation opening for accessories
/Battery
:Battery status indicator
∙Battery release button
$Work-area light
£Control switch
|Forward/reverse switch / transport lock
¡Depth gauge adjustment (optional)
QDepth gauge (optional)
3.2 Intended use
The product described is a hand-held cordless screwdriver for fastening profile metal sheets, metal sheets
and sandwich panels in metal construction.
• For this product, use only Hilti Nuron lithium-ion batteries of the B 22 series. For optimum performance,
Hilti recommends the batteries stated in the table at the end of these operating instructions for this
product.
• For these batteries, use only Hilti chargers of the type series stated in the table at the end of these
operating instructions.
3.3 Overloading and overheating protection
The product is protected against overloading and overheating by an automatic cut-out. After overheating,
when the control switch is pressed to restart the product there may be a delay before the product restarts.

*2383936* 2383936 English 7
3.4 Items supplied
Metal construction screwdriver, depth gauge, bit holder, belt hook, operating instructions
Other system products approved for use with this product can be found at your local Hilti Store or at:
www.hilti.group
3.5 Status indicators of the Liion battery
Hilti Nuron Li-ion batteries can indicate state of charge, fault messages and the battery's state of health.
3.5.1 Indicators for state of charge and fault messages
WARNING
Risk of injury by a falling battery!
▶If the release button is pressed with a battery inserted in the product, subsequently check that the battery
is correctly re-engaged and secure.
Short-press the release button of the battery to get whichever of the following status indications is applicable
at the time.
State of charge and, if applicable, faults are indicated constantly as long as the connected product is
switched on.
Status Meaning
Four (4) LEDs show constantly green State of charge: 100 % to 71 %
Three (3) LEDs show constantly green State of charge: 70 % to 51 %
Two (2) LEDs show constantly green State of charge: 50 % to 26 %
One (1) LED shows constantly green State of charge: 25 % to 10 %
One (1) LED slow-flashes green State of charge: < 10 %
One (1) LED quick-flashes green The Li-ion battery is completely discharged.
Recharge the battery.
If the LED again starts quick-flashing after the bat-
tery has been charged, consult Hilti Service.
One (1) LED quick-flashes yellow The Li-ion battery or the product in which it is in-
serted is overloaded, too hot or too cold, or experi-
encing some other fault.
Bring the product and the battery to the recom-
mended working temperature and do not overload
the product when it is in use.
If the message persists, consult Hilti Service.
One (1) LED shows yellow The Li-ion battery and the product in which it is
inserted are not compatible. Consult Hilti Service.
One (1) LED quick-flashes red The Li-ion battery is locked and cannot be used.
Consult Hilti Service.
3.5.2 Indicators showing the battery's state of health
To check the battery's state of health, press the release button and hold it down for longer than three
seconds. The system does not detect a potential malfunction of the battery due to misuse, for example
battery dropped or pierced, external heat damage, etc.
Status Meaning
All LEDs show in sequence, followed by one (1)
LED showing constantly green.
The battery can remain in use.
All LEDs show in sequence, followed by one (1)
LED quick-flashing yellow.
The check to ascertain the battery's state of health
did not complete. Repeat the procedure, or consult
Hilti Service.

8 English 2383936 *2383936*
Status Meaning
All LEDs show in sequence, followed by one (1)
LED showing constantly red.
If a connected product can still be used, the re-
maining battery capacity is below 50 %.
If a connected product can no longer be used, the
battery has reached the end of its useful life and
has to be replaced. Consult Hilti Service.
4 Technical data
4.1 Product information
Rated voltage 21.6 VDC
Rated speed under no load 0 /min … 2,000 /min
Weight in accordance with EPTA-Procedure 01, without battery 1.4 kg
Torque 12.5 Nm
Tool holder 1/4″ Innensechskant mit
Sicherungsmanschette
Ambient temperature for operation −17 ℃ … 60 ℃
Storage temperature −20 ℃ … 70 ℃
4.2 Battery
Battery operating voltage 21.6 V
Weight, battery See the end of these operating
instructions
Ambient temperature for operation −17 ℃ … 60 ℃
Storage temperature −20 ℃ … 40 ℃
Battery charging starting temperature −10 ℃ … 45 ℃
4.3 Noise information and vibration values in accordance with EN 62841
The sound pressure and vibration values given in these instructions were measured in accordance with a
standardized test and can be used to compare one power tool with another. They can also be used for a
preliminary assessment of exposure.
The data given represent the main applications of the power tool. However, if the power tool is used for
different applications, with different accessory tools, or is poorly maintained, the data can vary. This can
significantly increase exposure over the total working period.
An accurate estimation of exposure should also take into account the times when the power tool is switched
off, or when it is running but not actually being used for a job. This can significantly reduce exposure over
the total working period.
Identify additional safety measures to protect the operator from the effects of noise and/or vibration, for
example: maintaining the power tool and accessory tools, keeping the hands warm, organization of work
patterns.
Noise information
Sound (power) level (L WA)84 dB(A)
Sound pressure level (LpA)73 dB(A)
Uncertainty (noise values) (LpA und LWA)5 dB(A)
Total vibration
Screwdriving (an) B 2255 0.7 m/s²
B 22255 0.5 m/s²
Uncertainty (total vibration) 1.5 m/s²

*2383936* 2383936 English 9
5 Preparations at the workplace
WARNING
Risk of injury by inadvertent starting!
▶Before inserting the battery, make sure that the product is switched off.
▶Remove the battery before making any adjustments to the power tool or before changing accessories.
Observe the safety instructions and warnings in this documentation and on the product.
5.1 Charging the battery
1. Before charging the battery, read the operating instructions for the charger.
2. Make sure that the contacts on the battery and the contacts on the charger are clean and dry.
3. Use an approved charger to charge the battery. → page 6
5.2 Inserting the battery
WARNING
Risk of injury by short circuit or falling battery!
▶Before inserting the battery, make sure that the contacts on the battery and the contacts on the product
are free of foreign matter.
▶Make sure that the battery always engages correctly.
1. Charge the battery fully before using it for the first time.
2. Push the battery into the product until it engages with an audible click.
3. Check that the battery is seated securely.
5.3 Removing the battery
1. Press the battery release button.
2. Remove the battery from the product.
5.4 Fitting / removing the depth gauge (optional) 2
When driving screws with a sealing washer, use a depth gauge suitable for the diameter of the sealing
washer (accessory). When the depth gauge is correctly adjusted the screw seal will be correctly
compressed.
The depth gauge is attached to the metal construction screwdriver by way of a snap-on connection
and can be simply pulled off or pushed on.
▶Fit the depth gauge.
5.5 Setting forward or reverse rotation 3
An interlock prevents switching while the motor is running.
The control switch is locked when the forward/reverse switch is in the middle position (switch-on
interlock).
▶Set the forward/reverse switch to the desired direction of rotation.
5.6 Fitting / removing belt hook (optional) 4
The belt hook enables you to attach suitable power tools to your belt. It can be fitted to allow attachment on
the left or right side of the body.
CAUTION
Risk of injury by falling power tools!
▶Check that the belt hook is fitted securely before beginning work.
1. Insert the belt hook into the installation opening for accessories.
2. Secure the belt hook with the screws provided.

10 English 2383936 *2383936*
3. Check that the belt hook is secure.
4. To remove the belt hook, remove the screws and pull the belt hook out of the installation slot for
accessories.
5.7 Fall arrest
WARNING
Risk of injury by falling tool and/or accessory!
▶Use only the Hilti tool tether recommended for your product.
▶Prior to each use, always check the attachment point of the tool tether for possible damage.
▶Do not secure a tool tether to the belt hook. Do not use a belt hook to lift the product.
Comply with the national regulations for working at heights.
As drop arrester for this product, use only a combination of the Hilti retaining strap #2293133 and the Hilti
tool tether #2261970.
▶Secure the retaining strap to the installation openings for accessories. Check that it holds securely.
▶Secure one carabiner of the tool tether to the retaining strap and secure the second carabiner to a
load-bearing structure. Check that both carabiners hold securely.
Comply with the operating instructions of the Hilti retaining strap and those of the Hilti tool tether.
5.8 Setting the torque 5
▶Set the desired torque.
6 Operation
Observe the safety instructions and warnings in this documentation and on the product.
6.1 Switching on
The metal construction screwdriver starts running as soon as it is pressed lightly against the working
surface. The running speed can be controlled smoothly right up to maximum speed by varying how
far the control switch is pressed in.
▶Switch the tool on.
6.2 Switching on in sustained operating mode 6
The lockbutton can be pressed in while the control switch is pressed. The metal construction
screwdriver then runs in sustained operating mode. The lockbutton makes the tool less tiring to use
as the control switch does not have to be constantly pressed.
▶Switch on in sustained operating mode.
6.3 Switching off after sustained operation 7
In order to be able to switch off from sustained operating mode quickly at any time, keep your hand
close to the control switch. Pressing the control switch again causes the lockbutton to jump back into
its original position.
▶Switch off after sustained operation.

*2383936* 2383936 English 11
6.4 Removing screws
Remove the depth gauge or screw guide, if fitted. Set the forward / reverse switch to the “Reverse”
position.
▶Remove the screws.
7 Care and maintenance
WARNING
Risk of injury with battery inserted !
▶Always remove the battery before carrying out care and maintenance tasks!
Care of the product
• Carefully remove stubborn dirt.
• Carefully clean the air vents, if present, with a dry, soft brush.
• Use only a slightly damp cloth to clean the housing. Do not use cleaning agents containing silicone as
these can attack the plastic parts.
• Use a dry, clean cloth to clean the contacts of the product.
Care of the Liion batteries
• Never use a battery with clogged air vents. Clean the air vents carefully using a dry, soft brush.
• Avoid unnecessary exposure of the battery to dust and dirt. Never expose the battery to high levels of
moisture (e.g. by being dipped in water or left in the rain).
If a battery has been soaked by moisture, treat it as a damaged battery. Isolate it in a non-flammable
container and consult Hilti Service.
• Keep the battery free of extraneous oil and grease. Do not permit dust or dirt to accumulate unnecessarily
on the battery. Clean the battery with a dry, soft brush or a clean, dry cloth. Do not use cleaning agents
containing silicone as these can attack the plastic parts.
Do not touch the contacts of the battery and do not remove the factory-applied grease from the contacts.
• Use only a slightly damp cloth to clean the housing. Do not use cleaning agents containing silicone as
these can attack the plastic parts.
Maintenance
WARNING
Danger of electric shock! Improper repairs to electrical components may lead to serious injuries including
burns.
▶Repairs to the electrical section of the tool or appliance may be carried out only by trained electrical
specialists.
• Check all visible parts and controls for signs of damage at regular intervals and make sure that they all
function correctly.
• Do not use the product if signs of damage are found or if parts malfunction. Immediately have the product
repaired by Hilti Service.
• After cleaning and maintenance, install all guards and protective devices and check that they are in full
working order.
To help ensure safe and reliable operation, use only genuine Hilti spare parts, consumables and
accessories. Spare parts, consumables and accessories approved by Hilti for use with your product
can be found at your Hilti Store or online at: www.hilti.group
8 Transport and storage
Transport of cordless power tools and batteries
CAUTION
Accidental starting during transport !
▶Always transport your products with the batteries removed!
▶Remove the battery/batteries.

12 English 2383936 *2383936*
▶Never transport batteries loose and unprotected. During transport, batteries should be protected from
excessive shock and vibration and isolated from any conductive materials or other batteries that may
come in contact with the terminals and cause a short circuit. Comply with the locally applicable
regulations for transporting batteries.
▶Do not send batteries through the mail. Consult your shipper for instructions on how to ship undamaged
batteries.
▶Prior to each use and before and after prolonged transport, check the product and the batteries for
damage.
Storage of cordless power tools and batteries
WARNING
Accidental damage caused by defective or leaking batteries !
▶Always store your products with the batteries removed!
▶Store the product and the batteries in a cool and dry place. Comply with the temperature limits stated in
the technical data.
▶Do not store batteries on the charger. Always remove the battery from the charger when the charging
operation has completed.
▶Never leave batteries in direct sunlight, on sources of heat, or behind glass.
▶Store the product and batteries where they cannot be accessed by children or unauthorized persons.
▶Prior to each use and before and after prolonged storage, check the product and the batteries for
damage.
9 Troubleshooting
If a problem occurs, always observe the status indicator of the battery. See the section headed Status
indicators of the Liion battery → page 7.
If the trouble you are experiencing is not listed in this table or you are unable to rectify the problem by
yourself, contact Hilti Service.
Trouble or fault Possible cause Action to be taken
LEDs of the battery show
nothing
Battery defective ▶Contact Hilti Service.
The metal construction
screwdriver doesn’t start.
The battery is not fully inserted. ▶Push the battery in until it
engages with an audible click.
Battery is discharged. ▶Charge the battery.
Electrical fault. ▶Switch the metal construction
screwdriver off immediately,
remove the battery, keep it
under observation, allow it to
cool down and contact Hilti
Service.
The control switch can’t be
pressed, i.e. the switch is
locked.
The forward / reverse switch is in
the middle position.
▶Push the forward / reverse
switch to the left or right.
The battery is not heard to
engage.
The retaining lugs on the battery
are dirty.
▶Clean the retaining lugs and
push the battery in until it
engages. Contact Hilti Service
if the problem persists.
Speed of rotation drops con-
siderably.
Battery is discharged. ▶Charge the battery.
The metal construction
screwdriver or battery gets
very hot.
Electrical fault. ▶Switch the metal construction
screwdriver off immediately,
remove the battery, keep it
under observation, allow it to
cool down and contact Hilti
Service.
The screw is pressed too
tightly against the surface.
The depth gauge is set incorrectly. ▶Turn the depth gauge to the
right.

*2383936* 2383936 한국어 13
Trouble or fault Possible cause Action to be taken
The screw is not pressed
tightly enough against the
surface.
The depth gauge is set incorrectly. ▶Turn the depth gauge to the left.
The screwdriver runs but the
screw can’t be driven.
The wrong direction of rotation is
set.
▶Set the forward/reverse switch
to the desired direction of
rotation.
10 Disposal
WARNING
Risk of injury due to incorrect disposal! Health hazards due to escaping gases or liquids.
▶DO NOT send batteries through the mail!
▶Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting.
▶Dispose of your battery out of the reach of children.
▶Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public
health and safety resources for disposal instructions.
Most of the materials from which Hilti products are manufactured can be recycled. The materials must be
correctly separated before they can be recycled. In many countries, your old tools, machines or appliances
can be returned to Hilti for recycling. Ask Hilti Service or your Hilti sales representative for further information.
▶Do not dispose of power tools, electronic equipment or batteries as household waste!
11 Manufacturer’s warranty
▶Please contact your local Hilti representative if you have questions about the warranty conditions.
12 Further information
For more information on operation, technology, environment and recycling, follow this link:
qr.hilti.com/manual/?id=2383934&id=2383936
This link is also to be found at the end of the operating instructions, in the form of a QR code.
오리지널 사용 설명서
1 사용 설명서 관련 정보
1.1 본 사용 설명서에 관하여
•경고! 제품을 사용하기 전에, 제품과 함께 제공되는 사용 설명서와 설명서에 제시된 지침, 안전상의 주의사
항 및 경고사항, 그림 및 사양 등을 잘 읽고 이해해야 합니다. 특히 모든 지침, 안전상의 주의사항 및 경고사
항, 그림, 사양과 구성 요소 및 기능을 숙지해야 합니다. 유의하지 않을 경우, 감전, 화재 발생 및/또는 중상
을 입을 위험이 있습니다. 추후 사용 시에도 활용할 수 있도록 관련 지침, 안전상의 주의사항 및 경고사항
이 포함된 사용 설명서를 잘 보관하십시오.
•제품은 전문가용으로 설계되어 있으며, 해당 교육을 이수한 공인된 작업자를 통해서만 조작,
유지보수 및 수리 작업을 진행할 수 있습니다. 이 기술자는 발생할 수 있는 위험에 대해 특별 교육을 받은
상태여야 합니다. 교육을 받지 않은 사람이 제품을 부적절하게 취급하거나 규정에 맞지 않게 사용할 경우
에는 기기와 그 보조기구에 의해 부상을 당할 위험이 있습니다.
• 함께 제공되는 사용 설명서는 인쇄 시점의 최신 기술 버전을 반영하여 작성됩니다. 최신 버전은 항상 Hilti
제품 사이트의 온라인 버전을 참조하십시오. 온라인 버전을 참고하고자 할 경우, 본 사용 설명서에 제시된
링크 혹은 기호로 표시된 QR 코드를 클릭하십시오.
• 제품을 다른 사람에게 양도할 때는 본 사용 설명서도 반드시 함께 넘겨주십시오.

14 한국어 2383936 *2383936*
1.2 기호 설명
1.2.1 경고사항
본 제품을 다루면서 발생할 수 있는 위험에 대한 경고사항. 다음과 같은 시그널 워드가 사용됩니다.
위험
위험 !
▶이 기호는 직접적인 위험을 표시합니다. 만약 지키지 않으면 심각한 부상을 당하거나 사망할 수도 있습니
다.
경고
경고 !
▶이 기호는 잠재적인 위험을 표시합니다. 만약 지키지 않으면 심각한 부상을 당하거나 사망할 수도 있습니
다.
주의
주의 !
▶이 기호는 잠재적인 위험 상황을 표시합니다. 만약 지키지 않으면 부상 또는 물적 손실을 입을 수 있습니다.
1.2.2 사용 설명서에 사용된 기호
본 사용 설명서에서 사용되는 기호는 다음과 같습니다.
사용 설명서에 유의하십시오
적용 지침 및 기타 유용한 사용정보
재사용이 가능한 자재 취급방법
전기 기기 및 배터리를 일반 가정의 쓰레기처럼 폐기해서는 안 됨
Hilti 리튬 이온 배터리
Hilti 충전기
1.2.3 그림에 사용된 기호
다음과 같은 기호가 그림에 사용됩니다.
이 숫자는 본 사용 설명서 첫 부분에 있는 해당 그림을 나타냅니다.
그림에 매겨진 번호는 중요한 작업 순서 또는 작업 순서에 중요한 부품을 나타냅니다. 텍스트에 해
당 작업 순서 또는 해당 번호가 매겨진 부품이 강조 표시됩니다(예: (3)).
항목 번호는 개요 그림에서 사용되며 제품 개요 단락에 나와 있는 기호 설명 번호를 나타냅니다.
이 표시는 제품을 다룰 때, 특별히 주의할 사항을 나타냅니다.
1.3 제품 관련 기호
1.3.1 일반 기호
제품과 연관되어 사용되는 기호입니다.
정회전/역회전
무부하 회전 속도
분당 회전수
직류
