1 Information about the documentation
1.1 About this documentation
• Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free
handling and use of the product.
• Observe the safety instructions and warnings in this documentation and on the product.
• Always keep the operating instructions with the product and make sure that the operating instructions
are with the product when it is given to other persons.
1.2 Explanation of symbols used
1.2.1 Warnings
Warnings alert persons to hazards that may occur when handling or using the product. The following signal
words are used in combination with a symbol:
DANGER! Draws attention to an imminent hazard that will lead to serious personal injury or
fatality.
WARNING! Draws attention to a potential hazard that could lead to serious personal injury or
fatality.
CAUTION! Draws attention to a potentially dangerous situation that could lead to minor personal
injury or material damage.
1.2.2 Symbols in the documentation
The following symbols are used in this document:
Read the operating instructions before use
Instructions for use and other useful information
1.2.3 Symbols in the illustrations
The following symbols are used in illustrations:
These numbers refer to the corresponding illustrations found at the beginning of these operating
instructions.
The numbering reflects the sequence of operations shown in the illustrations and may deviate
from the steps described in the text.
Item reference numbers are used in the overview illustration and refer to the numbers used in
the key in the product overview section.
This symbol is intended to draw special attention to certain points when handling the product.
1.3 Product-dependent symbols
1.3.1 Symbols
The following symbols are used:
Drilling without hammer action
Drilling with hammering action (hammer drilling)
Chiseling
Chisel positioning
Forward / reverse
Rated speed under no load
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

2 English
1.4 Product information
Hilti products are designed for professional use and may be operated, serviced and maintained only by
trained, authorized personnel. This personnel must be informed of any particular hazards that may be
encountered. The product and its ancillary equipment can present hazards if used incorrectly by untrained
personnel or if used not in accordance with the intended use.
The type designation and serial number are stated on the rating plate.
▶Write down the serial number in the table below. You will be required to state the product details when
contacting Hilti Service or your local Hilti organization to inquire about the product.
Product information
Rotary hammer TE 6A22
Generation 04
Serial no.
1.5 Declaration of conformity
We declare, on our sole responsibility, that the product described here complies with the applicable directives
and standards. A copy of the declaration of conformity can be found at the end of this documentation.
The technical documentation is filed and stored here:
Hilti Entwicklungsgesellschaft mbH | Tool Certification | Hiltistrasse 6 | 86916 Kaufering, Germany
2 Safety
2.1 General power tool safety warnings
WARNING
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Work area safety
▶Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
Electrical safety
▶Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
▶Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
▶Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the
risk of electric shock.
▶When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
▶If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
▶Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
▶Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

English 3
▶Prevent unintentional starting. Ensure the switch is in the off‐position before connecting to battery
pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising
power tools that have the switch on invites accidents.
▶Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
▶Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
▶Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
▶If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
Power tool use and care
▶Do not force the power tool. Use the correct power tool for your application. The correct power tool will
do the job better and safer at the rate for which it was designed.
▶Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
▶Disconnect the battery pack from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the
power tool accidentally.
▶Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
▶Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
▶Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
▶Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
Battery tool use and care
▶Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with another battery pack.
▶Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and fire.
▶When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
▶Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
Service
▶Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
2.2 Additional safety instructions for rotary hammer
Personal safety
▶Use the product only when it is in technically faultless condition.
▶Never tamper with or modify the power tool in any way.
▶Use the auxiliary grips supplied with the tool. Loss of control can cause personal injury.
▶Apply appropriate safety measures at the opposite side of the workpiece in work that involves breaking
through. Parts breaking away could fall out and / or fall down causing injury to other persons.
▶Always hold the power tool with both hands on the grips provided. Keep the grips clean and dry.
▶Hold the power tool by the insulated gripping surfaces when performing work in which the accessory
tool might come into contact with concealed wiring. If the accessory tool comes into contact with a live
wire, metal parts of the power tool can also become live, resulting in an electric shock.
▶Avoid touching rotating parts – risk of injury!
▶Wear suitable protective glasses, a hard hat, ear defenders, protective gloves and light respiratory
protection while using the power tool.
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

4 English
▶Wear protective gloves also when changing the accessory tool. Touching the accessory tool presents a
risk of injury (cuts or burns).
▶Wear eye protection. Flying fragments present a risk of injury to the body and eyes.
▶Before starting work, check the hazard class of the dust that will be produced when working. Use
an industrial vacuum cleaner with an officially approved protection class in compliance with the locally
applicable dust protection regulations. Dust from materials such as lead-based paint, certain types of
wood and concrete/masonry/stone containing quartz, minerals or metal can be harmful to health.
▶Make sure that the workplace is well ventilated and, where necessary, wear a respirator appropriate for
the type of dust generated. Contact with or inhalation of the dust can cause allergic reactions and/or
respiratory or other diseases to the operator or bystanders. Certain kinds of dust such as oakwood
and beechwood dust are classified as carcinogenic, especially in conjunction with additives for wood
conditioning (chromate, wood preservative). Only specialists are permitted to handle material containing
asbestos.
▶Take breaks and do physical exercises to improve the blood circulation in your fingers. Exposure to
vibration during long periods of work can lead to disorders of the blood vessels and nervous system in
the fingers, hands and wrists.
Electrical safety
▶Before beginning work, check the working area for concealed electric cables, gas pipes and water
pipes. External metal parts of the power tool can become live, presenting a risk of electric shock, if you
accidentally damage an electric cable.
Power tool use and care
▶Immediately switch off the power tool if the accessory tool jams. The power tool might twist off-line.
▶Wait until the power tool stops completely before you lay it down.
2.3 Careful handling and use of batteries
▶Observe the special guidelines applicable to the transport, storage and use of lithium-ion batteries.
▶Do not expose batteries to high temperatures, direct sunlight or fire.
▶Do not take apart, squash or incinerate batteries and do not subject them to temperatures over 80 °C.
▶Do not attempt to charge or continue to use damaged batteries.
▶If the battery is too hot to touch, it may be defective. In this case, place the power tool in a non-flammable
location, well away from flammable materials, where it can be kept under observation and left to cool
down. Contact Hilti Service after the battery has cooled down.
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

English 5
3 Description
3.1 Overview of the product
@Dust shield ;chuck
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

6 English
=Insert tool unlocking device
%Depth gauge
&Function selector switch
(Forward / reverse selector switch with
safety lock
)Control switch
+Grip
§Battery release buttons
/Charge status and fault display (Li-ion
battery)
:Battery
∙Connection for the TE DRS-6-A(02) dust
removal module
$Side handle
£Light to illuminate the work area
3.2 Intended use
The product described is a cordless rotary hammer drill. It is designed for drilling in steel, wood and masonry,
for hammer-action drilling in concrete and masonry, and for driving and removing screws. The product can
also be used for light chiseling work on masonry and surface finishing on concrete.
▶Use only Hilti lithiumion batteries of the B 22 series with this product.
▶Use only the Hilti lithium-ion batteries from the B22 series for this product.
3.3 Lithiumion battery status display
The charge status of the Li-ion battery and malfunctions of the power tool are indicated by the display on
the Liion battery. The charge status of the Liion battery is displayed after pressing one of the two battery
release buttons.
Status Meaning
4 LEDs light up. • Charge status: 75 % to 100 %
3 LEDs light up. • Charge status: 50 % to 75 %
2 LEDs light up. • Charge status: 25 % to 50 %
1 LED lights up. • Charge status: 10 % to 25 %
1 LED blinks. • Charge status: < 10 %
Note
Battery charge status cannot be displayed while the control switch is pressed and for up to 5 seconds
after releasing the control switch. If the battery display LEDs blink, please observe the instructions
given in the Troubleshooting section.
3.4 Items supplied
Rotary hammer, side handle, depth gauge, operating instructions.
You can find other system products approved for your product at your local Hilti Center or online at:
www.hilti.com.
4 Technical data
4.1 Rotary hammer
TE 6A22
Rated voltage 21.6 V
Weight in accordance with EPTA procedure 01 3.7 kg
Rated speed under no load 1,050 /min
Drilling diameter range in concrete/masonry (hammer drilling) 5 mm …20 mm
Drilling diameter range in wood (solid) 3 mm …20 mm
Drilling diameter range in metal (solid-head drill bit) 3 mm …13 mm
4.2 Noise and vibration values in accordance with EN 60745
The sound pressure and vibration values given in these instructions were measured in accordance with a
standardized test and can be used to compare one power tool with another. They can also be used for a
preliminary assessment of exposure. The data given represents the main applications of the power tool.
However, if the power tool is used for different applications, with different accessory tools, or is poorly
maintained, the data can vary. This can significantly increase exposure over the total working period. An
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

English 7
accurate estimation of exposure should also take into account the times when the power tool is switched
off, or when it is running but not actually being used for a job. This can significantly reduce exposure over
the total working period. Identify additional safety measures to protect the operator from the effects of noise
and/or vibration, for example: maintaining the power tool and accessory tools, keeping the hands warm,
organization of work patterns.
Noise values
Sound (power) level (L WA)100 dB(A)
Uncertainty for the sound power level (K WA)3 dB(A)
Emission sound pressure level (L pA)89 dB(A)
Uncertainty for the sound pressure level (K pA)3 dB(A)
Vibration values
Hammer drilling in concrete (a h, HD)13.4 m/s²
Drilling in metal (a h, D)2.1 m/s²
Chiseling (a h, CHeq)6.3 m/s²
Uncertainty (K) 1.5 m/s²
5 Operation
5.1 Preparations at the workplace
CAUTION
Risk of injury! Inadvertent starting of the product.
▶Remove the battery before making any adjustments to the power tool or before changing
accessories.
Observe the safety instructions and warnings in this documentation and on the product.
5.2 Inserting the battery
CAUTION
Risk of injury! Inadvertent starting of the rotary hammer drill.
▶Before installing the battery, check that the rotary hammer drill is switched off and that the
forward/reverse switch is in the middle position (i.e. safety lock engaged).
1. Push the battery into the battery holder until it engages with an audible click.
2. Check that the battery is seated securely.
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

8 English
5.3 Removing the battery
1. Press the release buttons on the battery.
2. Pull the battery out toward the rear.

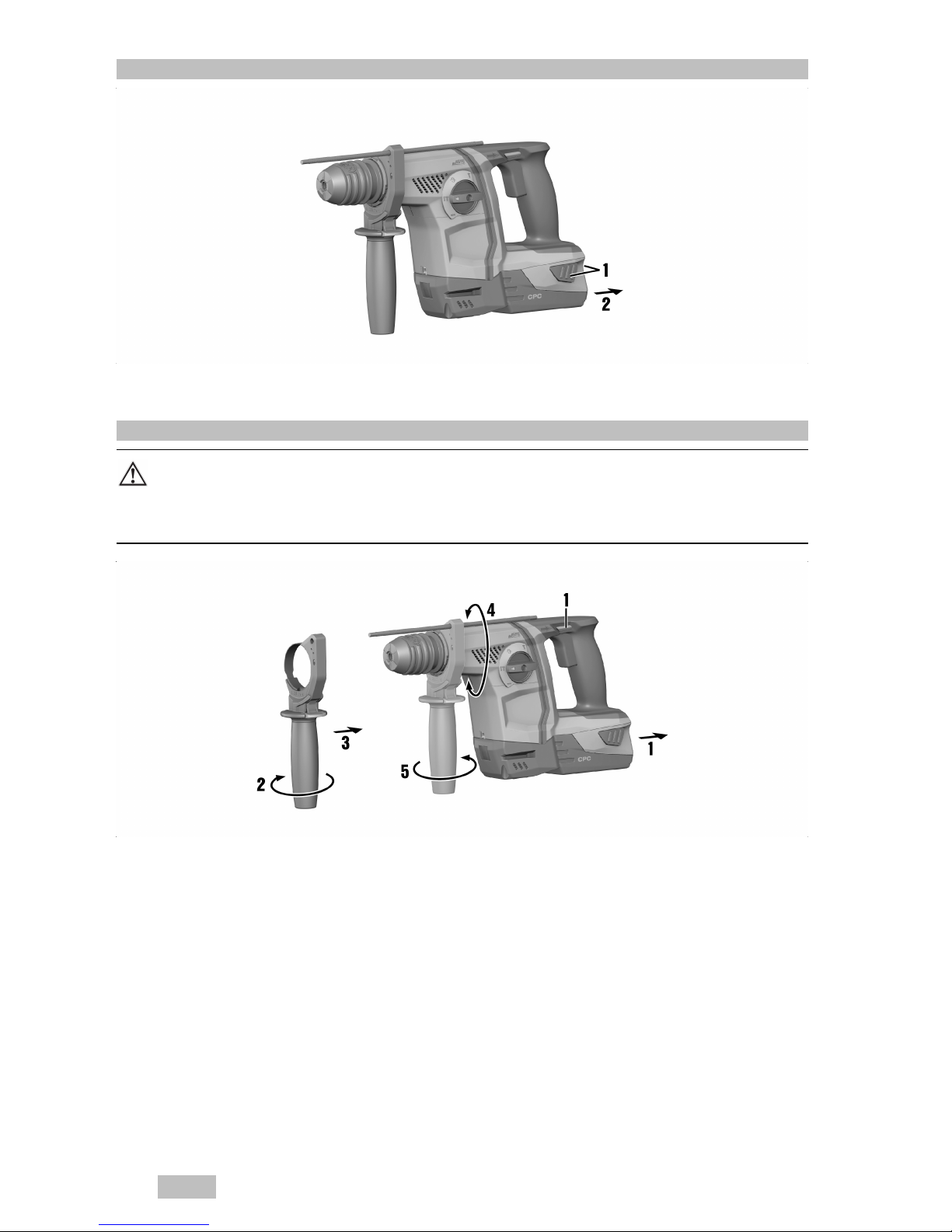

5.4 Fitting the side handle
CAUTION
Risk of injury! Loss of control over the rotary hammer drill.
▶Check that the side handle is fitted correctly and tightened securely. Check that the clamping
band is engaged in the groove in the tool.
1. Release the side handle clamping band by turning the handle grip.
2. From the front, slide the depth gauge into the 2 guide holes.
3. Tighten the side handle clamping band by turning the handle grip.
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

English 9
5.5 Fitting and adjusting the depth gauge
▶Fit the depth gauge, if necessary, and adjust it correctly.
5.6 Fitting / removing the chuck
CAUTION
Risk of injury! The depth gauge, if fitted but not used, might hinder the operator.
▶Remove the depth gauge from the tool.
▶Fit / remove the chuck.
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

10 English
5.7 Inserting the tool
1. Lightly grease the connection end of the accessory tool.
◁Use only genuine Hilti grease. Using the wrong grease can result in damage to the tool.
2. Push the accessory tool into the chuck as far as it will go (until it engages).
3. After fitting the accessory tool, grip it and pull it in order to check that it is securely engaged.
◁The product is ready for use.
5.8 Removing the accessory tool
▶Pull the chuck back as far as it will go and remove the accessory tool.
5.9 Overhead work
▶Fit the DCD dust control ring for overhead work.
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

English 11

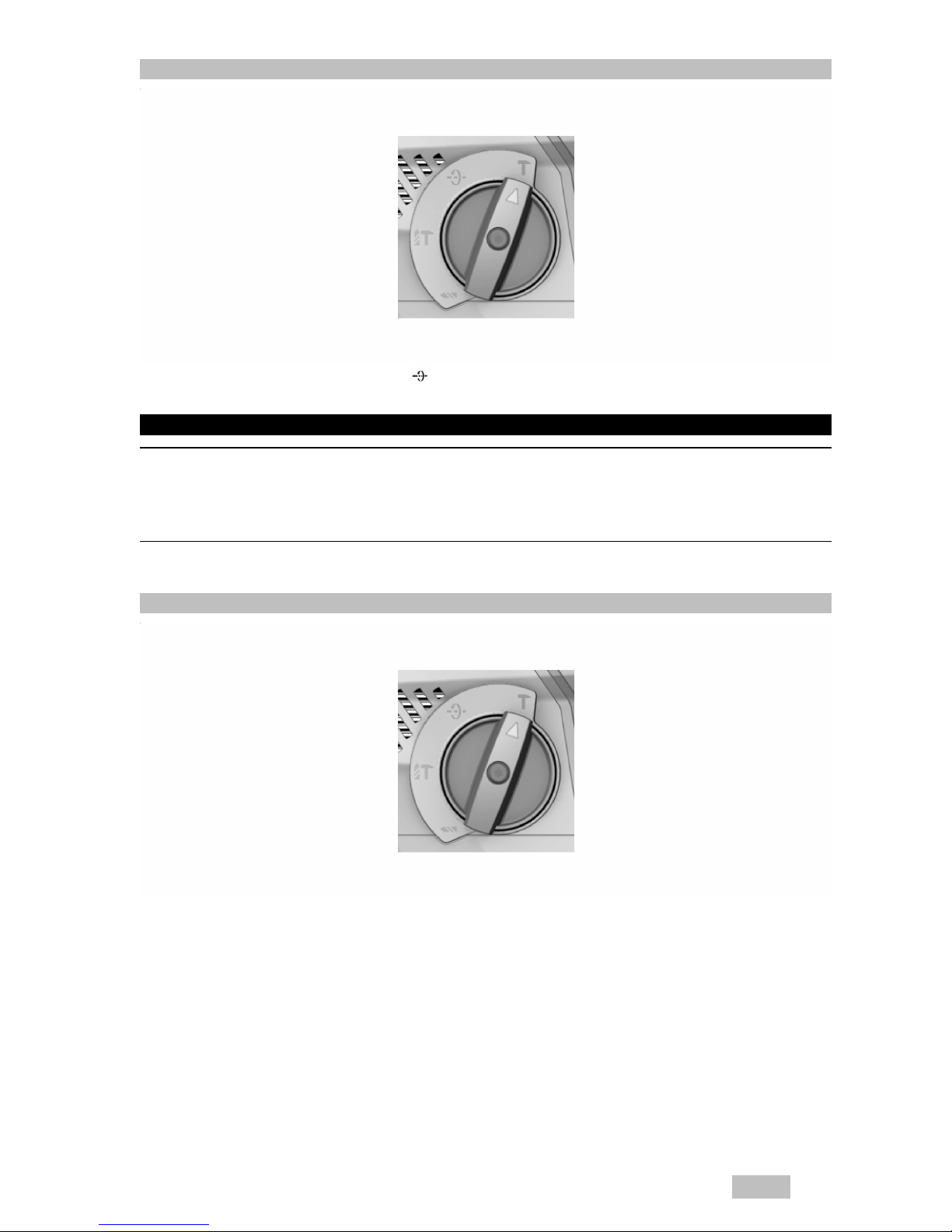

5.10 Chisel positioning
▶Set the function selector switch to the position.
6 Types of work
Warning! Risk of damage!
▶Operation of the direction of rotation and/or function selector switch while the tool is running may
result in damage to the tool.
▶Do not operate this switch while the tool is running.
Observe the safety instructions and warnings in this documentation and on the product.
6.1 Function selector switch
▶Set the function selector switch to the desired working position.
◁Do not operate the function selector switch while the motor is running. Risk of damage!
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

12 English

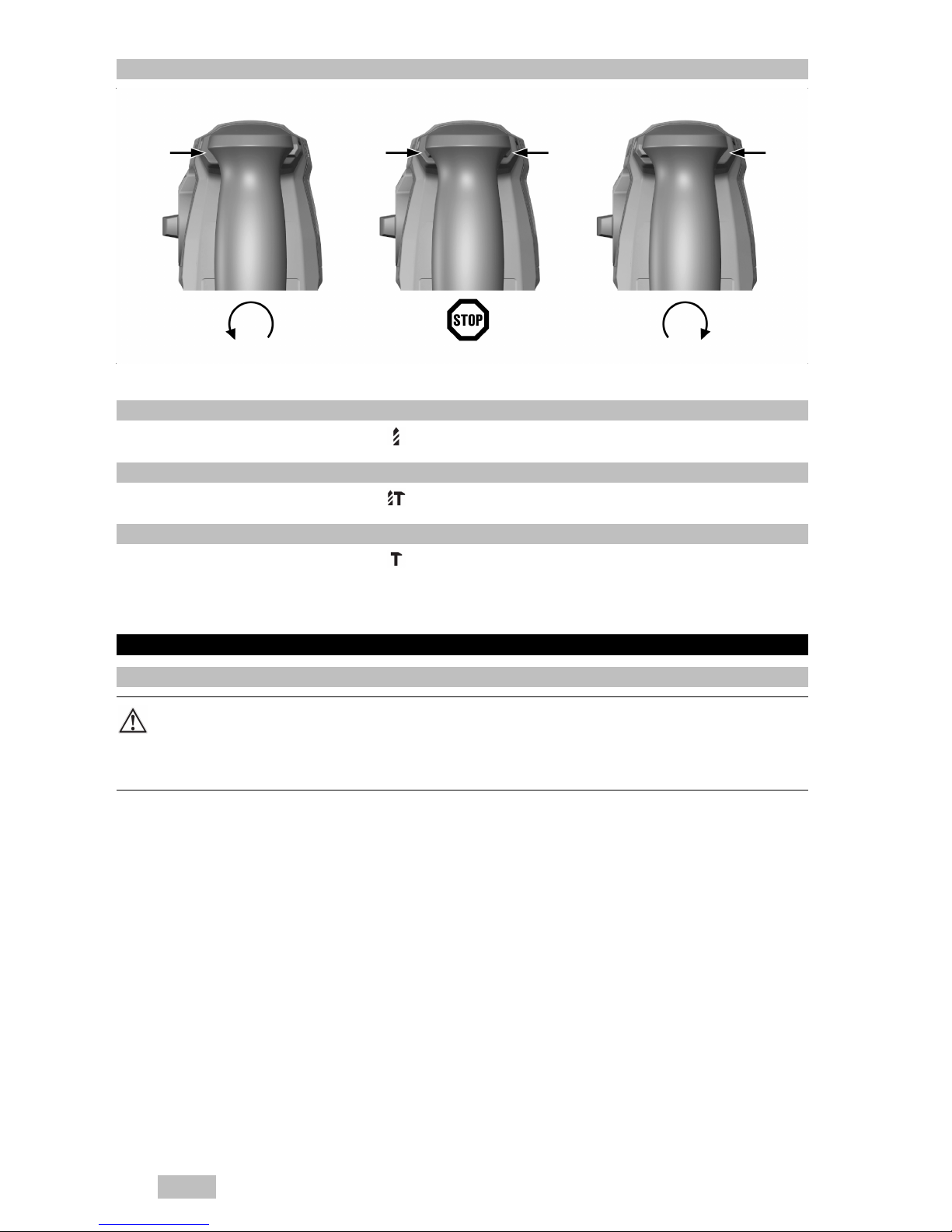

6.2 Forward/reverse
▶Set the forward/reverse switch to the desired direction of rotation.
6.3 Drilling without hammer action
▶Set the function selector switch to the position.
6.4 Drilling with hammer action
▶Set the function selector switch to the position.
6.5 Chiseling
▶Set the function selector switch to the position.
◁For optimum motor cooling, select the forward direction, i.e. clockwise (direction of rotation for
drilling).
7 Care and maintenance
7.1 Care and maintenance of cordless tools
WARNING
Risk of electric shock! Attempting care and maintenance with the battery fitted in the tool can lead
to severe injury and burns.
▶Always remove the battery before carrying out care and maintenance tasks!
Care and maintenance of the tool
• Carefully remove any dirt that may be adhering to parts.
• Clean the air vents carefully with a dry brush.
• Use only a slightly damp cloth to clean the casing. Do not use cleaning agents containing silicone as
these may attack the plastic parts.
Care of the lithiumion batteries
• Keep the battery free from oil and grease.
• Use only a slightly damp cloth to clean the casing. Do not use cleaning agents containing silicone as
these may attack the plastic parts.
• Avoid ingress of moisture.
Maintenance
• Check all visible parts and controls for signs of damage at regular intervals and make sure that they all
function correctly.
• Do not operate the cordless tool if signs of damage are found or if parts malfunction. Have the tool
repaired by Hilti Service immediately.
• After cleaning and maintenance, fit all guards or protective devices and check that they function correctly.
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

English 13
Note
To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare
parts, consumables and accessories approved by Hilti for use with the product can be found at your
local Hilti Center or online at: www.hilti.com
7.2 Cleaning the dust shield
▶Clean the dust shield on the chuck with a dry, clean cloth at regular intervals.
▶Clean the sealing lip by wiping it carefully and then grease it again lightly with Hilti grease.
▶It is essential that the dust shield is replaced if the sealing lip is damaged.
8 Transport and storage
8.1 Transport and storage of cordless tools
Transport
CAUTION
Inadvertent starting during transport. Uncontrolled starting during transport may occur if the battery
is fitted, thereby resulting in damage to the tool.
▶Always remove the battery before transporting the tool.
▶Remove the battery.
▶Transport the tool and batteries individually packaged.
▶Never transport batteries in bulk form (loose, unprotected).
▶Check the tool and batteries for damage before use after long periods of transport.
Storage
CAUTION
Inadvertent damage caused by defective battery. A leaking battery may damage the tool.
▶Always remove the battery before storing the tool.
▶Store the tool and batteries in a place that is as cool and dry as possible.
▶Never store batteries in direct sunlight, on heating units or behind a window pane.
▶Store the tool and batteries in a place where they cannot be accessed by children or unauthorized
persons.
▶Check the tool and batteries for damage before use after long periods of storage.
9 Troubleshooting
If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by
yourself, please contact Hilti Service.
9.1 The rotary hammer is not in working order
Malfunction Possible cause Action to be taken
The LEDs on the battery indi-
cate nothing.
The battery is not fully inserted. ▶Push the battery in until it
engages with a double click.
The battery is discharged. ▶Change the battery and charge
the empty battery.
The battery is too hot or too cold. ▶Allow the battery to cool
down or to warm up to room
temperature.
1 LED on the battery blinks. The battery is discharged. ▶Change the battery and charge
the empty battery.
The battery is too hot or too cold. ▶Allow the battery to cool
down or to warm up to room
temperature.
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

14 English
Malfunction Possible cause Action to be taken
4 LEDs on the battery blink. The rotary hammer has been over-
loaded briefly.
▶Release the control switch and
then press it again.
9.2 The rotary hammer is in working order
Trouble or fault Possible cause Action to be taken
No hammering action. The rotary hammer is too cold. ▶Bring the tip of the drill bit
into contact with the working
surface, switch the rotary
hammer on and allow it to
run. If necessary, repeat the
procedure until the hammering
mechanism begins to operate.
The function selector switch is set
to “Drilling without hammering” .
▶Set the function selector switch
to “Hammer drilling” .
The control switch can’t be
pressed, i.e. the switch is
locked.
The forward / reverse switch is in
the middle position.
▶Push the forward / reverse
switch to the right or left.
The drive spindle does not
rotate.
The permissible operating temper-
ature of the rotary hammer’s elec-
tronics has been exceeded.
▶Allow the tool to cool down.
The battery is discharged. ▶Change the battery and charge
the empty battery.
The function selector switch is
not correctly engaged, is set to
“Chiseling” , or is set to “Chisel
positioning” .
▶Set the function selector switch
to “Drilling without hammering”
or “Hammer drilling” .
The rotary hammer switches
itself off automatically.
The overload cut-out has been
activated.
▶Release the control switch.
Allow the rotary hammer to cool
down. Press the control switch
again. Reduce the load on the
tool.
The battery runs down more
quickly than usual.
Very low ambient temperature. ▶Allow the battery to warm up
slowly to room temperature.
The battery does not en-
gage with an audible "double
click".
The retaining lugs on the battery
are dirty.
▶Clean the retaining lugs and refit
the battery.
The rotary hammer or the
battery gets very hot.
Electrical fault. ▶Switch off the rotary hammer
immediately. Remove the
battery and keep it under
observation. Allow it to cool
down. Contact Hilti service.
The rotary hammer has been over-
loaded.
▶Use a more powerful tool.
The insert tool can’t be re-
leased.
The chuck is not pulled back fully. ▶Pull the chuck back as far as it
will go and remove the tool.
The tool makes no progress. The rotary hammer has been set to
reverse rotation.
▶Move the forward / reverse
selector switch to the “Forward”
position.
The function selector switch is set
to “Drilling without hammering” .
▶Set the function selector switch
to “Hammer drilling” .
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

English 15
10 Optional accessories
10.1 DCD dust control ring
The DCD dust control ring is an accessory for Hilti rotary hammer drills. It collects a high percentage of the
dust produced by overhead work and it attaches quickly and easily to the rotary hammer drill.
10.2 TE DRS6A dust removal module
The TE DRS6A dust removal module is an accessory for the Hilti TE 6A36 rotary hammer drill. It collects
a high percentage of the dust and it attaches quickly and easily to the rotary hammer drill. The dust removal
module is equipped with a suction fan. This fan is driven by its own motor. When the rotary hammer drill is
switched on the dust removal module draws its electric power from the rotary hammer drill’s battery.
The dust removal module is not suitable for working on metal and wood.
11 Disposal
WARNING
Risk of injury. Hazards presented by improper disposal.
▶Improper disposal of the equipment may have the following consequences: The burning of plastic
components generates toxic fumes which may present a health hazard. Batteries may explode
if damaged or exposed to very high temperatures, causing poisoning, burns, acid burns or
environmental pollution. Careless disposal may permit unauthorized and improper use of the
equipment. This may result in serious personal injury, injury to third parties and pollution of the
environment.
▶Dispose of defective batteries right away. Keep them out of reach of children. Do not disassemble
or incinerate the batteries.
▶Batteries that have reached the end of their life must be disposed of in accordance with national
regulations or returned to Hilti.
Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The
materials must be correctly separated before they can be recycled. In many countries, your old tools,
machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative
for further information.
In accordance with the European Directive on waste electrical and electronic equipment and its implemen-
tation in conformance with national law, electric tools or appliances that have reached the end of their life
must be collected separately and returned to an environmentally compatible recycling facility.
▶Disposal of electric tools or appliances together with household waste is not permissible.
12 Manufacturer’s warranty
▶Please contact your local Hilti representative if you have questions about the warranty conditions.
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

16 English
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00

Hilti = registered trademark of Hilti Corp., Schaan
**
20170126
Printed: 03.02.2017 | Doc-Nr: PUB / 5329716 / 000 / 00
