36” CHETTM
INDOOR / OUTDOOR LED FAN
CEILING FAN INSTRUCTION MANUAL
CUL Model No. 36-TREM
LED
AC
AC MOTOR
CONTROL
WET

hinkley.com
2
WE WANT YOU TO LOVE YOUR NEW FAN
SO WE’RE HERE IF YOU HAVE A QUESTION, NEED SOME
HELP OR WANT TO CHAT ABOUT OUR PRODUCTS, SEND
SUGGESTIONS OUR WAY TOO - WE’RE ALWAYS LOOKING TO
MAKE YOUR EXPERIENCE WITH HINKLEY A POSITIVE ONE.
This manual contains complete instructions for the
installation and operation of this fan. It has been
designed to make the installation process as easy as
possible. If you are unfamiliar or uncomfortable with
wiring, please contact a qualified electrician. If you
need additional assistance or have any questions,
please reach out to us.
For warranty information, visit hinkley.com.
> [e-mail]
> 800.HINKLEY
> LET’S SEE THAT HINKLEY STYLE @HINKLEY
#HINKLEYSTYLE

02 GENERAL INSTALLATION & OPERATING INSTRUCTIONS
03 IMPORTANT SAFETY PRECAUTIONS
03 TOOLS & MATERIALS REQUIRED
04 UNPACKING YOUR FAN
05 PREPARATION
05 INSTALLING THE HANGING BRACKET
06 HANGING THE FAN
08 ELECTRICAL CONNECTIONS
09 FINISHING THE INSTALLATION
10 INSTALLING THE BLADES
10
11
12
14
16
16
17
17
18
INSTALLING THE LIGHT KIT PAN
INSTALLING THE LED ASSEMBLY AND GLASS SHADE
INSTALLING THE WALL CONTROL
OPERATION
CARE AND CLEANING
TROUBLESHOOTING
ENERGY GUIDE
SPECIFICATIONS
HINKLEY APP/WIFI
SMART BY BOND
©2022 Hinkley Lighting, Inc. hinkley.com 1
TABLE OF CONTENTS
WARNING:
Read and follow these instructions carefully and be mindful of all warnings shown throughout.
19

hinkley.com
2
GENERAL INSTALLATION & OPERATION INSTRUCTIONS
To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning.
To avoid possible electric shock, be sure electricity is turned off at the main power box before wiring. All electrical connections must be made in
accordance with local codes, ordinances and/or the National Electric Code. If you are unfamiliar with the methods of installing electrical wiring
and products, secure the services of a qualified and licensed electrician as well as someone who can check the strength of the supportive
ceiling members and make the proper installation(s) and connections.
WARNING: To reduce the risk of fire, electric shock, or other personal injury, mount fan only on an outlet box or supporting system marked
acceptable for fan support of 35 lbs (15.9 kg) or less and use mounting screws provided with the outlet box. Most outlet boxes commonly used
for the support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.
Make sure that your installation site will not allow rotating fan blades to come in contact with any object. Blades should be at least 7 feet from
floor.
Blades should be attached after motor housing is hung and in place. Fan motor housing should be kept in the carton until ready to be installed
to protect its finish. If you are installing more than one ceiling fan, make sure that you do not mix fan blade sets, as each blade is part of a
weighted set.
After making electrical connections, spliced conductors should be turned upward and pushed carefully up into outlet box. The wires should be
spread apart with the common conductor and the grounding conductor on one side of the outlet box, and the “HOT” wires on the other side.
Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL listed and should be installed per the light kit’s
installation instructions.
After fan is completely installed, check to make sure that all connections are secure to prevent fan from falling and/or causing damage or injury.
The fan can be made to work immediately after installation - the bearings are adequately charged with grease so that, under normal conditions,
further lubrication should not be necessary for the life of the fan.
CAUTION: Do not ingest battery - Chemical bum hazard. Keep new and used batteries away from children.
The remote control supplied with a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal bums in just
2 hours and can lead to death.
If the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
WARNING: To reduce the risk of fire or electric shock, this fan should only be used with fan speed control part no. MR161C manufactured by
Chungear Industrial Co., Ltd.
Note: Suitable for use in wet locations.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

©2022 Hinkley Lighting, Inc. hinkley.com 3
IMPORTANT SAFETY PRECAUTIONS
WARNINGS:
• Disconnect power by removing fuse or turning off circuit breaker before installing the fan and/or optional lighting.
• Support directly from building structure.
• To reduce the risk of fire, electric shock, or personal injury, mount to outlet box marked “acceptable for fan support” and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan
support and may need to be replaced. Consult a qualified electrician if in doubt.
• Do not use an incandescent light dimmer. Do not use this fan with any transformer type fan speed control device.
• To reduce the risk of personal injury, do not bend the blade arms when installing them, balancing the blades or cleaning the fan. Do not
insert any objects(s) between rotating fan blades.
NOTE:
The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible conditions
and situations that may occur. It must be understood that common sense, caution and carefulness are factors which cannot be
built into this product. These factors must be supplied by the person(s) installing, caring for and operating the unit.
TOOLS & MATERIALS REQUIRED
• PHILLIPS SCREWDRIVER
• FLAT SCREWDRIVER
• WRENCH OR PLIERS
• WIRE CUTTERS
• STEP LADDER
• WIRING SUPPLIES AS REQUIRED BY
ELECTRICAL CODE

hinkley.com
4
UNPACKING YOUR FAN
UNPACK YOUR FAN AND CHECK THE CONTENTS.
• Do not discard the carton. If warranty replacement or repair is ever necessary, the fan should be returned in original packing. Remove all
parts and hardware. Do not lay motor housing on its side, or the decorative housing may shift, be bent or damaged.
• Examine all parts. You should have the following:
PACKAGE CONTENTS
1 Hanging Bracket
CA904566FXX2 Ceiling Canopy
3 Trim Ring
4 Downrod Assembly DRK94014FXX
5 Yoke Cover YC905236FXX
6 Fan Housing with Motor
7 Blade Set of 3 BL905236FXX
8 LK Pan AP905236FXX
9 16W LED Assembly E905236LED
10 Shade Assembly GL905236FR
11 Receiver incl. Wire Nuts CN905236
12
Wall Control w/2032 Battery, Cradle
A, Wall Pate, Face Plate, Mounting
Screws, Cradle B (for flat wall use only)
980014FWH
13
Hardware Bag
Hanging bracket hardware, Safety
cable hardware, Blade screws, Blade
balancing kit
MH905236
xx=FAN FINISH
NOTE: Design of parts shown above may look slightly
different for your specific model of fan
1
2
310
5
7
11
6
12
13
8
9
TO MOTOR N
TO MOTOR L
FOR LIGHT
AC IN L
AC IN N
4
UP
HINKLEY
CR2032

©2022 Hinkley Lighting, Inc. hinkley.com 5
PREPARATION
PREPARATION:
Verify you have all parts before beginning
the installation. Check pulp paper insert
closely for missing parts. Remove motor from
packing. To avoid damage to finish, assemble
motor on soft padded surface or use the
original pulp paper insert in motor box.
DO NOT LAY MOTOR HOUSING ON ITS SIDE
AS THIS COULD RESULT IN SHIFTING OF
MOTOR IN DECORATIVE ENCLOSURE.
INSTALLING THE HANGING BRACKET
CAUTION: To avoid possible electrical shock, be sure electricity is
turned off at the main power box before wiring. All wiring must be in
accordance with National and Local Electrical Codes and the ceiling fan
must be grounded as a precaution against possible electric shock.
Locate ceiling joist where fan is to be mounted, being sure location
agrees with the requirements in the minimum clearance section
of this guide. Wood joists must be sound and of adequate size to
support 35 pounds (See page 2, items 3 and 4).
If not already present, mount a UL listed outlet box marked
“suitable for fan support” following the instructions provided with
the outlet box. The outlet box must be able to support a minimum
of 35 pounds.
Remove canopy from hanger bracket. Remove twist-lock trim
ring by rotating counter-clockwise. Remove canopy screw that
does not have key slot in canopy. Loosen screw with key slot and
remove canopy.
Attach hanging bracket to outlet box using screws provided with
the outlet box.
1
2
3
4
Parts identification on assembled fan.
Canopy
Downrod
Yoke cover
Motor Housing
Blade
LK pan Shade
Hanger
Bracket
Flat Washer
SpringWasher
Outlet BoxScrew
OutletBox
Canopy
Trim Ring
Hanger
bracket
Screws
Figure 1
Figure 2

hinkley.com
6

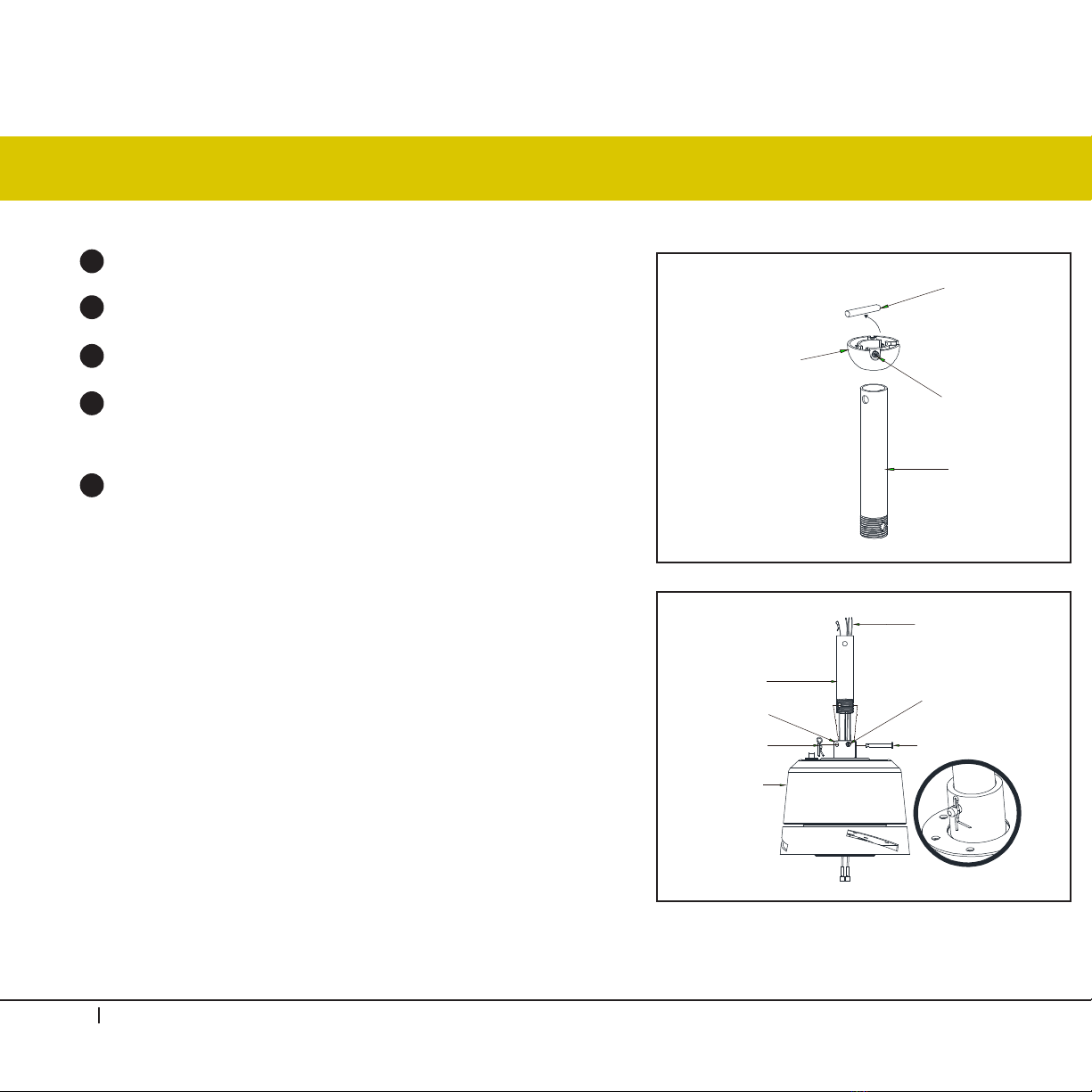

HANGING THE FAN
Remove hanger ball from downrod by loosening set screw in the side of
the hanger ball. Slide hanger ball down and remove cross pin. (Fig. 1)
Carefully support fan body (motor) in its packing with the mounting collar
(where the wires come out) facing upward.
Loosen the security set screw and remove the downrod pin and cotter pin
from the coupling on top of the motor assembly. (Fig. 2)
Carefully feed the electrical lead wires and safety cable from the fan
through the downrod. Thread downrod into coupler until holes align. Insert
downrod pin through holes in mounting collar and downrod; clip cotter pin
through small hole in end of downrod pin to hold downrod in place.
Securely tighten set screw against downrod using a large flat-head
screwdriver to ensure a tight fit against downrod. Tighten nuts against
mounting collar.
1
2
3
4
5
Downrod
Setscrew
Crosspin
Hanger ball
Downrodpin
Hook-up(3)Wires
SecurityScrews
Cotterpin
TopofFan Body
Downrod
MoumtingCollar
WARNING: Make sure the cross pin is installed well on hanger ball with downrod.
Figure 1
Figure 2

©2022 Hinkley Lighting, Inc. hinkley.com 7
HANGING THE FAN (continued)
Slip the yoke cover, trim ring and canopy onto the downrod.
(Fig. 3)
Slide the hanger ball onto the downrod, insert the cross pin
through the downrod and tighten. Tighten the set screw.
1
2
3Lift ball/downrod/fan into hanger bracket opening.
NOTE: The tab opposite hanger bracket opening should fit
in slot on ball. (Fig. 4)
NOTE:
Fan has 6 feet of hook-up wire in case you
are using a long extension downrod.
INSTALLATION OF SAFETY CABLE SUPPORT:
Attach the wood screw and the flat washer to the ceiling joist
as shown (do not fully tighten). Slide the cable clamp onto the
safety cable from the fan. Loop the safety cable around the wood
screw that was just attached to ceiling joist. Feed the end of the
cable into the clamp and pull as much cable through as possible.
Firmly tighten screw in the clamp. Cut off excess cable.
Figure 3
Figure 5
Top of Fan Body
Downrod Canopy
Trim Ring
Yoke Cover
Hook-up(3)Wires
Ground Wire
SetScrew
CrossPin
Hanger Ball
Reverse Switch
SafetyCable
WoodCeilingJoist
SafetyCableClamp
SafetyCableLoop
WoodScrew
AndWasher
Registration Slot
Figure 4

hinkley.com
8
ELECTRICAL CONNECTIONS
Figure 1
Figure 2
REMEMBER - Turn off the power!
NOTE: Control must be installed within 30 feet of fan.
WARNING: Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire nuts, except for the
ground wire.
CAUTION: To reduce the risk of electric shock, this fan must be
installed with an isolating wall control/switch.
Insert the receiver into the ceiling mounting bracket with the flat
side of the receiver facing the ceiling. (Fig. 1)
Make wire connections from the fan to the receiver unit. For this
step use the bundle of 3 wires on the receiver. (Fig. 2)
Connect the BLUE fan wire to the BLUE receiver wire.
Connect the BLACK fan wire to the BLACK receiver wire.
Connect the WHITE fan neutral wire to the WHITE receiver
neutral wire.
Connect the wiring from the ceiling to the receiver unit. (Use the
2 wire bundle on the receiver.) Secure with supplied wire nuts.
Connect the BLACK building supply wire to the BLACK receiver
wire.
Connect the WHITE receiver neutral wire to the WHITE building
neutral wire.
Connect the COPPER building ground wire to the 2 GREEN
ground wires from the fan.
1
2
3
Receiver
Hanger
bracket
BLK(AC IN)
WH(AC IN)
Receiver
BLUE
WHITE
BLUE
WHITE
BLACK
BLK
WH
GRN
Ceiling
GROUND
Outlet box
BLACK

©2022 Hinkley Lighting, Inc. hinkley.com 9
FINISHING THE INSTALLATION
Align the locking slots of the ceiling canopy with the two
screws in the mounting plate. Push up to engage the slots and
turn clockwise to lock in place. Immediately tighten the two
mounting screws firmly.
Install the remaining two mounting screws into the holes in the
canopy and tighten firmly.
Install the trim ring by aligning the ring’s slots with the screws
in the canopy. Rotate the trim ring clockwise to lock in place.
1
2
3
WARNING:
Make sure the hook on the hanging bracket properly sits in the groove in the hanger ball
before attaching the canopy to the bracket by turning the housing until it drops into place.
Hanger
bracket
Ceiling Fan
Outlet Box
Canopy
Trim Ring
Screw

hinkley.com
10
INSTALLING THE BLADES
Attach a blade to the fan motor assembly by inserting the blade
into slots in the side of the fan motor assembly ,and aligning the
three screws holes in the blade with the holes, then secure with
screws .
Make sure all the screws are firmly tightened.
Repeat these steps for the remaining blades.
NOTE:
Remove any rubber supports that are
installed for shipping.
Blades
Screws
1
2
3
INSTALLING THE LIGHT KIT PAN
CAUTION: To reduce the risk of electrical shock, disconnect the
electrical supply circuit to the fan before installing the light kit.
Loosen but do not remove two of three mounting screws from
the fan motor assembly; Remove one mounting screw.
Push the light kit pan up to the fan motor assembly so that
the two loosened screw heads fit into the keyhole slots. Turn
the light kit pan clockwise, tightened the screws. Re-install the
screw that was removed in step 1 and tighten firmly.
1
2
Screws
LKPan
Mounting Hub
(bottom of motor)

©2022 Hinkley Lighting, Inc. hinkley.com 11
INSTALLING THE LED ASSEMBLY AND GLASS SHADE
CAUTION: To reduce the risk of electrical shock, disconnect the
electrical supply circuit to the fan before installing the light kit.
Remove one screw from the light kit pan and loosen, but do
not remove the other two screws. Connect the wires from
the light kit fitter assembly to the wires from the fan motor
assembly by connecting the molded adaptor plugs together.
Carefully tuck all wires and splices into the switch cap.
Push the light kit assembly up so that the two loosened screw
heads fit into the keyhole slots. Turn the light kit assembly
clockwise, tighten the screws. Reinstall the screw that was
removed in step 1 and tighten firmly.
Place the glass shade into the light kit pan, aligning the three
flat areas on the top of the glass shade with the three raised
dimples in the light kit pan. Turn the glass shade clockwise
until it stops.
1
2
3
Screws
LED Assembly
G la sssha d e

hinkley.com
12
INSTALLING THE WALL CONTROL
Select a desired location. Use the wall plate to mark the
location of the mounting holes. Plastic wall anchors or
mounting screws are needed for this application. (Fig. 1)
Seat the cradle B into the wall plate. Secure the wall plate to
the wall using the provided hardware.
Snap the face plate cover onto the wall bracket.
Remote transmitter will be held in place with built in magnets.
REMEMBER to turn off the power before you begin.
NOTE: 1. Control must be installed within 30 feet of fan.
2. Secures to any surface or application: flat wall, single
gang box, multi gang box.
1
2
3
4
Option 1. Flat Surface Installation
Remove the existing wall plate and the old switch from the wall
outlet box.
Seat the cradle A into the wall plate. (Fig. 2)
Connect the black lead wires from the switch in the cradle A to
the black wires in the switch box. Hot input wire to one of the
cradle A switch leads. Power lead to the fan is connected to
the remaining switch lead.
Connect the wall plate / cradle A assembly to the wall outlet
box using the supplied hardware.
Snap the face plate cover onto the wall bracket.
Remote transmitter will be held in place with built in magnets.
1
2
3
4
Option 2. For Single Gang Box
5
6
HIRO Control System
Transmitter
Faceplate
Wallplate CradleB
Wall
Plastic
anchor
Outletbox
Transmitter
Faceplate
Wallplate
CradleA
Figure 1 Figure 2

©2022 Hinkley Lighting, Inc. hinkley.com 13
INSTALLING THE WALL CONTROL (contiued)
Remove the existing wall plate and old switch from the wall
outlet box. (Fig. 3)
Connect the black lead wires from the switch in cradle A to
the black wires in the switch box. Hot input wire to one of the
cradle switch leads. Power lead to the fan is connected to the
remaining switch lead. (Fig. 4)
Attach cradle A to the wall switch box using supplied hardware.
Attach the multi-gang face plate (not included) to the switch
set in the wall outlet box. Cradle A Hinkley switch will fit in any
standard decora face plate.
1
2
3
4
Option 3. For Multi-Gang Wall Switch Box
NOTE: Remote transmitter will be held in place with built in magnets.
HIRO Control System
Figure 3
Figure 4
Outletbox
Faceplate
Switch
Outletbox
Transmitter
Faceplate
CradleA

hinkley.com
14
OPERATION
Remove the panel from the transmitter and
then install one 2032 battery (included). You
need to use a coin to open or close the battery
cover. To prevent damage to transmitter,
remove the battery if not use for long periods
of time (Fig. 1)
This product contains a lithium button/coin cell
battery. If a new or used lithium button/coin cell
battery is swallowed or enters the body, it can
cause severe internal burns and can lead to
death in as little as 2 hours. Always completely
secure the battery compartment. If the battery
compartment does not close securely, stop
using the product, remove the batteries,
and keep it away from children. IF you think
batteries might have been swallowed or placed
inside any part of the body, seek immediate
medical attention.
The batteries shall be disposed of properly,
including keeping them away from children;
Even used cells may cause injury.
WARNING: Chemical Burn Hazard.
Keep batteries away from children.
button:
Press this button and release instantly
to turn on or off the light.
button:
Press and hold to dim or brighten
lights to the desired level and release.
button:
Press button for turn on and setting
1-3 fan speed.
button:
Press this button to turn the fan on/off.
Signal light (Fig. 2)
1
2
3
4
5
NOTE: If installing/pairing more than
one fan in an area, the power must be
disconnected from all fans except the
one fan being paired.
With the fan’s power off, restore power to
the fan. Press and hold “ ” button for
about 3 seconds and release. If optional
light kit is installed, the light kit will flash
one time and the blades will begin to
spin. The fan has completed the pairing
process with the wall control and is
ready for use.
NOTE: A single fan can be controlled
with as many as 3 wall controls in
one room. Every control will need to
repeat the pairing process based on
instructions above and all controls must
be within 30 feet of the fan.
Pairing Process
HIRO Control System
ON
OFF
Figure 1
Figure 2
Signallight

©2022 Hinkley Lighting, Inc. hinkley.com 15
OPERATION (continued)
IMPORTANT: To prevent damage or cause injury, be sure that fan is switched to off and blades have stopped moving completely
before attempting to change direction of rotation.
Slide the reversing switch (located at the top of the motor housing, refer to figure 3 on page 7) to opposite position, and turn fan on
again. The fan blades will turn in the opposite direction and reverse airflow.
Summer Mode (forward):
A DOWNWARD airflow creates a cooling effect as shown in Figure 3. This allows you to set your air conditioner on a warmer setting
without affecting your comfort.
Winter Mode (Reverse):
An UPWARD airflow moves warmer air off the ceiling area as shown in Figure 4. This allows you to set your heating unit on a cooler
setting without affecting your comfort.
1
2
3
4
Summer Mode and Winter Mode Operation
Figure 3 Figure 4
Summer Mode
(Counter Clockwise Direction)
Winter Mode
(Clockwise Direction)

hinkley.com
16
CARE AND CLEANING
Periodically it may be necessary to re-tighten blade to blade arm screws or blade arm to motor screws to prevent clicking or humming sound
during operation. This is especially true in climates with broad temperature and humidity ranges.
When dusting the blades, you must support the blade to prevent bending - no pressure should be applied to the blades. If you experience
any flaws in the operation of your fan, please check the following points.
TROUBLESHOOTING
CAUTION:
Switch off power supply before carrying out any of these checks.
Fan Will Not Start
Fan Sounds Noisy
Fan Wobbles
Remote Control
Malfunction.
PROBLEM
1. Check main and branch circuit breakers and/or fuses.
2. Check line wire connections to fan housing wiring. Make sure forward/reverse switch is set to one or the other
position, not stuck in between.
3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
1. Check and make sure that all screws in motor housing are snug (but not over tight).
2. Check that the screws securing blade arms to the motor are tight.
3. Check that wire connectors in switch housing are not rattling against each other or the interior wall of the switch
housing.
4. Check that all glassware is finger tight and that bulb(s) are well held in the sockets, if a light kit is used.
5. Check that the canopy is firmly attached to hanging bracket and not vibrating against ceiling.
1. Check that all blades are firmly screwed into blade arms. Check that all blade arms are firmly secure to the
motor.
2. Check to make sure that light kit (if present) is firmly attached to switch housing and that all glassware and
shades are fastened properly. Wobble can also result from even the smallest deviations in distance from blade
tip to blade tip.
3. If measurements from blade tip to blade tip are not equal, loosen screws connecting blade to blade arm one at a
time and adjust blade(s) so that distances are equal.
4. Interchanging adjacent blades may redistribute mass and result in smoother operation. Blade arms can be bent
slightly to restore same pitch to all blades if a blade is different than the other blades when viewed edge on.
5. Most wobble can be traced to a loose electrical box or mounting bracket. Make sure these are tight and the ball
is completely seated in the bracket.
6. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
WARNING: To reduce the risk of personal injury, do not bend the blade arm while installing, balancing the blades, or
cleaning the fan. Do not insert foreign objects between rotating fan blades.
1. Do not connect the fan with a wall mounted variable speed control(s).
2. Make sure the dip switches are set correctly.

©2022 Hinkley Lighting, Inc. hinkley.com 17
ENERGY GUIDE SPECIFICATIONS
AVERAGE PERFORMANCE AND ENERGY INFORMATION
PERFORMANCE
SPECIFICATIONS
STANDARD
HIGH SPEED LOW SPEED
Airflow (CFM) 3132 1907
Energy Use (Watts) 35.43 12.93
Airflow Efficiciency (CFM/W) 88 147
Energy Costs (Yearly) $10
Amps 0.32 0.2
RPMs 240 135
$4

hinkley.com
18
DOWNLOADING THE HINKLEY APP (SOLD SEPARATELY)
• To use the Hinkley app, download it for free from the App
Store or Google Play.
• Open the Hinkley app where you will be prompted to
create an account.
• Enter all necessary information to create an account.
• After account is created you will receive a verification code
email to finish setting up the Hinkley app (Check spam
folder if email is not received).
• Confirm Bluetooth is enabled to allow the fan and Hinkley
app to connect to each other.
• Click add a device on the home screen and select desired
fan.
• The Hinkley app will then have you enter in WiFi name and
password.
• Click done on the Hinkley app to complete connecting the
fan.
• The Hinkley app will have options on the main screen for
fan speeds, dimming and setting timers.
• Scan the QR code below for more information on the
Hinkley app operation.
HINKLEY SMART FAN OPTIONS:
In addition to the included wall control, you can control your
Hinkley fan through the Hinkley app.
SCAN FOR ADDITIONAL DETAILS
