Hinkley SWELL FLUSH 60 User manual

60" SWELL FLUSH™
CEILING FAN INSTRUCTION MANUAL
INDOOR / OUTDOOR FAN
DC
DC MOTOR DAMP WIFI

SO WE’REHEREIF YOU HAVE A QUESTION, NEED SOME
HELP OR WANT TO CHAT ABOUTOUR PRODUCTS. SEND
SUGGESTIONS OUR WAY TOO—WE’REALWAYS LOOKING TO
MAKE YOUR EXPERIENCE WITH HINKLEY A POSITIVE ONE.
This manual contains complete instructions for the
installation and operation ofthis fan. It has been
designed to make the installation process as easy as
possible. If you are unfamiliar or uncomfortable with
wiring, please contact a qualified electrician. If you
need additional assistance or have any questions,
please reach out to us.
For warranty information,visit hinkley.com.
> [e-mail]
> 800.HINKLEY
> LET’S SEE THAT HINKLEY STYLE @HINKLEY
#HINKLEYSTYLE

WARNING:
Read and follow these instructions carefully and be mindful of all warnings shown throughout.
©2019 Hinkley Lighting, Inc. |hinkley.com |01
TABLE OF CONTENTS
01 GENERAL INSTALLATION & OPERATING
INSTRUCTIONS
02 IMPORTANT SAFETY PRECAUTIONS
03 TOOLS & MATERIALS REQUIRED
04 UNPACKING YOUR FAN
05 PREPARATION &INSTALLING THE HANGING BRACKET
06 HANGING THE FAN
07 INSTALLATION OF SAFETY CABLE SUPPPRT
08 ELECTRICAL CONNECTIONS
09 FINISHING THE INSTALLATION
10 BLADE ATTACHMENT
11
12
INSTALLING THE WALL CONTROL
13
OPERATION
14
SUMMER MODE AND WINTER MODE OPERATION
15
CARE AND CLEANING &TROUBLESHOOTING
ENERGY GUIDE 、SPECIFICATIONS & SMART BY BOND
NOTE: Limit two fan per power circuit.

GENERAL INSTALLATION &OPERATION INSTRUCTIONS
1
2
3
4
5
6
7
8
9
10
02 |hinkley.com
To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning.
To avoid possible electric shock, be sure electricity is turned off at the main power box before wiring. All electrical connections
must be made in accordance with local codes, ordinances and/or the National Electric Code. If you are unfamiliar with the
methods of installing electrical wiring and products, secure the services of a qualified and licensed electrician as well as
someone who can check the strength of the supportive ceiling members and make the proper installation(s) and connections.
WARNING: To reduce the risk of fire, electric shock, or other personal injury, mount fan only on an outlet box or supporting system
marked acceptable for fan support of 35 lbs (15.9 kg) or less and use mounting screws provided with the outlet box. Most outlet
boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
Make sure that your installation site will not allow rotating fan blades to come in contact with any object. Blades should be at least
7 feet from floor.
Blades should be attached after motor housing is hung and in place. Fan motor housing should be kept in the carton until ready
to be installed to protect its finish. If you are installing more than one ceiling fan, make sure that you do not mix fan blade sets, as
each blade is part of a weighted set.
After making electrical connections, spliced conductors should be turned upward and pushed carefully up into outlet box. The
wires should be spread apart with the common conductor and the grounding conductor on one side of the outlet box, and the
"HOT" wires on the other side.
Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL listed and should be installed
per the light kit's installation instructions.
After fan is completely installed, check to make sure that all connections are secure to prevent fan from falling and/or causing
damage or injury.
The fan can be made to work immediately after installation - the bearings are adequately charged with grease so that, under
normal conditions, further lubrication should not be necessary for the life of the fan.
To operate the reverse function on this fan, press the reverse button while the fan is running.
NOTE: Limit two fan per power circuit.

IMPORTANT SAFETY PRECAUTIONS
TOOLS &MATERIALSREQUIRED
WARNINGS:
•PHILLIPS SCREWDRIVER
•FLAT SCREWDRIVER
•WRENCH OR PLIERS
•WIRE CUTTER
•STEPLADDER
•WIRINGSUPPLIES AS REQUIRED BY
ELECTRICAL CODE
©2019 Hinkley Lighting, Inc. |hinkley.com |03
• Disconnect power by removing fuse or turning off circuit breaker before installing the fan and/or optional lighting.
• Support directly from building structure.
• To reduce the risk of fire, electric shock or personal injury, mount to outlet box marked "acceptable for fan support" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan
support and may need to be replaced. Consult a qualified electrician if in doubt.
• Do not use an incandescent light dimmer. Do not use this fan with any transformer type fan speed control device.
• To reduce the risk of personal injury, do not bend the blade arms when installing them, balancing the blades or cleaning the fan.
Do not insert any object(s) between rotating fan blades.
NOTE:
The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible conditions
and situations that may occur. It must be understood that common sense, caution and carefulness are factors which cannot be
built into this product. These factors must be supplied by the person(s) installing, caring for and operating the unit.

Blade to Motor Screws
(Hex Socket Flat Head
#10-32 x 1/4" long Screws) x 10
Hex wrerch(1)
Mounting Screws(Hex Socket
Head Cap Screws#3-16 x 9
long screws)x 3
Bracket Mounting Hardware
(wood screws x 2, screws, lock
washers x 2, star washers x 2 ,
flat washers x 2 )
UNPACKING YOUR FAN
UNPACK YOUR FAN AND CHECK THE CONTENTS.
04 |hinkley.com

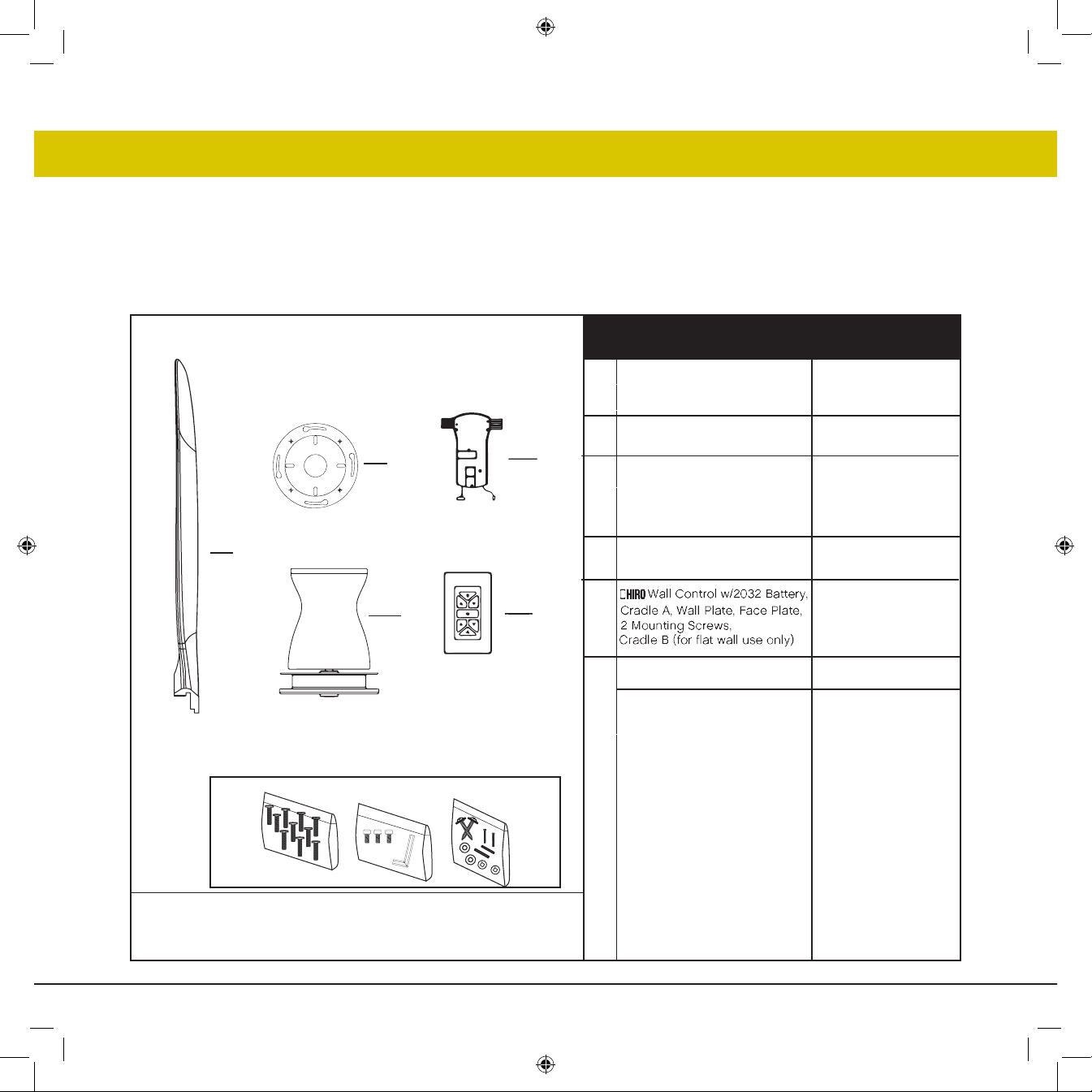

HOVER PACKAGE CONTENT
1Blade Set of 3 BL903460FMW (M.White)
BL903460FMB (Walnut)
BL903460FMB(Driftwood)
MH903460FMW
MH903460FMB
MH903460FMB
2Mounting Plate
3
4
5
6
1
2
5
3
• Do not discard the carton. If warranty replacement or repair is ever necessary, the fan should be returned in original packing.
Remove all parts and hardware. Do not lay motor housing on its side, or the decorative housing may shift, be bent or damaged.
• Examine all parts. You should have the following:
NOTE: Design of parts shown above may look slightly different for
your specific model of fan.
4
Hardware Bag
Fan Motor / Housing assembly
Blades Ring
6
CNW903460
980014FWH-R
Controller W/Wifi
MP903460
---------------

PREPARATION
INSTALLING THEHANGINGBRACKET
PREPARATION:
Parts identification on assembled fan.
©2019 Hinkley Lighting, Inc. |hinkley.com |05
Verify you have all parts before beginning
the installation. Check foam insert closely for
missing parts. Remove motor from packing.
To avoid damage to finish, assemble motor
on soft padded surface or use the original
foam inset in motor box.
DO NOT LAY MOTOR HOUSING ON ITS SIDE
AS THIS COULD RESULT IN SHIFTING OF
MOTOR IN DECORATIVE ENCLOSURE.
Blade
Motor Housing
CAUTION: To avoid possible electrical shock, be sure electricity is turned off
at the main power box before wiring. All wiring must be in accordance with
National and Local Electrical Codes and the ceiling fan must be grounded as
a precaution against possible electric shock.
1
2
3
4
Locate ceiling joist where fan is to be mounted, being sure location
agrees with the requirements in the minimum clearance section of this
guide. Wood joists must be sound and of adequate size to support 35
pounds (See page 2, items 3 and 4).
If not already present, mount a UL listed outlet box marked "suitable for
fan support" following the instructions provided with the outlet box. The
outlet box must be able to support a minimum of 35 pounds.
Locate mounting plate. Secure mounting plate to outlet box using the
screws provided with the outlet box.
Mounting Plate
Outlet Box
Screw
Flat Washer
Spring Washer
Fig. 1

HANGING THE FAN
1
2
3
4
06 |hinkley.com
Fig. 1

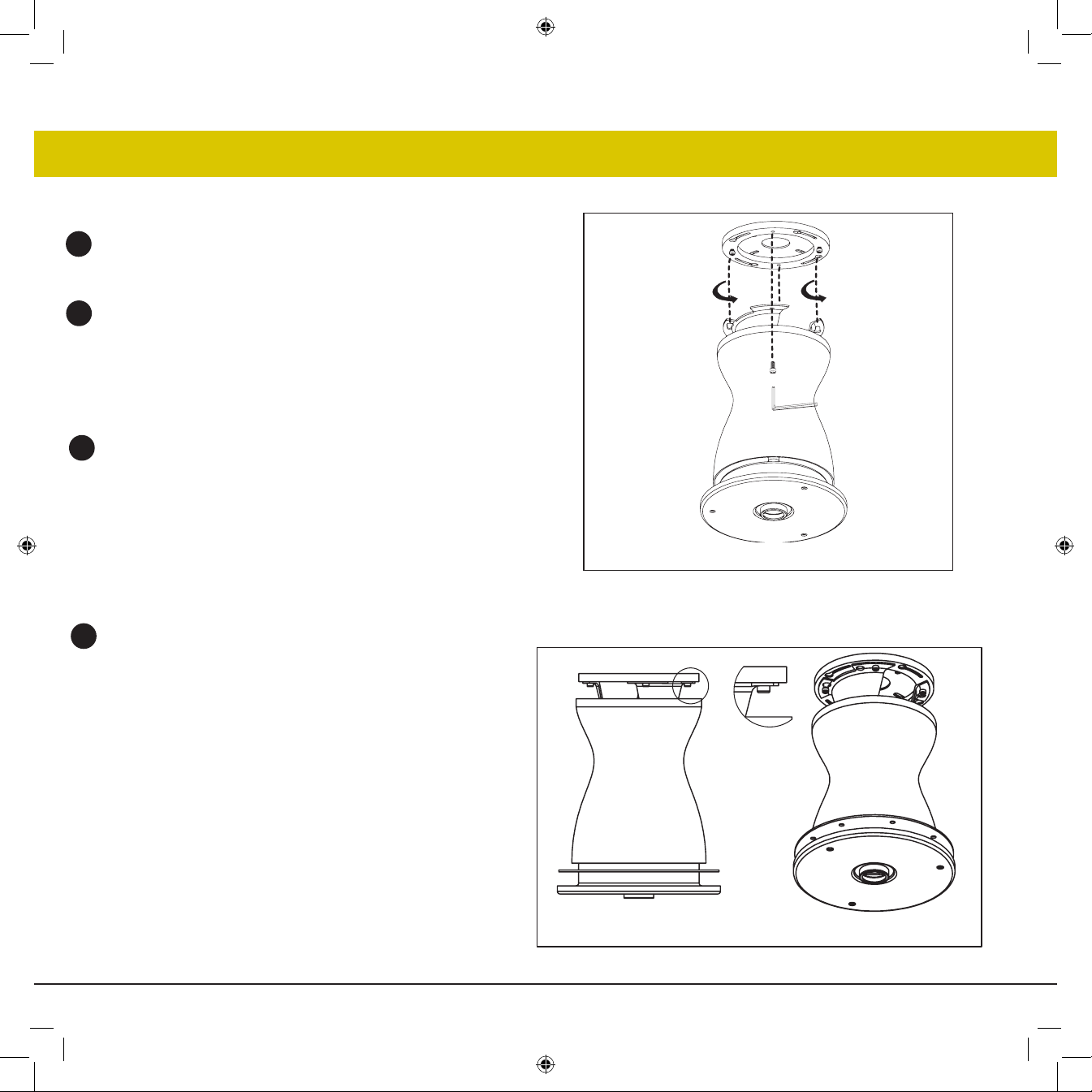

Locate motor / housing assembly.
Attach the motor assembly to the mounting plate
by rotating the two allen head screws in the
mounting plate into key slots in motor support.
(Fig. 1)
Secure the motor assembly to the mounting plate
by using the remaining 2 allen head screws,
through the motor support bracket into the mount-
ing plate. (Fig. 1)
NOTE: The housing will need to be tilted / maneu-
vered to the side to access the Allen Head
screws efficiently.
Using the provided allen wrench, fully tighten all
four allen head screws to fully secure motor
assembly to the mounting plate. (Fig. 2)
A
Fig. 2

07
©2019 Hinkley Lighting, Inc. |hinkley.com
Fig. 4
Attach the wood screw and the flat washer to the ceiling joist as
shown (do not fully tighten). Slide the cable clamp onto the
safety cable from the fan.Loop the safety cable around the
wood screwthat was just attached to ceiling joist. Feed the end
of the cable into the clamp and pull as much cable through as
possible. Firmly tighten screw in the clamp. Cut off excess cable.
INSTALLATION OF SAFETY CABLE SUPPORT
Safety Cable Clamp
Safety Cable
Wood Ceiling Joist
Safety Cable Loop
Wood Screw
And Washer

ELECTRICAL CONNECTIONS
08 hinkley.com
|
NOTE: Two fan per power circuit.

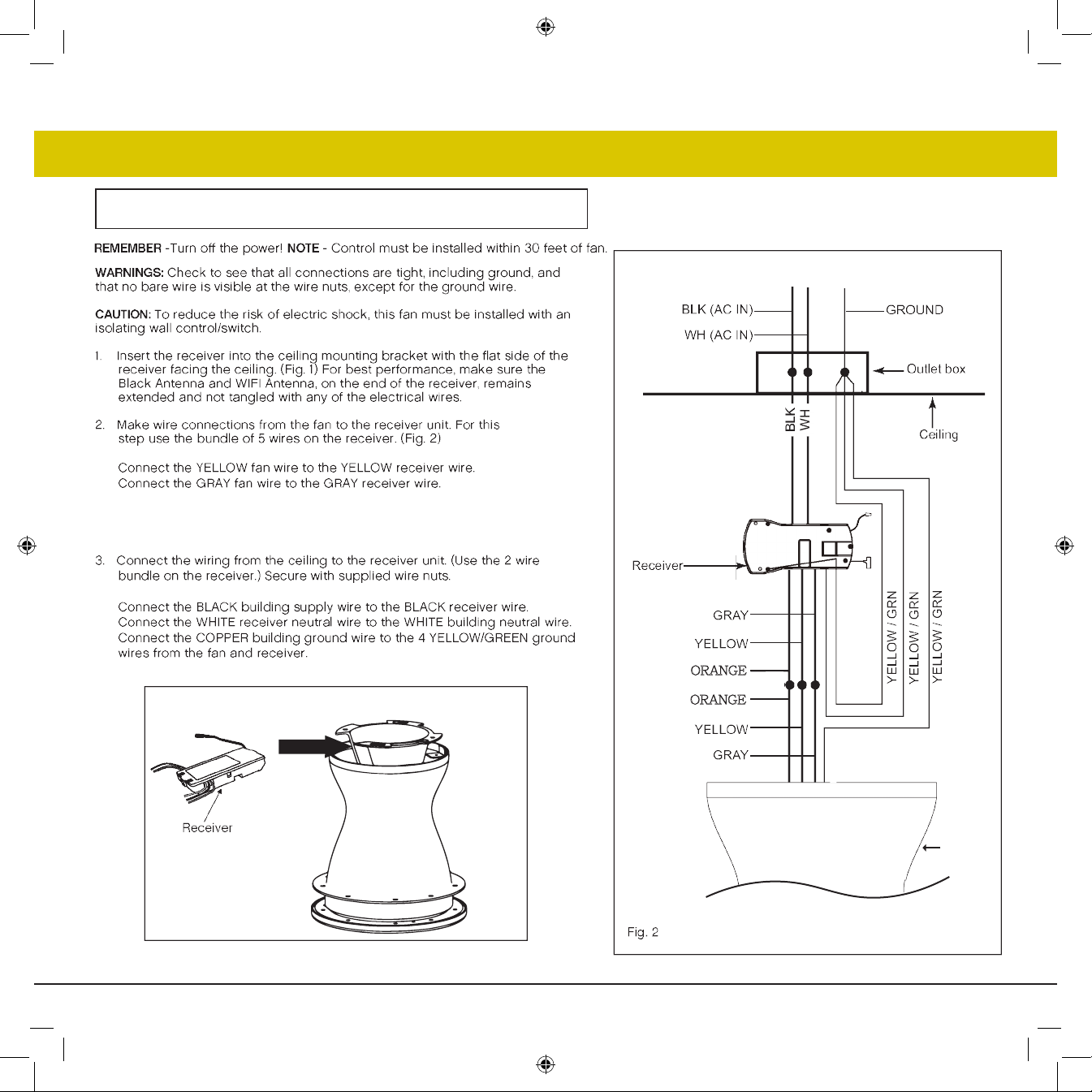

ORANGE
ORANGE
Connect the ORANGE fan wire to the ORANGE receiver wire
Fig. 1
Fan Body
(Mounting plat)

FINISHINGTHE INSTALLATION
©2019 Hinkley Lighting, Inc. |hinkley.com |09
1
2
2
1Tuck connections neatly into ceiling outlet box.

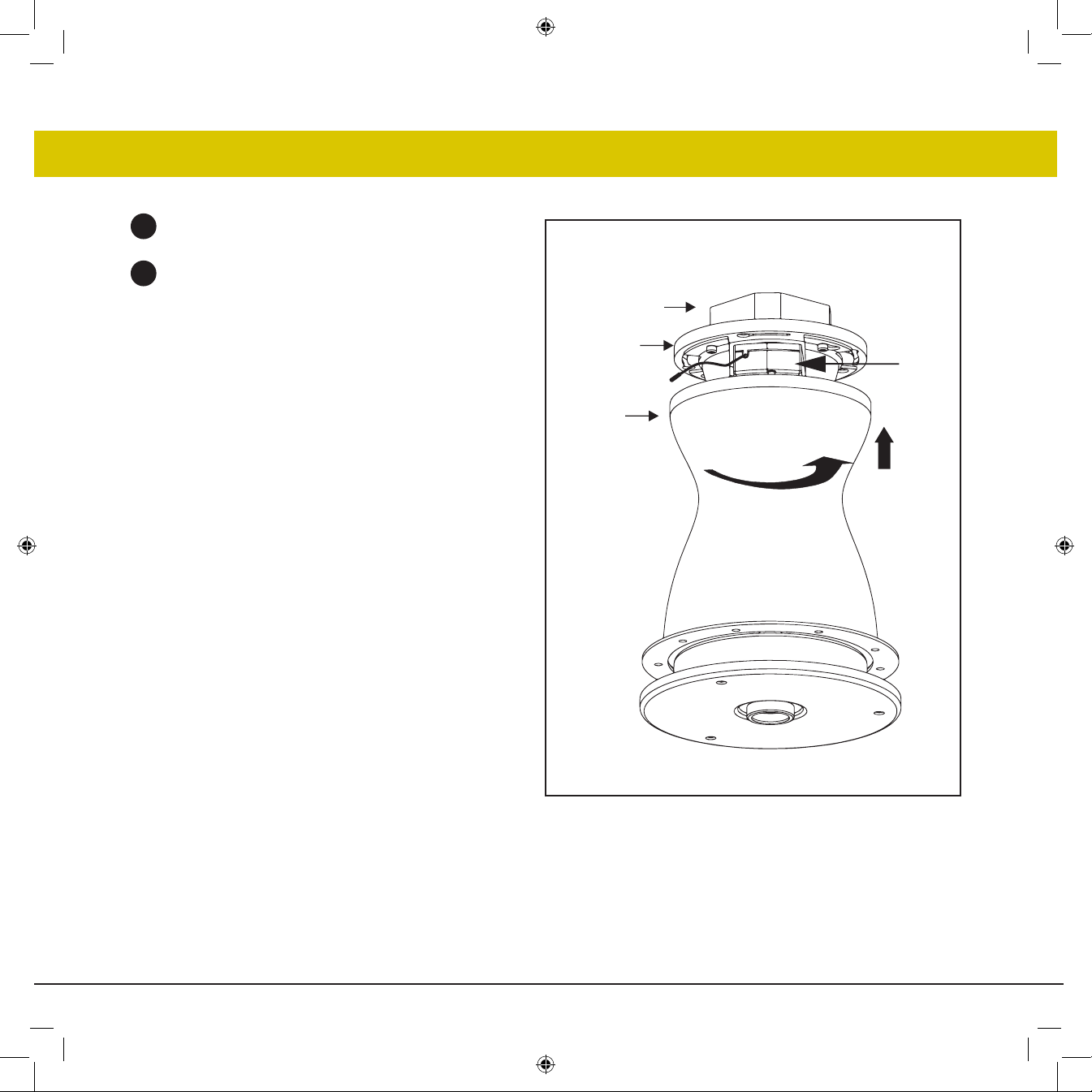

Slide the decorative housing up to the mounting plate
and secure by twisting the 4 screws into the 4 keyslot
holes of the mounting plate.
NOTE: Adjust the canopy screws as necessary until the
canopy and trim ring are snug. Fan Body
Ceiling Fan
Outlet Box
Mounting Plat
Groove

Fan Body
Motor
Motor
Blades Ring
Blades Ring
BLADE ATTACHMENT
NOTE:
Fasten blade to motor with provided screws, lock washers and
flat washers. Repeat procedure for remaining blades. Make sure
screws are TIGHT! Loose motor screws can contribute to
unnecessary hum during operation.
Cordless power screwdrivers are NOT recommended,
as they usually strip the heads of the screws and
usually will not fully compress the lock washers on
the motor screws. Use a large flat blade screwdriver
for final tightening to fully compress the washers. This
will help ensure proper alignment of the blades and
noise-free, wobble-free running.
10 |hinkley.com
NOTE: Remove any rubber supports that are installed for
shipping.
1
2
4
3

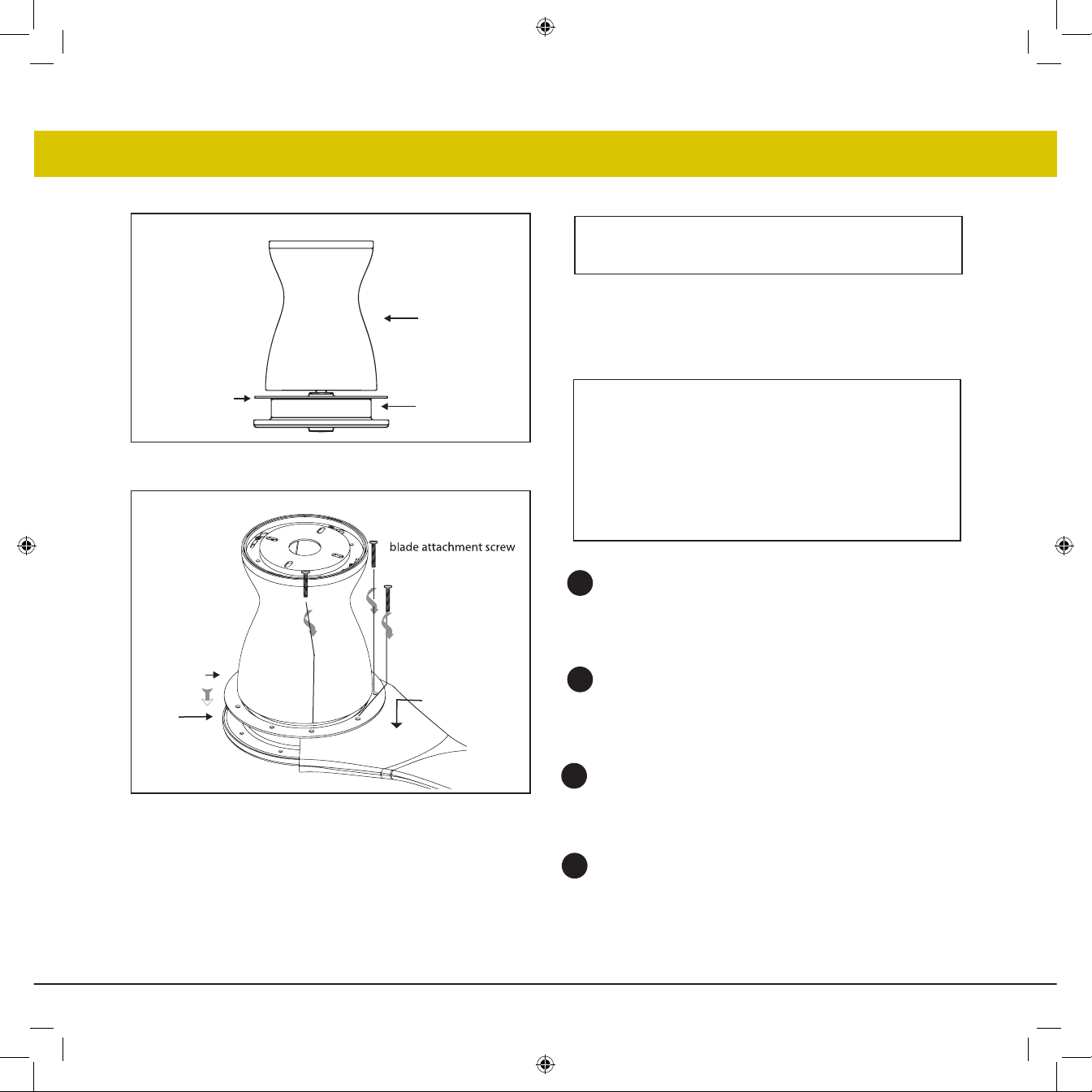

Locate 9 blade attachment screws. Slide one
blade onto the motor as shown in Fig.2,
aligning holes in blade with holes on the
edge of the motor.
Disconnect decorative housing from mounting plate
(if attached). While attached blade screws move the
decorative housing to provide a bit more clearance
to attach the blade screws
Place blade ring on the blade, aligning all holes
in blade with all holes on blade ring, install 3 blade
attachment screws.
Tighten all screws securely with provided allen wrench.
Fig.1
Fig.2
Blades

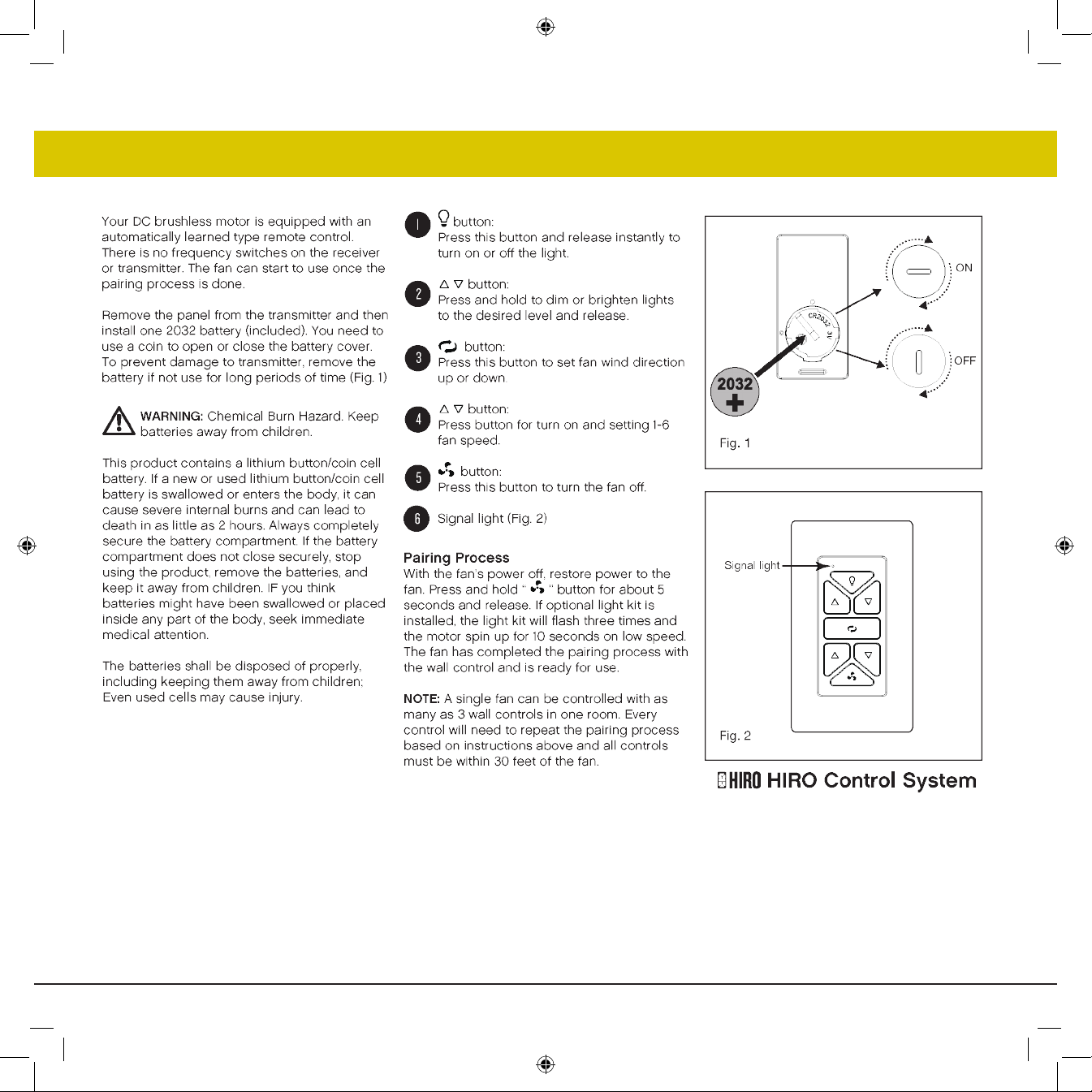

INSTALLING THE WALL CONTROL
©2019 Hinkley Lighting, Inc. |hinkley.com |11

12 |hinkley.com
OPERATION
4

Fig. 3 Fig. 4
SUMMER MODE
(COUNTERCLOCKWISE DIRECTION)
WINTER MODE
(CLOCKWISE DIRECTION)
8
9
Summer Mode and Winter Mode Operation
Summer Mode (forward):
A DOWNWARD airflow creates a cooling effect as shown in Figure 3. This allows you to set your air conditioner on a warmer setting
without affecting your comfort.
Winter Mode (Reverse):
An UPWARD airflow moves warmer air off the ceiling area as shown in Figure 4. This allows you to set your heating unit on a cooler
setting without affecting your comfort.
©2019 Hinkley Lighting, Inc. |hinkley.com |13

14 |hinkley.com
CARE AND CLEANING
Periodically it may be necessary to re-tighten blade to blade arm screws or blade arm to motor screws to prevent clicking or humming sound during
operation.
This is especially true in climates with broad temperature and humidity ranges.
When dusting the blades, you must support the blade to prevent bending - no pressure should be applied to the blades. If you experience any flaws in
the
operation of your fan, please check the following points.
TROUBLESHOOTING
PROBLEM SOLUTION
FAN WILL
NOT START
FAN SOUNDS
NOISY
FAN WOBBLES
1. Check circuit fuses or breakers.
2. Check wall control LED indicator light. If LED is not illuminated when pushing a button, it is not transmitting a
signal. Please check power to wall control/circuit breaker and all electrical connections.
3. Assure there are no more than 2 fans operating on a circuit through the wall control. Assure that there are no
more than 12 fans operating on a circuit through an on/off wall switch or a breaker (not through a wall control).
4. Assure that the fan in within range of the WiFi (150 ft.) or wall control (30 ft.).
5. Check to assure only one fan is installed in the power circuit.
1. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan will disappear during this time.
2. Make sure all motor housing screws are securely fastened.
3. Make sure the screws that attach the fan blade to the fan are tight.
4. Make sure your ceiling box is secure and rubber isolator pads are used between the mounting bracket and outlet
box.
1. Check that all blade and blade arm screws are secure.
2. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight
and possibly result in smoother operation.
3. Check to assure all dowrods to motor hardware and/or hanger ball are tight.
4. Make sure ceiling box is secure.
CAUTION:
Switch off power supply before carrying out any of these checks.

©2019 Hinkley Lighting, Inc. |hinkley.com |15

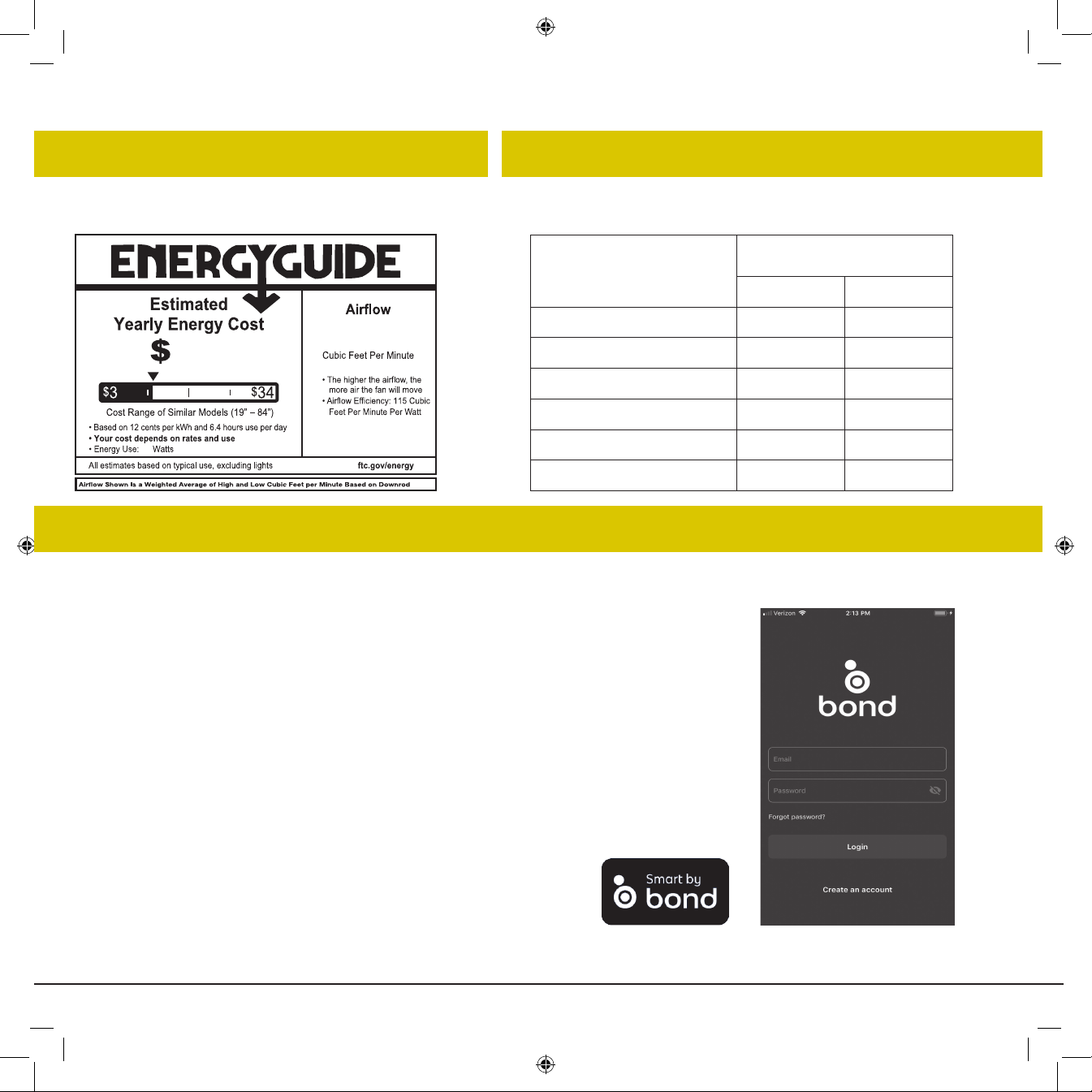

ENERGY GUIDE SPECIFICATIONS
SMART BY BOND
HINKLEY SMART FAN OPTIONS :
https://bondhome.io/app
In addition to the included wall control, you can control your Hinkley fan
through the Bond app using the smart technology smart technology
controls.
• To use the app, download it for free from the App Store or Google Play.
• Open the app to create your account. You can also login with your
Facebook or Google account.
• Next, set up a WiFi connection. You will need the SSID and WiFi
password for the network you want to connect to.
• You will receive a prompt to choose the finish of your fan and name
your fan device.
• The app will walk you through the main screen and show you how to
change fan speeds, dim the light, set timers or utilize breeze mode.
NOTE: Maximum of 2 fans can operate on a circuit through the wall
control. Maximum of 12 fans can operate on a circuit through an on/off
switch or breaker when utilizing the app for the fan control (without the
wall control in the circuit).
AVERAGE PERFORMANCE AND ENERGY INFORMATION
PERF OR MANCE
SPECIFICAT IONS
STANDARD
HIGH SPEED LOW SPEED
Airflow (CFM)
Energy Use (Watts)
Airflow Eciency (CFM/W)
Energy Costs (Yearly)
Amps
RPMs
7
5,452
24
7847 5452
34.4 24
228 225
9 7
0.52 0.23
157 116

HINKLEY IS PROUD TO PROVIDE YOU WITH CEILING FAN
PRODUCTS THAT ENHANCE YOUR SPACE WITH COMFORT,
PURPOSE AND STYLE. AS A FAMILY COMPANY, WE ARE
COMMITTED TO DESIGN, PERFORMANCE AND QUALITY,
AND WHAT’S IMPORTANT TO YOU IS PARAMOUNT TO US.

GLOBAL HEADQUARTERS
33000 Pin Oak Parkway | Avon Lake, Ohio 44012
T [phone] | F [phone] | hinkley.com
