INSTRUCTION MANUAL
For...は専用機種。複数の場合は「/」で区切る。
不要の場合はとる。
形名を入力。 複数の場合は「/」で区切る。
9636-01
品名を入力。
RS-232C PACKAGE

Contents
Introduction i
Shipping Check i
Safety ii
Precautions for Using
the RS-232C PACKAGE iv
Chapter 1 RS-232C PACKAGE Overview 1
Chapter 2 Specifications 2
2.1 General Specifications 2
2.2 RS-232C PACKAGE
Function Specifications 3
2.3 Screen Example 4
Chapter 3 Connection Procedure 6
Chapter 4 Program Installation 7
Chapter 5 3286 (-20) Settings 8
5.1 OPTION Mode 8
5.2 DATA OUTPUT SETUP Mode 9
5.3 Default Settings 11
5.4 Data Format 12
Chapter 6 Troubleshooting 19

i
―――――――――――――――――――――――――――
Introduction
――――――――――――――――――――――――
Introduction
Shipping Check
Thank you for purchasing this HIOKI "9636-01 RS-
232C PACKAGE." To get the maximum
performance from the product, please read this
manual first, and keep this at hand.
Request
We have tried to bring this manual as close to
perfection as we could achieve. If perchance you
find any unclear portions, mistakes, omissions, or
the like, we would be most obliged if you could
please notify us of them via any HIOKI agent, or
directly.
When the product is delivered, check and make sure
that it has not been damaged in transit.
If the product is damaged, or fails to operate
according to the specifications, contact your dealer
or HIOKI representative.

ii
―――――――――――――――――――――――――――
Safety
――――――――――――――――――――――――
DANGER
Incorrect measurement procedures could result
in injury or death, as well as damage to the
equipment. Please read this manual carefully
and be sure that you understand its contents
before using the equipment. The manufacturer
disclaims all responsibility for any accident or
injury except that resulting due to defect in its
product.
Safety
This Instruction Manual provides information and
warnings essential for operating this product in a
safe manner and for maintaining it in safe operating
condition. Before using this product, be sure to
carefully read the following safety notes.

iii
―――――――――――――――――――――――――――
Safety
――――――――――――――――――――――――
CAUTION
Indicates that incorrect operation
presents possibility of injury to the user
or damage to the equipment.
NOTE
Denotes items of advice related to
performance of the equipment or to its
correct operation.
This symbols is affixed to locations on the
product where the operator should consult
corresponding topics in this manual (which
are also marked with the symbol) before
using relevant functions of the product.
In the manual, this mark indicates
explanations which it is particularly
important that the user read before using
the product.
The following symbols are used in this Instruction
Manual to indicate the relative importance of
cautions and warnings.
Safety Symbols

iv
―――――――――――――――――――――――――――
Precautions for Using the RS-232C PACKAGE
――――――――――――――――――――――――
CAUTION
This product is designed for indoor use, and
operates reliably from 0 to 40 .
Precautions for Using the RS-232C
PACKAGE
Please be aware of the following items before use:
The "RS-232C PACKAGE" is copyrighted by
HIOKI E.E. Corporation. Reproducing, copying or
modifying the product in whole or in part, except
for the specific purpose of processing data for the
3286 (-20), is prohibited by law.
The "RS-232C PACKAGE" may be subject to
revision or upgraded for purposes of technological
improvement without notification.
Republishing portions of the "RS-232C PACKAGE"
requires the prior consent of our company. The
HIOKI trademark may not be used.
In no case shall we accept responsibility for
consequential effects resulting from use of the "RS-
232C PACKAGE".
CD Handling Precautions
Always hold the disc by the edges, so as not to
makefingerprints on the disc or scratch the printing.
Never touch the recorded side of the disc. Do not
placethe disc directly on anything hard.
Do not wet the disc with volatile alcohol or water,

v
―――――――――――――――――――――――――――
Precautions for Using the RS-232C PACKAGE
――――――――――――――――――――――――
asthere is a possibility of the label printing
disappearing.
To write on the disc label surface, use a spirit-based
felt pen. Do not use a ball-point pen or hard-tipped
pen, because there is a danger of scratching the
surface and corrupting the data. Do not use adhesive
labels.
Do not expose the disc directly to the sun's rays, or
keep it in conditions of high temperature or
humidity, as there is a danger of warping, with
consequent lossof data.
To remove dirt, dust, or fingerprints from the disc,
wipewith a dry cloth, or use a CD cleaner. Always
wiperadially from the inside to the outside, and do
no wipewith circular movements. Never use
abrasives orsolvent cleaners.
Hioki shall not be held liable for any problems with
a computer system that arises from the use of this
CD, or for any problem related to the purchase of a
Hioki product.
Registered Trademarks
Windows is a registered trademark of Microsoft
Corporation (USA).
Other product names are the trademarks or
registered trademarks of their respective companies.
Copyright C1987-1995 Microsoft Corporation, All
rights reserved
Copyright CHIOKI E. E. Corporation 2001.

1
―――――――――――――――――――――――――――
Chapter 1 RS-232C PACKAGE Overview
――――――――――――――――――――――――
Chapter 1 RS-232C PACKAGE
Overview
The "RS-232C PACKAGE" is a PC software
program that processes data from the HIOKI Model
3286 (-20) CLAMP ON POWER HiTESTER.

2
―――――――――――――――――――――――――――
Chapter 2 Specifications
――――――――――――――――――――――――
Operating Environment
OS Microsoft Windows 95 (Note 1)/98
Microsoft Windows 2000
Microsoft Windows Me
Microsoft Windows NT 4.0
Note 1: Microsoft Windows 95 must be
OSR2 or later version.
PC PC-AT compatible machine
Disp.
Resolution
XGA (1024 x 768) or higher
Memory 32 MB or greater
Hard Disk At least 20 MB free space
Chapter 2 Specifications
2.1 General Specifications
Media:
One CD (Exclusive PC application software)
Compatible Measuring Instrument:
HIOKI Model 3286 (-20) CLAMP ON POWER
HiTESTER
This software is not guaranteed to operate normally
unless the operating environment is as specified.
Even if the conditions are satisfied, this software
may not operate normally or display data unless
your hardware and software are configured
appropriately.

3
―――――――――――――――――――――――――――
Chapter 2 Specifications
――――――――――――――――――――――――
Maximum readings
accepted
32700
File operations Open file and save file
Printing Data printing
Recording CSV format
Communications Acquires data via RS-232C
2.2 RS-232C PACKAGE Function Specifications

4
―――――――――――――――――――――――――――
Chapter 2 Specifications
――――――――――――――――――――――――
The screen of 3
φ
PF Meter
The screen of harmonics
2.3 Screen Example

5
―――――――――――――――――――――――――――
Chapter 2 Specifications
――――――――――――――――――――――――
NOTE
1. Function Mode Indication
This area shows the measurement function and
mode.
1P_P 1φP Meter
1P_PF 1φPF Meter
3P_PF 3φPF Meter
HARM_I Current harmonics
HARM_U Voltage harmonics
2. Range Indication
This area shows the current and voltage ranges.
When auto-ranging is enabled, the auto-selected
range is indicated within parenthesis, as in "AUTO
(600V)"
3. Measured Value Display
Each measurement value is shown.
4. Remaining Battery Indication
The remaining battery charge in the 3286 (-20) is
shown.
5. LEAD/LAG Indication
Phase lead and lag of the current relative to voltage
is shown.
6. RS-232C Indication
Shows RS-232C communications.
It is on during the communication.
It goes on and off while waiting for the
communication.
It is off when there is no vacancy in the COM port.

6
―――――――――――――――――――――――――――
Chapter 3 Connection Procedure
――――――――――――――――――――――――
RS-232C connector
PC Connection
NOTE
Chapter 3 Connection Procedure
Use the supplied cable to connect the 3286 (-20) to
the PC.
Be careful of the cable direction when connecting it
to the 3286 (-20).

7
―――――――――――――――――――――――――――
Chapter 4 Program Installation
――――――――――――――――――――――――
Chapter 4 Program Installation
1. Confirm that the operating environment satisfies the
requirements in "Chapter 2. Specifications" above,
and insert the RS-232C PACKAGE diskette into the
CD-ROM drive.
2. Open My Computer, and select the CD-ROM drive
with the RS-232C PACKAGE diskette.
3. Copy all of the files from the CD to a folder on the
hard disk.
4. Execute the lm3286.exe file included in the copied
files.
5. Refer to the help file if you need help with the
operating procedures.

8
―――――――――――――――――――――――――――
Chapter 5 3286 (-20) Settings
――――――――――――――――――――――――
NOTE
Model Name Input
type Function
9636-01 RS-232C
PACKAGE 9636-01 PC Output
Chapter 5 3286 (-20) Settings

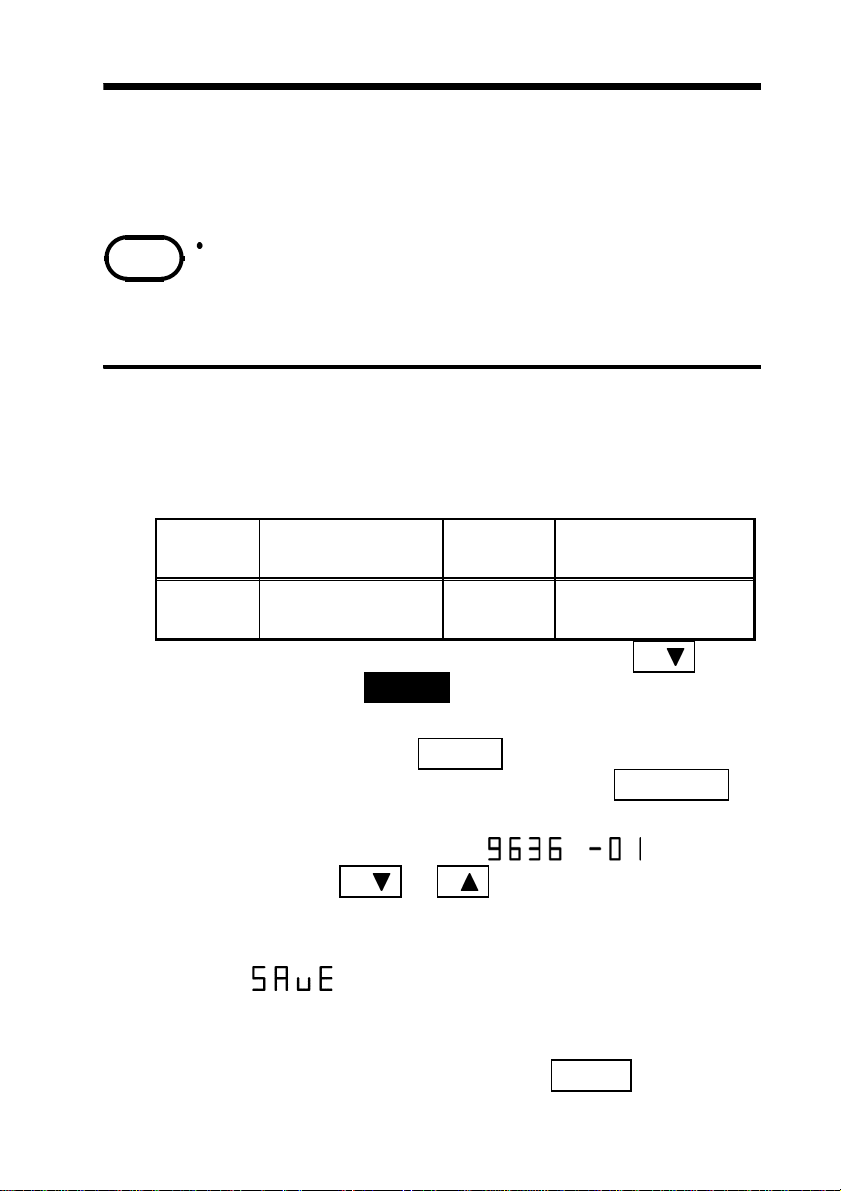

5.1 OPTION Mode
To use the RS-232C PACKAGE, make settings at
DATA OUTPUT SETUP and at OPTION mode on
the 3286 (-20).
If the RS-232C PACKAGE does not work after
settings, initialize the setting (refer to "5.3 Default
Settings") and retry the settings.
To use an option with the 3286 (-20), enable its
OPTION mode.
1. OPTION Types
2. To activate the OPTION mode, hold the U/ key
while pressing POWER to turn the 3286 (-20) on.
3. The digit selected for changing the OPTION mode
blinks. Pressing the MODE key moves the blinking
selection to the right, and pressing the MAX/MIN
key moves it the left.
4. Set the numerical value to by
pressing the U/ or I/ keys to change the
blinking digit.
5. After setting all digits appropriately, turn the power
off: (SAVE) is displayed as the settings are
saved.
6. If you desire to revert the option to the default state,
on the OPTION mode, press the HOLD key so that

9
―――――――――――――――――――――――――――
Chapter 5 3286 (-20) Settings
――――――――――――――――――――――――
NOTE
5.2 DATA OUTPUT SETUP Mode
is displayed, then turn the power off.
is displayed, and the option setting reverts to
its default.
The digits may not flash, depending on the version
of software used for the 3286 (-20). When using a
version of software for which the digits do not flash,
use the U/ or I/ key to change the input type
setting.
The DATA OUTPUT function must be enabled in
the DATA OUTPUT SETUP mode.
The DATA OUTPUT SETUP mode also allows
setting the output type, output items and
communications parameters.

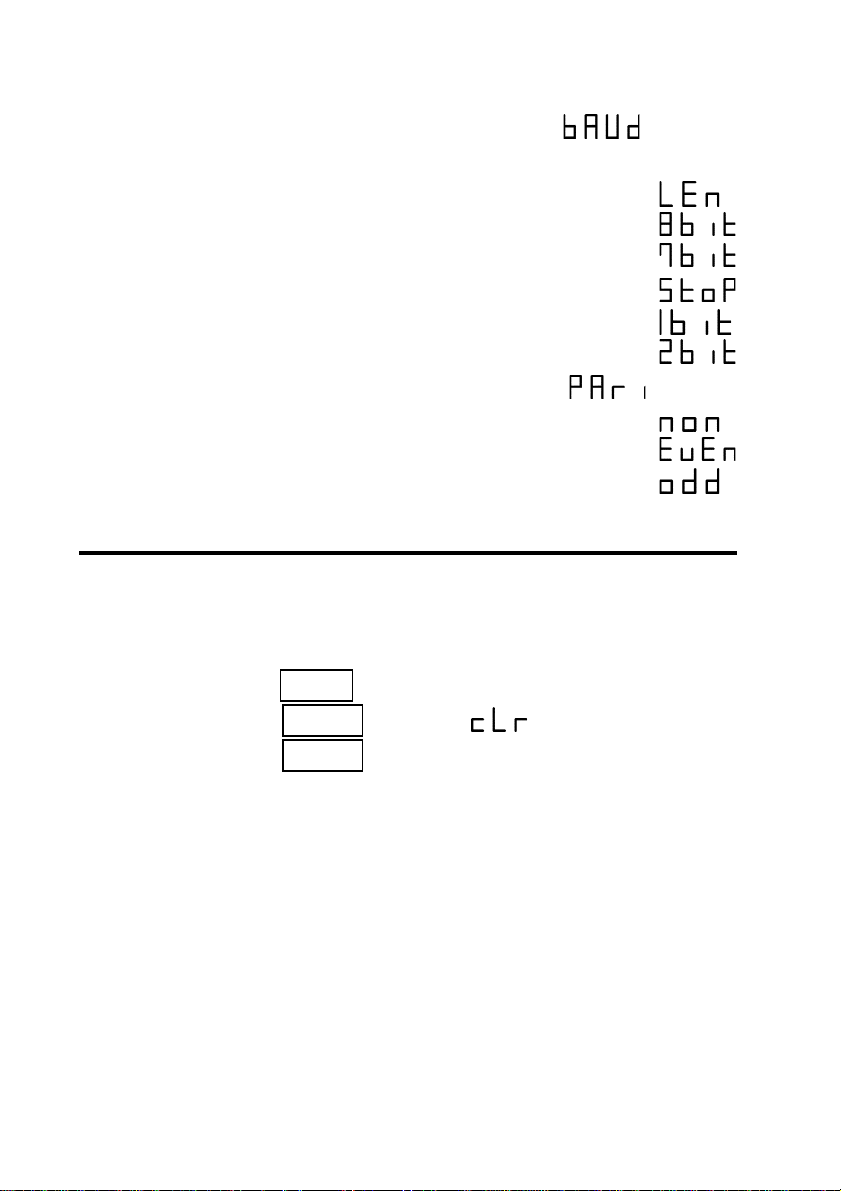

The RS-232C communications speed (item 2-04),
RS-232C data length (item 2-05), RS-232C stop bits
(item 2-06) and RS-232C parity bit (item 2-07)
must be set to be the same as the RS-232C
PACKAGE.
1. To activate the DATA OUTPUT SETUP mode, hold
the SET2 key while pressing the POWER key to
turn the 3286 (-20) on.
2. Select the appropriate settings. Use the MODE and
MAX/MIN keys to increment and decrement the
item number, respectively. The communications
status display (item 2-03) is off by default. Items 2-
04 to 2-07 are displayed by setting the
communications status display to .
3. Change the settings as needed using the U/ or
I/ keys.

10
―――――――――――――――――――――――――――
Chapter 5 3286 (-20) Settings
――――――――――――――――――――――――
Display 1
Item No.
Display 2
Item
Name
Display 3
Available Settings
Default
Value
NOTE
4. If needed, the settings can be returned to their
default values by pressing the HOLD key twice.
5. When finished setting, turn the power off:
(SAVE END) is displayed as the
settings are saved.
Items 2-04 and later are not displayed unless item
2-03 ( )issetto .
6. Setting Details
(1) DATA OUTPUT Function: Item 2-01
off DATA OUTPUT Function disabled
PC Select the RS-232C PACKAGE for output
(2) Output Format: Item 2-02 (FORM)
ALL Select all items for output
DISP Select display items for output
(3) RS-232C Communications Display: Item 2-03
(RS-IF)
off No display
DISP Display items 2-04 to 2-07

11
―――――――――――――――――――――――――――
Chapter 5 3286 (-20) Settings
――――――――――――――――――――――――
5.3 Default Settings
(4) RS-232C Communications Speed: Item 2-04
(BAUD)
Select from 2400/4800 or 9600 bps
(5) RS-232C Data Length: Item 2-05
8bits Setdatalengthto8bits
7bits Setdatalengthto7bits
(6) RS-232C Stop Bits: Item 2-06
1 bit Select one stop bit
2 bits Select two stop bits
(7) RS-232C Parity Bit: Item 2-07 (PARI)
none Select no parity bit
EVEN Select even parity bit
ODD Select odd parity bit
This procedure returns the RS-232C settings to their
factory defaults.
1. Hold the SET2 key while turning the power on.
2. Press the HOLD key until is displayed.
3. Press the HOLD key again to initialize the settings
to their default values.
Default Values
DATA OUTPUT Function OFF
Output Format ALL (All items for
output)
Communication Speed 9600 bps
Data Length 8 bits
Stop Bits 1 bit
Parity none
