Hioki 3269 User manual

INSTRUCTION MANUAL
For...は専用機種。複数の場合は「/」で区切る。
不要の場合はとる。
形名を入力。 複数の場合は「/」で区切る。
3269
品名を入力。
POWER SUPPLY

i
Contents
Contents
Introduction...............................................................1
Inspection..................................................................1
Safety Notes .............................................................2
Operating Precautions ..............................................5
Chapter 1 Overview 9
1.1 Product Overview........................................9
1.2 Names of Parts............................................9
Chapter 2 Measurement Procedure 11
2.1 Preparations..............................................11
2.2 Measurement Procedure...........................12
Chapter 3 Specifications 13
Chapter 4 Maintenance and Service 15
4.1 Replacing the fuse.....................................15
4.2 Cleaning and Service ................................16

Contents
ii

1
Introduction
Thank you for purchasing the HIOKI “Model 3269
POWER SUPPLY”. To obtain maximum perfor-
mance from the instrument, please read this man-
ual first, and keep it handy for future reference.
When you receive the instrument, inspect it care-
fully to ensure that no damage occurred during
shipping. If damage is evident, or if it fails to oper-
ate according to the specifications, contact your
dealer or Hioki representative.
Supplied accessories
• Power cord.....................................................1
• Instruction Manual..........................................1
• Spare fuse (stored in Fuse holder).................1
250V T3.15AL φ5 × 20mm
Introduction
Inspection

Safety Notes
2
This manual contains information and warnings
essential for safe operation of the instrument and
for maintaining it in safe operating condition.
Before using it, be sure to carefully read the follow-
ing safety precautions.
Safety Symbols
Safety Notes
This instrument is designed to comply with
IEC 61010 Safety Standards, and has been
thoroughly tested for safety prior to ship-
ment. However, mishandling during use
could result in injury or death, as well as
damage to the instrument. Be certain that
you understand the instructions and precau-
tions in the manual before use. We disclaim
any responsibility for accidents or injuries not
resulting directly from instrument defects.
In the manual, the symbol indicates particu-
larly important information that the user should
read before using the instrument.
The symbol printed on the instrument indi-
catesthattheusershouldrefertoacorresponding
topic in the manual (marked with the symbol)
before using the relevant function.
indicates a grounding terminal.
Indicates a fuse.

3
Safety Notes
The following symbols in this manual indicate the
relative importance of cautions and warnings.
Indicates AC (Alternating Current).
Indicates the ON side of the power switch.
Indicates the OFF side of the power switch.
Indicates that incorrect operation presents an ex-
treme hazard that could result in serious injury or
death to the user.
Indicates that incorrect operation presents a sig-
nificanthazardthatcouldresultinseriousinjuryor
death to the user.
Indicates that incorrect operation presents a pos-
sibilityof injury to the user or damage to theinstru-
ment

Safety Notes
4
To ensure safe operation of measurement instruments, IEC
61010 establishes safety standards for various electrical envi-
ronments, categorized as CAT I to CAT IV, and called mea-
surement categories. These are defined as follows.
CAT I : Secondary electrical circuits connected to an AC elec-
trical outlet through a transformer or similar device.
CAT II : Primary electrical circuits in equipment connected to
anAC electricaloutletbya powercord(portabletools,
household appliances, etc.)
CAT III:Primary electrical circuits of heavy equipment (fixed in-
stallations) connected directly to the distribution pan-
el, and feeders from the distribution panel to outlets.
CAT IV:The circuit from the service drop to the service en-
trance, and to the power meter and primary overcur-
rent protection device (distribution panel).
Higher-numbered categories correspond to electrical environ-
ments with greater momentary energy. So a measurement de-
vice designed for CAT III environments can endure greater
momentary energy than a device designed for CAT II.
Using a measurement instrument in an environment designat-
ed with a higher-numbered category than that for which the in-
strument is rated could result in a severe accident, and must
be carefully avoided.
Never use a CAT I measuring instrument in CAT II, III, or IV
environments.
The measurement categories comply with the Overvoltage
Categories of the IEC60664 Standards.
Measurement categories (Overvoltage categories)

5
Operating Precautions
Follow these precautions to ensure safe operation
and to obtain the full benefits of the various func-
tions.
Before using the product the first time, verify that it
operates normally to ensure that the no damage
occurred during storage or shipping. If you find any
damage, contact your dealer or Hioki representa-
tive.
Operating Precautions
Before Use

Operating Precautions
6
• To avoid accidents, when using other mea-
surement instruments with this one,
observe the usage precautions described
for each instrument.
• To avoid electric shock or damage, when
connecting the clamp-on probe to a mea-
surement instrument that does not have its
input terminals isolated from the chassis,
or to an instrument that does not have it
input terminals isolated from one another
and signals are applied to other terminals,
do not connect the grounding terminal to
any point that is not at ground potential.
Otherwise, if the grounding terminal is con-
nected to a point that is not at ground
potential, a short circuit will occur.
CLAMP ON
PROBE
To avoid electrical accidents and to maintain
the safety specifications of this instrument,
connect the power cord only to a 3-contact
(two-conductor + ground) outlet.

7
Operating Precautions
Observe the following to avoid damage to the
instrument.
• Installation and Operating Environment
Between 0 and 40°C(32 and 104°F); 80% RH or
less; indoors only.
• Do not store or use the instrument where it
could be exposed to direct sunlight, high tem-
perature or humidity, or condensation. Under
such conditions, the instrument may be dam-
aged and insulation may deteriorate so that it no
longer meets specifications.
• This instrument is not designed to be entirely
water- or dust-proof. To avoid damage, do not
use it in a wet or dusty environment.
• To avoid damage to the instrument, protect it
from physical shock when transporting and han-
dling. Be especially careful to avoid physical
shock from dropping.
• To avoid damaging the power cord, grasp the
plug, not the cord, when unplugging it from the
power outlet.

Operating Precautions
8

9
Chapter 1 Overview
This unit is a special-purpose power supply for the
3273-50, 3273, 3274, 3275, and 3276 CLAMP ON
PROBE.
Connect up to four clamp-on probes.
Overview Chapter 1
1.1 Product Overview
1.2 Names of Parts
Front view
Power supply receptacles
Power indicator
2
3
4
The pin assignment of the receptacles
1 Not used
2 Ground
3 -12V
4 +12V 1

Chapter 1 Overview
10

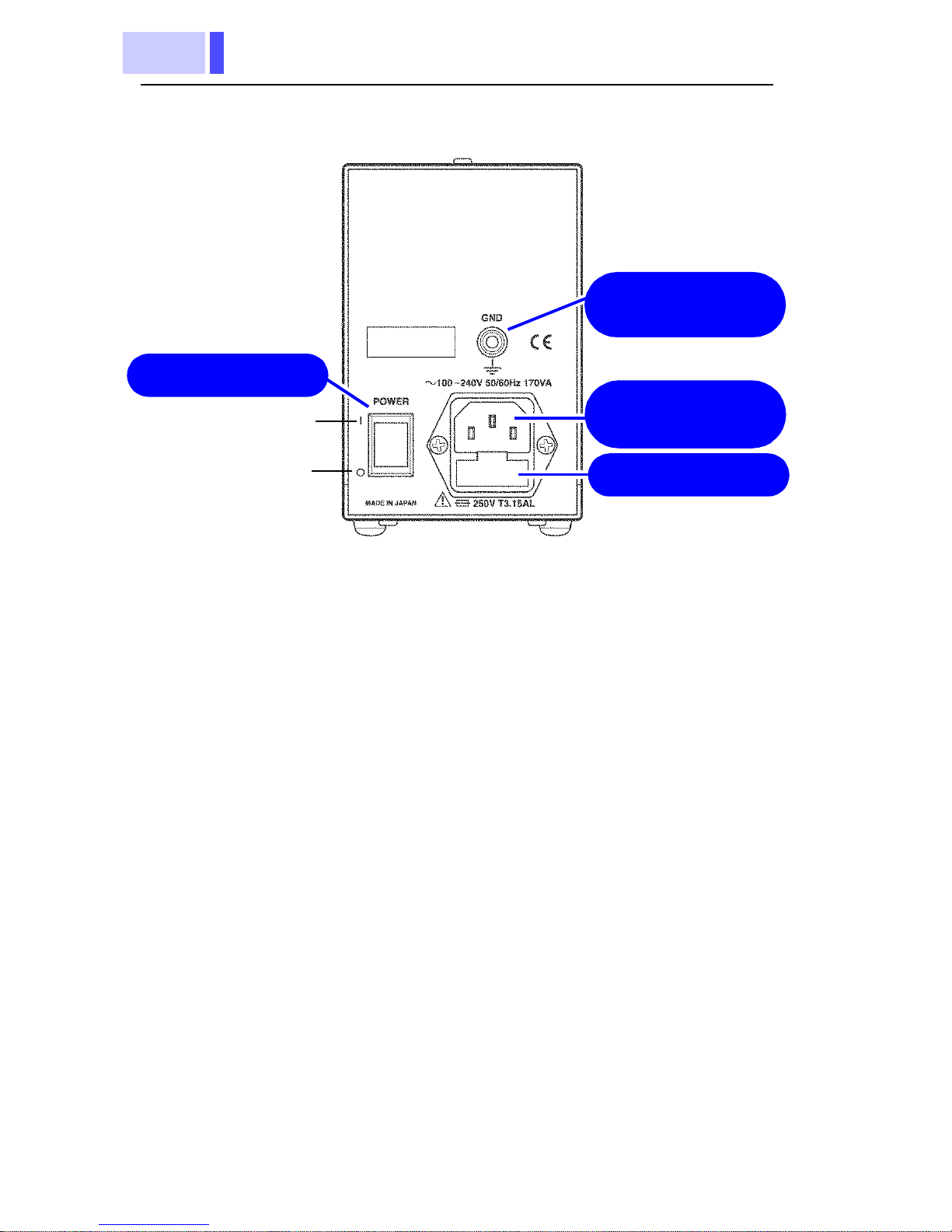

R
ear view
ON
OFF
Power switch
Grounding
terminal
Power supply
connector
Fuse holder

11
Chapter 2 Measurement Procedure
Measurement
Procedure Chapter 2
2.1 Preparations
• To avoid accidents, when using other mea-
surement instruments with this one,
observe the usage precautions described
for each instrument.
• To avoid electric shock or damage, when
connecting the clamp-on probe to a mea-
surement instrument that does not have its
input terminals isolated from the chassis,
or to an instrument that does not have it
input terminals isolated from one another
and signals are applied to other terminals,
do not connect the grounding terminal to
any point that is not at ground potential.
Otherwise, if the grounding terminal is con-
nected to a point that is not at ground
potential, a short circuit will occur
CLAMP ON
PROBE

Chapter 2 Measurement Procedure
12
1. Turn the power switch off and connect the power
cord.
To ensure safety, connect the power cord to a
properly grounded outlet (2-contacts + ground).
2. Connect the power plug of the sensor to be used
to the power receptacle of the 3269.
3. Turn the 3269 power switch on, and check that the
front panel power indicator lights.
See the 3273-50, 3273, 3274, 3275, or 3276
instruction manual.
Before turning the instrument on, make sure
the supply voltage matches that indicated on
the its power connector. Connection to an
improper supply voltage may damage the
instrument and present an electrical hazard.
2.2 Measurement Procedure

13
Chapter 3 Specifications
Product Specifications
Specifications Chapter 3
Compatible sensors 3273-50,3273,3274,3275,3276 CLAMP
ON PROBE
Number of power
supply connectors 4
Output voltage ±12 V±0.5 V
Rated output current ±2.5 A (sum total of all channels)
Ripple voltage 50 mVp-p or less
Load influence Within output voltage limits indicated above for current output in the range 0 to
±2.5 A
Temperature influ-
ence Within output voltage limits indicated
above for ambient temperature in the
range 0 to 40°C (32 to 104°F)
Rated supply volt-
age
100 to 240V AC (50/60Hz)
(Voltage fluctuations of ±10% from the
rated supply voltage are taken into ac-
count.)
Maximum rated
power 170 VA
Operating tempera-
ture and humidity
range 0 to 40°C(32 to 104°F),80%RH or less
(no condensation)
Storage tempera-
ture and humidity
range -10 to 50°C(14 to 122°F), 80%RHor less
(no condensation)
Location for use Indoor, altitude up to 2000 m (6562 feet)
Dimensions, Mass Approx.80W × 119H × 200D mm
(3.15"W × 4.69"H × 7.87"D)
Approx.1.2 kg (42.3 oz.)

Chapter 3 Specifications
14
Accessories Instruction Manual
Power cord
Spare fuse (stored in Fuse holder)
(250V T3.15AL φ5 × 20mm)
Standards applying
Safety EN61010-1:2001,
Pollution Degree 2
EMC EN61326:1997+A1:1998+A2:2001
+A3:2003
EN61000-3-2:2000
EN61000-3-3:1995+A1:2001

15
Chapter 4 Maintenance and Service
To change the fuse, use the following procedure
with reference to the figures.
1. Turn the power switch off, and then remove the
power cord.
2. Using a slot head screwdriver or the like, bias side-
ways the catch which holds the fuse holder into the
power input socket as shown in the figure, and
then remove the fuse holder.
3. Change the power supply fuse for a new one of
the same rating and specification.
Fuse type: 250V T3.15AL φ5 × 20 mm
Maintenance and
Service Chapter 4
4.1 Replacing the fuse
• To avoid electric shock, turn off the power
switch
• Replace the fuse only with one of the spec-
ified characteristics and voltage and cur-
rent ratings. Using a non-specified fuse or
shorting the fuse holder may cause a life-
threatening hazard.
Fuse type: 250V T3.15AL φ5 × 20 mm

Chapter 4 Maintenance and Service
16
4. Replace the fuse holder by reinserting it into the
power input socket.
• To clean the instrument, wipe it gently with a soft
cloth moistened with water or mild detergent.
Never use solvents such as benzene, alcohol,
acetone, ether, ketones, thinners or gasoline, as
they can deform and discolor the case.
• If damage is suspected, contacting your dealer
or Hioki representative.
• When sending the instrument for repair, pack
carefully to prevent damage in transit. Include
cushioning material so the instrument cannot
move within the package. Be sure to include
details of the problem. Hioki cannot be responsi-
ble for damage that occurs during shipment.
Spare fuse
Fuse holder
Power cord
4.2 Cleaning and Service
