Hisense FC125D4AW1 Mounting instructions

14
12
13
1-7
8
9-10
9
For your safety and
correct usage, before
installing and first using the
appliance, read this user
manual carefully, including its
hints and warnings. To avoid
unnecessary mistakes and
accidents, it is important to
make sure that all people
using the appliance are
thoroughly familiar with its
operation and safety features.
Save these instructions and
be sure that they remain with
the appliance if it is moved or
sold, so that anyone using it
throughout its life will be
properly informed on usage
and safety notices.
For the safety of life and
property, keep the
precautions of these user's
instructions as the
manufacturer is not
responsible for damages
caused by omission.
Safety for children and others
who are vulnerable
According to EN standard
This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved. hildren shall not
play with the appliance.
leaning and user
maintenance shall not be
made by children without
supervision.
According to IE standard
This appliance is not intended
for use by persons (including
children) with reduced
physical, sensory or mental
capabilities, or lack of
experience and knowledge,
unless they have been given
supervision or instruction

concerning use of the
appliance by a person
responsible for their safety.
Keep all packaging away
from children as there is risk
of suffocation
If you are discarding the
appliance, pull the plug out
of the socket, cut the
connection cable (as close
to the appliance as you can)
and remove the door to
prevent children playing
from suffering an electric
shock or from closing
themselves inside.
If this appliance, featuring a
magnetic door seals, is to
replace an older appliance
having a spring lock (latch)
on the door or lid, be sure to
make the spring lock
unusable before you discard
the old appliance. This will
prevent it from becoming a
death trap for a child
General safety
This appliance is
intended to be used in
households and similar
applications such as
-staff kitchen areas in shops,
offices and other working
environments;
-farm houses and by clients
in hotels, motels and other
residential type
environments;
-bed and breakfast type
environments;
-catering and similar
nonretail applications
WARNING — Do not store
explosive substances such
as aerosol cans with a
flammable propellant in this
appliance.
WARNING —If the supply
cord is damaged, it must be
replaced by the
manufacturer, its service
agent or similarly qualified
persons in order to avoid a
hazard.
 WARNING — Keep
ventilation openings in the
appliance enclosure or in
any built-in structure clear of
obstruction.
WARNING — Do not use
mechanical devices or other
means to accelerate the
defrosting process, other
than those recommended by
the manufacturer.
WARNING — Do not
damage the refrigerant
circuit.
WARNING — Do not use

electrical appliances inside
the food storage
compartments of the
appliance, unless they are of
the type recommended by
the manufacturer.
WARNING — The
refrigerant and insulation are
flammable. When disposing
of the appliance, do so only
at an authorized waste
disposal center. Do not
expose to flame.
WARNING —When
positioning the appliance,
ensure the supply cord is not
trapped or damaged.
WARNING —Do not locate
multiple portable
socket-outlets or portable
power supplies at the rear of
the appliance.
Replacing the LED light:
WARNING — The LED light
must not be replaced by the
user! If the LED light is
damaged, contact the
customer helpline for
assistance.
Refrigerant
The refrigerant isobutene
(R600a) is contained within
the refrigerant circuit of the
appliance, a natural gas with
a high level of environmental
compatibility, which is
nevertheless flammable.
During transportation and
installation of the appliance,
ensure that none of the
components of the refrigerant
circuit becomes damaged.
The refrigerant (R600a) is
flammable.
WARNING — Refrigerators
contain refrigerant and
gases in the insulation.
Refrigerant and gases must
be disposed of
professionally as they may
cause eye injuries or ignition.
Ensure that tubing of the
refrigerant circuit is not
damage prior to proper
disposal.
If the refrigerant circuit is
damaged:
-Avoid naked flames and
sources of ignition.
-Thoroughly ventilate the
room in which the appliance
is situated.
WARNING —Damaged supply
cord must be repalced by a
special cord or assembly
available from the manufacture
or its service agent.
Warning: risk of fire/Warning: risk of fire
flammable materials

It is dangerous to alter the
specifications or modify this
product in any way.
Any damage to the cord may
cause a short circuit, fire,
and/or electric shock.
Electrical safety
1. The power cord must not
be lengthened.
2. Make sure that the power
plug is not crushed or
damaged. A crushed or
damaged power plug may
overheat and cause a fire.
3. Make sure that you can
access the main plug of the
appliance.
4. Do not pull the main
cable.
5. If the power plug socket
is loose, do not insert the
power plug. There is a risk
of electric shock or fire.
6. You must not operate the
appliance without the
interior lighting lamp cover.
7. The fridge is only supplied
with power supply of single
phase alternating current of
220 ~ 240 V/50Hz. If
fluctuation of voltage in the
district of user is so large
that the voltage exceeds the
above scope, for safety sake,
be sure to apply A. .
Automatic voltage regulator
of more than 350W to the
fridge. The fridge must
employ a special power
socket instead of common
one with other electric
appliances. Its plug
must match the socket
with ground wire.
Daily use
Do not store flammable
gas or liquids in the
appliance. There is a risk of
an explosion.
Do not operate any
electrical appliances in the
appliance (e.g. electric ice
cream makers, mixers etc.).
When unplugging always
pull the plug from the mains
socket, do not pull on the
cable.
Do not place hot items near
the plastic components of
the fridge.
Do not place food products
directly against the air outlet
on the rear wall.
Store pre-packed frozen
food in accordance with the
frozen food manufacturer’s
instructions.
The manufactures storage
recommendations should be

strictly adhered to. Refer to
relevant instructions for
storage.
Do not place carbonated or
fizzy drinks in the freeze
compartment as it creates
pressure on the container,
which may cause explode,
damage to the
Frozen food can cause frost
burns if consumed straight
from compartment.
Do not place the appliance
in direct sunlight.
Keep burning candles,
lamps and other items with
naked flames away from the
appliance so that do not set
the appliance on fire.
The appliance is intended
for keeping food and/or
beverages in normal
households as explained in
this instruction booklet.
The appliance is heavy.
are should be taken when
moving it.
Do not remove or touch
items from the freezer
compartment if your hands
are damp/wet, as this could
cause skin abrasions or
frost/freezer burns.
Never use the base,
drawers, doors etc. to stand
on or as supports.
Frozen food must not be
refrozen once it has been
thawed out.
Do not consume ice
popsicles or ice cubes
straight from the freezer as
this can cause freezer burn
to the mouth and lips.
To avoid items falling and
causing injury or damage to
the appliance, do not
overload the door racks or
put too much food in the
crisper drawers.
5
thefreezer
resulting in
it to
appliance .
Opening the door for long periods
can cause a significant increase
of the temperature in the
compartments of the appliance.
Clean regularly surfaces that can
come in contact with food and
accessible drainage systems.
Store raw meat and fish in suitable
containers in the refrigerator, so
that it is not in contact with or drip
onto other food.
If the refrigerating appliance is
left empty for long periods, switch off,
defrost, clean, dry, and leave the door
open to prevent mould developing
within the appliance.





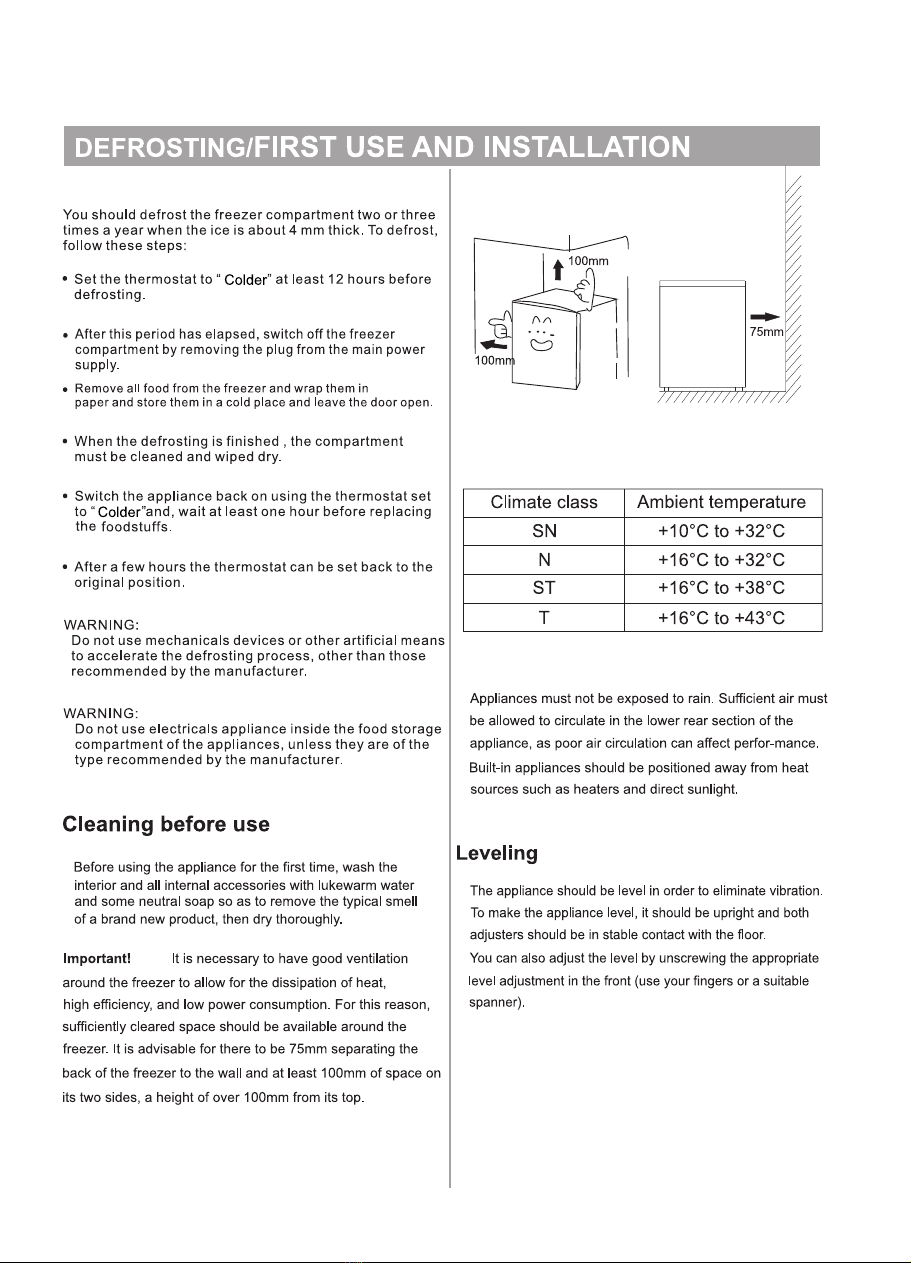

Installation i portant!
For electrical connection
carefully, follow the
instructions given in this
manual.
Unpack the appliance and
check if there are damages
on it. Do not connect the
appliance if it is damaged.
Report possible damages
immediately to the place you
bought it. In this case retain
packing.
It is advisable to wait at least
four hours before connecting
the appliance to allow the oil
to flow back in the
compressor.
Adequate air circulation
should be allowed around
the appliance reducing the
risk of overheating. To
achieve sufficient ventilation,
follow the instructions
relevant to installation.
Wherever possible the back
of the product should not be
close to a wall to avoid
touching or catching warm
parts (compressor,
condenser) to prevent the
risk of a fire, follow the
instructions relevant to
installation
The appliance must not be
locate close to radiators or
cookers.
Make sure that the mains
plug is accessible after the
installation of the appliance.
Service
Any electrical work required
to do the servicing of the
appliance should be carried
out by qualified electrician or
competent person. This
product must be serviced by
an authorized Serviced
enter, and only genuine
spare parts must be used.
6
Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
Caution!
Care and cleaning
Before maintenance, switch
off the appliance and
disconnect the mains plug
from the mains socket.
Do not clean the appliance
with metal objects, steam
cleaner, ethereal oils,
organic solvents or abrasive
cleansers.
Do not use sharp objects to
remove frost from the
appliance. Use a plastic
scraper.

7
Note: Children aged from 3 to 8 years are allowed to load and unload refrigerating
When refrigerating food, please be careful not to contact the surface of the inner box
When frozen food, in order to prevent moisture loss, prevent the odor, should separate
use non-toxic, tasteless, impermeable,
Hot food should be cooled to room temperature first, then put into the freezer, otherwise
storage status of other foods and increase the power consumption.
directly.
the different food sealed storage, and can only
waterproof sealing material.
it will affect the
Order Compartments
TYPE
Target storage
temp.[℃]Appropriate food
1Fridge +2 +6≤
Eggs, cooked food, packaged food, fruits and
vegetables, dairy products, cakes, drinks and
other foods are not suitable for freezing.
2( Freezer***)*- ≤-18
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended for 3 months, the longer the
storage time, the worse the taste and
nutrition), suitable for frozen fresh food.
3***-Freezer ≤-18
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended for 3 months, the longer the
storage time, the worse the taste and
nutrition), are not suitable for frozen fresh food.
4**-Freezer ≤-12
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended for 2 months, the longer the
storage time, the worse the taste and nutrition),
are not suitable for frozen fresh food.
5*-Freezer ≤-6
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended for 1 months, the longer the
storage time, the worse the taste and nutrition),
are not suitable for frozen fresh food.
appliances.(This clause applies only to the EU region.)
Two-star frozen-food compartments are suitable for storing pre-frozen food, storing
or making icecream and making ice cubes.
One-, two- and three-star compartments are not suitable for the freezing of fresh food.

8
chest freezer
chest freezer
short time period as possible.
220-240
Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
This appliance is intended to be used in household and
similar applications such as
- staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
-catering and similar non-retail applications
This refrigerating appliance is not intended to be used
as a built-in appliance.

9

10

11

12
Baskat
Drain
Foot
FC127D4AW2
FC186D4AW2
FC264D4AW2
FC325D4AW2
FC130D4AW1
FC267D4AW1
FC189D4AW1
FC403D4AW1
FC325D4AW1
FC-40DD4SHB1
FC127D4AW2/CPA2
FC258D4AW1
FC184D4AW1
FC125D4AW1
FC186D4AW2/CPA2
FC264D4AW2/CPA2
MCF142F FC386D4AF

13
0
123
145
146
MIN
MAX
/Mid.
/Colder
/Cold.
0/Off.

14
Disposal of the appliance
It is prohibited to dispose of this appliance in domestic household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose of
the packaging in a suitable waste collection container to recycle it.
Before disposal of appliance.
1. Disconnect the main plug from the main socket.
2. Cut off the main cable and discard it.
Correct disposal of this product
This symbol on the product, or in its packaging, indicates that this
product may not be treated as household waste, Instead, it should be
taken to the appropriate waste collection point for the recycling of
electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could
otherwise be caused by the inappropriate waste handing of this
product. For more detailed information about the recycling of this
product, please contact you local council, your household waste
disposal service, or the store where you purchased the product.

１８１０７８６－Ｉ
