Hisense PDP42W39PEU User manual

PDP TV Service Manual
Hisense confidential
1
Plasma display
television
Service Manual
Classis: MST9E88L
Product Type: PDP42W39PEU/ PDH4233NEU(2)
PDH4233NEU(1)
Ver 1.0
Hisense Electric co., Ltd.
R&D Center PDP Institute
06, 2008

PDP TV Service Manual
Hisense confidential
2
Contents
CONTENTS..............................................................................................................................2
SERVICE MANUAL ...............................................................................................................3
1.PRODUCT SAFETY SERVICING GUIDELINES...........................................................................3
1.1 Safety precautions .........................................................................................................3
1.2 .Product Safety notice....................................................................................................3
2. PRODUCT FUNCTION SPECIFICATIONS ..................................................................................5
2.1 specifications.................................................................................................................5
2.2. product functio
n： ....................................................................................................... 6
3. PDPPANEL SPEC ..................................................................................................................6
3.1General description........................................................................................................6
3.2. Panel block diagram....................................................................................................7
3.3.Power (PSU) description .............................................................................................. 7
3.4.Power block diagram .................................................................................................... 8
4. BLOCK DIAGRAM............................................................................................................... 11
4.1. unite sketch map......................................................................................................... 11
4.2. Video processing diagram..........................................................................................13
4.3. Audio processing diagram..........................................................................................14
5. FACTORY/SERVICE OSD MENU..........................................................................................15
5.1 To enter the Factory OSD Menu .................................................................................15
5.2 Factory OSD Menu .....................................................................................................15
6. SOFTWARE UPGRADING .....................................................................................................19
6.1 Get ready for upgrading..............................................................................................19
6.2 Upgrading with the ISP_TOOL4.0.9...........................................................................28
7.TROUBLESHOOTING............................................................................................................33
8.PROBLEM SOLUTIONS: .......................................................................................................35
9. STAND INSTALLING ............................................................................................................36
10. PDPWALL-MOUNTING BRACKET INSTALLATION GUIDE..................................................37

PDP TV Service Manual
Hisense confidential
3
Service Manual
1.Product Safety Servicing Guidelines
1.1 Safety precautions
WARNING:
Service should not be attempted by anyone unfamiliar with the necessary precaution on this
receiver. The following are the necessary precautions to be observed before servicing this
chassis.
1. When replacing a chassis in the cabinet, always be certain that all the protective devices are put
back in place, such as: non-metallic control knobs, insulating covers, shields, isolation
resistor-capacitor network etc.
2. When replacing parts or circuit boards, disconnect the power cord.
3. When replacing a high wattage resistor (oxide metal film resistor) on the circuit board, keep the
resistor 10mm (1/2in) away from circuit board.
4. Connection wires must be kept away from components with high voltage or high temperature.
5. If any fuse in this TV receiver is blown, replace it with the FUSE specified in the chassis parts
list.
1.2 .Product Safety notice
Many electrical and mechanical parts in the chassis have special safety-related characteristics.
These characteristics are often passed unnoticed by a visual inspection.
Replacement parts, which have these special safety characteristic are identified in this manual
and its supplement electrical components having such features are shaded on the schematic
diagram and the parts list.
Before replacing any of these components, read the parts list in this manual carefully. The use of
substitute replacement parts, which do not have the same characteristic as specified in the parts
list may create shock, fire or other hazards.
NOTES：
Screen Image retention Do not display a still image (such as on a video game or when
hooking up a PC to this PDP) on plasma monitor panel for a long time as it can cause screen
image retention. This image retention is also known as “screen burn”. To avoid such image
retention, reduce the degree of brightness and contrast of the screen when displaying a still
image.
A still image displayed too long may cause permanent damage to the PDP Panel
Watching the PDP TV in 4:3 format or other non full screen formats for a long period of time may
leave traces of borders displayed on the left, right and centre of the screen caused by the
difference of light emission on the screen. Playing a DVD or a game console may cause similar
effect to the screen. Damages caused by the above effect are not covered by the Warranty.
Afterimage on the Screen Displaying still images from Video games and PC for longer than a
certain period of time may produce partial afterimages. To prevent this effect, reduce the
brightness and contrast when displaying still images for a long time.
CAUTION: BEFORE SERVICING THE CHASSIS, READ THE “SAFETY
PRECAUTION” “PRODUCT SAFETY NOTICE”ON PAGE 3 OF
THIS MANUAL.

PDP TV Service Manual
Hisense confidential
4
Height The PDP can normally operate only under 2000m in height. It might abnormally function
at a place over 2000m in height and do not install and operate there.
Avoid operating the TV at temperatures below 5(41°F)
Warranty Warranty does not cover any damage caused by image retention; Burn-in is not covered
by the warranty.

PDP TV Service Manual
Hisense confidential
5
2. Product Function Specifications
2.1 specifications
PDP panel Plasma panel 42''
Native Screen Resolution 1024 x 768
Television system SECAM/PAL
Sound system BG / DK / I
Channel coverage VHF-L: E2-S8
VHF-H: S9-S37
UHF: S38-E69
PC mode (DB15) 60Hz 640 x 480, 800 x 600, 1024 x 768
YPBPR mode 50Hz 576 i/p, 720p, 1080i
60Hz 480i /P，720p, 1080i
HDMI mode RGB 640 x 480, 800 x 600, 1024 x 768
YPBPR 50Hz
576p, 720p, 1080i
YPBPR 60Hz
480p; 720p, 1080i
Static contrast ratio 40 : 1
Brightness 400 cd/m²
Viewing angle 140° (H/V)
Power source AC 100V-240V，50/60Hz
Power consumption 300W
Audio output 2 x 7 watts
Audio filter Equalizer 5 x bands
RF Input: RF Antenna x 1
Video Input: YUV x 1 ,S-Video x 1,AV x 1
Graphic
Input: PC analog (DB15) x 1,HDMI x 1 (HDCP)
Audio Input: YUV x 1 ,S-Video /AV x 1,PC analog
(DB15) x 1
Audio
Output: audio output x 1 headphone x 1 (Jack 3,5mm)
Video
Output: video output x 1
Connection interface
Other:
Dimensions 1052mmX799mmX333mm (LXWXH)
(including stand)

PDP TV Service Manual
Hisense confidential
6
2.2. product function：
·High end flat display
·HDMI input
·High definition compatible
·Wide Screen display optimized for cinema viewing
·Multimedia display :TV/PC
·High clear picture
·Audio equalizer
·Color enhancer ,contrast enhancer
·Two Scarts ,Scart1 (RGB/CVBS),Scart2(CVBS)
3. PDP panel spec
3.1General description
S42AX-YD03

PDP TV Service Manual
Hisense confidential
7
3.2. Panel block diagram
3.3.Power (PSU) description
Standard Voltage Range AC 100V ∼240V
Available Voltage Range AC 90V ∼265V

PDP TV Service Manual
Hisense confidential
8
Frequency Range 50Hz ∼60Hz(±5Hz)
3.4.Power block diagram

PDP TV Service Manual
Hisense confidential
9

PDP TV Service Manual
Hisense confidential
10

PDP TV Service Manual
Hisense confidential
11
The signal board is composed by the main board .The main chip for video
decoder is MST9E88L produced by MSTAR co., ltd.
4. Block Diagram
4.1. unite sketch map
PDH4233NEU（1）LG Panel
XPK01
KEY BOARD
970A
XP25 XP26 XP24 XP3
J20
XP10 XP7
XP31
MAIN BOARD
961A
SCART BOARD
XP1
POWER SUPPLY
CN801 CN804 CN803 CN802
SPEAKER
XPR01
REMOTE BOARD.
987
A

PDP TV Service Manual
Hisense confidential
12
PDP42W39PEU/PDH4233NEU(2) ( samsung Panel)
XPK01
KEY BOARD
970A
XP26XP3
J20
XP10 XP9
XP31
MAIN BOARD
SCART BOARD
XP1
POWER SUPPLY
CN803 CN804
SPEAKER
XPR01
REMOTE BOARD.
987A
X
P
8

PDP TV Service Manual
Hisense confidential
13

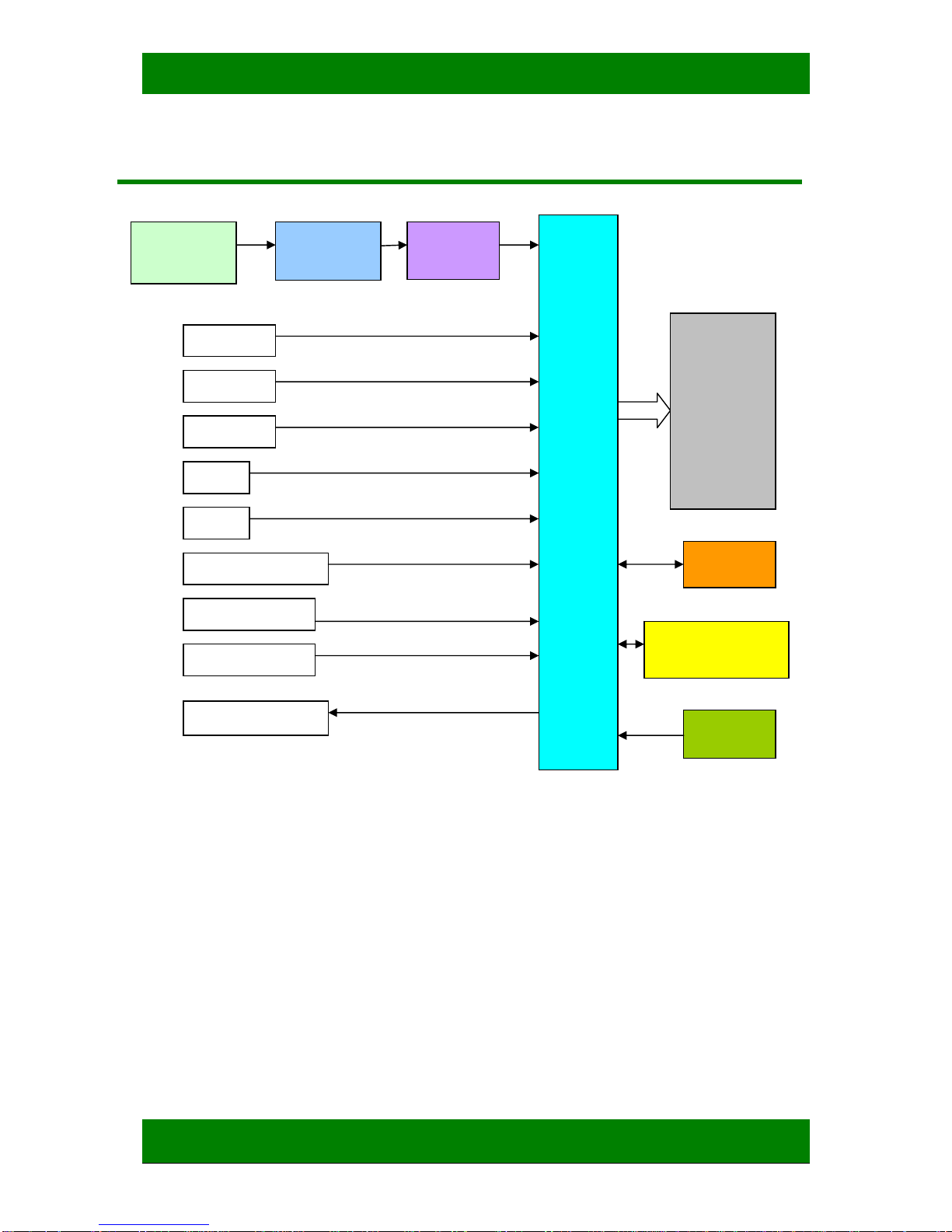

4.2. Video processing diagram
YPBPR
VIDEO OUTPUT
VIDEO
S-VIDEO
SCART1 _CVBS
SCART1_ RGB
SCART2 _CVBS
HDMI
PC
PDP module
S42AX-YD03
CPU
MST
9E88L
SAW FILTER
HS9455
HS6274
IF
TDA9886
TUNER
TDQ-6FT/W
116H
FLASH
PS25V040
KEY/
REMOTE
SDRAM
HY5DU281622F

PDP TV Service Manual
Hisense confidential
14
4.3. Audio processing diagram
CPU MST9E88L
HDMI-IIS
SCART1-L
SCART1-R
SCART2-L
SCART2-R
VIDEO-R
VIDEO -L
TV-SIF
YPBPR/PC-L
YPBPR/PC-R
Speaker
Amplifier
TDA8932T
AV-R
AUDIO OUT
AV-L
Earphone
Amplifier
LM833

PDP TV Service Manual
Hisense confidential
15
5. Factory/Service OSD Menu
5.1 To enter the Factory OSD Menu
a. With factory RC (remote control)
1. Press “M” button and enter factory mode.
2. Press “Menu” button and enter factory OSD menu.
3. Press “CH+”/“CH-” button select the function menu, press “VOL+”/“VOL-” enter the
selected function menu. Press “VOL+”/“VOL-” button adjust values in the menu.
4. Press “M” button exit factory mode in the factory OSD menu.
When TV outgoing factory,user can not enter factory OSD menu with Factory Remote
b. With user’s RC
1. Power TV On
2. Press Menu button and call up User OSD Menu
3. Select Sound-> Balance
4. When Balance value is “0”,Enter 0->5->3 ->2 in sequence.
Note: If necessary, re-do number keys.
5. Factory OSD appears.
6. Press the standby button then AC turn off and restart the TV, which can exit factory
OSD menu.
5.2 Factory OSD Menu
The Factory OSD Menu comprises Factory Menu and Design Menu .
5.2.1、Factory Menu
White Balance
RDRV 13
GDRV 7
BDRV 16
RCUT 116
GCUT 120
BCUT 118
BRIGHT_H 80
CONTRAST _H 80
BRIGHT_L 40
CONTRAST_L 40
Factory Menu
White Balance
Auto Calibration
LOGO
OSD Language
Country
Option
Factory Init
Test Pattern
Version:

PDP TV Service Manual
Hisense confidential
16
Factory Init
QingDao
HuangDao
Guiyang
Hungary
France
Austria
CLEAR PROTECTLY
CLEAR UNPROTECTLY
Option
SOURCE TV
BRIGHT 0 10
BRIGHT 50 110
BRIGHT 100 132
CONTRAST 0 60
CONTRAST 50 125
CONTRAST 100 170
TOFAC M
HDMI Cable Standard
PIXSHIFTNUMBER 1
PIXSHIFTTIME 30
LOGO
NULL
HISENSE
WELCOME
Auto Calibration
Auto Color
ColorTemp. Standard
RED COLOR 116
GREEN COLOR 120
BLUE COLOR 118

PDP TV Service Manual
Hisense confidential
17
5.2.2、Design Menu
Design Menu
Picture Mode
Sound Mode
Sound Settings
Power Save
PIPOption
EMI
MOVESHARPNESS
LipSync
Version
Version:
Panel Type:
FLASH :
Test Pattern
BLUE

PDP TV Service Manual
Hisense confidential
18
Note：
The above “Factory/Service OSD Menu”are reference only, please refer to the actual
units to determine the appearances.
We advise service hadn’t better amend factory data, because it is better settings data.
Please do not tell user the purpose password.
Sound Settings
VOLUME 0 128
VOLUME 1 79
VOLUME 20 28
VOLUME 40 24
VOLUME 100 10
TVPRE SCALER 2
VOLUME SCALER 0
Sound Mode
Standard 120Hz 11
500Hz 11
1.5KHz 12
5KHz 14
10KHz 14
Music 120Hz 13
500Hz 11
1.5KHz 12
5KHz 14
10KHz 20
Speech 120Hz 6
500Hz 9
1.5KHz 14
5KHz 14
10KHz 14
Picture Mode
Standard Brightness 50
Contrast 50
Colour 45
Bright Brightness 60
Contrast 60
Colour 55
Soft Brightness 45
Contrast 45
Colour 45

PDP TV Service Manual
Hisense confidential
19
6. Software Upgrading
The software is upgraded by a burning tool- ISP_TOOL4.0.9, which can burn the
program file *.bin to the main board of the unit
6.1 Get ready for upgrading
6.1.1 Install the ISP_TOOL4.0.9-------only for the first time update.
1、Port Setting：
Choose “system”option from the “control panel”

PDP TV Service Manual
Hisense confidential
20
Click the “system” icon as the following
Choose the “hardware” option from the dialog window
Click“device management” icon as the following
