Hisense PDP5010 User manual

PDP5010EU
USER'S MANUAL
Part No:
COLOUR PLASMA DISPLAY TV
R

CHANGE PASSWORD
OSD Language Settings
Using the GENERAL SETTINGS menu
OSD LANGUAGE
LANGUAGE ENGLISH
GENERAL SETTINGS
OSD POSITION
COLOR SYSTEM
OSD LANGUAGE
BLANK
TRANSPARENCY
DEINTERLACER
ENGLISH
1) Press the <Menu> button to enter the main menu.
2) Press the < button to select the item .
3) Press the < button to select OSD LANGUAGE.
4) Press the < button to select language.
VOL+> or <VOL-> GENERAL SETTINGS
VOL+> or <VOL->
5) Press the <Menu> button to go back to the previous level.
Several kinds of Language can be selected:
English ,French ,German ,Italian ,Spanish ,Greek,Dutch,Portuguese etc.
CH+> or <CH->
NOTE: The adjusted data is memorized automatically.
When you start using your set for the first time, you may need to select the language that you want to use.

Important safeguard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Preparation for your new TV ................................ .......... .......... .......... .......... .......... .....3
Selecting a location for the TV .......................... .......... .......... .......... .......... .......... .....3
Learning about your TV................................. .......... .......... .......... .......... .......... ..... 3
Connecting your TV .................................... .......... .......... .......... .......... .......... ..... 4
Connecting to A/ V equipments...................... .......... .......... .......... .......... .......... ..... 4
Connecting to a computer ........................... .......... .......... .......... .......... .......... ..... 5
Connecting to an antenna ........................... .......... .......... .......... .......... .......... .....5
Using the remote control.................................... .......... .......... .......... .......... .......... .....6
Preparing the remote control for use.................... .......... .......... .......... .......... .......... .....6
Learning about the remote control...................... .......... .......... .......... .......... .......... .....7
Using the TV features....................................... .......... .......... .......... .......... .......... .....8
Understanding the TV features......................... .......... .......... .......... .......... .......... .....8
Basic operations ....................................... .......... .......... .......... .......... .......... .....8
Using the CHANNEL menu ............................ .......... .......... .......... .......... .......... .....10
Using the PICTURE menu............................. .......... .......... .......... .......... .......... .....11
Using the AUDIO SETTING menu ..................... .......... .......... .......... .......... .......... .....11
Using the PIP menu ................................... .......... .......... .......... .......... .......... .....12
Using the SLEEP menu ............................... .......... .......... .......... .......... .......... .....12
Using the GENERAL SETTING menu ................ .......... .......... .......... .......... .......... .....13
Teletext operations.................................... .......... .......... .......... .......... .......... .....14
Appendix ................................................. .......... .......... .......... .......... .......... .....15

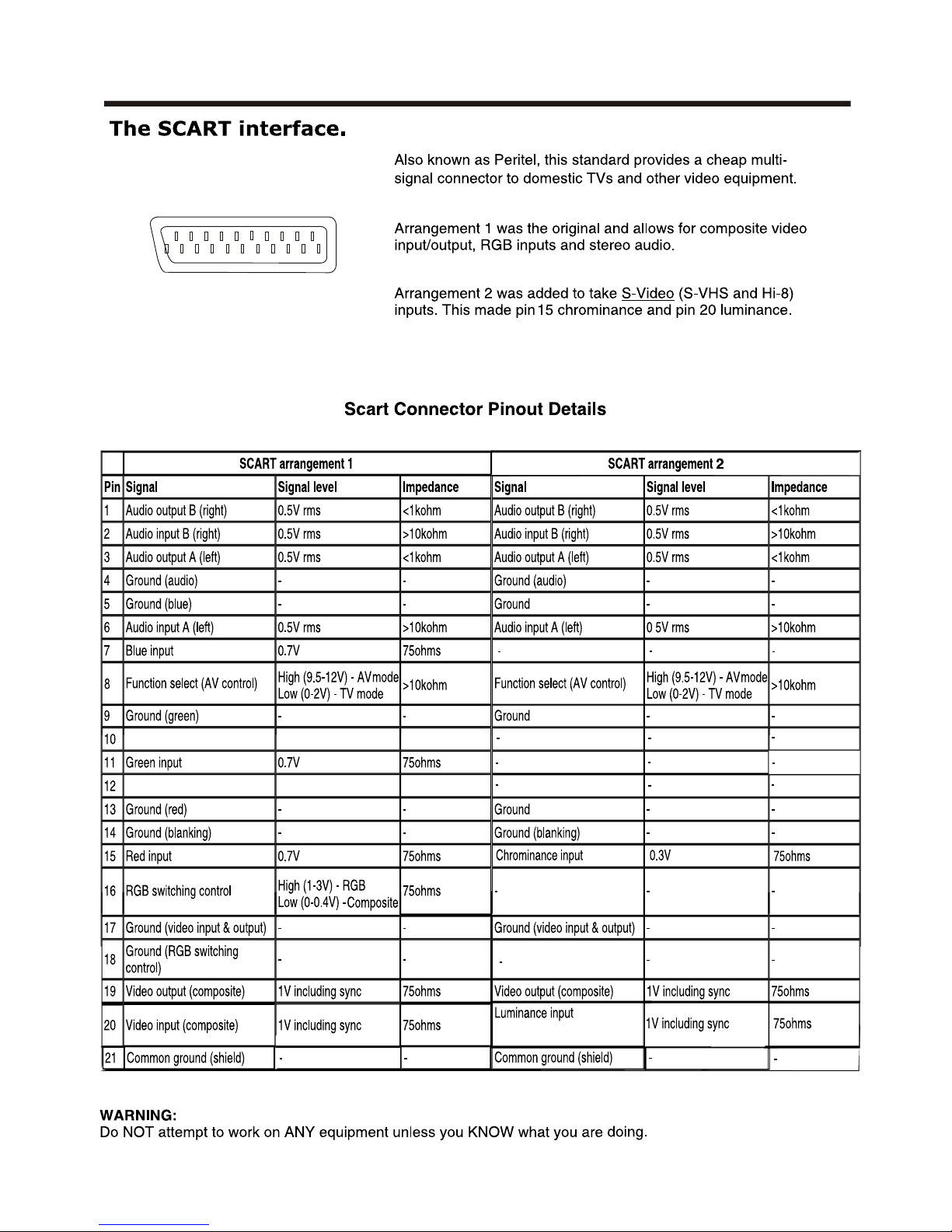

The SCART interface ................................... .......... .......... .......... .......... .......... ..... 15
Troubleshooting ....................................... .......... .......... .......... .......... .......... ..... 16
Cleaning and Care ..................................... .......... .......... .......... .......... .......... ..... 16
Specifications .......................................... .......... .......... .......... .......... .......... ..... 17
CONTENTS
CONTENTS
- 1 -
Design and specifications are subject to change without notice.
This is an IEC safety class I product and must be grounded for safety.
SAFETY CLASS
WELCOME TO THE BRIGHT VIVID OF PDP TVAND WORLD
Dear customer,
Thank you for purchasing this Plasma Display TV. We wish you many years of viewing pleasure. The goal of this
manual is to guide you through setting up and operating your TV as quickly as possible.
Please read all the safety and operating instructions carefully before you begin.

The symbol of the dustbin barred means that this apparatus cannot be put at the
rebus with not sorted waste domestic running.
It is interdict to throw with not sorted waste domestic running, of deposited on the
public thoroughfare or at any other place not envisaged to this end. This apparatus
contains substances being able to be harmful for the environment.
The presence of certain substances can have harmful effects onthe environment.
This apparatus profits from a specific treatment of recycling for the re-use of the matters which make it
up.
This apparatus must be thrown only to the places envisaged. Inform near your authority to know the
places of electronic collection of waste.
Yoursale point must collect this apparatus against the purchase of a new one for its recycling.
The selective collection of waste electronics is to reduce the number of substance vermin not recycled
and to thus contribute to the environment.
The presence of certain substances can have harmful effects onthe environment.
This apparatus profits from a specific treatment of recycling for the re-use of the matters which make it
up.
This apparatus must be thrown only to the places envisaged. Inform near your authority to know the
places of electronic collection of waste.
Yoursale point must collect this apparatus against the purchase of a new one for its recycling.
The selective collection of waste electronics is to reduce the number of substance vermin not recycled
and to thus contribute to the environment.
IMPORTANT SAFEGUARD
FIRE AND SHOCK PRECAUTIONS
Adequate ventilation must be provided to prevent heat build up inside unit. Keep the inside of unit free
from foreign objects, such as hairpins, nails, paper, etc. Do not build the set into a bookcase or other
enclosures in which it would be poorly ventilated. Do not place it on carpet or a bed as low ventilation
boles could become obstructed.
Do not set liquids, including flower vases and vessels filled with chemicals or water etc., On top of the
unit as liquid could get inside the unit. If a hazardous object falls inside the TVset, unplug it immediately
and call a qualified technician for removal.
When placing or moving the TV set, take care to insure that the power cord is fitted into the allocated slot.
To avoid damage to the power cord, never allow heavy objects such as the TV set itself to be placed on
the power cord. Keep cord away from radiating appliances. Do not allow cord to become knotted or
tangled. Do not lengthen the cord. When removing the power plug from the socket, always hold onto the
plug, never pull by the cord.
WARNING
Do not remove the back cover of the TV set. Accidental contact with high voltage components could result
in electric shock. When internal adjustment is necessary, please contact your distributor.
If your set produces sound but no picture, or it emits smoke or produces a strange sound or smell, continue
operation is dangerous. Immediately turn off power andremove the power plug from the socket and
contact your distributor.
During vacation or other occasions when you will not be using the set for an extended period, remove the
power plug from the socket.
This appliance should not be operated by children or infirm persons without adequate supervision.
- 2 -
This TV set shall be connected to a main socket outlet with a protective earthing contaction
The main plug and main switch should be remain readily operable after installation
No nacked flame sources,such as lighted ca dles, should be placed on the apparatus
Minimum distances around the apparatus for sufficient ventilation
The use of apparatus in moderate climates
If it will be remove the silver label,the product will lose the producer warranty

- 3-
Selecting a location for the TV
1)Place the TV onthe floor or on a sturdy platform in a location where light does not directly hit the screen.
2)Place the TV farenough from the walls to allow proper ventilation. Inadequate ventilation may cause
overheating, which may damage the TV.
NOTE: Please contact local dealer for wall mounting.
Preparation for Using your new TV
Learning about your TV
Youcan operate yourTV by using the buttonson the front panel or theremote control. Theterminals on the
back panel provideall the connectionsyou will needto connect otherequipment to yourTV.
Front Controls
Note: The above figures are for reference only, please refer to the actual units to determine their appearance.
Back Connections
MENU TV/AV VOL CH
AU DIO VIDEO EARPHONE PC AUDIO ANT 75 Y Cb Cr
SCART2 SCART1 INPUT OUTPUT OUT INPUT VIDEO Y Pb Pr PC DVI Rs232 POWER
INPUT
Power Cord
9
10
11
12
13
14
15
16
17
18
19
20
21
22
PC
POWER
RS 232
PC AUDIO
INPUT
VIDEO
INPUT
EARPHONE
VIDEO
OUT
SCART1
SCART2 AUDIO
INPUT OUTPUT
Speaker
Connector
Speaker
Connector
23
23 23
23

Preparation for Using your new TV
Caution: Do not plug the TV in until you have finished connecting all of your equipment.
Connecting your TV
To enjoy its multimedia features, you can connect your to A/V equipments such as VCR, DVD, STB, Satellite
receiver, Camcorder, Audio amplifier etc., and select signal sources using your remote control.
TV
Connect the
devices as shown below.
Connecting to A/V equipments
- 4 -
Notes: Please pay attention to the relationship between Video Port and Audio Port. .
MENU button
Remote Sensing Window
Power indicator
Channel up / cursor up
Channel down / cursor down
Volume up / cursor right
Volume down / cursor left
Source select
YPbPr/YCbCr Input
PC VGAInput
DVI Input
PC AudioInput
TV AntennaInput
AC Power Outlet
Sound Port
Video Input (RCA)
RS 232 Debug Input
SCART1 :
Input (CVBS/RGB/Audio L+R)
Output(CVBS/Audio L+R)
11
22
2323
Audio Output L+R (RCA)
Ear Phone Output
Video Output (RCA)
Audio Input L+R (RCA)
SCART2 :
Input (Y-C/Audio L+R)
Output(CVBS/AudioL+R)
1
1
HDTV STB VCD, DVD
Preset
PC
VIDEO
INPUT
EARPHONE
VIDEO
OUT
PC AUDIO
INPUT
SCART1
SCART2 AUDIO
INPUT OUTPUT
1) YPbPr/YCbCr
VIDEO AUDIO INPUT
ON
2) PC
DVI PC AUDIO INPUT
Aerial
3) VIDEO OUPUT AUDIO OUPUT
ABOUT SCART
This set can identify the SCART input automatically.
When SCART signal input ,the set can jump from the current source to SCART automatically.
When SCART signal is taken off , the set can jump from SCART back to previous source automatically.
2323

Preparation for Using your new TV
To enjoy the terrestrial signal transmitted by your local TV station, you need an indoor or outdoor antenna
(not supplied). Perfect picture quality requires a good signal and generally means that an outdoor antenna
must be used. The exact type and location of the antenna will depend on your particular area. Consult your
local dealer or service personnel for best advice. If you are a subscriber of your local CATV net, the outdoor
or indoor antenna is not needed. Connect the equipments as the following figure.
Connecting to an antenna
- 5 -
You can use your TV as a monitor/speakers for connecting through its 15pin standard RGB
interface and PC audio interface.
your computer by
Connect the devices as shown below.
Connecting to A Computer
Loosen the screw Insert the feeder in Tighten the screw
Plug(not supplied)
Adaptor (not supplied)
The signal comes from:
An outdoor antenna
An indoor antenna
CATV net
TWIN-LEAD FEEDER(300 W)
COAXIAL CABLE (75W)
AU DIO VIDEO EARPHONE PC AUDIO ANT 75 Y Cb Cr
SCART2 SCART1 INPUT OUTPUT OUT INPUT VIDEO Y Pb Pr PC DVI Rs232 POWER
INPUT
ANTENNA SOCKET
ANT 75
PC/NB
To VGA
To speaker
RGB line
Audio line
PC AUDIO
INPUT

Preparing the remote control for use
Installing the remote control batteries
1. Open the battery cover on the back of the remote control.
2. Install two AAA size(1.5V) batteries. Match the + and - signs on the batteries to the signs on the battery
compartment.
3. Close the battery cover.
Note:
1.Dispose of your batteries in a designated disposal area. Do not throw batteries into fire.
2.Do not mix battery types or combine used batteries with new ones.
3.Remove dead batteries immediately to prevent battery acid from leaking into the battery compartment.
4.If you do not intend to use the remote control for a long time, remove the batteries.
5.The effective range of remote control is suggested in the figure.
Using the remote control
-6 -
8m
30
30
8m
30
30
3m 3m
1m
1m

Learning about the remote control
Using the remote control
- 7 -
1
1
1
1
Power : Power on/off
Channel Number :Direct channel selction
Recall : Return to previous channel
Display :Display current channel number or input mode
P.Mode: Select picture mode
S.Mode: Select sound mode
Text : Enter Teletext mode
Mute: Mute sound
Red/PIP :
Fast text/ Select the OFF/PIP/POP Mode
Green/Sub.Ch.:
Fast text / Select Sub. Picture source
Yellow/Swap :
Fast text /Swap between Main and Sub.picture
Blue/Main Ch. :
Fast text / Select Main. Picture source
Menu :Call up /hide the main menu
<CH+> :Channel up /Cursor up
<CH-> :Channel down/Cursor down
<VOL+>: Volume up/Cursor right
<VOL-> : Volume down/Cursor left
Zoom/Sbu. Code:
Adjust zoom ration/Teletext operation : Sub. Code
Still : Snapshooting
/Reveal :
Mono,Stereo operation/ Teletextoperation : Reveal
Video/index:
Swtich to SCART1 modeand Video mode
/Teletext operation: Index
S-Video/Hold :
Switch to SCART2 mode/Teletext operation: Hold
PC/Size:
Switch to PC mode/Teletext operation: Size
YPbPr /Cancel:
Switch to YPbPr mode/Teletext operation :Cancel
DVI/Mix:
Switch to DVI / Teletext operation : Mix
Time:
Enter SLEEP menu/ Teletext operation : Time
QQ.V
I II
PIP
Sub.Ch.
Swap
Main Ch.
123
456
789
0
Recall Dispaly
P.Mode
S.Mode
Text
Mute
Sub.Code Reveal
Index Hold Size
Cancel Mix
Zoom Still QQ.V
I II
Video S-Video PC
YPbPr YCbCr Time

Using the TV features
Basic Operations
Multimedia - TV receiver, Video monitor and PC display, all in one.
Wider viewing angle, 16:9 display - over 160 viewing angle, 16:9 ergonomical display panel
Digital display device - truthfully reproducing the images, without distortion or blurring, irrespective
of magnetic or geomagnetic effect.
200 channels storage
Sleep timer
Teletext with 252 pages memory
NICAM
Dual SCARTinterface
Multi-language OSD
Understanding the TV features
Power ON/OFF
- 8 -
POWER
INDICATOR
Signal source selection
The first way is,Please take your remotecontrol:
Press the <CH+>or <CH->button to select TVinput;
Press the <Video> buttonto select Scart1(CVBS/RGB) input ;
Press the <Video> buttononce more to enterVideo input ;
Press the <S-Video> buttonto select SCART2(Y-C)input ;
Press the <YPbPr> buttonto select YPbPr/YCbCrinput;
Press the <PC> buttonto select PC input;
Press the <DVI>button toselect the DVI input.
If you can notfind your remote controlimmediately, donot worry ,the otherway for your selectingsignal source.
Please Push the <TV/AV> Key on thefront control board ,a Source OSD Menuwill display on thescreen. Push
the <Chanel up> or<Chanel down> Key ,youcan select the Signalsource ,Push the <Volume up> Key toensure
your selection.
1. Connect theTV topower outlet, The Power indicator will be redand
then turn blue.Several seconds later, TV picture will displayon the screen.
2. Press the<Power> button on theremote control toturn off the TV temporarily
and the Power indicator turn red, yourset is atStand-By mode.
3. Press anybutton from the<Power> button ,<CH+>button ,<CH->buttonon the
remote control ,yourset will quitStand-By Mode and reworkagain.
Push the <Chanelup> or <Chanel down >Key on thefront control board,your
set also quitStand-by Mode and rework again.
4. If youdecide to shutdown the TV for along time, itis recommended that you
unplug the powercord.
Dear customer ,two ways for your selecting the signal source.
VGA
DVI
SCART2
SCART1
AV 1
TV
HDTV
Main Source

Press <Display> button on the remote control to display the present channel number, but it will also disappear 3
seconds after your pressing.
Display channel number
Press the <Still> button on the remote control to snapshot the present picture.
Press this button again to return to normal watching.
Use <Still> button
Press the <Recall> button on the remote control repeatedly to alternate between the present channel and the
previous channel.
Use <Recall> button
You can select the picture mode fromamong three preset modes and one user-set
mode.
Press the < P.mode> button on the remote control repeatedly to select the desired
picture mode.
Select picture modes
You can select the sound mode from among three preset modes and one user-set
mode.
Press the <S.mode> button on the remote control repeatedly to select the desired
sound mode.
Select sound modes
Adjust Volume
When menu is not displayed on the screen, Press the <VOL->or<VOL+>button on the remote control to adjust the
volume level. Push the <Volume up> or <Volume down> Key to adjust the volume level also.
To select a channel : Press the channel numbers in series to select channel directly.
Press the button 1, and 1_ _ will display on the top right corner of the screen,
then press the button 2, 12_ will display, press the button zero, you can enjoy the program of channel 120.
For example, to seclect channel 120,
Select channels by numbers
Bright
Normal
Soft
User
Speech
Normal
Music
User
- 9 -
NOTE:1) When you changing the channel, the sound state, colour system state& sound system state graphics can be
displayed below the channel number. There are 3 sound states in this TV. If the sound is mono, the graphics
is , If the sound is stereo, the graphics is . If the sound is NICAM dual I/II, the graphics is . But the
colour system state & sound system state is you preset the state
When you changing the channel, the sound of current channel will be firstly changed to stereo or NICAM dual
according to the sound state of current channel. You can press the I/II button on the remote control to change
current sound type.
2)
Select channels by <CH+> or <CH->
In TV source, You can use <CH+> or <CH-> on the remote control to change channels.< ndicates channel
number increase; < indicates channel number decrease.
You can use <Chanel up> or <Chanel down> on the control board to change channels.<Chanel up> indicates channel
number increase;<Chanel down> indicates channel number decrease.
CH+> i
CH->
Press the< Zoom> button on the remote control to adjust the screen aspect ratio.
Two aspect ratio you can select: 16:9 and 4:3
Use <Zoom> button
Press <Mute> button on the remote control Mute sound of your set .
Press this button again to quit Mute mode.
Mute function
Using the TV features

Using the TV features
-10 -
Using the CHANNEL menu
1) Press the <Menu> button to enter the main menu.
2) Press the <VOL+> or <VOL-> button to select the item CHANNEL.
3) Press the <CH+> or <CH-> button to select AUTO SEARCH.
4) Press the < VOL+> button to start auto searching.
AUTO SEARCH
1) Press the <Menu> button to enter the main menu.
2) Press the < button to select the item CHANNEL.
3) Press the < button to select SOUND SYSTEM.
4) Press the < button to switch among I, B/G, D/K, L and L` .
Suggestion:
VOL+> or <VOL->
VOL+> or <VOL->
Please refer to the system of your country to set the SOUND SYSTEM before you take AUTO SEARCH
or MANUAL SEARCH.
CH+> or <CH->
SOUND SYSTEM
SKIP
1) Press the <Menu> button to enter the main menu.
2) Press the < button to select the item CHANNEL.
3) Press the < button to select CHANNEL NUM.
4) Press the < button to select the present channel.
VOL+> or <VOL->
VOL+> or <VOL->
CH+> or <CH->
1) Press the <Menu> button to enter the main menu.
2) Press the < button to select the item CHANNEL.
3) Press the < button to select SKIP.
4) Press the < button to skip or un-skip the present channel.
NOTE: The 'skipped' channels cannot be accessed by .
If you want to access digit button,
and the
VOL+> or <VOL->
VOL+> or <VOL->
<
'skipped' channels ,please input the channel number by
'skipped' channels will be appeared.
CH+> or <CH->
CH+> or <CH->
1) Press the <Menu> button to enter the main menu.
2) Press the <VOL+> or <VOL-> button to select the item CHANNEL.
3) Press the <CH+> or <CH-> button to select MANUAL SEARCH.
4) Press the <VOL+> or <VOL-> button to start searching.
MANUAL SEARCH
1) Press the <Menu> button to enter the main menu.
2) Press the <VOL+> or <VOL-> button to select the item CHANNEL.
3) Press the <CH+> or <CH-> button to select FINE TUNE.
4) Press the <VOL+> or <VOL-> button to start searching.
FINE TUNE
1) Press the <Menu> button to enter the main menu.
2) Press the <VOL+> or <VOL-> button to select the item CHANNEL.
3) Press the <CH+> or <CH-> button to select CHANNEL EDIT.
4) Press the <VOL+> button to enter CHANNEL EDIT.
5) Press the <Menu> button to go back to the previous level.
CHANNEL EDIT
CHANNEL NUM
SOUND SYSTEM
AUTO SEARCH
MANUAL SEARCH
SKIP
CHANNEL EDIT
FINE TUNE
CHANNEL NUM CHANNEL

-11 -
Using the PICTURE menu
Using the TV features
1) Press the <Menu> button to enter the main menu.
2) Press the < button to select the item
PICTURE PARAMETERS.
3) Press the < button to select the item you
want to adjust.
4) Press the < button to adjust the level.
5) Press the <Menu> button to go back to the previous level.
The adjusted data is memorized automatically in the user mode.
1)Press the <CH+> or <CH-> button to select the item COLOUR TEMP ,
2)Press the <VOL+> button enter next level. There are five modes in COLOUR TEMP item.
3)Press <CH+> or <CH-> to select your wishful item ,and then Press <VOL+>or<VOL-> to ensure.
4)Press the <Menu> button to go back to the previous level.
.
VOL+> or< VOL->
VOL+> or <VOL->
CH+> or< CH->
PROGRAM
Adjust picture settings
Using the AUDIO SETTING menu
Adjust audio settings
1) Press the <Menu> button to enter the main menu.
2) Press the < button to select the item AUDIO SETTING.
3) Press the < button to select the item you want to adjust.
4) Press the < button to adjust the level.
The adjusted data is memorized automatically in the user mode.
VOL+> or <VOL->
VOL+> or <VOL->
CH+> or <CH->
AUDIO SETTING
PICTURE PARAMETERS
PROGRAM
Setting Colour Temperature
Adjust BALANCE
1) Press the <Menu> button to enter the main menu.
2) Press the < button to select the item AUDIO SETTING.
3) Press the < button to select the item BALANCE.
4) Press the < button to adjust the balance between the left speaker and right speaker..
The adjusted data is memorized automatically ,this item is not effective on sound modes .
VOL+> or <VOL->
VOL+> or <VOL->
CH+> or <CH->
Setting Surround Modes
)Press the <CH+> or <CH-> button to select the item SURROUND ,
3)Press the <VOL+> button enter next level. There are three modes in SURROUND item.
4)Press <CH+> or <CH-> to select your wishful item ,and then Press <VOL+>or<VOL-> to ensure.
5)Press the <Menu> button to go back to the previous level.
.
1) Press the <Menu> button to enter the main menu.
2) Press the <VOL+> or <VOL-> button to select the item AUDIO SETTING.
2
WARMER
WARM
NORMAL
COOL
COOLER
BRIGHTNESS
CONTRAST
SATURATION
COLOUR TEMP
SHARPNESS
OFF
SUR1
SUR2
BASS
TREBLE
BALANCE
SURROUND
HP VOLUME
Adjust Earphone Volume
Please connect your earphone correctly before you take adjusting as following.
1) Press the <Menu> button to enter the main menu.
2) Press the < button to select the item AUDIO SETTING.
3) Press the < button to select the item HP VOLUME.
4) Press the < button to adjust the earphone volume.
The adjusted data is memorized automatically .
VOL+> or <VOL->
VOL+> or <VOL->
CH+> or <CH->

1)Press the <Menu> button to enter the main menu ,
2)Press the < select the PICTURE IN PICTURE.
3)Press the <
button to enter the PIP SIZE,
5)Press
VOL+> or <VOL->
button to select the PIP SIZE,
4)Press the <
the <CH+> or <CH-> button ,you can select one mode
from among the OFF, PIP and PBP.
6)Press the <Menu> button to go back to the previous level.
to
CH+> or <CH->
VOL+>
Note:1)WhenMainpicture is TV/SCART1/SCART2/VIDEO,the Sub Picture is YPbPr/PC/DVI.
2)WhenMainpicture is YPbPr/PC/DVI,the Sub Picture is TV/ SCART1/SCART2/VIDEO.
Using the PIP menu
PICTURE IN PICTURE
Using the TV features
PIP POSITION
PIPSIZE
PIPBRIGHTNESS
PIP CONTRAST
OFF
PIP
POP
Select PIPSIZE
Adjust PIPPicture
When PIP SIZE is set at PIP or POP mode, the item PIP BRIGHTNESS and PIP CONTRAST are active.
1)Press the <
button to adjust the level.
CH+> or <CH->
VOL+>or <VOL->
button to select the item you want to adjust.
2)Press the <
The adjusted data is memorized automatically .
Adjust PIPPosition
When PIP SIZE is set at PIP mode, the item PIP POSITION is active.
1)Press the <
button to adjust the position of the PIP window.
CH+> or <CH->
VOL+>or <VOL->
button to select the PIP POSITION.
2)Press the <
The adjusted data is memorized automatically.
Multiplex Button for PIP
There are four multiplex buttons on the remote control for PIP operation .They are:
<PIP> button ,the RED button ,this button is for selecting one mode from among the OFF, PIP and PDP.
<Sub.Ch.> button, the GREEN button , this button is for switching the Sub Picture source.
<Swap> button, the YELLOW button, this button is for swapping the source between the Main Picture and Sub. Picture
<Main Ch.>button ,the BLUE button, this button is for switching the Main Picture source.
-12 -
SLEEP
SLEEP TIME
TIME REMAIN
100
60
SET TIMER
Using the SLEEP menu
After setting SLEEP TIME ,your set will come into Stand-by
mode automatically when sleep time is over.
1)Press the <Menu> button to enter the main menu ,
2)Press the < select the SLEEP
3)Press the <
button to operate SET TIMER,
The maximum sleep time you can set is 120 minutes.
VOL+> or <VOL->
button to select the SLEEP TIME
4)Press the <
6)Press the <Menu> button to go back to the previous level.
7)Press the <Time> button on the remote control , you will enter the SLEEP menu directly .
to
CH+> or <CH->
VOL+>

CHANGE PASSWORD
Using the TV features
Using the GENERAL SETTINGS menu
1) Press the <Menu> button to enter the main menu.
2) Press the <VOL+> or <VOL-> button to select the item GENERAL SETTINGS.
3) Press the <CH+> or <CH-> button to select BLANK.
4) Press the <VOL+>or <VOL-> button to enable the BLANK
NOTE: When you enable the blank ,the screen will turn into blank screen saver mode in case of valid input signal.
The screen will turn into auto screen saver mode several seconds later, and get into stand-by mode 15
minutes later.
BLANK
Color system
1) Press the <Memu> button to enter the main menu.
2) Press the < button to select the item
GENERAL SETTINGS.
3) Press the < button to select OSD POSITION
and press <VOL+> enter it .
4) Press the < button to adjust the OSD
POSITION.
T
VOL+> or <VOL->
VOL+>or <VOL->
5) Press the <Menu> button to go back to the previous level.
he adjusted data is memorized automatically .
CH+> or <CH->
OSD POSITION
1) Press the <Menu> button to enter the main menu.
2) Press the <VOL+> or <VOL-> button to select the item GENERAL SETTINGS
3) Press the <CH+> or <CH->button to select TRANSPARENCY
4) Press the <VOL+> or <VOL->button to adjust this ITEM.
The adjusted data is memorized automatically .
TRANSPARENCY
OSD LANGUAGE
-13 -
LANGUAGE ENGLISH
GENERAL SETTINGS
OSD POSITION
COLOR SYSTEM
OSD LANGUAGE
BLANK
TRANSPARENCY
ADVANCE NOISE REDUCE
MADI
FILM MODE
LADI
1) Press the <Menu> button to enter the main menu.
2) Press the < button to select the item .
3) Press the < button to select COLOUR SYSTEM.
4) Press the < button to switch among PAL , SECAM .
Suggestion: Please refer to the system of your country to set the COLOUR SYSTEM before you take AUTO SEARCH
or MANUAL SEARCH.
VOL+> or <VOL-> GENERAL SETTINGS
VOL+> or <VOL->
CH+> or <CH->
1) Press the <Menu> button to enter the main menu.
2) Press the < button to select the item .
3) Press the < button to select OSD LANGUAGE.
4) Press the < button to select language.
VOL+> or <VOL-> GENERAL SETTINGS
VOL+> or <VOL->
5) Press the <Menu> button to go back to the previous level.
Several kinds of Language can be selected:
English ,French ,German ,Italian ,Spanish etc.
CH+> or <CH->
ADVANCE
1) Press the <Memu> button to enter the main menu.
2) Press the < button to select the item GENERAL SETTINGS.
3) Press the < button to select ADVANCE and press <VOL+> enter it .
4) Press the <CH+> or button to select the item you want to adjust..
5) Press the <VOL+> or <VOL-> button to make the item on or off .
6
VOL+> or <VOL->
<CH->
) Press the <Menu> button to go back to the previous level.
CH+> or <CH->

-14-
Using the TV features
Teletext Operations
Select the channel that is broadcasting the desired Teletext program.
Press < Text> button on the remote control to enter the Teletext mode ,and press the same button quit the Teletext mode..
Note:1)All the operations the below should be under the Teletext mode.
2)There are some multiplex buttons on the remote control for Teletext operation.
ENTER TELETEXT MODE
PAGE SELECTION
HOLD
Some Teletext pages contain quiz or questions with hidden answers.
Press the <Reveal> button to see the answers.
Press the <Reveal> button to hide the answers again.
REVEAL
Some Teletext information is contained on more than one page, the pages automatically changing after a given reading
time.
Press the <Hold> button to stop the page changing.
Press the <Hold> button again to allow the page to change.
CANCEL
When a page is selected in Teletext mode it may take some time before it becomes available.
Press the <Cancel> button to switch to the TV mode.
When the required page is found, the page number will appear at the top of the TV picture.
Press the <Cancel> button to return to the selected Teletext page.
Note: You can change TV program while in this mode
SUB CODE
Some Teletext pages contain sub page that require you to input the sub code.
Press the <Sub. Code> button till pages/sub pages is displayed, and enter four-digit sub code for the sub page
you need.
If you want to quit Sub. Code mode, press <Sub. Code> button till pages/sub pages is disappeared.
MIX
You can mix Teletext with TV pictures, which means transparent teletext.
Press the <Mix> button to get mixed effect, and press the <Mix> button again to cancel the mixed effect.
You can directly input your desired page number by pressing <0>~<9> buttons.
You can sequentially read pages by pressing <CH+> or <CH-> button.
SIZE (Top/Bottom/Full)
Using SIZE to enable easier reading (larger display).
Press the <Szie> button to display the TOP HALF of the page.
Press this button once more to display the BOTTOM HALF of the page.
Press again to return to a FULL PAGE display.
Note: Changing pages reverts to a FULL PAGE display.
INDEX
Teletext index page guides you quickly to your desired page.
Press the <Index> button to jump to the index page.
TIME
Time information is contained in the teletext broadcast.
Press the <Time >button to display the time.
FASTTEXT
The RED, GREEN, YELLOW & BLIE buttons are used for quick access to colour coded pages transmitted by
FAST TEXT broadcast.

Appendix
Scart connector
See Signal Source Selection on page 8 for selecting SCART input.
-15-

Troubleshooting
Before calling a service technician, please check the following table for a possible cause of the problem and
some solutions.
Appendix
Symptoms Possible Solutions
TV will not turn on
No picture, no sound
No sound, picture OK
Poor sound, picture OK
Poor picture, sound OK
Unable to select a certain channel
Poor colour or no colour
The remote control does not operate
Make sure the power cord is plugged in, then press <Power>.
The remote control batteries may be dead. Replace the batteries.
Check if you have set the off timer.
Check the antenna/cable connections.
Press [Display] to see if you have select the right signal source.
The sound may be muted. Press < on the remote control or.
The station may have broadcast difficulties. Try another channel.
VOL+>
The station may have broadcast difficulties. Try another channel
Check the antenna connections.
The station may have broadcast difficulties. Try another channel.
Adjust the picture from the menu.
The channel may be skipped.
The station may have broadcast difficulties. Try another channel.
There may be an obstruction between the remote control and the
remote control sensor.
The batteries may be installed with a wrong polarity.
The remote control batteries may be dead. Replace the batteries.
Check the speakers cable connections.
Check the speakers cable connections.
Disorder display at power on This may be caused by too short interval between power off and on.
Unplug the power and restart.
Check if youhave entered Teletext mode. Press<Text>to quit.
-16 -
Cleaning and care
WARNING: Do not try to remove the cabinet back. Refer servicing to qualified service technicians.
To clean the TV screen:
1) Unplug the TVto avoid possible shock hazard.
2) Use a clean cellulose sponge or chamois cloth dampened with a solution of mild detergent and warm
water to clean the TV screen and trim. Do not use too much water as water spilled into the cabinet
can cause damage to the TV.
3) Wipe off anyexcess moisture with a clean dry cloth.
4) Polish the cabinet with a quality furniture polish to maintain the finish and appearance of the cabinet.
Caution: Never use strong solvents such as thinner, benzene, or other chemicals on or near the cabinet.
These chemicals can damage the finish of the cabinet.

-17 -
Specifications
Television system
Channel coverage
Multi- standard(PAL,SECAM)
VHF-L: E2-S8
VHF-H: S9-S37
UHF: S38-E69
Diagonal display size 50 INCHES PDP
Power source
Power consumption
Audio output
Connection interface
Dimensions
AC100V--240V, 50/60Hz
500W
7W+7W
41inches X 25inches X 3inches
Design and specifications are subject to change without notice.
Contrast 2500:1
Resolution 1366X768
Brightness 2
1000cd/m
Viewing angles oo
170 (H)/170 (V)
RF input: Cable/ Antenna 1
VIDEO input: VIDEO
GRAPHIC input: Analog RGB 15pin 1
Digital RGB(DVI-D) X1
AUDIO input: AV Audio 1
Mini-jack for Stereo
AUDIO output: AV Audio
SCART Audio X 2
Mini-jack for Stereo
OTHER: RS232C X 1 (for software updateing)
RF
1
YPbPr/YCbCr 1
SCART INPUT: SCART1 (CVBS/RGB)
SCART2 (Y-C)
(3.5 )X1
1
(3.5 )X1
54.6Kg
Supplied accessories Remote control, Power cord
Weight
This manual suits for next models
1
Table of contents
Other Hisense Plasma TV manuals

Hisense
Hisense PDP42W39PEU User manual

Hisense
Hisense PDP4211EU User manual

Hisense
Hisense PDP3208 User manual

Hisense
Hisense PDP32v69 User manual

Hisense
Hisense PHD42W39US User manual

Hisense
Hisense PDP5010EU User manual

Hisense
Hisense TA42P40M User manual

Hisense
Hisense PHD5039NUS User manual

Hisense
Hisense PDP4212 User manual

Hisense
Hisense PDH5039EU User manual
