Hisense HYE-W01 User manual

Contents
1. BeforeInstallation………1
2. Mounting of Battery ……1
Before Use
3. Operation Instructions……1
4. Product Description………2
5. Signals Transmission……3
6. Operations…………………3
7. Mounting Remote Control
on Wall……………………9
Operation
Instructions
Thanks for your selecting our air conditioner!
To ensure correct use of this remote control, please read this manual carefull y
beforeuse, and keepit properlyafter finishing it. For any question, please contact
your dealer or our service center.
ECO
Cool
Mode
Speed
S.H.
Green
Mute Sleep
3D/S.
Timer
Ver. Hor.
Heat
Reset
Operation
Manual
Wireless Remote
Control
Model: HYE-W01

1
Installation & Operation Manual for Wireless Remote Control
Remote Control Mode:
HYE-W01
To ensure correct use of this remote control, please read this manual carefully
before use.
This manual should be read along with the installation manual for air conditioner.
Discrepancy of display will occur when:
1)
You press Sleep button while sleep function is unavailable in your indoor unit;
2)You press ECO button while power saving function is unavailable in your
indoor unit;
3)
You press Mute button while power mute function is unavailable inyour indoor
unit;
4) You press S.H.button whilestrong heati ng functi onis unavailabl ein your indoor
unit;
Discrepancy of display may occur when:
1)You press 3D/S.button while 3D/strong airflow function is unavailable inyour
indoor unit;
2)You press Hor. button while horizontal airflow function is unavailable inyour
indoor unit;
Discrepancy of display may occur when lower temperature limit is set when this
remote control is used along with wired remote control with receiver due to
difference in indoor units.
Check the box after checking related items as shown below.
1. Before Installation
□ 1) The following parts are part of the wireless Remote Control, please
check them.
Name QuantityUse
Wireless remote control 1 For control of operation
No.7 battery 2 For power supply to remote
control
Remote control holder 1 For fixing of remote control
Screw (M4×16) For fixing of remote control
holder
2. Mounting of Battery
□ 1) Mount two No.7 batteries into the battery container in remote control.
(1) Pulling out the container cover.
(2) Mount battery in.
Pay attention to poles of batteries when mounting them!
3.
Operation Instructions
1) Remove the batteries if the remote control is left idle for a long period.
2) Replace the batteries inpair.
3) After replacement, press Reset button before using the remote control.
Due to improvement to the product, this manual may be subject to modification
without prior notice.
2

2
4.
Product Description
Wireless remote control
●
Wireless remote control is a device transmitting instructions on operation
mode and time setting to indoor unit. Point the remote control to signal
receiver on indoor unit and press relevant button to send IR signals for
communication.
●
The maximum transmission distance is about 5 meters (the distance
may be shorter when transmission path of IR signals is not perpendicular
to the receiver or there is any electronic lighting device nearby).
Button Description:
Start/Stop:
Press the button to start remote
control, and press it again to shut
down the remote control.
Mode
For toggling between operation
modes
Cool
Used to set operation mode to
cooling
Heat Used to set operation mode to
heating
For selection of airflow velocity
Used for setting of indoor
temperature
ECO
Press it to operate air conditioner in
power-saving mode
Used to set 3D/strong airflow
Sleep
Press it to operate air conditioner in
sleep mode
Mute
Press it to operate air conditioner in
mute mode
S.H.
Press it to operate air conditioner in
strong heating mode
Green
Press it to operate air conditioner in
health mode
Airflow
Direction
Vertical
airflow
Horizontal
airflow
Set horizontal airflow
direction
Set vertical airflow
direction
After shutdown, press it to schedule start-up
of the air conditioner
After start-up, press it to schedule shutdown
of the air conditioner
When any sc heduled start-up/shut down
has been set, press the button to cancel it
Reset
●After cleaning of filter screen is finished, long pr ess Mute to remove Filter Screen indic ation
on indoor unit.
●When any protective device stops op erating, long press Mute to cancel control after the
failure has been removed.
Cool
Mode
Air
velo
city
S.H.
heati
ng
Green
Mute Sleep
3D/S.
Timer
Ver.Hor.
Heat
Reset
ECO
savi
ng
Signal
transmitter
This indicator will keep flashing while signals are
being transmitted (with re mote control pointed
straightly to the receiver on indoor unit).
Signal
transmission
indicator
Display
screen
Displays settempera ture,operating time ,air deflec tor
position, operation mode and air volume type.
Since all available information is displayed on the
screen as shown in this manual, actual display may
vary depending on the operation status.
3D/S.
Temperature
Speed
Timer

3
5. Signals Transmission
* Point signal transmitter on remote control to the receiver on indoor unit.
* Send signals as closely to indoor unit as possible, and make the remote control
perpendicular to the plane where the receiver is located, or otherwise the
signal transmission distance may be shorter.
* Whentransmitting signals, theremotecontrol should be inasector-shape range
of 120 degree in the plane where the receiver is located. When indoor unit is
mounted at a low elevation, the reception angle becomes larger and
transmission distance gets shorter, which varies depending on the building
structure.
* As battery is exhausted, signal transmission distance will get shorter. In such
case, replace the batteries immediately.
* Note: An indoor unit ofceiling conceal-mounted air duct typeis shown above as
example, other types may be different.
6. Operations
* To operate the remote control in accordance with the instructions under 5 -
Signals Transmission and press related function button.
The maximum transmission
distance is 5 meters.
Signal Receiver
Wireless remote
Virtual connecting line
between Signal transmitter
and receiver
Tips
●Signal receiver will beep when receivingsignals. If the receiver fails to beep, the
signals maynot bereceived,andthenrepeat thesignal transmission.
●Beep may not be heard due to interference of noises nearby.
Note: In some special cases, such as centralized control status, the receiver receives
signals but no act isperformed in indoor unit, and the buzzer gives a long beep.
●Do not place remote control at any location exposed to high
heat, or otherwise it may fails to operate normally.
•Direct sun
• Oven
●Take much care while using the remote control, since it may be broken
if dropping to ground or affected with damp.
Caution
control

4
■Setting of Cooling/Heating/Dehumidifying/AirSupply
operation
Operation and other Functions
●
Dehumidify
room
Reduce humidity of air in room
●
Heating
operation
Heat room
●
Air-supply
operation
Circulate air inroom
●
Automatic
operating
Cool or heat room automatically
● When Heating operation stops, sometimes air-supply operation will last automatically
for about 2 minutes.
For protection of
compressor, the
compressor shall be
powered on 12 hours
ahead of start-up.
Do not switch off thepower
supply in operation
duration.
Tips
Point signal transmitter on remote control to the signal
receiver and press Power button, the red operation indicator
on the receiver will turn on.
Power
button
Tips
Each operation on power buttonshall be
performed at an interval of at least 3
seconds, or otherwise theremotemay fail
to make response.
Point signal transmitter on remote control to the signal receiver
and press Power button, the red operation indicator on the
receiver goes out.
operation
Press Mode button each time to toggle the screen in the
following sequence
(※where indoor unit is not aDC dehumidifier)
Power
Button
Mode
Button
Cooling
Button
Heating
Button
Press Coolingbutton toactivate cooling mode on the screen
Press Heating buttonto activateheatingmode on thescreen
●Cooling Cool room
Start
Stop
indicator Filter Screen will keeps flashing at acycle of 0.5
secondand thengo out. During the initialization when the
indicator keeps flashing,no operation is available.
After the remote control is powered on, the receiver
(※where indoor unit is a DC dehumidifier, it shall be used with HYRC-
V02H/ photo diode) (Long press Mode + Speed buttons for 3 or more
seconds to toggle between two display modes)

5
■Operations on Temperature/Airflow
Volume/Direction
●Any setting will be stored and applied in future operation. To change any
setting, perform related operations in accordance with the instructions (on
setting of temperature, air velocity and direction) as given on this page.
Tempe
rature
Speed
Horiz
ontal
airflo
w
Verti
cal
airflo
w
Point signal transmitter on remote control to
thereceiver and press the button.
Each press on itwill increase temperature
by 1℃.
(The maximum available temperature is 30℃)
Each press on will reduce temperature by 1℃.
(The minimum temperature is 16℃) Indicates
a set
temperature of 28℃
Indicates high-velocity
airflow
Point signal transmitter on remote control
to the receive r and p ress Speed button.
Each press will toggle air velocity in the
airflow velocity are
available in indoor unit.)
(※Where six levels of airflow velocity are available in
indoor unit.)
(Long press Mode + Cool buttons for 3 or more seconds to
toggle between two airflow modes)
Point signal transmitter on
remote control to the receiver
and press Horizontal Airflow
button.
Fixed......Screen displays stop position.
Automatic air deflection......Screen
displays all positions.
※Horizontal airflow is available only in some models.
Point signal transmitter on
remote control to the
receiver and press
Vertical Airflow button.
※(Long press Mode +
Heat buttons for 3 or
more seconds totoggle
between display modes of
3D air outlet)
Screen
Display
When 3D airdeflector
is unavailable
Screen
Display
is unavailable
Automa tic
deflection
Automa tic
deflection
Cool
Deh
umi
difyi
ng
Auto
mati
c
Heat
Air
sup
ply
Air
suppl
y
Aut
om
atic
De
hu
mi
dif
yin
g
following sequence.
(※Where three levels of airflow velocity are available in
indoor unit.)
When 3D airdeflector
Cool Heat

6
■Operations on Scheduled Start-Up
Operation and
Functions
● Scheduled task means that the unit will be started or shut
down when a set time has elapsed.
● Scheduled start-up or scheduled shutdown can be set.
If the Timer button is pressed down when air conditioner is
power-off, the unit will be started when the set time has
elapsed.
If the Timer button is pressed down when air conditioner is
power-on, the unit will be shut down when the set time has
elapsed.
Scheduled
task
When air conditioner is power-off, press Timer button to
display 0.5 hour on the screen, and press or to change the
time. The air conditioner will be started when the set time
has elapsed. For a set time up to 10 hours, the time will be
set at an interval of 0.5 hour. For a set time between 10~ 23
hours, the timebe setat an intervalof 1 hour.
When air conditioner is power-on, press Timer button
to display 0.5 hour on the screen, and press or to change
thetime. The air conditioner will be powered off when
the set time has elapsed.
When any scheduled task is set, the set time v alue will
bedisplay ed on the screen.
Adjust scheduled time and point signal transmitter onremote
control to the signal receiv er and press Timer button, time
on the screen stops f lashing, and the scheduled task is
activ ated successfully and the green timing indicator on
the receiv er turns on.
When any scheduled task is set, point signal transmitter on
remotecontrol to the signal receiver and press Timer button, the
green timing indicator on the receiver goes out, and the
scheduled task is canceled.
Set
Cancel

7
Operations on Power Saving/Mute/Sleep
The f ollowing additional functions are available in some models. For more
details consultyour localdealer.
●Indoor units can control air volume automatically when mute function is
activated. When mute function is activated via remote control, current air
volume will be displayed. When mute function is activated, air velocity
button is unavailable, and mute icon keeps flashing.
●When air conditioner is powered off, mute function will be deactivated.
●When operation mode is toggled, mute function will be deactivated.
●Indoor units can control air volume automatically when mute function is
activated. When mute function is activated via remote control, current air
volume will be displayed and cannot be regulated.
●When air conditioner is powered off, mute function will be deactivated.
●When operation mode is toggled, mute function will be deactivated.
●Sleep mode can be activated only when the unitis power-on.
●When air conditioner is powered off, Sleep mode will be deactivated.
●When operation mode is toggled, Sleep mode will be deactivated.
●When any scheduled taskis canceled,Sleep mode will be
deactivated.
When air conditioner is power-on:
Point signaltransmitter on remote controlto
the receiver and press the button.
Air conditioner starts operation in power
saving mode and the power saving icon is
activated on the screen of remote control.
Press button to deactivate power
saving mode.
※This functionis available only in some
models.
Indicates that air conditioner
operates in power saving mode.
Power
saving
When air conditioner is power-on:
Point signal transmitter on remote
control to the receiver and press the
button .
Air conditioner starts operation in mute
mode and the mute icon is activated on
the screen of remote control.
Press button to deactivate
※This function is available onlyin
some models.
Mute
Mute
MuteIndicates that air conditioner
operates in mute mode.
When air conditioner is power-on:
Point signal transmitter on remote control to
the receiver and press the button .
Each presswilltogglesleepmode in the
following sequence:
Sleep
Sle
ep
Sleep
Wake-up
Store
Cancel
Air conditioner starts operation in sleep
mode and the sleep icon is activated on
the screen of remote control.
The default sleep duration is 8 hours,
button.
※This function is available only in
some models.
which can be changed by using .
task
Indicates that sleep mode
is activated.
Power

8

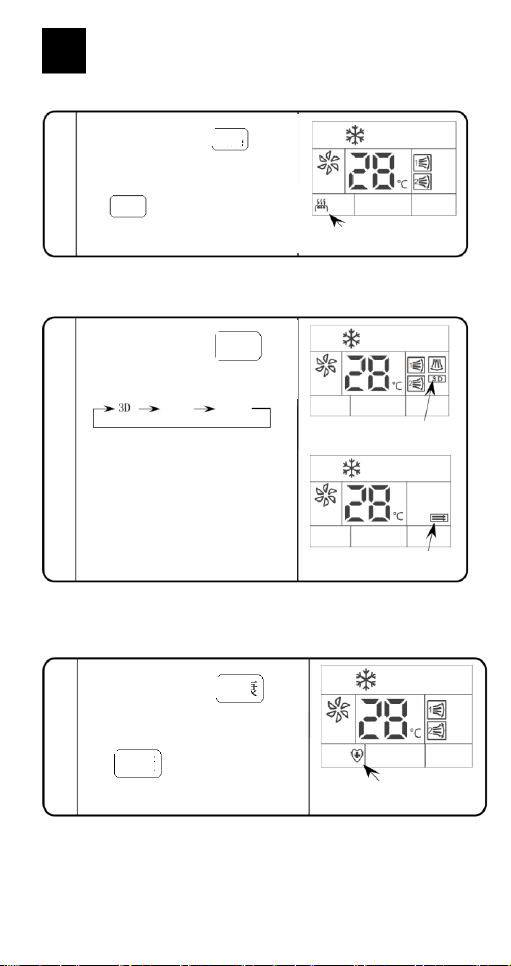

Operations onStrongHeating/3D/Strong Airflow/HealthMode
The f ollowing additional functions are available in some models. For more
details consultyour localdealer.
●Strong heating mode is available only in heating operation.
●When air conditioner is powered off, strong heating mode will be deactivated.
●When operation mode is toggled, strong heating mode will be deactivated.
●3D/strong airflow can be activated only when the unit is power-on.
●When air conditioner is powered off, 3D/strong airflow mode will be deactivated.
When 3D/strong airflow mode is activated, neither horizontal airflow button nor vertical
airflow button will be unavailable.
●Health mode is available only when air conditioner is power-on.
●When air conditioner is powered off, health mode will be deactivated.
Point signal transmitter on remote control to the
receiver and pressthe button .
Air conditioner starts operation instrong heating
mode and Strong Heating icon is activatedonthe
screen of remote control.
Press button to deactivate strong
heating mode.
※This function is availableonlyin some models.
Strong
heating
Strong
heating
Str
on
g
he
ati
ng
Indicates that air conditioner
operates in strongheating mode.
Point signal transmitter on remote controlto the
receiver and pressthe button .
Each press will togglesleepmodein the following
sequence:
3D/Strong
airflow
Strong
airflow
Cancel
3D/
Str
ong
airfl
ow
Air conditioner starts operation in3D airflow
modeand 3Dairflowiconis activated onthe
screen of remote control. In such case both
horizontal and vertical air streams are
displayed.
Air conditioner starts operation instrong
airflow mode and strong airflow iconis
activatedon thescreenof remotecontrol. In
such case neither horizontal nor vertical air
stream is displayed.
※This function is available only in some
models.
Indicates that 3D airflowmodeis
activated.
Indicates that strong airflow mode
is activated.
Indicates that air conditioner
operates in health mode.
Point signal transmitter on remote control to the
receiver and pressthe button .
Air conditioner starts operationinhealthmode and
health iconis activatedon the screen of remote
control.
Press button to deactivate health
mode.
※This function is availableonlyin some models.
Health
Health
He
al
th

9
7. Mounting Remote Control on Wall
□Note: When remote control is mounted on wall, the receiver on
indoor unit may fails to receive signals from it when the remote
control is manipulated. In such case, remove the remote control
from wall and then manipulate it by pointing it toward the receiver.
□The remote control should be mounted at a position accessible to
user, but not at any position as shown below:
□The f ollowing considerationsshall be takeninto when theremote
control is mounted ata location exposed to electromagnetic wave:
(1) Do not mount the remote control at any location exposed to EMI.
(2) Keep the remote control atleast3 meters away fromany device
emitting EMW to minimize interferencewith signal transmission.
□Do not mount the remote control at any location exposed to any
flammable gas.
□When the remote control is mounted on wall, keep it atleast 30 cm
away fromany power supply cable.
Position accessible to children
Position exposed to direct air stream
from air conditioner
Position exposed to cooking fume or
oil drop
Position exposed tohumidity

1
Qingdao Hisense-Hitachi Air
Conditioning System Co. Ltd.
Address:218,QianwangangRoad,Economic
andTechnicalDevelopmentZone,Qingdao
PostalCode:266510
Customer service: 4006-111-111(ext. No.7)
E-mail: [e-mail]
M00038Q 2016.12 V00
