Interactive LED/LCD
Version 5 (19/9/2015)
Installation Manual
75”
(190cm)
Model: H ILF75101

For further information, see the user manual.
Please contact HITACHI directly if you have questions on the use of the touch monitor after reading the
Installation Manual and User Manual.
Important:
Please read the precautions, safety instructions and this installation manual carefully before installing the touch
monitor.
Before using the touch monitor, please read this quick setup guide thoroughly to help protect against damage to
your own and other people‘s property and ensure your own and other people‘s personal safety.
Be sure to observe the following instructions.
For your safety, be sure to observe the warnings contained in this guide.
For installation or adjustment, please follow this quick setup guide and refer all servicing to qualified service
personnel.
If smoke or a peculiar smell comes from the monitor, remove the power plug from the socket immediately.
Failure to do above, it may result in an electric shock.
Contact your dealer for inspection.
If the monitor has been turned on but there isn’t a picture, remove the power plug from the socket immediately.
Failure to do above, it may result in an electric shock.
Contact your dealer for inspection.
If water is spilled or objects are dropped inside the monitor, remove the power plug from the socket immediately.
Failure to do above, it may result in an electric shock.
Contact your dealer for inspection.
If the monitor is dropped or the cabinet is damaged, remove the power plug from the socket immediately.
Failure to do above, it may result in an electric shock.
Contact your dealer for inspection.
To turn off the power of the monitor completely, remove the power plug from the socket
If the power cord or plug is damaged or becomes hot, turn off the main power switch of the monitor, make sure
the plug has cooled down and remove the plug from the socket. If the monitor is still used in this condition, it
may cause an electric shock. Contact your dealer for replacement.
QUICK SETUP GUIDE
1. Precautions and safety instructions
Safety Precautions

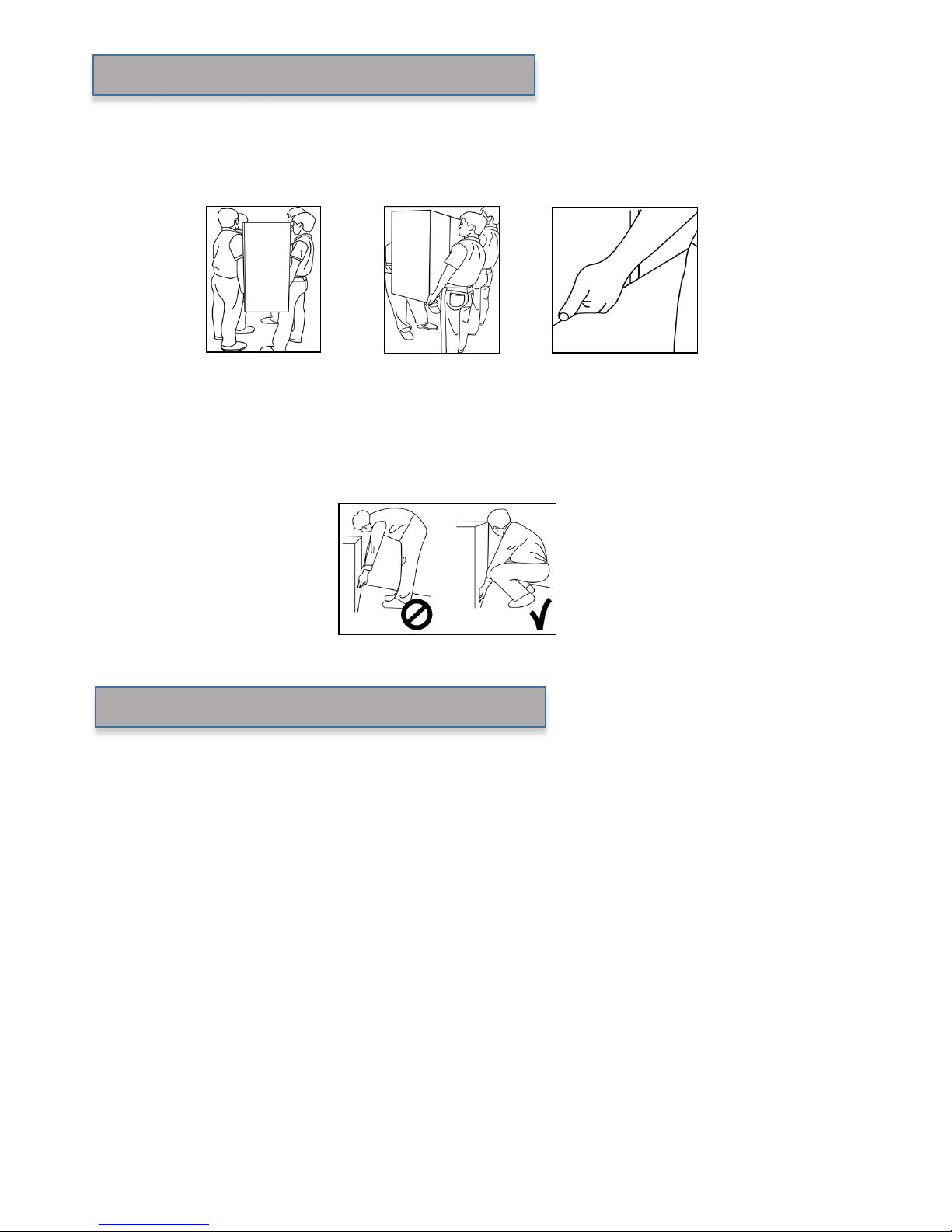

Moving Notice:
Moving the monitor requires at least four people. If not, it may drop and a serious injury may result.
Carrying Notice:
This monitor is heavy; please follow the instructions below when you are ready to carry the monitor.
Failure to do, it may cause injury.
Don‘t install in a high-temperature environment.
If the monitor is used in a high-temperature environment or in direct sunlight, it may cause the case or other
parts to become distorted or damaged resulting in overheating or electric shock.
Don‘t install in a high-humidity environment. This may cause overheating or electric shock.
Don‘t install near any heat sources such as radiators, hot-air outlets, stoves, or other apparatus that produce heat.
This may cause an electric shock.
Don‘t overload sockets or cables beyond electrical capacity. Don‘t use extension leads, otherwise this may cause
an electric shock.
Don‘t insert the power plug into a socket other than 100~240V AC.
This may cause an electric shock.
•Don’t use a damaged power plug or worn socket.
•Don‘t insert the wrong plug as it may cause an electric shock.
Moving and Carrying Notice
Installation

Do not place monitors on unstable shelves or surfaces. They could collapse and cause damage.
Only install the unit on vertical, stable and level surfaces.
Don‘t place objects on the touch monitor.
•If the touch monitor is covered or the vents are blocked, the monitor could overheat and cause a fire.
•If metal or liquid gets into the monitor, it may cause an electric shock.
•Do not place heavy objects on the monitor as they may fall causing injury.
•Please keep a minimum distance of 10 cm between the monitor and the other objects for sufficient ventilation.
Don‘t move the touch monitor when it is connected to the power cord and AV cables.
•When moving the monitor, make sure you remove the plug and cables from the socket or source.
•When unpacking or carrying the monitor, at least 4 people are needed. Make sure the monitor is carried
upright.
•Transport the monitor upright. Avoid placing the monitor face up or face down.
•Handle the monitor gently. Do not drop.
Please make sure the bracket is fixed to a solid wall.
After assembling, please don‘t pull or shake violently.
Please don‘t install the bracket in direct sunlight or areas of humidity / high temperature for fear that the quality
is affected.
Wall mounting safety notes

Install the bracket at a minimum distance of 10 cm from other objects / walls on either side. Only attach to
vertical walls.
Packing list
Unpacking
1. Set the LCD Monitor box in front and upright position.
2. Cut the banding and take off 10 clips
3. Open from the top of the box before removing the top cushions.
4. Remove the top cushion and take the accessories box out.
5. Take vinyl bag off and assembled bracket if it needs
Contents of the Accessories box
1. Power cord
2. Remote controller (1 button cell battery included)
3. USB cable
4. HDMI cable
5. Pen
6. Warranty Card
7. CD
Item
Q’ty
1. Interactive monitor
1
2. Carton
1
3. Bottom cushion
3
4. Top cushion
2
5. Packing bag
1
6. Accessories box
1
2. Package contents

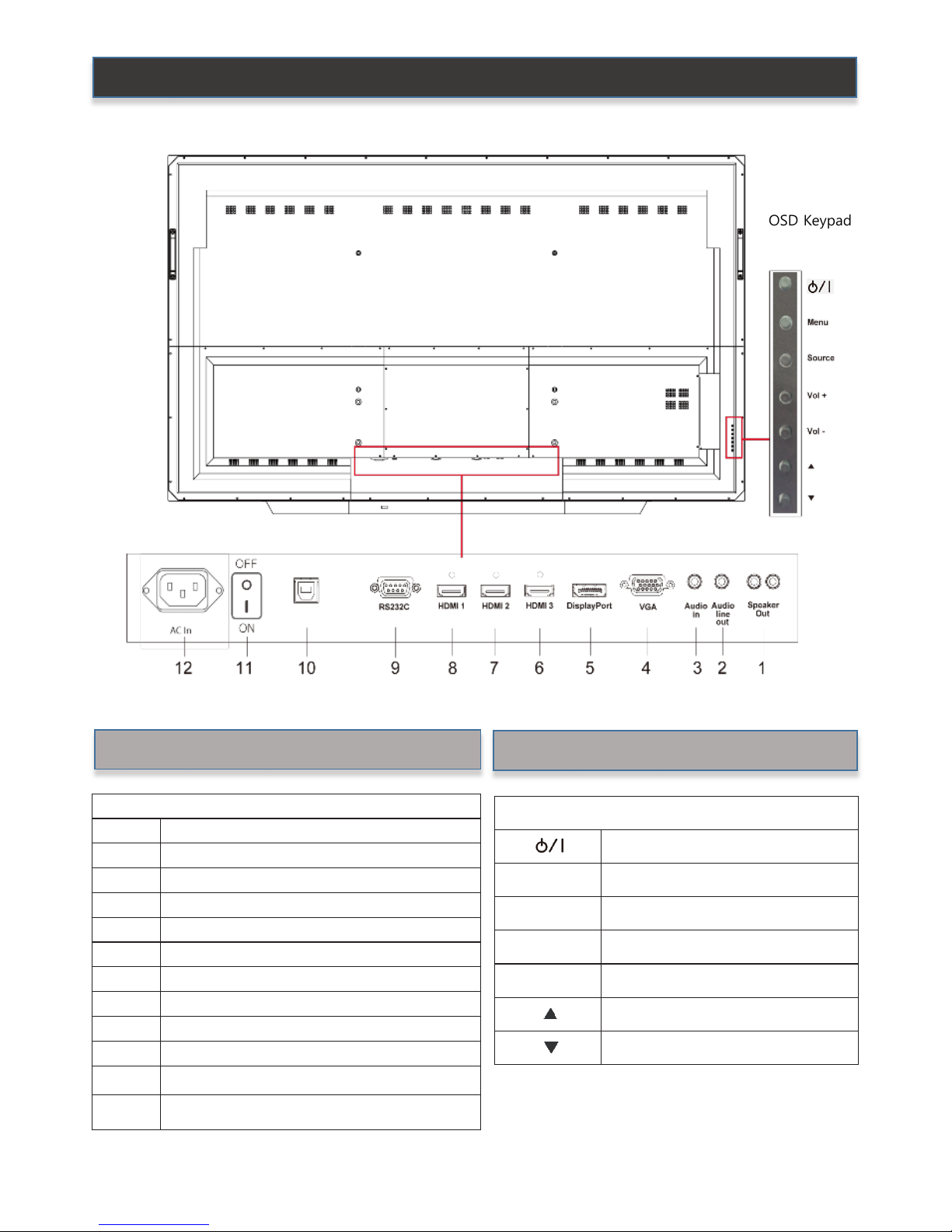

In/Output Interface
1
Speaker out
2
Audio line out
3
Audio in (VGA)
4
VGA
5
DisplayPort
6
HDMI 3
7
HDMI 2 (Connected to front HDMI input)
8
HDMI 1 Disabled
9
RS232C
10
Touch USB
11
Power Switch
12
AC in socket (Input: 100-240V~ 50/60Hz)
OSD 7Key
ON and OFF
Menu
Display the main on-Screen Menu
Source
PC, HDMI 1, HDMI 2, HDMI 3, DP
Vol +
Volume Up
Vol -
Volume Down
UP
DOWN
Input/Output Description
OSD Keypad Description
OSD Keypad
3. Description

①②③④
①LED Indicator
- Power ON mode: BLUE
- Power OFF mode: RED
•Be sure to point the remote control at the remote control sensor on the LED/LCD Display.
②USB for OPS PC or Rear PC
③Touch USB (for Laptop PC): When Touch USB is connected to Laptop, internally it is connected to
Laptop automatically.
Touch sensor’s priority is as below.
Internal OPS < External Desk top < Front Notebook
Important Notice
1. The USB cable (5 m) that Hitachi provides in this accessory box is for use of connection to Touch USB
at the back. Therefore, in case of connecting USB cable to Touch USB in front, separate USB cable is
required and the length of cable is strongly recommended to be less than 3 m to make sure signal
intensity of touch sensor work properly.
2. HDMI 1 disabled. We recommend to use other HDMI (HDMI 2 or HDMI 3) ports, DP or PC RGB inputs.
④HDMI Input (Connected to HDMI 2)
4. Operating the monitor
The control panel of the monitor

** How to insert battery.
Insert the battery into proper polarities.
Battery model: CR-2025 3V
Key Name
Description
Power ON/OFF.
SOURCE
Activates OSD menu of input source selecting.
Navigates input source.
PC
PC RGB
AV
AV.
HDMI
HDMI 1, HDMI 2, HDMI 3. DP
PSM
Picture mode: Standard, Dynamic, Soft, User.
SSM
Sound mode: Standard, Flat, Music, Movie.
MENU
Activates main OSD menu.
EXIT
Escapes main OSD menu.
INFO
Displays input source information.
FREEZE
Videos are saved with pictures.
MUTE
Toggles sound status of speaker.
STEREO
Set the Audio L+R, Audio L, Audio R.
SLEEP
Set the sleep timer.
∧
Navigates upper menu in main OSD menu.
Navigates input source.
∨
Navigates down menu in main OSD menu.
Navigates input source
＞
Navigates next menu in main OSD menu.
<
Navigates before menu in main OSD menu.
Remote Controller(RCU) Instructions

Turning the monitor on
1. Correctly insert the power cord into the monitor and into the power socket.
2. Press the power button on the bottom of monitor or front control panel.
Turning the monitor off
With the power on, press the power button on the remote or control keypad to place the monitor backside in a
standby mode. To turn off power completely, disconnect the AC power cord or turn power switch off.
Selecting the input source
1. Using the remote, press the desired source button or press SOURCE on the monitor backside keypad and
toggle the source button until you have reached the desired source, and press ENTER
(PC, HDMI 1, HDMI 2, HDMI 3, DP)
2. If the monitor cannot find a source, a “No signal” message will be appeared.
No calibration is required first-time use. However, the touch system might need calibration over time or when for
instance a different resolution is used. Please find calibration instructions below for the different operating
systems:
Installation
1. Connect the signal cable to the monitor and then turn on the monitor.
2. Connect one side of the USB cable (type-B USB connector) on the monitor side. (See “chapter 3, Signal Source
Input” for exact location)
3. Connect the other side of the USB cable (type-A USB connector) to the computer.
4. Turn the computer on.
Windows 7 & 8 and Mac OSX(Version 10.7 ~ 10.10)
Window System: No need to install the driver and calibration, but if need to detail calibration or improve
performance, please install the driver.
MAC System: (Should be install the driver, if not, touch function is not working)
Windows 7 & 8 and Mac OSX Calibration Procedure
1. Install and run the “Touch Win Setup” configuration program on the computer.
2. Press “Calibration”.
3. A black screen with one green and eight white calibration points appears.
4. Tap the green calibration point with your finger or Ergonomic Stylus shortly.
5. The cursor will move to the next calibration point. Repeat action 4 and move on to the next indicated
calibration point.
6. Repeat action 4 until you get to the last calibration point in the lower right-hand corner.
Display Mode
5. Touch Operation

7. When you complete the nine-point calibration, a conformation window appears. Click done to accept
the calibration; click Cancel or do nothing (in which case the calibration window automatically disappears
after five seconds) to cancel the calibration.
8. The front B-type USB is for laptop touch.
An USB is automatically connected when you connect a laptop. The rear B-type USB is for PC.
An USB is automatically connected to laptop when you connect a laptop and PC at the same time.
Remove the laptop USB if you want to use a PC.

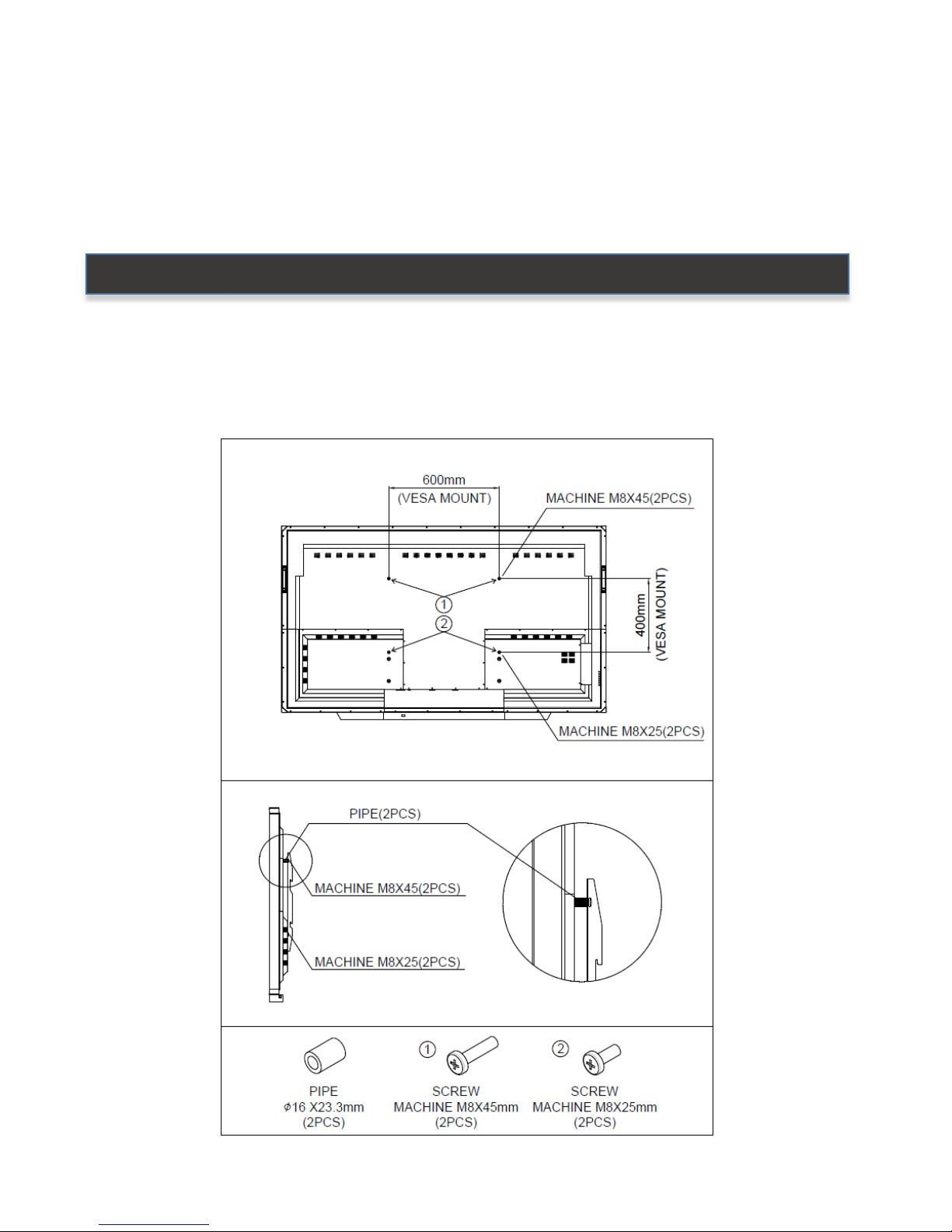

VESA mount size: 600(W) x 400(H) mm
Separate wall mount screw and pipe from Monitor.
As shown below, wall mount bracket is assembled with screw and pipe. Pipe only use the upper left and
right and fixing screw is assembled attention to the screw length.
6. Wall Mounting

Before calling service personnel, please check the following chart for a possible cause to the trouble you are
experiencing.
Perform the adjustments according to the instructions on the “Operating the monitor page”.
If the problem you have experienced isn’t described below or you can’t correct the problem, stop using
the monitor and call service personnel or your dealer.
Problem
Check these things
No Display
Ensure the power plug is installed correctly at both ends.
Make sure the signal cable is installed correctly at both ends.
Check that source equipment is operating correctly. Check if
the input signal is compatible with this display.
The image is not centered
Check if the input signal is compatible with this display.
The image is not locked correctly
Check if the input signal is compatible with this display
If the remote control doesn’t work, make
sure the batteries are new and installed
correctly.
Ensure the remote is aimed at the IR sensor on the front of
the display
The picture color looks poor
Check the picture settings and reset the display
7. Trouble Shooting
