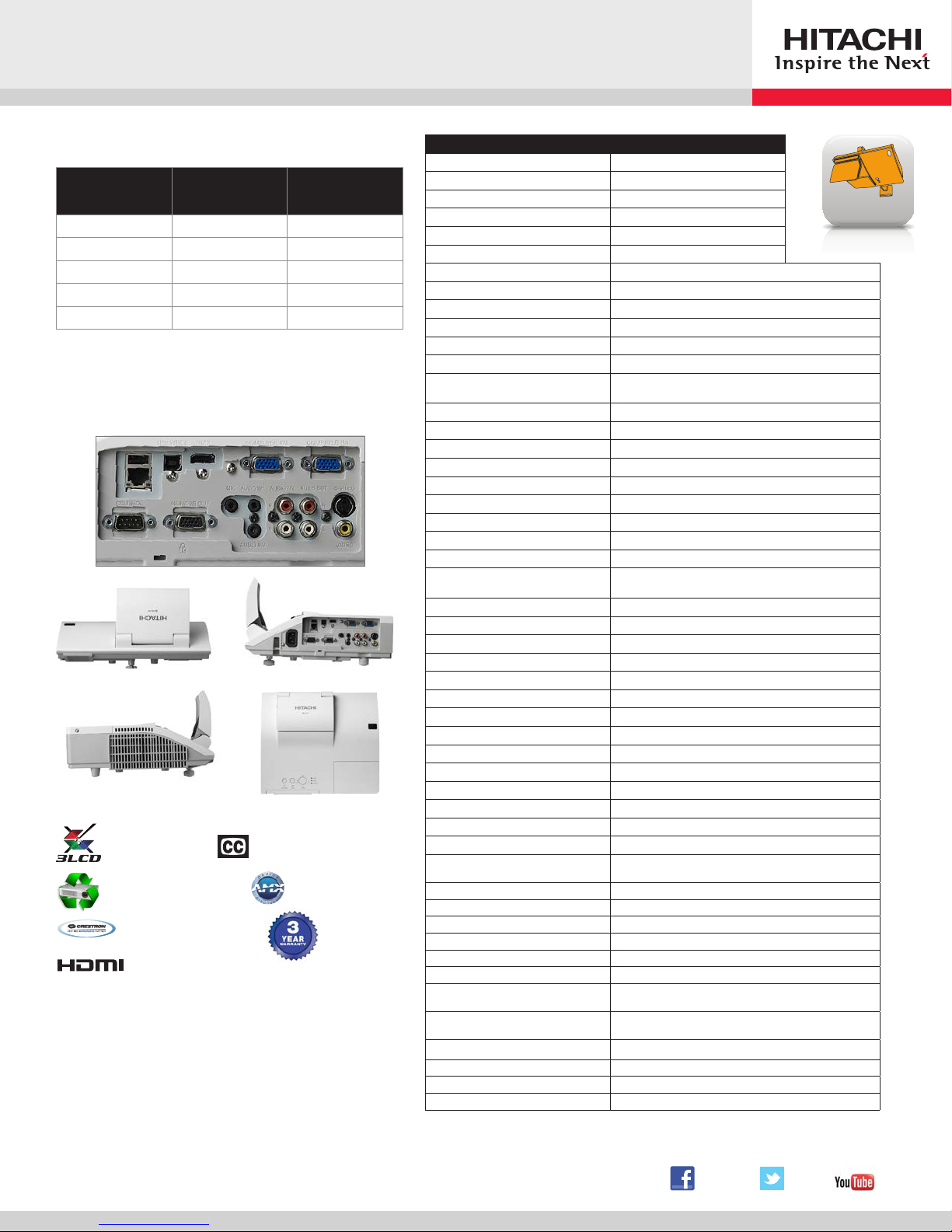

Complete Specifications: CP-AW251N
**Measured in inches
Projection Throw Chart
HDMI
AMX Device Discovery
Hitachi Trade-Up Program
Crestron Integrated Partner 3 Year Warranty
Closed Captioning
3LCD Technology
Specifications
Projection Technology 3LCD, 3 chip technology
Number of Pixels 1,024,000 pixels
Resolution
Video 540 TV lines
RGB 1280 dots x 800 lines
Colors 16.7 million colors
Aspect Ratio Native 16:10
Lens F = 4.1 mm
Throw Ratio (distance : width) 0.3 : 1
Lamp 210W
White Light Output 2,500 ANSI lumens
Color Light Output 2,500 ANSI lumens
Expected Lamp Life Approximately 3,000 hours (standard mode),
5,000 hours (Eco mode)*
Contrast Ratio 2000 : 1 (using active IRIS)
Speaker Output 10W
Power Supply AC90 - 132V / AC198 - 264V 50/60 Hz power
Power Consumption 310W
Operating Temperature 41˚F - 95˚F (5˚C - 35˚C)
Input Signals
Computer
VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA, MAC 16"
Composite Video NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM
Component Video 480i, 480p, 576i, 720p, 1080i, 1080p
HDMI 480i, 480p, 576i, 720p,1080i, 1080p,
computer signal — TMDS clock 27 MHz to 150 MHz
Acoustic Noise Level 35 dB (29 dB in Eco mode)
H-Sync 15 kHz - 106 kHz
V-Sync 50 Hz - 120 Hz
Approvals UL, C-UL, FCC, CE
Computer Input
Analog Computer 1 15-pin D-sub connector x 1
Analog Computer 2 15-pin D-sub connector x 1
Computer Monitor Output 15-pin D-sub connector x 1
Digital Input HDMI x 1
Video Input
S-Video Mini DIN 4-pin connector x 1
Composite Video RCA jack x 1
Component Video 15-pin D-sub connector (shared with analog RGB)
Audio
Input 3.5 mm stereo mini jack x 2, RCA jack (L,R) x 1, mic in 3.5 mm
mini jack x 1 (mono,unbalanced)
Output RCA (L/R) x 1 pair
Network (LAN) RJ-45 port / 100 base-T
Control Terminals 9-pin D-sub connector x 1 (RS-232 control)
Dimensions (W x D x H) 13.6" x 11.9" x 4.0"
Weight 8.6 lbs.
Closed Captioning CC1, CC2, CC3, CC4, T1, T2, T3, T4
Supplied Accessories Remote control with two AA batteries, power cord, computer
cable, user's manual, network manual
Optional Accessories AW250NWALLARM, A3WALLARM, TB-1 wireless pen tablet,
TT-251 tabletop stand
Replacement Parts
Lamp CPAW251NLAMP (DT01251)
Remote Control HL02772
Filter UX37191
Find Hitachi Projectors
on Facebook
Follow us on Twitter
@HALprojectors
Hitachi Projectors
are on YouTube
Ultra Short Throw
Series
Input/Output Terminals
Screen
Diagonal**
Distance from Leading
Edge of Projector to
Screen**
Distance from Mirror
to Screen**
60 4.7 16.8
70 7.4 19.5
80 10.1 22.1
90 12.8 24.8
100 15.4 27.5
Aspect Ratio 16:10
Throw Ratio from Edge of Projector: 0.1 : 1
Throw Ratio from Mirror: 0.3:1
