Hitachi CP-S225WA User manual

USER'S MANUAL Vol.1 Basic
Please read this user's manual thoroughly to ensure correct usage through understanding.
BEDIENUNGSANLEITUNG Teil 1 Grundlagen
Bitte lessen Sie diese Benutzerhandbuch zugunsten der korrekten Bedienung aufmerksam.
MANUEL D'UTILISATION Vol.1 Fondements
Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil.
MANUALE D'ISTRUZIONI Vol.1 Informazioni di base
Vi preghiamo voler leggere attentamente il manuale d'istruzioni in modo tale da poter comprendere quanto riportato
ai fini di un corretto utilizzo del proiettore.
MANUAL DE USUARIO Vol.1 Básico
Lea cuidadosamente este manual del usuario para poder utilizar corretamente el producto.
GEBRUIKSAANWIJZING Vol.1 Basis
Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te hebben van de
uitgebreide mogelijkheden.
BRUKERHÅNDBOK Vol.1 Grunnleggende
Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk.
INSTRUÇÕES DO PROPRIETÁRIO Vol.1 Básico
Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do utilizador.
ENGLISH
DEUTSCH
FRANÇAIS
ITALIANO
ESPAÑOL
NEDERLANDS
NORSK
PORTGÊS
Liquid Crystal Projector
CPS225WA/CPX275WA
(CPS225WA/CPS225WAT/CPX275WA)
00CP-S225/X75/WBasic/再02.10.165:18PMページ2
http://www.pureglare.com.au

1
ENGLISH
LCD Projector CPS225/CPX275
USER'S MANUAL
USER'S MANUAL Vol.1 (Basic)
Page
PROJECTOR FEATURES................2
PREPARATIONS ..............................2
PART NAMES...................................4
SETTING UP
THE PROJECTOR ............................6
CONNECTING
YOUR DEVICES................................8
USING THE REMOTE
CONTROL.......................................12

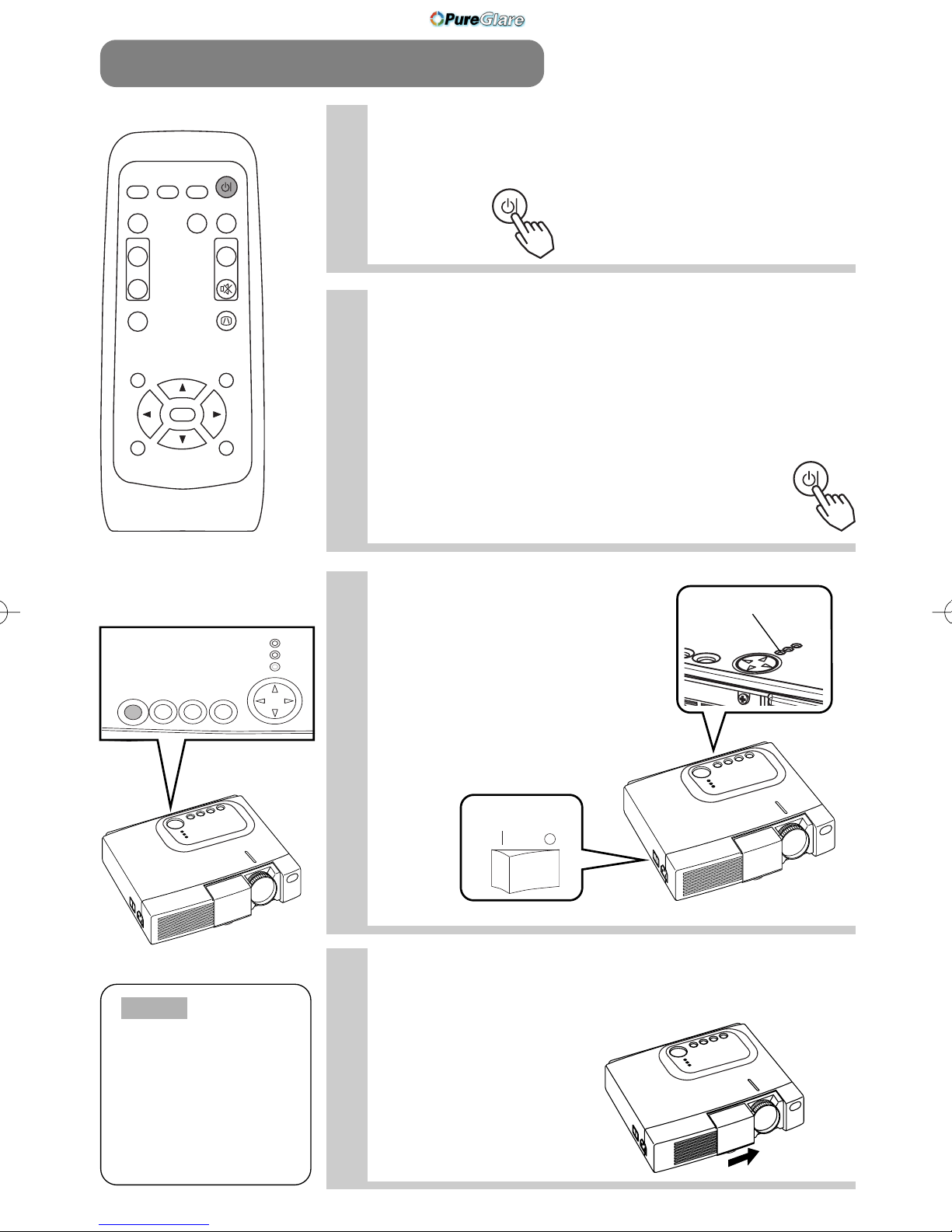

TURNING ON THE POWER ...........14

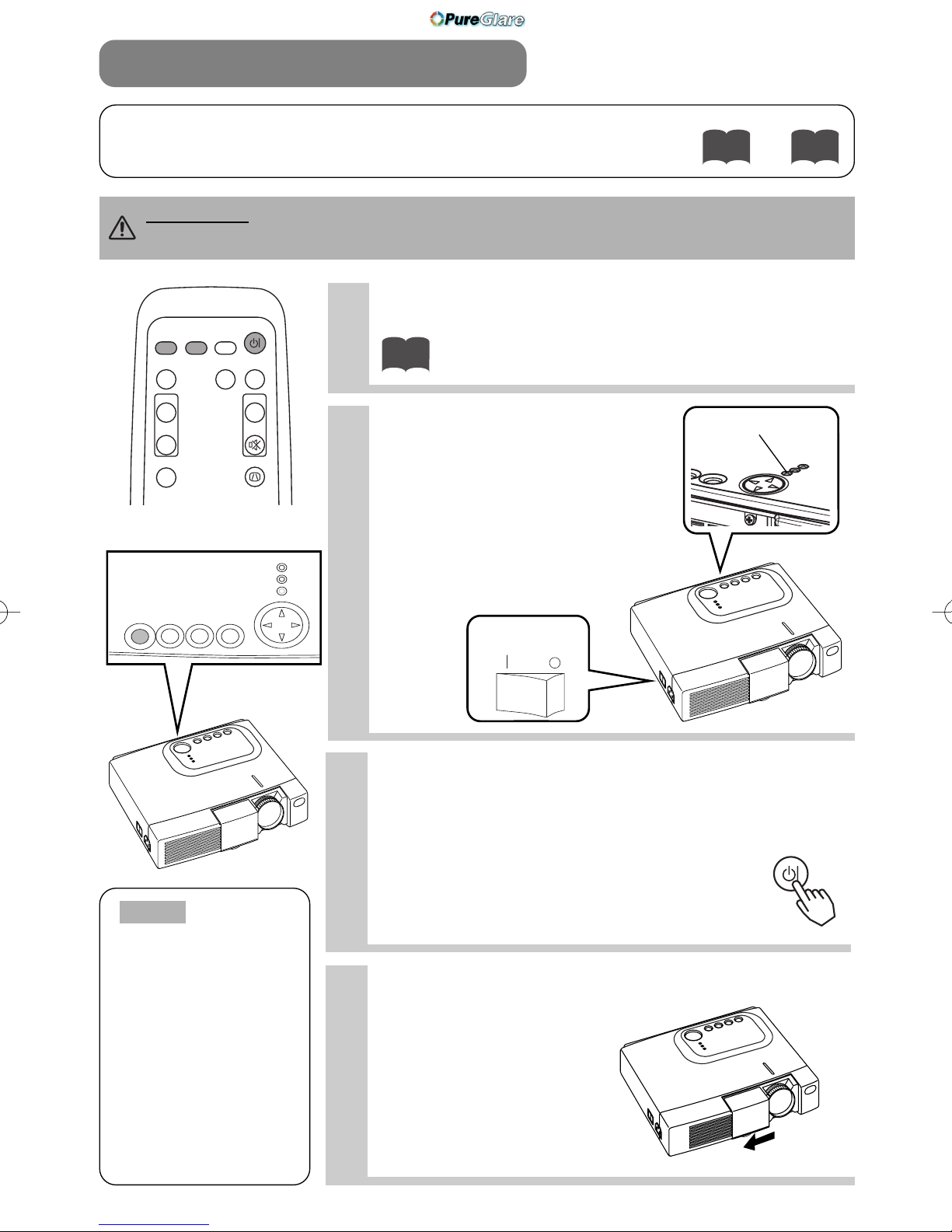

TURNING OFF THE POWER .........16

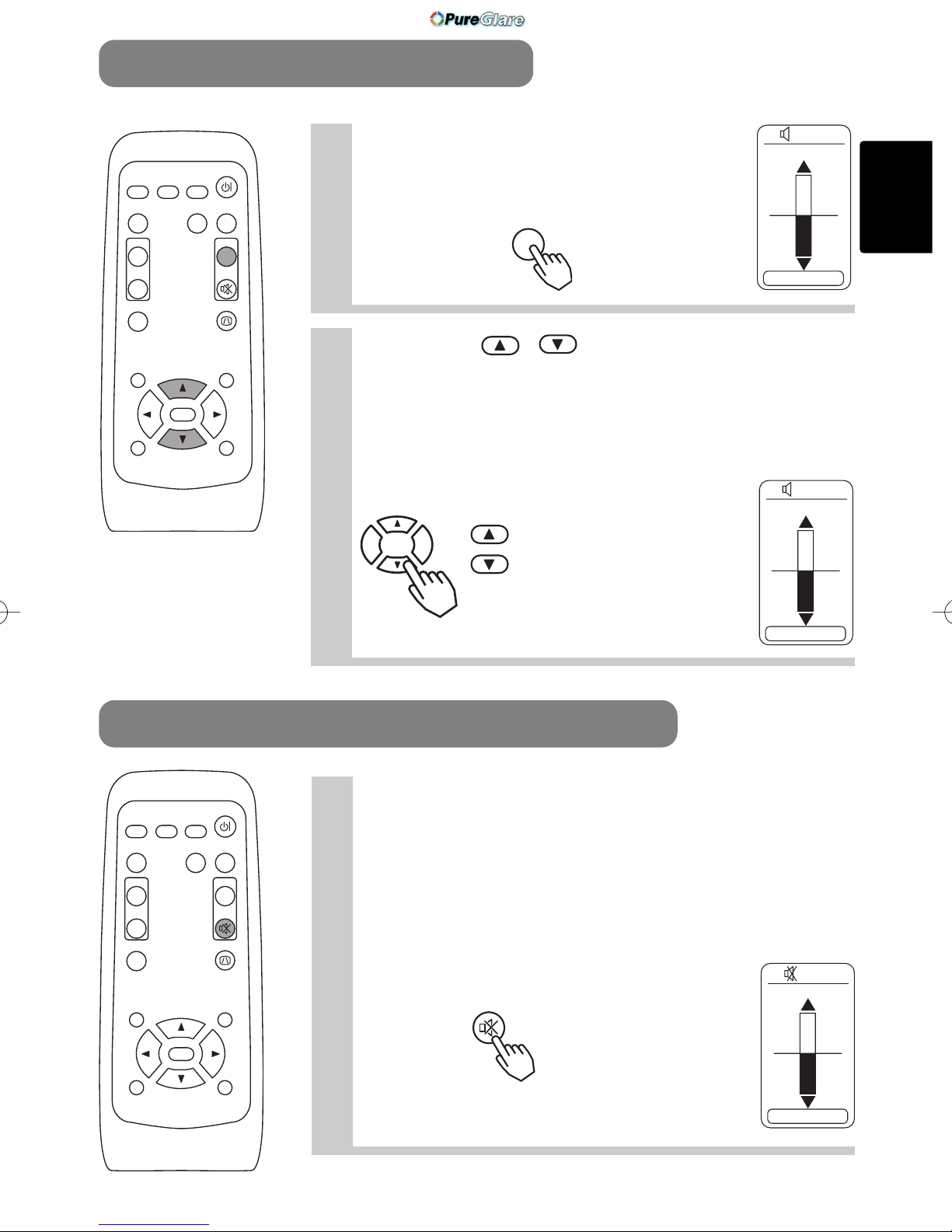

ADJUSTING THE VOLUME ...........17
TEMPORARILY MUTING
THE SOUND....................................17
ADJUSTING THE POSITION..........18
USING THE AUTOMATIC
ADJUSTMENT FEATURE ..............19
Page
CORRECTING KEYSTONE
DISTORTIONS ................................20
USING THE MAGNIFY
FEATURE........................................21
FREEZING THE SCREEN ..............21
SIGNAL SEARCHING.....................22
SELECTING THE ASPECT
RATIO..............................................22
TEMPORARILY BLANKING
THE SCREEN..................................22
USING THE MENU
FUNCTIONS....................................23
THE LAMP ......................................24
THE AIR FILTER.............................26
OTHER CARE.................................28
REGULATORY NOTICES...............29
CONTENTS
Thank you for purchasing this projector.
• The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in this manual
• The reproduction, transmission or use of this document or contents is not permitted without express
written authority.
TRADEMARK ACKNOWLEDGEMENT :
• PS/2, VGA and XGA are registered trademarks of the International Business Machines Corporation.
• Apple, Mac and ADB are registered trademarks of Apple Computer, Inc.
• VESA and SVGA are trademarks of the Video Electronics Standard Association.
• Windows is a registered trademark of Microsoft Corporation.
• All other trademarks are the property of their respective owners.
NOTE
WARNING • Please read the accompanying manual “SAFETY
INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct
usage through understanding. After reading, store this instruction manual in a
safe place for future reference.
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ1
http://www.pureglare.com.au

2
●
Ultra High Brightness
Crisp, ultra-bright presentations is achieved
by using a UHB (ultra high brightness) lamp
and a highly efficient optical system
●
Partial Magnification Function
Interesting parts of images can be magnified
for closer viewing
●
Keystone Distortion Correction
Quick correction of distorted images electrically
●
Whisper Mode Equipped
Special mode is available for reducing
projector noise to achieve quieter operation
PREPARATIONS Your projector should come with the items
shown below. Check to make sure that all the
items are included. Contact your dealer if
anything is missing.
Projector
USER'S MANUAL Vol.1 Basic
Pleaseread this user's manual thoroughly to ensure correct usage through understanding.
BEDIENUNGSANLEITUNG Teil 1 Grundlagen
Bittelessen Sie diese Benutzerhandbuch zugunsten der korrekten Bedienung aufmerksam.
MANUEL D'UTILISATION Vol.1Fondements
Nousvous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil.
MANUALE D'ISTRUZIONI Vol.1 Informazioni di base
Vipreghiamo voler leggere attentamente il manuale d'istruzioni in modo tale da poter comprendere quanto riportato
aifini di un corretto utilizzo del proiettore.
MANUAL DE USUARIO Vol.1 Básico
Leacuidadosamente este manual del usuario para poder utilizar corretamente el producto.
GEBRUIKSAANWIJZING Vol.1 Basis
Leesvoor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te hebben van de
uitgebreidemogelijkheden.
BRUKERHÅNDBOK Vol.1 Grunnleggende
Vennligstles denne bruksanvisningen grundig for å være garantert driftssikker bruk.
NSTRUÇÕES DO PROPRIETÁRIO Vol.1 Básico
Paraassegurar o uso correto do equipamento, por favor leia atentamente este manual do utilizador.
ENGLISH
DEUTSCH
FRANÇAIS
ITALIANO
ESPAÑOL
NEDERLANDS
NORSK
PORTGÊS
Liquid Crystal Projector
CPS225/CPX275
(CPS225WA/CPX275WA)
User's Manuals
(Vol.1/Vol.2)
Safety Instructions
Soft carrying case
Power cord
(US Type)
Power cord
(UK Type) Power cord
(Europe Type)
RGB cable
VIDEO
ASPECT
MUTE
KEYSTONEFREEZE
OFF
ON
MENUPOSITION
ENTER
ESC RESET
VOLUME
MAGNIFY
AUTO BLANK
RGB SEARCH
STANDBY/ON
Remote control
Two AA batteries
(for the remote
control)
Video/Audio cable
PROJECTOR
FEATURES
This liquid crystal projector is used to project
various computer signals as well as NTSC / PAL /
SECAM video signals onto a screen. Little space
is required for installation and large images can
easily be realized.
• Keep the original packing material for future reshipment.
NOTE
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ2
http://www.pureglare.com.au

3
ENGLISH

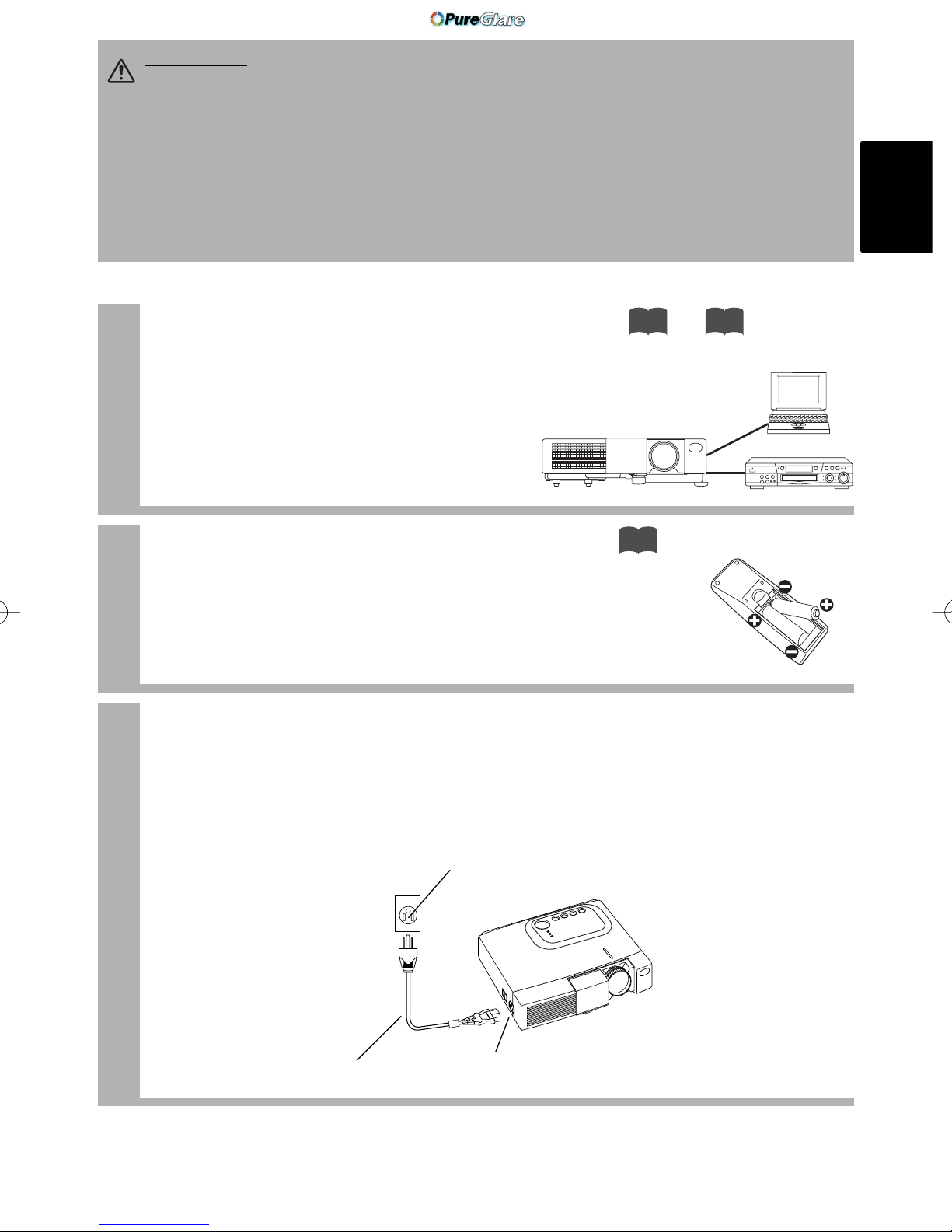

1Connect your devices to the projector
Connect your computer, VCR and/or other
devices you will be using to the projector.
Insert the batteries into the remote
control
2
12
3Connect the power cord
(1) Connect the connector of the electrical power cord to the AC inlet of the main unit.
(2) Firmly plug the power cord's plug into the outlet
WARNING Precautions to observe in regards to the power cord: Please use extra
caution when connecting the projector's power cord as incorrect or faulty
connections may result in FIRE AND/OR ELECTRICAL SHOCK. Please adhere to the
following safety guidelines to insure safe operation of the projector:
•
Only plug the power cord into outlets rated for use with the power cord's specified voltage range.
• Only use the power cord that came with the projector.
• NEVER ATTEMPT TO DEFEAT THE GROUND CONNECTION OF THE THREE-
PRONGED PLUG!
• Make sure that you firmly connect the power cord to the projector and wall outlet.
〜
811
(1)
(2)
Power outlet
Power cord AC inlet
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ3
http://www.pureglare.com.au

4

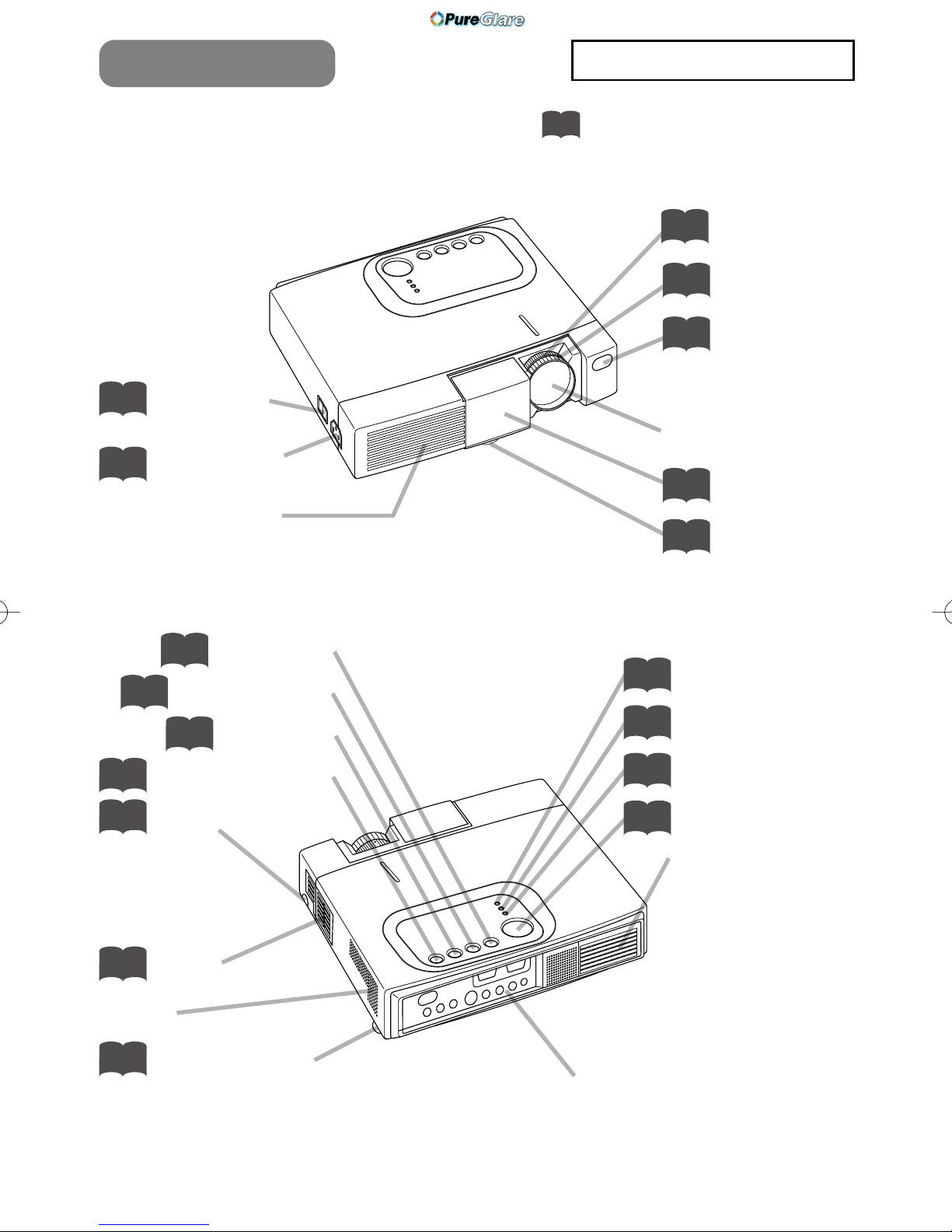

PART NAMES THE PROJECTOR
Indicates the corresponding
reference page
AC power inlet
(to the Power Cord)
3
Ventilation Openings
(Intake)
Power switch
14
Zoom ring
15
Focus ring
15
Remote sensor
13
Lens
Slide Lens Door
14
Foot Adjuster
6
Air filter
26
KEYSTONE button
20
2
STANDBY/ON button
14
INPUT button
15
RESET button
Speaker
Foot Adjuster button
6
Rear Foot Adjuster
6
LAMP indicator
25
TEMP indicator
26
POWER indicator
14
MENU button
23
Ventilation Openings
(Exhaust)
Terminal Panel
Vol.2
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ4
http://www.pureglare.com.au

5
ENGLISH
THE REMOTE CONTROL
THE TERMINAL PANEL
STANDBY/ON button
14
VIDEO button 15
MENU button
23
10
RGB button 15
BLANK button
22
SEARCH button
22
VOLUME button
17
MUTE button
17
KEYSTONE button
20
ASPECT button 22
AUTO button
19
MAGNIFY buttons 21
FREEZE button 21
POSITION button 18
ESC button 23
,,,
Cursor buttons 23
RESET button
2
ENTER button
23
VIDEO
ASPECT
MUTE
KEYSTONEFREEZE
OFF
ON
MENUPOSITION
ENTER
ESC RESET
VOLUME
MAGNIFY
AUTO BLANK
RGB SEARCH
STANDBY/ON
Remote sensor
COMPONENT
Y port
CB/PBport
CR/PRport
S-VIDEO port
AUDIO
L port
R port
13
11
11
RGB port
10
CONTROL port
4
AUDIO port
10
VIDEO port
11
Vol.2
Vol.2
TECHNICAL
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ5
http://www.pureglare.com.au

6
Angle Adjustment
1Lift up the front side of the
projector, and pressing the foot
adjuster button, adjust the
projection angle
2Release the button to lock at the
desired angle
3Make the rear foot adjuster screw to
adjust the left-right slope
Use the foot adjusters on the bottom of the projector to adjust the projection
angle. It is variable within 0˚to 10˚approximately.
CAUTION • Install the projector in a suitable environment according to instructions
of the accompanying manual “SAFETY INSTRUCTIONS” and this manual.
• If you press the elevator buttons without holding the projector, the projector might
crash down, overturn, smash your fingers and possibly result in malfunction. To
prevent damaging the projector and injuring yourself, ALWAYS HOLD THE
PROJECTOR whenever using the elevator buttons to adjust the elevator feet.
SETTING UP THE PROJECTOR
Press the foot adjuster button
Rear Foot Adjuster
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ6
http://www.pureglare.com.au

7
ENGLISH
Refer to the illustrations and tables below to determine the screen size and
projection distance.
Adjusting the Screen Size and Projection Distance
Top view
a
b
Lens center
The screen
Side view
Top view
a
b
Lens center
The screen
Side view
If 4:3 aspect ratio
If 16:9 aspect ratio
4
3
9
16
The values shown in the table are calculated for a full size screen
(CPS225: 800x600 pixels/CPX275: 1024x768 pixels).
a:Distance from the projector to the screen (±10%)
b:Distance from the lens center to the bottom of the screen (±10%)
Screen size
[inch (m)]
a [inch (m)] b
[inch (cm)]
Min. Max.
40 (1.0) 37 (0.9) 46 (1.2) 3 (8.7)
60 (1.5) 57 (1.5) 69 (1.8) 5 (13.1)
80 (2.0) 77 (1.9) 93 (2.4) 7 (17.4)
100 (2.5) 96 (2.4) 116 (2.9) 9 (21.8)
120 (3.0) 116 (2.9) 139 (3.5) 10 (26.1)
150 (3.8) 145 (3.7) 174 (4.4) 13 (32.7)
200 (5.0) 194 (4.9) 233 (5.9) 17 (43.5)
Screen size
[inch (cm)]
a [inch (m)] b
[inch (cm)]
Min. Max.
30 (0.8) 30 (0.8) 38 (1.0) 0 (1)
40 (1.0) 41 (1.0) 50 (1.3) 0 (1)
60 (1.5) 62 (1.6) 76 (1.9) 1 (2)
80 (2.0) 83 (2.1) 101 (2.6) 1 (2)
100 (2.5) 105 (2.7) 127 (3.2) 1 (3)
120 (3.0) 126 (3.2) 152 (3.9) 1 (4)
150 (3.8) 158 (4.0) 190 (4.8) 2 (4)
200 (5.0) 212 (5.4) 254 (6.4) 2 (6)
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ7
http://www.pureglare.com.au

8

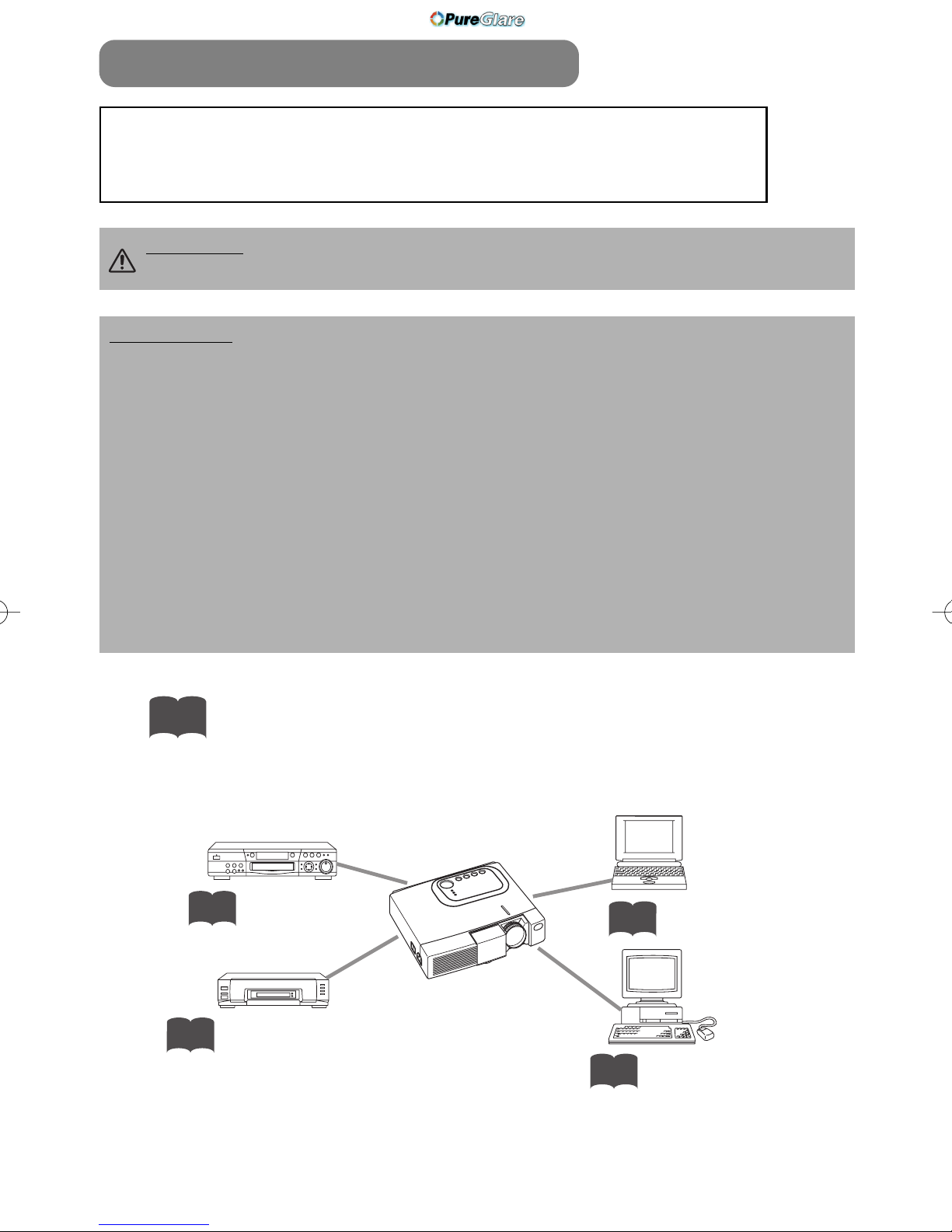

DVD players
11
VCRs
11

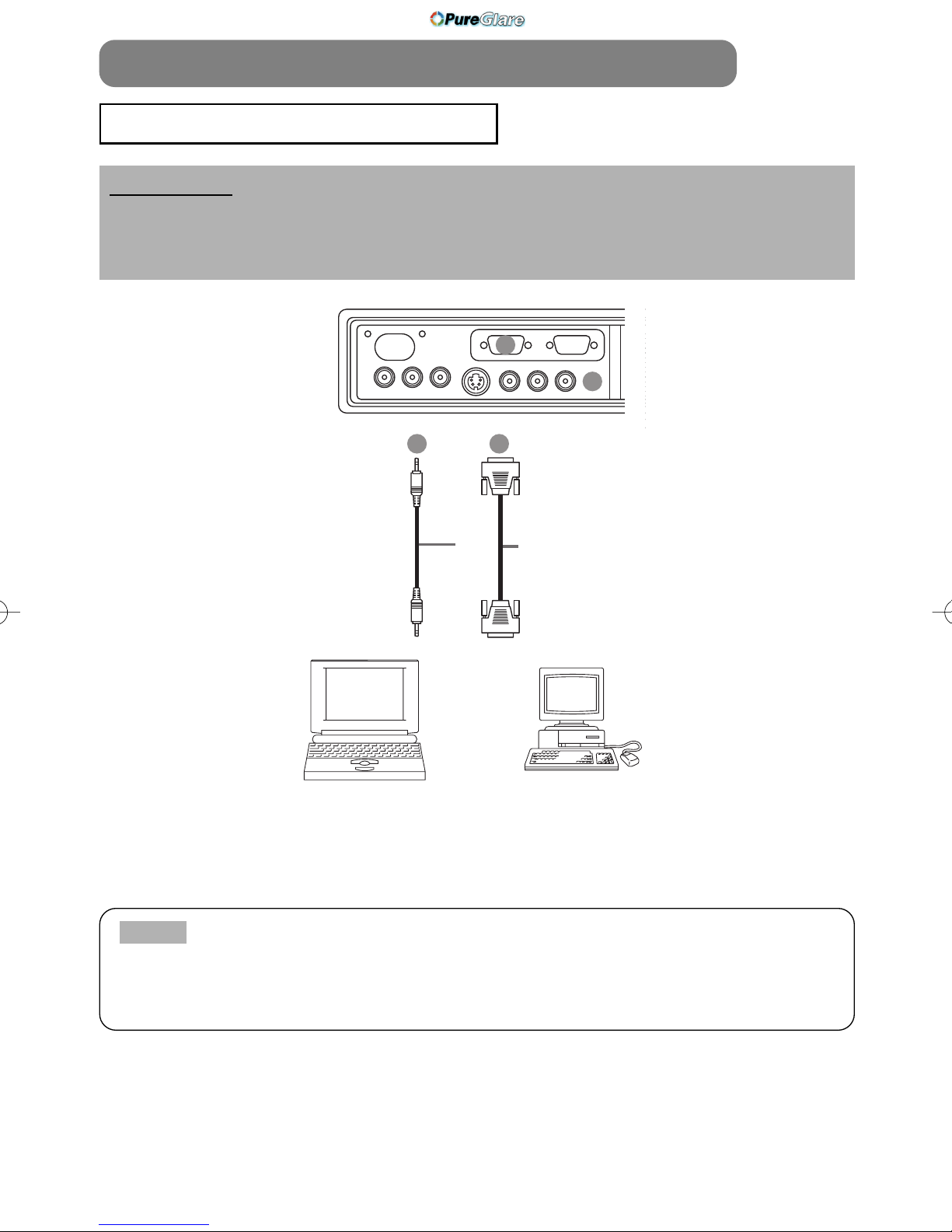

Laptop computers
10
Desktop computers
10
Indicates the
corresponding
reference page
ATTENTION Precautions to observe when connecting other devices to the projector
• Whenever attempting to connect other devices to the projector, please thoroughly
read the manual of each device to be connected.
• TURN OFF ALL DEVICES prior to connecting them to the projector. Attempting to
connect a live device to the projector may generate extremely loud noises or other
abnormalities that may result in malfunction and/or damage to the device and/or
projector. Refer to the “TECHNICAL” of the USER’S MANUAL (Vol.2) for the pin
assignment of connectors and RS-232C communication data.
• Make sure that you connect devices to the correct port. Incorrect connection may
result in malfunction and/or damage to the device and/or projector.
• A component cable and some other cables have to be used with core set. Use the
accessory cable or a designated-type cable for the connection. For cables that have
a core only at one end, connect the core to the projector.
• Secure the screws on the connectors and tighten.
CONNECTING YOUR DEVICES
Devices You Can Connect to the Projector
(Refer to this section for planning your device
configuration to use for your presentation.)
CAUTION • Incorrect connecting could result in fire or electrical shock. Please
read this manual and the separate “SAFETY INSTRUCTIONS”.
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ8
http://www.pureglare.com.au

9
ENGLISH
Ports and Cables
Refer to the table below to find out which projector port and cable to use for connecting a
given device. Use this table for determining which cables to prepare.
About Plug-and-Play Capability
• This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by
connecting this projector to computers that are VESA DDC (display data channel)
compatible. Please take advantage of this function by connecting the accessory RGB
cable to the RGB IN port (DDC 1/2B compatible). Plug-and-Play may not work
properly if any other type of connection is attempted.
• Plug-and-Play is a system composed of the computer, its operating system and
peripheral equipment (i.e. display devices).
• Please use the standard drivers as this projector is a Plug-and-Play monitor.
NOTE
Function Projector Port Connection Cables
RGB input RGB IN
Accessory RGB cable or optional RGB
cable with D-sub 15-pin shrink jack and
inch thread screws
AUDIO input
(from the computer) AUDIO IN Optional audio cable with stereo mini jack
RS-232C communication CONTROL Optional RS-232C cable
S-video input S-VIDEO IN Optional S-video cable with mini DIN 4-pin
jack
Video input VIDEO IN Accessory audio/video cable
Component video input
COMPONENT VIDEO Y
Optional component video cableCOMPONENT VIDEO CB/PB
COMPONENT VIDEO CR/PR
Audio input
(from video equipment)
AUDIO IN L Accessory audio/video cable or optional
audio cable with RCA jack
AUDIO IN R
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ9
http://www.pureglare.com.au

10
Laptop computer Desktop computer
CONNECTING YOUR DEVICES (continued)
Connecting to a Computer
ATTENTION Whenever attempting to connect a laptop computer to the projector,
be sure to activate the laptop's RGB external image output (set the laptop to CRT
display or to simultaneous LCD and CRT display). For details on how this is done,
please refer to the instruction manual of the corresponding laptop computer.
• Some computers may have multiple display screen modes. Use of some of these
modes will not be possible with this projector.
• For some RGB input modes, the optional Mac adapter is necessary.
NOTE
A
AUDIO IN AUDIO OUT
RGB IN Analogue
RGB OUT
RGB cable
AUDIO cable
A
B
B
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ10
http://www.pureglare.com.au

11
ENGLISH
DVD player
VCR
Connecting to a DVD Player
Connecting to a VCR
BC A
Ifusingacomponent
videoconnection
Ifusinganaudio/video
connection
COMPONENT VIDEO IN COMPONENT VIDEO OUT
AUDIO/VIDEO IN AUDIO/VIDEO OUT
S-VIDEO IN S-VIDEO OUT
If using a S-video
connection
COMPONENT cable
AUDIO/VIDEO cable
S-VIDEO cable
A
A
ABBB
C
B
If using a S-video
connection
A
AUDIO/VIDEOIN AUDIO/VIDEOOUT
S-VIDEOIN S-VIDEOOUT
AUDIO/VIDEO cable
S-VIDEO cable
AAA
B
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ11
http://www.pureglare.com.au

1Remove the battery cover
Slide back and remove the battery cover in the direction of the
arrow.
Insert the batteries
Align and insert the two AA batteries (that came with the
projector) according to their plus and minus terminals (as
indicated in the remote control).
Close the battery cover
Replace the battery cover in the direction of the arrow and
snap it back into place.
2
3
USING THE REMOTE CONTROL
CAUTION Precautions to observe in regards to the batteries
Always handle the batteries with care and use them only as directed. Improper use may result in
battery cracking or leakage, which could result in fire, injury and/or pollution of the surrounding environment.
•Keep the battery away from children and pets.
•
Be sure to use only the batteries specified for use with the remote control. Do not mix new batteries with used ones.
• When inserting batteries, verify that the plus and minus terminals are aligned correctly (as indicated in the remote control).
•When you dispose the battery, you should obey the law in the relative area or country.
12
Putting batteries into the remote control unit
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ12
http://www.pureglare.com.au

13
ENGLISH
•The remote control works with both
the projector's front and rear remote
sensors.
•The range of the remote sensor on
the front is 3 meters with a 90-degree
range (45 degrees to the left and
right of the remote sensor), and back
is 3 meters with a 60-degree range.
•Since the remote control uses
infrared light to send signals to the
projector (Class 1 LED), be sure to
use the remote control in an area free
from obstacles that could block the
remote control's output signal to the
projector.
Precautions to observe when using the remote control
•Do not drop or otherwise expose the remote control to physical impact.
•Do not get the remote control wet or place it on wet objects. Doing so may result in
malfunction.
•Remove the batteries from the remote control and store them in a safe place if you
won't be using the remote control for an extended period.
•Replace the batteries whenever the remote control starts to malfunction.
•When strong light, such as direct sunlight or light from an extremely close range
(such as from an inverter fluorescent lamp), hits the projector's remote sensor, the
remote control may cease to function. Adjust the direction of the projector to keep
light from directly hitting the projector's remote sensor.
ATTENTION
Operating the remote control
30 degrees
30 degrees
45 degrees
45 degrees
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ13
http://www.pureglare.com.au

14
1
Make sure that the power cord is firmly and
correctly connected to the projector and outlet
2Turn on the projector's
power
Set the power switch to [ | ] (ON).
The projector will go to STANDBY
mode and the POWER indicator
will light to solid orange.
3Press the STANDBY/ON button (control
panel or remote control)
•The projector begins warming up and the POWER
indicator blinks green.
•The POWER indicator stops blinking
and lights to solid green once the
projector's power is completely on.
4Open the slide lens door
The picture is projected.
STANDBY/ON INPUT KEYSTONE RESET
LANP
TENP
POWER
KE
YSTONE RESET
LANP
TENP
POWER
POWER indicator
STANDBY/ON
3
VIDEO
ASPECT
MUTE
KEYSTONEFREEZE
OFF
ON
VOLUME
MAGNIFY
AUTO BLANK
RGB SEARCH
STANDBY/ON
TURNING ON THE POWER
Control panel
Precautions
Connect all devices to be used to the projector prior to turning on the power.
11
8〜
WARNING When the power is ON, a strong light is emitted. Do not look into the
lens.
Turn the
power on/off in
right order.
•Power on the
projector before the
computer or video
tape recorder.
•Power off the
projector after the
computer or video
tape recorder.
NOTE
power switch
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ14
http://www.pureglare.com.au

15
ENGLISH
RGB
6Use the zoom ring to adjust the
screen size
7Use the focus ring to focus the
5
If selecting RGB input
Press the RGB button
Press this button to swich to the devices
connected to RGB IN as illustrated
below.
If selecting video input
Press the VIDEO button
Press this button to toggle between the
devices connected to VIDEO IN, S-
VIDEO IN and COMPONENT VIDEO. As
illustrated below, each time you press
the VIDEO button, the projector
switches between VIDEO IN, S-VIDEO
IN and COMPONENT VIDEO. Select the
signal you wish to project.
Using the remote control
Press the INPUT button
As illustrated below, each time you
press the INPUT button, the projector
switches between its input signal
ports. Select the signal you wish to
project.
Using the projector's control panel
VIDEO
RGB IN VIDEO IN
S-VIDEO INCOMPONENT VIDEO
VIDEO IN S-VIDEO IN
COMPONENT VIDEO
VIDEO IN
S-VIDEO IN
COMPONENT VIDEO
RGB IN INPUT
Selecting an Input Signal
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ15
http://www.pureglare.com.au

16
VIDEO
ASPECT
MUTE
KEYSTONEFREEZE
OFF
ON
MENUPOSITION
ENTER
ESC RESET
VOLUME
MAGNIFY
AUTO BLANK
RGB SEARCH
STANDBY/ON
1Press the STANDBY/ON button (control
panel or remote control)
The message "Power off?" will appear on the screen for approximately 5 seconds.
3Check that the POWER
indicator stops
blinking and lights to
solid orange.
Switch the power
switch to [O] (OFF).
4
Confirm that the POWER indicator has gone
off and then close the slide lens door.
When the projector has completed powering down, the
POWER indicator will go off.
STANDBY/ON
TURNING OFF THE POWER
2Press the STANDBY/ON button again
(control panel or remote control)
Press the STANDBY/ON button again while the "Power off?"
message is visible. The projector lamp goes off and starts cooling
down. The POWER indicator blinks orange while the lamp cools
down. (Pressing the STANDBY/ON button while the POWER
indicator is blinking orange has no effect.)
The system goes into the STANDBY mode after
cooling down and the POWER indicator stops
blinking orange and then lights to solid orange.
STANDBY/ON
•Except in
emergencies, follow
the above-
mentioned
procedure for
turning power off.
NOTE
STANDBY/ON INPUT KEYSTONE RESET
LANP
TENP
POWER
KE
YSTONE RESET
LANP
TENP
POWER
POWER indicator
Control panel
power switch
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ16
http://www.pureglare.com.au

17
ENGLISH
VIDEO
ASPECT
MUTE
KEYSTONEFREEZE
OFF
ON
MENUPOSITION
ENTER
ESC RESET
VOLUME
MAGNIFY
AUTO BLANK
RGB SEARCH
STANDBY/ON

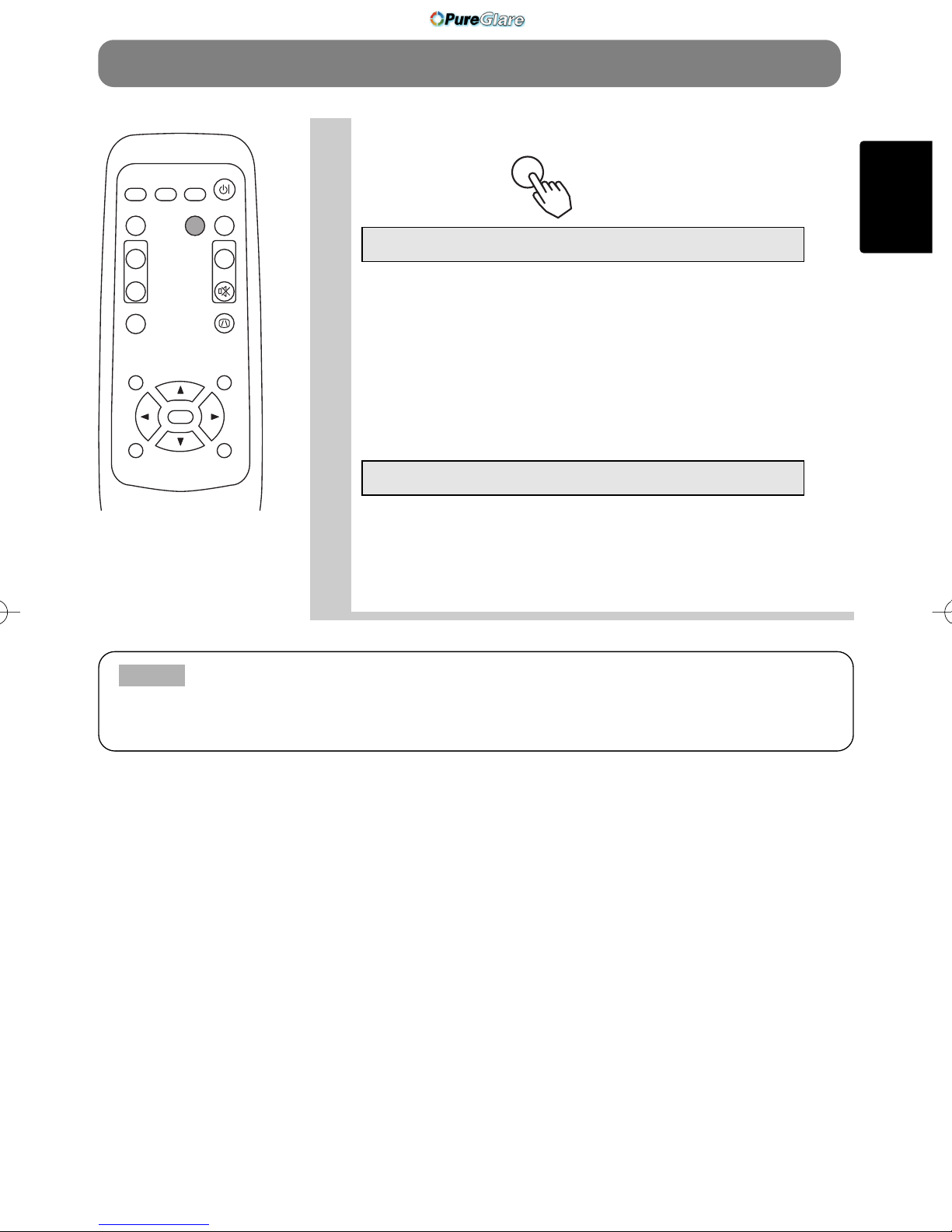

1Press the VOLUME button
As illustrated on the right, a dialog will
appear on the screen to aid you in adjusting
the volume.
1Press the MUTE button
As illustrated on the right, a dialog will appear on the
screen indicating that you have muted the sound. Press
the VOLUME button to close the dialog. (Even if you don't
do anything, the dialog will automatically disappear after
a few seconds.)
Press the MUTE button again to restore the sound.
2Press the , buttons to adjust
the volume
Press the VOLUME button again to close the dialog and
complete this operation. (Even if you don't do anything, the
dialog will automatically disappear after a few seconds.)
Press this to increase the volume
Press this to decrease the volume
VOLUME
VOLUME
MUTE
MUTE
VIDEO
ASPECT
MUTE
KEYSTONEFREEZE
OFF
ON
MENUPOSITION
ENTER
ESC RESET
VOLUME
MAGNIFY
AUTO BLANK
RGB SEARCH
STANDBY/ON
16
VOLUME
16
VOLUME
16
VOLUME
ADJUSTING THE VOLUME
TEMPORARILY MUTING THE SOUND
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ17
http://www.pureglare.com.au

18
1Press the POSITION button
As illustrated on the right, a dialog will appear on the screen
to aid you in adjusting the position.
2Use the , , , buttons to adjust
the position
When you want to initialize the position, press the RESET
button during adjustment.
Press the POSITION button again to close the dialog and
complete this operation. (Even if you don't do anything, the
dialog will automatically disappear after a few seconds.)
This function is only available for RGB IN input.
ADJUSTING THE POSITION
POSITION
POSITION
VIDEO
ASPECT
MUTE
KEYSTONEFREEZE
OFF
ON
MENUPOSITION
ENTER
ESC RESET
VOLUME
MAGNIFY
AUTO BLANK
RGB SEARCH
STANDBY/ON
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ18
http://www.pureglare.com.au

19
ENGLISH
The automatic adjustment operation requires approximately 10 seconds. Also, please
note that it may not function correctly with some input signals.
NOTE
1
USING THE AUTOMATIC ADJUSTMENT FEATURE
Press the AUTO button
Horizontal position (H. POSIT), vertical position (V.
POSIT), clock phase (H. PHASE) and horizontal size (H.
SIZE) are automatically adjusted.
Make sure that the application window is set to its
maximum size prior to attempting to use this feature.
Dark pictures may still be incorrectly adjusted. Use a
bright screen when adjusting.
The signal type best suited for the respective input
signal is selected automatically.
This feature is available only if VIDEO is set to AUTO in
the INPUT menu.
Automatic Adjustment for RGB Input
Automatic Adjustment for Video Input
AUTO
VIDEO
ASPECT
MUTE
KEYSTONEFREEZE
OFF
ON
MENUPOSITION
ENTER
ESC RESET
VOLUME
MAGNIFY
AUTO BLANK
RGB SEARCH
STANDBY/ON
01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ19
http://www.pureglare.com.au
