Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode
720 x 400 37.9 85.0 VESA TEXT
640 x 480 31.5 59.9 VESA VGA (60Hz)
640 x 480 37.9 72.8 VESA VGA (72Hz)
640 x 480 37.5 75.0 VESA VGA (75Hz)
640 x 480 43.3 85.0 VESA VGA (85Hz)
800 x 600 35.2 56.3 VESA SVGA (56Hz)
800 x 600 37.9 60.3 VESA SVGA (60Hz)
800 x 600 48.1 72.2 VESA SVGA (72Hz)
800 x 600 46.9 75.0 VESA SVGA (75Hz)
800 x 600 53.7 85.1 VESA SVGA (85Hz)
832 x 624 49.7 74.5 Mac 16” mode
1024 x 768 48.4 60.0 VESA XGA (60Hz)
1024 x 768 56.5 70.1 VESA XGA (70Hz)
1024 x 768 60.0 75.0 VESA XGA (75Hz)
1024 x 768 68.7 85.0 VESA XGA (85Hz)
1152 x 864 67.5 75.0 VESA
1152 x 864 (75Hz)
1280 x 768 47.7 60.0 VESA W-XGA (60Hz)
1280 x 800 49.7 60.0 VESA
1280 x 800 (60Hz)
1280 x 960 60.0 60.0 VESA 1280 x 960 (60Hz)
1280 x 1024 64.0 60.0 VESA SXGA (60Hz)
1280 x 1024 80.0 75.0 VESA SXGA (75Hz)
1440 x 900 55.9 59.9 VESA WXGA+ (60Hz)
Example of computer signal
(continued on next page)

2
Example of computer signal
Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode
*1 1280 x 1024 91.1 85.0 VESA SXGA (85Hz)
*2 1400 x 1050 65.2 60.0 VESA SXGA+ (60Hz)
*3 1680 x 1050 65.3 60.0 VESA WSXGA+ (60Hz)
*1 1600 x 1200 75.0 60.0 VESA UXGA (60Hz)
*4 1920 x 1200 74.0 60.0 VESA W-UXGA (60Hz)
Reduced Blanking
*1) Supported except for HDMITM input.
*2) Only for CP-X8170.
*3) Only for CP-WX8265 and CP-WU8460.
*4) Only for CP-WU8460, but except for HDMITM input.
NOTE • Be sure to check jack type, signal level, timing and resolution before
connecting this projector to a computer.
• Some computers may have multiple display screen modes. Use of some of
these modes will not be possible with this projector.
• Depending on the input signal, full-size display may not be possible in some
cases. Refer to the number of display pixels above.
• Although the projector can display signals with a resolution up to UXGA
(1600x1200) or up to W-UXGA (1920x1200) for CP-WU8460, the signal will be
converted to the projector’s panel resolution before being displayed. The best
display performance will be achieved if the resolutions of the input signal and
projector panel are identical.
• Automatic adjustment may not function correctly with some input signals.
• The image may not be displayed correctly when the input sync signal is a
composite sync or a sync on G.
• The illustrations in this manual are for illustrative purposes. They may differ
slightly from your projector.

3
Initial set signals
Back porch (B) Front porch (D) Back porch (b) Front porch (d)
Active video (C)
Data Data
H. Sync. V. Sync.
Sync (A) Sync (a)
Active video (c)
Resolution
(H x V)
Horizontal signal timing (μs) Vertical signal timing (lines) Signal mode
(A) (B) (C) (D) (a) (b) (c) (d)
720 x 400 2.0 3.0 20.3 1.0 3 42 400 1 TEXT
640 x 480 3.8 1.9 25.4 0.6 2 33 480 10 VGA (60Hz)
640 x 480 1.3 4.1 20.3 0.8 3 28 480 9 VGA (72Hz)
640 x 480 2.0 3.8 20.3 0.5 3 16 480 1 VGA (75Hz)
640 x 480 1.6 2.2 17.8 1.6 3 25 480 1 VGA (85Hz)
800 x 600 2.0 3.6 22.2 0.7 2 22 600 1 SVGA (56Hz)
800 x 600 3.2 2.2 20.0 1.0 4 23 600 1 SVGA (60Hz)
800 x 600 2.4 1.3 16.0 1.1 6 23 600 37 SVGA (72Hz)
800 x 600 1.6 3.2 16.2 0.3 3 21 600 1 SVGA (75Hz)
800 x 600 1.1 2.7 14.2 0.6 3 27 600 1 SVGA (85Hz)
832 x 624 1.1 3.9 14.5 0.6 3 39 624 1 Mac 16" mode
1024 x 768 2.1 2.5 15.8 0.4 6 29 768 3 XGA (60Hz)
1024 x 768 1.8 1.9 13.7 0.3 6 29 768 3 XGA (70Hz)
1024 x 768 1.2 2.2 13.0 0.2 3 28 768 1 XGA (75Hz)
1024 x 768 1.0 2.2 10.8 0.5 3 36 768 1 XGA (85Hz)
1152 x 864 1.2 2.4 10.7 0.6 3 32 864 1 1152 x 864
(75Hz)
1280 x 768 1.7 2.5 16.0 0.8 3 23 768 1 W-XGA (60Hz)
1280 x 800 1.6 2.4 15.3 0.8 3 24 800 1 1280 x 800
(60Hz)
1280 x 960 1.0 2.9 11.9 0.9 3 36 960 1 1280 x 960
(60Hz)
1280 x 1024 1.0 2.3 11.9 0.4 3 38 1024 1 SXGA (60Hz)
1280 x 1024 1.1 1.8 9.5 0.1 3 38 1024 1 SXGA (75Hz)
1280 x 1024 1.0 1.4 8.1 0.4 3 44 1024 1 SXGA (85Hz)
1400 x 1050 1.2 2.0 11.4 0.7 3 33 1050 1 SXGA+ (60Hz)
1440 x 900 1.4 2.2 13.5 0.8 6 25 900 3 WXGA+ (60Hz)
1680 x 1050 1.2 1.9 11.5 0.7 6 30 1050 3 WSXGA+ (60Hz)
1600 x 1200 1.2 1.9 9.9 0.4 3 46 1200 1 UXGA (60Hz)
1920 x 1200 0.208 0.519 12.47 0.312 6 26 1200 3 W-UXGA (60Hz)
Reduced Blanking
The following signals are used for the initial settings. The signal timing of some
computer models may be different. In such case, adjust the items V POSITION
and H POSITION in the IMAGE menu.
Initial set signals

4
ACOMPUTER IN1, BMONITOR OUT
D-sub 15pin mini shrink jack
<Computer signal>
• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. signal: TTL level (positive/negative)
• Composite sync. signal: TTL level
<Component video signal>
• Video signal: Y with composite sync, Analog, 1.0±0.1Vp-p, 75Ω terminated
Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated
Cr/Pr, Analog, 0.7±0.1Vp-p 75Ω terminated
• System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60, 1080p@50/60
Pin Signal Pin Signal
1Video Red, Cr/Pr 9(No connection)
2Video Green, Y 10 Ground
3Video Blue, Cb/Pb 11 (No connection)
4(No connection) 12 A: SDA (DDC data) B: (No connection)
5 Ground 13 H. sync / Composite sync.
6Ground Red, Ground Cr/Pr 14 V. sync.
7Ground Green, Ground Y 15 A: SCL (DDC clock) B: (No connection)
8Ground Blue, Ground Cb/Pb

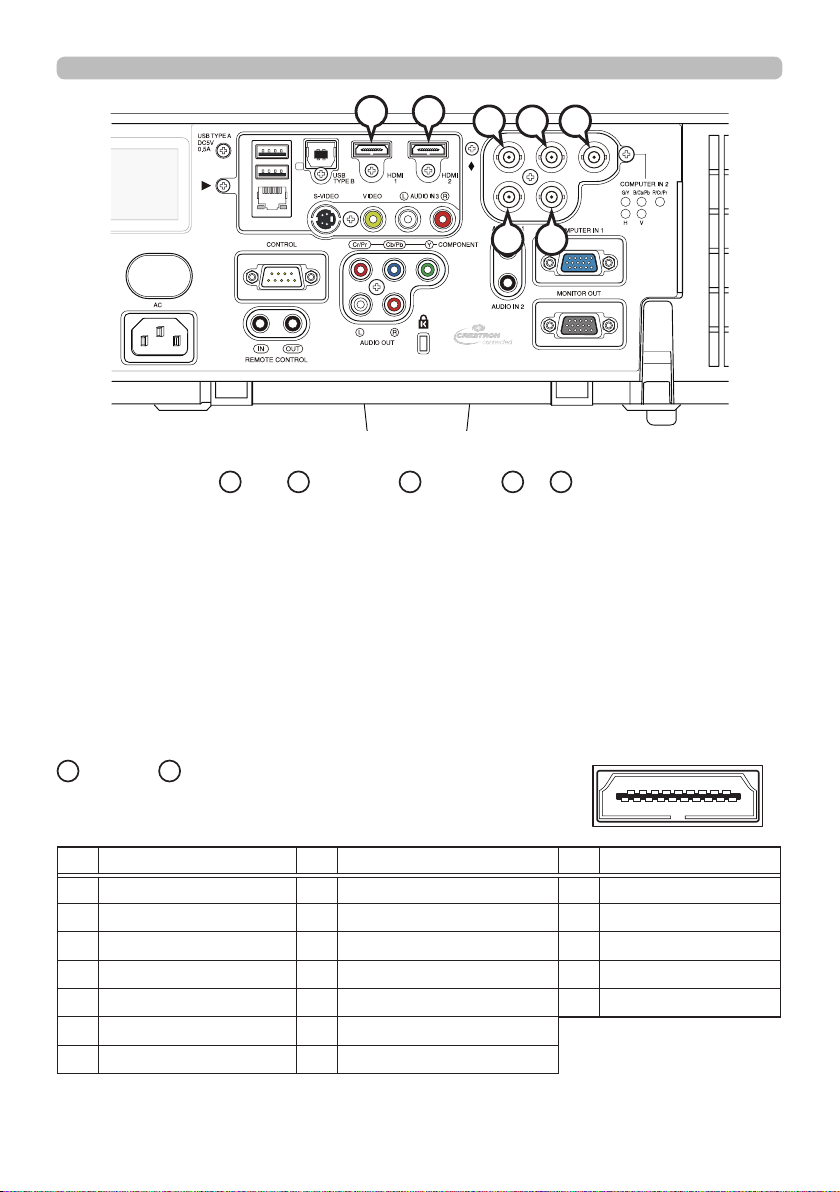

Connection to the ports
① ⑤④③②
⑥ ⑩⑨⑧⑦
⑪ ⑮⑭⑬⑫
①⑤④③②
⑥⑩ ⑨ ⑧ ⑦
⑪⑮⑭⑬⑫
Connection to the ports
B
A
NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the
input ports of the projector are recessed.
►Only the signal that is input from the COMPUTER IN1 or IN2 can be output
from the MONITOR OUT port.

5
Connection to the ports (continued)
COMPUTER IN2 CG/Y, DB/Cb/Pb, ER/Cr/Pr, FH, GV
BNC jack x5
<Computer signal>
• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. signal: TTL level (positive/negative)
• Composite sync. signal: TTL level
<Component video signal>
• Video signal: Y with composite sync, Analog, 1.0±0.1Vp-p, 75Ω terminated
Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated
Cr/Pr, Analog, 0.7±0.1Vp-p 75Ω terminated
• System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60, 1080p@50/60
HHDMI 1, IHDMI 2
HDMITM connector
• Audio signal: Linear PCM (Sampling rate; 32/44.1/48 kHz)
Pin Signal Pin Signal Pin Signal
1 T.M.D.S. Data2 + 8 T.M.D.S. Data0 Shield 15 SCL
2T.M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA
3 T.M.D.S. Data2 - 10 T.M.D.S. Clock + 17 DDC/CEC Ground
4 T.M.D.S. Data1 + 11 T.M.D.S. Clock Shield
18 +5V Power
5T.M.D.S. Data1 Shield 12 T.M.D.S. Clock - 19 Hot Plug Detect
6 T.M.D.S. Data1 - 13 CEC
7 T.M.D.S. Data0 + 14 Reserved (N.C. on device)
① ⑤
④
③
②⑥⑩
⑨
⑧
⑦⑪⑮
⑭
⑬
⑫
⑲
⑱
⑰
⑯
①⑤
④
③
②⑥⑩
⑨
⑧
⑦⑪⑮
⑭
⑬
⑫
⑲
⑱
⑰
⑯
C ED
F
F G
H I

6
MS-VIDEO
Mini DIN 4pin jack
• S-video signal, Analog:
-Brightness signal with composite sync, 1.0±0.1Vp-p, 75Ω terminated
-Color signal, 0.286Vp-p (NTSC, burst), 75Ω terminated
0.300Vp-p (PAL/SECAM, burst) 75Ω terminated
• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)
Pin Signal
1 C (color signal)
2Y (brightness signal)
3 Ground
4 Ground
Connection to the ports (continued)
NVIDEO
RCA jack
• Composite video signal, Analog, 1.0±0.1Vp-p, 75Ω terminator
• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)
COMPONENT JY, KCb/Pb, LCr/Pr
RCA jack x3
• Component video signal, Analog:
-Y with composite sync, 1.0±0.1Vp-p, 75Ω terminated
-Cb/Pb, 0.7±0.1Vp-p, 75Ω terminated
-Cr/Pr, 0.7±0.1Vp-p 75Ω terminated
• System: 480i@60, 480p@60, 576i@50, 720p@50/60, 1080i@50/60, 1080p@50/60
L JK
MN
①
④ ③
②
①
④③
②
1
2
3
4

7
Connection to the ports (continued)
OAUDIO IN1, PAUDIO IN2
Ø3.5 stereo mini jack
•
Analog, 47kΩ input impedance
AUDIO IN3 QL, RR AUDIO OUT SL, TR
RCA jack x2 RCA jack x2
•
Analog, 47kΩ input impedance • Analog, 1kΩ output impedance
U
CONTROL
D-sub 9pin plug
* About the details of RS-232C communication,
please refer to the next section.
Pin Signal Pin Signal Pin Signal
1(No connection) 4(No connection) 7RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9(No connection)
① ②
⑥⑦⑧⑨
⑤④③
①②
⑥⑦⑧⑨
⑤④③
O
P
S T
RQ
U

8
REMOTE CONTROL YIN, ZOUT
Ø3.5 stereo mini jack
Connection to the ports (continued)
X
USB TYPE B
USB B type jack
Pin Signal
1 +5V
2 - Data
3+ Data
4Ground
V
LAN
RJ-45 jack
* About the details of network communication,
please refer to the Network Guide.
Pin Signal Pin Signal Pin Signal
1 TX+ 4 - 7 -
2 TX- 5 - 8 -
3RX+ 6 RX-
WUSB TYPE A
USB A type jack x2
Pin Signal
1 +5V
2 - Data
3+ Data
4Ground
①
④③
②
①
④③
②
① ⑤
④
③
② ⑥ ⑧
⑦
①⑤
④
③
②⑥⑧
⑦
① ④③②
①④ ③ ②
① ④③②
①④ ③ ②
WX
YZ
V

9

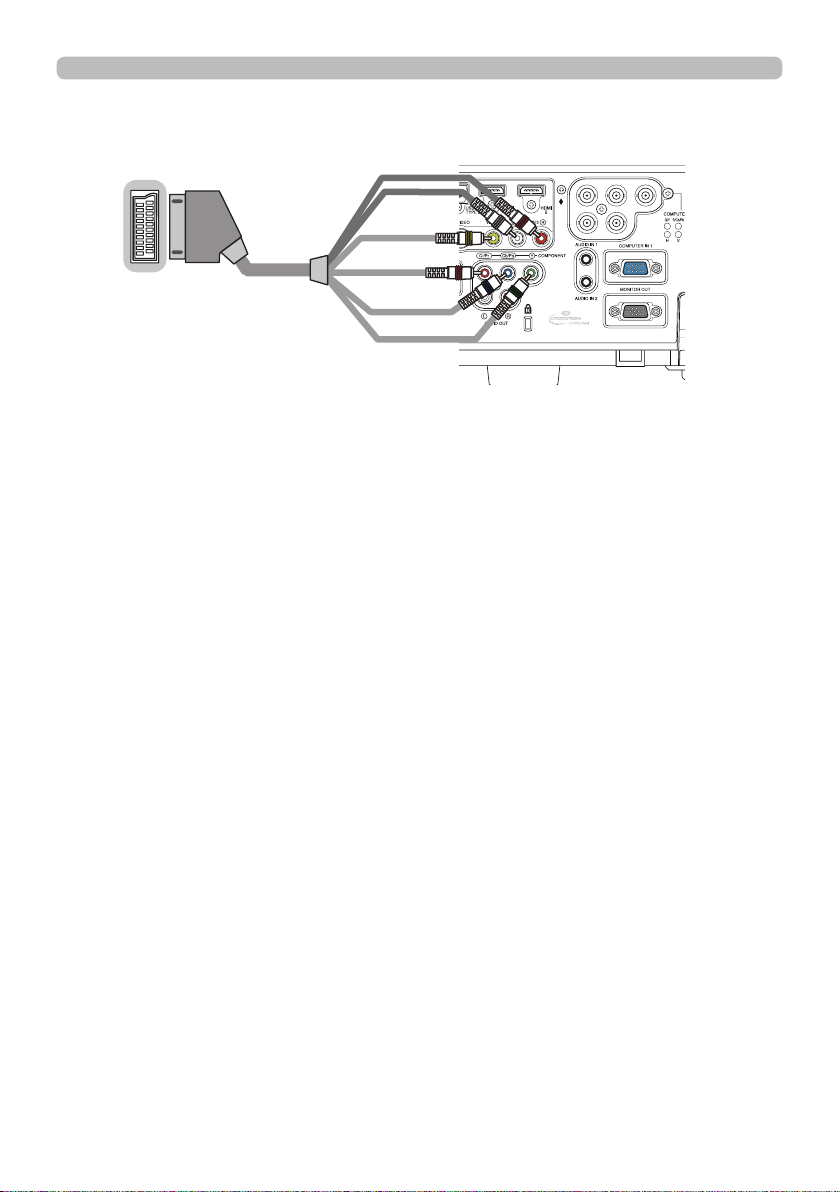

To input SCART RGB signal;
ex.
Video
G
B
R
Audio R
Audio L
Connection to the ports (continued)
To input SCART RGB signal to the projector, use a SCART to RCA cable.
Connect the plugs refer to above ex. For more reference, please consult your
dealer.
SCART
connector
(jack)
SCART cable
(plug)
RCA plugs

10
① ②
⑥⑦⑧⑨
⑤④③
①②
⑥⑦⑧⑨
⑤④③
CD (1) (1) －
RD(2) (2) RD
TD (3) (3) TD
DTR (4) (4) －
GND (5) (5) GND
DSR (6) (6) －
RTS (7) (7) RTS
DTS (8) (8) CTS
RI (9) (9) －
RS-232C Communication
RS-232C Communication
When the projector connects to the computer by RS-232C communication, the
projector can be controlled with RS-232C commands from the computer.
For details of RS-232C commands, refer to RS-232C Communication / Network
command table (&19).

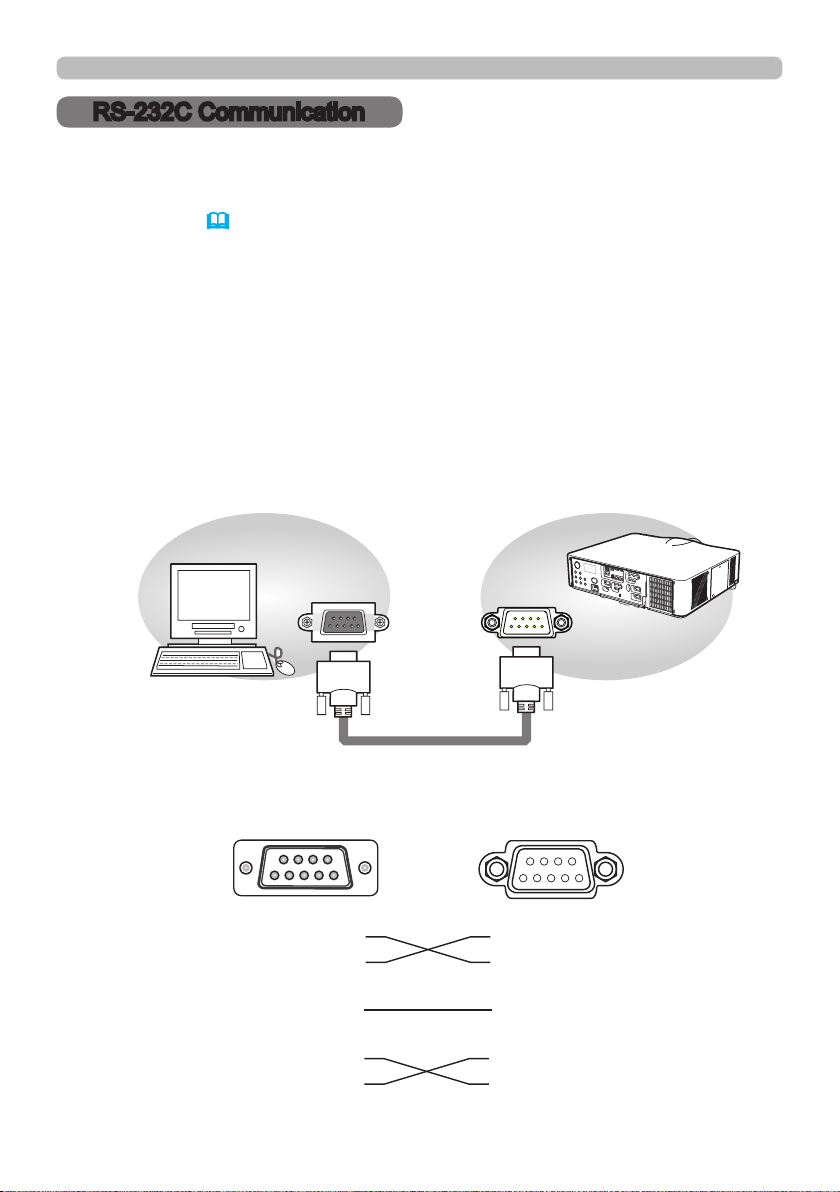

Connection
1. Turn off the projector and the computer.
2. Connect the projector's CONTROL port and the computer's RS-232C port
with a RS-232C cable (cross). Use the cable that ful lls the speci cation
shown in  gure
3. Turn the computer on, and after the computer has started up turn the projector
on.
4. Set the COMMUNICATION TYPE to OFF in the COMMUNICATION menu of the
OPTION - SERVICE menu.
1
9876
5432
1
9876
5432
CONTROL port
of the projector
RS-232C port
of the computer
RS-232C cable
(cross)
RS-232C CONTROL

11
RS-232C Communication (continued)
Communicaion settings
1. Protocol
19200bps, 8N1
2. Command format ("h" shows hexadecimal)
Byte Number 0 1 2 3 4 5 6 7 8 9 10 11 12
Command
Action
Header Data
Header
code
Packet
Data
size
CRC
ag Action Type Setting code
LHLHLHLHLHLH
<SET> Change setting to
desired value [(cL)(cH)]
by [(bL)(bH)].
BEh EFh 03h 06h 00h
(aL) (aH) 01h 00h (bL) (bH) (cL) (cH)
<GET> Read projector
internal setup value [(bL)
(bH)] .
(aL) (aH) 02h 00h (bL) (bH) 00h 00h
<INCREMENT>
Increment setup value
[(bL)(bH)] by 1.
(aL) (aH) 04h 00h (bL) (bH) 00h 00h
<DECREMENT>
Decrement setup value
[(bL)(bH)] by 1.
(aL) (aH) 05h 00h (bL) (bH) 00h 00h
<EXECUTE> Run a
command [(bL)(bH)].
(aL) (aH) 06h 00h (bL) (bH) 00h 00h
[Header code] [Packet] [Data size]
Set [BEh, EFh, 03h, 06h, 00h] to byte number 0 to 4.
[CRC ag]
For byte number 5, 6, refer to RS-232C Communication / Network command
table (&19).
[Action]
Set functional code to byte number 7, 8.
<SET> = [01h, 00h], <GET> = [02h, 00h], <INCREMENT> = [04h, 00h]
<DECREMENT> = [05h, 00h], <EXECUTE> = [06h, 00h]
Refer to the Communication command table (&above).
[Type] [Setting code]
For byte number 9 to 12, refer to RS-232C Communication / Network
command table (&19).

12
RS-232C Communication (continued)
3. Response code / Error code ("h" shows hexadecimal)
(1) ACK reply: 06h
When the projector receives the Set, Increment, Decrement or Execute
command correctly, the projector changes the setting data for the specied
item by [Type], and it returns the code.
(2) NAK reply: 15h
When the projector cannot understand the received command, the projector
returns the error code.
In such a case, check the sending code and send the same command again.
(3) Error reply: 1Ch + 0000h
When the projector cannot execute the received command for any reasons,
the projector returns the error code.
In such a case, check the sending code and the setting status of the projector.
(4) Data reply: 1Dh + xxxxh
When the projector receives the GET command correctly, the projector returns
the responce code and 2 bytes of data.
NOTE • For connecting the projector to your devices, please read the
manual for each devices, and connect them correctly with suitable cables.
• Operation cannot be guaranteed when the projector receives an undened
command or data.
• Provide an interval of at least 40ms between the response code and any
other code.
• The projector outputs test data when the power supply is switched ON, and
when the lamp is lit. Ignore this data.
• Commands are not accepted during warm-up.
• When the data length is greater than indicated by the data length code, the
projector ignore the excess data code. Conversely when the data length is
shorter than indicated by the data length code, the projector returns the error
code to the computer.

13
When the projector connects network, the projector can be controlled with RS-
232C commands from the computer with web browser.
For details of RS-232C commands, refer to RS-232C Communication / Network
command table (&19).

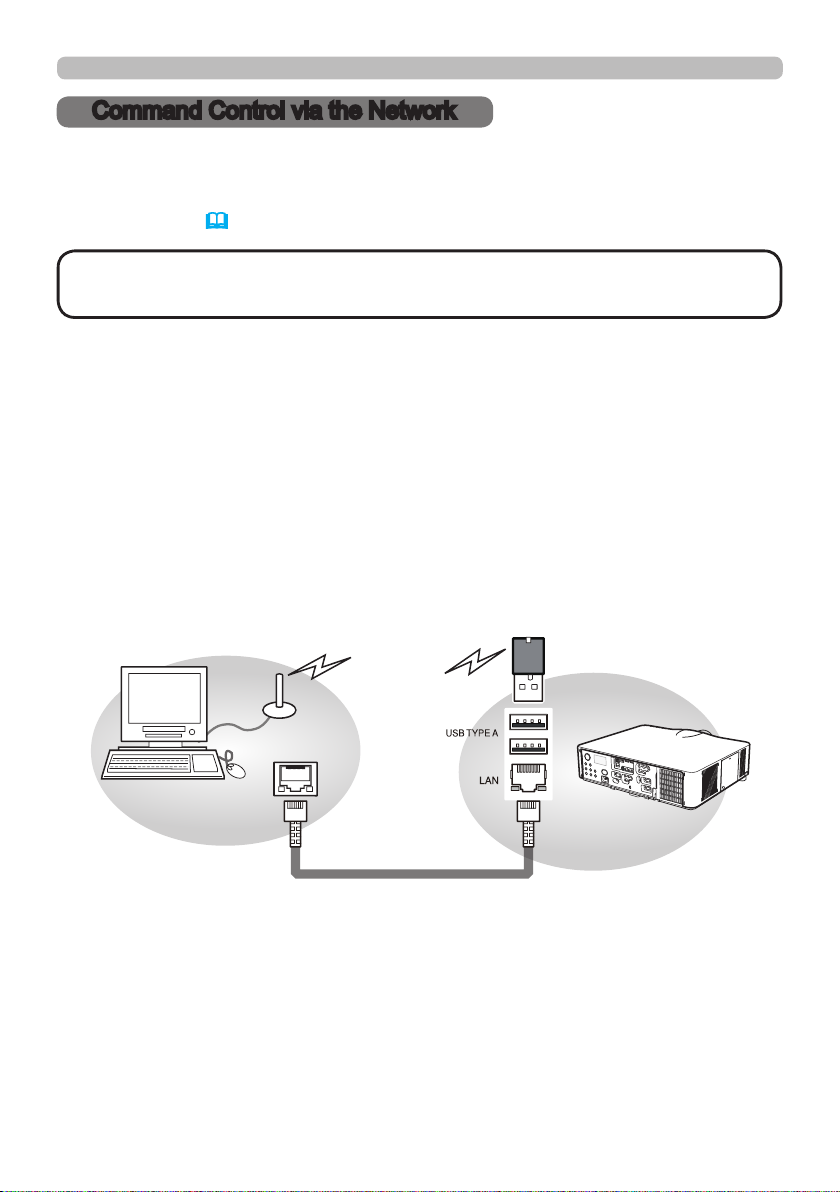

Command Control via the Network
LAN
USB wireless adapter
LAN cable (CAT-5 or greater)
Connection
1. Turn off the projector and the computer.
2. If you use wired LAN, connect the projector's LAN port to the computer's
LAN port with a LAN cable. Use the cable that fullls the specication shown
in gure. If you use wireless LAN, insert the USB wireless adapter into one of the
USB TYPE A ports of the projector.
3. Turn the computer on, and after the computer has started up turn the
projector on.
NOTE • If data is transferred via wireless and wired LAN at the same
time, the projector may not be able to process the data correctly.
Command Control via the Network

14
Communicaion Port
The following two ports are assigned for the command control.
TCP #23
TCP #9715
Congure the following items form a web browser when command control is used.
Port Settings
Network Control
Port1 (Port: 23)
Port open
Click the [Enable] check box to open [Network
Control Port1 (Port: 23)] to use TCP #23.
Default setting is “Enable”.
Authentication
Click the [Enable] check box for the
[Authentication] setting when authentication
is required.
Default setting is “Disable”.
Network Control
Port2 (Port: 9715)
Port open
Click the [Enable] check box to open [Network
Control Port2 (Port: 9715)] to use TCP
#9715.
Default setting is “Enable”.
Authentication
Click the [Enable] check box for the
[Authentication] setting when authentication
is required.
Default setting is “Enable”.
Command Control via the Network
When the authentication setting is enabled, the following settings are required.
Security Settings
Network Control
Authentication
Password Enter the desired authentication password.
ConrmThis setting will be the same for
[Network Control Port1 (Port: 23)] and
[Network Control Port2 (Port: 9715)].
Default setting is blank.
Re-enter
Authentication
Password

15
Command Control via the Network (continued)
Command control settings
[TCP #23]
1. Command format
Same as RS-232C communication, refer to RS-232C Communicaton command format.
2. Response code / Error code ("h" shows hexadecimal)
Four of the response / error code used for TCP#23 are the same as RS-232C
Communication (1)~(4). One authentication error reply (5) is added.
(1) ACK reply : 06h
Refer to RS-232C communication (&12).
(2) NAK reply : 15h
Refer to RS-232C communication (&12).
(3) Error reply : 1Ch + 0000h
Refer to RS-232C communication (&12).
(4) Data reply : 1Dh + xxxxh
Refer to RS-232C communication (&12).
(5) Authentication error reply : 1Fh + 0400h
When authentication error occurred, the projector returns the error code.
[TCP #9715]
1. Command format
The commands some datum are added to the head and the end of the ones of
TCP#9715 are used.
Header Data length RS-232C command Check sum Connection ID
0×02 0×0D 13 bytes 1 byte 1 byte
[Header]
02, Fixed
[Data Length]
RS-232C commands byte length (0×0D, Fixed)
[RS-232C commands]
Refer to RS-232C Communication command format (&11).
[Check Sum]
This is the value to make zero on the addition of the lower 8 bits from the header
to the checksum.
[Connection ID]
Random value from 0 to 255 (This value is attached to the reply data).
NOTE • Operation cannot be guaranteed when the projector receives an
undened command or data.
• Provide an interval of at least 40ms between the response code and any other
code.
• Commands are not accepted during warm-up.

16
NOTE • As for the transmission of the second or subsequent commands, the
authentication data can be omitted when the same connection.
Command Control via the Network (continued)
2. Response code / Error code ("h" shows hexadecimal)
The connection ID is attached for the TCP#23's response / error codes are
used. The connection ID is same as the sending command format.
(1) ACK reply: 06h + ××h (××h : connection ID)
(2) NAK reply: 15h + ××h
(3) Error reply: 1Ch + 0000h + ××h
(4) Data reply: 1Dh + xxxxh + ××h
(5) Authentication error reply: 1Fh + 0400h + ××h
(6) Projector busy reply: 1Fh + ××××h + ××h
When the projector is too busy to receives the command ,the projector
returens the error code.
In such a case, check the sending code and send the same command again.
Automatic Connection Break
The TCP connection will be automatically disconnected after there is no
communication for 30 seconds after being established.
Authentication
The projector does not accept commands without authentication success
when authentication is enabled. The projector uses a challenge response type
authentication with an MD5 (Message Digest 5) algorithm.
When the projector is connected to a LAN, a random 8 bytes will be returned
if authentication is enabled. Bind this received 8 bytes and the authentication
password, and digest the data with the MD5 algorithm, and add it in front of the
commands to send.
Following is a sample of authentication process.
Authentication password: password (example)
Random 8 bytes: a572f60c (example)
1) Select a projector and receive the random 8 bytes from the projector.
“a572f60c”
2) Bind the random 8 bytes and the authentication password.
“a572f60cpassword”
3) Digest this bound with MD5 algorithm.
“e3d97429adffa11bce1f7275813d4bde”
4) Add this code in front of the commands and send the data.
“e3d97429adffa11bce1f7275813d4bde” + [command].
5) When the sent data is correct, the command will be performed and the reply
data will be returned. Otherwise, an authentication error will be returned.

17
This projector is equipped with NETWORK BRIDGE function.
When the projector connects to the computer by wired or wireles LAN
communicaton, an external device that is connected with this projector by RS-
232C communication can be controlled from the computer as a network terminal.
For details, see the 6. Network Bridge function in the Network Guide.
Network Bridge Communication
LAN
LAN cable
(CAT-5 or greater)
RS-232C
RS-232C cable
(cross)
USB wireless adapter
NOTE • If data is transferred via wireless and wired LAN at the same time,
the projector may not be able to process the data correctly.
Connection
1. If you use wired LAN, connect the computer's LAN port and the projector's
LAN port with a LAN cable. Use the cable that fullls the specication shown
in gure. If you use wireless LAN, insert the USB wireless adapter into the
projector's LAN port.
2. Connect the projector's CONTROL port and the RS-232C port of the devices
that you want to control with a RS-232C cable.
3. Turn the computer on, and after the computer has started up turn the
projector on.
4. Set the COMMUNICATION TYPE to NETWORK BRIDGE in the
COMMUNICATION menu of the OPTION - SERVICE menu.
Network Bridge Communication

18
Communication settings
For communication setting, use the COMMUNICATION menu in the OPTION -
SERVICE menu
Item Condition
BAUD RATE 4800bps / 9600bps / 19200bps / 38400bps
Data length 8 bit (xed)
PARITY NONE/ODD/EVEN
Start bit 1 bit (xed)
Stop bit 1 bit (xed)
Transmission method HALF-DUPLEX/FULL-DUPLEX
NOTE • For connecting the projector to your devices, please read the
manual for each devices, and connect them correctly with suitable cables.
• Turn off the power and unplug both the projector and other devices before
connecting them.
• For details of Transmission method, refer to 6.4 Transmission method in the
Network Guide.
Network Bridge Communication

19
RS-232C Communication / Network command table
RS-232C Communication / Network command table
(continued on next page)
Names Operation Type Header CRC Command Data
Action Type Setting code
Power
Set Turn off BE EF 03 06 00 2A D3 01 00 00 60 00 00
Turn on BE EF 03 06 00 BA D2 01 00 00 60 01 00
Get
BE EF 03 06 00 19 D3 02 00 00 60 00 00
[Example return]
00 00 01 00 02 00
[Off] [On] [Cool down]
Input Source Set
COMPUTER IN1 BE EF 03 06 00 FE D2 01 00 00 20 00 00
COMPUTER IN2 BE EF 03 06 00 3E D0 01 00 00 20 04 00
LAN BE EF 03 06 00 CE D5 01 00 00 20 0B 00
USB TYPE A BE EF 03 06 00 5E D1 01 00 00 20 06 00
USB TYPE B BE EF 03 06 00 FE D7 01 00 00 20 0C 00
HDMI 1 BE EF 03 06 00 0E D2 01 00 00 20 03 00
HDMI 2 BE EF 03 06 00 6E D6 01 00 00 20 0D 00
COMPONENT BE EF 03 06 00 AE D1 01 00 00 20 05 00
S-VIDEO BE EF 03 06 00 9E D3 01 00 00 20 02 00
VIDEO BE EF 03 06 00 6E D3 01 00 00 20 01 00
Get BE EF 03 06 00 CD D2 02 00 00 20 00 00
Error Status Get
BE EF 03 06 00 D9 D8 02 00 20 60 00 00
[Example return]
00 00 01 00 02 00 03 00
[Normal] [Cover error] [Fan error] [Lamp error]
04 00 05 00 07 00 08 00
[Temp error] [Air ow error] [Cold error] [Filter error]
FOCUS Increment BE EF 03 06 00 6A 93 04 00 00 24 00 00
Decrement BE EF 03 06 00 BB 92 05 00 00 24 00 00
ZOOM Increment BE EF 03 06 00 96 92 04 00 01 24 00 00
Decrement BE EF 03 06 00 47 93 05 00 01 24 00 00
LENS SHIFT - V
Increment BE EF 03 06 00 D2 92 04 00 02 24 00 00
Decrement BE EF 03 06 00 03 93 05 00 02 24 00 00
LENS SHIFT - H
Increment BE EF 03 06 00 2E 93 04 00 03 24 00 00
Decrement BE EF 03 06 00 FF 92 05 00 03 24 00 00
LENS SHIFT
CENTERING
Execute BE EF 03 06 00 B8 93 06 00 04 24 00 00
LENS MEMORY
INDEX
Set
1BE EF 03 06 00 4B 92 01 00 07 24 00 00
2BE EF 03 06 00 DB 93 01 00 07 24 01 00
3BE EF 03 06 00 2B 93 01 00 07 24 02 00
Get BE EF 03 06 00 78 92 02 00 07 24 00 00
LENS MEMORY
LOAD
Execute BE EF 03 06 00 E8 90 06 00 08 24 00 00
LENS MEMORY
SAVE
Execute BE EF 03 06 00 14 91 06 00 09 24 00 00
LENS MEMORY
CLEAR
Execute BE EF 03 06 00 50 91 06 00 0A 24 00 00

RS-232C Communication / Network command table (continued)
20 (continued on next page)
Names Operation Type Header CRC Command Data
Action Type Setting code
LENS MEMORY
LENS SHIFT - V
Get BE EF 03 06 00 A0 91 02 00 0D 24 00 00
LENS MEMORY
LENS SHIFT - H
Get BE EF 03 06 00 E4 91 02 00 0E 24 00 00
LENS MEMORY
LENS TYPE
Get BE EF 03 06 00 18 90 02 00 0F 24 00 00
MAGNIFY
Get BE EF 03 06 00 7C D2 02 00 07 30 00 00
Increment BE EF 03 06 00 1A D2 04 00 07 30 00 00
Decrement BE EF 03 06 00 CB D3 05 00 07 30 00 00
MAGNIFY
Position H
Get BE EF 03 06 00 C8 D7 02 00 10 30 00 00
Increment BE EF 03 06 00 AE D7 04 00 10 30 00 00
Decrement BE EF 03 06 00 7F D6 05 00 10 30 00 00
MAGNIFY
Position V
Get BE EF 03 06 00 34 D6 02 00 11 30 00 00
Increment BE EF 03 06 00 52 D6 04 00 11 30 00 00
Decrement BE EF 03 06 00 83 D7 05 00 11 30 00 00
FREEZE Set NORMAL BE EF 03 06 00 83 D2 01 00 02 30 00 00
FREEZE BE EF 03 06 00 13 D3 01 00 02 30 01 00
Get BE EF 03 06 00 B0 D2 02 00 02 30 00 00
SHADE Set OFF BE EF 03 06 00 F3 93 01 00 05 24 00 00
ON BE EF 03 06 00 63 92 01 00 05 24 01 00
Get BE EF 03 06 00 C0 93 02 00 05 24 00 00
PbyP/PinP Set
OFF BE EF 03 06 00 3E 26 01 00 10 23 00 00
PbyP BE EF 03 06 00 AE 27 01 00 10 23 01 00
PinP BE EF 03 06 00 5E27 01 00 10 23 02 00
Get BE EF 03 06 00 0D 26 02 00 10 23 00 00
PbyP
MAIN SIZE
Set
SMALL BE EF 03 06 00 F2 07 01 00 11 23 7F 00
MIDDLE BE EF 03 06 00 02 46 01 00 11 23 80 00
LARGE BE EF 03 06 00 92 47 01 00 11 23 81 00
Get BE EF 03 06 00 F1 27 02 00 11 23 00 00
PbyP
RIGHT SOURCE
Set
COMPUTER 1 BE EF 03 06 00 86 27 01 00 12 23 00 00
COMPUTER 2 BE EF 03 06 00 46 25 01 00 12 23 04 00
HDMI 1 BE EF 03 06 00 76 27 01 00 12 23 03 00
HDMI 2 BE EF 03 06 00 16 23 01 00 12 23 0D 00
COMPONENT BE EF 03 06 00 D6 24 01 00 12 23 05 00
S-VIDEO BE EF 03 06 00 E6 26 01 00 12 23 02 00
VIDEO BE EF 03 06 00 16 26 01 00 12 23 01 00
Get BE EF 03 06 00 B5 27 02 00 12 23 00 00
PbyP
MAIN AREA
Set LEFT BE EF 03 06 00 7A 26 01 00 13 23 00 00
RIGHT BE EF 03 06 00 EA 27 01 00 13 23 01 00
Get BE EF 03 06 00 49 26 02 00 13 23 00 00
PbyP
LEFT SOURCE
Set
COMPUTER 1 BE EF 03 06 00 F2 26 01 00 15 23 00 00
COMPUTER 2 BE EF 03 06 00 32 24 01 00 15 23 04 00
HDMI 1 BE EF 03 06 00 02 26 01 00 15 23 03 00
HDMI 2 BE EF 03 06 00 62 22 01 00 15 23 0D 00
COMPONENT BE EF 03 06 00 A2 25 01 00 15 23 05 00
S-VIDEO BE EF 03 06 00 92 27 01 00 15 23 02 00
VIDEO BE EF 03 06 00 62 27 01 00 15 23 01 00
Get BE EF 03 06 00 C1 26 02 00 15 23 00 00
