Advantage Highlights
2 HDMI Digital Inputs: Dual digital
inputs reduce the need for additional
switcher hardware.
White Light Output: 4,000 ANSI Lumens
Color Light Output: 4,000 ANSI Lumens
15,000 Hour Hybrid Filter
4,000 Hour Lamp Life (Eco Mode)*
3000:1 Contrast Ratio
Wireless Presentation Ready
(Via Optional Wireless Adapter USBWL11N)
Center Lens Design
16 Watt Stereo Audio Output
Less Than 1W in Power Saving Standby Mode
Input Source Naming
PIN Lock / MyScreen / MyText
Closed Captioning
One Standard Lens and Four Optional Lenses
Advanced technology
results in superior
reliability and quality
with a low profile design.
Motorized Zoom, Focus and Lens Shift Control:
Allows for greater range of installation possibilities. With
the motorized function you can make ne adjustments
through the remote control
or RS232/IP device.
Perfect Fit 2: Enables quick adjustment of the
projected image by moving its four corners one at a
time. In addition, barrel or pincushion distortion, which
occur on rounded surfaces, can easily be corrected.
DICOM®Simulation Mode: These projectors have
a DICOM (Digital Imaging and Communications in
Medicine) Mode, which reproduces images with an
advanced grayscale level. This mode is ideal for
viewing grayscale medical images such as X-rays, and
for training and educational purposes.
 • These projectors are not
approved medical devices.
They should not be
used for actual medical
diagnosis.
 • Comparison photos are
simulations.
Standard Mode DICOM Mode
LAN
Administration
Room
360˚ Advantages: CP-X2514WN
360 Advantages: CP-WX8240
Installation
Series
Convenient Networking: Embedded networking
gives you the ability to manage and control multiple
projectors over your LAN. Features include centralized
reporting, scheduling, e-mail alerts, and My Image
(Image Transfer).

360˚ Advantages: CP-X2514WN
Installation
Series
360 Advantages: CP-WX8240
1.800.HITACHI
900 Hitachi Way, Chula Vista, CA 91914
hitachi-america.us/projectors
* Actual lamp life will vary by individual lamp and based on environmental conditions, selected operating
mode, user settings and usage. Hours of average lamp life specified are not guaranteed and do not
constitute part of the product or lamp warranty. Lamp brightness decreases over time.
** Actual filter life will vary by individual filter and based on environmental conditions, selected operating
mode, user settings and usage. Hours of average filter life specified are not guaranteed and do not
constitute part of the product warranty.
HI0020-10/22-WEB
All specifications subject to change without notice.
3LCD and the 3LCD logo are registered trademarks of the Seiko Epson Corporation.
©2012 Hitachi America, Ltd. All Rights Reserved.
Closed Captioning
Closed captioning lets viewers see captions that tell
them what is being said or heard on the projector.
Support modes CC1, CC2, CC3, CC4, T1, T2, T3, T4.
PIN Lock / MyScreen / MyText
PIN lock protection can limit projector users.
MyScreen PIN lock keeps captured images on the
startup screen. Users can set a school's name or
company’s logo to MyScreen, clearly identifying
ownership. MyText provides the ability to write text
on the startup screen such as model name, serial
number or location.
Wireless Presentation Ready
You can use a wireless network by connecting the
projector to a computer using the optional USB
wireless adapter part number USBWL11N. The
adapter supports IEEE802.11b/g and the latest 11n.
Power Saving Standby Mode
Power saving mode reduces the standby power
consumption to less than 1W.
Hybrid Filter (15,000 hours between maintenance)**
Hitachi’s hybrid filter consists of a two-stage,
layered design and an electrostatic filter,
providing dust protection for up to 15,000 hours.
16 Watt Stereo Audio Output
16W (8W+8W) stereo output eliminates the need
to connect external speakers.
Center Lens Design
This feature makes it easy to align the projector
with the center of the screen for faster and
trouble-free setup.
Input Source Naming
Users can name input sources in
simple language instead of factory
default name.
Exclusive to Hitachi.
Find Hitachi Projectors
on Facebook
Follow us on Twitter
@HALprojectors
Hitachi Projectors
are on YouTube
4,000 ANSI Lumens White/Color Output
4,000 lumens of white light output in conjunction
with equal color light output project bright, clear,
true to life images in any large venue application.
LIGHT OUTPUT
LIGHT OUTPUT
4000
4,000 Hour Lamp Life (Eco Mode)*
Another key to low total cost of ownership is a
long life lamp. The lamp is rated at 2,500 hours in
standard mode and 4,000 hours in Eco mode.
3000:1 Contrast Ratio
Contrast can be automatically controlled through
an active iris to add depth perspective during both
bright and dark scenes.
Multiple Lens Options
In addition to the one SL702 short throw standard
lens, four optional lenses are available: FL701
fixed; ML703 middle throw; LL704 long throw; and
UL705 ultra-long throw.
4
Network Control, Maintenance and Security
Projector management application (PJMan) allows
users to monitor and control multiple projectors
over LAN. Features include scheduling of events,
e-mail alerts for reactive and routine maintenance.
Crestron RoomView Express and AMX Device
Discovery is embedded into the projector which
provides out of the box compatibility with Crestron
and AMX Systems.
PJMessenger
PJMessenger function allows you to send and
display text messages and audio alerts on your
networked projectors. It is an easy and efficient way
to send campus wide announcements.

1.800.HITACHI
900 Hitachi Way, Chula Vista, CA 91914
hitachi-america.us/projectors
*** Actual lamp life will vary by individual lamp and based on environmental conditions, selected
operating mode, user settings and usage. Hours of average lamp life specified are not guaranteed and
do not constitute part of the product or lamp warranty. Lamp brightness decreases over time.
HI0020-10/22-WEB
All specifications subject to change without notice.
3LCD and the 3LCD logo are registered trademarks of the Seiko Epson Corporation.
©2012 Hitachi America, Ltd. All Rights Reserved.

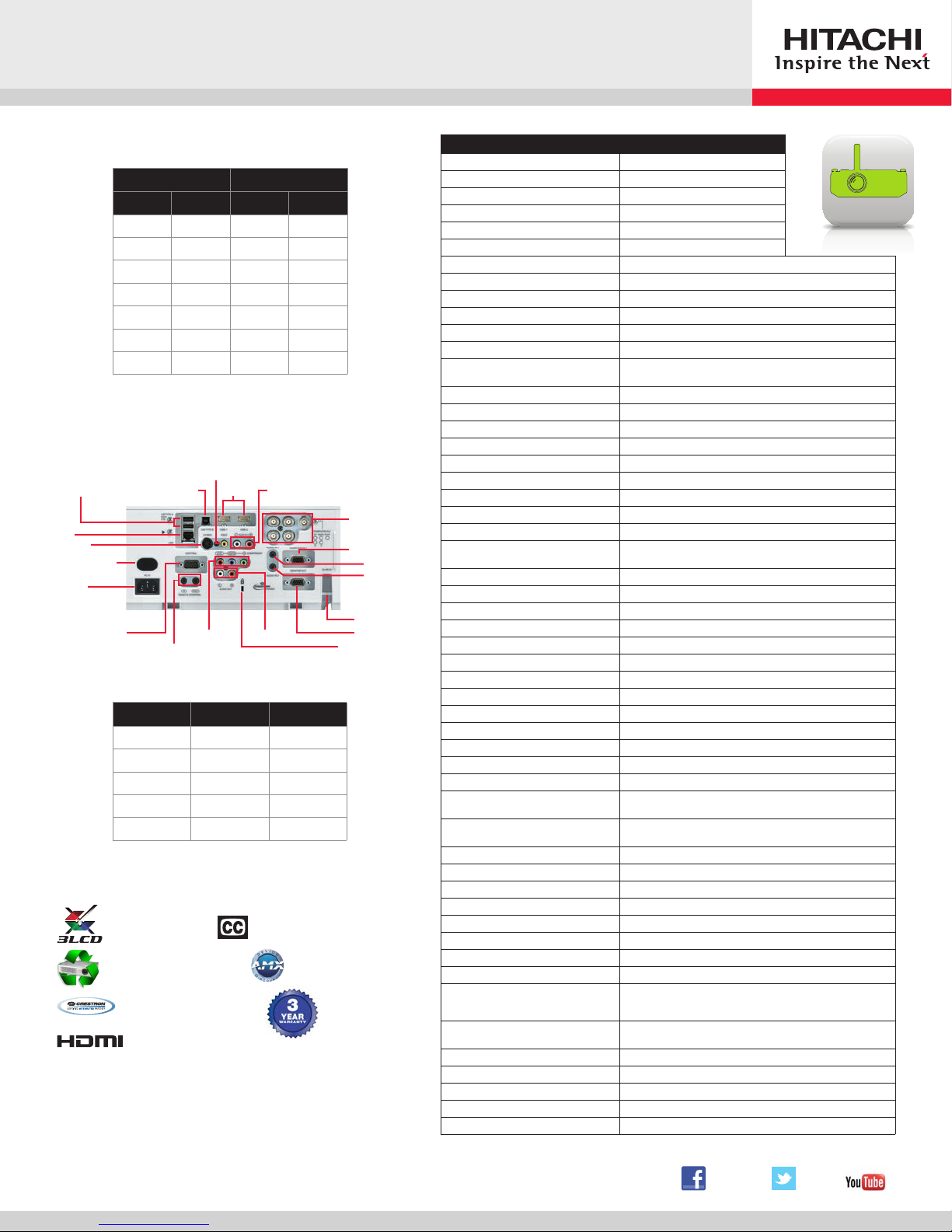

Complete Specifications: CP-WX8240
Find Hitachi Projectors
on Facebook
Follow us on Twitter
@HALprojectors
Hitachi Projectors
are on YouTube
Specifications
Projection Technology 3LCD, 3 chip technology
Number of Pixels 1,024,000 pixels
Resolution
Video 540 TV lines
Computer 1280 dots x 800 lines
Colors 16.7 million colors
Aspect Ratio Native 16:10/4:3 and 16:9 compatible
Lens F - 1.5 mm / motorized zoom, focus and lens shift
Throw Ratio (distance : width) 1.5 - 2.2:1
Lamp 245W
White Light Output 4,000 ANSI lumens
Color Light Output 4,000 ANSI lumens
Expected Lamp Life Approximately 2,500 hours (standard mode),
4,000 hours (Eco mode)***
Contrast Ratio 3000 : 1 (using active IRIS)
Speaker Output 16W (8W+8W) stereo
Power Supply AC90 - 132V / AC198 - 264V (50/60 Hz)
Power Consumption AC100 - 120V, 50/60 Hz, 375W; AC220 - 240V, 50/60 HZ, 355W
Operating Temperature 32˚F - 104˚F (0˚C - 40˚C)
Input Signals
Computer
VGA, SVGA, XGA, WXGA, WXGA+, SXGA, WSXGA+, UXGA, MAC16"
Composite Video NTSC, PAL, SECAM, PAL-M, N/ NTSC4.43
Component Video 480i, 576i, 480p, 720p, 1080i, 1080p
HDMI 480i, 576i, 480p, 720p,1080i, 1080p,
computer signal — TMDS clock 27 MHz to 150 MHz
Acoustic Noise Level 35 dB (29 dB in Eco mode)
H-Sync 15 kHz - 106 kHz
V-Sync 50 Hz - 120 Hz
Horizontal and Vertical Keystone +/- 35º with standard lens
Approvals UL60950-1, C-UL, FCC part 15 subpart B Class A
Computer Input
Analog Computer 1 15 pin D-sub shrink x1
Analog Computer 2 BNC x 5
Computer Monitor Output 15 pin D-sub shrink x1
Digital Input HDMI x 2
Video Input
S-Video Mini DIN 4-pin connector x 1
Composite Video RCA jack x 1, RCA jack x 3
Component Video 15 pin D-sub shrink x1 (shared with computer In 1)
BNC x 3 (shared with computer In 2)
USB Input USB Type A x 2 (for PC-Less presentation and wireless adapter)
USB Type B x 1 (for USB display or mouse control)
Audio
Input 3.5 mm stereo mini jack x 2, RCA jack (L,R) x 1
Output RCA (L/R) x 1
Network (LAN) RJ-45 x1 (wired LAN)
Control Terminals 9 pin D-sub x1 for RS-232C (serial)
Dimensions (W x D x H) 19.6" x 15.6" x 5.3"
Weight 18.74 lbs.
Closed Captioning CC1, CC2, CC3, CC4, T1, T2, T3, T4
Supplied Accessories Remote control with two AA batteries, power cord, computer
cable, one standard SL702 lens, lens cap, user’s manuals, security
label, application software (CD x 1), wireless USB cover
Optional Accessories TB-1 wireless USB tablet, H02851 laser remote, USBWL11N
USB wireless adapter
Optional Lenses 4 optional lenses are available: ML703, FL701, LL704, UL705
Replacement Parts
Lamp CPWX8240LAMP (DT01281)
Remote Control HL02801
Filter MU06642
Installation
Series
Projection Throw Chart
Screen Size* Throw Distance*
Diagonal* Width* Min* Max*
30 25 39 58
60 51 77 115
80 68 102 154
100 85 127 192
150 127 191 287
200 170 254 383
300 254 380 573
Screen Size 16:10 Throw Distance
Throw Ratio: 1.5 - 2.2:1 (distance : width)
*Measured in inches with standard lens SL702
Projector Lens Chart
Lens Inches** Meters**
SL702 127 - 192 3.2 - 4.9
FL701 88 2.2
ML703 162 - 321 4.1 - 8.1
LL704 305 - 520 7.8 - 13.2
UL705 516 - 879 13.1 - 22.3
** Projection distances for standard lens and optional
lenses when projecting onto a 100" diagonal screen.
HDMI
AMX Device Discovery
Hitachi Trade-Up Program
Crestron Integrated Partner 3 Year Warranty
Closed Captioning
3LCD Technology
Input/Output Terminals
HDMI
Component
Remote Control
Remote Sensor
LAN
USB Type A
S-Video
USB Type B
Control (RS-232C)
AC Inlet
Audio In 1
Audio In 3
Audio In 2
Security Bar
Monitor Out
Kensington Lock
Composite Video
Computer In 1
Computer In 2
Audio Out
