Hitecsa CCHA Manual

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
1
Installation, operation and maintenance instructions
CCHA / ECHA – Cooling Only
CCHBA / ECHBA – Heat Pump
SPLIT HO IZONTAL UNITS
AI -AI

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
2
CONTENTS
INTROD CTION
................................................................................
3
SAFETY PRECA TIONS
................................................................................
4
RECEPTION
................................................................................
5
LOCATION INSTALLATION
................................................................................
8
START P
................................................................................
10
TECHNICAL DATA
................................................................................
14
DIMENSIONS
................................................................................
16
REFRIGERANT CHARGE
................................................................................
22
REG LATION
................................................................................
27
MAINTENANCE
................................................................................
23

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
3
INT ODUCTION
The contents of this manual are designed to assure the correct installation, adjustment and
maintenance of the unit, therefore:
•Read the instructions with due care and attention.
•The appliance must be installed, tested and serviced by properly qualified staff licensed in
accordance with the established legislation.
•The manufacturer declines all liability and warranty coverage is automatically waived, if
electrical and/or mechanical modifications to the unit. Tampering and unauthorized repairs
or modifications to the unit will automatically void the warranty.
•Observe the safety regulations in force at the time of installation.
•Make sure that the characteristics of the mains network conform to the data on the serial
number plate placed on the unit.
•Keep this manual and the wiring diagram with care and make sure that they are available
for consultation by the operator whenever necessary.
•Packing materials (plastic wrappings, expanded polystyrene, etc) are potentially hazardous
and must be kept out of reach of children. Recycle packing materials in accordance with
local legislation.
•The units must be used only for the purpose for which they are designed. The
manufacturer bears no responsibility in the case of applications other than the specified
use.
•Disconnect the unit in the event of breakdowns or malfunctions.
•If repairs are necessary, use only HITECSA approved service centres and always insist on
original spare parts. The use of non-original parts and/or unauthorized service centres may
result in unsafe operation of the unit.
EGULATIONS AND CE TIFICATIONS
ISO 9001:2008 certification: HITECSA AIRE ACONDICIONADO S.L. ., trying always to find the
customer satisfaction, has obtained the ISO 9001:2008 Quality System referred to its production
activity. This will result in a continuous determination to improve quality and reliability of all our
products. Commercial activities, design, raw materials, production and after-sales service, are the
means to reach our goal.
CE marking: our machines have got the CE mark, in conformity with the essential requirements of
the applicable EC directives and their last modifications as well as with the national legislation of
each country.

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
4
SAFETY P ECAUTIONS
•Installation and maintenance of air conditioning equipment can be dangerous because the
system is under pressure, because some of its elements have high temperatures and include
electrical components.
•Only qualified and trained service staff should install, commission and carry out maintenance
works. nqualified staff should only carry out basic tasks such as cleaning and replacement of
filters, etc.
•In every visit, all precautions should be taken into account: those recommended in the
Installation, operation and maintenance instructions, as well as the ones indicated in labels of
the unit. Do not forget to strictly follow any other safety codes.
•se safety glasses, work gloves and any other safety accessory necessary.
•For brazing operations use a quenching cloth and have at close distance a fire extinguisher.
WA NING!
Before starting installation, service or maintenance, turn off the main power switch in order to
avoid electrical shock that may cause personal damages.
•When repairing the unit, use only original spare parts and install them properly in the same
position where old parts were placed.
•These units are designed to work with 100% recirculated air. The installation with 100%
outdoor air is prohibited. See application limits.
•Do not install the unit in explosive atmosphere.

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
5
ECEPTION
INSPECTION UPON ECEIPT
•nits are delivered with special protective packing; therefore when it arrives, please inspect it
carefully to check that no damage has occurred during transport and that the unit has been
supplied complete with all parts specified in the order. If any damage is found, immediately file
a claim with the transport company.
•Verify the correct voltage of the nameplate and make sure it’s in accordance with local power
supply.
•In case of any flaw or anomaly detected, please contact HITECSA

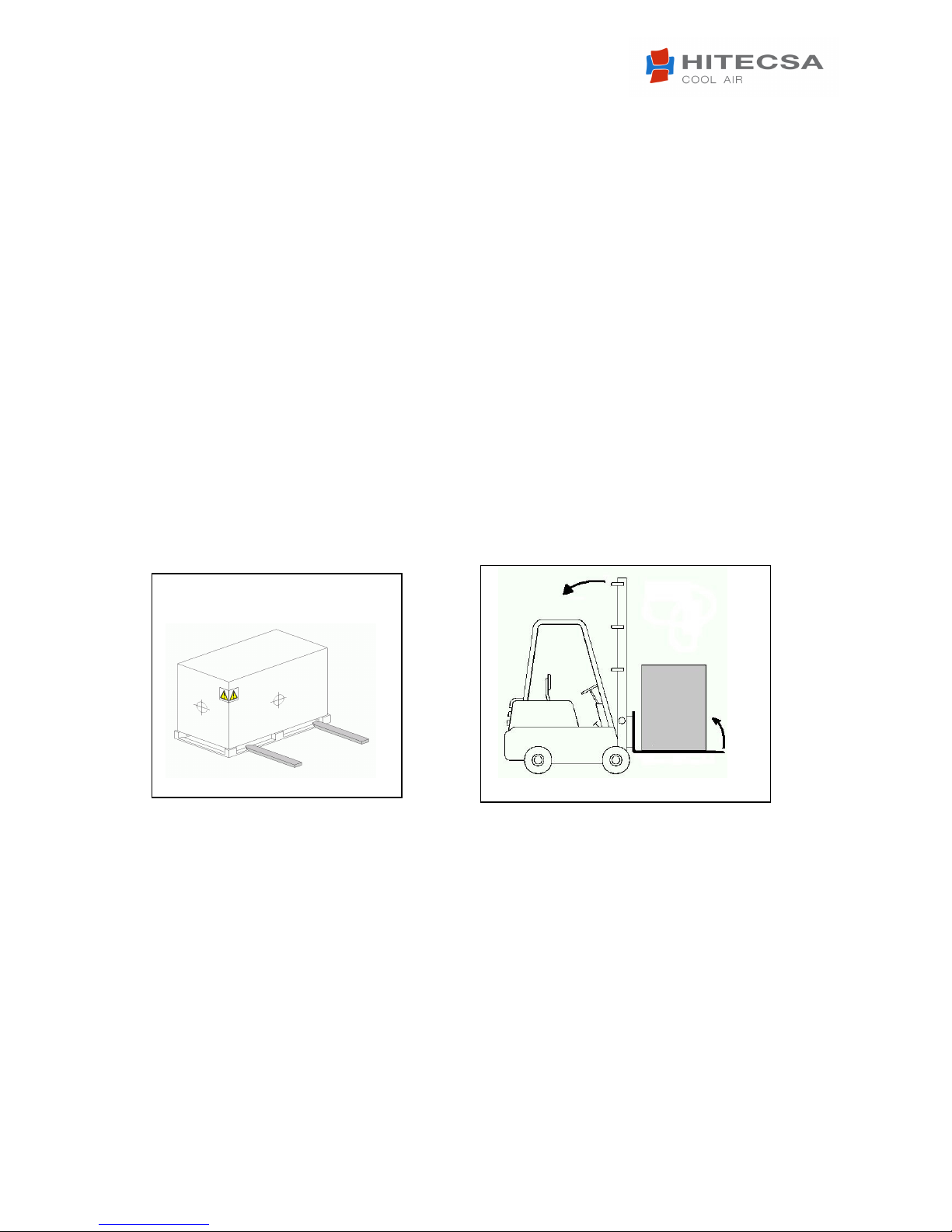

IGGING
•Before moving the unit, make sure that all panels are well fixed.
•Raise and set down the equipment carefully.
•Do not tilt the unit more than 15 degrees during transportation.
When lifting the unit, make sure that it’s balanced and stable; bear in mind that the heaviest part is
where the compressor is installed.
STO AGE
If the equipment is going to be stored please follow the instructions below in order to avoid
damages, corrosion or deterioration:
•Keep the unit away from direct sunlight, rain, sand, wind or temperatures above 50ºC
•Storage temperature: maximum 50ºC, minimum -10ºC
•Maximum humidity: 90%

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
6
INSTALLATION LOCATION
•Check if the base is able to support the weight of unit during operation.
•Reserve a minimum service area according to Fig. 2.
•Choose a place free of dust or any other foreign material that could clog or damage the
condenser coil. The location should also be a place that cannot be flooded.
•Consult and respect all regulations concerning installation of air conditioning systems.
•Check if sound waves do not disturb anyone and put anti-vibration plots if necessary.
SE VICE A EA (mm)

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
7

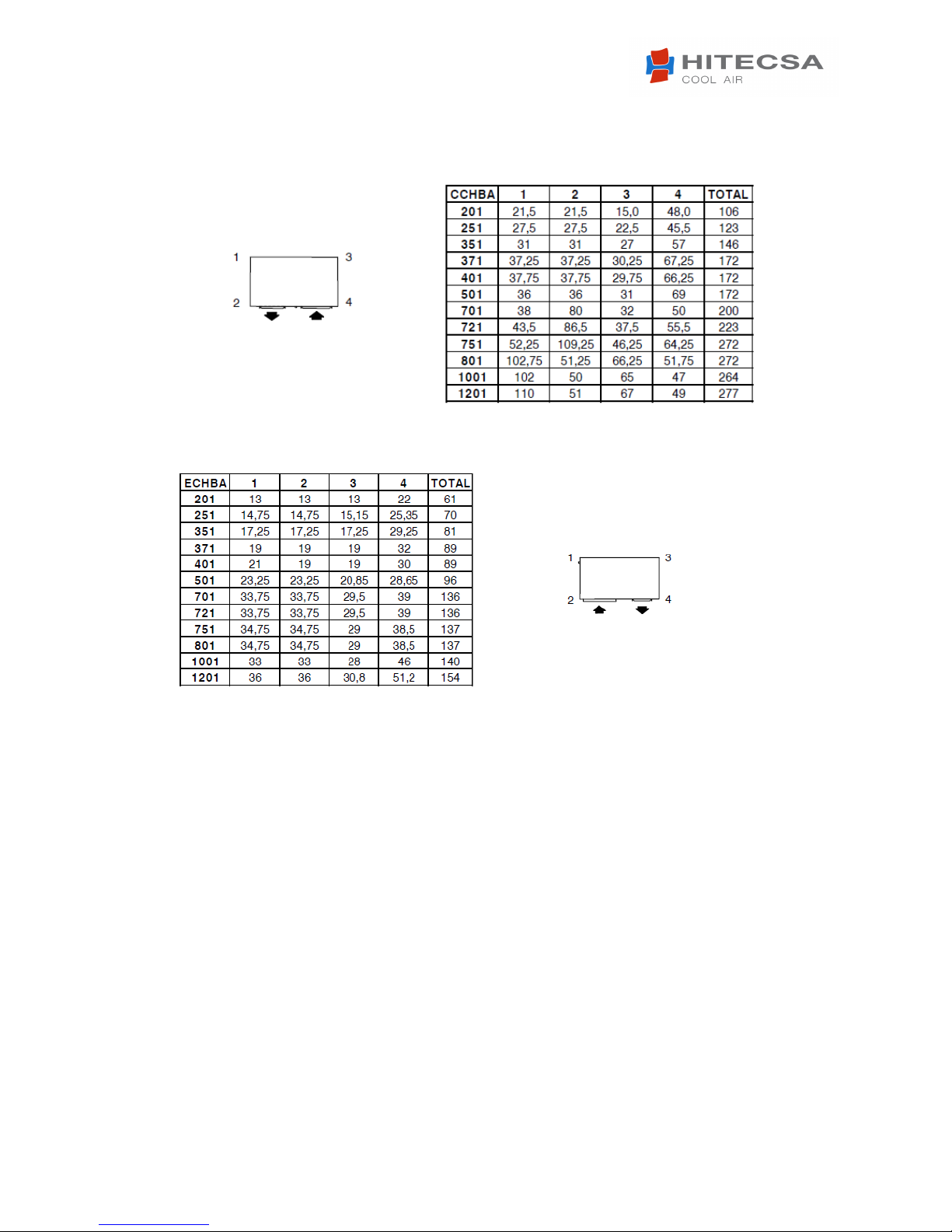

WEIGHT DIST IBUTION (Kg)
UNIT SETTLEMENT
•Make sure that the unit is correctly levelled.
•The bed frame should be strong and solid enough to support the weight of the machine.
•Verify that the indoor drain is working properly.

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
8
BEFO E STA T UP
•Check the following points:
oWires are well tightened.
oPanels are firmly secured with screws.
oThere are no oil or refrigerant leaks.
oThe unit is correctly levelled.
oThere is enough space for service and maintenance.
oDrainage is not blocked.
oCrankcase heater has been working at least 24 hours prior to the start-up.
oAir filters are clean and correctly mounted.
oGrilles, air diffusers, air ducts and flexible connections are in good condition.
oElectrical power source is in accordance with what is said in the nameplate.
oFans rotate in the right direction.
.
STA T UP
•Start up should be performed by qualified technical people.
•se a start up check list: record inlet and outlet temperatures and pressures, outdoor air
temperature, volts and amps of each compressor and each fan motor, suction and discharge
pressure of each compressor.
•se a similar check list for service and maintenance works.
•Remember that after 4 hours of operation, it is necessary to clean the filters.
•Monitor at least 3 cooling cycle operations.

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
9
LEGEND
1. Main power 400/3/50 + neutral or 230/1
2. Earth
3. Time delay fuses or circuit breaker (MCB) curve D
4. Main power switch
5. Indoor fan motor supply 400/3** or 230.1*
6. Electric heating wiring (option)
7. Electric heating supply (option) de ∆ ∆ 400.3 or ∆ 230.1
8. Remote control
OPE ATING LIMITS
1
4
3
8
2
5
6
2
7
3
OUTDOO UNIT
INDOO UNIT
nits can operate
at a
maximum altitude of
1.500 meters.
For other conditions, please consult.

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
10
WA NING!
Before starting installation, service or maintenance, turn off the main power switch in order to
avoid electrical shock that may cause personal damages.
•Main power supply of the unit should agree with the data shown on the nameplate. HITECSA
will not be held responsible for damages resulted from non observance of the above.
•Always use the wiring diagram sent with the unit to make electrical connections.
•Make sure that the crankcase heater has been working at least 24 hours prior to the start up of
the unit.
•Current supply should be within 10% of Volts and Amperes indicated on the unit nameplate.
•Do not operate the unit at different current from that shown on the unit nameplate.
•The installer should put line protection elements in compliance with current legislation.
•The interconnecting wires should be protected with a tube or put inside a groove channel.
ELECT ICAL DATA
Alimentación V (50Hz) 230.I 230.I 400.III 400.III 400.III 400.III
Potencia total absorbida (1) kW 2,8 3,3 4,2 5,3 5,6 7,0
Corriente total absorbida (1) A15 20 12 15 15 15
Potencia total absorbida (2) kW 3,5 4,1 5,3 6,9 7,1 9,23
Corriente total absorbida (2) A16 19 13 17 17 17
Potencia total absorbida (3) kW 2,6 3,2 3,7 4,8 4,9 6,2
Corriente total absorbida (3) A13 19 12 15 15 13
Potencia total absorbida (4) kW 3,4 4,3 4,8 5,8 6,5 8,5
Corriente total absorbida (4) A15 19 13 16 16 15
Corriente de arranque A63 96 43 63 63 66
Magnetotérmicos curva D * A20 20 15 15 20 20
Sección min. cable (227 CEI 53)
mm
2
2,5 4,0 2,5 2,5 2,5
2,5
Alimentación
V (50Hz)
400.3
400.3
400.3
400.3
400.3
400.3
Potencia total absorbida (1) kW 7,6 8,8 10,7 10,3 13,4 15,7
Corriente total absorbida (1) A17 19 20 20 25 32
Potencia total absorbida (2) kW 10,9 12,0 13,2 13,3 17,0 20,31
Corriente total absorbida (2) A19 21 22 22 29 34
Potencia total absorbida (3) kW 6,8 7,7 10,0 10,1 12,7 15,2
Corriente total absorbida (3) A14 17 19 19 23 32
Potencia total absorbida (4) kW 9,4 10,2 12,4 12,0 16,4 19,46
Corriente total absorbida (4) A18 19 21 21 27 33
Corriente de arranque A67 96 96 96 96 158
Magnetotérmicos curva D * A25 25 25 25 30 40
Sección min. cable (227 CEI 53) mm24,0 4,0 4,0 4,0 6,0
10
801 1001 1201
CCHBA / ECHBA STD
CCHA / ECHA STD 701 721 751
371 401
CCHBA / ECHBA STD 501
CCHA / ECHA STD 201 251 351
NOTE
S:
1.COOLING: Outdoor air temperature 35ºC. Indoor air temperature (WB) 19ºC.
2. COOLING (MAX.) : Outdoor air temperature 46ºC. Indoor air temperature (WB) 21ºC.
3.HEATING: Outdoor air temperature (WB) 6ºC. Indoor air temperature 20ºC.
4. HEATING (MAX.) : Outdoor wet temperature 18ºC. Indoor air temperature 26ºC.
* Recommendation to the installer

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
11
D AINAGE
•Indoor drainage (of condensate water) has a 3/4” MPT connection.
•Condensate drain line diameter should be equal or larger than the unit connection depending
on pipe length and general building configuration.
•Drainage line should have a minimum inclination of 2% for proper water evacuation.
•When drainage line is exposed to temperatures below 0ºC, it is necessary to provide thermal
insulation or electrical heating wire to avoid water freezing and tube damages
• It is advisable to install a trap with proper dimensions.
AI DUCTS
-Air duct dimensions will be determined according to the airflow and available static pressure.
-Ducts must be designed by qualified technical people.
-se ducts made of non-inflammable materials in order to avoid any emission of gas in case of
fire. It is advisable to use metal plate duct with insulation.
-se flexible ducts to connect air ducts into the unit and thus avoid vibration and noise
transmission.

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
12
ADJUSTMENT OF FAN T ANSMISSION
-Adjust transmission so that indoor fan-motor reaches its nominal value..
- If consumption is lower than the nominal value, the airflow is insufficient.
To change fan speed:
1. Remove the belt and slide the motor over the channel.
2. Loosen setscrews and turn the mobile flap around, depending on your needs.
3. Tight setscrews.
4. Put the belt back in the pulley’s channel.
5. Tight the belt using a tension adjuster screw.
LEGEND:
1.- Motor.
2.- Motor pulley.
3.- Belt.
4.- Fan pulley.
5.- Tensor adjustment screw.
6.- Setscrew.
7.- Mobile flap
8.- Fix flap.
7
6
8
3
1
5
4
2
Polea Pulley abiertas
Fijo Variable Correa
kW A
CCHBA 751 X 1,5 3,6 150 E25 1A 75/100 E 24 1A A-45 0
CCHBA 801 X 1,5 3,6 150 E25 1A 100/125 E 24 1A A-45 2
CCHBA 1001 X 2,2 4,7 150 E25 1A 100/125 E 28 1A A-46 1
CCHBA 1201 X 4,0 9,2 160 E30 2A 100/125 E 28 2A A-46 2
ECHBA 501 X 0,550 1,59 150 E20 1A 100/125 E19 1A A-42 0
ECHBA 701 X 0,735 2,0 150 E25 1A 75/100 E19 1A A-43 1
ECHBA 721 X 0,735 2,0 150 E25 1A 75/100 E19 1A A-43 1
ECHBA 751 X 0,735 2,0 150 E25 1A 75/100 E19 1A A-43 1
ECHBA 801 X 0,735 2,0 150 E25 1A 75/100 E19 1A A-43 0
ECHBA 1001 X 1,5 3,0 160 E25 1A 100/125 E24 1A A-45 2
ECHBA 1201 X 2,2 4,8 160 E25 2A 100/125 E28 2A A-46 2
MODELO Exterior Nominal
Interior

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
13
To line up motor and fan pulleys:
1. Loosen setscrews from the fan pulley.
2. Slide the fan pulley down the axe and line up with the motor, using a ruler to make sure
that it’s in parallel with the belt.
3. Tight the fan pulley using a tension adjuster crew.
COMP ESSO LUB ICANT
-Compressors with R410a refrigerant use synthetic polyester oil, each manufacturer using a
specific oil for his product.
-The system must not remain open to the atmosphere more than 15 minutes.
-Due to its hygroscopic qualities, you must be very careful during manipulation: when synthetic
oils mix up with mineral oil, they deteriorate causing obstructions and even the breakdown of
the compressor. Do not mix them under any circumstance.
WRONG ALIGNMENT
90
°
WRONG
WRONG
90
°
RIGHT POSITION OF THE RULER
90
°

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
14
TECHNICAL DATA
POTENCIAS
Potencia frigorífica (1) kW 5,6 7,4 9,7 11,6 12,4 14,1
Potencia calorífica (2) kW 6,1 8,2 9,8 12,0 13,8 16,4
COMP ESO
Tipo Rotativo Rotativo Rotativo Scroll Scroll Scroll
Voltaje V 230-1 230-1 400-3 400-3 400-3 400-3
Carga de refrigerante R410A Kg 2,2 2,7 3,8 4,0 4,1 5,0
INTE CAMBIADO INTE IO
Tipo
Área frontal m2 0,20 0,25 0,25 0,31 0,31 0,31
Paso aletas mm 2,1 2,1 1,8 2,1 2,1 2,1
Diametro tubos " 3/8 3/8 3/8 3/8 3/8 3/8
INTE CAMBIADO EXTE IO
Tipo
Área frontal m2 0,22 0,292 0,36 0,4 0,4 0,4
Paso aletas mm 1,8 1,8 1,8 1,8 1,8 1,8
Diametro tubos " 3/8 3/8 3/8 3/8 3/8 3/8
VENTILADO INTE IO
Tipo
Modelo 9/7 DD 9/9 DD 10/10 DD 10/10 DD 10/10 DD 10/10 SS
Potencia motor kW 0,120 0,250 0,250 0,373 0,373 0,550
Voltaje V 230-1 230-1 230-1 230-1 230-1 400-3
Corriente absorbida nominal A 1,6 1,5 1,9 2,6 2,7 1,6
VENTILADO EXTE IO
Tipo
Modelo 9/9 DD 10/10 DD 10/10 DD 12/9 DD 12/9 DD 12/9 DD
Potencia motor kW 0,37 0,37 0,44 0,55 0,55 1,10
Voltaje V 230-1 230-1 230-1 230-1 230-1 400-3
Corriente absorbida nominal A 4,0 4,0 4,3 4,8 4,7 3,0
501
Batería de aletas de aluminio y tubos de cobre
Batería de aletas de aluminio y tubos de cobre
Centrífugo de doble aspiración
Centrífugo de doble aspiración
CCHA / ECHA
201 371251 351 401
CCHBA / ECHBA
(1)
COOLING
:
Outdoor air temperature
: 35 °C.
Indoor air temperature (WB)
: 19 °C.
(2)
HEATING
:
Outdoor air temperature (WB)
.: 6 °C.
Indoor air temperature
: 20 °C.

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
15
TECHNICAL DATA
POTENCIAS
Potencia frigorífica (1) kW 17,2 18,5 20,8 21,9 28,4 33,5
Potencia calorífica (2) kW 18,9 20,4 21,9 24,6 29,8 37,2
COMP ESO
Tipo
Voltaje V 400-3 400-3 400-3 400-3 400-3 400-3
Carga de refrigerante R410A Kg 5,7 5,7 5,9 6,7 9,0 9,5
INTE CAMBIADO INTE IO
Tipo
Área frontal m2 0,47 0,47 0,47 0,54 0,65 0,77
Paso aletas mm 1,8 1,8 1,8 1,8 1,8 1,8
Diametro tubos " 3/8 3/8 3/8 3/8 3/8 3/8
INTE CAMBIADO EXTE IO
Tipo
Área frontal m2 0,605 0,605 0,605 0,605 0,9 1,19
Paso aletas mm 1,8 1,8 1,8 1,8 1,8 1,8
Diametro tubos " 3/8 3/8 3/8 3/8 3/8 3/8
VENTILADO INTE IO
Tipo
Modelo 12/9 SS 12/9 SS 12/9 SS 12/9 SS 12/12 SS 15/15 SS
Potencia motor kW 0,735 0,735 0,735 0,735 1,500 2,200
Voltaje V 400-3 400-3 400-3 400-3 400-3 400-3
Corriente absorbida nominal A 2,0 2,0 2,1 2,3 3,0 4,8
VENTILADO EXTE IO
Tipo
Modelo 12/12 DD 12/12 DD 12/12 SS 12/12 SS 12/12 SS 15/15 SS
Potencia motor kW 1,10 1,10 1,50 1,50 2,20 4,00
Voltaje V 400-3 400-3 400-3 400-3 400-3 400-3
Corriente absorbida nominal A 3,5 3,5 3,4 3,6 4,7 9,2
1201
Batería de aletas de aluminio y tubos de cobre
Batería de aletas de aluminio y tubos de cobre
Scroll
Centrífugo de doble aspiración
Centrífugo de doble aspiración
CCHA / ECHA
701 801721 751 1001
CCHBA / ECHBA
(1)
COOLING
:
Outdoor air temperature
: 35 °C.
Indoor air temperature (WB)
: 19 °C.
(2)
HEATING
:
Outdoor air temperature (WB)
.: 6 °C.
Indoor
air temperature
: 20 °C.

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
16

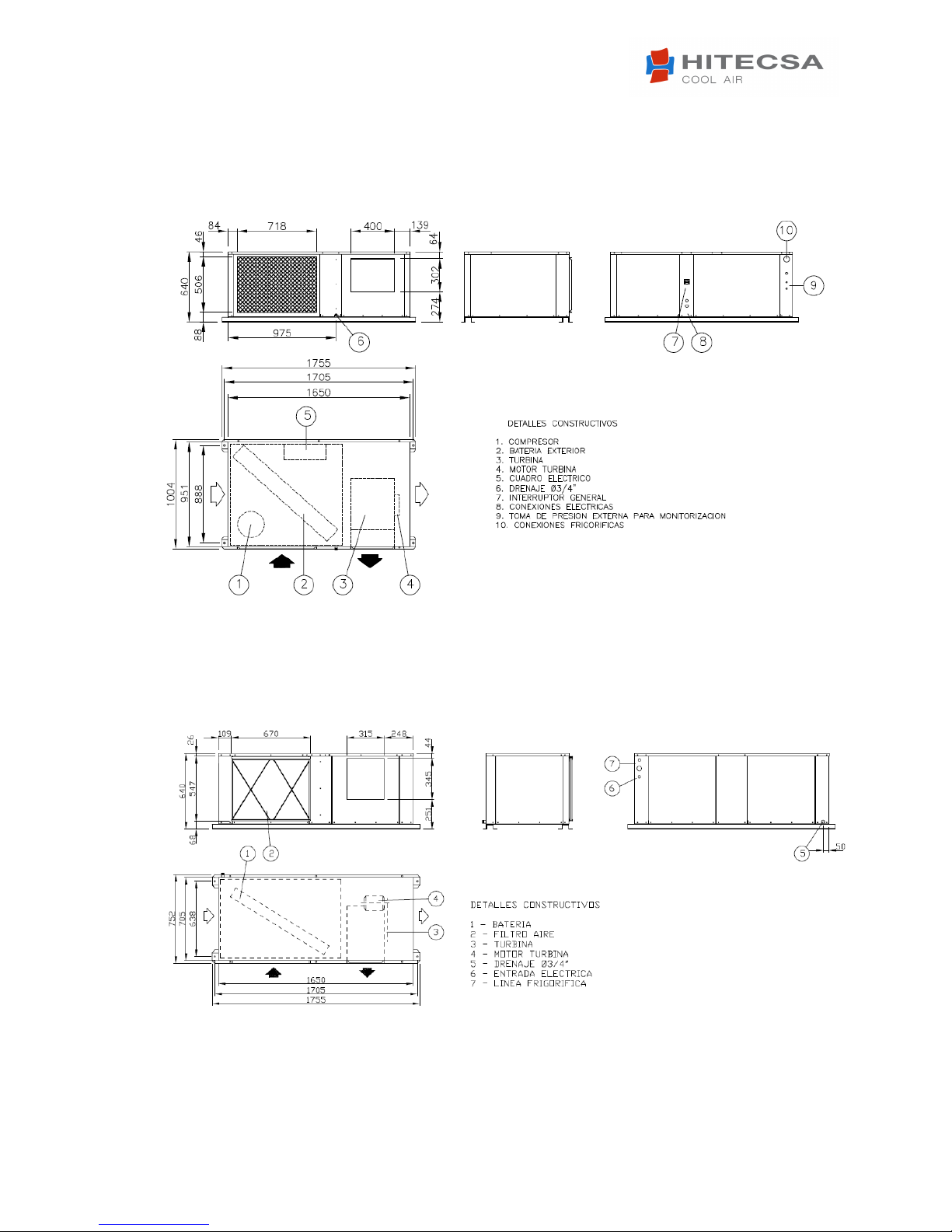

DIMENSIONS
CCHA – CCHBA 351
ECHA – ECHBA 351

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
17
CCHA – CCHBA 371 – 401 – 501
ECHA – ECHBA 371 – 401 – 501

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
18
CCHA – CCHBA 701 – 721 – 751 - 801
ECHA – ECHBA 701 – 721 – 751 - 801

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
19
EF IGE ANT LINES
EF IGE ANT CI CUIT
Split systems demand a correct disposition of refrigerant piping and a correct connection between
both indoor and outdoor units.
Line selection should be done according to the following criteria:
-Pressure drop of the line
-Circulation speed of the refrigerant
-Refrigerant mass
DISCHA GE LINE
In heat pump operation, the gas line works as discharge line.
WA NING!!!
When working with the machines in operation, discharge line temperature is very HIGH and
could result in burns.
T AZADO DE LÍNEAS
1. When indoor unit is at a lower level than outdoor unit: It is not essential to install traps in the
vertical line. However, it could be convenient to install some every 6 to 9 meters in order to
help oil return.
A
–
INDOOR UNIT
B
–
OUTDOOR UNIT
GAS LINE
LIQUID LINE
B
A

CCHA/ECHA – CCHBA/ECHBA
Installation, operation and maintenance instructions
20
2. When indoor unit is at the same level as outdoor unit: rise the suction line to a higher level
than the exchanger in order to avoid refrigerant return into the compressor.
3. When indoor unit is at a higher level than outdoor unit.
LÍNEA DE GAS
LÍNEA DE LÍQUIDO
A B
A – UNIDAD INTERIOR
B – UNIDAD EXTERIOR
LÍNEA DE GAS
LÍNEA DE LÍQUIDO
LÍNEA DE GAS
LÍNEA DE LÍQUIDO LÍNEA DE LÍQUIDO
A B
A – UNIDAD INTERIOR
B – UNIDAD EXTERIOR
A B
A – UNIDAD INTERIOR
B – UNIDAD EXTERIOR
A – UNIDAD INTERIOR
B – UNIDAD EXTERIOR
B
A
LÍNEA DE GAS
LÍNEA DE LÍQUIDO
A – UNIDAD INTERIOR
B – UNIDAD EXTERIOR
B
A
B
A
LÍNEA DE GAS
LÍNEA DE LÍQUIDO
LÍNEA DE GAS
LÍNEA DE LÍQUIDO LÍNEA DE LÍQUIDO
A – UNIDAD INTERIOR
B – UNIDAD EXTERIOR
A – UNIDAD INTERIOR
B – UNIDAD EXTERIOR
