Hitecsa ACHA 201 Instruction manual

Installation, Operation & Maintenance Manual
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA │ ACHBA
Cooling only Heat pump
PACKAGED HORIZONTAL COMPACT AIR - AIR
Models: 201 │ 251 │ 351│ 371 │ 401 │ 501 │ 701 │ 721 │ 751│ 801 │ 1001│ 1201
Cooling Capacities: from 5,6 kW to 33,5 kW
Heating Capacities: from 6,1 kW to 37,2 kW
SOLO FRIO

Thank you for trusting the Hitecsa Products. Our company has been offering the market an extended range of specialized units for
air conditioning and cooling installations for over 35 years. Our approach is based on efficiency, adaptability, usability and practical
solutions. This has been the hallmark of our product catalogue.
The versatility of our factory allows us to contribute solutions, almost tailored to each project’s specifications, in search of a solution
to every problem that arises in design and implementation of air conditioning installations.
From all of us at Hiplus Aire Acondicionado, once again, thank you very much.

3
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
ACHA │ ACHBA
INDEX
INTRODUCTION................................................................................................................ 5
CONTENTS ........................................................................................................................5
REGULATIONS AND CERTIFICATIONS................................................................................ 6
SAFETY PRECAUTIONS...................................................................................................... 6
TECHNICAL SPECIFICATIONS............................................................................................. 8
TRANSPORT & RECEPTION ............................................................................................. 10
INSPECTION AT RECEPTION ............................................................................................10
RIGGING..........................................................................................................................10
STORAGE.........................................................................................................................10
INSTALLATION................................................................................................................ 11
WEIGHT DISTRIBUTION...................................................................................................11
DIMENSIONS...................................................................................................................12
Model 201 .................................................................................................................12
Models 251 –271......................................................................................................12
Model 351 .................................................................................................................13
Models 351 –501......................................................................................................13
Modelos 701 –801....................................................................................................14
Model 1001 ...............................................................................................................14
Model 1001 ...............................................................................................................15
INSTALLATION LOCATION ...............................................................................................15
UNIT SETTLEMENT ..........................................................................................................15
SERVICE AREA .................................................................................................................16
WATER DRAIN .................................................................................................................16
AIR DUCTS.......................................................................................................................16
ELECTRICAL INSTALLATION .............................................................................................17
ELECTRICAL SPECIFICATIONS ..........................................................................................18
ELECTRICAL CONNECTIONS DIAGRAM............................................................................19

4
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
ACHA │ ACHBA
OPERATION.................................................................................................................... 20
BEFORE START UP ...........................................................................................................20
START UP ........................................................................................................................20
INDOOR FAN TRANSMISSION ADJUSTMENT...................................................................21
OPERATING LIMITS .........................................................................................................22
TH TUNE CONTROL .........................................................................................................22
Screen........................................................................................................................22
Start / Stop ...............................................................................................................22
Temperature Adjustment.........................................................................................22
Calibration of the probe of indoor temperature of Th-Tune...................................22
System Modes ..........................................................................................................23
Indoor Fan: “Fan / Autofan” with ventilation “Continuous / Auto”.......................23
Time Schedule ...........................................................................................................23
Alarms.......................................................................................................................24
DIAGNOSIS ALARMS IN CONTROL...................................................................................25
PGD1 OR MINI PGD THERMOSTAT (AIRE-AIRE,AGUA-AIRE,KUBIC).......................................26
KEYBOARD.................................................................................................................26
On / Off .....................................................................................................................26
Temperature adjustment ..........................................................................................26
System operating modes change ..............................................................................26
Time Schedule ...........................................................................................................27
Time schedule (HITSAA01) ........................................................................................29
Local Network ...........................................................................................................31
Alarms .......................................................................................................................32
MAINTENANCE............................................................................................................... 34
CONSERVATION AND CLEANING.....................................................................................34
LUBRICANT .....................................................................................................................34
REFRIGERANT CHARGE ...................................................................................................35
APPENDIX: SAFETY DATA R-410A ................................................................................... 36

5
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
INTRODUCTION
CONTENTS
Purpose of this Manual
This manual and any other instructive document attached as refrigeration lines design, electrical diagrams,
etc. have been written to allow a correct installation, commissioning and maintenance of theunit. Therefore
it is essential to read the instructions with due attention.
Verify that all the necessary information for the correct installation of the system is included in the manuals
supplied with this unit and/or the rest of the indoor units, accessories, etc. Otherwise, the manufacturer
declines any responsibility for any damage to persons, animals or things, as a result of improper use of the
unit and/or failure to observe these instructions.
Preservation Manual
This manual and the electric diagram of the unit must be retained and remain available to the operator for any further
consultation.
Updating the Data
The continuous improvement in design and performance to which we are committed gives us the right to modify the
specifications of our products without prior notice.
Electrical Network
Check that the electrical network features are in accordance to data shown in the data nameplate of the
unit.
Local Safety Regulations
Observe and analyze all possible causes of accidents thatmay arisein the place orplaces of installation of the units, check
means and tools to use, etc. It is not possible to anticipate each and every one of the potential circumstances of danger in
this manual. Respect the valid local security standards during installation.
Principles of Security on Installation
The unit is designed and built in a way that does not pose a risk to the health and safety of people. Appropriate solutions
for the project have been adopted to eliminate the possible causes of risk in the installation.
Packaging and Replacement of Equipment
The material of the package (plastic bags, insulating materials, nails, etc.) is a potential source of danger.
Consequently, it should be kept out of the reach of children and properly recycled according to the valid
local safety regulations.
This product should not be mixed with household waste at the end of its life. Due to the refrigerant, oil and
other components contained in this product, it must be dismantled by professional installers in accordance
with current regulations.
Utilization
The unit will be used only for the reason it has been conceived. Any other use does not imply any kind of compromise or
link for the manufacturer.
Incorrect Operation
In case of breakdowns or operation faults, turn off unit.

6
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
INTRODUCTION
CONTENTS
Periodic Inspections and Maintenance
Carry out periodic inspections to detect possible damaged or broken pieces. If they are not repaired it could
cause damage to people or stuff. Before executing any maintenance operation, cut off the unit power
supply.
All operations should be carried out in accordance with local safety regulations.
Repairs
The reparations should be always and exclusively realized for trained personal authorized by the
manufacturer using original spares. The safeties of the unit could be affected due to the failure to comply
with these warnings.
Modifications
The manufacturer will not respond to the warranty and to the possible damages of the unit in case of electrical and/or
mechanical modifications. The unauthorized manipulation, reparation or modification of the unit will automatically invalidate
the warranty.
Refrigerant
This product is hermetically sealed and contains R-410A which is a HFC fluorinated greenhouse gas.
REGULATIONS AND CERTIFICATIONS
ISO 9001 CERTIFICATION: HIPLUS AIRE ACONDICIONADO S.L., trying always to find the maximum satisfaction of
costumers, has obtained the ISO 9001 Quality System referred to its production activity. This will result in a continuous
determination to improve quality and reliability of all our products; commercial activities, design, raw materials, production
and after-sales service, are the means to reach our goal.
CE MARKING: Our machines have got the CE mark, in conformity with the essential requirements of the applicable EC
directives and their last modifications as well as with the national legislation of each country.
In accordance with Article 1, (m) Subject matter and scope of Regulation (EU) 2016/2281 of November 30th, 2016 concerning the
ecodesign requirements for air heating products, cooling products, high temperature process chillers and fan coil units, the equipment
mentioned in the present document shall be used only for applications of which the primary function is the purpose of producing or storing
perishable materials at specified temperatures by commercial, institutional or industrial facilities and of which space heating and/or space
cooling is a secondary function and for which the energy efficiency of the space heating and/ or space cooling function is dependent on
that of the primary function. Therefore they are not valid for comfort applications in spaces occupied by people.

7
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
SAFETY PRECAUTIONS
DANGER
Do not touch or adjust the safety elements inside of any unit of the system. In repairs use only original spare parts
and install them properly in the same position where old parts were placed.
The installation and maintenance of air conditioning equipment could be dangerous because the system is under
pressure, some of its elements have high temperatures and include electrical components.
Do not install the unit in explosive atmosphere.
Before starting anyinstallation, service or maintenance operation, turn offthe main power switch in order
to avoid electrical shock that may cause personal damages.
To open the electrical panel and access the inside of the machine it is MANDATORY to disconnect the power
supply hose from the machine. It MUST BE FREE OF TENSION for this operation.
ATTENTION!
Only qualified and trained service staff (technical service) must make the installation, commissioning and
carry out maintenance works. Unqualified staff can only make basic tasks such as cleaning and
replacement of filters, etc.
Prevent access to children so they cannot play with the appliances.
In every visit, all precautions must be taken into account: those recommended in the installation, operation and
maintenance instructions, as well as the ones indicated in labels of the unit. Do not forget to strictly follow any
other safety precautions.
DO NOT introduce objects into the air inlets or outlets that can be drawn into the fan, people, etc.
Use safety glasses, work gloves and any other safety accessory necessary.
This product contains fluorinated greenhouse gases, itsleakage can causedisplacement of air and cause
insufficient oxygen to breath.
Must follow all safety recommendations.
In case of water tanks with ELECTRIC HEATER
Before proceeding to the start up of the unit, MAKE SURE that the water tank is completely full and
that the installation is perfectly drained of air.
The responsibility of all personal and material damages caused by an unplanned or inappropriate use
will be on the person or operating company of the unit, and will not be on its manufacturer.
WARNING!

8
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
TECHNICAL SPECIFICATIONS
ACHA / ACHBA
201
251
351
371
401
501
CAPACITIES
Cooling capacity (1)
kW
5,6
7,4
9,7
11,6
12,4
14,1
EER coefficient
2,0
2,2
2,2
2,3
2,4
2,2
Heat capacity (2)
kW
6,1
8,2
9,8
12,0
13,8
16,4
COP coefficient
2,4
2,5
2,6
2,7
2,9
2,8
REFRIGERANT
Type
R-410A
GWP(4)
2088
Load (5)
kg
2,2
2,7
3,8
4,0
4,1
5,0
COMPRESSOR
Type
Rotational
Scroll
Voltage
V
230.1
230.1
230.1 /
400.3+N
400.3+N
Power input (cold) (3)
kW
2,8
3,4
4,3
5,0
5,2
6,5
Current input (cold)
A
9,6
4,6
5,5
7,6
7,9
9,7
Power input (heat) (3)
kW
2,8
3,25
3,8
4,8
5,1
6,4
Current input (heat)
A
8,3
4,4
4,9
6,8
7,1
8,5
INDOOR HEAT EXCHANGER
Type
Coil with aluminum fins and copper tube
Frontal area
m
2
0,20
0,25
0,25
0,31
0,31
0,31
Fin spacing
mm
2,1
2,1
1,8
2,1
2,1
2,1
Pipes diameter
mm
3/8
3/8
3/8
3/8
3/8
3/8
EXTERNAL HEAT EXCHANGER
Type
Coil with aluminum fins and copper tube
Frontal area
m
2
0,22
0,292
0,36
0,4
0,4
0,4
Fin spacing
mm
1,8
1,8
1,8
1,8
1,8
1,8
Pipes diameter
mm
3/8
3/8
3/8
3/8
3/8
3/8
INDOOR FAN
Type
Centrifugal, double aspiration
Model
9/7 DD
9/9 DD
10/10 DD
10/10 DD
10/10 DD
10/10 SS
Motor power
kW
0,120
0,250
0,250
0,373
0,373
0,550
Voltage
V
230-1
230-1
230-1
230-1
230-1
400-3
Nominal current input
A
1,6
1,5
1,9
2,6
2,7
1,6
OUTDOOR FAN
Type
Centrifugal, double aspiration
Model
9/9 DD
10/10 DD
10/10 DD
12/9 DD
12/9 DD
12/9 DD
Motor power
kW
0,37
0,37
0,44
0,55
0,55
1,10
Voltage
V
230-1
230-1
230-1
230-1
230-1
400-3
Nominal current input
A
4,0
4,0
4,3
4,8
4,7
3,0
DIMENSIONS AND WEIGHT
Length
mm
1.175
1.325
1.405
1.455
1.455
1.455
Width
mm
1.109
1.252
1.339
1.389
1.389
1.389
Height
mm
452
504
504
562
562
562
Weight
kg
159
163
214
253
266
266
1. Calculated according to the standard UNE-EN-14511-2013, for rated water inlet temperature conditions of 12ºC, water outlet of 7ºC and outdoor
air temperature of 35ºC.
2. Calculated according to the standard UNE-EN-14511-2013, for rated water inlet temperature conditions of 40ºC, water outlet of 45ºC, outdoor
temperature of 7ºC D.B and 6ºC W.B.
3. Unit power input according to the standard UNE-EN-14511-2013.
4. GWP: Global Warming Potential (climatic) of 1 kg of greenhouse gas relative to 1 kg of CO2, calculated in terms of 100-year warming potential.
5. Only units with “FLARE” valve as standard (not option) are loaded with refrigerant, the rest of them are loaded with dry nitrogen to prevent the
entry of moisture.

9
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
TECHNICAL SPECIFICATIONS
ACHA / ACHBA
701
721
751
801
1001
1201
CAPACITIES
Cooling capacity (1)
kW
17,2
18,5
20,8
21,9
28,4
33,5
EER coefficient
2,0
2,2
2,2
2,3
2,3
2,1
Heat capacity (2)
kW
18,9
20,4
21,9
24,6
29,8
37,2
COP coefficient
2,8
2,6
2,7
2,8
2,5
2,5
REFRIGERANT
Type
R-410A
GWP (4)
2088
Load (5)
kg
5,7
5,7
5,9
6,7
9,0
9,5
COMPRESSOR
Type
Scroll
Voltage
V
400.3+N
Power input (cold) (3)
kW
7,8
8,5
9,5
9,7
12,4
15,1
Current input (cold)
A
10,9
12,8
14,5
14,5
18,0
19,0
Power input (heat) (3)
kW
6,9
7,9
8,1
8,8
11,8
14,4
Current input (heat)
A
9,3
11,7
13,2
12,9
16,0
17,9
INDOOR HEAT EXCHANGER
Type
Coil with aluminum fins and copper tubes
Frontal area
m
2
0,47
0,47
0,47
0,54
0,65
0,77
Fin spacing
mm
1,8
1,8
1,8
1,8
1,8
1,8
Pipes diameter
mm
3/8
3/8
3/8
3/8
3/8
3/8
EXTERNAL HEAT EXCHANGER
Type
Coil with aluminum fins and copper tubes
Frontal area
m
2
0,605
0,605
0,605
0,605
0,9
1,19
Fin spacing
mm
1,8
1,8
1,8
1,8
1,8
1,8
Pipes diameter
mm
3/8
3/8
3/8
3/8
3/8
3/8
INDOOR FAN
Type
Centrifugal, double aspiration
Model
12/9 SS
12/9 SS
12/9 SS
12/9 SS
12/12 SS
15/15 SS
Motor power
kW
0,735
0,735
0,735
0,735
1,5
1,5
Voltage
V
400-3+N
400-3+N
400-3+N
400-3
400-3
400-3
Nominal current input
A
2,0
2,0
2,1
2,3
3,0
3,0
OUTDOOR FAN
Type
Centrifugal, double aspiration
Model
12/12 DD
12/12
DD
12/12 SS
12/12 SS
12/12 SS
15/15 SS
Motor power
kW
1,10
1,10
1,50
1,50
2,20
3,00
Voltage
V
400-3
400-3
400-3
400-3
400-3
400-3
Nominal current input
A
3,5
3,5
3,4
3,6
4,7
6,6
DIMENSIONS AND WEIGHT
Length
mm
1.697
1.697
1.697
1.697
1.998
2.400
Width
mm
1.755
1.755
1.755
1.755
1.755
2.201
Height
mm
640
640
640
640
672
782
Weight
kg
384
384
402
408
425
620
1. Calculated according to the standard UNE-EN-14511-2013, for rated water inlet temperature conditions of 12ºC, water outlet of 7ºC and outdoor
air temperature of 35ºC.
2. Calculated according to the standard UNE-EN-14511-2013, for rated water inlet temperature conditions of 40ºC, water outlet of 45ºC, outdoor
temperature of 7ºC D.B and 6ºC W.B.
3. Unit power input according to the standard UNE-EN-14511-2013.
4. GWP: Global Warming Potential (climatic) of 1 kg of greenhouse gas relative to 1 kg of CO2, calculated in terms of 100-year warming potential.
5. Only units with “FLARE” valve as standard (not option) are loaded with refrigerant, the rest of them are loaded with dry nitrogen to prevent the
entry of moisture.

10
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
TRANSPORT & RECEPTION
INSPECTION AT RECEPTION
It is advisable to examine the equipment carefully at the time of its reception.
Check that the equipment has not been damaged during transport and has been supplied complete with all parts
specified in the order and/or with the optional specified in the order. If this is not the case contact the transport
company immediately. (First 48h)
Verify the correct voltage of the nameplate and make sure it is in accordance with local power supply.
In case of any flaw or anomaly detected, please contact HITECSA.
RIGGING
Before moving the unit, make sure that all panels are well fixed.
Raise and set down the equipment carefully.

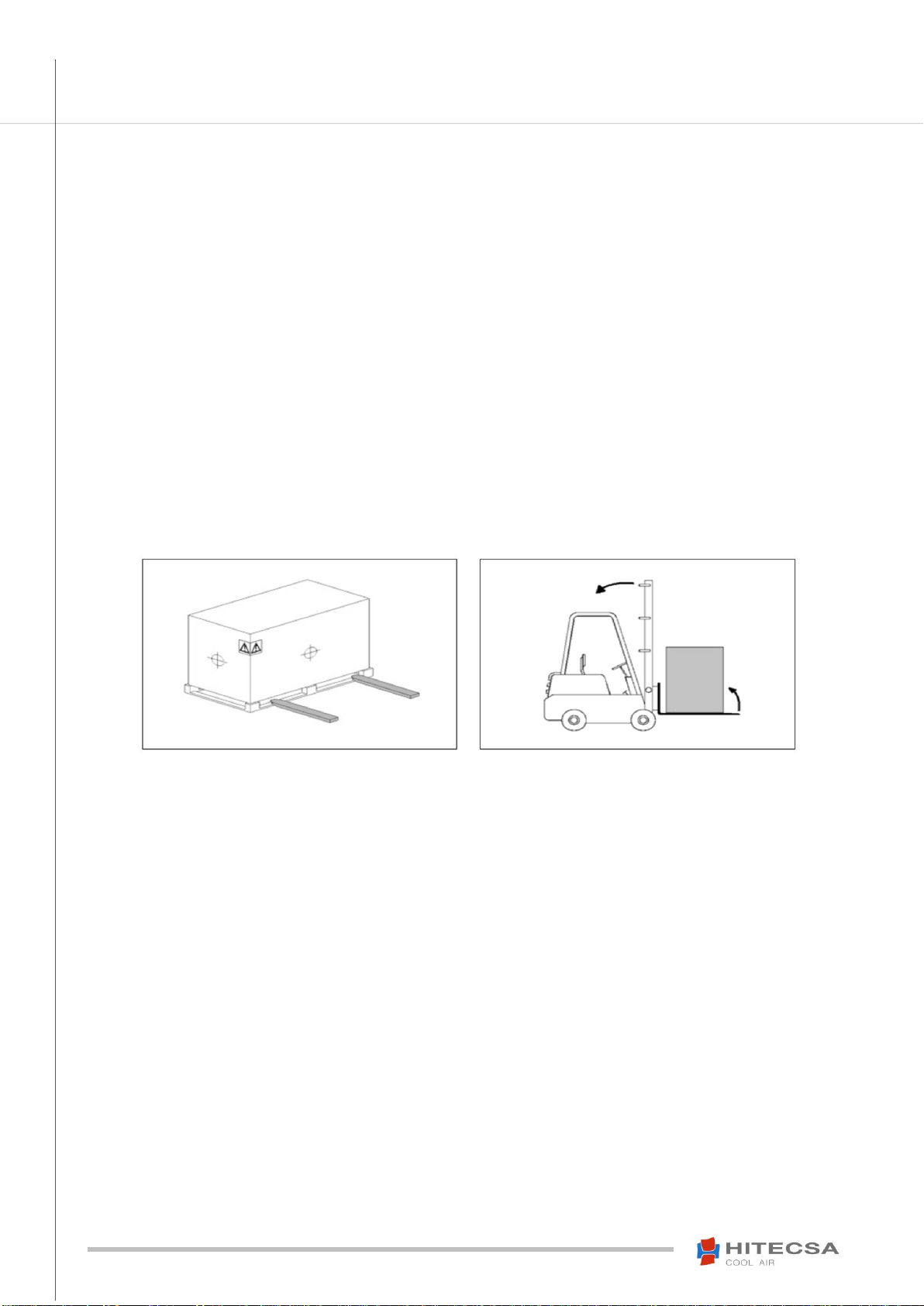

Do not tilt the unit more than 15 degrees during transportation. (Fig. 1) (Fig. 2).
Always transport the unit in its original packaging to the place of installation.
All units come with a particular rigging diagram of that model, similar to the one shown below. Be sure to hoist
the machine through the points indicated in the diagram.
Make sure that the unit is balanced, stable and without any deformations when it is lifted.
STORAGE
If the equipment is going to be stored before the installation, please follow the instructions below in order to avoid damages,
corrosion or deterioration:
Move it carefully.
Do not place the machine in places exposed to ambient temperature above 50ºC and preferably keep the unit away
from direct sunlight.
Avoid placing the unit with plastic wrapping protection under the sun, as the pressure of the circuits could assume
values that could lead to the intervention of the safety valves.
In addition, when cooling, water condensation occurs inside the machine and the plastic wrap.
Avoid placing other objects on top of the unit (unless it is done within the limits of the overlap planes indicated on the
packaging, etc. Follow these indications).
Avoid prolonged storage, before installation, water inlet, dust and objects in general due to invasion or biological,
meteorological and/or human inclemencies.
Minimum storage temperature: -10ºC.
Maximum relative humidity: 90%.
Fig. 1
Fig. 2

11
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
INSTALLATION

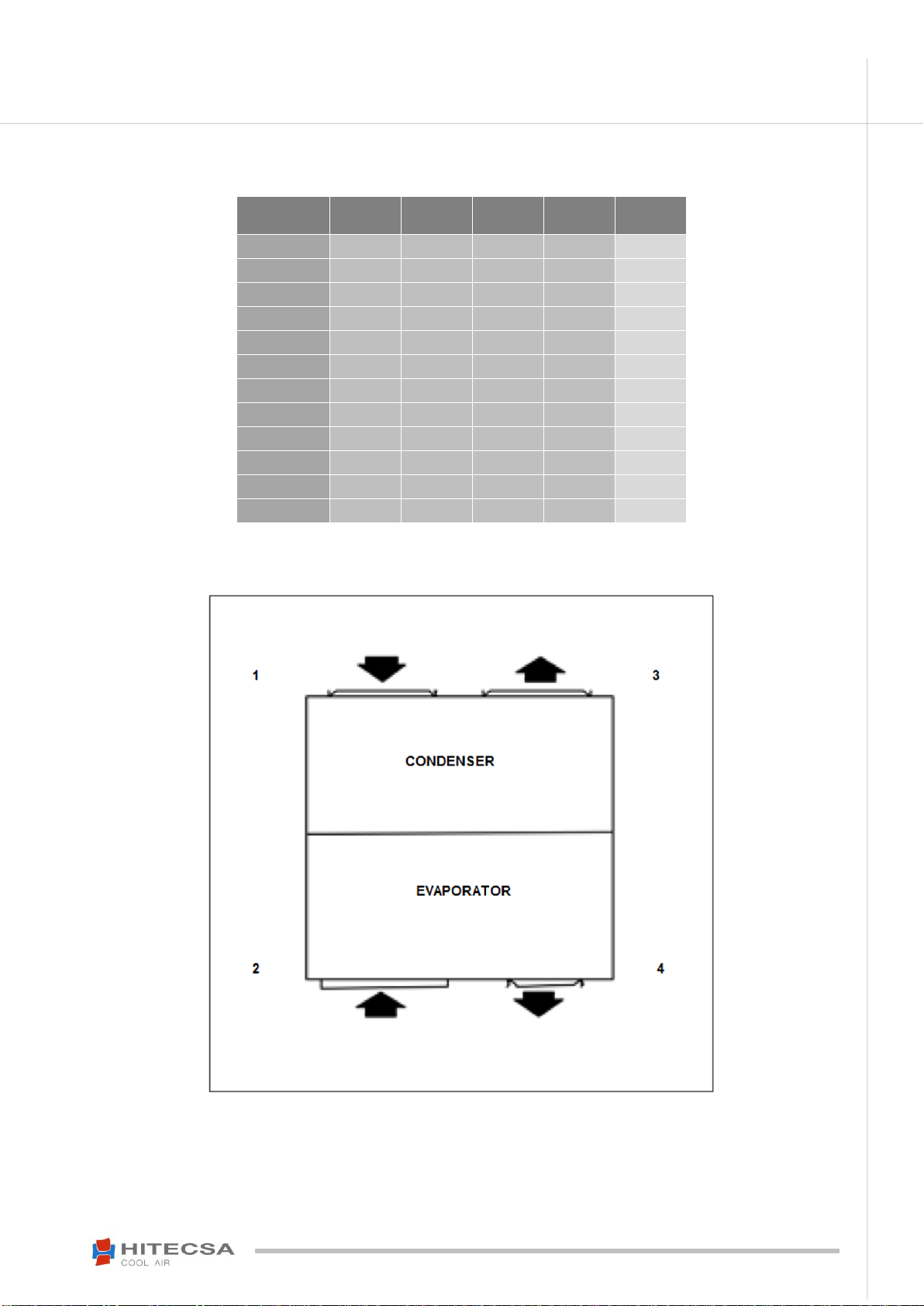

WEIGHT DISTRIBUTION
MODELS
1
2
3
4
TOTAL
201
63
26
38
36
163
251
66
38
52
49
205
351
73
39
51
51
214
371
87
44
64
58
253
401
89
46
67
58
260
501
97
49
68
52
266
701
94
77
135
78
384
721
94
79
131
80
384
751
95
83
144
80
402
801
107
80
110
111
408
1001
108
80
113
124
425
1201
147
134
166
173
620

12
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
INSTALLATION

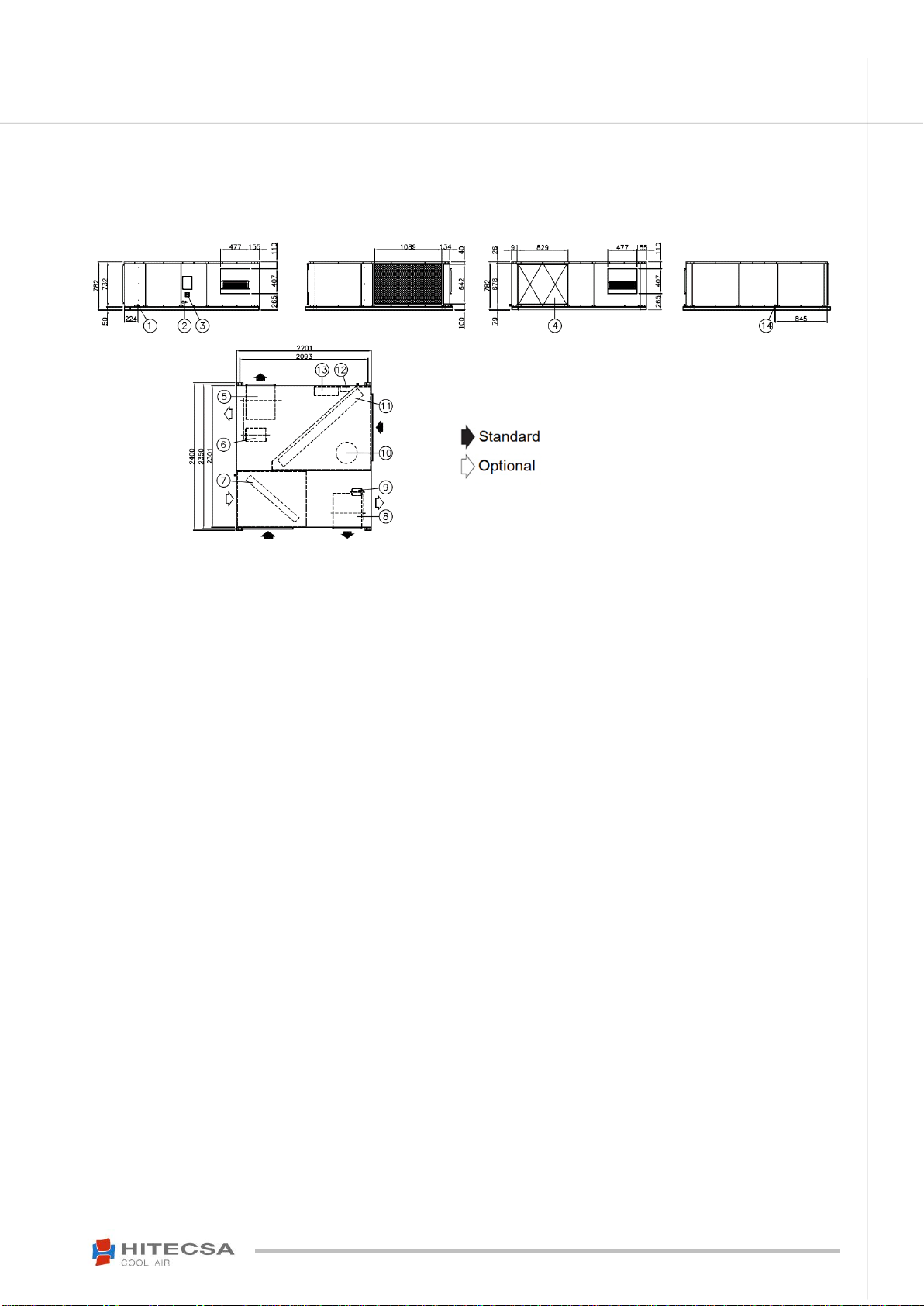

DIMENSIONS
Model 201
Models 251 –271
LEGEND
1. Compressor
2. Outdoor heat exchanger
3. Indoor heat exchanger
4. Electrical panel
5. Indoor turbine
6. Motor indoor turbine
7. Motor outdoor turbine
8. Outdoor turbine
9. Air filter
10. Internal drainage Ø 3/4”
11. External pressure intake
12. Electrical supply input
13. Outdoor drainage Ø 3/4”
LEGEND
1. Compressor
2. Outdoor heat exchanger
3. Indoor heat exchanger
4. Electrical panel
5. Indoor turbine
6. Motor indoor turbine
7. Motor outdoor turbine
8. Outdoor turbine
9. Air filter
10. Internal drainage Ø 3/4”
11. External pressure intakes
12. Electrical supply input
13. Outdoor drainage Ø 3/4”

13
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
INSTALLATION

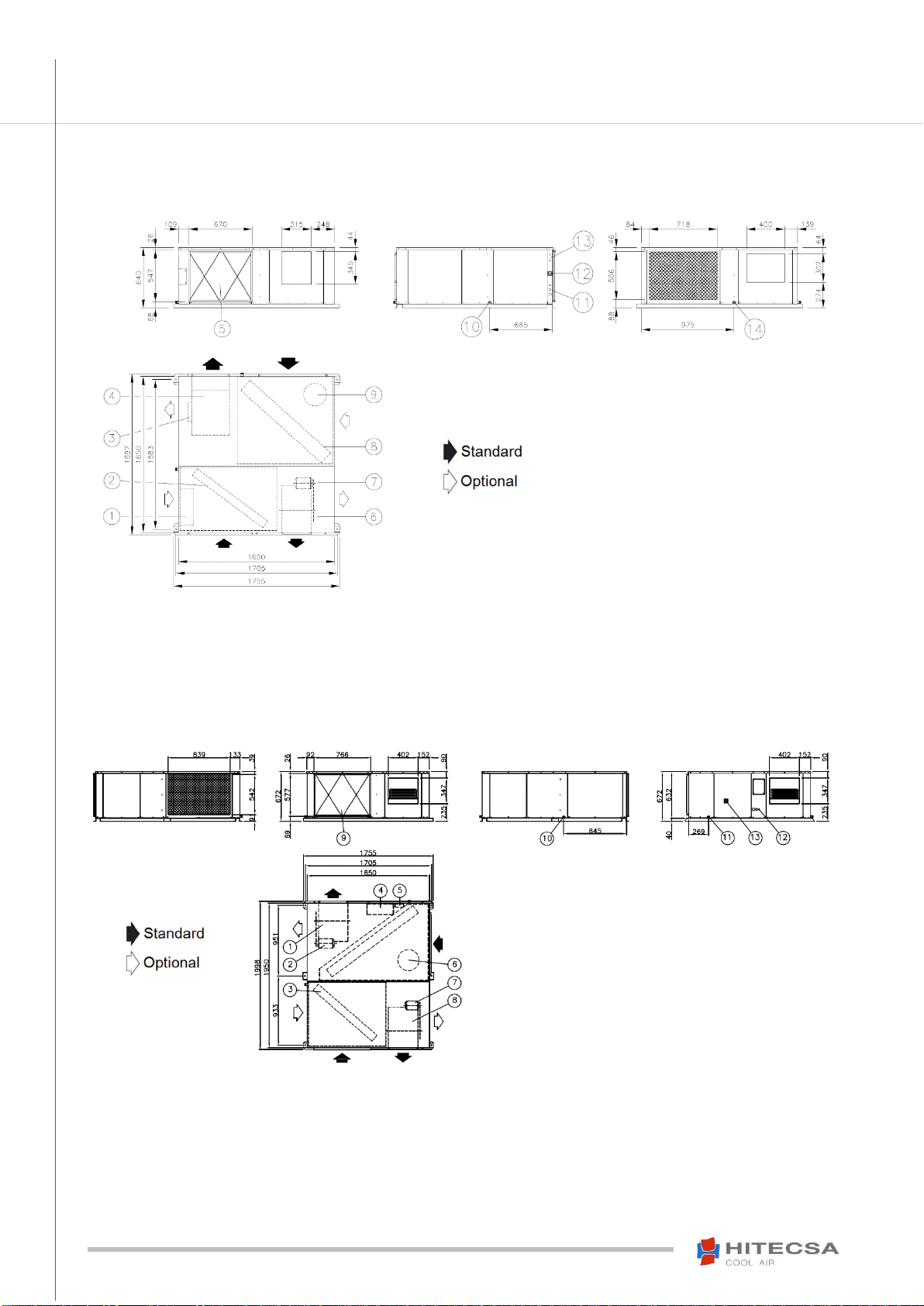

DIMENSIONS
Model 351
Models 351 –501
LEGEND
1. Compressor
2. Outdoor heat exchanger
3. Indoor heat exchanger
4. Electrical panel
5. Indoor turbine
6. Motor indoor turbine
7. Motor outdoor turbine
8. Outdoor turbine
9. Air filter
10. Indoor drainage Ø 3/4”
11. External pressure intakes
12. Main switch
13. Electrical supply input
14. Outdoor drainage Ø 3/4”
LEGEND
1. Compressor
2. Outdoor heat exchanger
3. Indoor heat exchanger
4. Electrical panel
5. Indoor turbine
6. Motor indoor turbine
7. Motor outdoor turbine
8. Outdoor turbine
9. Air filter
10. Indoor drainage Ø 3/4”
11. External pressure intakes
12. Main switch
13. Electrical supply input
14. Outdoor drainage Ø 3/4”

14
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
INSTALLATION

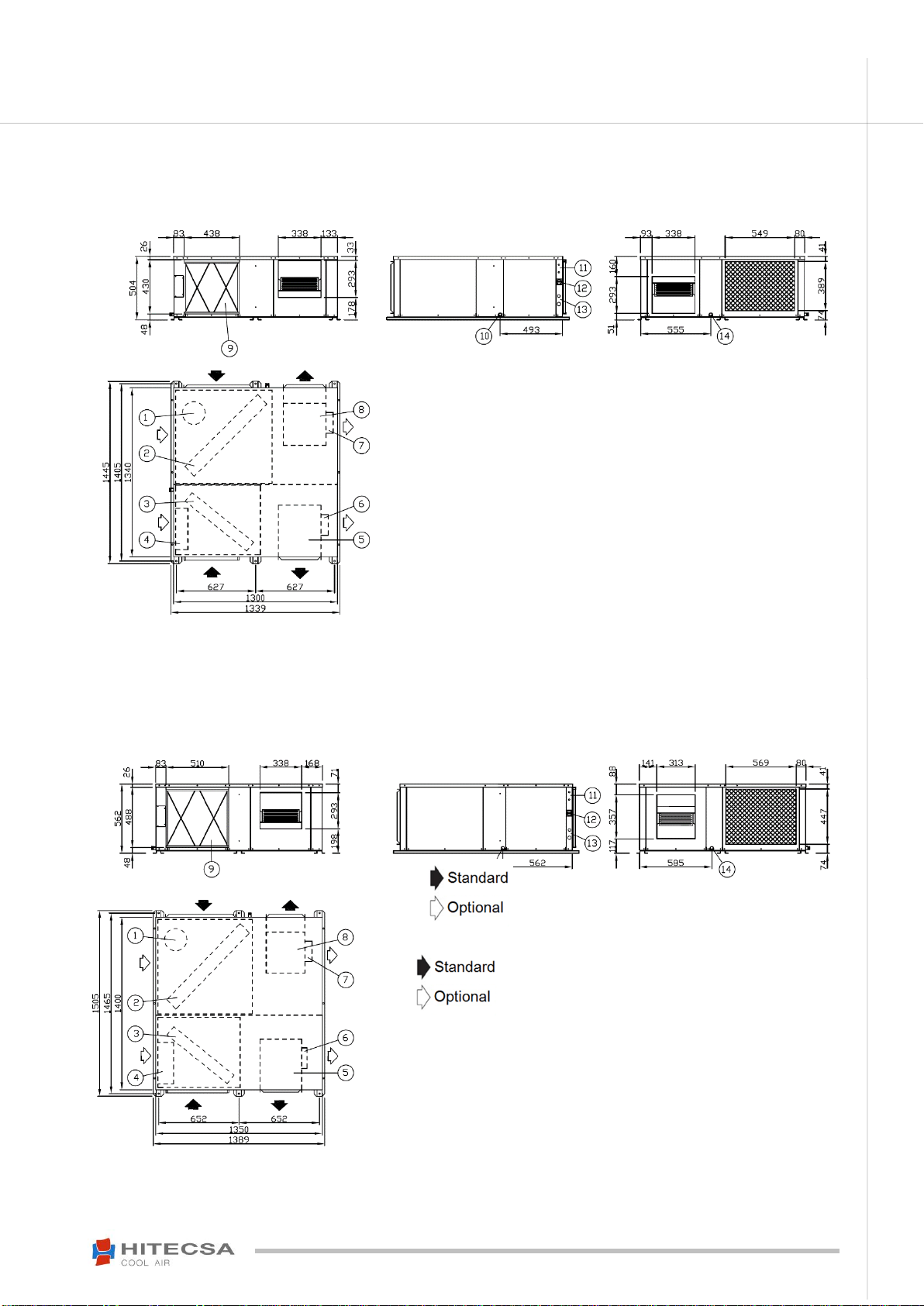

DIMENSIONS
Modelos 701 –801
Model 1001
LEGEND
1. Electrical panel
2. Indoor heat exchanger
3. Motor outdoor turbine
4. Outdoor turbine
5. Air filter
6. Indoor turbine
7. Motor indoor turbine
8. Batería exterior
9. Compressor
10. Indoor drainage Ø 3/4”
11. Electrical supply input
12. Main switch
13. External pressure intake
14. Outdoor drainage Ø 3/4 “
LEGEND
1. Outdoor turbine
2. Motor outdoor turbine
3. Indoor heat exchanger
4. Electrical panel
5. External pressure intake
6. Compressor
7. Motor indoor turbine
8. Indoor turbine
9. Air filter
10. Indoor drainage Ø 3/4”
11. Outdoor drainage Ø 3/4 “
12. Electrical supply input
13. Main switch

15
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
INSTALLATION
DIMENSIONS
Model 1001
INSTALLATION LOCATION
- Consult and respect the rules and local regulations which regulate the installation of air conditioning systems.
- Choose a site without dust and debris.
- Respect the appropriate service area for the equipment which will be installed.
- Verify that the ground or structure on which the unit will be installed is able to support its weight in operation.
- Fit shock absorbers throughout the installation to prevent the transmission of noise and vibration.
- Check that the direction of the sound level is not going to disturb anyone.
UNIT SETTLEMENT
- Be sure unit is correctly leveled.
- The bed frame should have sufficient strength to support unit weight.
- Be sure that after settlement the unit drain is working properly.
LEGEND
1. Outdoor drainage Ø 3/4”
2. Electrical supply input
3. Main switch
4. Air filter
5. Outdoor turbine
6. Motor outdoor turbine
7. Indoor heat exchanger
8. Indoor turbine
9. Motor indoor turbine
10. Compressor
11. Outdoor heat exchanger
12. External pressure intake
13. Electrical panel
14. Indoor drainage Ø 3/4”

16
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
INSTALLATION
SERVICE AREA
Make sure to respect the following measurements for the correct operation of the unit.
WATER DRAIN
The indoor drain unit (of condensate water) has 3/4” MPT connection.
Condensate drain pipe diameter should be equal or larger than the unit connection depending on the line length
and general building configuration.
The drainage line should be inclined a minimum 2% for proper water evacuation.
When drain line is exposed to air temperatures below 0 degrees, it is necessary to cover with thermal insulation
or electrical heating wire to avoid water freezing and tube damage.
It is convenient to install the drain trap with proper dimensions (see diagram).
AIR DUCTS
Air duct dimensions will be determined according to the airflow and available pressure of the unit.
Ducts must be designed by qualified technical people.
Use ducts made of non-inflammable materials in order to avoid any risk of fire as a consequence of the
deflagration of gases. It is advisable to use metal sheet duct with insulation.
Use flexible ducts to connect air ducts into the unit and thus avoid vibration and noise transmission.
Fig. 3
Recommended drain trap
measures

17
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
ELECTRICAL INSTALLATION
Unit power supply should be within 10% of volts indicated on the unit nameplate. Damage caused by the start-up
of the unit in an incorrect voltage line is not covered by Hitecsa’s warranty.
When making electrical connections always use the unit wiring diagram.
Be sure that the compressor crankcase heater can be energized before unit start.
The line protection elements have to be placed by the installer according to the current legislation local laws.
The interconnecting wires have to be in the protection tube or electrical cable conduits, cable trays, etc.
Before starting any type of operations put in position off main power switch.
WARNING!

18
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
INSTALLATION
ELECTRICAL SPECIFICATIONS
ACHA - ACHBA
201
251
351
371
401
501
Voltage
V
(50H
z)
230.1
230.1
230.1/400.3+N
400.3+N
400.3+N
400.3+N
Total power input (1)
kW
2,8
3,4
4,3
5,0
5,2
6,5
Total current input (1)
A
14,6
20,4
12,1
15,3
15,4
14,6
Total power input (2)
kW
3,5
4,1
5,3
6,9
7,1
9,2
Total current input (2)
A
15,9
18,5
12,8
16,8
16,8
16,6
Total power input (3)
kW
2,8
3,25
3,8
4,8
5,1
6,4
Total current input (3)
A
13,3
18,9
11,9
14,8
15,1
13,4
Total power input (4)
kW
3,4
4,3
4,8
5,8
6,5
8,5
Total current input (4)
A
15,2
19,4
12,8
15,8
16,4
15,5
Start-up current
A
63
96
43
63
63
66
Thermal magnetic circuit breakers
curve D*
A
20
20
15
15
20
20
Min cable section (227 CEI 53)
mm
2
2,5
4
2,5
2,5
2,5
2,5
ACHA - ACHBA
701
721
751
801
1001
1201
Voltage
V
(50H
z)
400.3+N
400.3+N
400.3+N
400.3+N
400.3+N
400.3+N
Total power input (1)
kW
7,8
8,5
9,5
9,7
12,4
15,1
Total current input (1)
A
16,9
18,6
20,2
20,3
24,5
32,0
Total power input (2)
kW
10,9
12,0
13,2
13,3
17,0
20,3
Total current input (2)
A
18,6
21,0
22,2
22,2
29,1
34,0
Total power input (3)
kW
6,9
7,9
8,1
8,8
11,8
14,4
Total current input (3)
A
14,4
16,5
18,9
19,2
23,0
31,5
Total power input (4)
kW
9,4
10,2
12,4
12,0
16,4
19,5
Total current input (4)
A
18,4
19,1
21,1
20,6
27,0
33,3
Start-up current
A
67
96
96
96
96
158
Thermal magnetic circuit breakers
curve D*
A
25
25
25
25
30
40
Min cable section (227 CEI 53)
mm
2
4
4
4
4
6
10
(1) Nominal cooling: Outdoor air temperature: 35 ºC. Indoor air wet temperature: 19 ºC.
(2) Máximo cooling: Outdoor air temperature: 46 ºC. Indoor air wet temperature: 21 ºC.
(3) Nominal heat: Outdoor air wet temperature: 6 ºC. Indoor air temperature: 20 ºC.
(4) Máximo heat: Outdoor air wet temperature: 18 ºC. Indoor air temeprature: 26 ºC.

19
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
INSTALLATION
ELECTRICAL CONNECTIONS DIAGRAM
pGD1 or Mini-pGD control (optional)
Connection to pGD1 via 6-wire telephone cable, for lines longer than 50m intercalate with TCONN (4 wires twisted and
shielded, see diagram).
Legend:
1.
Main power supply:
- 2 wires (single-phase 230V/1/50Hz)
- 4 wires (three-phase+neutral 400V/3+N/50Hz)
- Without neutral option: 3 wires (three-phase
400V/3/50hz)
2.
Ground
3.
Thermic magnetic circuit breakers curve D + differential
4.
Main switch
5.
TH Tune control. Two separated (DO NOT MIX POWER
CABLE WITH CONTROL CABLE).
- Supply cable 230 V 2 wires
- Shielding twisted pair cable AWG20/22 and with
drain wire to GND
6.
Electrical resistance supply (optional) 3 wires (400.3) o 2
wires (230.1)

20
IOM ACHA-ACHBA_201a1201_208000_180901_EN
ACHA / ACHBA
PACKAGED COMPACT
HORIZONTAL AIR - AIR
OPERATION
BEFORE START UP
Start-up has to be performed by a qualified service personnel in air conditioning.
Make sure that panels are firmly secured with screws.
Check that there is no leakage of oil or refrigerant.
Ensure that the unit is evenly leveled.
Check if there is enough space for operation and maintenance.
Before opening the electrical panel and having access to the inside of the machine it is MANDATORY
to disconnect the power supply cable of the machine which MUST BE FREE OF VOLTAGE for this
operation.
Check that the drainage is not blocked.
Always use the electrical diagram of the unit to make the connections.
Make sure that all electrical connections are properly tight.
The power supply of the unit must be as indicated on the serial plate. Damage caused by the start-up of the unit
in an incorrect voltage line is not covered by Hitecsa’s warranty.
The unit must not be supplied with any other voltage than that indicated on the serial plate. The power supply to
the unit must be within 10% of the voltage indicated on the serial plate.
Check the correct rotation direction of the fans.
The installer must place line protection elements in accordance with current legislation.
Wiring of electrical connections must be protected by a tube or other cable conduits.
Make sure if the crankcase heater of each compressor has been operating during 24 hours prior the Start Up.
Check that he air filters are clean and correctly fitted.
Check the condition and placement of grilles, diffusers, air ducts, tarpaulins, etc.
START UP
It is necessary to take notes of the air inlet and outlet temperatures to the internal coil, the volts and amps of the
compressor and motor fan, as well as the suction and discharge pressure of each compressor.
It should be remembered that it is necessary to clean the air filters after the first 4 hours of operation.
Observe, at least, 3 cooling cycle operations.
Due to the unit has frequency converters, it is essential that the protection be at least 300mA to prevent power
cuts caused by the activation of the circuit breaker.
